Cheat Sheet: Datastructures and Algorithms

By Ira Herman

Live Video Walkthrough (bonus lesson) recording

================

Big O Notation:

Time/Space Complexity review: Big O Notation

Data Structures:

Arrays - how they work with memory/addressing
Hash Maps/Hash Tables
Linked Lists (Singly and Doubly)
Stacks LIFO and Queues FIFO
Trees
Graphs

Algorithms:

Recursion
Sorting - Bubble Sort
Searching - Binary Search

================

Big O Notation:

Key words: analyzing the "complexity" of an algorithm. We'll look at time complexity (how long it takes to do something), but this can also be applied to space complexity - how much space/memory it will take up.

Big O analysis is a way to measure the time it takes (speed/efficiency) of an algorithm regardless of processor or hardware speed. So it is timeless -- even as computers get faster and faster, we can apply the same Big O analysis to an algorithm.

How to figure it out:

Is the amount of work the same, regardless of the size of the data set?
- You might have O(1).
Does the function have to go through an entire list (use a loop)?
- If so, there’s an N in that Big O class somewhere.
Are there nested loops?
- That might give you O(N^2) (or worse).
Does the function break the list into smaller chunks?
- You could have O(log(N)).

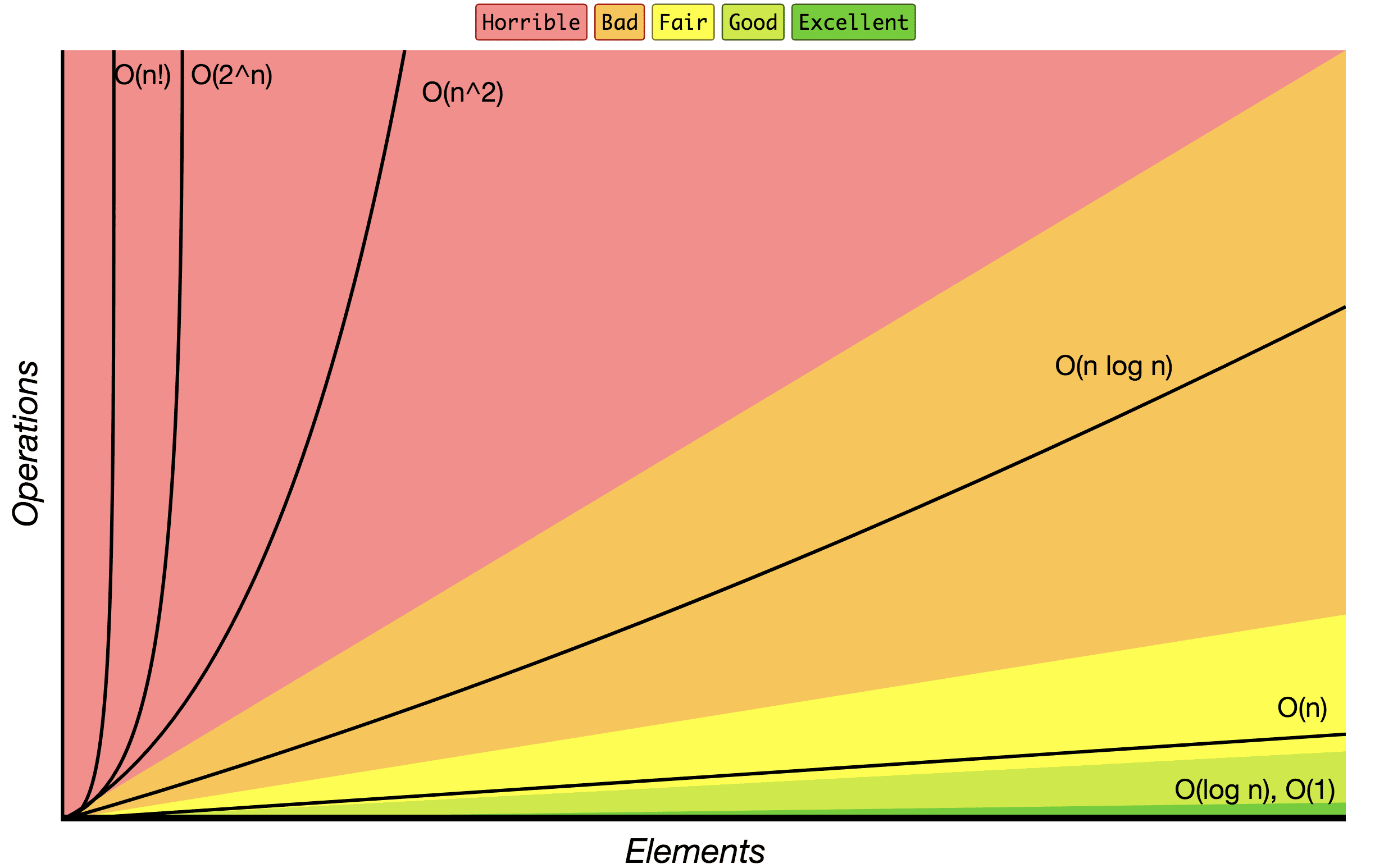

What's it called?

Constant complexity: O(1).
Linear complexity: O(N).
Quadratic complexity: O(N^2).
Logarithmic complexity: O(log(N)).
Factorial complexity: O(N!).

The main ones you'll usually be asked about are the first 4:

O(1)
O(N)
O(N^2)
O(log(N))

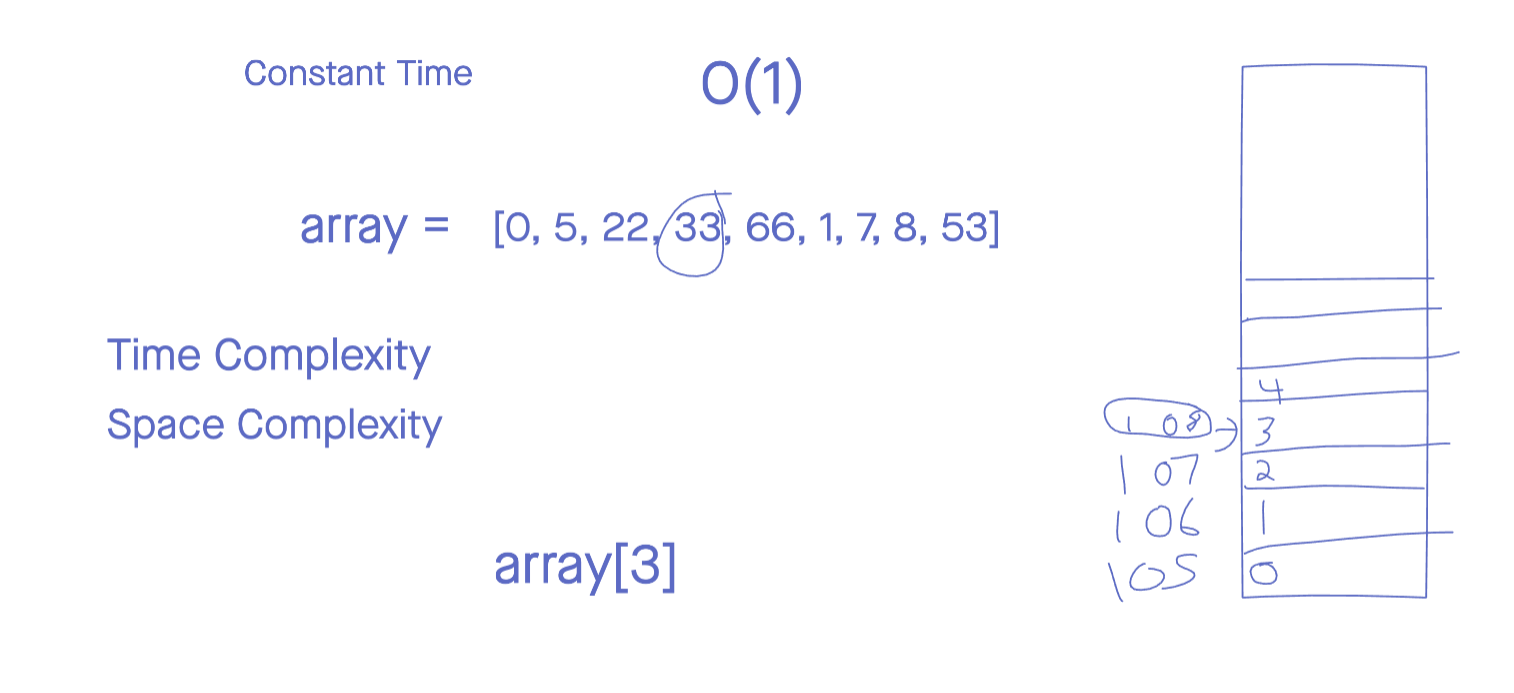

O(1) Constant Time Complexity

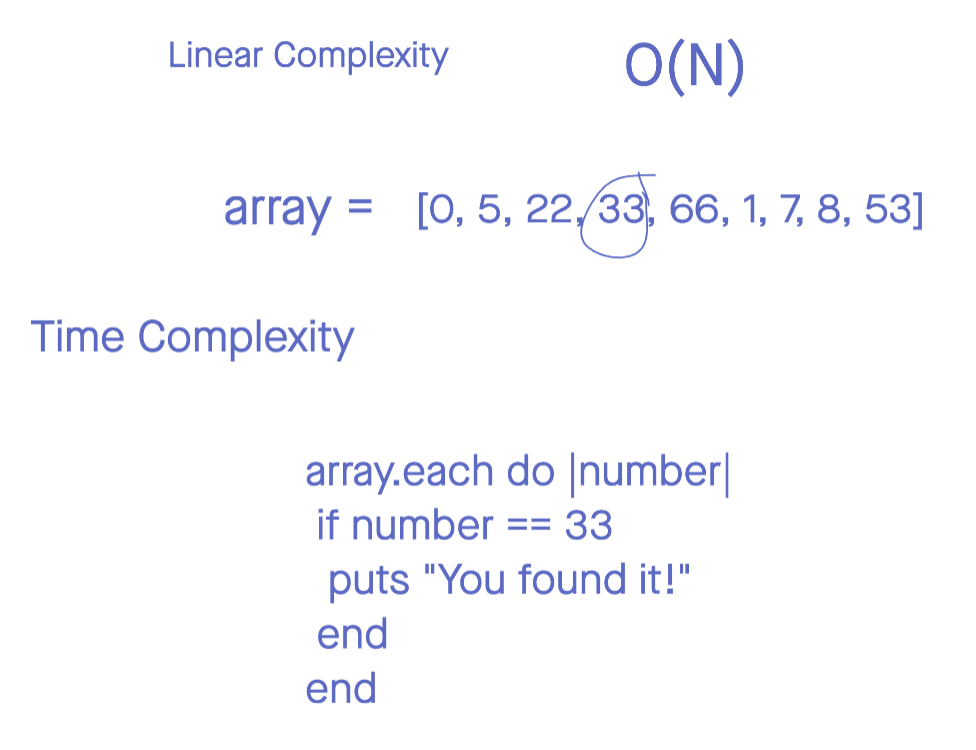

O(N) Linear Time Complexity

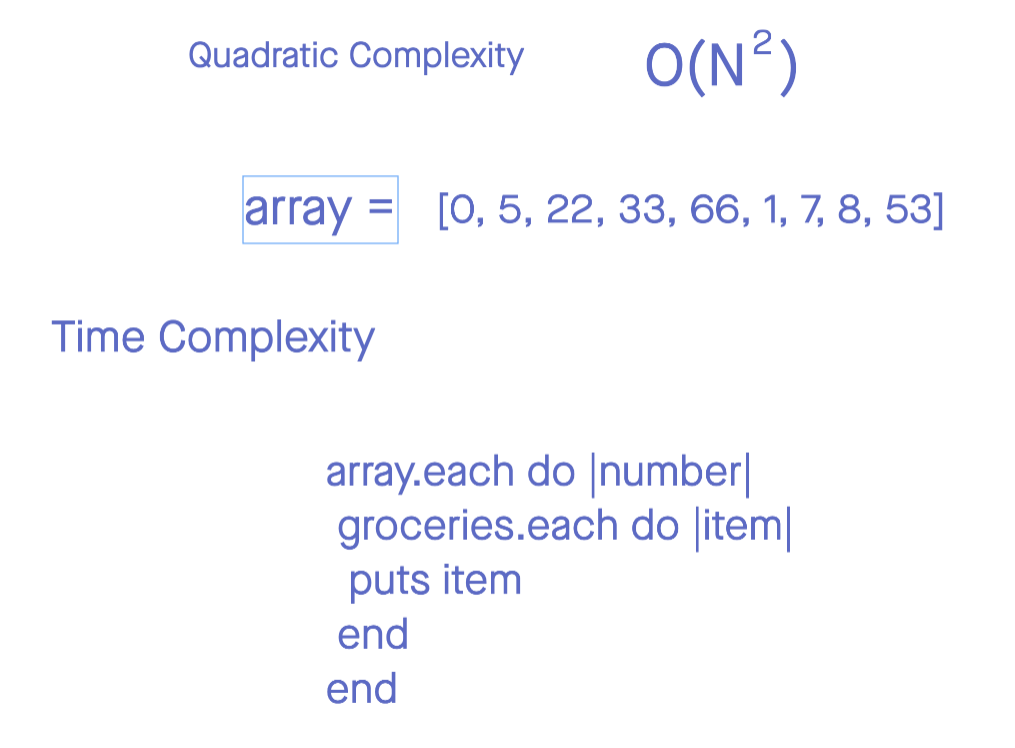

O(N^2) Quadratic Time Complexity

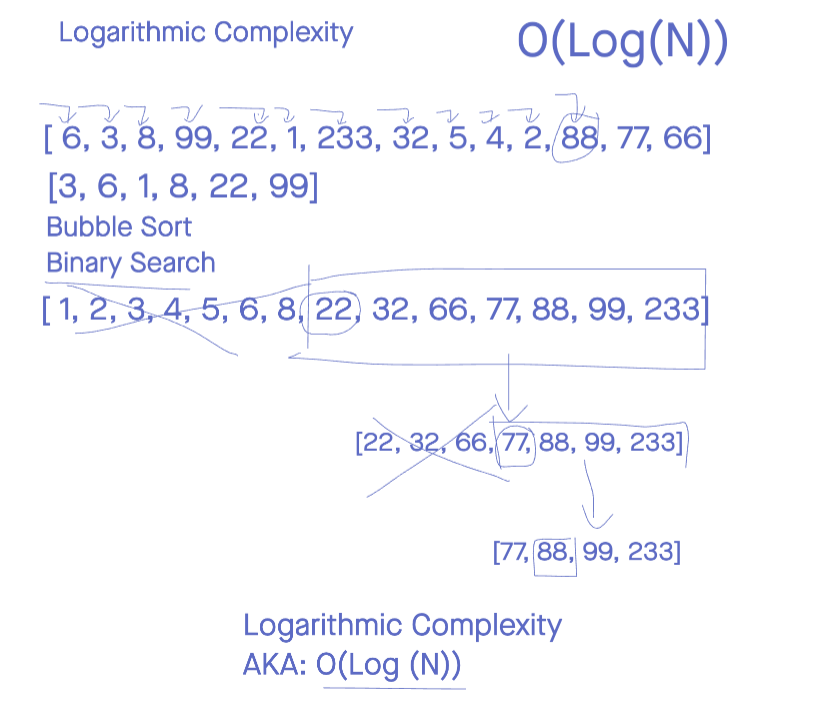

O(log(N)) Logarithmic Time Complexity

A good example: Binary search.

What's an example of Factorial O(N!) complexity?

The traveling salesman problem.

More details here

Challenge yourself

Take a look at the code samples here and analyze the time complexity using Big O notation:

Ira's Big O Code Samples repl.it

const groceries = ["eggs", "bread", "cheese", "milk", "chocolate"];
const stores = ["Whole Foods", "Sprouts", "Ralphs", "Safeway"];


////////////////////////////////////////////////////
// 1:
// What is the time complexity of this algorithm?

function getGrocery(arr, index){
  return arr[index];
}

getGrocery(groceries, 4);



////////////////////////////////////////////////////
// 2:
// What is the time complexity of this algorithm?

function listGroceries(arr){
  for (let i=0; i < arr.length; i++){
    console.log(arr[i]);
  }
}

listGroceries(groceries);



////////////////////////////////////////////////////
// 3:
// What is the time complexity of this algorithm?

function listGroceriesAtEachStore(storesArr, groceriesArr){
  for (let i=0; i < storesArr.length; i++){
    console.log(storesArr[i]);

    for (let j=0; j < groceriesArr.length; j++){
      console.log(groceriesArr[j]);
    }
  }
}

listGroceriesAtEachStore(stores, groceries);

Linked List

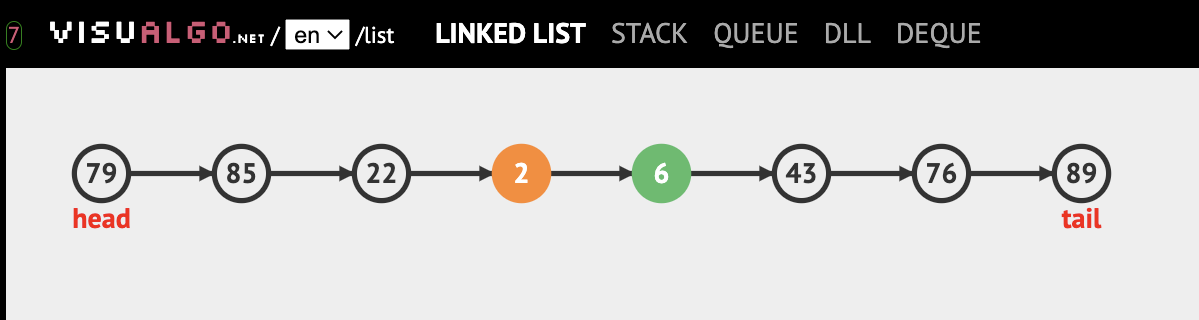

Visualize it here

The code: Linked list example implementation repl.it

// Singly Linked List:

class LinkedList {

  constructor(value) {
    this.head = {
      value: value,
      next: null
    };
    this.tail = this.head;
    this.length = 1;
  }

  append(value) {
    const newNode = {
      value: value,
      next: null
    }
    this.tail.next = newNode;
    this.tail = newNode;
    this.length++;
    return this;
  }

  prepend(value) {
    const newNode = {
      value: value,
      next: null
    }
    newNode.next = this.head;
    this.head = newNode;
    this.length++;
    return this;
  }

  printList() {
    const array = [];
    let currentNode = this.head;
    while(currentNode !== null){
        array.push(currentNode.value)
        currentNode = currentNode.next
    }
    return array;
  }

  insert(index, value){
    //Check for proper parameters;
    if(index >= this.length) {
      console.log('yes')
      return this.append(value);
    }

    const newNode = {
      value: value,
      next: null
    }
    const leader = this.traverseToIndex(index-1);
    const holdingPointer = leader.next;
    leader.next = newNode;
    newNode.next = holdingPointer;
    this.length++;
    return this.printList();
  }

  traverseToIndex(index) {
    //Check parameters
    let counter = 0;
    let currentNode = this.head;
    while(counter !== index){
      currentNode = currentNode.next;
      counter++;
    }
    return currentNode;
  }

  remove(index) {
    // Check Parameters
    const leader = this.traverseToIndex(index-1);
    const unwantedNode = leader.next;
    leader.next = unwantedNode.next;
    this.length--;
    return this.printList();
  }
}

let myLinkedList = new LinkedList(10);
myLinkedList.append(5);
myLinkedList.append(16);myLinkedList.prepend(1);
myLinkedList.insert(2, 99);
myLinkedList.insert(20, 88);
myLinkedList.remove(2);

Doubly Linked List
