Sequential + Parallel Root Finding using Bisection Method, powered by SYCL DPC++

bisection.parallel.cpp

#include <CL/sycl.hpp>
#include <array>
#include <chrono>
#include <cmath>
#include <iostream>

using namespace sycl;

constexpr uint N = 32;
float C = powf(10.0, -5.0);

float f(float x) { return x * x * x - 4.0 * x - 5.0; }

float bisect(queue &Q, buffer<float, 1> &args, buffer<float, 1> &evals) {
  while (true) {
    Q.submit([&](handler &h) {
      accessor dacc_args{args, h, read_write};
      accessor dacc_evals{evals, h, read_write};

      h.parallel_for(nd_range<1>{{N}, {N}}, [=](nd_item<1> item) {
        int idx = item.get_global_id()[0];
        float idx_f = static_cast<float>(idx);

        if (idx == 0) {
          dacc_evals[idx] = f(dacc_args[0]);
        } else if (idx == N - 1) {
          dacc_evals[idx] = f(dacc_args[1]);
        } else {
          dacc_evals[idx] = f(dacc_args[0] + idx_f * dacc_args[2]);
        }

        item.barrier();

        if (idx != 0 && dacc_evals[idx - 1] * dacc_evals[idx] < 0.0) {
          float a = dacc_args[0] + (idx_f - 1.0) * dacc_args[2];
          float b = a + dacc_args[2];
          dacc_args[0] = a;
          dacc_args[1] = b;
          dacc_args[2] = (b - a) / float(N - 1);
        }
      });
    });

    host_accessor hacc_args{args, read_only};

    float a = hacc_args[0];
    float b = hacc_args[1];
    if (std::abs(b - a) < C) {
      break;
    }
  }

  host_accessor hacc_args{args, read_only};
  return hacc_args[0];
}

int main(int argc, char **argv) {
  device D{default_selector{}};
  queue Q{D};
  std::cout << "running on: " << D.get_info<info::device::name>() << std::endl;

  float a = -10.0;
  float b = 10.0;
  float s = (b - a) / static_cast<float>(N - 1);
  std::array<float, 3> arg_arr = {a, b, s};

  buffer<float, 1> args{arg_arr};
  buffer<float, 1> evals{range<1>{N}};

  Q.submit([&](handler &h) {
    accessor dacc{args, h, write_only, noinit};
    h.single_task([=]() {
      dacc[0] = a;
      dacc[1] = b;
      dacc[2] = s;
    });
  });

  auto start = std::chrono::steady_clock::now();
  float root = bisect(Q, args, evals);
  auto end = std::chrono::steady_clock::now();

  std::cout << "root: " << root << ", in "
            << std::chrono::duration_cast<std::chrono::milliseconds>(end -
                                                                     start)
                   .count()
            << "ms" << std::endl;

  return 0;
}

bisection.sequential.rs

use std::time::Instant;

// equation whose root being searched
fn f(x: f32) -> f32 {
    x.powi(3) - 4f32 * x - 5f32
}

// sequential bisection method implementation
fn bisect(f: &dyn Fn(f32) -> f32, mut a: f32, mut b: f32, c: f32) -> f32 {
    while (b - a).abs() >= c {
        let m = (a + b) / 2f32;
        if f(a) * f(m) < 0f32 {
            b = m;
        } else {
            a = m;
        }
    }

    a
}

fn main() {
    // approximate with max error 10 ** -5
    let c = 10f32.powi(-5);

    let start = Instant::now();
    let a_ = bisect(&f1, -3f32, 3f32, c);
    println!("{}, in {:?}", a_, start.elapsed());
}


plot.py

#!/usr/bin/python3

from matplotlib import pyplot as plt
import numpy as np

f = lambda x: x ** 3 - 4 * x - 5

x = np.arange(-3, 3, 0.01)
y = f(x)

fig = plt.figure()
ax = fig.add_subplot(1, 1, 1)

ax.spines['left'].set_position('zero')
ax.spines['bottom'].set_position('zero')
ax.spines['top'].set_color('none')
ax.spines['right'].set_color('none')

ax.xaxis.set_ticks_position('bottom')
ax.yaxis.set_ticks_position('left')

plt.plot(x, y)
plt.legend(['f(x) = x^3 - 4x - 5'], loc='upper left')
plt.savefig('plot.png')

Introduction

If you've not yet read https://itzmeanjan.in/pages/parallel-root-finding-using-sycl-dpcpp.html, you should probably consider doing so, given this gist accompanies that document.

Here I keep both sequential & parallel implementation of bisection method, used for finding root of non-linear equation of single variable. SIMD version of it is written in DPC++.

Usage

• Make sure you've built DPC++ compiler. I found this one helpful.
• Now compile bisection.parallel.cpp with

clang++ -fsycl bisection.parallel.cpp -o a.out

• Run it, you'll see something like 👇

./a.out

running on: Intel Xeon Processor (Skylake, IBRS)
root: 2.45668, in 26ms

• For running sequential version bisection.sequential.rs, you should copy/ paste it in cargo project's main.rs.

mkdir bisection_sequential
pushd bisection_sequential
cargo init

# copy content of bisection.sequential.rs to main.rs

cargo run

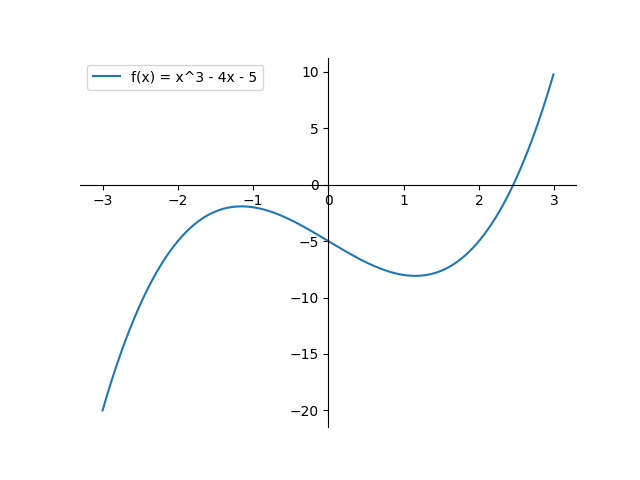

• You may also run python script for plotting function f(x) = x ** 3 - 4 * x - 5

python3 plot.py

Generated plot looks like 👇
