Dashing Catchpoint® widget

README.md

Preview

Description

Display your website availability / performances from Catchpoint® SaaS service.

This using the Catchpoint® Pull API.

This gather data for the current day (from midnight to now).

Requirements

• The Rickshaw graph widget
• Gems :
• httparty
• json
• base64
• time
• Catchpoint® Pull API key and secret

Usage

Add this to your erb dashboard file :

<!-- Catchpoint response time -->
<li data-row="1" data-col="2" data-sizex="6" data-sizey="3">
  <div data-id="catchpoint-average-response" style="background: #555b7f;" data-title="Average response time" data-view="Rickshawgraph" data-renderer="area" data-stroke="true" data-colors="#898eab" data-raw-number="true" data-suffix=" ms"></div>
</li>

<!-- Catchpoint availability -->
<li data-row="1" data-col="3" data-sizex="3" data-sizey="3">
  <div data-id="catchpoint-average-availability" data-title="Availability" data-view="Meter" data-min="0" data-max="100" data-moreinfo="in % for today"></div>
</li>

Settings

Catchpoint ®

Log in to the Catchpoint® portal to configure the API

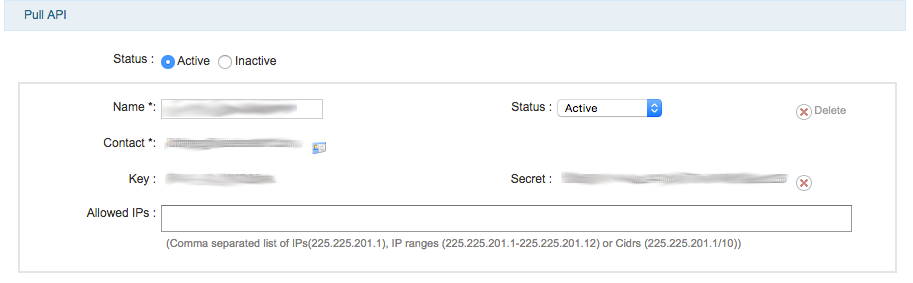

Then set up the Pull API

Job

There is only 3 mandatory settings :

testId = "<CATCHPOINT_TEST_ID>"
clientId = "<CATCHPOINT_PULL_API_KEY>"
clientSecret = "<CATCHPOINT_PULL_API_SECRET>"

You can customize as you wish the widgetId, but it must match with the data-id.

respWidgetId = "my-custom-catchpoint-average-response"
availWidgetId = "my-custom-catchpoint-average-availability"

NB :

This is for use with Catchpoint® Favorites charts so the testId must be the favorite chart id.

More info about this API call here

catchpoint.rb

#!/usr/bin/env ruby

require 'httparty'
require 'json'
require 'base64'
require 'time'

##
#
# Written by JB Farez ([email protected])
# Rev 0.3
# Last update : 2014/11/17
#
##

## Constants
## --
DEFAULT_STATUS_RESP_TIME = "ok"
DEFAULT_STATUS_AVAIL = "ok"

## Vars
## --
apiUrl = "https://io.catchpoint.com/ui/api/"
apiVersion = "v1"

testId = "<CATCHPOINT_TEST_ID>"
clientId = "<CATCHPOINT_PULL_API_KEY>"
clientSecret = "<CATCHPOINT_PULL_API_SECRET>"

respWidgetId = "catchpoint-average-response"
availWidgetId = "catchpoint-average-availability"

graphPoints = []

## Job
## --
SCHEDULER.every '180s', :first_in => 0 do |job|

    timeNow = Time.now.strftime('%Y-%m-%dT%H:%M').to_s
    timeMidnight = Time.now.strftime('%Y-%m-%dT00:00').to_s

    puts "#{timeNow} : INFO : Start polling average response time of webmobile from Catchpoint"

    # Get the access token to pull the API
    getTokenUri = "token"
    getTokenPost = "grant_type=client_credentials&client_id=#{clientId}&client_secret=#{clientSecret}"

    tokenResponse = HTTParty.post("#{apiUrl}#{getTokenUri}",
      {
        :body => getTokenPost.to_s,
        :headers => { 'Accept' => 'application/json' }
      })

    # Get the token himself and encode it in base64
    accessToken = JSON.parse(tokenResponse.body)["access_token"]
    encodedToken = Base64.encode64(accessToken).gsub("\n", '')
    # Get the token type
    tokenType = JSON.parse(tokenResponse.body)["token_type"]

    # Get average response time and availability
    response = HTTParty.get("#{apiUrl}/#{apiVersion}/performance/favoriteCharts/#{testId}/data?startTime=#{timeMidnight}&endTime=#{timeNow}",
      {
        :headers => { 'Accept' => 'application/json', "Authorization" => "#{tokenType} #{encodedToken}" }
      })
    respCode = response.code
    data = response.body.to_s

    # Check there is a content
    if respCode == 200
      # Average response time
      avgRespTime = JSON.parse(data)["summary"]["items"][0]["synthetic_metrics"][0].to_i
      if avgRespTime.to_i.between?(2000, 3000)
        respStatus = "warning"
      elsif avgRespTime.to_i > 3001
        respStatus = "critical"
      else
                respStatus = DEFAULT_STATUS_RESP_TIME
      end
      graphPoints << { x:Time.now.to_i, y:avgRespTime }

      # Availability
      avgAvail = "%.2f" % JSON.parse(data)["summary"]["items"][0]["synthetic_metrics"][2].to_f
      if avgAvail.to_i.between?(98, 99)
        availStatus = "warning"
      elsif avgAvail.to_i < 98
        availStatus = "critical"
      else
        availStatus = DEFAULT_STATUS_AVAIL
      end

      # If executed by dashing send the event to widget
      # If not, just print to stdout
      if defined?(send_event)
        send_event(respWidgetId, { points: graphPoints, status: respStatus })
        send_event(availWidgetId, { value: avgAvail, status: availStatus })
      else
        puts "Average response time : #{avgRespTime} (status : #{respStatus})"
        puts "Average availability : #{avgAvail} (status : #{availStatus})"
        puts "Queries : \n\t{ value: #{avgRespTime}, status: #{respStatus} }\n\t{ value: #{avgAvail}, status: #{availStatus} }"
      end

      puts "#{timeNow} : INFO : Polling average response time and availability of webmobile from Catchpoint is finished"

    else
      puts "#{timeNow} : FATAL : Response code = #{respCode}"
      puts "#{timeNow} : FATAL : Content = #{data}"
    end

end
