Media, Politics and Graphs

Here is Rik Van Bruggen's original blog post.

My dear friend and neo4j community member Ron recently pointed me to an amazing piece of work. Thomas Boeschoten, of the Utrecht Data School among many other things, published some amazing work of analysing the Dutch Talk Shows from different perspectives, using Gephi as one of his tools. Some of his results are nothing short of fascinating, and very cool to look at.

…

I will not try to help you understand the depths of Thomas' research, I would just like to take this dataset - which he kindly shared - for a spin using neo4j.

Importing the dataset

Rik originally imported the 20x larger dataset from Gephi, but this GraphGist uses a sampled version of the original.

create (_0:`SHOW` {`Modularity Name`:"B&vD", `id`:"B&vD", `label`:"B&vD", `modularity_class`:3, `weighted outdegree`:0.000000})
create (_1:`SHOW` {`Modularity Name`:"P&W", `id`:"P&W", `label`:"P&W", `modularity_class`:4, `weighted outdegree`:0.000000})
create (_2:`SHOW` {`Modularity Name`:"DWDD", `id`:"DWDD", `label`:"DWDD", `modularity_class`:5, `weighted outdegree`:0.000000})
create (_3:`SHOW` {`Modularity Name`:"Zomergasten", `id`:"Zomergasten", `label`:"Zomergasten", `modularity_class`:0, `weighted outdegree`:0.000000})
create (_5:`SHOW` {`Modularity Name`:"KvdB", `id`:"KvdB", `label`:"KvdB", `modularity_class`:1, `weighted outdegree`:0.000000})
create (_11:`SHOW` {`Modularity Name`:"Jinek", `id`:"Jinek op Zondag", `label`:"Jinek op Zondag", `modularity_class`:2, `weighted outdegree`:0.000000})
create (_16:`SHOW` {`Modularity Name`:"Jinek", `id`:"Jinek", `label`:"Jinek", `modularity_class`:2, `weighted outdegree`:0.000000})
create (_35:`GUEST` {`Modularity Name`:"Jinek", `id`:"Annejet van der Zijl", `label`:"Annejet van der Zijl", `modularity_class`:2, `weighted outdegree`:4.000000})
create (_42:`GUEST` {`Modularity Name`:"KvdB", `Partij`:"VVD", `id`:"Arend Jan Boekestijn", `label`:"Arend Jan Boekestijn", `modularity_class`:1, `weighted outdegree`:12.000000})
create (_48:`GUEST` {`Modularity Name`:"P&W", `id`:"Arthur Japin", `label`:"Arthur Japin", `modularity_class`:4, `weighted outdegree`:5.000000})
create (_55:`GUEST` {`Modularity Name`:"DWDD", `id`:"Barry Atsma", `label`:"Barry Atsma", `modularity_class`:5, `weighted outdegree`:6.000000})
create (_57:`GUEST` {`Modularity Name`:"P&W", `id`:"Bart Chabot", `label`:"Bart Chabot", `modularity_class`:4, `weighted outdegree`:72.000000})
create (_84:`GUEST` {`Modularity Name`:"B&vD", `id`:"Cees Geel", `label`:"Cees Geel", `modularity_class`:3, `weighted outdegree`:5.000000})
create (_106:`GUEST` {`Modularity Name`:"DWDD", `id`:"Derk Sauer", `label`:"Derk Sauer", `modularity_class`:5, `weighted outdegree`:19.000000})
create (_119:`GUEST` {`Modularity Name`:"KvdB", `Partij`:"CDA", `id`:"Dries van Agt", `label`:"Dries van Agt", `modularity_class`:1, `weighted outdegree`:12.000000})
create (_128:`GUEST` {`Modularity Name`:"B&vD", `id`:"Ellen Ten Damme", `label`:"Ellen Ten Damme", `modularity_class`:3, `weighted outdegree`:8.000000})
create (_137:`GUEST` {`Modularity Name`:"KvdB", `id`:"Ernst Dani��l Smid", `label`:"Ernst Dani��l Smid", `modularity_class`:1, `weighted outdegree`:6.000000})
create (_170:`GUEST` {`Modularity Name`:"DWDD", `Partij`:"PVV", `id`:"Geert Wilders", `label`:"Geert Wilders", `modularity_class`:5, `weighted outdegree`:13.000000})
create (_180:`GUEST` {`Modularity Name`:"DWDD", `id`:"Giel Beelen", `label`:"Giel Beelen", `modularity_class`:5, `weighted outdegree`:155.000000})
create (_190:`GUEST` {`Modularity Name`:"DWDD", `id`:"Hadewych Minis", `label`:"Hadewych Minis", `modularity_class`:5, `weighted outdegree`:7.000000})
create (_192:`GUEST` {`Modularity Name`:"P&W", `Partij`:"VVD", `id`:"Halbe Zijlstra", `label`:"Halbe Zijlstra", `modularity_class`:4, `weighted outdegree`:14.000000})
create (_210:`GUEST` {`Modularity Name`:"P&W", `Partij`:"SP", `id`:"Harry van Bommel", `label`:"Harry van Bommel", `modularity_class`:4, `weighted outdegree`:18.000000})
create (_243:`GUEST` {`Modularity Name`:"P&W", `Partij`:"GL", `id`:"Ineke van Gent", `label`:"Ineke van Gent", `modularity_class`:4, `weighted outdegree`:6.000000})
create (_245:`GUEST` {`Modularity Name`:"P&W", `id`:"Ingeborg Beugel", `label`:"Ingeborg Beugel", `modularity_class`:4, `weighted outdegree`:13.000000})
create (_252:`GUEST` {`Modularity Name`:"KvdB", `id`:"Jaap Jongbloed", `label`:"Jaap Jongbloed", `modularity_class`:1, `weighted outdegree`:8.000000})
create (_279:`GUEST` {`Modularity Name`:"B&vD", `id`:"Jenny Arean", `label`:"Jenny Arean", `modularity_class`:3, `weighted outdegree`:6.000000})
create (_291:`GUEST` {`Modularity Name`:"P&W", `Partij`:"PVDA", `id`:"Job Cohen", `label`:"Job Cohen", `modularity_class`:4, `weighted outdegree`:53.000000})
create (_302:`GUEST` {`Modularity Name`:"P&W", `Partij`:"GL", `id`:"Jolande Sap", `label`:"Jolande Sap", `modularity_class`:4, `weighted outdegree`:23.000000})
create (_330:`GUEST` {`Modularity Name`:"Jinek", `id`:"Lange Frans", `label`:"Lange Frans", `modularity_class`:2, `weighted outdegree`:4.000000})
create (_380:`GUEST` {`Modularity Name`:"P&W", `Partij`:"VVD", `id`:"Melanie Schultz-Maas van Haegen Geesteranus", `label`:"Melanie Schultz-Maas van Haegen Geesteranus", `modularity_class`:4, `weighted outdegree`:7.000000})
create (_423:`GUEST` {`Modularity Name`:"P&W", `id`:"Peter Paul de Vries", `label`:"Peter Paul de Vries", `modularity_class`:4, `weighted outdegree`:33.000000})
create (_429:`GUEST` {`Modularity Name`:"P&W", `id`:"Peter Verhaar", `label`:"Peter Verhaar", `modularity_class`:4, `weighted outdegree`:24.000000})
create (_445:`GUEST` {`Modularity Name`:"DWDD", `id`:"Ramsey Nasr", `label`:"Ramsey Nasr", `modularity_class`:5, `weighted outdegree`:10.000000})
create (_448:`GUEST` {`Modularity Name`:"B&vD", `id`:"Ren�� Froger", `label`:"Ren�� Froger", `modularity_class`:3, `weighted outdegree`:8.000000})
create (_509:`GUEST` {`Modularity Name`:"KvdB", `id`:"Thomas Dekker", `label`:"Thomas Dekker", `modularity_class`:1, `weighted outdegree`:4.000000})
create (_552:`PARTY` {`name`:"CDA"})
create (_553:`PARTY` {`name`:"SP"})
create (_554:`PARTY` {`name`:"PVDA"})
create (_555:`PARTY` {`name`:"D66"})
create (_556:`PARTY` {`name`:"CU"})
create (_557:`PARTY` {`name`:"VVD"})
create (_558:`PARTY` {`name`:"PVV"})
create (_559:`PARTY` {`name`:"GL"})
create (_560:`PARTY` {`name`:"50PLUS"})
create (_561:`PARTY` {`name`:"?"})
create (_562:`PARTY` {`name`:"SGP"})
create (_563:`PARTY` {`name`:"EenNL"})
create (_564:`PARTY` {`name`:"PVDD"})
create (_565:`PARTY` {`name`:"LPF"})
create (_566:`PARTY` {`name`:"TROTS"})
create (_567:`GENDER` {`name`:"Male"})
create (_568:`GENDER` {`name`:"Female"})
create _35-[:`HAS_GENDER`]->_568
create _35-[:`VISITED` {`quantity`:1}]->_11
create _35-[:`VISITED` {`quantity`:1}]->_5
create _35-[:`VISITED` {`quantity`:1}]->_1
create _35-[:`VISITED` {`quantity`:1}]->_0
create _42-[:`AFFILIATED_WITH`]->_557
create _42-[:`HAS_GENDER`]->_567
create _42-[:`VISITED` {`quantity`:1}]->_11
create _42-[:`VISITED` {`quantity`:4}]->_5
create _42-[:`VISITED` {`quantity`:3}]->_2
create _42-[:`VISITED` {`quantity`:2}]->_1
create _42-[:`VISITED` {`quantity`:2}]->_0
create _48-[:`HAS_GENDER`]->_567
create _48-[:`VISITED` {`quantity`:1}]->_11
create _48-[:`VISITED` {`quantity`:1}]->_2
create _48-[:`VISITED` {`quantity`:3}]->_1
create _55-[:`HAS_GENDER`]->_567
create _55-[:`VISITED` {`quantity`:1}]->_11
create _55-[:`VISITED` {`quantity`:4}]->_2
create _55-[:`VISITED` {`quantity`:1}]->_1
create _57-[:`HAS_GENDER`]->_567
create _57-[:`VISITED` {`quantity`:2}]->_5
create _57-[:`VISITED` {`quantity`:8}]->_2
create _57-[:`VISITED` {`quantity`:41}]->_1
create _57-[:`VISITED` {`quantity`:21}]->_0
create _84-[:`HAS_GENDER`]->_567
create _84-[:`VISITED` {`quantity`:2}]->_2
create _84-[:`VISITED` {`quantity`:1}]->_1
create _84-[:`VISITED` {`quantity`:2}]->_0
create _106-[:`HAS_GENDER`]->_567
create _106-[:`VISITED` {`quantity`:1}]->_16
create _106-[:`VISITED` {`quantity`:1}]->_11
create _106-[:`VISITED` {`quantity`:7}]->_2
create _106-[:`VISITED` {`quantity`:4}]->_1
create _106-[:`VISITED` {`quantity`:6}]->_0
create _119-[:`AFFILIATED_WITH`]->_552
create _119-[:`HAS_GENDER`]->_567
create _119-[:`VISITED` {`quantity`:1}]->_11
create _119-[:`VISITED` {`quantity`:4}]->_5
create _119-[:`VISITED` {`quantity`:1}]->_3
create _119-[:`VISITED` {`quantity`:2}]->_2
create _119-[:`VISITED` {`quantity`:4}]->_1
create _128-[:`HAS_GENDER`]->_568
create _128-[:`VISITED` {`quantity`:2}]->_11
create _128-[:`VISITED` {`quantity`:1}]->_5
create _128-[:`VISITED` {`quantity`:1}]->_1
create _128-[:`VISITED` {`quantity`:4}]->_0
create _137-[:`HAS_GENDER`]->_567
create _137-[:`VISITED` {`quantity`:2}]->_5
create _137-[:`VISITED` {`quantity`:3}]->_2
create _137-[:`VISITED` {`quantity`:1}]->_1
create _170-[:`AFFILIATED_WITH`]->_558
create _170-[:`HAS_GENDER`]->_567
create _170-[:`VISITED` {`quantity`:1}]->_11
create _170-[:`VISITED` {`quantity`:3}]->_5
create _170-[:`VISITED` {`quantity`:7}]->_2
create _170-[:`VISITED` {`quantity`:2}]->_0
create _180-[:`HAS_GENDER`]->_567
create _180-[:`VISITED` {`quantity`:154}]->_2
create _180-[:`VISITED` {`quantity`:1}]->_0
create _190-[:`HAS_GENDER`]->_568
create _190-[:`VISITED` {`quantity`:1}]->_11
create _190-[:`VISITED` {`quantity`:1}]->_5
create _190-[:`VISITED` {`quantity`:3}]->_2
create _190-[:`VISITED` {`quantity`:1}]->_1
create _190-[:`VISITED` {`quantity`:1}]->_0
create _192-[:`AFFILIATED_WITH`]->_557
create _192-[:`HAS_GENDER`]->_567
create _192-[:`VISITED` {`quantity`:1}]->_11
create _192-[:`VISITED` {`quantity`:2}]->_5
create _192-[:`VISITED` {`quantity`:11}]->_1
create _210-[:`AFFILIATED_WITH`]->_553
create _210-[:`HAS_GENDER`]->_567
create _210-[:`VISITED` {`quantity`:1}]->_11
create _210-[:`VISITED` {`quantity`:3}]->_5
create _210-[:`VISITED` {`quantity`:2}]->_2
create _210-[:`VISITED` {`quantity`:9}]->_1
create _210-[:`VISITED` {`quantity`:3}]->_0
create _243-[:`AFFILIATED_WITH`]->_559
create _243-[:`HAS_GENDER`]->_568
create _243-[:`VISITED` {`quantity`:1}]->_5
create _243-[:`VISITED` {`quantity`:1}]->_2
create _243-[:`VISITED` {`quantity`:4}]->_1
create _245-[:`HAS_GENDER`]->_568
create _245-[:`VISITED` {`quantity`:1}]->_5
create _245-[:`VISITED` {`quantity`:1}]->_2
create _245-[:`VISITED` {`quantity`:10}]->_1
create _245-[:`VISITED` {`quantity`:1}]->_0
create _252-[:`HAS_GENDER`]->_567
create _252-[:`VISITED` {`quantity`:1}]->_11
create _252-[:`VISITED` {`quantity`:2}]->_5
create _252-[:`VISITED` {`quantity`:1}]->_2
create _252-[:`VISITED` {`quantity`:3}]->_1
create _252-[:`VISITED` {`quantity`:1}]->_0
create _279-[:`HAS_GENDER`]->_568
create _279-[:`VISITED` {`quantity`:2}]->_2
create _279-[:`VISITED` {`quantity`:2}]->_1
create _279-[:`VISITED` {`quantity`:2}]->_0
create _291-[:`AFFILIATED_WITH`]->_554
create _291-[:`HAS_GENDER`]->_567
create _291-[:`VISITED` {`quantity`:5}]->_5
create _291-[:`VISITED` {`quantity`:18}]->_2
create _291-[:`VISITED` {`quantity`:24}]->_1
create _291-[:`VISITED` {`quantity`:6}]->_0
create _302-[:`AFFILIATED_WITH`]->_559
create _302-[:`HAS_GENDER`]->_568
create _302-[:`VISITED` {`quantity`:1}]->_11
create _302-[:`VISITED` {`quantity`:3}]->_5
create _302-[:`VISITED` {`quantity`:8}]->_2
create _302-[:`VISITED` {`quantity`:11}]->_1
create _330-[:`HAS_GENDER`]->_567
create _330-[:`VISITED` {`quantity`:1}]->_11
create _330-[:`VISITED` {`quantity`:1}]->_2
create _330-[:`VISITED` {`quantity`:1}]->_1
create _330-[:`VISITED` {`quantity`:1}]->_0
create _380-[:`AFFILIATED_WITH`]->_557
create _380-[:`HAS_GENDER`]->_568
create _380-[:`VISITED` {`quantity`:1}]->_11
create _380-[:`VISITED` {`quantity`:1}]->_2
create _380-[:`VISITED` {`quantity`:3}]->_1
create _380-[:`VISITED` {`quantity`:2}]->_0
create _423-[:`HAS_GENDER`]->_567
create _423-[:`VISITED` {`quantity`:1}]->_11
create _423-[:`VISITED` {`quantity`:2}]->_5
create _423-[:`VISITED` {`quantity`:29}]->_1
create _423-[:`VISITED` {`quantity`:1}]->_0
create _429-[:`HAS_GENDER`]->_567
create _429-[:`VISITED` {`quantity`:2}]->_11
create _429-[:`VISITED` {`quantity`:1}]->_5
create _429-[:`VISITED` {`quantity`:21}]->_1
create _445-[:`HAS_GENDER`]->_567
create _445-[:`VISITED` {`quantity`:5}]->_2
create _445-[:`VISITED` {`quantity`:4}]->_1
create _445-[:`VISITED` {`quantity`:1}]->_0
create _448-[:`HAS_GENDER`]->_567
create _448-[:`VISITED` {`quantity`:2}]->_2
create _448-[:`VISITED` {`quantity`:2}]->_1
create _448-[:`VISITED` {`quantity`:4}]->_0
create _509-[:`HAS_GENDER`]->_567
create _509-[:`VISITED` {`quantity`:1}]->_5
create _509-[:`VISITED` {`quantity`:1}]->_2
create _509-[:`VISITED` {`quantity`:1}]->_1
create _509-[:`VISITED` {`quantity`:1}]->_0

…

However, when I fired up the server, I soon found out that I would have to do some work :) … the graph that Thomas created did not really have a "database-like" model (it did not do any normalisation of the model, for instance) - and the neo4j browser looked a bit boring:

I needed to add some structure to this all, in order to be able to query it meaningfully.

Adding a model

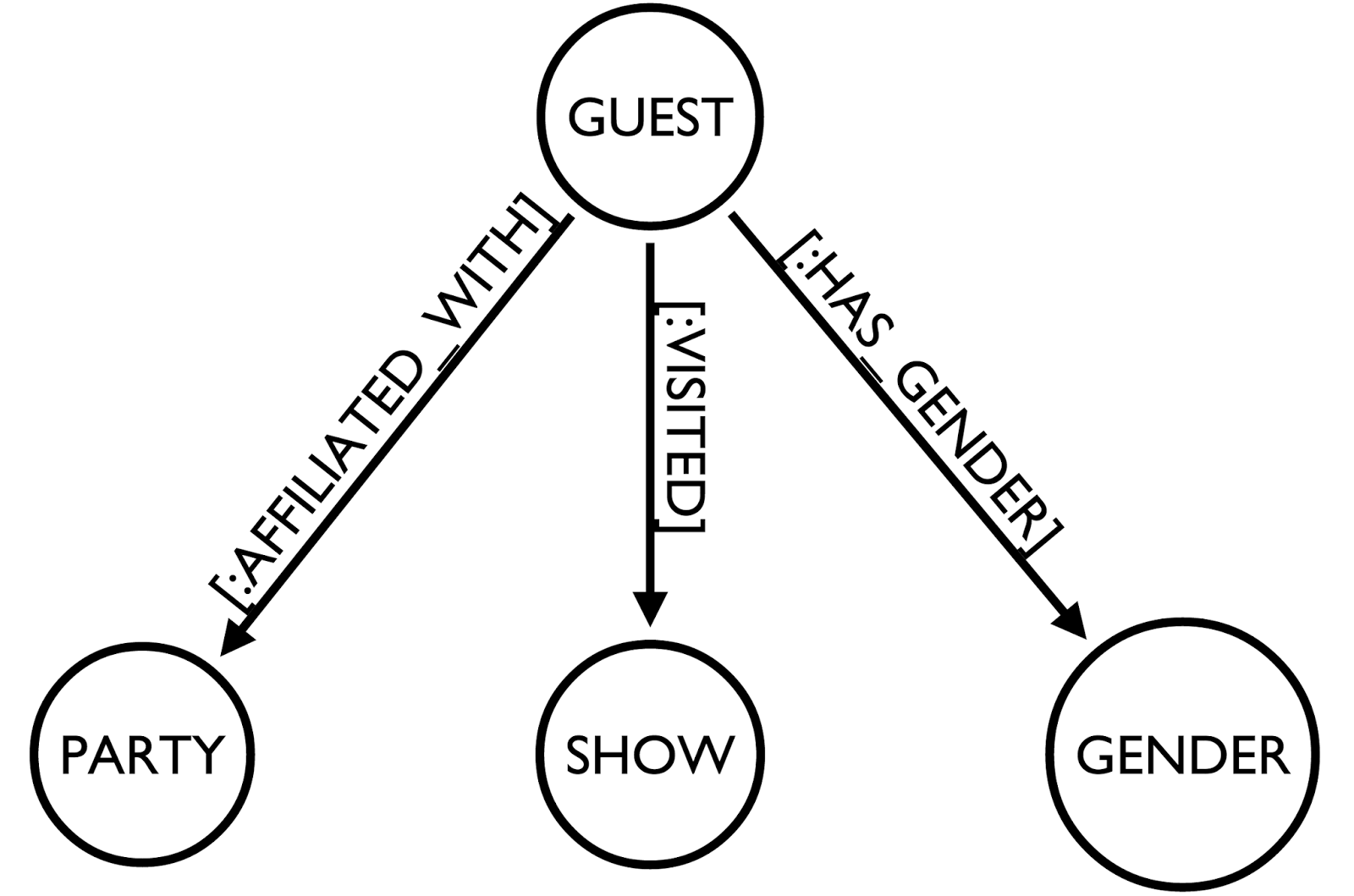

After browsing around through the data, I decided that the model that I would be playing with would look something like this:

You can see that it is not a very big graph:

MATCH (n)
RETURN head(labels(n)) as labels,count(*) as count

but it is quite densely connected - it has a lot of relationships between the nodes:

MATCH (n)-[r]->(m)
RETURN head(labels(n)) as start, type(r) as rel, head(labels(m)) as end, count(*) as count

So now I can do some more interesting queries on the data, and see if - like in Thomas' research - I kind find out some interesting stuff about this dataset. Take it for a spin: CYPHER queries!

Let’s start with some simple queries. Let’s figure out how many people have visited the different shows:

match (g:GUEST)-[v:VISITED]->(sh:SHOW)
return sh.id as Show, count(v) as NrOfVisits
order by NrOfVisits desc;

And we immediately get a feel for the dominant talkshows:

But then let’s see how many of these talkshow guests are politicians (or have political affiliations at least). Let’s expand the query a bit:

match (g:GUEST)-[v:VISITED]->(sh:SHOW),
g-[:AFFILIATED_WITH]->(p:PARTY)
return sh.id as Show, count(v) as NrOfVisits
order by NrOfVisits desc;

And see if there is any difference in the way the shows are ranked:

Interesting. There are indeed some differences, as you can see.

Now let’s look at another perspective in our dataset: Gender. Let’s look at the distribution of male/female guests to all of these shows:

match (g:GUEST)-[:HAS_GENDER]->(gen:GENDER),
(g)-[v:VISITED]->(sh:SHOW)
return gen.name, count(v)
order by gen.name ASC;

we can clearly still see the dominance of men in these shows:

If we then add the political dimension again, and look at gender distribution for the political visitors to the shows:

match (g:GUEST)-[:HAS_GENDER]->(gen:GENDER),
(g)-[v:VISITED]->(sh:SHOW),
(g)-[:AFFILIATED_WITH]->(p:PARTY)
return gen.name, count(v)
order by gen.name ASC;

then we can see that the distribution is broadly the same:

I am sure there are plenty of other queries to think of, but let me do one more in this post: let’s see what the overlap is - in terms of guests visiting them - between the different shows. To do that, all we need to do is calculate some paths between two shows: DWDD and P&W.

match p = AllShortestPaths((s1:SHOW {id:"DWDD"})-[*..2]-(s2:SHOW {id:"P&W"}))
return nodes(p)
limit 5;

The result is exactly what you would expect: a HUGE amount of overlap - at least between these two (see above: largest) shows. Hence the "limit 5" in the query - so that my poor neo4j browser would survive:

Wrap-up

That’s about all I have at this point. You can download the database from over here. And the queries that I used above are all on github.

From my perspective, I think these kinds of datasets are extremely interesting and powerful. I would love to see more work like Thomas', from my own country or abroad, and look at this from an even broader perspective. In any case, I would like to thank and compliment Thomas on his work - and look forward to your feedback.

Hope this was useful.

Cheers

Rik

Link to the original post again

	//Total number of visits by guests to shows
	match (g:GUEST)-[v:VISITED]->(sh:SHOW)
	return count(v);

	//Number of visits by show
	match (g:GUEST)-[v:VISITED]->(sh:SHOW)
	return sh.id as Show, count(v) as NrOfVisits
	order by NrOfVisits desc;

	//Number of Politicians by show
	match (g:GUEST)-[v:VISITED]->(sh:SHOW),
	g-[:AFFILIATED_WITH]->(p:PARTY)
	return sh.id as Show, count(v) as NrOfVisits
	order by NrOfVisits desc;

	//number of male/female guests
	match (g:GUEST)-[:HAS_GENDER]->(gen:GENDER),
	(g:GUEST)-[v:VISITED]->(sh:SHOW)
	return gen.name, count(v)
	order by gen.name ASC;

	//Number of male/female guests per show
	match (g:GUEST)-[:HAS_GENDER]->(gen:GENDER),
	(g:GUEST)-[v:VISITED]->(sh:SHOW)
	return sh.id, gen.name, count(v)
	order by sh.id ASC;

	match (g:GUEST)-[v:VISITED]->(sh:SHOW)
	with v,g as Guests, sh.id as Show, count(v) as TotalGuests
	match g-[:HAS_GENDER]->(gen:GENDER)
	return Show, gen.name, count(v)/TotalGuests as Percentage
	order by Show.id ASC

	//Number of male/female guests
	match (g:GUEST)-[:HAS_GENDER]->(gen:GENDER),
	(g)-[v:VISITED]->(sh:SHOW)
	return gen.name, count(v)
	order by gen.name ASC;

	//Number of male/female guests from political parties
	match (g:GUEST)-[:HAS_GENDER]->(gen:GENDER),
	(g)-[v:VISITED]->(sh:SHOW),
	(g)-[:AFFILIATED_WITH]->(p:PARTY)
	return gen.name, count(v)
	order by gen.name ASC;


	//Number of guests from political parties/show
	match (g:GUEST)-[v:VISITED]->(sh:SHOW),
	g-[a:AFFILIATED_WITH]->(p:PARTIJ)
	return p.name as Partij, sh.id as Show, count(v) as NrofVisits
	order by Show ASC, Partij ASC;

	//Which shows are most important for a party
	match (g:GUEST)-[v:VISITED]->(sh:SHOW),
	g-[a:AFFILIATED_WITH]->(p:PARTIJ)
	return p.name as Partij, sh.id as Show, count(v) as NrofVisits
	order by Partij ASC,NrofVisits DESC;

	//Which parties are most important for a show
	match (g:GUEST)-[v:VISITED]->(sh:SHOW),
	g-[a:AFFILIATED_WITH]->(p:PARTIJ)
	return sh.id as Show, p.name as Partij, count(v) as NrofVisits
	order by Show ASC,NrofVisits DESC;

	//Links between Paul Witteman and Eva Jinek
	match p = AllShortestPaths((g1:GUEST {id:"Paul Witteman"})-[*..4]-(g2:GUEST {id:"Eva Jinek"}))
	return p;

	//Links between DWDD and P&W
	match p = AllShortestPaths((s1:SHOW {id:"DWDD"})-[*..2]-(s2:SHOW {id:"P&W"}))
	return p
	limit 100;
