Example of PlantUML-like diagram in graphviz
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| digraph G { | |
| // External system | |
| node [style=filled fillcolor="#999999" shape=rectangle, fontcolor=white] | |
| externalSystem [ label=< | |
| <table border="0" cellborder="0" cellspacing="1"> | |
| <tr><td><b>External System</b></td></tr> | |
| <tr><td><<qualtrics>></td></tr> | |
| </table> | |
| >]; | |
| // External user | |
| node [style=filled fillcolor="#686868" shape=rectangle] | |
| externalUser [ label=< | |
| <table border="0" cellborder="0" cellspacing="1"> | |
| <tr><td><b>External User</b></td></tr> | |
| <tr><td>I'm not from GWI</td></tr> | |
| </table> | |
| >] | |
| // GWI User | |
| node [style=filled fillcolor="#08427B" shape=rectangle] | |
| gwiUser [ label=< | |
| <table border="0" cellborder="0" cellspacing="1"> | |
| <tr><td><b>GWI User</b></td></tr> | |
| <tr><td>GWI employee</td></tr> | |
| </table> | |
| >] | |
| // System | |
| node [style=filled fillcolor="#1168BD" shape=rectangle] | |
| system1 [ label=< | |
| <table border="0" cellborder="0" cellspacing="1"> | |
| <tr><td><b>System1</b></td></tr> | |
| <tr><td><<myteam>></td></tr> | |
| <tr><td>Fancy app</td></tr> | |
| </table> | |
| >] | |
| exampleSystem [label=< | |
| <table border="0" cellborder="0" cellspacing="1"> | |
| <tr><td><b>Example System</b></td></tr> | |
| <tr><td><<myteam>></td></tr> | |
| <tr><td>A piece of spectacular<br/>engineering</td></tr> | |
| </table> | |
| >] | |
| // GWI System | |
| node [style=filled fillcolor="#d4007b" shape=rectangle] | |
| gwiSystem [ label=< | |
| <table border="0" cellborder="0" cellspacing="1"> | |
| <tr><td><b>GWI System</b></td></tr> | |
| <tr><td><<otherteam>></td></tr> | |
| <tr><td>Breathtaking</td></tr> | |
| </table> | |
| >] | |
| gwiSystem -> exampleSystem [label="SoftRel\nexample system works\neven if GWI System is\ndown\n[pubsub]"] | |
| externalUser -> system1 [label="[HTTP]"] | |
| gwiUser -> exampleSystem [label="[HTTP]"] | |
| system1 -> exampleSystem [label="[HTTP]"] | |
| exampleSystem -> externalSystem [label="[HTTP]"] | |
| {rank=same;gwiSystem exampleSystem; externalSystem } | |
| // DB | |
| node [style=filled fillcolor="#1168BD" shape=cylinder]; | |
| database [label=< | |
| <table border="0" cellborder="0" cellspacing="1"> | |
| <tr><td><b>Ones and zeros</b></td></tr> | |
| <tr><td><<myteam>></td></tr> | |
| <tr><td>Occasional two</td></tr> | |
| </table> | |
| >] | |
| exampleSystem -> database [label="HardRel\nBreaks when\nconnection doesn't\nwork\n[HTTP]"] | |
| // GWI DB | |
| node [style=filled fillcolor="#d4007b" shape=cylinder]; | |
| gwiDatabase [label=< | |
| <table border="0" cellborder="0" cellspacing="1"> | |
| <tr><td><b>GWI Database</b></td></tr> | |
| <tr><td><<otherteam>></td></tr> | |
| <tr><td>placeholder</td></tr> | |
| </table> | |
| >] | |
| exampleSystem -> gwiDatabase | |
| } |
Author
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
The source code above can be rendered into SVG / PNG (or any other export format supported by graphviz) with a command like

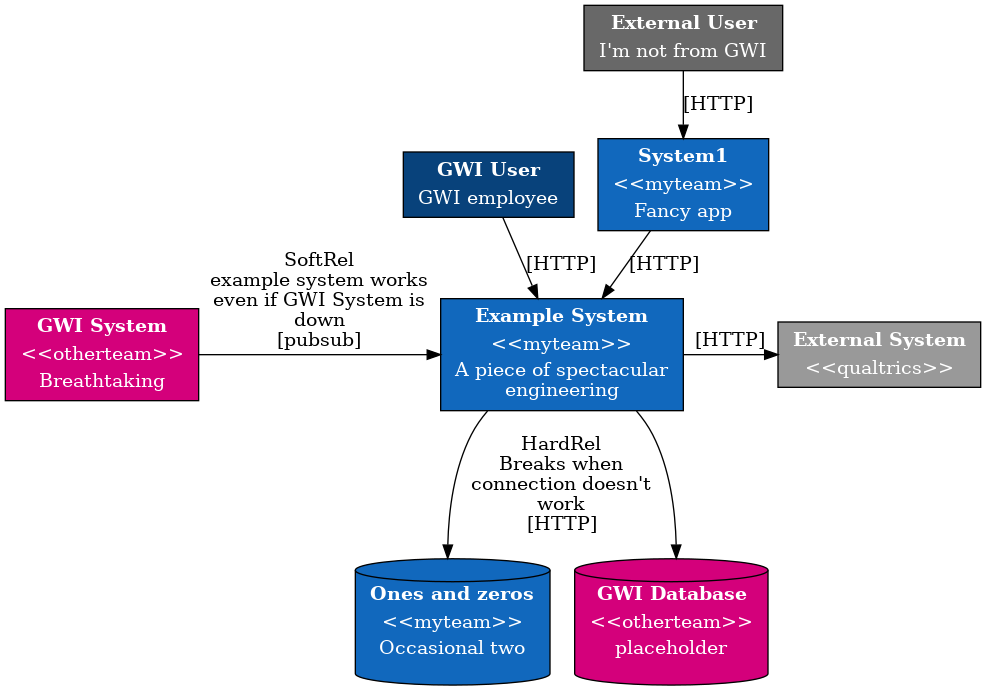

Which renders an image like this
