This presentation can be viewed here

Express
Routers & Controllers

Learning Objectives

Students Will Be Able To:
- Use the Express Generator to Scaffold a Skeleton App
- Implement Best Practice Routing
- Organize App Logic Into Controllers

Roadmap

Setup
Express Generator
MVC Code Organization
Best Practice Routing
To-Do Refactor
Controllers
MVC Organization Revisited
URL/Route Parameters
Adding Show a To-Do Functionality

Setup

To get ready for this lesson, simply cd into today's folder for the class repo.

express-generator

Okay, so we've had big fun getting an Express app up and running from scratch.
We defined some basic routes and rendered a couple of views using the EJS view engine.
Later today we're going to learn about middleware and see how we can create and update data.

express-generator

In this lesson, the first thing we'll take a look at is a popular tool - express-generator.
express-generator creates a "skeleton" Express app that:
- Separates the HTTP server code from our web app's logic.
- Has best practice routing implemented.
- Is configured to serve static assets from a public folder.
- If we specify it, will configure the EJS view engine.
- Has error handling configured.
- Has key middleware configured and mounted by default.

express-generator

Let's install it:
```
 $ npm install -g express-generator
```
express-generator is a CLI that can be run from anywhere, that's why we install it using the global -g flag.

express-generator

Let's take a look at the options available to us

$ express -h

Usage: express [options] [dir]


Options:

    --version        output the version number
-e, --ejs            add ejs engine support
    --pug            add pug engine support
    --hbs            add handlebars engine support
-H, --hogan          add hogan.js engine support
-v, --view <engine>  add view <engine> support (dust|ejs|hbs|hjs|jade|pug|twig|vash) (defaults to jade)
    --no-view        use static html instead of view engine
-c, --css <engine>   add stylesheet <engine> support (less|stylus|compass|sass) (defaults to plain css)
    --git            add .gitignore
-f, --force          force on non-empty directory
-h, --help           output usage information

Generating Our App's Skeleton with
express-generator

We will use the -e option to use the ejs template engine instead of pug (the default).

From your new app's parent directory:

 $ express -e express-todos
 $ cd express-todos

We then install the node modules that are listed in the package.json:
```
 $ npm i
```

Folder Structure

Our scaffolded folder structure will look like this:

 ├── app.js
 ├── bin
 │   └── www
 ├── package.json
 ├── public
 │   ├── images
 │   ├── javascripts
 │   └── stylesheets
 │       └── style.css
 ├── routes
 │   ├── index.js
 │   └── users.js
 └── views
     ├── error.js
     └── index.js

Let's explore the above structure in our text editor...

Starting the Application

One option to start the server is to type npm start. This will execute the start script specified in package.json. However, it doesn't restart the app when there's changes...
nodemon is still our best option and we can now just type nodemon which will use that same start script.

Starting the Application

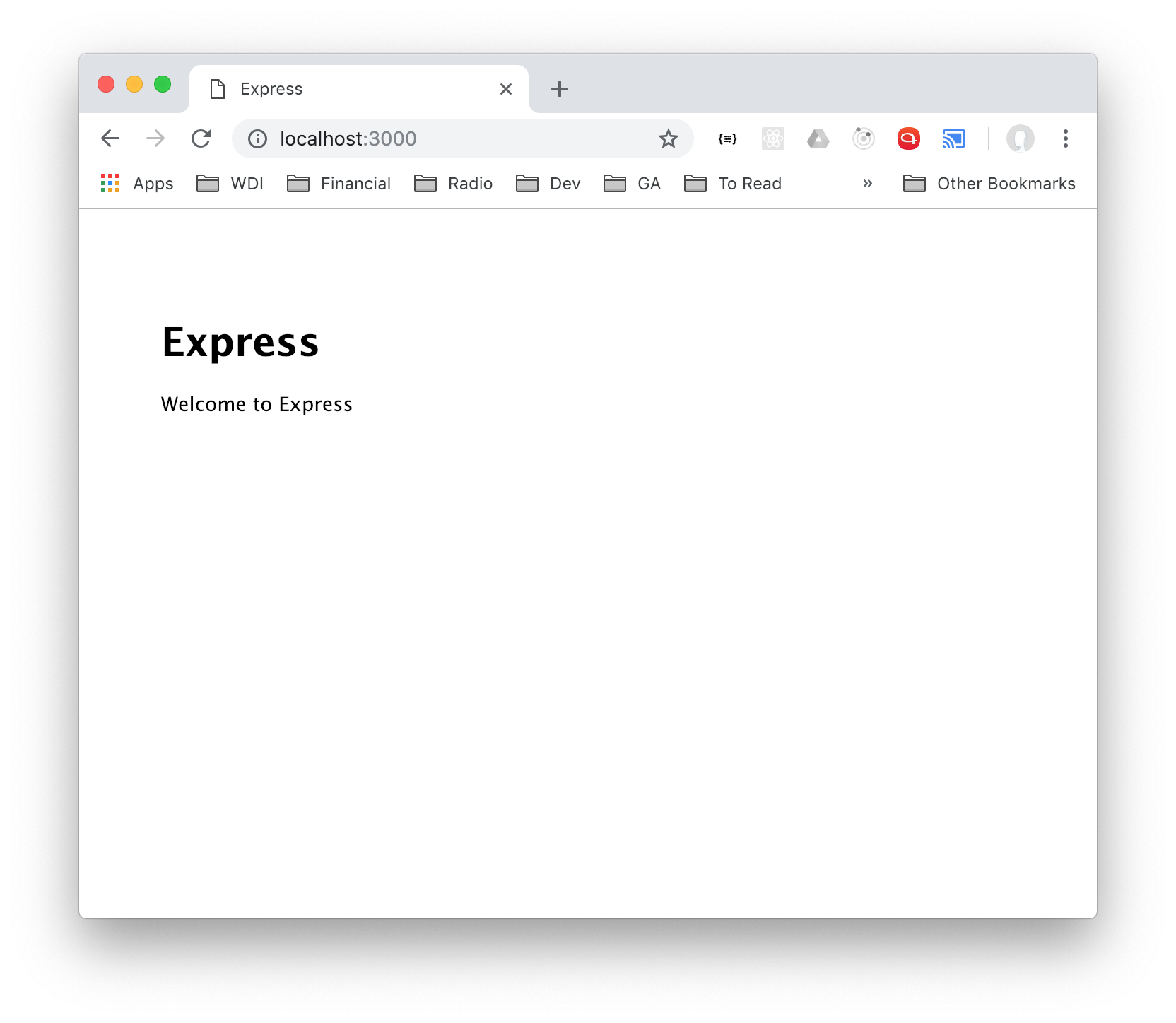

Browsing to localhost:3000 greets us with:

Renaming app.js

MERN/MEAN Stack apps often have a client-side file named app.js and this could get confusing having two app.js files. This is why many developers name their main Express file server.js.
So let's rename it...

Renaming app.js

First, rename app.js to server.js.

Then, inside of bin/www, change line 7 from:

 var app = require('../app');

to:

 var app = require('../server');

That's it, however, you might need to restart nodemon.

MVC Code Organization

Model-View-Controller (MVC) has been a proven approach for successfully organizing code for decades.
In fact, many web frameworks such as Ruby on Rails, ASP.net, Spring MVC (Java), and others implement the MVC architectural pattern.
Express on the other hand, just like it states on its landing page, is unopinionated. That means we are free to structure and organize our Express apps anyway we please.

MVC Code Organization

However, since MVC is a proven pattern that works, most Express developers use MVC to organize their Express applications - so we will too :)
Express generator has already organized the view templates into a views folder.
Let's make folders to hold our models and controllers:
```
 $ mkdir models controllers
```

Best Practice Routing

In our first-express app, we used the app.get method to define routes.
Although it works, the better practice is to:
- Use Express router objects to organize related routes, for example, routes dedicated to a data resource such as todos.
- Create each router in its own module from which it is exported.
- require the exported router inside of server.js.
- Mount the router object in the request pipeline (route objects are also middleware functions).

Best Practice Routing

The Router objects can provide more flexible and powerful routing in complex apps.
Router objects are actually mini-Express apps! They can even have their own middleware.

Best Practice Routing

As an example of using this better approach to routing, let's look at how express-generator sets up routing...
First, there's a routes folder containing two router modules:
- index.js: Great for defining general purpose routes, e.g., the root route.
- users.js: An example of a router dedicated to a resource, in this case, users.

The Express Router Object

Note how routes are defined on those two router objects using a get method just like we did with app:
router.get() instead of app.get()
Each router object has one route defined - compare those two routes, notice the method and the paths? They're the same - isn't that a problem? Not in this case...

The Express Router Object

The two route modules are required on lines 7 & 8 of server.js.
Lastly, the routers are mounted in the middleware pipeline with the app.use method on lines 22 & 23:
```
 app.use('/', indexRouter);
 app.use('/users', usersRouter);
```
It's important to realize that the path in app.use is combined with the path specified on the router objects...

The Express Router Object

Let's say you have a router object that defines a route like this:
```
 router.get('/', function(req, res) {...
```
and mounted like this:
```
 app.use('/todos', todoRouter);
```
What is the actual path of the route?

The Express Router Object

Another example, let's say you have a router object that defines a route like this:
```
 router.get('/today', function(req, res) {...
```
and mounted like this:
```
 app.use('/calendar', calendarRouter);
```
What is the actual path of that route?

To-Do Refactor

We're going to refactor the To-Do code from yesterday to follow best practices...
We'll copy over the index.ejs view and put the todos "database" into the models folder.
Then we'll incorporate best-practice routing.
Finally, after learning about how to organize code into controllers, well, that's what we'll do.

To-Do Refactor - index.ejs

Create todos/index.ejs:

 $ mkdir views/todos
 $ touch views/todos/index.ejs

Add the HTML boilerplate.
Update the title to: <title>Express To-Do</title>

To-Do Refactor - index.ejs

Here's the EJS from yesterday to copy/paste:

  <body>
    <h1>Todos</h1>
    <ul>
      <% todos.forEach(function(t) { %>
        <li>
          <%= t.todo %>
            -
          <%= t.done ? 'done' : 'not done' %>
        </li>
      <% }); %>
    </ul>
  </body>

To-Do Refactor - Todo Model

Now let's create and copy over our model.
Create models/todo.js:
```
 $ touch models/todo.js
```
Note that modules for models should be named singularly.

To-Do Refactor - Todo Model

Here's the code from yesterday, just slightly refactored:

 const todos = [
   {todo: 'Feed Dogs', done: true},
   {todo: 'Learn Express', done: false},
   {todo: 'Buy Milk', done: false}
 ];

 module.exports = {
   getAll
 };

 function getAll() {
   return todos;
 }

To-Do Refactor - Routing

Since we need a router for our todos resource and don't need the routes/users.js router module that Express Generator created, we'll modify it instead of having it lay around unused.
First, rename the routes/users.js route module to a name that's more appropriate for our resource - routes/todos.js.

To-Do Refactor - Routing

The renaming of routes/users.js to routes/todos.js requires a couple of changes in server.js; both when the router module is being required:
```
 // around line 8
 var todosRouter = require('./routes/todos');
```
and when it's being mounted:
```
 // around line 23
 app.use('/todos', todosRouter);
```

To-Do Refactor - Routing

The following is the index route code for the to-dos we used yesterday.

Copy it into routes/todos.js below the existing route and then we'll refactor it:

 // existing route above

 app.get('/todos', function(req, res) {
   res.render('todos/index', {
     todos: todoDb.getAll()
   });
 });

Now for the refactor...

To-Do Refactor - Routing

We'll delete that existing route in a moment, but first note its path...
Why is it only a forward slash?
Okay, update our route's path to / and delete the existing route.
Notice how we're calling todoDb.getAll() - this will currently cause an error...

To-Do Refactor - Routing

We first need to require the Todo model as follows:

 var router = express.Router();
 // require the Todo model
 var Todo = require('../models/todo');

It's convention to name model variables singularly and with upper-camel-casing.

To-Do Refactor - Routing

With the model required, what do we need to change on this line of code?
```
 todos: todoDb.getAll()
```
Let's do it!

To-Do Refactor - Routing

There's another change that need to be made
does anybody see it?
Hint: What's that app object doing there?

To-Do Refactor

With the refactor complete, browsing to localhost:3000/todos should render the to-dos just like yesterday!
Hey, let's add a link on views/index.ejs so that we can click it to see the to-dos instead of navigating via the address bar...

To-Do Refactor

In views/index.ejs:

 <!DOCTYPE html>
 <html>
   <head>
     <title><%= title %></title>
     <link rel='stylesheet' href='/stylesheets/style.css' />
   </head>
   <body>
     <h1><%= title %></h1>
     <a href="/todos">To-Do List</a>
   </body>
 </html>

For styling, let's copy that <link> over to todos/index.ejs and...

To-Do Refactor

In routes/index.js, fix the value of the title property being passed to the view:
```
 res.render('index', { title: 'Express To-Do' });
```
That's better.
On to controllers...

Controllers

In a web application that follows the MVC architectural pattern, controllers:
- Use Models to perform CRUD (create, retrieve, update & delete) data operations.
- Implement any additional application logic, often relying on other services and utility modules; and
- Pass data to Views to be rendered then return the resulting markup to the browser.

Controllers

Controllers are functions, but wait, we already wrote functions that perform those responsibilities in our route modules!
Exactly! Those functions are controllers, we just need to separate our concerns, i.e., as a best practice, we need to separate the route definitions from their respective controller functions.

Controllers

Let's start by creating a controller module for the todos resource:
```
 $ touch controllers/todos.js
```

Let's copy just the function part of the following route definition:

 router.get('/', function(req, res) {
   res.render('todos/index', {
     todos: Todo.getAll()
   });
 });

Paste that function inside of controllers/todos.js...

Controllers

Let's export the index controller method (also know as a controller action)...

The pasted and fixed up code should look like:

 module.exports = {
   index
 };

 function index(req, res) {
   res.render('todos/index', {
     todos: Todo.getAll()
   });
 }

The above is a good approach to follow when it comes to exporting functionality.

Controllers

The router no longer needs the Todo model.
But, the controller does! Let's go cut it from routes/todos.js and paste it at the top of controllers/todos.js:
```
 var Todo = require('../models/todo');
```

Controllers

Back in routes/todos.js, we need to require the controller in order to have access to its actions (methods):
```
 var todosCtrl = require('../controllers/todos');
```
Now, the refactor:
```
 router.get('/', todosCtrl.index);
```
How clean is that?!?!
Refresh and everything should be hunky-dory!

MVC Organization Revisited

Notice how we now have the following for the todos resource:
- models/todo.js
- views/todos (directory)
- controllers/todos.js
- routes/todos.js
Each data resource should receive the same treatment.
Note that resource names are pluralized except for the model.

URL/Route Parameters

In our web apps, we will often need to pass information, such as an identifier for a certain data resource, in the path of the HTTP request.
URL Parameters, also known as Route Parameters, just like parameters in functions, provide a way for data to be passed in to the router & controller via the URL of the request.

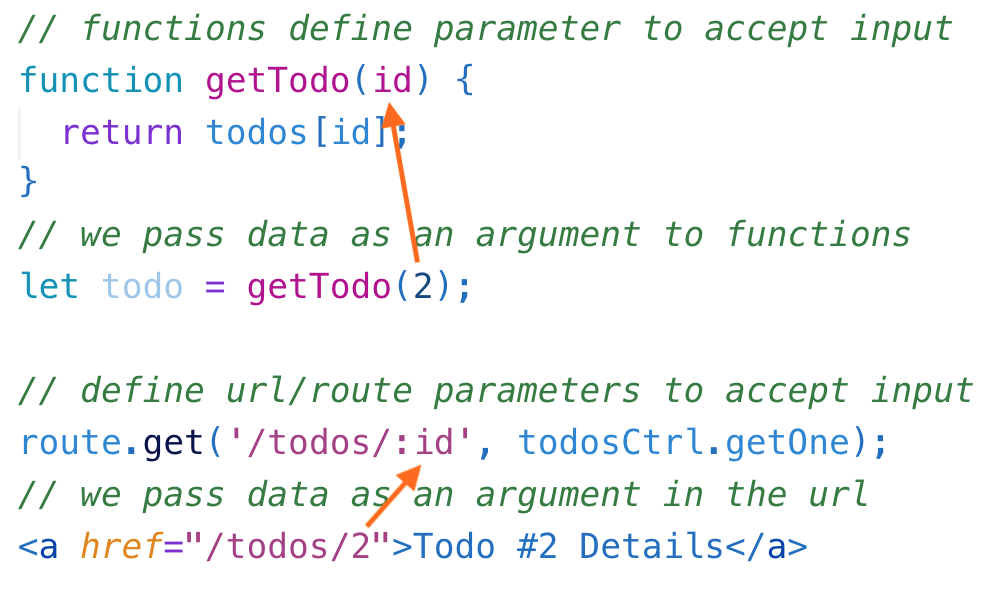

Let's look at this analogy...

URL/Route Parameters

In Express, we define route parameters in the path string using a colon, followed by the parameter name.
Let's say we want to view a details page for a resource.
Just like how we use an index route/action to list all of a resource, we will use a show route/action when displaying the details of a single resource.
Let's add the functionality to view a single To Do...

Adding Show To-Do Functionality

Adding Show a To-Do Functionality

When adding functionality to your apps, start by identifying what route makes sense - this is usually based on RESTful/Resourceful Routing conventions.
We'll definitely be reviewing RESTful/Resourceful Routing later, in fact we just might quiz you on it one day - it's that important 😊

Adding Show a To-Do Functionality

According to REST, the "proper" route to display a
single To Do would be:
```
 GET /todos/:id
```
With the proper route identified, the next step is to create some UI that will send a request that matches that route...

Adding Show a To-Do Functionality

Let's refactor todos/index.ejs as follows:

     <% todos.forEach(function(t, idx) { %>
       <li>
         <a href="/todos/<%= idx %>"><%= t.todo %></a>

Don't forget to add the idx parameter in the callback function

Refresh the page and hover over the links. Looking at the bottom-left of the window will verify the paths look correct!
Links always send an HTTP request using what HTTP method?

Adding Show a To-Do Functionality

The UI is set to send the proper HTTP requests to the server.
However, clicking one of those links will display a
Not Found 404 error - this means that there is no route on the server that matches the HTTP request.
Let's add one...

Adding Show a To-Do Functionality

Add the show route below the index route as follows:
```
 router.get('/', todosCtrl.index);
 router.get('/:id', todosCtrl.show);
```
The actual path is /todos/:id - right?
Saving will crash the app because there is no todosCtrl.show being exported from the controller...

Adding Show a To-Do Functionality

Add the show action inside of controllers/todos.js and don't forget to export it!

 function show(req, res) {
   res.render('todos/show', {
     todo: Todo.getOne(req.params.id),
     todoNum: parseInt(req.params.id) + 1
   });
 }

Express's req.params object will have a property for each route parameter defined, for example...

Adding Show a To-Do Functionality

A route defined like this:

 router.get('/category/:catName/page/:pageNo', ...);

and a link like this:

 <a href="/category/socks/page/2">Next Page</a>

would have a req.params available in the controller of:

 console.log(req.params.catName) //=> "socks"
 console.log(req.params.pageNo) //=> "2"

Note that all route param values are strings.

Adding Show a To-Do Functionality

Another refresh informs us that the show action in the controller is calling a Todo.getOne method that doesn't exist.

Let's fix that error! In models/todo.js:

 module.exports = {
   getAll,
   getOne
 };

 function getOne(id) {
   return todos[id];
 }

Adding Show a To-Do Functionality

Refresh and of course there's an error because we haven't created the views/todos/show.ejs that we're trying to render.

Copy the boilerplate from views/todos/index.ejs and then add this:

 <body>
   <h1>Todo #<%= todoNum %></h1>
   <h3><%= todo.todo %></h3>
   <h3>Complete: <%= todo.done ? 'Yes' : 'No' %></h3>
 </body>

Refresh - BAM!

Routing Quiz

Use the Routing Guide as necessary...

Routing Quiz

Assume a data resource of cats when answering the following:

What will the name of the router module be? (include its parent directory)
Write the line of code within server.js that would require the above router and assign it to a variable named catsRouter.
Write the line of code within server.js that would mount the above router object prefixing the proper path.

Routing Quiz

Using the router object within routes/cats.js and assuming a cats controller assigned to a variable named catsCtrl:

Write the line of code that defines the proper route that would read/display all cats (cats index route).
Write the line of code that defines the proper route that would read/display a single cat (cats show route).

Routing Quiz

Using the router object within routes/cats.js and assuming a cats controller assigned to a variable named catsCtrl:

Write the line of code that defines the proper route that would display a view that includes a form for submitting a new cat (cats new route).
Write the line of code that defines the proper route that would handle the cat form being submitted and creates a new cat (cats create route).

Congrats!

You Did It!

References

Note: When searching for info on the Express framework, be sure that you search for the info for version 4 only - there were significant changes made from earlier versions. Also note that version 5 is currently in alpha although all of the code we've written should be compatible.

jim-clark/express-routers-controllers.md

ExpressRouters & Controllers

Learning Objectives

Roadmap

Setup

express-generator

express-generator

express-generator

express-generator

express-generator

Generating Our App's Skeleton withexpress-generator

Folder Structure

Starting the Application

Starting the Application

Renaming app.js

Renaming app.js

MVC Code Organization

MVC Code Organization

MVC Code Organization

Best Practice Routing

Best Practice Routing

Best Practice Routing

Best Practice Routing

The Express Router Object

The Express Router Object

The Express Router Object

The Express Router Object

To-Do Refactor

To-Do Refactor - index.ejs

To-Do Refactor - index.ejs

To-Do Refactor - Todo Model

To-Do Refactor - Todo Model

To-Do Refactor - Routing

To-Do Refactor - Routing

To-Do Refactor - Routing

To-Do Refactor - Routing

To-Do Refactor - Routing

To-Do Refactor - Routing

To-Do Refactor - Routing

To-Do Refactor

To-Do Refactor

To-Do Refactor

Controllers

Controllers

Controllers

Controllers

Controllers

Controllers

Controllers

MVC Organization Revisited

MVC Organization Revisited

URL/Route Parameters

URL/Route Parameters

URL/Route Parameters

URL/Route Parameters

Adding Show To-Do Functionality

Adding Show a To-Do Functionality

Adding Show a To-Do Functionality

Adding Show a To-Do Functionality

Adding Show a To-Do Functionality

Adding Show a To-Do Functionality

Adding Show a To-Do Functionality

Adding Show a To-Do Functionality

Adding Show a To-Do Functionality

Adding Show a To-Do Functionality

Routing Quiz

Use the Routing Guide as necessary...

Routing Quiz

Routing Quiz

Routing Quiz

Congrats!You Did It!

References

Express
Routers & Controllers

Generating Our App's Skeleton with
express-generator

Congrats!

You Did It!
