Mongoose
Referencing Related Data

Learning Objectives

Students Will Be Able To:

Use Referencing to Implement 1:M & M:M Data Relationships
Explain the Difference Between 1:M & M:M Relationships
"Populate" Referenced Documents

Roadmap

Setup
Review the Starter Code
Use a Node REPL session to perform CRUD using Mongoose Models
A New Data Resource: Performers
Create the Performer Model
Referencing Performers in the Movie Model
Creating Performers
Associating Movies and Performers
AAU, when viewing a movie's detail page, I want to see a list of the current cast and add a new performer to the list
Essential Questions

Setup

cd to starter-code/mongoose-movies folder within this lesson's folder in the class repo.
Install the node modules:
```
 $ npm install
```
Open the mongoose-movies folder in your code editor.
Use nodemon to start the server.
Browse to localhost:3000

Review the Starter Code

Today's starter code is the final code from yesterday's Mongoose - Embedding Related Data lesson with a couple of changes...
The cast property on the Movie model has been removed and all related forms/views and controller code have been adjusted accordingly. This was done so that in this lesson we can reference performer documents created using a Performer Model.
The movies/show.ejs view shows how you can use EJS to calculate an average rating for a movie.

Perform CRUD Using
Mongoose Models in a Node REPL

Because of the removal of the cast property, we will want to start fresh by deleting the existing movie documents.
This provides another opportunity to perform CRUD operations in Terminal using a Node REPL session - something that you'll likely need to do when developing an app.
Start by opening a terminal session and make sure that you are in the mongoose-movies folder.

Perform CRUD Using
Mongoose Models in a Node REPL

Start a Node REPL:
```
 $ node
 >
```

Connect to the MongoDB database:

 > require('./config/database')
 {}
 > Connected to MongoDB at localhost:27017
 // Press enter to return to the prompt

Perform CRUD Using
Mongoose Models in a Node REPL

Load the Movie Model:
```
 > const M = require('./models/movie')
```
We're being concise by using a variable named "M" vs. "Movie"
Important: If you make any changes to the Model, you'll have exit Node and start again.

Perform CRUD Using
Mongoose Models in a Node REPL

Log all movie docs:
```
 > M.find({}, (e, movies) => {
 ... console.log(movies)
 ... })
```
The find method returns a Query object that is first logged, followed by the movie docs. Press enter to return to the prompt.

Perform CRUD Using
Mongoose Models in a Node REPL

Anything that can be done with a Model in the app, can be done in the REPL including all CRUD operations.
Next, let's remove all existing movie documents...

Perform CRUD Using
Mongoose Models in a Node REPL

Here's a way to delete all documents from a collection:

 > M.deleteMany({}, (err, result) => console.log(result))
 ...
 > { n: 3, ok: 1, deletedCount: 3 }

The empty query object provided as the first argument matches all documents, so all documents were removed.
Press control + C twice to exit the REPL.

Perform CRUD Using
Mongoose Models in a Node REPL

For future reference, here's a gist that documents how to do what we just did:
Perform CRUD Using Mongoose Models in a Node REPL

A New Data Resource: Performers

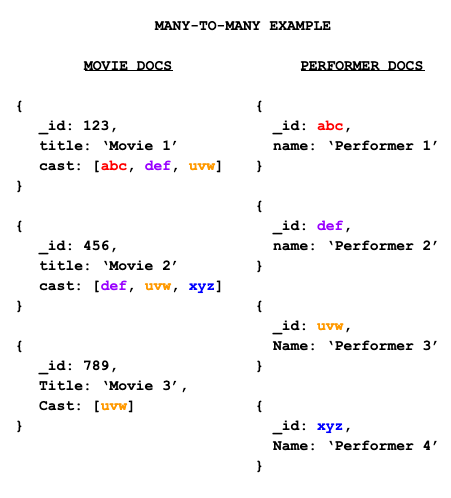

We are going to implement the following data relationship:

A Movie has many Performers; A Performer has many Movies

Movie >--< Performer (Many-To-Many)
But unlike we saw with Reviews (One-To-Many), multiple Movies can reference the same Performer creating a Many-To-Many relationship. Here's a simplified example...

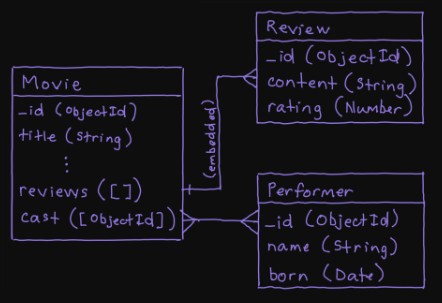

And Mongoose Movies ERD...

💪 Practice Exercise (5 minutes)

A new data resource requires new modules, etc.
Create the following for the new Performers resource:
- Model (empty module)
- Router (module exporting a router object)
- Controller (empty module)
- A dedicated folder for its views
Require and mount the new router in server.js to the path of /.

Create the Performer Model

Performers will be stored in their own collection so that their _id (ObjectId) can be referenced by numerous movies.
As you know, models map to collections in Mongoose...

Create the Performer Model

We'll review the schema for the Performer Model as we type it:

 const mongoose = require('mongoose');
 const Schema = mongoose.Schema;

 const performerSchema = new Schema({
   name: {type: String, required: true, unique: true},
   born: Date
 }, {
   timestamps: true
 });

 module.exports = mongoose.model('Performer', performerSchema);

Referencing Performers in the Movie Model

With the Performer Model created, we can now add back the cast property in Movie:

 reviews: [reviewSchema],
 // don't forget to add a comma above
 cast: [{type: Schema.Types.ObjectId, ref: 'Performer'}]

The property type of ObjectId is always used to implement referencing.
The ref: 'Performer' is optional, but allows us to use the magical Mongoose method - populate.

Contrasting 1:M and M:M Relationships

The key difference between a 1:M and a M:M relationship:
- In a 1:M relationship, each of the many (child) documents belongs to only one (parent) document. Each time we want add a new relationship - the child document must be created.
- In a M:M relationship, existing documents are referenced and the same document can be referenced over and over. New documents are created only if it's the first of its kind.
What this means for mongoose-movies is that we only want to create a certain performer once (when they don't exist).

Many:Many CRUD

So, before a many-to-many relationship can be created between two documents (often called an association), those two documents must first exist.
This requires that the app first provide the functionality to create each of the two resources independently of each other.
mongoose-movies can already create movies, but now it needs the capability to create performers...

AAU, I want to create a new performer if they don't already exist

Here's the flow we've now followed several times when adding functionality to the app:
- 1. Identify the "proper" Route (Method + Path)
- 1. Create the UI that will send the request matching that route.
- 1. Define the route on the server and map it to the proper controller action (index, show, new, create, etc.).
- 1. Code and export the controller action.
- 1. res.render a view in the case of a GET request, or res.redirect if data was changed.

Creating Performers - Step 1

We will want a dedicated view for adding a performer, thus creating a performer will require two request/response cycles: One for the new action and one for the create action...
💪 YOU DO: Reply in Slack with the proper routes (Method & Path) for:
- Displaying a page with a form for entering a performer
- Creating a new performer when the form is submitted

Creating Performers - Step 2

We need UI that will send the request to view the form...

Let's add a new link in the nav bar in partials/header.js:

 <img src="/images/camera.svg">
 <!-- new menu link below -->
 <a href="/performers/new"
 	<%- title === 'Add Performer' ? 'class="active"' : '' %>>
 	ADD PERFORMER</a>

Yup, the same pattern as the other links.

Creating Performers - Step 3

Clicking the ADD PERFORMER link is going to send a GET /performers/new request - now we need a route to map that HTTP request to code (controller action) in routes/performers.js:

 const express = require('express');
 const router = express.Router();
 const performersCtrl = require('../controllers/performers');

 router.get('/performers/new', performersCtrl.new);

 module.exports = router;

As usual, the server won't be happy until we create and export that new action...

Creating Performers - Step 4

We want to try to prevent the users from creating more than one document for a given performer, so we will display a list of existing performers (in a dropdown) and beg our users not to add a performer unless they've verified that the performer does not already exist in the list.
The controller action of course will need to provide an array of the exiting performers to be rendered in the dropdown...

Creating Performers - Step 4

Inside of controllers/performers.js we go:

 const Performer = require('../models/performer');

 module.exports = {
   new: newPerformer
 };

 function newPerformer(req, res) {
   Performer.find({}, function(err, performers) {
     res.render('performers/new', {
       title: 'Add Performer',
       performers
     });
   })
 }

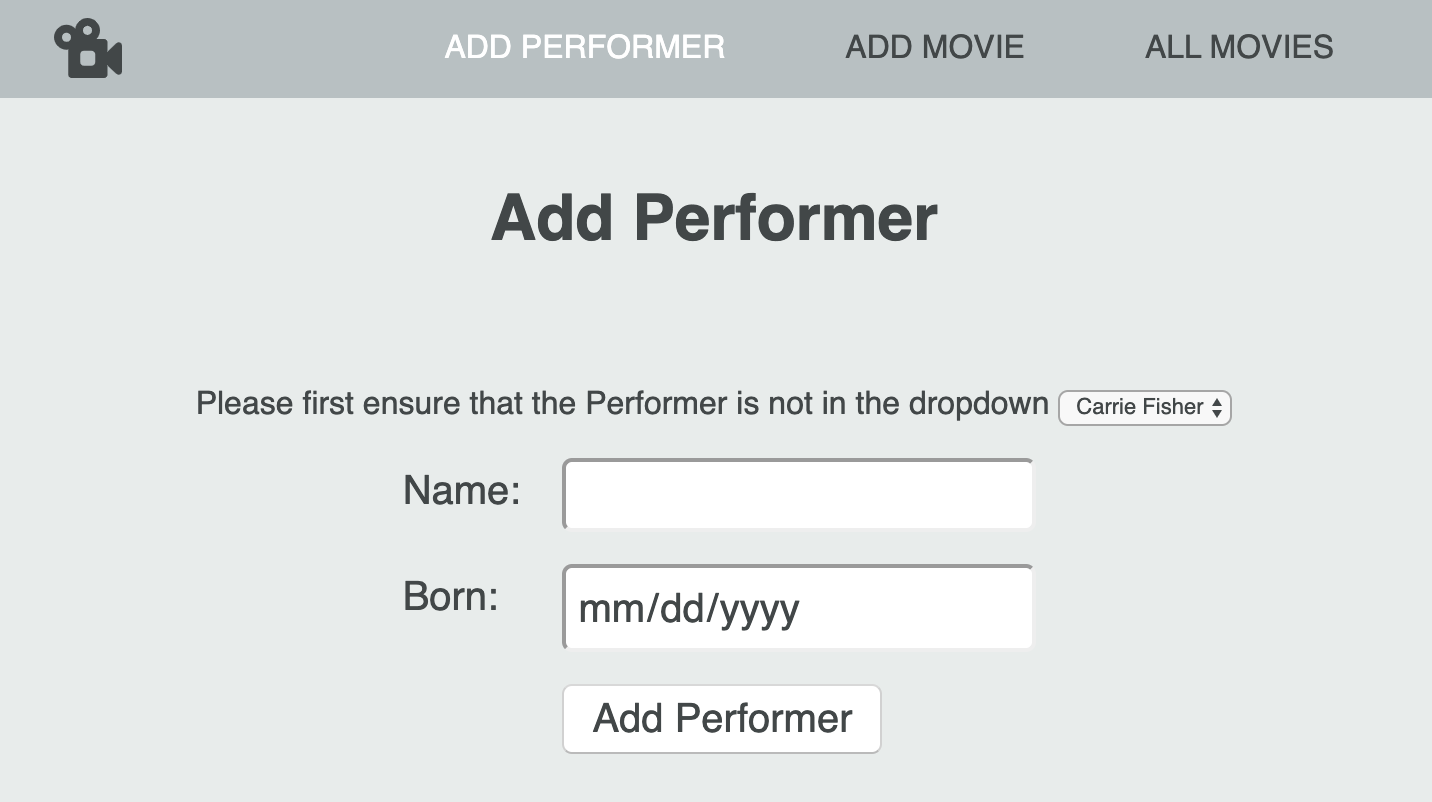

Creating Performers - Step 5

We'll need that new view that we just rendered:
```
 $ touch views/performers/new.ejs
```
The next slide has the markup...

Creating Performers - Step 5

Here's the markup for performers/new.ejs:

<%- include('../partials/header') %>
<p>Please first ensure that the Performer is not in the dropdown
  <select>
    <% performers.forEach(function(p) { %>
      <option><%= p.name %></option>
    <% }) %>
  </select>
</p>
<form id="add-performer-form" action="/performers" method="POST">
  <label>Name:</label>
  <input type="text" name="name">
  <label>Born:</label>
  <input type="date" name="born">
  <input type="submit" value="Add Performer">
</form>
<%- include('../partials/footer') %>

Creating Performers - CSS

Find and update in public/stylesheets/style.css:

 #new-form *,
 #add-review-form *,
 #add-performer-form * {
   font-size: 20px;
   ...
 }
 ...
 #add-review-form,
 #add-performer-form {
   display: grid;
   ...
 }
 ...
 #add-review-form input[type="submit"],
 #add-performer-form input[type="submit"] {
   width: 10rem;
   ...
 }

Creating Performers

Now for the second request/response cycle to handle the form submission...
The action & method on the form look good, we just need to listen to that route.
💪 YOU DO: Define the route for the create action

Creating Performers

In controllers/performers.js:

 module.exports = {
   new: newPerformer,
   create
 };

 function create(req, res) {
 // Hack to "fix" date formatting to prevent possible day off by 1
 // https://stackoverflow.com/questions/7556591/is-the-javascript-date-object-always-one-day-off
   const  s = req.body.born;
   req.body.born =
     `${s.substr(5,2)}-${s.substr(8,2)}-${s.substr(0,4)}`;
   Performer.create(req.body, function(err, performer) {
     res.redirect('/performers/new');
   });
 }

Okay, give a whirl and let's fix those typos 😊

Associating Movies and Performers

Now that we've added the functionality to create performers, we're ready to add the functionality to associate them with movies.
But first, a quick refactor...

AAU, after adding a movie, I want to see its details page

This user story can be accomplished with a quick refactor in the moviesCtrl.create action in controllers/movies/js:

 movie.save(function(err) {
   if (err) return res.redirect('/movies/new');
   // res.redirect('/movies');
   res.redirect(`/movies/${movie._id}`);
 });

Don't forget to replace the single-quotes with back-ticks!
User story done! Now for some fun!

AAU, when viewing a movie's detail page,
I want to see a list of the current cast and add a new performer to the list

Let's ponder what it's going to take to implement this user story:
- In movies/show.ejs, iterate over the movie's cast and use EJS to render them.
- Hold it! Because we are using referencing, there are ObjectIds in a movie's cast array - not subdocs. Oh wait, this is what the magical populate method is for!
- Using a form with a dropdown, we can send a request to associate a performer and movie. We will need the list of performers to build the dropdown, but only the performers not already in the cast!
Let's get started!

Replacing ObjectIds with the Actual Docs

Let's refactor the moviesCtrl.show action so that it will pass the movie with the performer documents in its cast array instead of ObjectIds:

 function show(req, res) {
   Movie.findById(req.params.id)
   .populate('cast').exec(function(err, movie) {
     res.render('movies/show', { title: 'Movie Detail', movie });
   });
 }

populate, the unicorn of Mongoose...

Replacing ObjectIds with the Actual Docs

We can chain the populate method after any query.
When we "build" queries like this, we need to call the exec method to actually run it (passing in the callback to it).
❓ How does the populate method know to replace the ObjectIds with Performer documents?

Passing the Performers

While we're in moviesCtrl.show, let's see how we can query for just the performers that are not in the movie's cast array.

First, we're going to need to access the Performer model, so require it at the top:

 const Movie = require('../models/movie');
 // require the Performer model
 const Performer = require('../models/performer');

Now we're ready to refactor the show action...

Passing the Performers

We'll review as we refactor the code:


 function show(req, res) {
   Movie.findById(req.params.id)
   .populate('cast').exec(function(err, movie) {
     // Performer.find({}).where('_id').nin(movie.cast)
     Performer.find(
      {_id: {$nin: movie.cast}},
      function(err, performers) {
        console.log(performers);
        res.render('movies/show', {
          title: 'Movie Detail', movie, performers
        });
      }
    );
   });
 }

The log will show we are retrieving the performers - a good sign at this point.

Refactor show.ejs

The next slide has some refactored markup in movies/show.ejs.
It's a bit complex, so we'll review it while we make the changes.
We'll have to be careful though...

  <div><%= movie.nowShowing ? 'Yes' : 'Nope' %></div>
  <!-- start cast list -->
  <div>Cast:</div>
  <ul>
    <%- movie.cast.map(p =>
      `<li>${p.name} <small>${p.born.toLocaleDateString()}</small></li>`
    ).join('') %>
  </ul>
  <!-- end cast list -->
</section>

<!-- add to cast form below -->
<form id="add-per-to-cast" action="/movies/<%= movie._id%>/performers" method="POST">
  <select name="performerId">
    <%- performers.map(p =>
      `<option value="${p._id}">${p.name}</option>`
    ).join('') %>
  </select>
  <button type="submit">Add to Cast</button>
</form>

Refactor show.ejs - CSS

Add this tidbit of CSS to clean up the cast list:

 ul {
   margin: 0 0 1rem;
   padding: 0;
   list-style: none;
 }

 li {
   font-weight: bold;
 }

Need a Route for the Add to Cast Form Post

The route is RESTful, but we have to use a non-RESTful name for the controller action because we're creating an association between a movie and a performer...
In routes/performers.js
```
 router.post('/movies/:id/performers', performersCtrl.addToCast);
```
addToCast - not a bad name, but you can use a different one if you want to

The addToCast Controller Action

Let's write that addToCast action in controllers/performers.js:

 const Performer = require('../models/performer');
 // add the Movie model
 const Movie = require('../models/movie');

 module.exports = {
   new: newPerformer,
   create,
   addToCast
 };

 function addToCast(req, res) {
   Movie.findById(req.params.id, function(err, movie) {
     movie.cast.push(req.body.performerId);
     movie.save(function(err) {
       res.redirect(`/movies/${movie._id}`);
     });
   });
 }

We Did It!

That was fun!
A few questions, then on to the lab!

❓ Essential Questions

Take a couple of minutes to review...

What property type is used in schemas to reference other documents?
Describe the difference between 1:M & M:M relationships.
What's the name of the method used to replace an ObjectId with the document it references?

jim-clark/mongoose-referencing.md

MongooseReferencing Related Data

Learning Objectives

Roadmap

Setup

Review the Starter Code

Perform CRUD UsingMongoose Models in a Node REPL

Perform CRUD UsingMongoose Models in a Node REPL

Perform CRUD UsingMongoose Models in a Node REPL

Perform CRUD UsingMongoose Models in a Node REPL

Perform CRUD UsingMongoose Models in a Node REPL

Perform CRUD UsingMongoose Models in a Node REPL

Perform CRUD UsingMongoose Models in a Node REPL

A New Data Resource: Performers

And Mongoose Movies ERD...

💪 Practice Exercise (5 minutes)

Create the Performer Model

Create the Performer Model

Referencing Performers in the Movie Model

Contrasting 1:M and M:M Relationships

Many:Many CRUD

AAU, I want to create a new performer if they don't already exist

Creating Performers - Step 1

Creating Performers - Step 2

Creating Performers - Step 3

Creating Performers - Step 4

Creating Performers - Step 4

Creating Performers - Step 5

Creating Performers - Step 5

Creating Performers - CSS

Creating Performers

Creating Performers

Associating Movies and Performers

AAU, after adding a movie, I want to see its details page

AAU, when viewing a movie's detail page,I want to see a list of the current cast and add a new performer to the list

Replacing ObjectIds with the Actual Docs

Replacing ObjectIds with the Actual Docs

Passing the Performers

Passing the Performers

Refactor show.ejs

Refactor show.ejs - CSS

Need a Route for the Add to Cast Form Post

The addToCast Controller Action

We Did It!

❓ Essential Questions

References

Mongoose
Referencing Related Data

Perform CRUD Using
Mongoose Models in a Node REPL

Perform CRUD Using
Mongoose Models in a Node REPL

Perform CRUD Using
Mongoose Models in a Node REPL

Perform CRUD Using
Mongoose Models in a Node REPL

Perform CRUD Using
Mongoose Models in a Node REPL

Perform CRUD Using
Mongoose Models in a Node REPL

Perform CRUD Using
Mongoose Models in a Node REPL

AAU, when viewing a movie's detail page,
I want to see a list of the current cast and add a new performer to the list
