Intro to Full-Stack Development & HTTP

Learning Objectives


Students Will Be Able To:

  • Explain Full-Stack Web Development
  • Describe Client/Server Architecture
  • Explain the Anatomy of HTTP Requests and Responses
  • Identify the Two Key Components of an HTTP Request
  • Explain How HTTP Requests Can be Initiated From a Browser
  • Explain How HTTP Requests Result in Code Running on a Server
  • Describe a Process for Building a Full-stack App

Roadmap


  • Why Learn Full-Stack Web Development?
  • What is a Full-Stack Developer?
  • SEI Web Technology Stacks
  • Client/Server Architecture
  • What is HTTP?
  • Let's Make an HTTP Request
  • Anatomy of an HTTP Request Message
  • Anatomy of an HTTP Response Message
  • The Two Key Components of an HTTP Request
  • HTTP Methods
  • Ways to Send HTTP Requests From the Browser
  • How HTTP Requests Run Code on the Server
  • Essential Questions

Full-Stack Web Development

Why Learn Full-Stack Web Development?


What is a Full-Stack Developer?


A full-stack developer:

  • Is a developer who is comfortable working with both front-end & back-end technologies.

  • Can create full-stack applications by writing code that runs in both a client, such as a browser, and a web server.

  • Will often specialize in front-end or back-end technologies.

  • Is a graduate of SEI!

Web Technology Stack
Unit 2

  • In this unit, we'll learn 3 of the 4 technologies that comprise the MERN Stack:

Web Technology Stack
Unit 3

  • In Unit 3, we'll learn:

Web Technology Stack
Unit 4

  • In Unit 4, we go full MERN stack:

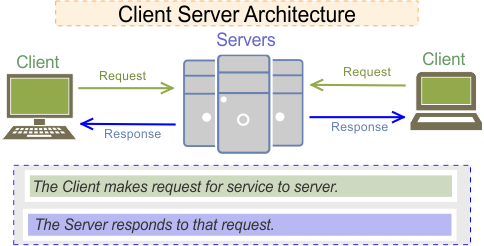

Client/Server Architecture

Client/Server Architecture


Client/Server Architecture


  • The terms client and server can refer to both a physical device (computer, tablet, phone, etc.) but can also refer to a software process. For example:

    • Database software such as PostgreSQL and web servers like Apache are examples of software processes behaving as servers.
    • Browser software such as Chrome or Firefox are examples of software clients.

  • Physical servers connected to the Internet are also referred to as hosts.

Client/Server Architecture


  • Web developers usually think of a "web browser" when they hear "client".

  • Note that during development, your computer will plays the role of BOTH client and web server.

  • The PostgreSQL & MongoDB database servers will also be running on your computer, however, we will move to a cloud-based MongoDB server as soon as it's practical.

HTTP

What is HTTP?


  • Hypertext Transfer Protocol (HTTP) is an application-level network protocol that powers the communications across the World Wide Web, more commonly referred to as just the Web.

  • HTTP is fundamental to web development - regardless of which back-end or front-end web technology/framework is used.

  • When a user interacts with an amazing web application we developed, it's HTTP that informs the web application what the browser wants and it's HTTP that delivers the goods from the server back to the browser.

What is HTTP?

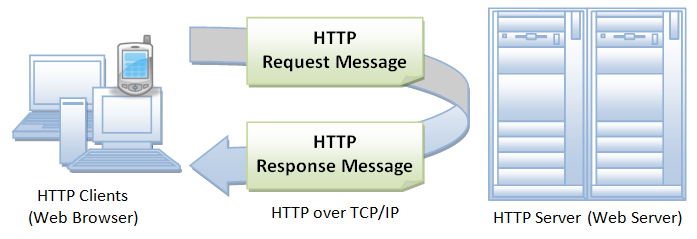

  • The process of a client sending a HTTP request, and server responding is known as the HTTP Request/Response Cycle:

What is HTTP?

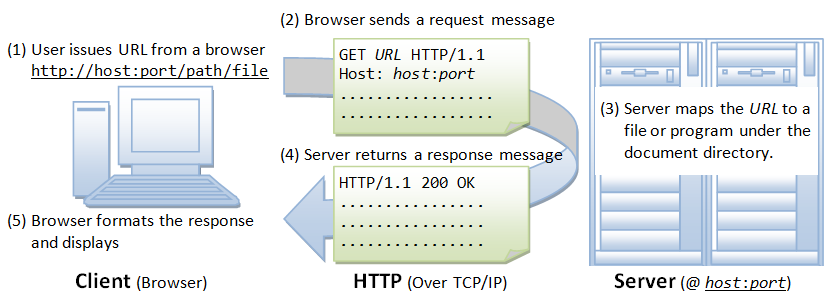

  • When we browse to a website by typing in the address bar, this is what happens:

What is HTTP?


  • When the response is received by the client, that request/response cycle has ended and there will be no further HTTP communications unless another request is sent by the client.

  • HTTP itself does not maintain any information regarding previous requests between client and server - this makes HTTP a stateless protocol. However, it is possible to remember "state" using cookies or by sending data in the request's body (data payload).

Let's Make an HTTP Request


  • Let's open a new tab in Chrome, open DevTools, and click on the Network tab where we can inspect HTTP requests and responses.

  • Now let's browse to General Assembly's site by typing generalassemb.ly in the address bar...

Let's Make an HTTP Request

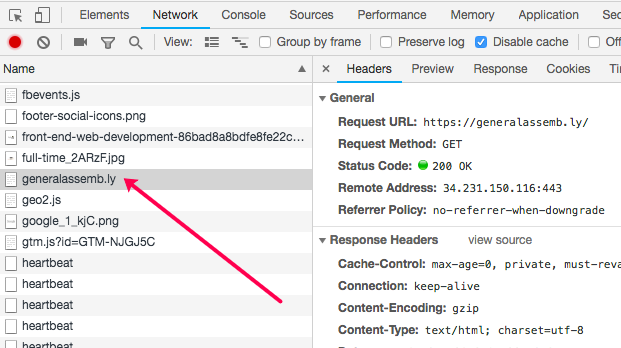

  • Wow! Each one of those lines represents a separate HTTP request made to a server! Find the line in the left-side pane with generalassemb.ly and click on it:

Let's Make an HTTP Request

  • In the pane on the right you will find all of the information about a particular HTTP request. Select the Headers tab and explore!:

Anatomy of an HTTP Request Message

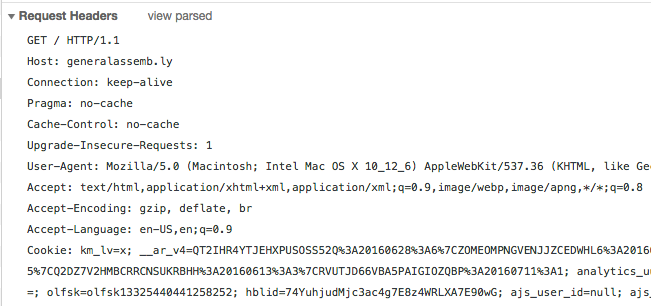

  • Use the following diagram to review the Request Headers sent to the server when browsing to generalassemb.ly:

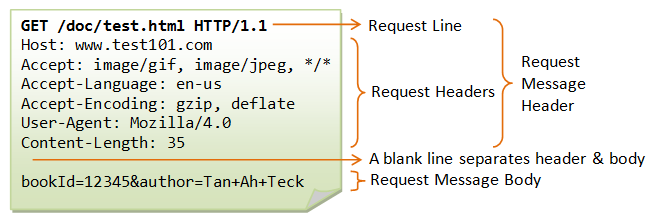

Anatomy of an HTTP Request Message


  • The GET request we just sent does not contain a message body nor a Content-Length header because...

  • The Request Body is optional and present only when the client is sending data to the server.

  • An example of when the body might contain data is when the contents of an HTML form are being submitted by the user.

Anatomy of an HTTP Response Message

  • Now use the following diagram to review the Response Headers returned by the generalassemb.ly server:

    You can view the response body by clicking the Response tab.

Anatomy of an HTTP Response Message


  • The status code in the first line informs us on how the request/response went. It is always a three-digit number that falls within the following ranges/categories:

    • 1xx Informational
    • 2xx Success
    • 3xx Redirection
    • 4xx Client Error
    • 5xx Server Error

  • Most HTTP responses will have a status code of 200, which means OK. You also might be familiar with the status code of 404 - Not Found.

Anatomy of an HTTP Response Message

  • The Response Body is what holds the content of the requested resource.

  • The Content-Type header is a MIME type and helps the browser determine what to do with the data being sent in the body of the HTTP response. For example:

    • text/html: The browser will parse the body as HTML and, depending on how the HTTP request was initiated, usually replace the browser window's content with the newly received HTML.
    • image/png

  • Although the HTTP protocol is text-based, the content in the body can be binary, for example, images are typically transferred in binary format.

The Two Key Components of an HTTP Request


  • We saw earlier that every HTTP request message begins with a request-line like this:

     GET /sample_page.html HTTP/1.1

  • The two key components of any HTTP request are:

    • The HTTP method (GET in the example above), and
    • The request target, which is usually a URL (the above example is more accurately a URI)

HTTP Methods


  • HTTP methods, are used to indicate the desired action to be performed for a given resource (specified by the URL) on the server.

  • The fact that they indicate action is why they are also at times called HTTP Verbs.

HTTP Methods

  • We'll be using the following HTTP Methods when we start defining our application's routes:

    HTTP Method (Verb) Desired Action on Server
    GET The GET method requests a representation of the specified resource (URL). Requests using GET should only retrieve data.
    POST The POST method is used to create a resource on the server.
    PUT The PUT method replaces a resource with the request payload
    (data in the body).
    DELETE The DELETE method deletes the specified resource.

URL


  • URL stands for Uniform Resource Locator.

  • It informs the server of what resource the client wants to GET. create (POST), DELETE, etc.

URL

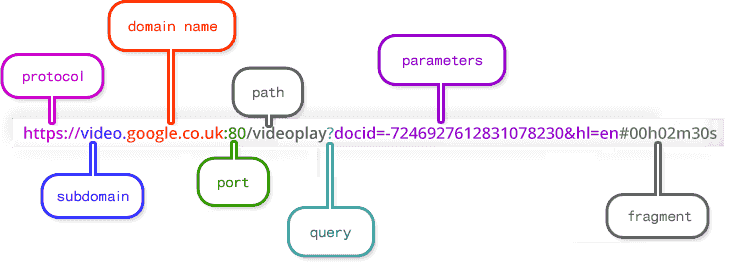

  • Here's the complete anatomy of a URL:

  • Developers often refer to just the path (incorrectly) as a URL.

Ways to Send HTTP Requests From the Browser


  • These are ways that a browser can send an HTTP Request:

    Action HTTP Method(s) Possible
    Using the address bar GET
    User submits an HTML form POST, GET (used for searches)
    User clicks a link GET
    Using JavaScript All Methods can be sent using AJAX

Ways to Send HTTP Requests
Without Using the Browser


  • There are plenty of developer tools that enable us to issue HTTP requests to servers without using a browser.

  • One tool we use later in the course is Postman.

  • If you prefer to use a command-line tool, our computers already have a tool called cURL.

How HTTP Requests Run Code on the Server


  • As full-stack web developers, we'll create front-ends that display in the browser.

  • As a user interacts with the app, they will cause HTTP requests to be sent to our back-end web application.

  • In our web app on the back-end, we will create routes that listen for these requests from the front-end, and...

  • Those routes will map HTTP requests to our back-end code!

How HTTP Requests Run Code on the Server


  • As an example, you want your app to add a new user to your database when they sign up...

  • Using RESTful routing principles, you would code the sign up form to issue a POST /users HTTP request.

  • On the back-end you would have created a route that matches the:

    • HTTP Method (POST, in this case), and the
    • Path (/users)

  • When creating that route, you would have specified what code should run when route is matched!

❓ Essential Questions

Take a minute to discuss these with your pair:

  1. What is the network protocol of the web?

  2. What is the body of an HTTP request used for?

  3. Name three HTTP methods.

  4. Explain how an HTTP request makes code run on the server.
