Click to View this Presentation

Note: This lesson is not broken into distinct 1:15 modules. It is designed to be spread throughout a day...


OAuth Authentication
with
Express & Passport


Learning Objectives


  • Identify the advantages OAuth provides for users and web apps

  • Explain what happens when a user clicks "Login with [OAuth Provider]"

  • Add OAuth authentication to an Express app using PassportJS

  • Use Middleware & PassportJS to provide authorization


Roadmap


  • Why OAuth?
  • What is OAuth?
  • How Does OAuth Work?
  • Preview the App
  • The App's User Stories
  • Review the Starter Code
  • Today's Game Plan (11 Steps)

Why OAuth?


Why OAuth?


  • In Unit 2, we used Django's built-in username/password authentication.

  • The users of your project had to sign up and log in using a username and a password.

  • What are the pitfalls of username/password authentication from a user's perspective?


Why OAuth?


Pitfalls from a user prospective:

  • Creating multiple logins requires you to remember and manage all of those login credentials.

  • You will often use the same credentials across multiple sites, so if there's a security breach at one of the sites where you are a member, the hackers know that users often use the same credentials across all of their sites - oh snap!

  • You are tempted to use simple/weak passwords so that you can remember all of them.


Why OAuth?


  • What would be the pitfalls from a
    business or developer's perspective?


Why OAuth?


Pitfalls from a website or developer prospective:

  • Managing users' credentials requires carefully crafted security code written by highly-paid devs.

  • Users (customers) are annoyed by having to create dedicated accounts, especially for entertainment or personal interest type websites.

  • Managing credentials makes your business a target for hackers (internal and external) and that brings with it liability.


Why OAuth?


  • The bottom-line is that the majority of users prefer to use OAuth instead of creating another set of credentials to use your site.

  • When users are your customers, you want to make them as happy as possible!

  • OAuth is hot, so let's use it!


What is OAuth?


What is OAuth?

Vocab


  • OAuth provider: A service company such as Google that makes its OAuth authentication service available to third-party applications.
  • client application: Our web application! Remember, this is from an OAuth provider's perspective.
  • owner: A user of a service such as Facebook, Google, Dropbox, etc.
  • resources: An owner's information on a service that may be exposed to client applications. For example, a user of Dropbox may allow access to their files.
  • access token: An temporary key that provides access to an owner's resources.
  • scope: Determines what resources and rights (read-only, update, etc) a particular token has.

What is OAuth?


  • OAuth is an open standard that provides client applications access to resources of a service such as Google with the permission of the resources' owner.

  • There are numerous OAuth Providers including:


How Does OAuth Work?

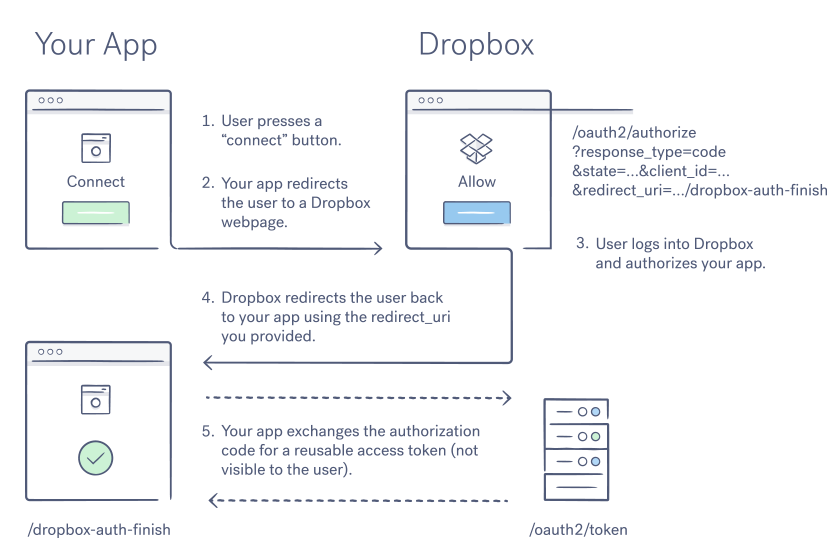

OAuth 2's Flow


How Does OAuth Work?


  • The ultimate goal is for the client application (our server app, not the browser app) to obtain an access token from an OAuth provider that allows the app to access the user's resources from that server's API's.

  • Important: We will only want access to the most basic of resources the user could grant us - their name and email. This is all our app typically cares about, unless it is designed to work with a user's Facebook friends, tweets, Dropbox data, etc.


How Does OAuth Work?


  • Interestingly, with OAuth, it technically is not required for an application to persist its users in a database. That's right, no user model!

  • However, in most cases web applications want to persist its users in a database because:

    • The web app will want to persist additional information about its users not provided by the OAuth provider, for example, storing a user's preferences when using an app.
    • They want to track the number of users their app has, and perhaps their usage frequency, etc.

How Does OAuth Work?


  • OAuth is token based.

  • A token is a generated string of characters.

  • Once a user okays our web app's access, our web app receives a code parameter that is then exchanged for an access token.


How Does OAuth Work?


  • Each token has a scope that determines what resources an app can access for that user. Again, in this lesson, we will only be interested in accessing our users' basic profile info.

  • If in your Project you would like to access more than a user's profile, you will need to modify the scope - check the specific provider's documentation on how to access additional resources.


How Does OAuth Work?


  • Yes, OAuth is complex. But not to worry, we don't have to know all of the nitty gritty details in order to take advantage of it in our apps.

  • Plus, we will be using a very popular piece of middleware that will handle most of the OAuth dance for us.


OAuth Review Questions


  • True or false - if your site allows users to authenticate via OAuth, you should ensure they create a "strong" password.

  • What are the advantages provided to users by OAuth?

  • The advantages for web sites & developers?

  • What is the client application within the context of an OAuth provider?


Preview the App


The App We Will Build Today


  • Today, we are going to take a starter application and add OAuth authentication & authorization to it.

  • The app will allow you, as WDI Students, to list fun facts about yourself and read facts about fellow students, past and present.

  • The app will add you as a student to its database when you log in for the first time using Google's OAuth provider.

  • Allow me to demo what the finished app will look like.


The App's User Stories


The App's User Stories


The following stories are COMPLETE in the starter code:

  • As a Visitor:
    • I want to view fun facts about past and present WDI Students so that I can know more about them.
    • I want to be able to search for students by their name so that I don't have to scroll through a long list.
    • I want to sort the list of students by cohort or name so that I can more easily find the student I'm looking for.

The App's User Stories


We will complete these stories today:

  • As an Authenticated Student:
    • I want to add fun facts about myself so that I can amuse others.
    • I want to be able to delete a fact about myself, in case I embarrass myself.
    • I want to view the Google avatar instead of the placeholder icon.
    • I want to be able to designate what cohort I was a part of.

Set Up the Starter Code

  • Optionally, copy the starter-code/wdi-students folder.

  • npm install to install the app's node modules.

  • Open the project in your code editor.

  • Create a .env file and add a key of DATABASE_URL and assign it a value provided by yours truly.

  • nodemon and browse to localhost:3000 to test.


Review the Starter Code


Review the Starter Code


  • Let's discuss the app's structure and introduce a couple of tidbits that you may or may not have seen yet.

  • First, this is a SPA - there is only one server-side index.ejs view. However, logging in/out, triggers a full page refresh.

  • The app was scaffolded using the express-generator and the main server script has been renamed to server.js.


Review the Starter Code
CSS Framework



Review the Starter Code
The View

  • This app depends upon both server-side and client-side rendering.

  • There's a bit of server-side rendering when the user logs in and out.

  • When a fun fact is added or deleted, client-side rendering will kick into action.

  • As usual, EJS will be used for the server-side rendering, however, to prevent a conflict with client-side rendering, there is a new tag we will cover in a bit.


Review the Starter Code
The View


  • In this lesson, we will be performing client-side templating using Underscore, a popular JS library that has a bunch of functional programming helpers.

  • The great thing about underscore templating is that it has a low learning curve because it's very similar to EJS.

  • In fact, it uses the exact same tags (squids) - both with ink and without!


Underscore Templating


  • Let's open the console with the starter code running and check out how underscore templating works.

  • Copy/paste this object into the console:

     var person = {
         name: 'Brendan Eich',
         facts: [
             'Computer Scientist',
             'Co-founded everything Mozilla',
             'Created JavaScript in 10 days'
         ]
     };

Underscore Templating

  • Now let's define a template, which is a string containing markup and EJS-like tags, to render the person object:

     var template = `
     	<div class="card">
     		<h3><%= name %></h3>
     		<p>Facts:</p>
     		<ul>
     			<% facts.forEach(function(fact) { %>
     				<li><%= fact %></li>
     			<% }); %>
     		</ul>
     	</div>`;
  • Using a template literal allows us to write multi-line strings, which is nice, but not necessary.


Underscore Templating


  • Underscore templating works by:
    • "Compiling" a template string into a template function - this only needs to be done once per template.
    • Invoking the compiled template function with the data you want rendered passed as an argument.
    • What is returned is a string of HTML with the data dynamically rendered. Now you have a string of markup ready to be injected the DOM where you need it.

Underscore Templating


  • Here's how we compile the template string into a template function:

     var renderPerson = _.template(template);
  • As you can see, underscore provides a template method that accepts the template string. What is returned is the template function.


Underscore Templating

  • Now you can call that function, passing to it the data, anytime you need dynamically generated HTML (as a string):

     var personMarkup = renderPerson(person);

    produces this string...

     <div class="card">
     	<h3>Brendan Eich</h3>
     	<p>Facts:</p>
     	<ul>
     		<li>Computer Scientist</li>
     		<li>Co-founded Mozilla</li>
     		<li>Created JavaScript in 10 days</li>
     	</ul>
     </div>

Underscore Templating


  • Test it out with this code:

     document.body.innerHTML += renderPerson(person);
  • Since we are using innerHTML, for security purposes, we should sanitize the markup if we're not 100% in control of the data being rendered...


Underscore Templating

  • For example, students will be allowed to enter fun facts about themselves, since we are going to render what they submit, we need to ensure that they aren't able to pull off any shenanigans, such as a Cross-site Scripting Attack.

  • One way to do this is by "escaping" whatever the user entered when squidding it out. This prevents the user from being able to enter <script> tags. We escape the output of underscore using this syntax:

     <%%- fact.text %%>
  • The single "tentacle" tells underscore to escape/sanitize the string being squidded out.


Underscore Templating


  • Cool, now that we have seen how to define a template, compile it into a template function with underscore, and pass data to that function to obtain a string of dynamically generated markup, let's get back to reviewing the starter code...

Review the Starter Code
The View


  • Review index.ejs and app.js for the implementation details of rendering and responding to user interaction such as searching and sorting.

  • Note the use of double-percentages, e.g., <%%, in index.ejs. EJS will render <% in their place - this is necessary to avoid the conflict with underscore using the same tags. See here.


Review the Starter Code
Config

  • A .env file is being used to provide environment settings such as the database's connection string.

  • Besides avoiding having secrets pushed to GitHub, .env allows us to configure our app with different settings locally vs. when deployed.

  • The variables within .env are loaded on line 9 of server.js allowing its values to be used as shown on lines 3 & 7 of config/database.js.


Review the Starter Code
Database


  • The connection to MongoDB with Mongoose is done on line 12 of server.js.

  • We are using a hosted MongoDB so that we can see each other's fun facts!


Review the Starter Code
Models


  • Looking at models/student module reveals a single Student model.

  • Of interest is factSchema. This second schema is used to define the structure of the subdocuments embedded in the facts field of the Student model.

  • The avatar property has been defined in advance for implementing a user story as an exercise later today.


Review the Starter Code
Models (cont.)

  • As you know, in Mongoose, schemas define the structure of documents and only models are mapped to collections in the database.

  • The embedding of a Student's facts is highly improbable to cause any Student document to exceed the 16MB size limit and thus is a perfect use case for embedded docs.

  • Thanks to the factSchema, when we push a new fact into the facts array, all we do is provide the text field, and an _id will automatically be created in the subdocument for us.


Review the Starter Code
Routing


  • We have two separate route files: index.js & api.js.

  • In index.js, there is only the root route used to return our only view.

  • api.js contains our routes that will be accessed directly from the client using AJAX.

  • Always put routes in separate modules if you would like to namespace them using a different base path when mounting them.


Review the Starter Code
Controllers


  • Examining routes/api.js reveals that we are going to be putting our route handler code in two controllers modules: controllers/facts and controllers/students.

  • Currently, there is only one method, index, in students.js that returns all students in the database.

  • In facts.js the create and delete methods have been stubbed up.


Ready for Some OAuth?


Today's Game Plan


  • Step 1: Register our App with Google's OAuth Server
  • Step 2: Discuss PassportJS
  • Step 3: Install & Configure Session middleware
  • Step 4: Install PassportJS
  • Step 5: Create a Passport config module
  • Step 6: Install a Passport Strategy for OAuth
  • Step 7: Configure Passport
  • Step 8: Define routes for authentication
  • Step 9: Add Login/Logout UI
  • Step 10: Code the First User Story
  • Step 11: Add Authorization

Step 1 - Register our App


  • Every OAuth provider requires that our web app be registered with it.

  • When we do so, we obtain a Client ID and a Client Secret that identifies our application (not a user) to the OAuth provider.

  • For this lesson, we are going to use Google's OAuth server - the details of how to do so are here.

  • Time to register our app...

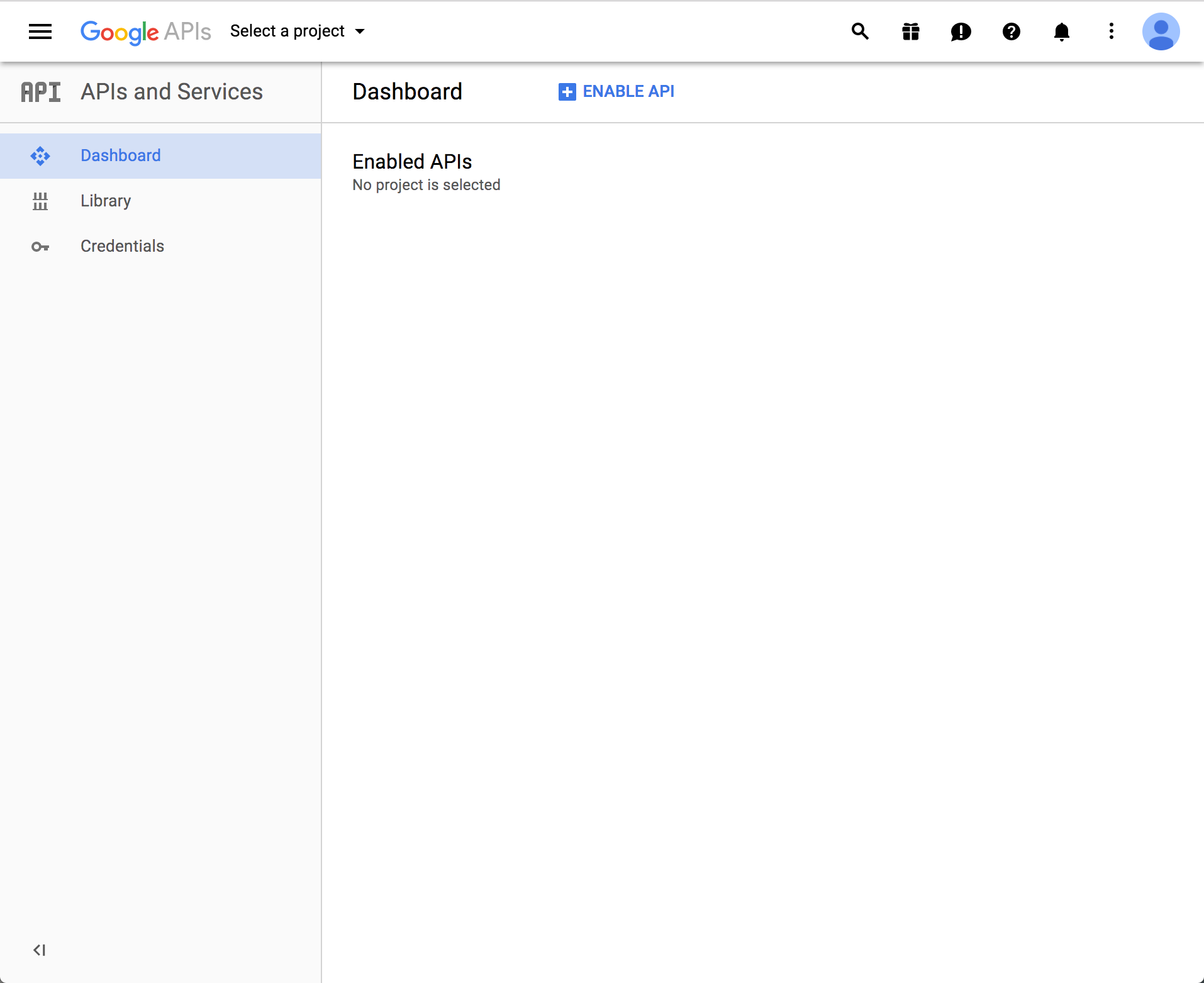

Step 1.1 - Google Developers Console


Step 1.2 - Create a Project

  • Click Select a project, then click the New Project button.

Step 1.2 - Create a Project

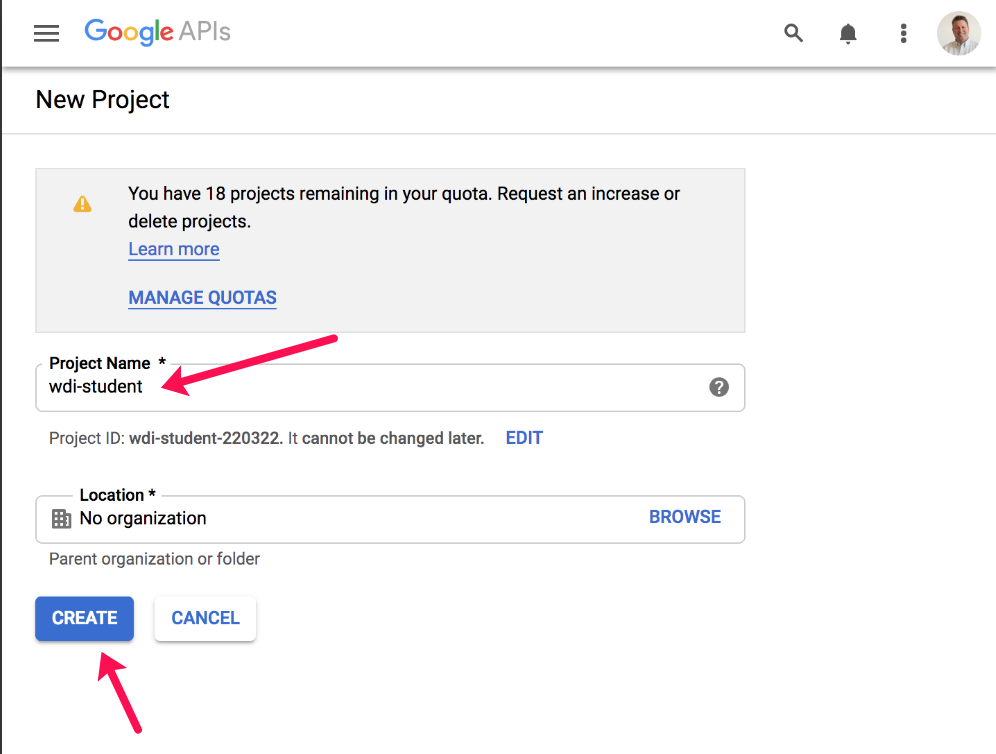

  • Type in a Project name, then click the Create button:

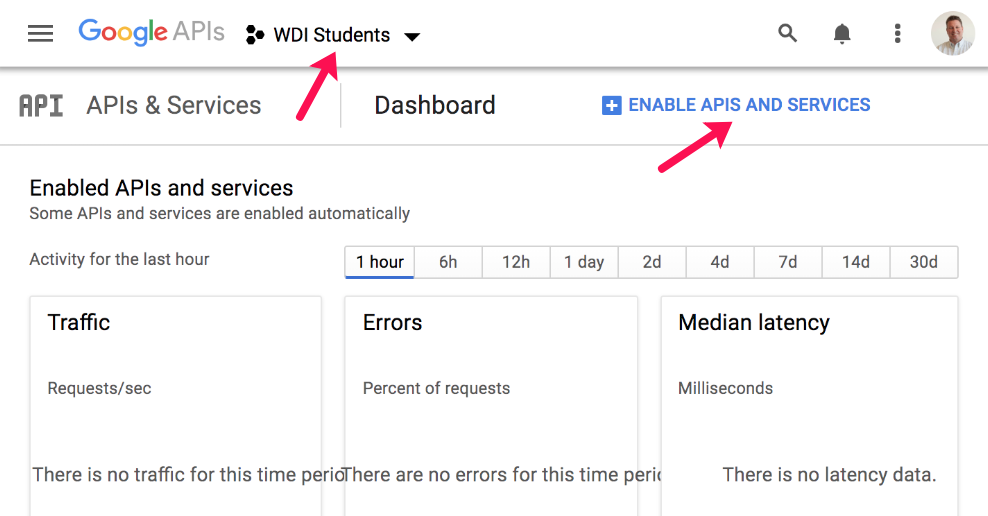

Step 1.3 - Enable Google+ API

  • It might take a bit, but once created, make sure the project is selected, then click ENABLE APIS AND SERVICES:


Step 1.3 - Enable Google+ API

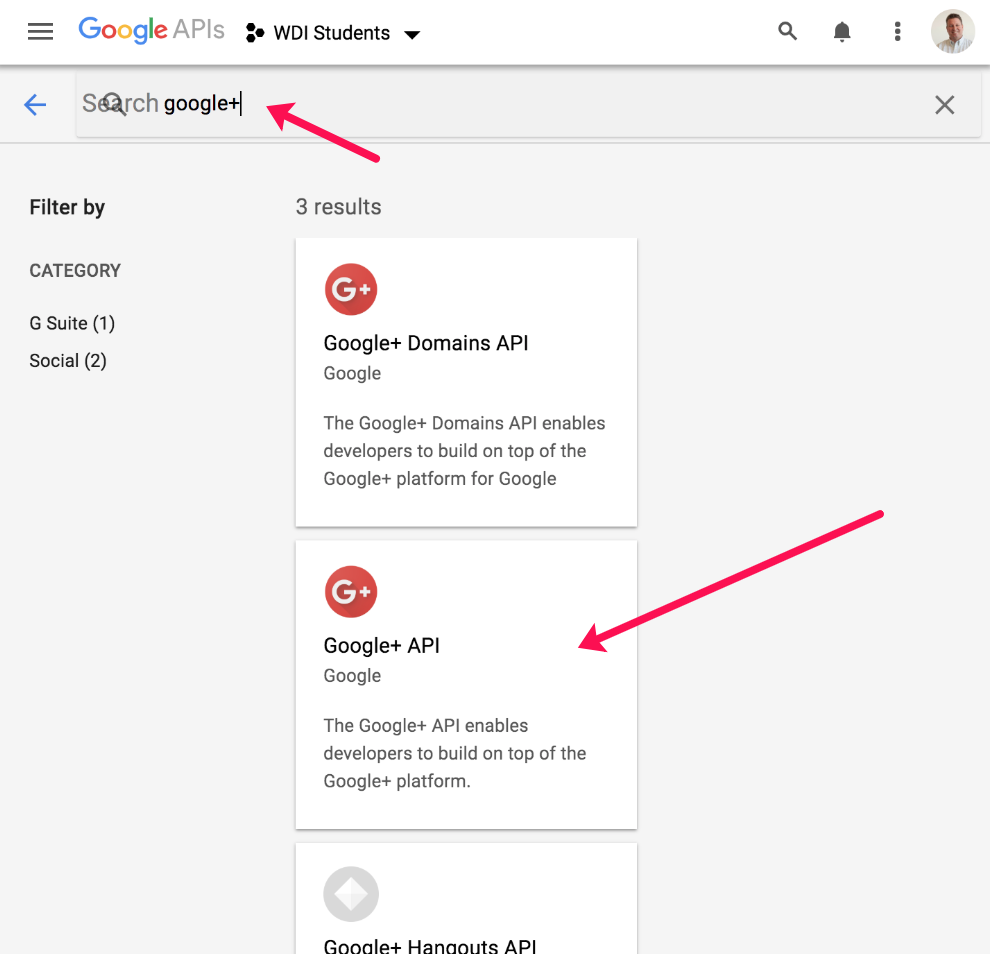

  • Search for Google+ and click on Google+ API when it is visible:

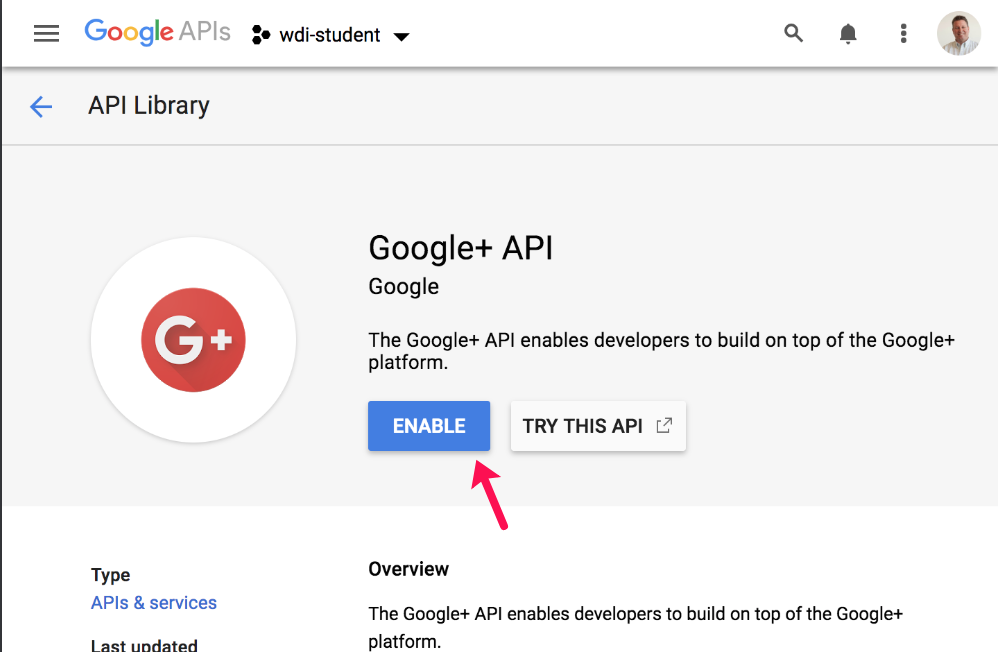

Step 1.3 - Enable Google+ API

  • Click ENABLE:


Step 1.4 - Obtain Credentials for App

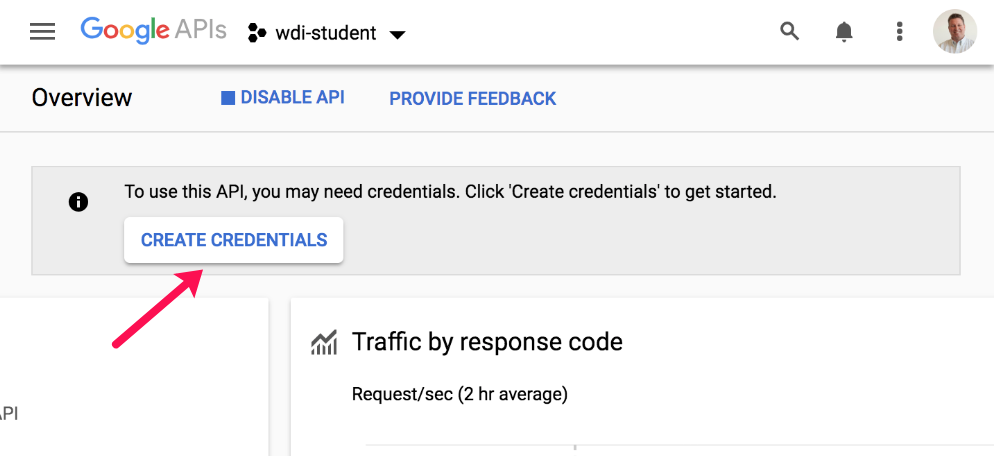

  • Now we need to create credentials for the app. Click CREATE CREDENTIALS:


Step 1.4 - Obtain Credentials for App

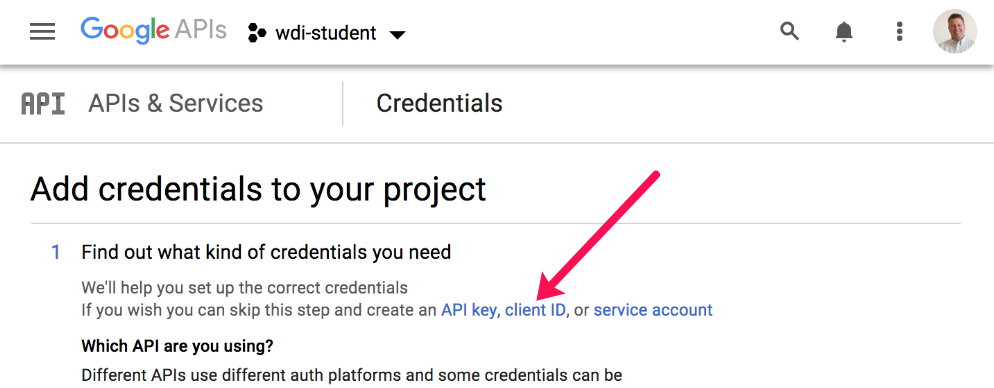

  • We're interested in obtaining a client ID - click it:


Step 1.4 - Obtain Credentials for App

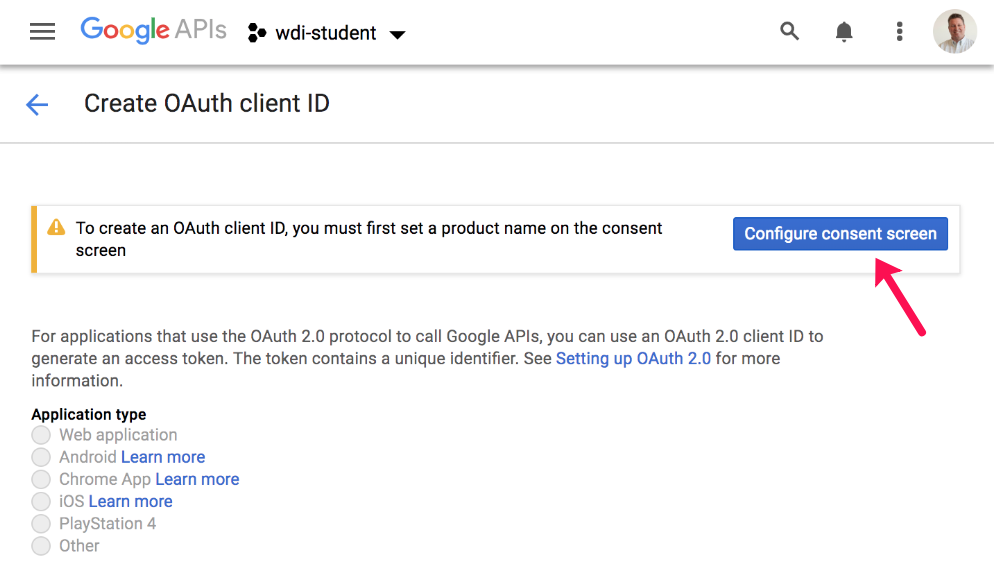

  • Click Configure consent screen to setup the screen users will see in order to obtain their consent:


Step 1.4 - Obtain Credentials for App

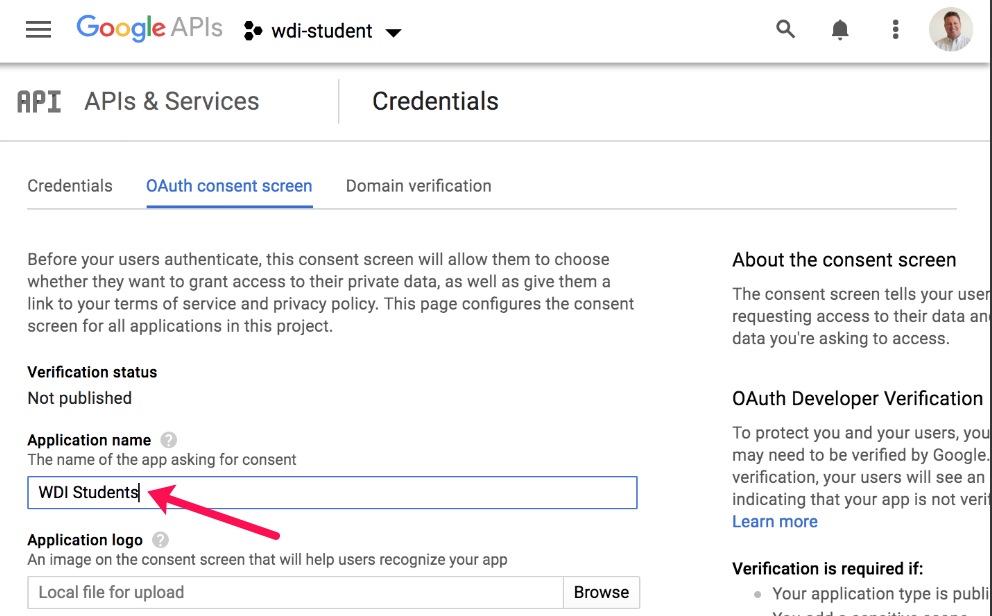

  • Just enter a Project name and click the blue Save button:

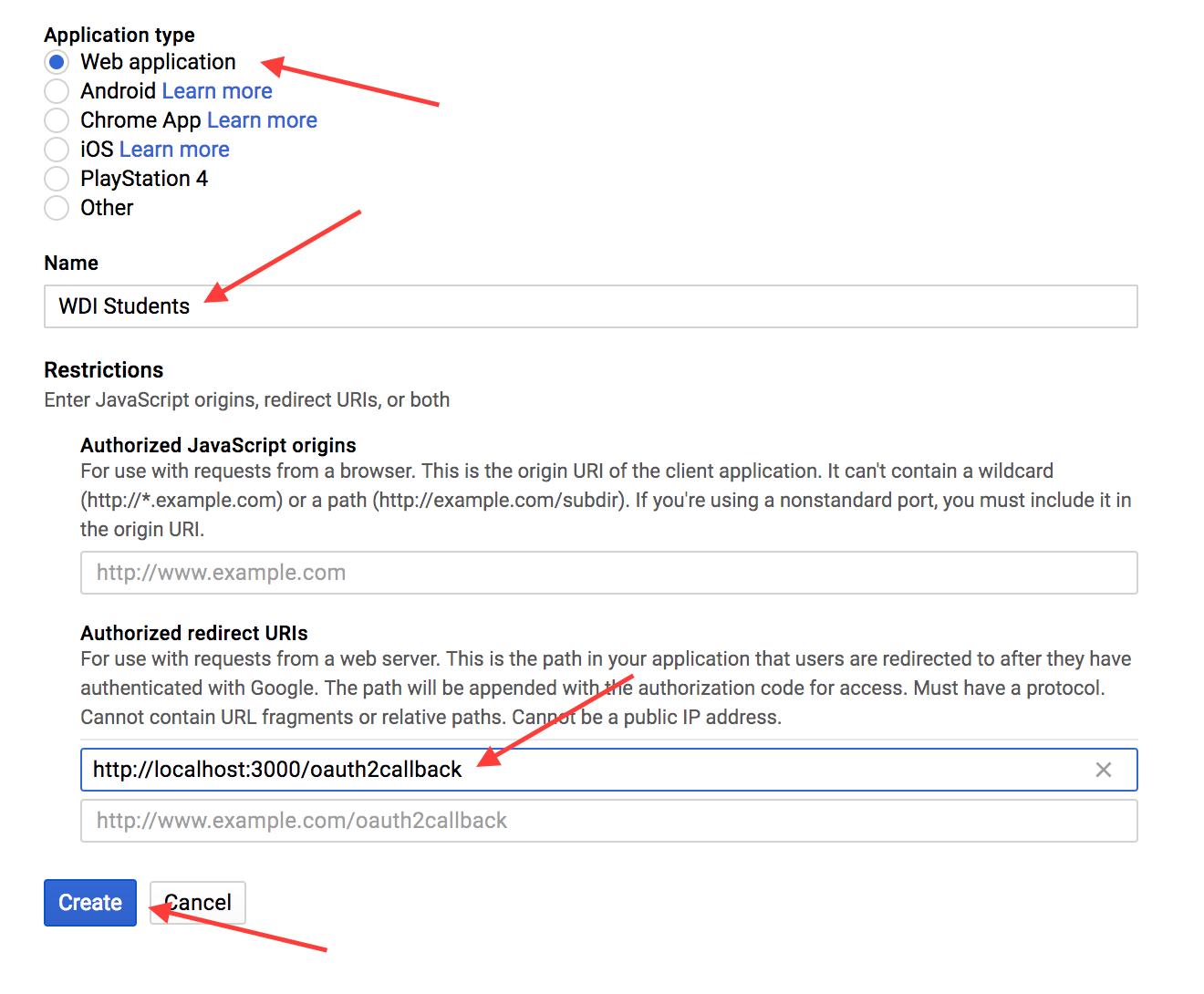

Step 1.4 - Obtain Credentials for App


  • The next slide shows what to do next.

  • The important thing to note is that you will have to add an additional entry in the Authorized redirect URIs once you have deployed your application to Heroku - something like https://<your app name>.herokuapp.com/oauth2callback.



Step 1.4 - Obtain Credentials for App


  • After clicking the Save button, we will be presented with our app's credentials!

  • Let's put YOUR credentials, along with that callback we provided, in our .env file so that it looks something like this:

DATABASE_URL=mongodb://<dbuser>:<dbpassword>@ds053954.mongolab.com:53954/wdi-students
GOOGLE_CLIENT_ID=245025414219-2r7f4bvh3t88s3shh6hhagrki0f6op8t.apps.googleusercontent.com
GOOGLE_SECRET=Yn9T_2BKzxr4zgprzKDGI5j3
GOOGLE_CALLBACK=http://localhost:3000/oauth2callback

Congrats on Registering the App


  • With registering our app now completed, just remember that each provider will have its own unique process.

  • Any questions about what we just did?


Step 2 - Passport Discussion


  • Implementing OAuth is complex. There are redirects going on everywhere, access tokens that only last for a short time, refresh tokens used to obtain a fresh access token, etc.

  • As usual, we will stand on the shoulders of giants that have done much of the hard work for us - enter PassportJS.

  • Passport is by far the most popular authentication framework out there for Express apps.


Step 2 - Passport Discussion


  • Passport's website states that it provides Simple, unobtrusive authentication for Node.js.

  • Basically this means that it handles much of the mundane tasks related to authentication for us, but leaves the details up to us, for example, not forcing us to configure our user model a certain way.


Step 2 - Passport Discussion


  • There are numerous types of authentication, if Passport itself was designed to do them all, it would be ginormous!

  • Instead, Passport uses Strategies designed to handle a given type of authentication. Think of them as plug-ins for Passport.

  • Each Express app with Passport can use one or more of these strategies.

  • Passport's site currently shows over 300 strategies available.


Step 2 - Passport Discussion


  • OAuth, or more specifically, OAuth2, although a standard, can be implemented slightly differently by OAuth providers such as Facebook and Google.

  • As such, there are strategies available for each flavor of OAuth provider.

  • For this lesson, we will be using the passport-google-oauth strategy.


Step 2 - Passport Discussion


  • Passport is just middleware designed to authenticate requests.

  • Passport's middleware will automatically add a user object to the req object if the request was made by an authenticated user.

  • We will then have that req.user object available to our route handler code!


Step 3 - Session Middleware


  • Before we install Passport and a strategy, we need to install the express-session middleware.

  • Sessions, are a server-side way of remembering a user's browser session.

  • It remembers the browser session by setting a cookie that contains a session id. No other data is stored in the cookie, just the id of the session.


Step 3 - Session Middleware


  • On the server-side, the application can store data pertaining to the session.

  • Passport will use the session, which is an in-memory data-store by default, to store a nugget of information that will allow us to lookup the user in our database.

  • FYI, since sessions are maintained in memory by default, if we restart our server, session data will be lost. You will see this happen when nodemon restarts the server and we are no longer logged in :)


Step 3.1 - Installing Session Middleware


  • Let's install the module:

     $ npm install express-session
  • Next, require it below the logger:

     var logger = require('morgan');
     // new code below
     var session = require('express-session');

Step 3.2 - Configure and Mount Session Middleware

  • Finally, we can configure and mount our session middleware below the cookieParser:

     app.use(cookieParser());
     // new code below
     app.use(session({
       secret: 'WDIRocks!',
       resave: false,
       saveUninitialized: true
     }));
  • The secret is used to digitally sign the session cookie making it very secure. You can change it to anything you want. Don't worry about the other two settings, they are only being set to suppress deprecation warnings.


Step 3.3 - Verifying Session Middleware


  • nodemon to make sure your server is running.

  • Browse to our app at localhost:3000.

  • Open the Resources tab in DevTools, then expand Cookies in the menu on the left.

  • A cookie named connect.sid confirms that the session middleware is doing its job.


####Congrats, the session middleware is now in place!

Time for a few questions :)


Review Questions


  • Before a web app can use an OAuth provider, it must first ___________ with it to obtain a ___________ and a client secret.

  • Passport uses ___________ designed to handle specific types of authentication.

  • In your own words, explain what a session is.

  • If there is an authenticated user, the request (req) object will have what attached to it by Passport?


Step 4 - Install Passport


  • The Passport middleware is easy to install, but challenging to set up correctly.

  • First the easy part:

     $ npm install passport
  • Require it as usual below express-session:

     var session = require('express-session');
     // new code below
     var passport = require('passport');

Step 4.1 - Mount Passport


  • With Passport required, we need to mount it. Be sure to mount it after the session middleware and always before any of your routes are mounted that would need access to the current user:

     // app.use(session({... code above
     app.use(passport.initialize());
     app.use(passport.session());
  • The passport.initialize() is always required, however, passport.session() can be removed if you don't need persisted login sessions (like for a pure backend api where credentials are sent with each request).


Step 5 - Create a Passport Config Module


  • Because it takes a significant amount of code to configure Passport, we will create a separate module so that we don't further pollute server.js.

  • Let's create the file:

     $ touch config/passport.js
  • In case you're wondering, although the module is named the same as the passport module we've already required, it won't cause a problem because a module's full path uniquely identifies it to Node.


Step 5.1 - Passport Module's Exports Code

  • Our config/passport module is not middleware.

  • Its code will basically configure Passport and be done with it. Nor does it need to export any functionality, thus, we don't even need to store the empty object returned by module.exports.

  • Requiring below our database is as good of a place as any in server.js:

     require('./config/database');
     // new code below
     require('./config/passport');

Step 5.2 - Require Passport


  • In our config/passport.js module we will certainly need access to the passport module:

     var passport = require('passport');
  • It's important to realize that this require returns the very same passport object that was required in server.js.
    Why is this?


Step 6 - Install the OAuth Strategy


  • Time to install the strategy that will implement Google's flavor of OAuth:

     $ npm install passport-google-oauth20
  • This module implements Google's OAuth 2.0 API. It's docs can be found here.

  • Note that OAuth 1.0 does still exist here and there, but it's pretty much obsolete.


Step 6.1 - Require the OAuth Strategy


  • Now let's require the passport-google-oauth20 module below that of passport in our passport.js module:

     var passport = require('passport');
     // new code below
     var GoogleStrategy = require('passport-google-oauth20').Strategy;
  • Note that the variable is named using upper-camel-case.
    What does that typically hint at?

  • Let's make sure there's no errors before moving on to the fun stuff!


Step 7 - Configuring Passport

To configure Passport we will:

  1. Call the passport.use method to plug-in an instance of the OAuth strategy and provide a verify callback function that will be called whenever a user has logged in using OAuth.

  2. Define a serializeUser method that Passport will call after verify to let Passport know what data we want to store in the session to identify our user.

  3. Define a deserializeUser method that Passport will call for every request when a user is logged in. What we return will be assigned to the req.user object.


Step 7.1 - passport.use

  • Now it's time to call the `passport.use` method to plug-in an instance of the OAuth strategy and provide a _verify_ callback function that will be called whenever a user logs in with OAuth. In _passport.js_:

var GoogleStrategy = require('passport-google-oauth20').Strategy;
// new code below
passport.use(new GoogleStrategy({
    clientID: process.env.GOOGLE_CLIENT_ID,
    clientSecret: process.env.GOOGLE_SECRET,
    callbackURL: process.env.GOOGLE_CALLBACK
  },
  function(accessToken, refreshToken, profile, cb) {
    // a user has logged in with OAuth...
  }
));

Step 7.1 - passport.use


  • Note the settings from the .env file being passed to the GoogleStrategy constructor function.
    What is the name of the module we've been using that loads the settings from the .env file?

  • Next we have to code the verify callback function...


Step 7.2 - The Verfiy Callback


  • The callback will be called by Passport when a user has logged in with OAuth.

  • It's called a verify callback because with most other strategies we would have to verify the credentials, but with OAuth, well, there are no credentials!

  • In this callback we must:

    • Fetch the user from the database and provide them back to Passport by calling the cb callback method, or...
    • If the user does not exist, we have a new user! We will add them to the database and pass along this new user in the cb callback method.

Step 7.2 - The Verfiy Callback


  • But wait, how can we tell what user to lookup?

  • Looking at the callback's signature:

     function(accessToken, refreshToken, profile, cb) {
  • We can see that we are being provided the user's profile - this object is the key. It will contain the user's Google Id.

  • However, in order to find a user in our database by their Google Id, we're going to need to add a field to our Student model's schema to hold it...


Step 7.3 - Modify the Student Model

  • Let's add a property for googleId to our studentSchema inside models/student.js file:

     var studentSchema = new mongoose.Schema({
       name: String,
       email: String,
       cohort: String,
       avatar: String,
       facts: [factSchema],
       googleId: String
     }, {
       timestamps: true
     });
  • Cool, now when we get a new user via OAuth, we can use the Google profile object's info to create our new user!


Step 7.4 - Callback Code


  • Now we need to code our callback!

  • We're going to need access to our Student model:

     var GoogleStrategy = require('passport-google-oauth20').Strategy;
     // new code below
     var Student = require('../models/student');
  • Let's do another error check by ensuring our server is running and we can refresh our app.

  • Cool, the next slide contains the entire passport.use method.
    Copy/paste it, then we'll review it...


passport.use(new GoogleStrategy({
    clientID: process.env.GOOGLE_CLIENT_ID,
    clientSecret: process.env.GOOGLE_SECRET,
    callbackURL: process.env.GOOGLE_CALLBACK
  },
  function(accessToken, refreshToken, profile, cb) {
    Student.findOne({ 'googleId': profile.id }, function(err, student) {
      if (err) return cb(err);
      if (student) {
        return cb(null, student);
      } else {
        // we have a new student via OAuth!
        var newStudent = new Student({
          name: profile.displayName,
          email: profile.emails[0].value,
          googleId: profile.id
        });
        newStudent.save(function(err) {
          if (err) return cb(err);
          return cb(null, newStudent);
        });
      }
    });
  }
));

Step 7.5 - de/serializeUser Methods


  • Our passport.use method has been coded. Now we need to write two more methods inside of config/passport module.

  • First the callback method we just created is called when a user logs in, then the passport.serializeUser method is called in order to set up the session.

  • The passport.deserializeUser method is called everytime a request comes in from an existing logged in user - it is this method where we return what we want passport to assign to the req.user object.


Step 7.5 - serializeUser Method


  • First up is the passport.serializeUser method that's used to give Passport the nugget of data to put into the session for this authenticated user. Put this below the passport.use method:

     passport.serializeUser(function(student, done) {
         done(null, student.id);
     });
  • Passport gives us a full user object when the user logs in, and we give it back the tidbit to stick in the session.

  • Again, this is done for server scalability and performance reasons - a lot of session data sucks.


Step 7.6 - deserializeUser Method

  • The passport.deserializeUser method is used to provide Passport with the user from the db we want assigned to the req.user object. Put it below the passport.serializeUser method:

     passport.deserializeUser(function(id, done) {
       Student.findById(id, function(err, student) {
         done(err, student);
       });
     });
  • Passport gave us the id from the session and we use it to fetch the student to assign to req.user.

  • Let's do another error check.


Step 8 - Define Routes for Authentication


  • Our app will provide a link for the user to click to login with Google OAuth. This will require a route on our server to handle this request.

  • Also, we will need to define the route,
    /oauth2callback
    we told Google to call on our server after the user confirms or denies their OAuth login.

  • Lastly, we will need a route for the user to logout.


Step 8.1 - routes/index Module


  • We're going to code these three new auth related routes in our routes/index module.

  • These new routes will need to access the passport module, so let's require it in routes/index.js:

     var router = require('express').Router();
     // new code below
     var passport = require('passport');

Step 8.2 - Login Route

  • In routes/index.js, let's add our login route below our root route:

     // Google OAuth login route
     router.get('/auth/google', passport.authenticate(
       'google',
       { scope: ['profile', 'email'] }
     ));
  • The passport.authenticate function will take care of coordinating with Google's OAuth server.

  • The user will be presented the consent screen if they have not previously consented.

  • Then Google will call our Google callback route...


Step 8.2 - Login Route


  • Note that we are specifying that we want passport to use the google strategy. Remember, we could have more than one strategy in use.

  • We are also specifying the scope that we want access to, in this case, ['profile', 'email'].


Step 8.3 - Google Callback Route


  • Below our login route we just added, let's add the callback route that Google will call after the user confirms:

     // Google OAuth callback route
     router.get('/oauth2callback', passport.authenticate(
       'google',
       {
         successRedirect : '/',
         failureRedirect : '/'
       }
     ));
  • Note that we can specify the redirects for a successful and unsuccessful login. For this app, we will redirect to the root route in both cases.


Step 8.4 - Logout Route


  • The last route to add is the route that will logout our user:

     // OAuth logout route
     router.get('/logout', function(req, res){
       req.logout();
       res.redirect('/');
     });
  • Note that the logout() method was automatically added to the request (req) object by Passport!

  • Good time to do another error check.


Step 9 - Add Login/Logout UI


  • Before we can dynamically modify our index.ejs view depending upon whether there's an authenticated user or not, we need to modify our root route to pass req.user to it:

     router.get('/', function(req, res) {
     	res.render('index', { user: req.user });
     });
  • Now the logged in student is in a user variable that's available inside of index.ejs. If nobody is logged in, user will be undefined (falsey).


Step 9.1 - Add the Login / Logout UI Logic

  • We're going to need a link to for the user to click to login/out.
    Let's modify our index.ejs:

     <a href="" class="brand-logo left">WDI Student Fun Facts</a>
     <!-- new html below -->
     <ul class="right">
     	<li>
     	<% if (user) { %>
     		<a href="/logout"><i class="material-icons left">trending_flat</i>Log Out</a>
     	<% } else { %>
     		<a href="/auth/google"><i class="material-icons left">vpn_key</i>Login with Google</a>
     	<% } %>
     	</li>
     </ul>

Step 9.1 - Add the Login / Logout UI Logic


  • As a reminder, for EJS server-side processing, we use <% %> tags like we just did to dynamically render the nav bar depending upon whether or not a user is logged in.

  • However, wherever we want to define a client-side template to be used with underscore, we need to use <%% %%> tags that EJS turns into <% %> tags within the page returned to the browser.


Step 9 - Try Logging In!


  • We've finally got to the point where you can test out our app's authentication!

  • May the force be with us!


Step 10 - Code the First User Story


  • Our first user story reads:
    I want to add fun facts about myself so that I can amuse others.

  • We will want to add an <input> for the fact's text and a button element to the logged in student's card only.


Step 10.1 - Add Dynamic UI

  • Let's add some dynamic UI to add a fact. Ensure it's added in the correct location!

     	<li class="collection-item ... ">
     <%% }) %%>
     <!-- new html below -->
     <%% if (student._id === '<%= user && user.id %>') { %%>
       <div class="card-action">
         <input type="text" id="fact" class="white-text">
         <input type="button" class="btn white-text"
         	onclick="addFact()" value="Add Fact">
       </div>
     <%% } %%>
  • Note that we are mixing in a bit of server-side EJS, <%= user && user.id %>, used to insert a logged in user's document id.


Step 10.2 - AJAX, etc.

  • Sprinkle in some AJAX inside of app.js to post our new fact, update our in-memory array, and re-render the view:

     function addFact() {
       if ( !$('#fact').val() ) return;
       fetch('/api/facts', {
         method: 'POST',
         headers: { 'Content-Type': 'application/json' },
         body: JSON.stringify( { fact: $('#fact').val() } ),
         credentials: 'include'  // send the session cookie!
       })
       .then(res => res.json())
       .then(data => {
         // clear the <input>
         $('#fact').val('');
         // find the updated student's index
         var idx = allStudents.findIndex(s => s._id === data._id);
         allStudents[idx] = data;
         render();
       });
     }

Step 10.3 - Controller Code


  • Lastly, the server controller code for the route (already defined). In controllers/facts.js:

     function create(req, res) {
       req.user.facts.push({text: req.body.fact});
       req.user.save(function(err) {
         res.json(req.user);
       });
     }
  • Note that req.user IS the Mongoose user document!


Step 10 - Code the First User Story


  • That should take care of our first user story - try it out!

  • Cool, just one step left!


Step 11 - Authorization


  • What is authorization?

  • Passport adds a nice method to the request object, req.isAuthenticated() that returns true or false depending upon whether there's a logged in user or not.

  • We can easily write our own little middleware function to take advantage of req.isAuthenticated().


Step 11.1 - Authorization Middleware


  • As we know by now, Express's middleware and routing is extremely flexible and powerful.

  • We can actually insert additional middleware functions before a route's final middleware function! Let's modify routes/api.js to see this in action:

       // POST /api/facts
     router.post('/facts', isLoggedIn, factsCtrl.create);
  • Take note of the inserted isLoggedIn middleware function!


Step 11.2 - Authorization Middleware


  • Our custom isLoggedIn middleware function, like all middleware, will either call next(), or respond to the request.

  • Let's put our new middleware at the very bottom of
    routes/api.js - just above the module.exports:

     // Insert this middleware for routes that require a logged in user
     function isLoggedIn(req, res, next) {
       if ( req.isAuthenticated() ) return next();
       res.redirect('/auth/google');
     }
  • That's all there is to it!


Congrats!

You have implemented OAuth authentication and authorization!


Practice Exercises


  • For a challenging practice, complete the remaining three user stories:

    • I want to be able to delete a fact about myself, in case I make a mistake.
    • I want to be able to designate what cohort I was a part of.
    • I want to show the user's Google avatar instead of the current icon.
  • Start a new application from scratch that implements authentication and authorization as shown in this lesson. Remember, this is a requirement of Project 3!


References


Sign up for free to join this conversation on GitHub. Already have an account? Sign in to comment
