Realtime with socket.io

---

Learning Objectives

Students will be able to:

• Add and configure socket.io in a Node/Express app.

• Send messages from a client to a socket.io server and vice versa.

• Listen for messages on both the socket.io server and client.

• Optionally send a data payload with a message.

• Implement realtime communication between browser and server in a Node/Express app.

---

Roadmap

• Intro to socket.io

• Review the Starter App: realtime-circles

• Configure socket.io on the Server

• Configure socket.io in the Client (browser)

• Display Circles in Realtime

• Clear the Display (practice)

• Deploy to Heroku

• More Big Fun? Track Players!

---

Intro to socket.io

---

Intro to socket.io

Within the context of the interaction between a browser and a web server:

• What is bidirectional communication?

• What is realtime communication?

• How cool would it be to incorporate these concepts in our apps!

---

• With your pair, discuss what type of applications are made possible by realtime bidirectional communication between clients and a server.

• Be prepared to share your thoughts in 2 minutes.

---

Intro to socket.io

• We just discussed the kinds of cool apps that leverage realtime communications.

• So, what technology do we need to know as developers to incorporate realtime in our own apps...

---

Intro to socket.io

• So far in SEI, we've learned quite a bit about the HTTP protocol.

• Who would like to remind us of the process of communication between client and server when using HTTP?

---

Intro to socket.io

• From the beginning, HTTP implemented a request / response process.

• In HTTP, all communication is initiated by the client.

• The web server responds once to the client's request, and the "conversation" ends until the client sends another request.

• Obviously, HTTP is not our ticket to creating realtime apps, what is?...

---

Intro to socket.io

• As we learned in week one, it was the demand for modern web applications that led to the development of:

---

Intro to socket.io

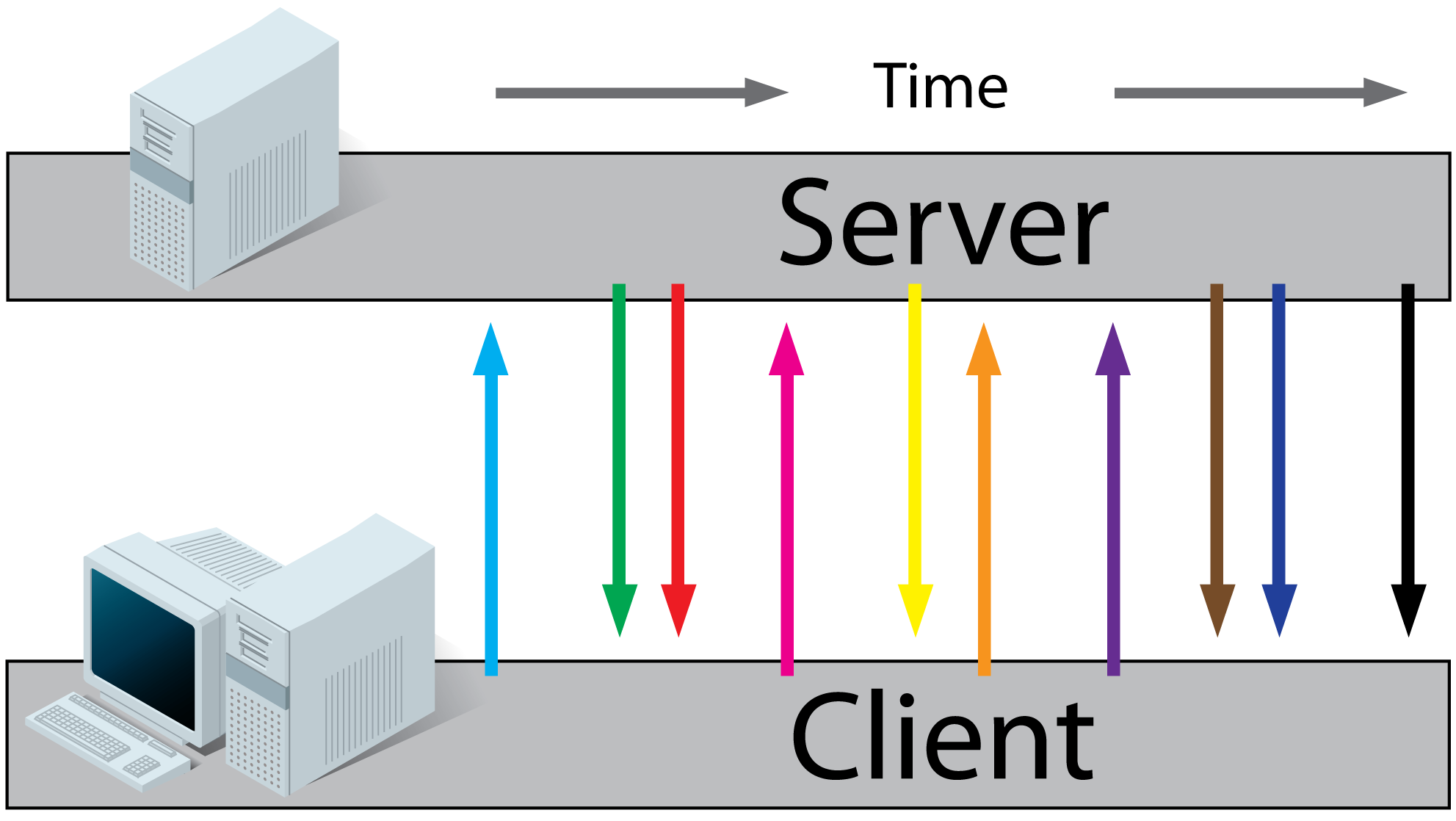

• Fortunately, the HTML5 specification also included the ability to "upgrade" a HTTP connection upon request of the client.

• This connection upgrade results in the switch to a protocol that supports bidirectional communication - the websocket protocol.

---

Intro to socket.io

• Working with websockets natively is not terribly difficult, however, we've learned that using libraries such as jQuery can make us more productive developers.

• socket.io is a JavaScript library that wraps the websocket protocol and makes it easier to implement the realtime, bidirectional communication we seek.

---

Intro to socket.io

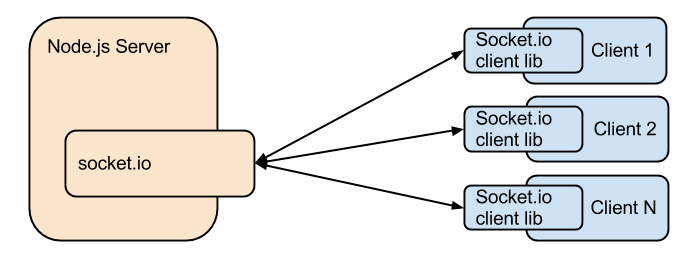

Basic Architecture

• socket.io Clients & Servers send "messages" to each other...

• and both Clients & Servers can listen and react to those "messages".

---

Intro to socket.io

What are "messages"?

• socket.io is all about sending and responding to messages.

• A message is a simple string identifier that we get to define,
  for example:
  'login', or 'move-player'

• Just like when naming functions, it's best to use identifiers for our messages that reflect their purpose.

---

Intro to socket.io

What are "messages"? (cont.)

• When sending a message, we can optionally send data that will be received by the listeners for the message. For example, when sending a 'login' message, we might send the following JS object:

   {
   	email: '[email protected]',
   	password: 'abc123'
   }

---

Intro to socket.io

Review Questions

Here's a few review questions before we take a look at our Starter App:

• Explain bidirectional communications.

• What protocol, introduced with HTML5, enables bidirectional communication between clients and server?

• Explain what "messages" are and what we do with them in socket.io.

---

Our Starter App
realtime-circles

---

Our Starter Apprealtime-circles

• Because you might deploy this app, please copy the realtime-circles starter code to your working directory.

• $ npm install

• $ nodemon and browse to localhost:3000

• Clicking creates a circle of random size and color.

• Our goal is to make this a realtime multi-player circle-fest!

• Let's review the starter code...

---

Review the Code for realtime-circles

• This is an Express app generated using express-generator.

• As a usual best practice in the land of the MERN-Stack,
  app.js has been renamed to server.js.

• Examining server.js reveals that much of the default middleware has been removed - no problem because we're not going to be using cookies, parsing the body for posted data, etc.

---

Review the Code for realtime-circles

• We only have one view of interest - index.ejs. There will not be any full-page refreshes.
  What application architecture is this known as?

• Near the bottom of index.ejs, we are loading our app's JavaScript file, app.js...

---

Review the Code for realtime-circles

• Reviewing app.js reveals that we are using native JavaScript for DOM manipulation. Yay - no jQuery!

• var circles references a <section> that fills most of the rendered page.

• There's a click event listener on the circles element. This is where the action starts.

---

Setting up socket.io

Both the client and server
need to be configured with socket.io

---

Configure the Server

---

Configure the Server

• To use socket.io, we first need to install its module:

   $ npm install socket.io

• No, the dot in the name is not a typo, it's legit.

• We're going to be writing some server-side code pertaining to using socket.io.
  Should we put this new code in our server.js file, or is there a better practice?

---

Configure the Server (cont.)

• We don't want to unnecessarily clutter server.js, so we're going to put our socket.io related code in a separate module file.

• Let's create a file named io.js in our project's root folder:

   $ touch io.js

---

Configure the Server (cont.)

• socket.io, needs to "attach" to the http server, not the Express app.

• In an Express app scaffolded using express-generator, the http server lives inside of the /bin/www file, so that is where we will require our new io.js module and attach to the http server:

   // inside bin/www
   var server = http.createServer(app);

   // load and attach socket.io to http server
   var io = require('../io');
   io.attach(server);

---

Configure the Server (cont.)

• Now we need to put some code in our io.js module. For now let's put some test code in it to make sure things are loading correctly:

   // io.js

   var io = require('socket.io')();

   // Listen for new connections from clients (socket)
   io.on('connection', function (socket) {
     console.log('Client connected to socket.io!');
   });

   // io represents socket.io on the server - let's export it
   module.exports = io;

---

Configure the Server (cont.)

• Check that nodemon is running our app without errors.

• No errors? Congrats the server is configured - time to configure the client!

---

Configuring the Client
(Browser)

---

Configure the Client

• It takes quite a bit of JavaScript in the browser to connect to socket.io on the server and implement all of its goodness.

• Lucky for us, the socket.io module on the server helps us out by creating a secret route that returns dynamically generated JavaScript for the client - hassle free!

• The code returned to the browser is pre-configured with the server's info, etc.

---

Configure the Client (cont.)

• All we need to do is load this special client configuration script in our index.ejs:

   	...
   	// special route created by socket.io on the server
   	<script src="/socket.io/socket.io.js"></script>
   	<script src="/javascripts/app.js"></script>
   </body>

• Be sure to load it before app.js.

• Refresh the browser and make sure there are no errors in the console.

---

Configure the Client (cont.)

• The socket.io.js client script exposes an io global function that we call to obtain our connection to the server.

• Let's call it and assign the returned connection object to a variable named socket.

   // get our connection to the socket.io server
   var socket = io();
   console.log(socket);

   ...

---

Congrats, the client and server
have both been configured!

But are we still error free?
Let's check...

---

Test the Configuration

• Refresh the browser and verify that:

  • The socket object logged in the browser's console has a
    connected: true property.

  • The server's terminal window logged out the message
    "Client connected to socket.io!".

---

Displaying Circles in Realtime

---

Our Realtime Requirements

• We are going to code along to transform the app into a realtime
  multi-player circle-fest that:

  • Displays circles created by all players in realtime.

  • Clears all circles from all connected browsers when the clear button is clicked (a practice exercise).

---

Code Logic - Server

To accomplish our requirements, this is what we will need to do on the server:

1. Listen for add-circle messages being sent from the clients.

2. When an add-circle message is received, forward (emit) it (along with the data received with the message) to all connected clients (including the client that sent the message to begin with).

---

Code Logic - Client

To accomplish our requirements, this is what we will need to do on the client:

1. Listen for add-circle messages from the server.
   Where will the message have originated from?

2. When the add-circle message is received, it will contain a data object with the properties necessary to pass to the existing addCircle() function that creates circles!

3. In the existing click handler, emit the add-circle message to the server, passing along an object containing the initials, x, y, dia and rgba properties.

---

Messages - Review

• The add-circle message is a custom event message that we "defined" based upon what made sense for this application.

• How many custom event messages can we define?.

• As already noted, each message can be emitted with data. The data can be any type except for a function. Objects and arrays come in handy for sending complex rather than a single piece of primitive data.

---

Displaying Circles - Server Code

---

Displaying Circles - Server Code

• This code for io.js will accomplish the goal for our code logic on the server:

   io.on('connection', function (socket) {
     //new code below
     socket.on('add-circle', function (data) {
       io.emit('add-circle', data);
     });
   });

• Remember, io represents the server and socket the current client.

---

Displaying Circles - Server Code

• With that code in place:

  • When a client (socket) connects to the server, we're using the on method to set up a listener on the server to listen to messages sent from that client.
  • When the server receives an add-circle message from the client, the callback function will send the same message to all clients using the server's (io) emit method.

---

Displaying Circles - Client Code

---

Displaying Circles - Client Code

• Listen for an add-circle message from the server in app.js:

   var socket = io();
   // listen to the server for the `add-circle` event
   socket.on('add-circle', function (data) {
     console.log(data);
   });

• Here on the client (browser), we have the socket object representing our realtime connection to the server.

• For now, we're simply logging out data received from the server - baby steps :)

---

Displaying Circles - Client Code (cont.)

• Now let's update the click event listener to emit an add-circle message to the server with the data:

   circles.addEventListener('click', function(evt) {
     // replace current line of code with this code
     socket.emit('add-circle', {
       initials: initials,
       x: evt.clientX,
       y: evt.clientY,
       dia: randomBetween(10,100),
       rgba: getRandomRGBA()
     });
   });

• Our goal is for this message to be received by ________?

---

Displaying Circles - Messaging Check

To recap, our code so far:

1. Emit's add-circle messages and data to the server when a user clicks.

2. Receives add-circle messages emitted from the server and console logs their data.

• Let's open two browsers on localhost:3000 and make sure our console shows the messages as we click!

---

Displaying Circles - Client Code (cont.)

Next, let's refactor addCircle() so that we can just pass in the data object received with the message:

// was -> function addCircle(x, y, dia, rgba) {
// updated to take advantage of ES2015's destructuring assignment
function addCircle({x, y, dia, rgba, initials}) {
  ...
}

• Using ES2015's Destructuring Assignment, we can pass in an object as an argument and that object's properties will be assigned to the listed variables.

• Note also that an initials variable is has been added to hold the user's initials that initiated the message.

---

Displaying Circles - Client Code (cont.)

• All that's left is to call the addCircle() function from our socket.on listener inside app.js:

   // listen to the server for the `add-circle` event
   socket.on('add-circle', function (data) {
     // console.log(data);
     addCircle(data);
   });

• Use two browsers with different initials and test drive that sucka!

---

Now that we have our circles displaying in realtime
let's turn our attention to the next item on the roadmap - clearing the display!

---

Clear All Circles
Practice (10 - 15 mins)

• Partner up and make the clear button clear all connected user's displays instead of just yours.

• Hints: This will require a new event message in addition to the add-circle event message.

---

Who would like to come up and share their solution?

---

Deploy to Heroku

Set aside your fears and:

1. Create a local git repo: git init
2. Add all files: git add -A
3. Commit: git commit -m "Initial commit"
4. Make sure you are logged in to Heroku: heroku login
5. Create a Heroku deployment: heroku create
6. Deploy your repo to Heroku: git push heroku master
7. Set app to use only one web dyno: heroku ps:scale web=1
8. Once deployed, open the app: heroku open

---

Realtime Is Fun!

---

Questions

• What is the name of the method used to send messages from the server/client to the client/server?

• What method is used to set up a listener for a message?

• What are the names of the event messages available to us?

---

More Big Fun? Track Players!

• In the realm of realtime, tracking connected users or players is know as tracking presence.

• It would be nice to know who's connected to our realtime-circles app, so let's do this!

---

Track Players - Server Code Logic

1. When a client connects, set up a listener for a register-player message from that client. The client will send their initials as data with the message.


2. When a client emits the register-player message, the server will:
   (a) Add the player's socket.id and initials to a players object variable.
   (b) Then we will then emit an update-player-list message, along with the updated list of initials, as an array, to all clients.


3. When a client disconnects, we will remove the player from the players object and again, emit the update-player-list message.

---

Track Players - Client Code Logic

1. After the player has entered their initials, emit the register-player message, sending the initials as data.

2. Listen for the update-player-list message and update the DOM by writing <li> tags (one for each player in the array) inside of the provided <ul>.

---

Tracking Players - Server Code

• Define the players object to hold player's initials in io.js:

   var io = require('socket.io')();

   // object to hold player's initials as keys
   var players = {};

---

Tracking Players - Server Code (cont.)

Set up the listener for the register-player message in which we will take care of business:

io.on('connection', function (socket) {
  // new code below
  socket.on('register-player', function (initials) {
    // each socket has a unique id
    players[socket.id] = initials;
    io.emit('update-player-list', Object.values(players));
  });
... existing code below

Note that Object.values() is from ES2016/ES7

---

Tracking Players - Server Code (cont.)

• Set up the listener for when the player disconnects. Add this along with the other listeners:

   socket.on('disconnect', function () {
     delete players[socket.id];
     io.emit('update-player-list', Object.values(players));
   });
   ... existing code below

---

Tracking Players - Client Code

After the player has entered their initials,
emit the register-player message, sending the initials
as data in app.js:

...

  do {
    initials = getInitials();
  } while (initials.length < 2 || initials.length > 3);
  // new code below
  socket.emit('register-player', initials);

...


---

Tracking Players - Client Code (cont.)

Let's cache the players <ul> element into a var:

...

var circles = document.getElementById('circles');

// players <ul> element in the footer
var players = document.getElementById('players');

...

---

Tracking Players - Client Code

• Add the listener for the update-player-list event:

   ...

   // listen for when the player list has changed
   socket.on('update-player-list', function (data) {
     var playerList = '<li>' + data.join('</li><li>') + '</li>';
     players.innerHTML = playerList;
   });

   ...

• Using the join() method to create a string from an array is very efficient!

---

Tracking Players - Run It!

---

Tracking Players - Summary

• When a player visits the page and enters their initials, the app informs the server by emitting the register-player message.

• The server adds the player's initials to the players object as a key and notifies all connected clients by emitting the update-player-list message.

• Clients then receive the update-player-list message, generate a nice list of <li> tags in a string, and blast that baby into the <ul>'s innerHTML.

---

Further Study

• What we've created in this lesson is a single "channel" that all connected clients participate in.

• However, it is common to want separate channels dedicated to sub-groups of clients.

• socket.io has two options for this use case: rooms & namespaces.

• If interested, here's a link to get you started: socket.io Rooms & Namespaces

---

References

• Socket.IO

• WebSockets Protocol
