The Kabsch algorithm in R for aligning one point set over another

kabsch.R

#' Kabsch Algorithm
#'
#' Aligns two sets of points via rotations and translations.
#'
#' Given two sets of points, with one specified as the reference set,
#' the other set will be rotated so that the RMSD between the two is minimized.
#' The format of the matrix is that there should be one row for each of
#' n observations, and the number of columns, d, specifies the dimensionality
#' of the points. The point sets must be of equal size and with the same
#' ordering, i.e. point one of the second matrix is mapped to point one of
#' the reference matrix, point two of the second matrix is mapped to point two
#' of the reference matrix, and so on.
#'
#' @param pm n x d matrix of points to align to to \code{qm}.
#' @param qm n x d matrix of reference points.
#' @return Matrix \code{pm} rotated and translated so that the ith point
#'  is aligned to the ith point of \code{qm} in the least-squares sense.
#' @references
#' \url{https://en.wikipedia.org/wiki/Kabsch_algorithm}
kabsch <- function(pm, qm) {
  pm_dims <- dim(pm)
  if (!all(dim(qm) == pm_dims)) {
    stop(call. = TRUE, "Point sets must have the same dimensions")
  }
  # The rotation matrix will have (ncol - 1) leading ones in the diagonal
  diag_ones <- rep(1, pm_dims[2] - 1)

  # center the points
  pm <- scale(pm, center = TRUE, scale = FALSE)
  qm <- scale(qm, center = TRUE, scale = FALSE)

  am <- crossprod(pm, qm)

  svd_res <- svd(am)
  # use the sign of the determinant to ensure a right-hand coordinate system
  d <- determinant(tcrossprod(svd_res$v, svd_res$u))$sign
  dm <- diag(c(diag_ones, d))

  # rotation matrix
  um <- svd_res$v %*% tcrossprod(dm, svd_res$u)

  # Rotate and then translate to the original centroid location of qm
  sweep(t(tcrossprod(um, pm)), 2, -attr(qm, "scaled:center"))
}

Thanks! This was very helpful for finding rotation matrices for pairs of points in 3D. I had a little trouble with line 33 causing

Error in svd_res$u %*% dm : non-conformable arguments

and I noticed dm was 2x2 in my case it needed to be 3x3. Here's an easy fix to put in place of line 30, with an added error trap to be sure pm and qm are the same sizes:

  if(all(dim(qm) == dim(qm))){
    l = dim(qm)[2] - 1
  }else(stop(call. = T,"Point sets must have same dimensions."))

  dm <- diag(c(rep(1,l),d))

Glad this was helpful. I have incorporated your corrections, thank you!

I have also fixed two embarrassing errors:

1. The right and left singular vectors should have been swapped when generating the rotation matrix.
2. The centering operation over pm was completely wrong.

Memo to self: in future, check that kabsch(pm, pm) == pm and similarly for qm before posting gist. D'oh.

Minor change to use crossprod and tcrossprod rather than %*% and t() directly.

I believe there's still a bug. According to the wiki, the rotation matrix um is to rotate Pm unto Qm, so the last line should be

sweep(t(tcrossprod(um, pm)), 2, -attr(qm, "scaled:center"))

here is an example(sorry it's a bit long):

library(ggplot2)

kabsch <- function(pm, qm) {
  pm_dims <- dim(pm)
  if (!all(dim(qm) == pm_dims)) {
    stop(call. = TRUE, "Point sets must have the same dimensions")
  }
  # The rotation matrix will have (ncol - 1) leading ones in the diagonal
  diag_ones <- rep(1, pm_dims[2] - 1)

  # center the points
  pm <- scale(pm, center = TRUE, scale = FALSE)
  qm <- scale(qm, center = TRUE, scale = FALSE)

  am <- crossprod(pm, qm)

  svd_res <- svd(am)
  # use the sign of the determinant to ensure a right-hand coordinate system
  d <- determinant(tcrossprod(svd_res$v, svd_res$u))$sign
  dm <- diag(c(diag_ones, d))

  # rotation matrix
  um <- svd_res$v %*% tcrossprod(dm, svd_res$u)

  # Rotate and then translate to the original centroid location of pm
  sweep(t(tcrossprod(um, pm)), 2, -attr(qm, "scaled:center"))
}


pm2 <- data.frame(
 x= c(2,1,1),
 y= c(2,2,1)
)

qm2 <- data.frame(
  x = c(0, 0, -1.5),
  y = c(0, 1.5, 1.5)
)

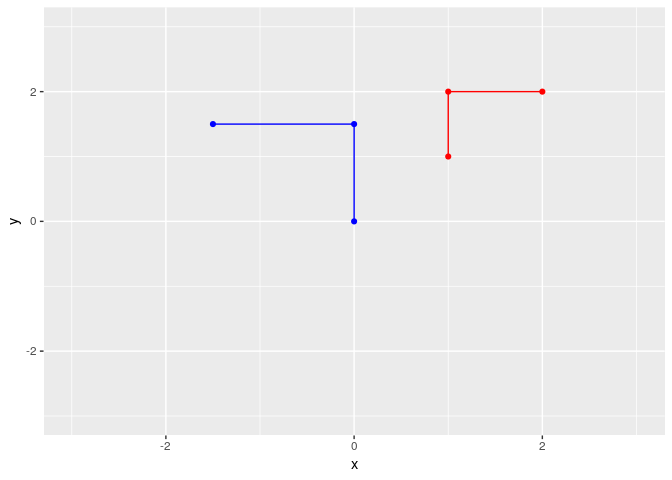

ggplot(pm2,aes(x,y))+
  geom_point(color = "red")+
  geom_path(color="red")+
  geom_point(data=qm2, aes(x=x,y=y),color = "blue")+
  geom_path(data=qm2, aes(x=x,y=y),color = "blue")+
  xlim(-3,3)+
  ylim(-3,3)

pm2.t <- kabsch(pm2,qm2)
pm2.t <- as.data.frame(pm2.t)
names(pm2.t) <- c("x","y")

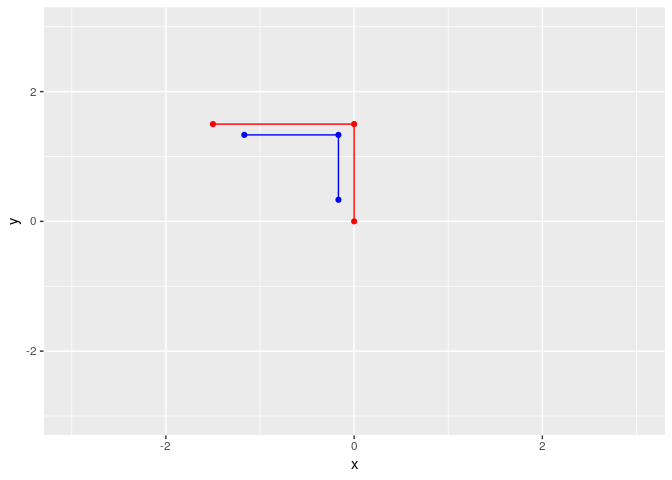

ggplot(qm2,aes(x,y))+
  geom_point(color = "red")+
  geom_path(color="red")+
  geom_point(data=pm2.t, aes(x=x,y=y),color = "blue")+
  geom_path(data=pm2.t, aes(x=x,y=y),color = "blue")+
  xlim(-3,3)+
  ylim(-3,3)

Created on 2018-08-21 by the reprex package (v0.2.0.9000).

Thank you @tcgriffith. I don't get alerted to comments, so apologies for not acknowledging this sooner.

This must be a personal record for the most errors in the least amount of code.
