Github Team Workflow

Objectives

Understanding Brancing, Forking, Pull Requests, and Merging
Understanding the differences between working alone and in a team
Proper procedures to set to ensure good code is kept, and bad code is not

The Golden Rule

The biggest golden rule: The master branch is always deployable and ready to go
A deployable master branch is important for many reasons. First, it enables anyone new to a project to pull and build immediately without errors. Nothing is so frustrating as not being able to build an unfamiliar project.
A deployable master is a safety net. If master is always deployable, then we can deploy without worry.
And lastly, because we are using Heroku and Heroku uses the master branch for what is deployed, we need to always be sure master works

Team Workflow(s)

Within a collaborative project, while working on your Git Team Workflow, there are two roles you can fulfill: programmer and manager.

Any given member of the project may be a programmer or a manager at any moment! Programmers implement features, while managers integrate the work of the members of the team into the application.

How this affects you?

In your projects, you will have to assign someone the title of manager that not only writes code, but also manages the project
This includes things like setting deadlines and merging code.
The manager also creates the repo, and invites everyone to it

Creating the Repo

Manager:

Create a repo locally, using git init.
Create a remote version of this repo on GitHub (using hub create if you wish).
Ensure you have a remote "link" to the GitHub repo, either by using git remote add or git remote rename: the remote should be called upstream.

Programmer:

Identify the repo created by your manager on GitHub.
Fork the repo to your own account.
Use git clone to copy your account's repo locally. Use the SSH URL when cloning if possible, and name the remote origin. The command should look like git clone [email protected]:<yourname>/<repo_name>.
Use git remote add to add a link to the manager's repo as well! This remote should be called upstream, and should be the SSH URL.

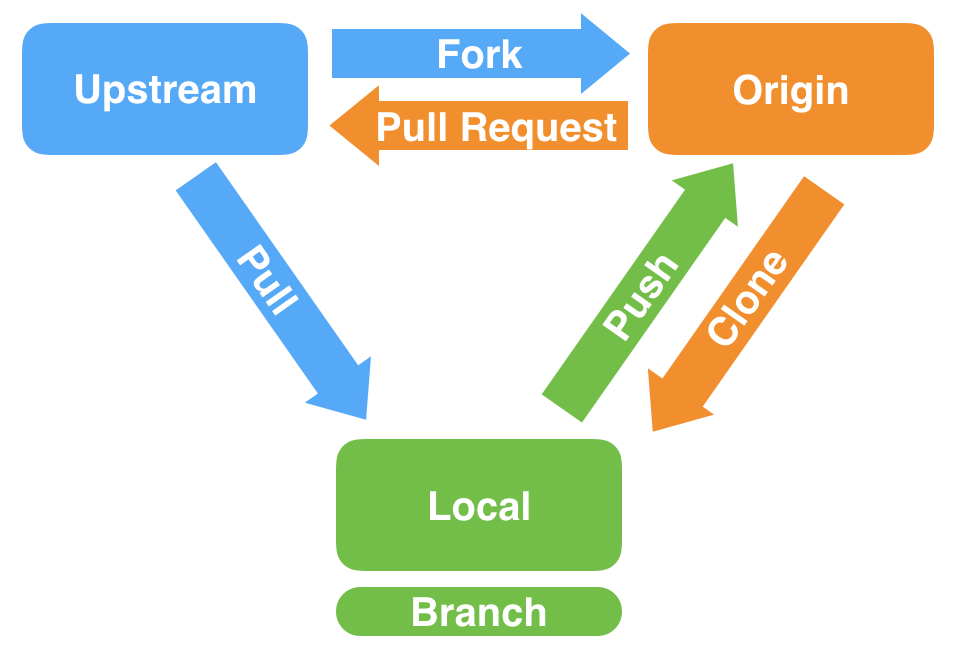

When you are complete, your setups should be in the form:

Working on Feature Branches

Manager & Programmer:

Make sure you have created the repo using the create repo workflow.
Ensure you are on the master branch with git checkout. Only pull when you are on master.
Update your local codebase with git pull upstream master. You should never have a merge conflict. If you do, stop, because something is wrong.
Use a feature branch with git checkout <feature_branch_name>; add -b to create a new branch if necessary.
Write some code!
When you have completed a feature, submit your work.
- Managers: skip to accepting and merging work, step #4.
- Programmers: push the branch to origin <feature_branch_name>.
On GitHub, submit a pull request (PR) from your feature branch, where the base is the manager's master branch (upstream/master) and the head is your origin's feature branch.
Go back to step #2.

Writing Code

Manager & Programmer:

Make changes to your files.
Stage a series of changes that go together using git add. Try not to use git add -A: be thoughtful about what you are adding!
Take a snapshot of those changes with a meaningful description using git commit. Make small commits, and often!

Accepting and Merging Work

Manager:

Find pull request (PR) submitted on GitHub and check it:
- if the request is very small and simple, you may merge it online;
- if the request is not well-commented and obvious as to its purpose, you should ask for further explanation in the PR;
- if the request is too large, poorly written or stylistically problematic, or how to test it afterwards is unclear, close the PR with a clear explanation, asking the programmer to resubmit later;
- otherwise:
Use git checkout master && git pull upstream master to ensure your local master branch has the most updated version of the codebase. If you are working on a feature branch you may need to git commit or git stash your work.
Follow the command line instructions from GitHub's PR Merge page or, even better, from their documentation:
- git fetch origin pull/<pr_id>/head:<feature_branch> to fetch the changes;
- git checkout <feature_branch> to go to the code;
Use git merge master in the feature branch to merge the current codebase in to it.
Fix any merge conflicts that arise! Use git status liberally to identify these. If there were any, be sure to use git add and git commit -m "merge" to commit the fixes.
Test the new feature! Do not push up the feature if it is not working!
- If the tests fail, close the PR with a clear explanation, asking the programmer to resubmit with fixes.
- If you are unsure of the outcome of the tests, you should ask for further explanation in the PR before going forward.
Accept and share the changes using git push upstream master (the only time you ever push to upstream/master).

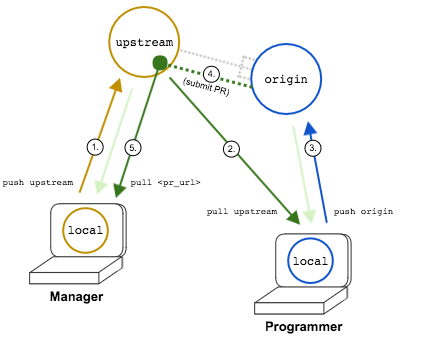

![Diagram showing the team workflow.][….png]

Git Command Reference

Creating Repos

$ git init Initializes a new local repository and begins version tracking. Creates a hidden directory that tracks info about the repository, including remote repositories.
$ git clone <ssh_or_http_url> Clones a remote repository as a new local repository with the given connection format (SSH or HTTPS).
$ git remote add <remote_name> <ssh_or_http_url> Connects your repo to a new remote at the given URL, via the given connection format (SSH or HTTPS), and names it with the given name.

Working on Repos

Branching and Merging

$ git branch <branch_name> Creates a new branch with the given name.
$ git checkout <branch_name> Moves you to the branch (or commit in history) with the given name.
$ git checkout - b <branch_name> Creates a new branch and checks it out, all in one!
$ git merge <branch_name> Merges the branch cwith the given name into the current branch.

Staging Changes

$ git add <file_name> Adds changes made to the given file to the staging area.
$ git add . Adds all changes (creating, updating and removing files), to files in this directory and sub-directories, to the staging area.
$ git add -A Adds all changes (creating, updating and removing files), in all files, to the staging area.
$ git add -p Adds updates in all staged files to the staging area, but runs you through all the changes step by step.

Committing Snapshots

$ git commit -m "awesome commit message" Saves a snapshot of the filesystem including any changes that have been added/staged as a commit. It saves the commit with a simple description, or message, given after -m.
$ git commit Commits as above, but takes you to a text editor (nano) to edit the commit's message.

Exploring Repos

$ git status Prints out the current "tracking state" of the repo. The state includes information about changes, additions and deletions of files, whether or not these changes have been added/stages, and sometimes even any merge conflicts.
$ git log Prints out the commit history of the current branch of the current repo.
$ git branch & $ git branch -v Prints out a list of all available branches in the repo.
$ git remote & $ git remote -v Prints out a list of all available bremotes connected to the repo.
$ git diff <branch_or_commit_name> Prints out information about differences, as insertions (in green) and deletions (in red), between the current commit and the given commit (or the most current commit in the given branch).

Collaborating with Other Repos (Remotes)

$ git push (-u) (<remote_name> <branch_name>) Push, or send, commits to remote at the given branch. -u saves the remote and branch names as default for future use.
$ git fetch <remote_name> <branch_name> Fetch, or receive, commits from a given remote at the given branch. Stores these commits in either the named commit, or in a special, new branch.
$ git pull <remote_name> <branch_name> Performs a git fetch into a new branch, then merges it into the current branch and removes the fetched branch.

An Ideal Workflow

A basic branching workflow for continuous delivery

the workflow that we will encourage you to use is one called the feature branch workflow.
what it means is in every team, you only code on things called feature branches, and the only thing that touches master is everyone's merged in code
this simple workflow has a couple core components
- master is always production-like and deployable.
- rebase during feature development, explicit (non fast-forward) merge when done.

How this workflow might work in action - TLDR

Everyone on the team starts with a clean slate, that is a fresh repo. you start by cloning into it and getting it in your local environment
From now on, you will only write code in a seperate branch called a feature branch

git checkout -b <feature-branch-name>
write code, make feature, fix bugs
feature branch names should be short, descriptive (to what this branch is doing), and made from a working version of master

Once that branch has been completed, and you're ready to move on, you now push that branch to github using the feature branch syntax

git push origin <feature-branch-name>

From there the project lead (whoever is hosting that repo) should get an email about a push, and they (or someone else) should review the code. You will see an image like this

that person will make a pull request

Then, the lead (or anyone else beside the person who just pushed) will review the code.

that person will then merge the pull request if everything is satisfactory

Now, once code has been merged into master, everyone needs to update their branches to reflect the changes

make sure you are always in master before doing this git checkout master
now run git pull origin master
if your code is affected by the merge (i.e. something you are working on has touched what someone else is working on), you should run a rebase: git fetch origin && git rebase origin/master inside your feature branch
what is a rebase? Rebasing lets us move branches around by changing the commit that they are based on. Conceptually, this is what it allows us to do:

General Tips

Have one person work on one thing at a time. Be very specific about what people are working on and don't go into those files. That is how merge conflicts happen
Never merge your own pull requests. Just like getting someone to proof-read an essay you've written, you need someone to look over what you have done before it gets into master

Resources

Slides for the lesson on branching

Articles and tutorials on branching and workflows in Git:

Git Branching
Common Git Workflows
Merging vs Rebasing Workflows ('Conceptual Overiew' section)
In-depth Discussion of a Workflow
'Reset Demystified' (helps to understand the structures of Git)
A Git Branching visualization game!
