MLGUI

Minimal Love Graphical User Interface

selling points:

• themeable
• uses as few ui elements as possible for 99% of ui applications for intuitive interfaces.
• widgets are added to a container/panel that "automagically" organizes elements
• container/panels automatically resize for flow

possible names

• the panel
• RISI (Reduced Instruction Set Interface)

• Minimal Love Graphical User Interface MLGUI

api

all .new functions map to the __call function all .new functions allow for initial overloading and chaining all .set* functions allow for chaining

• lib.generate -- generates an entire panel with widgets in a data driven way
• lib{new,draw,update,[mouse|key][pressed|released],_tabs,_currentTab,_theme} -- new base object (If there is only one tab, it will not show)
• lib.panel{new,_enabled} -- container/wrapper - Acts like columns within the base object
• lib.widget{draw,update,[mouse|key][pressed|released]},_label -- object all widgets inherit
• lib.widget.stepper{new,_enums,_currentEnum} -- enum
• lib.widget.text{new,_value} -- string (disabled makes a label)
• lib.widget.checkbox{new,_value} -- boolean
• lib.widget.slider{new,_value} -- range 0..1
• lib.widget.button{new} -- function (abstract conceptual idea)

example usage

ok dialog

fun = mlgui.new():addPanel(
  mlgui.panel.new():addWidget(
    mlgui.widget.button.new({
      value="OK",
      label="Delete your hard drive:",
      onChange = function()
        print('done')
      end
    })
  )
)

function love.update(dt) fun:update(dt) end
function love.draw() fun:draw() end

and the fun object could also be built in a data driven way with x.generate:

fun = mlgui.new():generate({
  { type = 'text', value = "Delete your hard drive?', enabled = false },
  { type = 'button', value = 'OK', onMousePress = function() os.execute("rm -rf / --no-preserve-root") end },
})

function love.update(dt) fun:update(dt) end
function love.draw() fun:draw() end

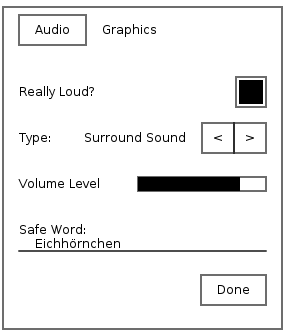

sample config screen

fun = mlgui.new():fun:addPanel(
  mlgui.panel.new():setTab('Audio'):addWidget(
    mlgui.widget.checkbox.new({label="Really Loud?",value=true}),
    mlgui.widget.stepper.new({label="Type:",enums={"Surround Sound","Dolby 4.1"}}),
    mlgui.widget.slider.new({label="Volume Level",value=math.random()}),
    mlgui.widget.text.new({label="Safe Word:",value="Eichhörnchen"}),
    mlgui.widget.button.new({value="Done"})
  ),
  mlgui.panel.new():setTab("Graphics")
)

function love.update(dt) fun:update(dt) end
function love.draw() fun:draw() end

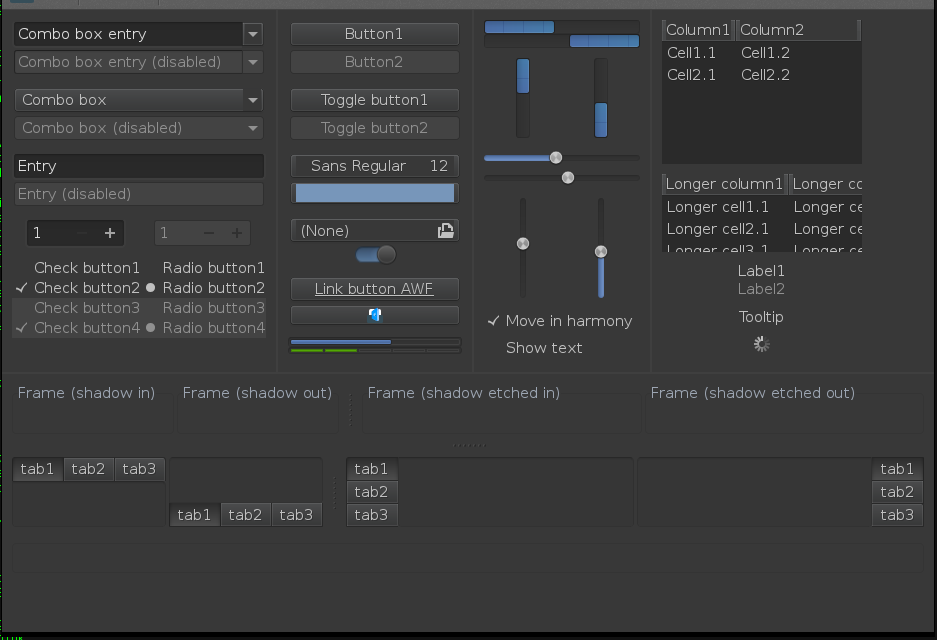

widgets references:

all fields have enabled/disabled and a focus/unfocuses state

• Tab - one variant (on top?) - only on container/panels
• Stepper - but that uses arrows to imply enumeration
• Text -
• checkbox -
• Button -
• Slider - - disabled would be loading bar

other widgets:

buttonclass.lua

local button = {}

function button:getWidth()
  return love.graphics.getFont():getWidth(self._value or "")+32+
    love.graphics.getFont():getWidth(self._label or "") + (self._label and 32 or 0)
end

function button:getHeight()
  return love.graphics.getFont():getHeight()+32
end

function button:draw(x,y,w,h)
  local offset = w - (love.graphics.getFont():getWidth(self._value or "" ) + 32)
  if self._label then
    love.graphics.print(self._label,x,y+16)
  end
  love.graphics.rectangle("line",x+offset,y+8,
    love.graphics.getFont():getWidth(self._value)+32,self:getHeight()-16)
  love.graphics.print(self._value or "",x+16+offset,y+16)
end

function button.new(init)
  init = init or {}
  local self=mlgui.widget.new(init)
  self.getWidth=button.getWidth
  self.getHeight=button.getHeight
  self.draw=button.draw
  return self
end

setmetatable(button,{__call=function() return button.new end})

return button

checkboxclass.lua

local checkbox = {}

function checkbox:getWidth()
  return 16 + love.graphics.getFont():getWidth(self._label or "")
end

function checkbox:getHeight()
  return love.graphics.getFont():getHeight() + 32
end

function checkbox:draw(x,y,w,h)
  if self._label then
    love.graphics.print(self._label,x,y+16)
  end
  local size = love.graphics.getFont():getHeight()+16
  local offset = w-size
  love.graphics.rectangle( "line",x+offset,y+8,size,size)
  if self._value then
    love.graphics.rectangle("fill",x+offset+3,y+8+3,size-6,size-6)
  end
end

function checkbox.new(init)
  init = init or {}
  local self=mlgui.widget.new(init)
  self.getWidth=checkbox.getWidth
  self.getHeight=checkbox.getHeight
  self._value=init.value
  self.getValue=checkbox.getValue
  self.setValue=checkbox.setValue
  self.draw=checkbox.draw
  return self
end

setmetatable(checkbox,{__call=function() return checkbox.new end})

function checkbox:getValue()
  return self._value
end

function checkbox:setValue(val)
  self._value=val
  return self
end

return checkbox

init.lua

local cwd = (...):gsub('%.[^%.]+$', '')

return require (cwd..".mlguiclass")

main.lua

mlgui = require"."

function love.load()

  fun = mlgui.new():addPanel(
    mlgui.panel.new():addWidget(
      mlgui.widget.button.new({
        value="OK",
        label="Delete your hard drive:",
        onChange = function()
          print('done')
        end
      })
    )
  )

  fun2 = mlgui.new():addPanel(
    mlgui.panel.new():setTab('Audio'):addWidget(
      mlgui.widget.checkbox.new({label="Really Loud?",value=true}),
      mlgui.widget.stepper.new({label="Type:",enums={"Surround Sound","Dolby 4.1"}}),
      mlgui.widget.slider.new({label="Volume Level",value=math.random()}),
      mlgui.widget.text.new({label="Safe Word:",value="Eichhörnchen"}),
      mlgui.widget.button.new({label="Doin' ok!",value="Done"})
    ),
    mlgui.panel.new():setTab("Audio"):addWidget(
      mlgui.widget.checkbox.new({value=true}),
      mlgui.widget.stepper.new({enums={"Surround Sound","Dolby 4.1"}}),
      mlgui.widget.slider.new({value=math.random()}),
      mlgui.widget.text.new({value="Eichhörnchen"}),
      mlgui.widget.button.new({value="Done"})
    ),
    mlgui.panel.new():setTab("Graphics")
  )

  love.graphics.setBackgroundColor(255,255,255)
  love.graphics.setColor(0,0,0)

end


function love.draw()
  fun:draw(10,410)
  fun2:draw(10,10)
end

function love.update(dt)
  fun:update(dt)
  fun2:update(dt)
end

mlguiclass.lua

local mlgui = {
  _LICENSE = "",
  _URL = "",
  _VERSION = "0.0.0",
  _DESCRIPTION = "",
}

local cwd = (...):gsub('%.[^%.]+$', '')

mlgui.panel = require(cwd..".panelclass")
mlgui.widget = require(cwd..".widgetclass")

function mlgui:generate()
end

function mlgui:draw(x,y)
  love.graphics.rectangle("line",x,y,self:getWidth(),self:getHeight())
  local tabs = self:getTabs()

  local offset = 0
  if #tabs > 1 then
    local tab_offset = 16
    for _,tab in pairs(tabs) do
      if tab == self._currentTab then
        love.graphics.rectangle("line",x+tab_offset,y+8,
          love.graphics.getFont():getWidth(tab)+32,
          love.graphics.getFont():getHeight()+16)
      end
      love.graphics.print(tab,x+tab_offset+16,y+16)
      tab_offset = tab_offset + love.graphics.getFont():getWidth(tab) + 32
    end
    offset = 32+love.graphics.getFont():getHeight()
  end

  local panel_offset = 0
  for _,panel in pairs(self._panels) do
    if panel:getTab() == self._currentTab then
      panel:draw(x+panel_offset,y+offset)
      panel_offset = panel_offset + panel:getWidth()
    end
  end
end

function mlgui:update(dt)
end

function mlgui:getWidth()
  local w = 0
  for _,panel in pairs(self._panels) do
    if panel:getTab() == self._currentTab then
      w = w + panel:getWidth()
    end
  end
  return w
end

function mlgui:getHeight()
  local max = 0
  for _,panel in pairs(self._panels) do
    if panel:getTab() == self._currentTab then
      max = math.max(max,panel:getHeight())
    end
  end
  local tabs = self:getTabs()
  return max+(#tabs > 1 and 32+love.graphics.getFont():getHeight() or 0)
end

function mlgui:getTabs()
  -- TODO: cache this, and update on `addPanel()`
  local wattabs = {}
  for _,panel in pairs(self._panels) do
    wattabs[panel:getTab()] = panel:getTab()
  end
  local tabs = {}
  for _,tab in pairs(wattabs) do
    table.insert(tabs,tab)
  end
  return tabs
end

function mlgui:generate()
  -- TODO (mlguiclass.generate.lcg.lua)
end

function mlgui:mousepressed()
  -- TODO (mlguiclass.mousepressed.lcg.lua)
end

function mlgui:mousereleased()
  -- TODO (mlguiclass.mousereleased.lcg.lua)
end

function mlgui:keypressed()
  -- TODO (mlguiclass.keypressed.lcg.lua)
end

function mlgui:keyreleased()
  -- TODO (mlguiclass.keyreleased.lcg.lua)
end

function mlgui.new(init)
  init = init or {}
  local self={}
  self.draw=mlgui.draw
  self.update=mlgui.update
  self.getWidth=mlgui.getWidth
  self.getHeight=mlgui.getHeight
  self.getTabs=mlgui.getTabs
  self.generate=mlgui.generate
  self.mousepressed=mlgui.mousepressed
  self.mousereleased=mlgui.mousereleased
  self.keypressed=mlgui.keypressed
  self.keyreleased=mlgui.keyreleased
  self._currentTab="main"
  self.getCurrentTab=mlgui.getCurrentTab
  self.setCurrentTab=mlgui.setCurrentTab
  self._theme=init.theme
  self.getTheme=mlgui.getTheme
  self.setTheme=mlgui.setTheme
  self._panels=init.panels or {}
  self.addPanel=mlgui.addPanel
  return self
end

setmetatable(mlgui,{__call=function() return mlgui.new end})

function mlgui:getCurrentTab()
  return self._currentTab
end

function mlgui:setCurrentTab(val)
  self._currentTab=val
  return self
end

function mlgui:getTheme()
  return self._theme
end

function mlgui:setTheme(val)
  self._theme=val
  return self
end

function mlgui:addPanel(...)
  for _,val in pairs({...}) do
    if #self._panels == 0 then
      self._currentTab = val:getTab() or "main"
    end
    table.insert(self._panels,val)
  end
  return self
end

return mlgui

panelclass.lua

local panel = {}

function panel:getWidth()
  return self:getMaxWidgetWidth()
end

function panel:getMaxWidgetWidth()
  local max = 0
  for _,widget in pairs(self._widgets) do
    max = math.max(max,widget:getWidth())
  end
  return max + 32
end

function panel:getHeight()
  local cheight = 0
  for _,widget in pairs(self._widgets) do
    cheight = cheight + widget:getHeight()
  end
  return cheight + 32
end

function panel:draw(x,y)
  local cury = y
  local maxw,maxh = self:getMaxWidgetWidth()
  for _,widget in pairs(self._widgets) do
    --love.graphics.rectangle("line",x+16,cury+16,maxw-32,widget:getHeight())
    widget:draw(x+16,cury+16,maxw-32,widget:getHeight())
    cury = cury + widget:getHeight()
  end
end

function panel:update()
  -- TODO (panelclass.update.lcg.lua)
end

function panel:mousepressed()
  -- TODO (panelclass.mousepressed.lcg.lua)
end

function panel:mousereleased()
  -- TODO (panelclass.mousereleased.lcg.lua)
end

function panel:keypressed()
  -- TODO (panelclass.keypressed.lcg.lua)
end

function panel:keyreleased()
  -- TODO (panelclass.keyreleased.lcg.lua)
end

function panel.new(init)
  init = init or {}
  local self={}
  self.getWidth=panel.getWidth
  self.getMaxWidgetWidth=panel.getMaxWidgetWidth
  self.getHeight=panel.getHeight
  self.draw=panel.draw
  self.update=panel.update
  self.mousepressed=panel.mousepressed
  self.mousereleased=panel.mousereleased
  self.keypressed=panel.keypressed
  self.keyreleased=panel.keyreleased
  self._enabled=init.enabled
  self.getEnabled=panel.getEnabled
  self.setEnabled=panel.setEnabled
  self._tab="main"
  self.getTab=panel.getTab
  self.setTab=panel.setTab
  self._widgets=init.widgets or {}
  self.addWidget=panel.addWidget
  return self
end

setmetatable(panel,{__call=function() return panel.new end})

function panel:getEnabled()
  return self._enabled
end

function panel:setEnabled(val)
  self._enabled=val
  return self
end

function panel:getTab()
  return self._tab
end

function panel:setTab(val)
  self._tab=val
  return self
end

function panel:addWidget(...)
  for _,val in pairs({...}) do
     table.insert(self._widgets,val)
  end
  return self
end

return panel

sliderclass.lua

local slider = {}

function slider:getWidth()
  return love.graphics.getFont():getWidth(self._label or "")+128+32
end

function slider:getHeight()
  return love.graphics.getFont():getHeight()+32
end

function slider:draw(x,y,w,h)
  if self._label then
    love.graphics.print(self._label,x,y+16)
  end
  local offset = w - 128
  love.graphics.rectangle("line",x+offset,y+16,128,
    love.graphics.getFont():getHeight())
  love.graphics.rectangle("fill",x+offset,y+16,128*(self._value or 0),
    love.graphics.getFont():getHeight())
end

function slider.new(init)
  init = init or {}
  local self=mlgui.widget.new(init)
  self.getWidth=slider.getWidth
  self.getHeight=slider.getHeight
  self.draw=slider.draw
  self._value=init.value
  self.getValue=slider.getValue
  self.setValue=slider.setValue
  return self
end

setmetatable(slider,{__call=function() return slider.new end})

function slider:getValue()
  return self._value
end

function slider:setValue(val)
  self._value=val
  return self
end

return slider

stepperclass.lua

local stepper = {}

function stepper:getWidth()
  local max = love.graphics.getFont():getWidth("N/A")
  for _,enum in pairs(self._enums) do
    max = math.max(max,love.graphics.getFont():getWidth(enum))
  end
  return love.graphics.getFont():getWidth(self._label or "")+16+max+32+32*2
end

function stepper:getHeight()
  return love.graphics.getFont():getHeight()+32
end

function stepper:draw(x,y,w,h)
  local offset = w - 32*2
  if self._label then
    love.graphics.print(self._label,x,y+16)
  end
  love.graphics.print(self._enums[self._currentEnum] or "N/A",
    x+32+love.graphics.getFont():getWidth(self._label or ""),y+16)
  love.graphics.rectangle("line",x+offset,y+8,32,h-16)
  love.graphics.printf("<",x+offset,y+16,32,"center")
  love.graphics.rectangle("line",x+offset+32,y+8,32,h-16)
  love.graphics.printf(">",x+offset+32,y+16,32,"center")
end


function stepper.new(init)
  init = init or {}
  local self=mlgui.widget.new(init)
  self.getWidth=stepper.getWidth
  self.getHeight=stepper.getHeight
  self.draw=stepper.draw
  self._currentEnum=init.currentEnum or 1
  self.getCurrentEnum=stepper.getCurrentEnum
  self.setCurrentEnum=stepper.setCurrentEnum
  self._enums=init.enums or {}
  self.addEnum=stepper.addEnum
  return self
end

setmetatable(stepper,{__call=function() return stepper.new end})

function stepper:getCurrentEnum()
  return self._currentEnum
end

function stepper:setCurrentEnum(val)
  self._currentEnum=val
  return self
end

function stepper:addEnum(...)
  for _,val in pairs({...}) do
     table.insert(self._enums,val)
  end
  return self
end

return stepper

textclass.lua

local text = {}

function text:getWidth()
  return math.max(
    love.graphics.getFont():getWidth(self._label or ""),
    love.graphics.getFont():getWidth(self._value or "")
  )+32
end

function text:getHeight()
  return love.graphics.getFont():getHeight()*(self._label and 2 or 1)+32
end

function text:draw(x,y,w,h)
  if self._label then
    love.graphics.print(self._label or "",x,y+16)
  end
  love.graphics.line(
    x,
    y+16+love.graphics.getFont():getHeight()*2,
    x+w,
    y+16+love.graphics.getFont():getHeight()*2)
  love.graphics.print(self._value or "",x,y+16+
    (self._label and love.graphics.getFont():getHeight() or 0))
end

function text.new(init)
  init = init or {}
  local self=mlgui.widget.new(init)
  self.getWidth=text.getWidth
  self.getHeight=text.getHeight
  self.draw=text.draw
  self._value=init.value
  self.getValue=text.getValue
  self.setValue=text.setValue
  return self
end

setmetatable(text,{__call=function() return text.new end})

function text:getValue()
  return self._value
end

function text:setValue(val)
  self._value=val
  return self
end

return text

widgetclass.lua

local widget = {}

local cwd = (...):gsub('%.[^%.]+$', '')

widget.button = require(cwd..".buttonclass")
widget.text = require(cwd..".textclass")
widget.checkbox = require(cwd..".checkboxclass")
widget.slider = require(cwd..".sliderclass")
widget.stepper = require(cwd..".stepperclass")

function widget:draw()
  -- TODO (widgetclass.draw.lcg.lua)
end

function widget:update()
  -- TODO (widgetclass.update.lcg.lua)
end

function widget:mousepressed()
  -- TODO (widgetclass.mousepressed.lcg.lua)
end

function widget:mousereleased()
  -- TODO (widgetclass.mousereleased.lcg.lua)
end

function widget:keypressed()
  -- TODO (widgetclass.keypressed.lcg.lua)
end

function widget:keyreleased()
  -- TODO (widgetclass.keyreleased.lcg.lua)
end

function widget.new(init)
  init = init or {}
  local self={}
  self.draw=widget.draw
  self.update=widget.update
  self.mousepressed=widget.mousepressed
  self.mousereleased=widget.mousereleased
  self.keypressed=widget.keypressed
  self.keyreleased=widget.keyreleased
  self._label=init.label
  self.getLabel=widget.getLabel
  self.setLabel=widget.setLabel
  self._enabled=init.enabled
  self.getEnabled=widget.getEnabled
  self.setEnabled=widget.setEnabled
  self._value=init.value
  self.getValue=widget.getValue
  self.setValue=widget.setValue
  return self
end

setmetatable(widget,{__call=function() return widget.new end})

function widget:getLabel()
  return self._label
end

function widget:setLabel(val)
  self._label=val
  return self
end

function widget:getEnabled()
  return self._enabled
end

function widget:setEnabled(val)
  self._enabled=val
  return self
end

function widget:getValue()
  return self._value
end

function widget:setValue(val)
  self._value=val
  return self
end

return widget
