How I hacked together a line chart with an inverted fill.

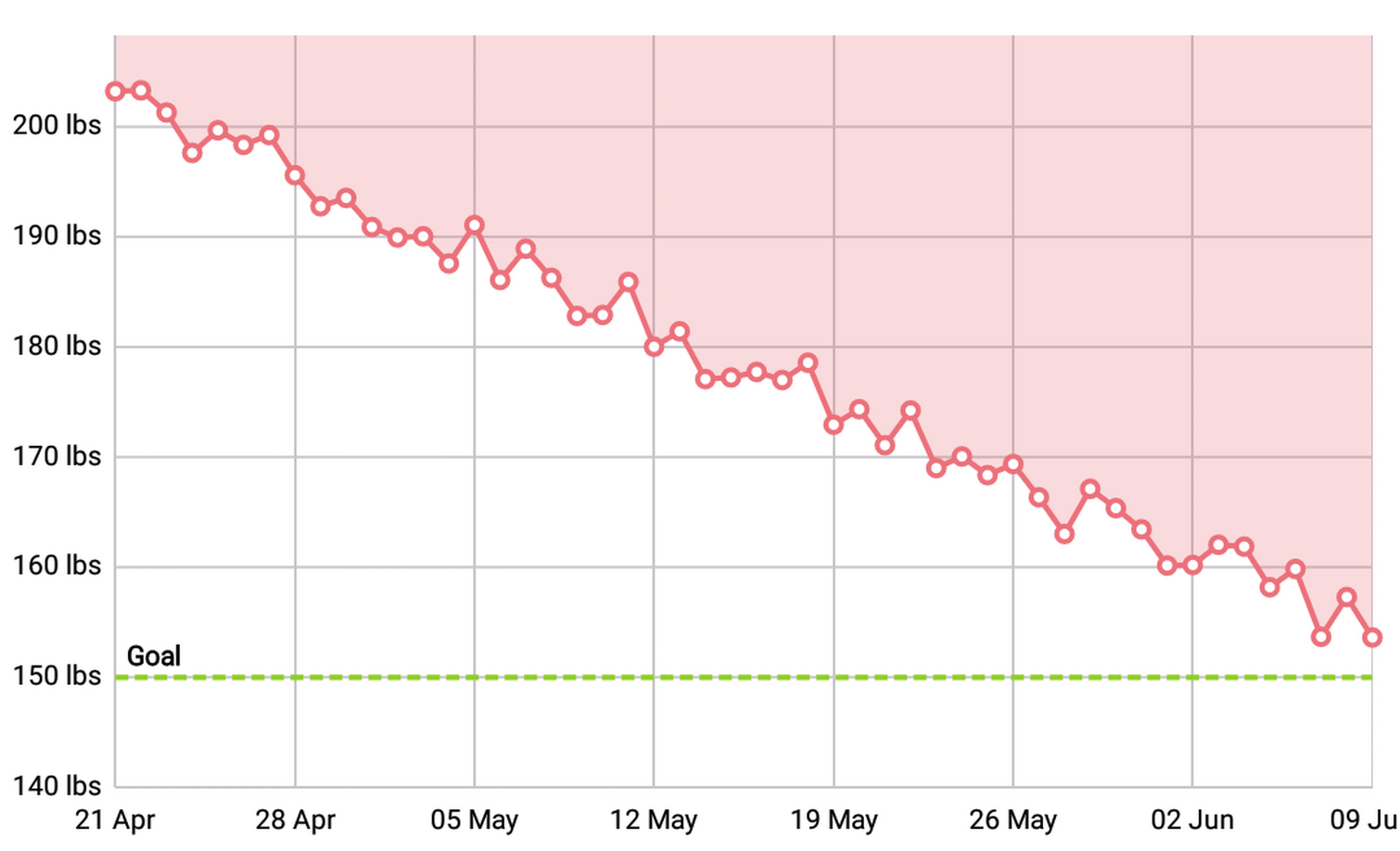

Looks like this:

InvertedFillLineChart.java

package com.example.ui.charting.charts;

import android.content.Context;
import android.util.AttributeSet;

import com.github.mikephil.charting.charts.LineChart;
import com.github.mikephil.charting.data.LineData;
import com.github.mikephil.charting.data.LineDataSet;
import com.github.mikephil.charting.utils.FillFormatter;
import com.example.ui.charting.renderer.InvertedFillLineChartRenderer;

public class InvertedFillLineChart extends LineChart {
    public InvertedFillLineChart(Context context) {
        super(context);
    }

    public InvertedFillLineChart(Context context, AttributeSet attrs) {
        super(context, attrs);
    }

    public InvertedFillLineChart(Context context, AttributeSet attrs, int defStyle) {
        super(context, attrs, defStyle);
    }

    @Override
    protected void init() {
        super.init();

        mRenderer = new InvertedFillLineChartRenderer(this, mAnimator, mViewPortHandler);

        setFillFormatter(new DefaultFillFormatter());
    }

    // Copied from MPAndroidChart because it is not accessible publicly
    protected class DefaultFillFormatter implements FillFormatter {

        @Override
        public float getFillLinePosition(LineDataSet dataSet, LineData data,
                                         float chartMaxY, float chartMinY) {

            float fillMin = 0f;

            if (dataSet.getYMax() > 0 && dataSet.getYMin() < 0) {
                fillMin = 0f;
            } else {

                if (!getAxis(dataSet.getAxisDependency()).isStartAtZeroEnabled()) {

                    float max, min;

                    if (data.getYMax() > 0)
                        max = 0f;
                    else
                        max = chartMaxY;
                    if (data.getYMin() < 0)
                        min = 0f;
                    else
                        min = chartMinY;

                    fillMin = dataSet.getYMin() >= 0 ? min : max;
                } else {
                    fillMin = 0f;
                }

            }

            return fillMin;
        }
    }
}

InvertedFillLineChartRenderer.java

package com.example.ui.charting.renderer;

import android.graphics.Canvas;
import android.graphics.Paint;
import android.graphics.Path;

import com.github.mikephil.charting.animation.ChartAnimator;
import com.github.mikephil.charting.data.Entry;
import com.github.mikephil.charting.data.LineDataSet;
import com.github.mikephil.charting.interfaces.LineDataProvider;
import com.github.mikephil.charting.renderer.LineChartRenderer;
import com.github.mikephil.charting.utils.Transformer;
import com.github.mikephil.charting.utils.ViewPortHandler;

import java.util.List;

public class InvertedFillLineChartRenderer extends LineChartRenderer {
    public InvertedFillLineChartRenderer(LineDataProvider chart, ChartAnimator animator,
                                         ViewPortHandler viewPortHandler) {
        super(chart, animator, viewPortHandler);
    }

    // Mostly copied verbatim except for line 35.
    @Override
    protected void drawLinearFill(Canvas c, LineDataSet dataSet, List<Entry> entries, int minx, int maxx,
                                  Transformer trans) {
        mRenderPaint.setStyle(Paint.Style.FILL);

        mRenderPaint.setColor(dataSet.getFillColor());
        // filled is drawn with less alpha
        mRenderPaint.setAlpha(dataSet.getFillAlpha());

        // Use highest point on chart for background fill limit
        Path filled = generateFilledPath(
            entries,
            mChart.getYChartMax(),
            minx,
            maxx
        );

        trans.pathValueToPixel(filled);

        c.drawPath(filled, mRenderPaint);

        // restore alpha
        mRenderPaint.setAlpha(255);
    }

    /**
     * Copied verbatim from MPAndroidChart because method is private
     */
    private Path generateFilledPath(List<Entry> entries, float fillMin, int from, int to) {

        float phaseX = mAnimator.getPhaseX();
        float phaseY = mAnimator.getPhaseY();

        Path filled = new Path();
        filled.moveTo(entries.get(from).getXIndex(), fillMin);
        filled.lineTo(entries.get(from).getXIndex(), entries.get(from).getVal() * phaseY);

        // create a new path
        for (int x = from + 1, count = (int) Math.ceil((to - from) * phaseX + from); x < count; x++) {

            Entry e = entries.get(x);
            filled.lineTo(e.getXIndex(), e.getVal() * phaseY);
        }

        // close up
        filled.lineTo(
            entries.get(
                Math.max(
                    Math.min((int) Math.ceil((to - from) * phaseX + from) - 1,
                        entries.size() - 1), 0)).getXIndex(), fillMin);

        filled.close();

        return filled;
    }
}
