Snippet to demonstrate the conditioning procedure of a Gaussian Process and how to plot it.

plot_gaussian_process.py

import seaborn as sns
import numpy as np
import numpy.random as rd
import matplotlib.pyplot as plt
from scipy.spatial import distance as dist
import scipy.linalg as la
import itertools as it

%matplotlib inline

sns.set_style('whitegrid', {"axes.facecolor": "1.0"})


def kernel(x0, x1, scale=1.0):
    return np.exp(-.5 * dist.euclidean(x0, x1)**2/scale)

def calculate_kernel_matrix(x, y, scale=1.0):
    k = np.zeros(shape = (len(x), len(y)))
    for i, x1 in enumerate(x):
        for j, y1 in enumerate(y):
            k[i, j] = kernel(x1, y1, scale=scale)
    return k

def get_updated_mean_variance(k, ks, kss, obs_val):
    inv_k = np.linalg.inv(k)
    new_mean = ks.dot(inv_k).dot(obs_val)
    new_k = kss - ks.dot(inv_k).dot(ks.transpose())
    return new_mean, new_k

def plot_gaussian_process(observations, evaluation_pts, kernel_scale=1.0):
    eval_kernel = calculate_kernel_matrix(evaluation_pts, evaluation_pts, scale=kernel_scale)
    if len(observations) > 0:
        x = [p[0] for p in observations]
        fx = [p[1] for p in observations]
        obs_kernel = calculate_kernel_matrix(x, x, scale=kernel_scale)
        eval_obs_kernel = calculate_kernel_matrix(evaluation_pts, x, scale=kernel_scale)
        mu, sigma = get_updated_mean_variance(obs_kernel, eval_obs_kernel, eval_kernel, fx)
    else:
        mu = np.zeros(len(evaluation_pts))
        sigma = eval_kernel

    fig = plt.figure(figsize=(12, 8))
    for cnt in range(3):
        plt.plot(evaluation_pts, rd.multivariate_normal(mu, sigma), label="process sample {}".format(cnt+1))

    plt.fill_between(evaluation_pts,
                     mu + 2 * np.sqrt(np.diag(sigma)),
                     mu - 2 * np.sqrt(np.diag(sigma)),
                     alpha=0.3,
                     label=r"$2\,\sigma$")
    plt.plot(evaluation_pts, mu, 'k--', label='mean prediction')
    if len(observations)>0:
        plt.scatter(x, fx, color='k', s=300, marker='+', label="observations")
    plt.tight_layout()
    plt.xticks(fontsize=18)
    plt.yticks(fontsize=18)
    plt.xlabel(r"input $\theta$", fontsize=22)
    plt.ylabel(r"output $f(\theta)$", fontsize=22)
    plt.legend(loc='best', fontsize=16)

obsv = [
    (-4, 1.5),
    (-3.8, 1),
    (-1.3, -.25),
    (2.6, 1.3),
    (3.5, .15)
]
plot_gaussian_process(obsv, np.linspace(-5, 5, 100), kernel_scale=1)

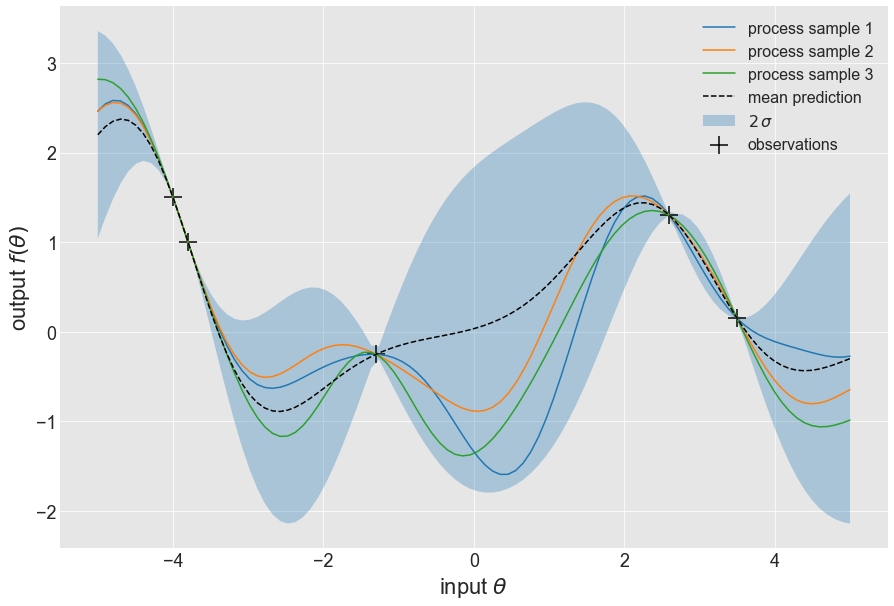

The code produces a plot like:
