This is a demo for an SQL function defined in CartoDB. The function takes two adjacent polygons and two points near their borders and return a polygon that fills the space between those polygons up to those points.

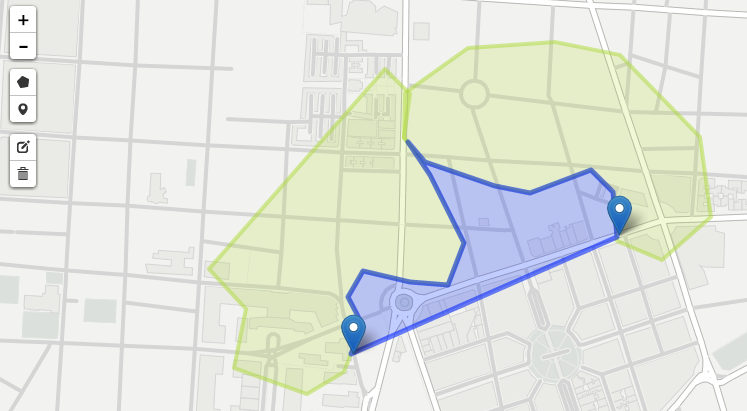

To execute the geoprocess draw to adjacent polygons and two points on their borders. Draw a new point or a new polygon to execute again the process.
The SQL called then is:
SELECT ST_AsGeoJSON(
fillempty(
polygon1, polygon2,
point1,point2
tolerance
)
) as result| CREATE OR REPLACE FUNCTION fillempty(geometry, geometry, geometry, geometry, double precision) | |
| RETURNS geometry | |
| LANGUAGE plpgsql | |
| AS $function$ | |
| DECLARE | |
| -- parameters | |
| g1 ALIAS FOR $1; | |
| g2 ALIAS FOR $2; | |
| p1 ALIAS FOR $3; | |
| p2 ALIAS FOR $4; | |
| tolerance ALIAS FOR $5; | |
| -- work parameters | |
| unionPol geometry; | |
| pp1 geometry; pp2 geometry; | |
| ls geometry; | |
| lsCut geometry; | |
| fromLs float; | |
| toLs float; | |
| convex geometry; | |
| BEGIN | |
| -- Union the polygons | |
| unionPol = ST_Union( | |
| ST_SnapToGrid(g1,tolerance), | |
| ST_SnapToGrid(g2,tolerance) | |
| ); | |
| -- If the union is a multi, then buffer and union again | |
| IF ST_GeometryType(unionPol) like 'ST_MultiPolygon' THEN | |
| unionPol = ST_Union( | |
| ST_Buffer(g1,tolerance), | |
| ST_Buffer(g2,tolerance) | |
| ); | |
| END IF; | |
| IF ST_GeometryType(unionPol) not like 'ST_Polygon' THEN | |
| RAISE EXCEPTION 'Geometry error'; | |
| END IF; | |
| -- Densify the exteriorring to locate the nearest points into the line | |
| ls := ST_Segmentize(ST_ExteriorRing(unionPol),tolerance/2); | |
| pp1 := ST_ClosestPoint(ls,p1); | |
| pp2 := ST_ClosestPoint(ls,p2); | |
| -- Project points into line and extract this new line | |
| fromLs := ST_LineLocatePoint(ls,pp1); | |
| toLs := ST_LineLocatePoint(ls,pp2); | |
| --- Extract the line from one point to the other | |
| IF toLs > fromLS THEN | |
| lsCut := ST_LineSubstring(ls,fromLs,toLs); | |
| ELSE | |
| lsCut := ST_LineSubstring(ls,toLs,fromLs); | |
| END IF; | |
| /* If the length of this cut line is more than 50% | |
| of the original then the reverse line is needed!*/ | |
| IF ST_Length(lsCut) > 0.5*ST_Length(ls) THEN | |
| lsCut = ST_Difference(ls,lsCut); | |
| END IF; | |
| -- Simplify again the line | |
| lsCut := ST_Simplify(lsCut,tolerance); | |
| -- difference the convex hull of the line against the poligon | |
| return ST_Difference(ST_ConvexHull(lsCut),unionPol); | |
| END; | |
| $function$ |
| <!DOCTYPE html> | |
| <html> | |
| <head> | |
| <title>Fill space between two points and polygons | CartoDB.js</title> | |
| <meta name="viewport" content="initial-scale=1.0, user-scalable=no" /> | |
| <meta http-equiv="content-type" content="text/html; charset=UTF-8"/> | |
| <link rel="shortcut icon" href="http://cartodb.com/assets/favicon.ico" /> | |
| <style> | |
| html, body, #map { | |
| height: 100%; | |
| padding: 0; | |
| margin: 0; | |
| } | |
| </style> | |
| <link rel="stylesheet" href="http://libs.cartocdn.com/cartodb.js/v3/3.14/themes/css/cartodb.css" /> | |
| <link rel="stylesheet" href="http://leaflet.github.io/Leaflet.draw/leaflet.draw.css"> | |
| </head> | |
| <body> | |
| <div id="map"></div> | |
| <!-- include cartodb.js library and the leaflet draw plugin--> | |
| <script src="http://libs.cartocdn.com/cartodb.js/v3/3.14/cartodb.js"></script> | |
| <script src="http://leaflet.github.io/Leaflet.draw/leaflet.draw.js"></script> | |
| <script> | |
| function main() { | |
| var sql = new cartodb.SQL({user: 'jsanz'}); | |
| // Create a new map | |
| var map = L.map('map', { | |
| zoomControl: true, | |
| center: [40.43452737429919,-3.699088096618652], | |
| zoom: 16 | |
| }); | |
| // Set up the base layer | |
| basemap = L.tileLayer('http://{s}.basemaps.cartocdn.com/light_nolabels/{z}/{x}/{y}.png', { | |
| attribution: '© <a href="http://www.openstreetmap.org/copyright">OpenStreetMap</a> contributors, © <a href="http://cartodb.com/attributions">CartoDB</a>' | |
| }); | |
| basemap.addTo(map); | |
| // Layer for the parameters | |
| var editableLayers = new L.FeatureGroup(); | |
| map.addLayer(editableLayers); | |
| // Arrays for the features | |
| var polygons = [], markers = []; | |
| // Layer for the results | |
| var resultLayer = L.geoJson().addTo(map); | |
| // Set up the draw control | |
| var drawControl = new L.Control.Draw({ | |
| draw: { | |
| polyline: false, | |
| polygon: { | |
| allowIntersection: false, // Restricts shapes to simple polygons | |
| shapeOptions: {color: '#bada55'} | |
| }, | |
| circle: false, | |
| rectangle: false | |
| }, | |
| edit: { | |
| featureGroup: editableLayers | |
| } | |
| }); | |
| map.addControl(drawControl); | |
| // When a new feature is added put it also on the arrays | |
| map.on('draw:created', function (e) { | |
| var type = e.layerType, | |
| layer = e.layer; | |
| if (type === 'polygon'){ | |
| polygons.push(layer); | |
| if (polygons.length == 3){ | |
| editableLayers.removeLayer(polygons.shift()); | |
| } | |
| } else { | |
| markers.push(layer); | |
| if (markers.length == 3){ | |
| editableLayers.removeLayer(markers.shift()); | |
| } | |
| } | |
| editableLayers.addLayer(layer); | |
| }); | |
| // When a new feature is added, try to execute the procedure | |
| editableLayers.on('layeradd',function(e){ | |
| var sqlStm = "select ST_AsGeoJSON(fillempty(ST_GeomFromText(\'{{g1}}\'),ST_GeomFromText(\'{{g2}}\'),ST_GeomFromText(\'{{p1}}\'),ST_GeomFromText(\'{{p2}}\'),{{tol}})) as result"; | |
| // Only execute the procedure if the arrays are full | |
| if (polygons.length == 2 && markers.length == 2){ | |
| // SQL Options object | |
| var options = { | |
| g1:getPolWKT(polygons[0]), | |
| g2:getPolWKT(polygons[1]), | |
| p1:getPointWKT(markers[0]), | |
| p2:getPointWKT(markers[1]), | |
| tol: 0.00001 // this parameter really depends on the scale of your features | |
| } | |
| // Execute the SQL | |
| sql.execute(sqlStm,options) | |
| .done(function(data){ | |
| // Remove the previous result | |
| resultLayer.removeLayer(resultLayer.getLayers()[0]); | |
| // Add the new geoJSON object | |
| var geom = data.rows[0].result; | |
| resultLayer.addData(eval('('+geom+')')); | |
| }) | |
| .error(function(errors){ | |
| console.log(errors); | |
| }); | |
| } | |
| }); | |
| } | |
| // Utility function to generate a Poligon WKT from a GeoJSON | |
| function getPolWKT(polygon){ | |
| return 'POLYGON ((' + | |
| polygon.toGeoJSON().geometry.coordinates[0].map(function(p){ | |
| return p[0] + ' ' + p[1]}) | |
| .join(',') + '))'; | |
| } | |
| // Utility function to generate a Point WKT from a GeoJSON | |
| function getPointWKT(point){ | |
| return 'POINT (' + point.toGeoJSON().geometry.coordinates.join(' ') + ')'; | |
| } | |
| window.onload = main; | |
| </script> | |
| </body> | |
| </html> |
