How to Install Istio with Helm on PKS and VMware Cloud PKS

The following guide is based on using a newly created Kubernetes cluster that plans to use Istio for its service mesh layer. This guide is not intended for backwards compatibility of injecting Istio into a cluster that has pods currently running.

Pre-Requisites

These pre-requesites determine the resources and software versions required.

PKS

  • PKS 1.2=<
  • NSX-T 2.3=<
  • Medium LoadBalancer for the amount of Virtual Servers needed.
  • PKS Plan with at least 1 Master and 2 worker nodes

VMware Cloud PKS

  • Smart Cluster from either developer or production
  • kubectl installed on the local host
  • vke is installed on the local host, and authenticated to the VMware Cloud PKS cluster (download)

NOTE: It's not necessary to Enable Privileged Containers within the PKS Plan/Profile.

Create a new PKS Cluster

This guide is intended for new Kubernetes clusters and not for retrofitting clusters with pods that currently exist

PKS

Start with a fresh Kubernetes cluster using a Medium sized LoadBalancer so there are enough virtual ports.

$ pks create-cluster pks-cluster-med-lb-istio --external-hostname k8s-cluster-med-lb-istio --plan large --num-nodes 3 --network-profile network-profile-medium
$ pks get-credentials pks-cluster-med-lb-istio

VMware Cloud PKS

Create a smart cluster in any region in development or production

Authenticate vke and kubectl to the cluster

$ vke cluster auth setup my-cluster

Install Istio

The following is a step-by-step guide taken from the Quick Start, Installation with Helm.

Download Istio

On the a machine with kubectl access to the Kubernetes cluster, download Istio package that has all the files needed. The export command will put the istioctl command line tool in your PATH.

$ curl -L https://git.io/getLatestIstio | sh -
$ cd istio-[version number]
$ export PATH=$PWD/bin:$PATH

Install with Helm via Helm template

Helm is the package manager for Kubernetes, like apt/yum/homebrew, that runs on the local machine. This process involves creating a helm template from the downloaded Istio files. Using Tiller along with Helm Install is not recommeded at this time as errors are likely to occur during the CRD installation.

Install Helm on the system with kubectl access

$ curl https://raw.githubusercontent.com/kubernetes/helm/master/scripts/get | bash

Install Kubernetes CRDs

Install Istio’s Custom Resource Definitions via kubectl apply, and wait a few seconds for the CRDs to be committed in the kube-apiserver:

$ kubectl apply -f install/kubernetes/helm/istio/templates/crds.yaml

Create and Install Template

Render Istio’s core components to a Kubernetes manifest called istio.yaml:

$ helm template install/kubernetes/helm/istio --name istio --namespace istio-system > $HOME/istio.yaml

Adjustments for VMware Cloud PKS

The following section only applies to using VMware Cloud PKS

Update istio.yaml to comment out the nodePorts for http2, https, and tcp of the istio-ingressgateway service. The nodePorts are outside the allowed node port ranges for a VMware Cloud PKS cluster.

---
apiVersion: v1
kind: Service
metadata:
  name: istio-ingressgateway
  namespace: istio-system
  annotations:
  labels:
    chart: gateways-1.0.3
    release: istio
    heritage: Tiller
    app: istio-ingressgateway
    istio: ingressgateway
spec:
  type: LoadBalancer
  selector:
    app: istio-ingressgateway
    istio: ingressgateway
  ports:
    -
      name: http2
      # nodePort: 31380
      port: 80
      targetPort: 80
    -
      name: https
      # nodePort: 31390
      port: 443
    -
      name: tcp
      # nodePort: 31400
      port: 31400
    -
      name: tcp-pilot-grpc-tls
      port: 15011
      targetPort: 15011
    -
      name: tcp-citadel-grpc-tls
      port: 8060
      targetPort: 8060
    -
      name: tcp-dns-tls
      port: 853
      targetPort: 853
    -
      name: http2-prometheus
      port: 15030
      targetPort: 15030
    -
      name: http2-grafana
      port: 15031
      targetPort: 15031

Update istio.yaml to distribute pods across zones. By default, Istio uses 1 replica for its control plane pods. If we want to make sure Istio control plane pods are distributed across different nodes/zones, we can use pod anti-affinity. To do this, we have to modify deployment manifest for all control plane components:

  • istio-citadel
  • istio-pilot
  • istio-galley

Change the replicas to 3 and the topologyKey to kubernetes.io/zone to have pods be distributed across zones. For istio-citadel and istio-galley change the labelSelector accordingly.

istio-pilot
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: istio-pilot
  namespace: istio-system
  ..........
spec:
  replicas: 3
  template:
    metadata:
      labels:
        istio: pilot
        app: pilot
      ..........
      ..........
      ..........
          affinity:
            podAntiAffinity:
              requiredDuringSchedulingIgnoredDuringExecution:
              - labelSelector:
                  matchExpressions:
                  - key: istio
                    operator: In
                    values:
                    - pilot
                  - key: app
                    operator: In
                    values:
                    - pilot
                topologyKey: kubernetes.io/hostname
            nodeAffinity:
              requiredDuringSchedulingIgnoredDuringExecution:
istio-citadel
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: istio-citadel
  namespace: istio-system
  ..........
spec:
  replicas: 3
  template:
    metadata:
      labels:
        istio: citadel
      annotations:
        sidecar.istio.io/inject: "false"
        scheduler.alpha.kubernetes.io/critical-pod: ""
    spec:
      serviceAccountName: istio-citadel-service-account
      containers:
        ..........

      affinity:
        podAntiAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            - labelSelector:
                matchExpressions:
                - key: istio
                  operator: In
                  values:
                  - pilot
                - key: app
                  operator: In
                  values:
                  - pilot
             topologyKey: kubernetes.io/hostname
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
istio-galley
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: istio-galley
  namespace: istio-system
  ..........
spec:
  replicas: 3
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 0
  template:
    metadata:
      labels:
        istio: galley
      annotations:
        sidecar.istio.io/inject: "false"
        scheduler.alpha.kubernetes.io/critical-pod: ""
    spec:
      serviceAccountName: istio-galley-service-account
      containers:
        - name: validator
      ..........
      affinity:
        podAntiAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            - labelSelector:
                matchExpressions:
                - key: istio
                  operator: In
                  values:
                  - pilot
                - key: app
                  operator: In
                  values:
                  - pilot
             topologyKey: kubernetes.io/hostname
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: beta.kubernetes.io/arch
                operator: In
                values:
                - amd64
                - ppc64le
                - s390x
          ..........

Install via the Helm manifest:

For both PKS and VMware Cloud PKS, Create a namespace and install Istio via the Helm manifest:

$ kubectl create namespace istio-system
$ kubectl apply -f $HOME/istio.yaml

Verify the Installation

Ensure Services are Deployed

Ensure the following Kubernetes services are deployed: istio-pilot, istio-ingressgateway, istio-policy, istio-telemetry, prometheus, istio-galley, and, optionally, istio-sidecar-injector.

$ kubectl get svc -n istio-system

Ensure Pods Are Running

Ensure the corresponding Kubernetes pods are deployed and all containers are up and running: istio-pilot-*, istio-ingressgateway-*, istio-egressgateway-*, istio-policy-*, istio-telemetry-*, istio-citadel-*, prometheus-*, istio-galley-*, and, optionally, istio-sidecar-injector-*.

$ kubectl get pods -n istio-system

Deploy Bookinfo Application

The Bookinfo App is a standard testing application to verify a successful deployment.

Deploy

Using a cluster with automatic sidecar injection enabled, label the default namespace with istio-injection=enabled.

$ kubectl label namespace default istio-injection=enabled

Simply deploy the services using kubectl

$ kubectl apply -f samples/bookinfo/platform/kube/bookinfo.yaml

Confirm all services and pods are correctly defined and running:

$ kubectl get services
$ kubectl get pods

Determining the ingress IP and port

Now that the Bookinfo services are up and running, you need to make the application accessible from outside of your Kubernetes cluster, e.g., from a browser. An Istio Gateway is used for this purpose. Since PKS uses NSX-T, LoadBalancers will be used instead of NodePort.

Define the ingress gateway for the application:

$ kubectl apply -f samples/bookinfo/networking/bookinfo-gateway.yaml

Confirm the gateway has been created:

$ kubectl get gateway
NAME               AGE
bookinfo-gateway   32s

Execute the following command to determine the NSX-T external load balancer IP and service ports:

$ kubectl get svc istio-ingressgateway -n istio-system
NAME                   TYPE           CLUSTER-IP       EXTERNAL-IP                PORT(S)                                                                                                                   AGE
istio-ingressgateway   LoadBalancer   10.100.200.220   100.64.80.23,24.24.24.98   80:31380/TCP,443:31390/TCP,31400:31400/TCP,15011:30230/TCP,8060:30211/TCP,853:32055/TCP,15030:30556/TCP,15031:31751/TCP   1h

Set the ingress IP and ports:

$ export INGRESS_HOST=$(kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
$ export INGRESS_PORT=$(kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.spec.ports[?(@.name=="http2")].port}')
$ export SECURE_INGRESS_PORT=$(kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.spec.ports[?(@.name=="https")].port}')

Set GATEWAY_URL:

$ export GATEWAY_URL=$INGRESS_HOST:$INGRESS_PORT

To confirm that the Bookinfo application is running, run the following curl command:

$ curl -o /dev/null -s -w "%{http_code}\n" http://${GATEWAY_URL}/productpage
200

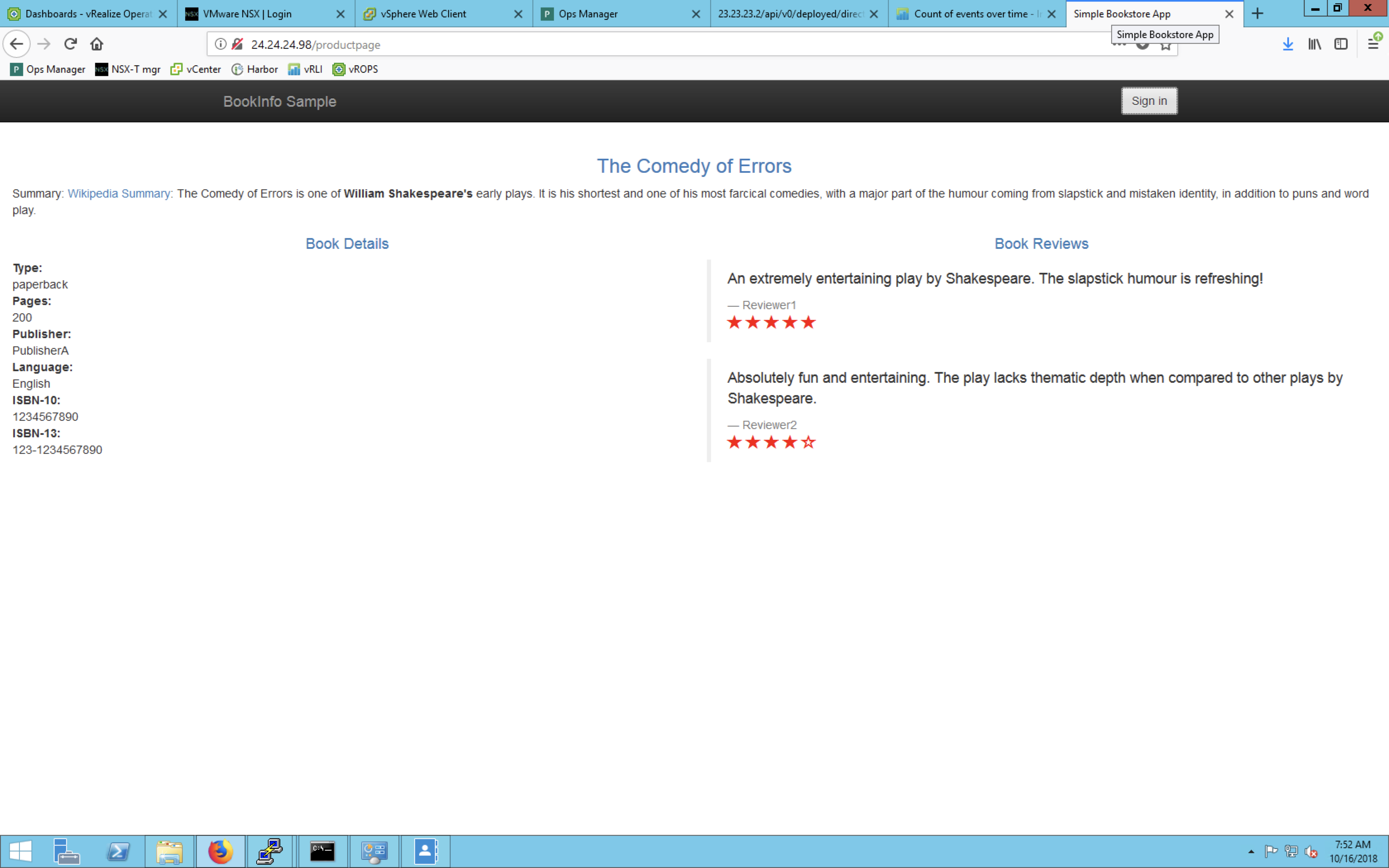

You can also point your browser to http://$GATEWAY_URL/productpage to view the Bookinfo web page. If you refresh the page several times, you should see different versions of reviews shown in productpage, presented in a round robin style (red stars, black stars, no stars), since we haven’t yet used Istio to control the version routing. Imgur

Uninstall or Delete Istio

To uninstall/delete Istio, use the following command:

$ kubectl delete -f $HOME/istio.yaml

Delete the CRDs with:

$ kubectl delete -f install/kubernetes/helm/istio/templates/crds.yaml -n istio-system
