KlakHAP

KlakHAP is a Unity plugin that allows playing back a video stream encoded with the HAP video codecs.

HAP is a fast and high-quality video codec often used in real-time interactive applications. From the HAP Codecs website:

The HAP codecs are designed to fit the needs of a variety of real-time video workflows where ultra high resolution video is needed such as live event production, set design, 360 video for gaming, projection mapping and creative coding.

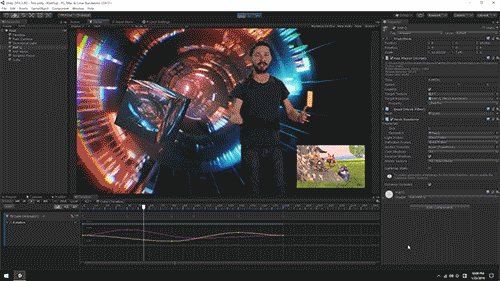

KlakHAP provides video frames as textures that can be used in any way on Unity's rendering pipeline — attaching to a material, presenting a full-screen video, animating a UI element, etc. Thanks to the performant design and implementation of the HAP codecs, it can dynamically control the playback time/speed without any hiccups.

System requirements

• Unity 2018.3 or later

At the moment, KlakHAP only supports Windows 64-bit and Direct3D11.

Supported formats

KlakHap suports HAP, HAP Alpha and HAP Q. At the moment HAP Q Alpha is not supported.

KlakHap only supports QuickTime File Format as a container — in other words, it only supports .mov files.

Installation

Download and import one of the .unitypackage files from Releases page.

You can also use Git support on Package Manager to import the package. Add the following line to the dependencies section in the package manifest file (Packages/manifest.json). Note that this feature is only available from Unity 2018.3. See the forum thread for futher details.

"jp.keijiro.klak.hap": "https://github.com/keijiro/KlakHap.git#upm"

How to specify a video file

There are two methods to specify a video file in the plugin:

• Streaming Assets Mode: Put a video file in the Streaming Assets directory and specify its file name.
• Local File System Mode: Put a video file somewhere in local drive and specify its full path name.

The former method is recommended when the video file is delivered within the application. The latter method is useful when it needs to play an external content.

Hap Player component

File Path and Path Mode are used to specify a source video file. Please see the previous section for details.

Time, Speed and Loop are used to set the initial playback state. You can also use these values to change the current state while playing.

Target Texture is used to store decoded frames into a render texture. Note that it allocates a small amount of GPU time for data transfer.

Target Renderer is used to apply a decoded texture to a specific material property. Although it's the most performant way to render video frames, it needs a few additional steps to be rendered correctly. The following points should be taken into account:

• UV coordinates incompatibility: Decoded textures will be upside-down on Direct3D. It can be fixed using a vertically-inverted texture scale/offset. You can also use the Klak/Hap shader for this purpose.
• Color space conversion for HAP Q: YCoCg conversion must be added to a shader when using HAP Q. You can also use the Klak/HAP Q for this purpose.

How to control playback

HapPlayer only provides a few properties/methods for controlling playback. This is an intentional design choice; I don't like to introduce ambiguity by adding common methods like Play, Stop or Pause. You can use the basic properties/methods to control playback instead.

• To jump to a specific point: Assign a time in seconds to time.
• To jump to a specific frame: Calculate the time in seconds using frameCount and streamDuration then assign it to time.
• To reverse the playback direction: Assign a negative value to speed.
• To pause: Assign 0 to speed.
• To resume: Assign 1 to speed.
• To stop: Assign false to enabled.
• To close the video file: Destroy the HapPlayer component.
• To open another video file: AddComponent<HapPlayer> then call Open.
