Performance tests between Cylc UI + deltas, and Cylc UI + deltas + infinite tree
Raw
performance.md

Environment

Thinkpad T530 16GB 8cores. Ubuntu LTS 18.04 up to date. Anaconda Python 3.7.7, with a venv virtual environment activated.

Latest branches of cylc-flow (9d60d6858113322f607b408fb3ead34b3f98a142) and cylc-uiserver (0eba8f3af77ed3adfb10a2f6510b247beaa1fcdc).

Chromium 84. As Cylc UI was built for production mode, VueDevTools doesn't interfere with the performance tests, as it won't be activated either during the tests. I will use only the browser default development tools and lighthouse. Also disabled uBlock origin for localhost.

See file suite.rc for complex workflow source.

I also have Firefox running with two tabs, one for GitHub, and one for this gist.

master (5514d1f117b11c738d6e9e150de3c1e6ef0f4ee1) branch, using Deltas

Built with yarn run build --optimize.

master performed well with the complex workflow. I did not notice any delay in the UI response. My computer resources, and the browser, both looked fine.

It used between 44 and 65 MB of memory in the browser.



The image above shows the JS heap memory usage range. Some of the red marks in the code execution are due to layout shift. This happened when I expanded and collapsed nodes of the tree, as that moves elements in the browser and changes scroll bars.

Most of the memory used is due Vuex (~43%). It needs to set up several observers in place to monitor for changes in the array (states, titles, etc). We should be able to improve this by telling the tree to update only when the deltas have finished being applied (there's a way to trick Vue to ignore changes in the nested data, and instead observe only the workflowTree data). Will look into that before the 8.0 release.

But the performance of the master branch was good for me with the complex workflow. No issues with user experience.


There's further room for improving performance as reported by Lighthouse, with things like JS tree-shaking, removing unused CSS styles, HTTP2 (can't do because of Tornado), etc. But that's true for the deltas and for the infinite tree branches.

infinite-tree branch (7a383d208476b74180cec5996a2f10560a69b7b4), also using Deltas, plus the vue-virtual-scroller component and infinite-tree library

To test the infinite-tree branch, I stopped the browser, JupyterHub, and the complex workflow. Then re-built the UI assets, and started from scratch.

The infinite-tree also showed good performance. I couldn't really tell much difference between master and infinite-tree. The scroll of the infinite-tree works surprisingly good. I feel like it'd be hard to tell whether you are using the master with deltas or the infinite-tree branch.

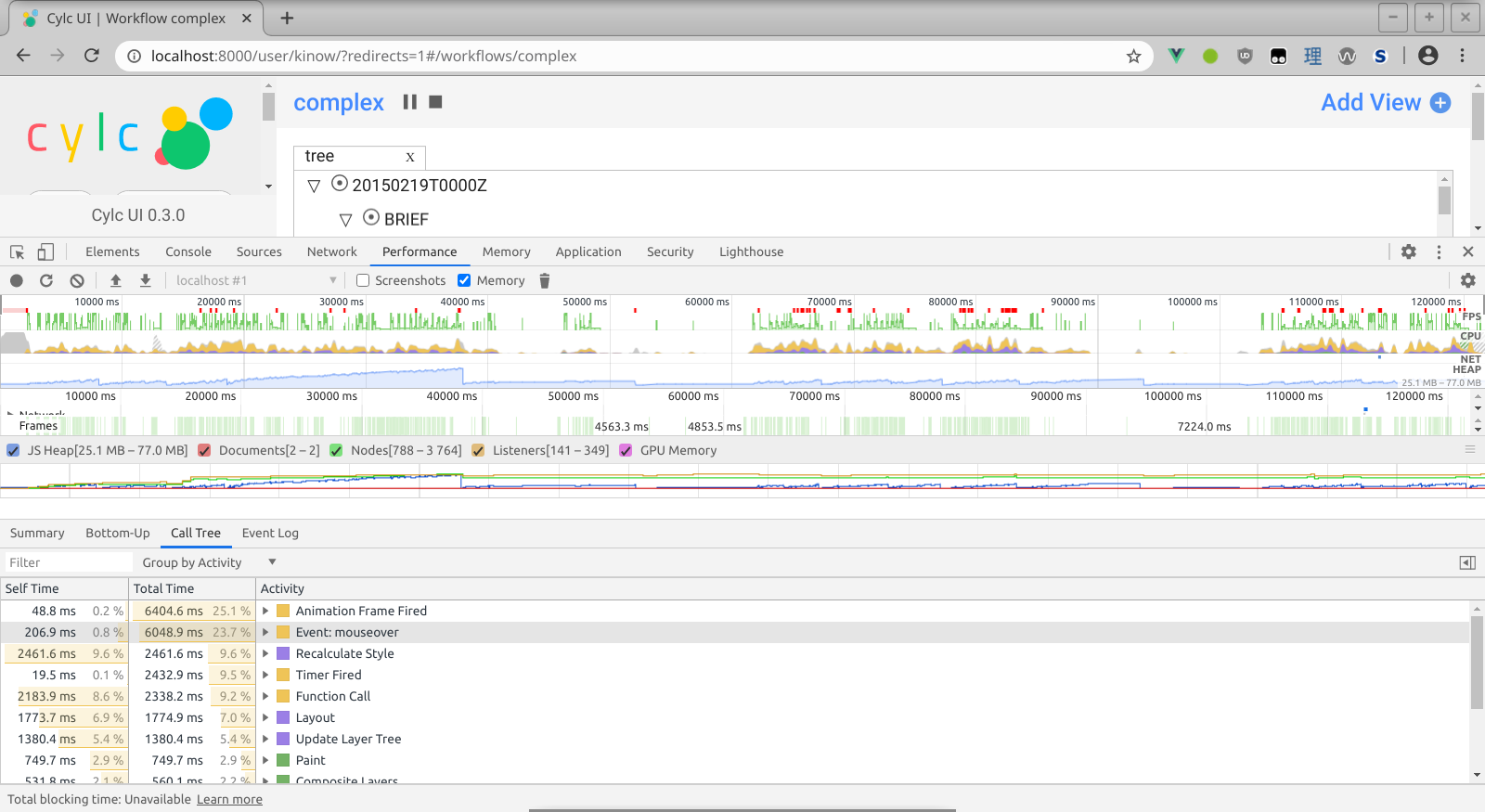

The JS heap varied between 25 and ~77 MB. The test was the same, complex workflow, expanding some nodes of the tree over the 2 minutes that the performance was recorded.

I guess the bug of the parent-less job affected the tree, as I couldn't find many jobs with the state running. Only succeeded, and always with the missing parent.

I noticed too that there are several layout shifts. Looks like it happened more often than with the master tree. That shouldn't really happen I think. There could be some way to tweak that later if necessary, reducing some of the memory/CPU use of the browser.

Now this is a probable cause for the similar performance.


With the master branch, near 40% of the performance recording time was spent with Vuex JS functions of our code.

But with infinite-tree, it spent a lot more on the Animation Frame Fired (25.1%). I suspect it is related to how objects are being re-rendered and re-use. There's a lot of GC (garbage collection) happening. I think I could improve this.

The mouseover event is taking another 23.7%. That's because this event is being listened by the InfiniteTree object. It was like that in their React example, so I ported the same behaviour to our Vue version. Removing it is quite easy and would bring good improvement for the infinite-tree.

The 9.5% of the timer is from some component/library. Perhaps Vuetify, or VueVirtualScroller (easier to find it with VueDevTools and development build). But the JS Vuex code is responsible for those 9.2%, which is much better than the master branch.

GC also appears to be working more, but with a better pattern in the memory collection. Probably because there are less objects in the DOM.

Lighthouse gives a similar score as it looks at overall performance metrics, without going into the detailed metrics like how much each function is using of memory or execution time.


The improvements suggested are applicable for both branches. But it's good to know that our performance can still be further improved prior to the 8.0 release.

Most of the memory used by the infinite tree was due to Vuex. Just like with the master branch, we should investigate simplifying reactivity using the deltas.

We know when the data changes (after deltas are applied). So we can have more control over when the reactivity is triggered in Vue, reducing number of objects observing changes.

Also, we may not need Vuex. If we are able to have the tree created for that view, and then passed down to the children components, that should improve the performance significantly.

Said that, there are plans to have a single tree, which would probably need Vuex to store the data. So that improvement is not top priority. It's just good to know we can work on that, should that becomes a problem.

At the moment, both master and infinite-tree look good enough for me, with similar performance. The infinite-tree can outperform master with some further tweaks. But I would prefer to work on performance and optimization based on user feedback - if possible.

Raw
suite.rc
#!jinja2
# A somewhat complex suite put together for the IS-ENES2 Workshop in Lisbon
# 2016.
{% if not batch_system is defined %}
{% set batch_system = 'background' %}
{% endif %}
{% if not sleep_time is defined %}
{% set sleep_time = 10 %}
{% endif %}
[meta]
title = "Complex Suite Demo"
description = "This is a super-elaborate obfuscated version of a suite with no Jinja2 to condense it down."
[cylc]
UTC mode = True
[[events]]
timeout handler = rose suite-hook --mail --shutdown
timeout = P1D # 1 day.
[scheduling]
initial cycle point = 20150219T00
final cycle point = 20150220T00
runahead limit = PT6H
[[special tasks]]
clock-trigger = \
long_start_00(PT2H40M), brief_start_00(PT6H15M), \
long_start_06(PT2H40M), brief_start_06(PT6H15M), \
long_start_12(PT2H40M), brief_start_12(PT6H15M), \
long_start_18(PT2H40M), brief_start_18(PT6H15M), \
long_res_create(-PT1H20M), brief_res_create(PT1H30M), \
ensemble_start_00(PT3H30M), ensemble_start_06(PT3H30M), \
ensemble_start_12(PT3H30M), ensemble_start_18(PT3H30M), \
ensemble_res_create(-PT30M), ensembles_res_create(-PT30M)
[[dependencies]]
[[[R1]]]
graph = """
install_cold
install_cold_mirror
install_cold & longbrief_install_startdata_cold => long_start & brief_start
install_cold & ensemble_install_startdata_cold => ensemble_start
"""
[[[ T00 ]]]
graph = """
housekeep => archive_logs
"""
[runtime]
[[root]]
{% if cylc_compat_mode is defined and cylc_compat_mode == '6' %}
command scripting = sleep {{ sleep_time }}
[[[job submission]]]
method = {{ batch_system }}
{% else %}
script = sleep {{ sleep_time }}
[[[job]]]
batch system = {{ batch_system }}
{% endif %}
[[HPC]]
[[HPC_BACKUP]]
[[CORETYPE_PARALLEL]]
[[CORETYPE_SHARED]]
[[ARCHIVE]]
inherit = CORETYPE_SHARED
[[INSTALL_COLD]]
inherit = CORETYPE_SHARED
[[INSTALL_DIAG]]
[[LOCAL]]
[[OS_RES_CREATE]]
inherit = None, HPC, CORETYPE_SHARED
[[OS_RES_DELETE]]
inherit = None, HPC, CORETYPE_SHARED
[[OS_START]]
inherit = None, LOCAL
[[RETRY_TASK]]
[[archive_logs]]
inherit = None, LOCAL, ARCHIVE
[[housekeep]]
inherit = None, LOCAL
[[install_cold]]
inherit = INSTALL_COLD, HPC
[[install_cold_mirror]]
inherit = INSTALL_COLD, HPC_BACKUP
[scheduling]
[[dependencies]]
[[[ T00 ]]]
graph = """
long_res_create => long_start_00 => long_start
brief_res_create => brief_start_00 => brief_start
brief_forecast_end => brief_hpc_backup_daily => housekeep
long_dispersion_proc_completed => long_dispersion_archive_prep => long_dispersion_archive
"""
[[[ T06 ]]]
graph = """
brief_forecast[-PT6H] => brief_wagtail_look_at_snow & brief_wagtail_look_at_wagtail_ice \
=> brief_forecast_redo_daily \
=> brief_forecast
brief_start => brief_wagtail_look_at_snow & brief_wagtail_look_at_wagtail_ice
brief_start => brief_observations_wagtail_background => brief_observations_wagtail_look_at
brief_start => brief_observations_process_wagtail_background => brief_observations_process_wagtail_look_at \
=> brief_observations_db_stuff_wagtail => brief_archive
long_res_create => long_start_06 => long_start
brief_res_create => brief_start_06 => brief_start
"""
[[[ T12 ]]]
graph = """
long_res_create => long_start_12 => long_start
brief_res_create => brief_start_12 => brief_start
"""
[[[ T18 ]]]
graph = """
long_res_create => long_start_18 => long_start
brief_res_create => brief_start_18 => brief_start
"""
[[[ T00, T12 ]]]
graph = """
long_assimilation_look_at_larger => long_forecast_long
long_forecast_long => LONG_OBS_PROCESS_LOOK_AT:succeed-all => long_observations_db_stuff_wagtail => long_archive_long => housekeep
long_forecast_long => long_verificationmodel_database
long_forecast_subjob_tZT => long_verificationmodel_database => long_verificationmodel_database_induced
long_verificationmodel_database_induced & brief_verificationmodel_database_induced => housekeep
long_forecast_long:start \
=> long_forecast_tA \
=> long_forecast_tB \
=> long_forecast_tC \
=> long_forecast_tD \
=> long_forecast_tE \
=> long_forecast_tF \
=> long_forecast_tG \
=> long_forecast_tH \
=> long_forecast_tI \
=> long_forecast_tB0 \
=> long_forecast_tB3 \
=> long_forecast_tB6 \
=> long_forecast_tB9 \
=> long_forecast_tBA \
=> long_forecast_tBB \
=> long_forecast_tJ \
=> long_forecast_tBC \
=> long_forecast_tBD \
=> long_forecast_tBE \
=> long_forecast_tC0 \
=> long_forecast_tC3 \
=> long_forecast_tC6 \
=> long_forecast_tK \
=> long_forecast_tKA \
=> long_forecast_tKB \
=> long_forecast_tKC \
=> long_forecast_tKD \
=> long_forecast_tKE \
=> long_forecast_tKF \
=> long_forecast_tZA \
=> long_forecast_tZB \
=> long_forecast_tZC \
=> long_forecast_tM \
=> long_forecast_tZD \
=> long_forecast_tZE \
=> long_forecast_tL \
=> long_forecast_tZF \
=> long_forecast_tZG \
=> long_forecast_tZH \
=> long_forecast_tN \
=> long_forecast_tZI \
=> long_forecast_tZJ \
=> long_forecast_tZK \
=> long_forecast_tZM \
=> long_forecast_tZN \
=> long_forecast_tZO \
=> long_forecast_tO \
=> long_forecast_tZP \
=> long_forecast_tZQ \
=> long_forecast_tZR \
=> long_forecast_tZS \
=> long_forecast_tZT \
=> housekeep
long_forecast_long => long_forecast_end
long_forecast_end & LONG_OBS_PROCESS_LOOK_AT:succeed-all \
=> long_res_delete
long_forecast_tA => long_forecast_subjob_tA \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tA => long_local_preflight_checks
long_forecast_subjob_tA => long_thunderbirds_are_go
long_forecast_tB => long_forecast_subjob_tB \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tB => long_local_preflight_checks
long_forecast_subjob_tB => long_thunderbirds_are_go
long_forecast_tC => long_forecast_subjob_tC \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tC => long_local_preflight_checks
long_forecast_subjob_tC => long_thunderbirds_are_go
long_forecast_tD => long_forecast_subjob_tD \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tD => long_local_preflight_checks
long_forecast_subjob_tD => long_thunderbirds_are_go
long_forecast_tE => long_forecast_subjob_tE \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tE => long_local_preflight_checks
long_forecast_subjob_tE => long_thunderbirds_are_go
long_forecast_tF => long_forecast_subjob_tF \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tF => long_local_preflight_checks
long_forecast_subjob_tF => long_thunderbirds_are_go
long_forecast_tG => long_forecast_subjob_tG \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tG => long_local_preflight_checks
long_forecast_subjob_tG => long_thunderbirds_are_go
long_forecast_tH => long_forecast_subjob_tH \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tH => long_local_preflight_checks
long_forecast_subjob_tH => long_thunderbirds_are_go
long_forecast_tI => long_forecast_subjob_tI \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tI => long_local_preflight_checks
long_forecast_subjob_tI => long_thunderbirds_are_go
long_forecast_tB0 => long_forecast_subjob_tB0 \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tB0 => long_local_preflight_checks
long_forecast_subjob_tB0 => long_thunderbirds_are_go
long_forecast_tB3 => long_forecast_subjob_tB3 \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tB3 => long_local_preflight_checks
long_forecast_subjob_tB3 => long_thunderbirds_are_go
long_forecast_tB6 => long_forecast_subjob_tB6 \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tB6 => long_local_preflight_checks
long_forecast_subjob_tB6 => long_thunderbirds_are_go
long_forecast_tB9 => long_forecast_subjob_tB9 \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tB9 => long_local_preflight_checks
long_forecast_subjob_tB9 => long_thunderbirds_are_go
long_forecast_tBA => long_forecast_subjob_tBA \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tBA => long_local_preflight_checks
long_forecast_subjob_tBA => long_thunderbirds_are_go
long_forecast_tBB => long_forecast_subjob_tBB \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tBB => long_local_preflight_checks
long_forecast_subjob_tBB => long_thunderbirds_are_go
long_forecast_tJ => long_forecast_subjob_tJ \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tJ => long_local_preflight_checks
long_forecast_subjob_tJ => long_thunderbirds_are_go
long_forecast_tBC => long_forecast_subjob_tBC \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tBC => long_thunderbirds_are_go
long_forecast_tBD => long_forecast_subjob_tBD \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tBD => long_thunderbirds_are_go
long_forecast_tBE => long_forecast_subjob_tBE \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tBE => long_thunderbirds_are_go
long_forecast_tC0 => long_forecast_subjob_tC0 \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tC0 => long_thunderbirds_are_go
long_forecast_tC3 => long_forecast_subjob_tC3 \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tC3 => long_thunderbirds_are_go
long_forecast_tC6 => long_forecast_subjob_tC6 \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tC6 => long_thunderbirds_are_go
long_forecast_tK => long_forecast_subjob_tK \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tK => long_thunderbirds_are_go
long_forecast_tKA => long_forecast_subjob_tKA \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tKA => long_thunderbirds_are_go
long_forecast_tKB => long_forecast_subjob_tKB \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tKB => long_thunderbirds_are_go
long_forecast_tKC => long_forecast_subjob_tKC \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tKC => long_thunderbirds_are_go
long_forecast_tKD => long_forecast_subjob_tKD \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tKD => long_thunderbirds_are_go
long_forecast_tKE => long_forecast_subjob_tKE \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tKE => long_thunderbirds_are_go
long_forecast_tKF => long_forecast_subjob_tKF \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tKF => long_thunderbirds_are_go
long_forecast_tL => long_forecast_subjob_tL \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tL => long_thunderbirds_are_go
long_forecast_tZF => long_forecast_subjob_tZF \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZF => long_thunderbirds_are_go
long_forecast_tZG => long_forecast_subjob_tZG \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZG => long_thunderbirds_are_go
long_forecast_tZH => long_forecast_subjob_tZH \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZH => long_thunderbirds_are_go
long_forecast_tZA => long_forecast_subjob_tZA \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZA => long_thunderbirds_are_go
long_forecast_tZB => long_forecast_subjob_tZB \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZB => long_thunderbirds_are_go
long_forecast_tZC => long_forecast_subjob_tZC \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZC => long_thunderbirds_are_go
long_forecast_tM => long_forecast_subjob_tM \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tM => long_thunderbirds_are_go
long_forecast_tZD => long_forecast_subjob_tZD \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZD => long_thunderbirds_are_go
long_forecast_tZE => long_forecast_subjob_tZE \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZE => long_thunderbirds_are_go
long_forecast_tL => long_forecast_subjob_tL \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tL => long_thunderbirds_are_go
long_forecast_tZF => long_forecast_subjob_tZF \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZF => long_thunderbirds_are_go
long_forecast_tZG => long_forecast_subjob_tZG \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZG => long_thunderbirds_are_go
long_forecast_tZH => long_forecast_subjob_tZH \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZH => long_thunderbirds_are_go
long_forecast_tN => long_forecast_subjob_tN \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tN => long_thunderbirds_are_go
long_forecast_tZI => long_forecast_subjob_tZI \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZI => long_thunderbirds_are_go
long_forecast_tZJ => long_forecast_subjob_tZJ \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZJ => long_thunderbirds_are_go
long_forecast_tZK => long_forecast_subjob_tZK \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZK => long_thunderbirds_are_go
long_forecast_tZM => long_forecast_subjob_tZM \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZM => long_thunderbirds_are_go
long_forecast_tZN => long_forecast_subjob_tZN \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZN => long_thunderbirds_are_go
long_forecast_tZO => long_forecast_subjob_tZO \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZO => long_thunderbirds_are_go
long_forecast_tO => long_forecast_subjob_tO \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tO => long_thunderbirds_are_go
long_forecast_tZP => long_forecast_subjob_tZP \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZP => long_thunderbirds_are_go
long_forecast_tZQ => long_forecast_subjob_tZQ \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZQ => long_thunderbirds_are_go
long_forecast_tZR => long_forecast_subjob_tZR \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZR => long_thunderbirds_are_go
long_forecast_tZS => long_forecast_subjob_tZS \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZS => long_thunderbirds_are_go
long_forecast_tZT => long_forecast_subjob_tZT \
=> long_local & long_bigleftright \
& long_sync_happy \
& long_archive_long
long_forecast_subjob_tZT => long_thunderbirds_are_go
long_forecast_tF => long_dispersion_tF \
=> long_dispersion_clock
long_forecast_tB6 => long_dispersion_tB6 \
=> long_dispersion_clock
long_forecast_tBD => long_dispersion_tBD \
=> long_dispersion_clock
long_forecast_tKA => long_dispersion_tKA \
=> long_dispersion_clock
long_forecast_tL => long_dispersion_tL \
=> long_dispersion_clock
long_forecast_tZC => long_dispersion_tZC \
=> long_dispersion_clock
long_forecast_tZG => long_dispersion_tZG \
=> long_dispersion_clock
long_forecast_tZM => long_dispersion_tZM \
=> long_dispersion_clock
long_dispersion_clock => housekeep
long_forecast_tD => long_dispersion_proc_tD \
=> long_dispersion_proc_completed
long_forecast_tH => long_dispersion_proc_tH \
=> long_dispersion_proc_completed
long_forecast_tB6 => long_dispersion_proc_tB6 \
=> long_dispersion_proc_completed
long_forecast_tJ => long_dispersion_proc_tJ \
=> long_dispersion_proc_completed
long_forecast_tC0 => long_dispersion_proc_tC0 \
=> long_dispersion_proc_completed
long_forecast_tKA => long_dispersion_proc_tKA \
=> long_dispersion_proc_completed
long_forecast_tKE => long_dispersion_proc_tKE \
=> long_dispersion_proc_completed
long_forecast_tZG => long_dispersion_proc_tZG \
=> long_dispersion_proc_completed
long_forecast_tZC => long_dispersion_proc_tZC \
=> long_dispersion_proc_completed
long_forecast_tL => long_dispersion_proc_tL \
=> long_dispersion_proc_completed
long_forecast_tN => long_dispersion_proc_tN \
=> long_dispersion_proc_completed
long_forecast_tZM => long_dispersion_proc_tZM \
=> long_dispersion_proc_completed
long_forecast_tZP => long_dispersion_proc_tZP \
=> long_dispersion_proc_completed
long_forecast_tZT => long_dispersion_proc_tZT \
=> long_dispersion_proc_completed
long_dispersion_proc_completed => long_dispersion_archive_forecast \
=> long_dispersion_prune_forecast \
=> long_dispersion_housekeep
long_forecast_end => long_local & long_bigleftright
long_forecast_end => long_happyland_ingest
long_forecast_end => long_send_stingray_stingray
long_forecast_end => long_user_hook
long_verificationmodel_database_induced => long_sync_verification
"""
[[[ T06, T18 ]]]
graph = """
long_assimilation_look_at_larger => long_forecast_short
long_forecast_short => LONG_OBS_PROCESS_LOOK_AT:succeed-all => long_observations_db_stuff_wagtail => long_archive_short => housekeep
long_forecast_short => long_verificationmodel_database_short
long_forecast_subjob_tC0 => long_verificationmodel_database_short => long_verificationmodel_database_induced_short
long_verificationmodel_database_induced_short & brief_verificationmodel_database_induced => housekeep
long_forecast_short:start \
=> long_forecast_tA \
=> long_forecast_tB \
=> long_forecast_tC \
=> long_forecast_tD \
=> long_forecast_tE \
=> long_forecast_tF \
=> long_forecast_tG \
=> long_forecast_tH \
=> long_forecast_tI \
=> long_forecast_tB0 \
=> long_forecast_tB3 \
=> long_forecast_tB6 \
=> long_forecast_tB9 \
=> long_forecast_tBA \
=> long_forecast_tBB \
=> long_forecast_tJ \
=> long_forecast_tBC \
=> long_forecast_tBD \
=> long_forecast_tBE \
=> long_forecast_tC0 \
=> housekeep
long_forecast_short => long_forecast_end
long_forecast_end & LONG_OBS_PROCESS_LOOK_AT:succeed-all \
=> long_res_delete
long_forecast_tA => long_forecast_subjob_tA \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tA => long_local_preflight_checks
long_forecast_subjob_tA => long_thunderbirds_are_go
long_forecast_tB => long_forecast_subjob_tB \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tB => long_local_preflight_checks
long_forecast_subjob_tB => long_thunderbirds_are_go
long_forecast_tC => long_forecast_subjob_tC \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tC => long_local_preflight_checks
long_forecast_subjob_tC => long_thunderbirds_are_go
long_forecast_tD => long_forecast_subjob_tD \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tD => long_local_preflight_checks
long_forecast_subjob_tD => long_thunderbirds_are_go
long_forecast_tE => long_forecast_subjob_tE \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tE => long_local_preflight_checks
long_forecast_subjob_tE => long_thunderbirds_are_go
long_forecast_tF => long_forecast_subjob_tF \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tF => long_local_preflight_checks
long_forecast_subjob_tF => long_thunderbirds_are_go
long_forecast_tG => long_forecast_subjob_tG \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tG => long_local_preflight_checks
long_forecast_subjob_tG => long_thunderbirds_are_go
long_forecast_tH => long_forecast_subjob_tH \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tH => long_local_preflight_checks
long_forecast_subjob_tH => long_thunderbirds_are_go
long_forecast_tI => long_forecast_subjob_tI \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tI => long_local_preflight_checks
long_forecast_subjob_tI => long_thunderbirds_are_go
long_forecast_tB0 => long_forecast_subjob_tB0 \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tB0 => long_local_preflight_checks
long_forecast_subjob_tB0 => long_thunderbirds_are_go
long_forecast_tB3 => long_forecast_subjob_tB3 \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tB3 => long_local_preflight_checks
long_forecast_subjob_tB3 => long_thunderbirds_are_go
long_forecast_tB6 => long_forecast_subjob_tB6 \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tB6 => long_local_preflight_checks
long_forecast_subjob_tB6 => long_thunderbirds_are_go
long_forecast_tB9 => long_forecast_subjob_tB9 \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tB9 => long_local_preflight_checks
long_forecast_subjob_tB9 => long_thunderbirds_are_go
long_forecast_tBA => long_forecast_subjob_tBA \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tBA => long_local_preflight_checks
long_forecast_subjob_tBA => long_thunderbirds_are_go
long_forecast_tBB => long_forecast_subjob_tBB \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tBB => long_local_preflight_checks
long_forecast_subjob_tBB => long_thunderbirds_are_go
long_forecast_tJ => long_forecast_subjob_tJ \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tJ => long_local_preflight_checks
long_forecast_subjob_tJ => long_thunderbirds_are_go
long_forecast_tBC => long_forecast_subjob_tBC \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tBC => long_thunderbirds_are_go
long_forecast_tBD => long_forecast_subjob_tBD \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tBD => long_thunderbirds_are_go
long_forecast_tBE => long_forecast_subjob_tBE \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tBE => long_thunderbirds_are_go
long_forecast_tC0 => long_forecast_subjob_tC0 \
=> long_bigleftright \
& long_sync_happy \
& long_archive_short
long_forecast_subjob_tC0 => long_thunderbirds_are_go
long_forecast_tF => long_dispersion_tF \
=> long_dispersion_clock
long_forecast_tB6 => long_dispersion_tB6 \
=> long_dispersion_clock
long_forecast_tBD => long_dispersion_tBD \
=> long_dispersion_clock
long_dispersion_clock => housekeep
long_forecast_tD => long_dispersion_proc_tD \
=> long_dispersion_proc_completed
long_forecast_tH => long_dispersion_proc_tH \
=> long_dispersion_proc_completed
long_forecast_tB6 => long_dispersion_proc_tB6 \
=> long_dispersion_proc_completed
long_dispersion_proc_completed => long_dispersion_prune_forecast \
=> long_dispersion_housekeep
long_forecast_end => long_bigleftright
long_forecast_end => long_happyland_ingest
long_forecast_end => long_send_stingray_stingray
long_forecast_end => long_user_hook
long_verificationmodel_database_induced_short => long_sync_verification
"""
[[[ T00, T06, T12, T18 ]]]
graph = """
long_start[-PT6H] => long_start
brief_start[-PT6H] => brief_start
brief_forecast_redo_ls_little[-PT6H] => long_assimilation_look_at_little & brief_assimilation_look_at_little
brief_forecast_redo_ls_larger[-PT6H] => long_assimilation_look_at_larger & brief_assimilation_look_at_larger
brief_forecast_redo_ls_screen[-PT6H] => brief_assimilation_look_at_screen
brief_start => brief_wagtail_aintree_filter & brief_observations_background_atmos & BRIEF_OBSERVATIONS_PROCESS_BACKGROUND
long_start => long_forecast_create_zap_little & long_forecast_create_zap_larger & long_observations_background_atmos & LONG_OBS_PROCESS_BACKGROUND
long_forecast_create_zap_little => long_assimilation_create_zap_little => long_assimilation_look_at_little & brief_assimilation_look_at_little
long_forecast_create_zap_larger => long_assimilation_create_zap_larger => long_assimilation_look_at_larger & brief_assimilation_look_at_larger
brief_wagtail_aintree_filter => brief_wagtail_forecast_landsim \
=> brief_wagtail_landsim \
=> brief_wagtail_filter
long_observations_background_atmos => LONG_OBS_PROCESS_BACKGROUND:succeed-all \
=> long_assimilation_look_at_little \
=> long_assimilation_look_at_larger
brief_observations_background_atmos => BRIEF_OBSERVATIONS_PROCESS_BACKGROUND:succeed-all \
=> brief_assimilation_look_at_little \
=> brief_assimilation_look_at_larger
brief_forecast[-PT6H] => brief_wagtail_aintree_filter & brief_observations_background_atmos & long_observations_background_atmos \
& LONG_OBS_PROCESS_BACKGROUND & BRIEF_OBSERVATIONS_PROCESS_BACKGROUND
brief_assimilation_look_at_larger & brief_wagtail_filter => brief_forecast
brief_forecast => brief_observations_process_look_at_barn_owl \
=> brief_observations_db_stuff_barn_owl => brief_archive
brief_observations_process_look_at_barn_owl => brief_res_delete
brief_forecast => brief_observations_process_look_at_avocet \
=> brief_observations_db_stuff_avocet => brief_archive
brief_observations_process_look_at_avocet => brief_res_delete
brief_forecast => brief_observations_process_look_at_chaffinch \
=> brief_observations_db_stuff_chaffinch => brief_archive
brief_observations_process_look_at_chaffinch => brief_res_delete
brief_forecast => brief_observations_process_look_at_egret \
=> brief_observations_db_stuff_egret => brief_archive
brief_observations_process_look_at_egret => brief_res_delete
brief_forecast => brief_observations_process_look_at_dipper \
=> brief_observations_db_stuff_dipper => brief_archive
brief_observations_process_look_at_dipper => brief_res_delete
brief_forecast => brief_observations_process_look_at_gannet \
=> brief_observations_db_stuff_gannet => brief_archive
brief_observations_process_look_at_gannet => brief_res_delete
brief_forecast => brief_observations_process_look_at_fulmar \
=> brief_observations_db_stuff_fulmar => brief_archive
brief_observations_process_look_at_fulmar => brief_res_delete
brief_forecast => brief_observations_process_look_at_house_martin \
=> brief_observations_db_stuff_house_martin => brief_archive
brief_observations_process_look_at_house_martin => brief_res_delete
brief_forecast => brief_observations_process_look_at_iceland_gull \
=> brief_observations_db_stuff_iceland_gull => brief_archive
brief_observations_process_look_at_iceland_gull => brief_res_delete
brief_forecast => brief_observations_process_look_at_jackdaw \
=> brief_observations_db_stuff_jackdaw => brief_archive
brief_observations_process_look_at_jackdaw => brief_res_delete
brief_forecast => brief_observations_process_look_at_kestrel \
=> brief_observations_db_stuff_kestrel => brief_archive
brief_observations_process_look_at_kestrel => brief_res_delete
brief_forecast => brief_observations_process_look_at_lapwing \
=> brief_observations_db_stuff_lapwing => brief_archive
brief_observations_process_look_at_lapwing => brief_res_delete
brief_forecast => brief_observations_process_look_at_mallard \
=> brief_observations_db_stuff_mallard => brief_archive
brief_observations_process_look_at_mallard => brief_res_delete
brief_forecast => brief_observations_process_look_at_nightjar \
=> brief_observations_db_stuff_nightjar => brief_archive
brief_observations_process_look_at_nightjar => brief_res_delete
brief_forecast => brief_observations_process_look_at_osprey \
=> brief_observations_db_stuff_osprey => brief_archive
brief_observations_process_look_at_osprey => brief_res_delete
brief_forecast => brief_observations_process_look_at_pheasant \
=> brief_observations_db_stuff_pheasant => brief_archive
brief_observations_process_look_at_pheasant => brief_res_delete
brief_forecast => brief_observations_process_look_at_quail \
=> brief_observations_db_stuff_quail => brief_archive
brief_observations_process_look_at_quail => brief_res_delete
brief_forecast => brief_observations_process_look_at_raven \
=> brief_observations_db_stuff_raven => brief_archive
brief_observations_process_look_at_raven => brief_res_delete
brief_forecast => brief_observations_process_look_at_shelduck \
=> brief_observations_db_stuff_shelduck => brief_archive
brief_observations_process_look_at_shelduck => brief_res_delete
brief_forecast => brief_observations_process_look_at_teal \
=> brief_observations_db_stuff_teal => brief_archive
brief_observations_process_look_at_teal => brief_res_delete
brief_forecast => brief_observations_process_look_at_velvet_scoter \
=> brief_observations_db_stuff_velvet_scoter => brief_archive
brief_observations_process_look_at_velvet_scoter => brief_res_delete
brief_forecast => brief_observations_process_look_at_wagtail \
=> brief_observations_db_stuff_wagtail => brief_archive
brief_observations_process_look_at_wagtail => brief_res_delete
brief_forecast => brief_observations_merge_look_at
brief_forecast => brief_verificationmodel_database
brief_forecast => brief_forecast_redo_ls_little & brief_forecast_redo_ls_larger \
& brief_forecast_redo_ls_screen \
=> brief_archive
brief_observations_background_atmos => brief_observations_merge_background
brief_observations_background_atmos => brief_observations_process_screen \
=> brief_assimilation_look_at_screen \
=> brief_wagtail_filter
brief_observations_merge_background => brief_observations_merge_look_at => housekeep
brief_forecast_subjob_tC => brief_verificationmodel_database => brief_verificationmodel_database_induced
brief_archive => housekeep
LONG_OBS_PROCESS_BACKGROUND:succeed-all => long_bogus_listing
BRIEF_OBSERVATIONS_PROCESS_BACKGROUND:succeed-all => brief_bogus_listing
brief_forecast:start \
=> brief_forecast_tA \
=> brief_forecast_tB \
=> brief_forecast_tC \
=> brief_forecast_tD \
=> housekeep
brief_forecast => brief_forecast_end \
=> brief_res_delete
brief_forecast_tA => brief_forecast_subjob_tA \
=> brief_archive
brief_forecast_tB => brief_forecast_subjob_tB \
=> brief_archive
brief_forecast_tC => brief_forecast_subjob_tC \
=> brief_archive
brief_forecast_tD => brief_forecast_subjob_tD \
=> brief_archive
brief_forecast_end => brief_user_hook
long_forecast_tC => long_sync_forecast_tC => housekeep
long_forecast_tJ => long_sync_forecast_tJ => housekeep
long_forecast_end => long_sync_forecast => housekeep
long_forecast_end => long_sync_main => housekeep
long_sync_happy & long_sync_verification => housekeep
brief_forecast_end & brief_forecast_tB \
=> brief_sync_forecast => housekeep
brief_forecast_redo_ls_little & brief_forecast_redo_ls_larger & brief_forecast_redo_ls_screen \
=> brief_sync_main => housekeep
brief_forecast_end => brief_sync_happy => housekeep
brief_verificationmodel_database_induced => brief_sync_verification => housekeep
"""
[runtime]
[[GL]]
[[LONG]]
inherit = None, GL
[[BRIEF]]
inherit = None, GL
[[COLD_START]]
inherit = GL
[[OBS_PARALLEL]]
inherit = HPC, CORETYPE_PARALLEL
[[OBS_SHARED]]
inherit = HPC, CORETYPE_SHARED
[[SURFACE_PARALLEL]]
inherit = HPC, CORETYPE_PARALLEL
[[FORECAST_PARALLEL]]
inherit = HPC, CORETYPE_PARALLEL
[[ASSIMILATION_PARALLEL]]
inherit = HPC, CORETYPE_PARALLEL
[[VERIFICATIONMODEL_SHARED]]
inherit = HPC, CORETYPE_SHARED
[[LONG_OBS]]
inherit = LONG, INSTALL_DIAG
[[BRIEF_OBS]]
inherit = BRIEF, INSTALL_DIAG
[[LONG_OBS_PROCESS_BACKGROUND]]
inherit = LONG_OBS, LONG_OBS_ENVIRONMENT, LONG_RES
[[BRIEF_OBSERVATIONS_PROCESS_BACKGROUND]]
inherit = BRIEF_OBS, BRIEF_OBS_ENVIRONMENT, BRIEF_RES
[[LONG_OBS_PROCESS_LOOK_AT]]
inherit = LONG_OBS, LONG_OBS_ENVIRONMENT, LONG_RES
[[BRIEF_OBS_PROCESS_LOOK_AT]]
inherit = BRIEF_OBS, BRIEF_OBS_ENVIRONMENT, BRIEF_RES
[[LONG_OBS_DB_STUFF]]
inherit = LONG_OBS, LONG_OBS_ENVIRONMENT, LONG_HPC
[[BRIEF_OBS_DB_STUFF]]
inherit = BRIEF_OBS, BRIEF_OBS_ENVIRONMENT, BRIEF_HPC
[[LONG_OBS_ENVIRONMENT]]
[[BRIEF_OBS_ENVIRONMENT]]
[[BRIEF_SURFACE_LANDSIM]]
inherit = BRIEF
[[BRIEF_SURFACE]]
inherit = BRIEF
[[BRIEF_FORECAST]]
inherit = BRIEF, BRIEF_RES
[[LONG_FORECAST]]
inherit = LONG, LONG_RES
[[_MODEL]]
[[LONG_FORECAST_SHORT]]
[[LONG_FORECAST_LONG]]
[[LONGBRIEF_FORECAST_REDO]]
[[LONGBRIEF_FORECAST_CREATE_ZAP]]
inherit = LONG, HPC, LONG_HPC, CORETYPE_SHARED
[[LONGBRIEF_FORECAST_CREATE_ZAP_LITTLE]]
inherit = LONGBRIEF_FORECAST_CREATE_ZAP
[[LONGBRIEF_FORECAST_CREATE_ZAP_BIGGER]]
inherit = LONGBRIEF_FORECAST_CREATE_ZAP
[[LONG_ASSIMILATION_ZAP]]
inherit = LONG, INSTALL_DIAG, HPC, LONG_HPC
[[LONGBRIEF_FORECAST_REDO_LS]]
inherit = BRIEF, HPC, BRIEF_HPC, CORETYPE_SHARED
[[LONGBRIEF_FORECAST_REDO_LS_LITTLE]]
inherit = LONGBRIEF_FORECAST_REDO_LS
[[LONGBRIEF_FORECAST_REDO_LS_BIGGER]]
inherit = LONGBRIEF_FORECAST_REDO_LS
[[LONGBRIEF_FORECAST_REDO_LS_SCREEN]]
inherit = LONGBRIEF_FORECAST_REDO_LS
[[LONG_ASSIMILATION_LOOK_AT]]
inherit = LONG, INSTALL_DIAG, LONG_RES
[[BRIEF_ASSIMILATION_LOOK_AT]]
inherit = BRIEF, INSTALL_DIAG, BRIEF_RES
[[LONGBRIEF_ASSIMILATION_LOOK_AT_LITTLE]]
[[LONGBRIEF_ASSIMILATION_LOOK_AT_BIGGER]]
[[LONG_HPC]]
[[BRIEF_HPC]]
[[LONG_RES]]
inherit = LONG_HPC
[[BRIEF_RES]]
inherit = BRIEF_HPC
[[long_archive_long, long_archive_short]]
inherit = LONG, ARCHIVE, HPC, LONG_HPC, CORETYPE_SHARED
[[brief_archive]]
inherit = BRIEF, ARCHIVE, HPC, BRIEF_HPC, CORETYPE_SHARED
[[longbrief_install_startdata_cold]]
inherit = COLD_START, HPC, CORETYPE_SHARED
[[brief_start]]
inherit = BRIEF, HPC, BRIEF_HPC, CORETYPE_SHARED
[[long_start]]
inherit = LONG, HPC, LONG_HPC, CORETYPE_SHARED
[[long_observations_background_atmos]]
inherit = LONG_OBS, OBS_PARALLEL, LONG_RES
[[brief_observations_background_atmos]]
inherit = BRIEF_OBS, OBS_PARALLEL, BRIEF_RES
[[brief_observations_process_background_barn_owl]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_barn_owl]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_barn_owl]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_barn_owl]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_barn_owl]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_avocet]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_avocet]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_avocet]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_avocet]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_avocet]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_chaffinch]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_chaffinch]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_chaffinch]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_chaffinch]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_chaffinch]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_egret]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_egret]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_egret]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_egret]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_egret]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_dipper]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_dipper]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_dipper]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_dipper]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_dipper]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_gannet]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_gannet]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_gannet]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_gannet]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_gannet]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_fulmar]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_fulmar]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_fulmar]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_fulmar]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_fulmar]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_house_martin]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_house_martin]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_house_martin]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_house_martin]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_house_martin]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_iceland_gull]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_iceland_gull]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_iceland_gull]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_iceland_gull]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_iceland_gull]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_jackdaw]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_jackdaw]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_jackdaw]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_jackdaw]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_jackdaw]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_kestrel]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_kestrel]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_kestrel]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_kestrel]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_kestrel]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_lapwing]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_lapwing]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_lapwing]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_lapwing]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_lapwing]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_mallard]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_mallard]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_mallard]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_mallard]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_mallard]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_nightjar]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_nightjar]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_nightjar]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_nightjar]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_nightjar]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_osprey]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_osprey]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_osprey]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_osprey]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_osprey]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_pheasant]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_pheasant]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_pheasant]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_pheasant]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_pheasant]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_quail]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_quail]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_quail]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_quail]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_quail]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_raven]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_raven]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_raven]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_raven]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_raven]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_shelduck]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_shelduck]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_shelduck]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_shelduck]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_shelduck]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_teal]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_teal]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_teal]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_teal]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_teal]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_velvet_scoter]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_velvet_scoter]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_velvet_scoter]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_velvet_scoter]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_velvet_scoter]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_background_wagtail]]
inherit = BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[brief_observations_process_look_at_wagtail]]
inherit = BRIEF_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_background_wagtail]]
inherit = LONG_OBS_PROCESS_BACKGROUND, OBS_PARALLEL, RETRY_TASK
[[long_observations_process_look_at_wagtail]]
inherit = LONG_OBS_PROCESS_LOOK_AT, OBS_PARALLEL, RETRY_TASK
[[brief_observations_db_stuff_wagtail]]
inherit = BRIEF_OBS_DB_STUFF, OBS_SHARED
[[long_observations_db_stuff_wagtail]]
inherit = LONG_OBS_DB_STUFF, OBS_SHARED
[[brief_observations_process_screen]]
inherit = BRIEF_OBS, BRIEF_OBS_ENVIRONMENT, OBS_PARALLEL, BRIEF_RES
[[brief_wagtail_filter]]
inherit = BRIEF_SURFACE, BRIEF_RES, SURFACE_PARALLEL
[[brief_wagtail_look_at_wagtail_ice]]
inherit = BRIEF_SURFACE, BRIEF_RES, SURFACE_PARALLEL
[[brief_wagtail_forecast_landsim]]
inherit = BRIEF_SURFACE, BRIEF_RES, SURFACE_PARALLEL
[[brief_wagtail_landsim]]
inherit = BRIEF_SURFACE_LANDSIM, BRIEF_SURFACE, HPC
[[brief_wagtail_look_at_snow]]
inherit = BRIEF_SURFACE, BRIEF_RES, RETRY_TASK, SURFACE_PARALLEL
[[brief_wagtail_aintree_filter]]
inherit = BRIEF_SURFACE, BRIEF_RES, RETRY_TASK, SURFACE_PARALLEL
[[long_forecast_long]]
inherit = LONG_FORECAST, FORECAST_PARALLEL, LONG_FORECAST_LONG
[[long_forecast_short]]
inherit = LONG_FORECAST, FORECAST_PARALLEL, LONG_FORECAST_SHORT
[[brief_forecast]]
inherit = BRIEF_FORECAST, FORECAST_PARALLEL, _MODEL
[[brief_forecast_redo_daily]]
inherit = BRIEF_FORECAST, FORECAST_PARALLEL, LONGBRIEF_FORECAST_REDO
[[long_assimilation_look_at_little]]
inherit = LONG_ASSIMILATION_LOOK_AT, LONGBRIEF_ASSIMILATION_LOOK_AT_LITTLE, ASSIMILATION_PARALLEL
[[long_assimilation_look_at_larger]]
inherit = LONG_ASSIMILATION_LOOK_AT, LONGBRIEF_ASSIMILATION_LOOK_AT_BIGGER, ASSIMILATION_PARALLEL
[[brief_assimilation_look_at_little]]
inherit = BRIEF_ASSIMILATION_LOOK_AT, LONGBRIEF_ASSIMILATION_LOOK_AT_LITTLE, ASSIMILATION_PARALLEL
[[brief_assimilation_look_at_larger]]
inherit = BRIEF_ASSIMILATION_LOOK_AT, LONGBRIEF_ASSIMILATION_LOOK_AT_BIGGER, ASSIMILATION_PARALLEL
[[brief_assimilation_look_at_screen]]
inherit = BRIEF_ASSIMILATION_LOOK_AT, ASSIMILATION_PARALLEL
[[brief_forecast_redo_ls_little]]
inherit = LONGBRIEF_FORECAST_REDO_LS_LITTLE, HPC, LONGBRIEF_FORECAST_REDO
[[brief_forecast_redo_ls_larger]]
inherit = LONGBRIEF_FORECAST_REDO_LS_BIGGER, HPC, LONGBRIEF_FORECAST_REDO
[[brief_forecast_redo_ls_screen]]
inherit = LONGBRIEF_FORECAST_REDO_LS_SCREEN, HPC, LONGBRIEF_FORECAST_REDO
[[long_forecast_create_zap_little]]
inherit = LONGBRIEF_FORECAST_CREATE_ZAP_LITTLE
[[long_forecast_create_zap_larger]]
inherit = LONGBRIEF_FORECAST_CREATE_ZAP_BIGGER
[[long_assimilation_create_zap_little]]
inherit = LONG_ASSIMILATION_ZAP
[[long_assimilation_create_zap_larger]]
inherit = LONG_ASSIMILATION_ZAP
[[long_verificationmodel_database]]
inherit = LONG, LONG_HPC, VERIFICATIONMODEL_SHARED
[[long_verificationmodel_database_short]]
inherit = LONG, LONG_HPC, VERIFICATIONMODEL_SHARED
[[brief_verificationmodel_database]]
inherit = BRIEF, BRIEF_HPC, VERIFICATIONMODEL_SHARED
[runtime]
[[LONG_FORECAST_TRIGGER]]
inherit = LONG, HPC, CORETYPE_SHARED
[[BRIEF_FORECAST_TRIGGER]]
inherit = BRIEF, HPC, CORETYPE_SHARED
[[LONG_SUBJOB]]
inherit = LONG, HPC, LONG_HPC, CORETYPE_SHARED
[[BRIEF_SUBJOB]]
inherit = BRIEF, HPC, BRIEF_HPC, CORETYPE_SHARED
[[LONG_DISPERSION]]
inherit = LONG, HPC, LONG_HPC
[[LONG_DISPERSION_PROC]]
inherit = LONG, HPC, LONG_HPC
[[LONG_DISPERSION_ARCHIVING]]
inherit = LONG, HPC, LONG_HPC
[[LONG_DISPERSION_HOUSEKEEPING]]
inherit = LONG, HPC, LONG_HPC
[[LONG_MIRROR]]
inherit = LONG, HPC, LONG_HPC, CORETYPE_SHARED
[[BRIEF_MIRROR]]
inherit = BRIEF, HPC, BRIEF_HPC, CORETYPE_SHARED
[[long_local_preflight_checks, long_local]]
inherit = LONG, HPC, LONG_HPC, CORETYPE_SHARED
[[long_bigleftright]]
inherit = LONG, HPC, LONG_HPC, CORETYPE_SHARED
[[long_happyland_ingest]]
inherit = LONG, HPC, LONG_HPC, CORETYPE_SHARED
[[long_bogus_listing]]
inherit = LONG, HPC, LONG_HPC, CORETYPE_SHARED
[[brief_bogus_listing]]
inherit = BRIEF, HPC, BRIEF_HPC, CORETYPE_SHARED
[[long_dispersion_tF]]
inherit = LONG_DISPERSION
[[long_dispersion_tB6]]
inherit = LONG_DISPERSION
[[long_dispersion_tBD]]
inherit = LONG_DISPERSION
[[long_dispersion_tKA]]
inherit = LONG_DISPERSION
[[long_dispersion_tL]]
inherit = LONG_DISPERSION
[[long_dispersion_tZC]]
inherit = LONG_DISPERSION
[[long_dispersion_tZG]]
inherit = LONG_DISPERSION
[[long_dispersion_tZM]]
inherit = LONG_DISPERSION
[[long_dispersion_clock]]
inherit = LONG_DISPERSION
[[long_dispersion_proc_tD]]
inherit = LONG_DISPERSION_PROC
[[long_dispersion_proc_tH]]
inherit = LONG_DISPERSION_PROC
[[long_dispersion_proc_tB6]]
inherit = LONG_DISPERSION_PROC
[[long_dispersion_proc_tJ]]
inherit = LONG_DISPERSION_PROC
[[long_dispersion_proc_tC0]]
inherit = LONG_DISPERSION_PROC
[[long_dispersion_proc_tKA]]
inherit = LONG_DISPERSION_PROC
[[long_dispersion_proc_tKE]]
inherit = LONG_DISPERSION_PROC
[[long_dispersion_proc_tZG]]
inherit = LONG_DISPERSION_PROC
[[long_dispersion_proc_tZC]]
inherit = LONG_DISPERSION_PROC
[[long_dispersion_proc_tL]]
inherit = LONG_DISPERSION_PROC
[[long_dispersion_proc_tN]]
inherit = LONG_DISPERSION_PROC
[[long_dispersion_proc_tZM]]
inherit = LONG_DISPERSION_PROC
[[long_dispersion_proc_tZP]]
inherit = LONG_DISPERSION_PROC
[[long_dispersion_proc_tZT]]
inherit = LONG_DISPERSION_PROC
[[long_dispersion_proc_completed]]
inherit = LONG_DISPERSION_HOUSEKEEPING
[[long_dispersion_archive_prep]]
inherit = LONG_DISPERSION_ARCHIVING
[[long_dispersion_archive]]
inherit = LONG_DISPERSION_ARCHIVING
[[long_dispersion_archive_forecast]]
inherit = LONG, LOCAL
[[long_dispersion_prune_forecast]]
inherit = LONG_DISPERSION_HOUSEKEEPING
[[long_dispersion_housekeep]]
inherit = LONG_DISPERSION_HOUSEKEEPING
[[long_thunderbirds_are_go]]
inherit = LONG, HPC, LONG_HPC
[[long_send_stingray_stingray]]
inherit = LONG, HPC, LONG_HPC, CORETYPE_SHARED
[[long_sync_main, long_sync_forecast, long_sync_verification]]
inherit = LONG_MIRROR
[[long_sync_happy]]
inherit = LONG_MIRROR
[[long_sync_forecast_tC]]
inherit = LONG_MIRROR
[[long_sync_forecast_tJ]]
inherit = LONG_MIRROR
[[brief_sync_main, brief_sync_forecast, brief_sync_verification]]
inherit = BRIEF_MIRROR
[[brief_sync_happy]]
inherit = BRIEF_MIRROR
[[brief_hpc_backup_daily]]
inherit = BRIEF, HPC, BRIEF_HPC, CORETYPE_SHARED
[[long_user_hook]]
inherit = LONG, HPC, LONG_HPC, CORETYPE_SHARED
[[brief_user_hook]]
inherit = BRIEF, HPC, BRIEF_HPC, CORETYPE_SHARED
[[long_verificationmodel_database_induced]]
inherit = LONG, VERIFICATIONMODEL_SHARED
[[long_verificationmodel_database_induced_short]]
inherit = LONG, VERIFICATIONMODEL_SHARED
[[brief_verificationmodel_database_induced]]
inherit = BRIEF, VERIFICATIONMODEL_SHARED
[[brief_observations_merge_background]]
inherit = BRIEF_OBS, OBS_PARALLEL, BRIEF_HPC
[[brief_observations_merge_look_at]]
inherit = BRIEF_OBS, OBS_PARALLEL, BRIEF_HPC
[[brief_observations_wagtail_background, brief_observations_wagtail_look_at]]
inherit = BRIEF_OBS, OBS_PARALLEL, BRIEF_HPC
[[brief_observations_process_wagtail_background]]
inherit = BRIEF_OBS, OBS_PARALLEL, BRIEF_HPC
[[brief_observations_process_wagtail_look_at]]
inherit = BRIEF_OBS, OBS_PARALLEL, BRIEF_HPC
[[long_start_00, long_start_06, long_start_12, long_start_18]]
inherit = LONG, OS_START
[[brief_start_00, brief_start_06, brief_start_12, brief_start_18]]
inherit = BRIEF, OS_START
[[long_res_create]]
inherit = OS_RES_CREATE, LONG_HPC
[[brief_res_create]]
inherit = OS_RES_CREATE, BRIEF_HPC
[[long_res_delete]]
inherit = OS_RES_DELETE, LONG_HPC
[[brief_res_delete]]
inherit = OS_RES_DELETE, BRIEF_HPC
[[long_forecast_tA]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tB]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tC]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tD]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tE]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tF]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tG]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tH]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tI]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tB0]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tB3]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tB6]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tB9]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tBA]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tBB]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tJ]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tBC]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tBD]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tBE]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tC0]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tC3]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tC6]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tK]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tKA]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tKB]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tKC]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tKD]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tKE]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tKF]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tL]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZF]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZG]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZH]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZA]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZB]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZC]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tM]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZD]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZE]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tN]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZI]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZJ]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZK]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZM]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZN]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZO]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tO]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZP]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZQ]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZR]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZS]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[long_forecast_tZT]]
inherit = LONG_FORECAST_TRIGGER, LONG_HPC
[[brief_forecast_tA]]
inherit = BRIEF_FORECAST_TRIGGER, BRIEF_HPC
[[brief_forecast_tB]]
inherit = BRIEF_FORECAST_TRIGGER, BRIEF_HPC
[[brief_forecast_tC]]
inherit = BRIEF_FORECAST_TRIGGER, BRIEF_HPC
[[brief_forecast_tD]]
inherit = BRIEF_FORECAST_TRIGGER, BRIEF_HPC
[[long_forecast_end]]
inherit = LONG_FORECAST_TRIGGER, LOCAL
[[brief_forecast_end]]
inherit = BRIEF_FORECAST_TRIGGER, LOCAL
[[long_forecast_subjob_tA]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tB]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tC]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tD]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tE]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tF]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tG]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tH]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tI]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tB0]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tB3]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tB6]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tB9]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tBA]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tBB]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tJ]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tBC]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tBD]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tBE]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tC0]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tC3]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tC6]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tK]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tKA]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tKB]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tKC]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tKD]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tKE]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tKF]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZF]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZA]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZB]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZC]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tM]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZD]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZE]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tL]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZG]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZH]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tN]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZI]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZJ]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZK]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZM]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZN]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZO]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tO]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZP]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZQ]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZR]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZS]]
inherit = LONG_SUBJOB
[[long_forecast_subjob_tZT]]
inherit = LONG_SUBJOB
[[brief_forecast_subjob_tA]]
inherit = BRIEF_SUBJOB
[[brief_forecast_subjob_tB]]
inherit = BRIEF_SUBJOB
[[brief_forecast_subjob_tC]]
inherit = BRIEF_SUBJOB
[[brief_forecast_subjob_tD]]
inherit = BRIEF_SUBJOB
[scheduling]
[[queues]]
[[[default]]]
limit = 10
[[dependencies]]
[[[ T00 ]]]
graph = """
ensemble_res_create & ensembles_res_create => ensemble_start_00 => ensemble_start
"""
[[[ T06 ]]]
graph = """
ensemble_res_create & ensembles_res_create => ensemble_start_06 => ensemble_start
"""
[[[ T12 ]]]
graph = """
ensemble_res_create & ensembles_res_create => ensemble_start_12 => ensemble_start
"""
[[[ T18 ]]]
graph = """
ensemble_res_create & ensembles_res_create => ensemble_start_18 => ensemble_start
"""
[[[ T00, T12 ]]]
graph = """
ensemble_ens_wiggle => ensemble_forecast_long_001
ensemble_forecast_long_001 => ensemble_verificationmodel_database
ensemble_forecast_long_001 => ensemble_res_delete
ensemble_forecast_long_001 => ensemble_forecast_end
ensemble_forecast_long_001:start \
=> ensemble_forecast_001_tC \
=> ensemble_forecast_001_tI \
=> ensemble_forecast_001_tJ \
=> ensemble_forecast_001_tK \
=> ensemble_forecast_001_tL \
=> ensemble_forecast_001_tM \
=> ensemble_forecast_001_tN \
=> ensemble_forecast_001_tO \
=> ensemble_forecast_001_tP \
=> housekeep
ensemble_forecast_001_tC => ensemble_forecast_subjob_001_tC \
=> ensemble_forecast_subjob_001_sdfk & ensemble_forecast_subjob_001_sduv \
& ensemble_thunderbirds_are_go_forecast_001 \
=> ensemble_sync_happy
ensemble_forecast_001_tI => ensemble_forecast_subjob_001_tI \
=> ensemble_forecast_subjob_001_sdfk & ensemble_forecast_subjob_001_sduv \
& ensemble_thunderbirds_are_go_forecast_001 \
=> ensemble_sync_happy
ensemble_forecast_001_tJ => ensemble_forecast_subjob_001_tJ \
=> ensemble_forecast_subjob_001_sdfk & ensemble_forecast_subjob_001_sduv \
& ensemble_thunderbirds_are_go_forecast_001 \
=> ensemble_sync_happy
ensemble_forecast_001_tK => ensemble_forecast_subjob_001_tK \
=> ensemble_forecast_subjob_001_sdfk & ensemble_forecast_subjob_001_sduv \
& ensemble_thunderbirds_are_go_forecast_001 \
=> ensemble_sync_happy
ensemble_forecast_001_tL => ensemble_forecast_subjob_001_tL \
=> ensemble_forecast_subjob_001_sdfk & ensemble_forecast_subjob_001_sduv \
& ensemble_thunderbirds_are_go_forecast_001 \
=> ensemble_sync_happy
ensemble_forecast_001_tM => ensemble_forecast_subjob_001_tM \
=> ensemble_forecast_subjob_001_sdfk & ensemble_forecast_subjob_001_sduv \
& ensemble_thunderbirds_are_go_forecast_001 \
=> ensemble_sync_happy
ensemble_forecast_001_tN => ensemble_forecast_subjob_001_tN \
=> ensemble_forecast_subjob_001_sdfk & ensemble_forecast_subjob_001_sduv \
& ensemble_thunderbirds_are_go_forecast_001 \
=> ensemble_sync_happy
ensemble_forecast_001_tO => ensemble_forecast_subjob_001_tO \
=> ensemble_forecast_subjob_001_sdfk & ensemble_forecast_subjob_001_sduv \
& ensemble_thunderbirds_are_go_forecast_001 \
=> ensemble_sync_happy
ensemble_forecast_001_tP => ensemble_forecast_subjob_001_tP \
=> ensemble_forecast_subjob_001_sdfk & ensemble_forecast_subjob_001_sduv \
& ensemble_thunderbirds_are_go_forecast_001 \
=> ensemble_sync_happy
ensemble_forecast_long_001 => ensemble_forecast_subjob_001_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_001_tK => ensemble_forecast_all_tK
ensemble_forecast_001_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_002
ensemble_forecast_long_002 => ensemble_verificationmodel_database
ensemble_forecast_long_002 => ensemble_res_delete
ensemble_forecast_long_002 => ensemble_forecast_end
ensemble_forecast_long_002:start \
=> ensemble_forecast_002_tC \
=> ensemble_forecast_002_tI \
=> ensemble_forecast_002_tJ \
=> ensemble_forecast_002_tK \
=> ensemble_forecast_002_tL \
=> ensemble_forecast_002_tM \
=> ensemble_forecast_002_tN \
=> ensemble_forecast_002_tO \
=> ensemble_forecast_002_tP \
=> housekeep
ensemble_forecast_002_tC => ensemble_forecast_subjob_002_tC \
=> ensemble_forecast_subjob_002_sdfk & ensemble_forecast_subjob_002_sduv \
& ensemble_thunderbirds_are_go_forecast_002 \
=> ensemble_sync_happy
ensemble_forecast_002_tI => ensemble_forecast_subjob_002_tI \
=> ensemble_forecast_subjob_002_sdfk & ensemble_forecast_subjob_002_sduv \
& ensemble_thunderbirds_are_go_forecast_002 \
=> ensemble_sync_happy
ensemble_forecast_002_tJ => ensemble_forecast_subjob_002_tJ \
=> ensemble_forecast_subjob_002_sdfk & ensemble_forecast_subjob_002_sduv \
& ensemble_thunderbirds_are_go_forecast_002 \
=> ensemble_sync_happy
ensemble_forecast_002_tK => ensemble_forecast_subjob_002_tK \
=> ensemble_forecast_subjob_002_sdfk & ensemble_forecast_subjob_002_sduv \
& ensemble_thunderbirds_are_go_forecast_002 \
=> ensemble_sync_happy
ensemble_forecast_002_tL => ensemble_forecast_subjob_002_tL \
=> ensemble_forecast_subjob_002_sdfk & ensemble_forecast_subjob_002_sduv \
& ensemble_thunderbirds_are_go_forecast_002 \
=> ensemble_sync_happy
ensemble_forecast_002_tM => ensemble_forecast_subjob_002_tM \
=> ensemble_forecast_subjob_002_sdfk & ensemble_forecast_subjob_002_sduv \
& ensemble_thunderbirds_are_go_forecast_002 \
=> ensemble_sync_happy
ensemble_forecast_002_tN => ensemble_forecast_subjob_002_tN \
=> ensemble_forecast_subjob_002_sdfk & ensemble_forecast_subjob_002_sduv \
& ensemble_thunderbirds_are_go_forecast_002 \
=> ensemble_sync_happy
ensemble_forecast_002_tO => ensemble_forecast_subjob_002_tO \
=> ensemble_forecast_subjob_002_sdfk & ensemble_forecast_subjob_002_sduv \
& ensemble_thunderbirds_are_go_forecast_002 \
=> ensemble_sync_happy
ensemble_forecast_002_tP => ensemble_forecast_subjob_002_tP \
=> ensemble_forecast_subjob_002_sdfk & ensemble_forecast_subjob_002_sduv \
& ensemble_thunderbirds_are_go_forecast_002 \
=> ensemble_sync_happy
ensemble_forecast_long_002 => ensemble_forecast_subjob_002_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_002_tK => ensemble_forecast_all_tK
ensemble_forecast_002_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_003
ensemble_forecast_long_003 => ensemble_verificationmodel_database
ensemble_forecast_long_003 => ensemble_res_delete
ensemble_forecast_long_003 => ensemble_forecast_end
ensemble_forecast_long_003:start \
=> ensemble_forecast_003_tC \
=> ensemble_forecast_003_tI \
=> ensemble_forecast_003_tJ \
=> ensemble_forecast_003_tK \
=> ensemble_forecast_003_tL \
=> ensemble_forecast_003_tM \
=> ensemble_forecast_003_tN \
=> ensemble_forecast_003_tO \
=> ensemble_forecast_003_tP \
=> housekeep
ensemble_forecast_003_tC => ensemble_forecast_subjob_003_tC \
=> ensemble_forecast_subjob_003_sdfk & ensemble_forecast_subjob_003_sduv \
& ensemble_thunderbirds_are_go_forecast_003 \
=> ensemble_sync_happy
ensemble_forecast_003_tI => ensemble_forecast_subjob_003_tI \
=> ensemble_forecast_subjob_003_sdfk & ensemble_forecast_subjob_003_sduv \
& ensemble_thunderbirds_are_go_forecast_003 \
=> ensemble_sync_happy
ensemble_forecast_003_tJ => ensemble_forecast_subjob_003_tJ \
=> ensemble_forecast_subjob_003_sdfk & ensemble_forecast_subjob_003_sduv \
& ensemble_thunderbirds_are_go_forecast_003 \
=> ensemble_sync_happy
ensemble_forecast_003_tK => ensemble_forecast_subjob_003_tK \
=> ensemble_forecast_subjob_003_sdfk & ensemble_forecast_subjob_003_sduv \
& ensemble_thunderbirds_are_go_forecast_003 \
=> ensemble_sync_happy
ensemble_forecast_003_tL => ensemble_forecast_subjob_003_tL \
=> ensemble_forecast_subjob_003_sdfk & ensemble_forecast_subjob_003_sduv \
& ensemble_thunderbirds_are_go_forecast_003 \
=> ensemble_sync_happy
ensemble_forecast_003_tM => ensemble_forecast_subjob_003_tM \
=> ensemble_forecast_subjob_003_sdfk & ensemble_forecast_subjob_003_sduv \
& ensemble_thunderbirds_are_go_forecast_003 \
=> ensemble_sync_happy
ensemble_forecast_003_tN => ensemble_forecast_subjob_003_tN \
=> ensemble_forecast_subjob_003_sdfk & ensemble_forecast_subjob_003_sduv \
& ensemble_thunderbirds_are_go_forecast_003 \
=> ensemble_sync_happy
ensemble_forecast_003_tO => ensemble_forecast_subjob_003_tO \
=> ensemble_forecast_subjob_003_sdfk & ensemble_forecast_subjob_003_sduv \
& ensemble_thunderbirds_are_go_forecast_003 \
=> ensemble_sync_happy
ensemble_forecast_003_tP => ensemble_forecast_subjob_003_tP \
=> ensemble_forecast_subjob_003_sdfk & ensemble_forecast_subjob_003_sduv \
& ensemble_thunderbirds_are_go_forecast_003 \
=> ensemble_sync_happy
ensemble_forecast_long_003 => ensemble_forecast_subjob_003_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_003_tK => ensemble_forecast_all_tK
ensemble_forecast_003_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_004
ensemble_forecast_long_004 => ensemble_verificationmodel_database
ensemble_forecast_long_004 => ensemble_res_delete
ensemble_forecast_long_004 => ensemble_forecast_end
ensemble_forecast_long_004:start \
=> ensemble_forecast_004_tC \
=> ensemble_forecast_004_tI \
=> ensemble_forecast_004_tJ \
=> ensemble_forecast_004_tK \
=> ensemble_forecast_004_tL \
=> ensemble_forecast_004_tM \
=> ensemble_forecast_004_tN \
=> ensemble_forecast_004_tO \
=> ensemble_forecast_004_tP \
=> housekeep
ensemble_forecast_004_tC => ensemble_forecast_subjob_004_tC \
=> ensemble_forecast_subjob_004_sdfk & ensemble_forecast_subjob_004_sduv \
& ensemble_thunderbirds_are_go_forecast_004 \
=> ensemble_sync_happy
ensemble_forecast_004_tI => ensemble_forecast_subjob_004_tI \
=> ensemble_forecast_subjob_004_sdfk & ensemble_forecast_subjob_004_sduv \
& ensemble_thunderbirds_are_go_forecast_004 \
=> ensemble_sync_happy
ensemble_forecast_004_tJ => ensemble_forecast_subjob_004_tJ \
=> ensemble_forecast_subjob_004_sdfk & ensemble_forecast_subjob_004_sduv \
& ensemble_thunderbirds_are_go_forecast_004 \
=> ensemble_sync_happy
ensemble_forecast_004_tK => ensemble_forecast_subjob_004_tK \
=> ensemble_forecast_subjob_004_sdfk & ensemble_forecast_subjob_004_sduv \
& ensemble_thunderbirds_are_go_forecast_004 \
=> ensemble_sync_happy
ensemble_forecast_004_tL => ensemble_forecast_subjob_004_tL \
=> ensemble_forecast_subjob_004_sdfk & ensemble_forecast_subjob_004_sduv \
& ensemble_thunderbirds_are_go_forecast_004 \
=> ensemble_sync_happy
ensemble_forecast_004_tM => ensemble_forecast_subjob_004_tM \
=> ensemble_forecast_subjob_004_sdfk & ensemble_forecast_subjob_004_sduv \
& ensemble_thunderbirds_are_go_forecast_004 \
=> ensemble_sync_happy
ensemble_forecast_004_tN => ensemble_forecast_subjob_004_tN \
=> ensemble_forecast_subjob_004_sdfk & ensemble_forecast_subjob_004_sduv \
& ensemble_thunderbirds_are_go_forecast_004 \
=> ensemble_sync_happy
ensemble_forecast_004_tO => ensemble_forecast_subjob_004_tO \
=> ensemble_forecast_subjob_004_sdfk & ensemble_forecast_subjob_004_sduv \
& ensemble_thunderbirds_are_go_forecast_004 \
=> ensemble_sync_happy
ensemble_forecast_004_tP => ensemble_forecast_subjob_004_tP \
=> ensemble_forecast_subjob_004_sdfk & ensemble_forecast_subjob_004_sduv \
& ensemble_thunderbirds_are_go_forecast_004 \
=> ensemble_sync_happy
ensemble_forecast_long_004 => ensemble_forecast_subjob_004_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_004_tK => ensemble_forecast_all_tK
ensemble_forecast_004_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_005
ensemble_forecast_long_005 => ensemble_verificationmodel_database
ensemble_forecast_long_005 => ensemble_res_delete
ensemble_forecast_long_005 => ensemble_forecast_end
ensemble_forecast_long_005:start \
=> ensemble_forecast_005_tC \
=> ensemble_forecast_005_tI \
=> ensemble_forecast_005_tJ \
=> ensemble_forecast_005_tK \
=> ensemble_forecast_005_tL \
=> ensemble_forecast_005_tM \
=> ensemble_forecast_005_tN \
=> ensemble_forecast_005_tO \
=> ensemble_forecast_005_tP \
=> housekeep
ensemble_forecast_005_tC => ensemble_forecast_subjob_005_tC \
=> ensemble_forecast_subjob_005_sdfk & ensemble_forecast_subjob_005_sduv \
& ensemble_thunderbirds_are_go_forecast_005 \
=> ensemble_sync_happy
ensemble_forecast_005_tI => ensemble_forecast_subjob_005_tI \
=> ensemble_forecast_subjob_005_sdfk & ensemble_forecast_subjob_005_sduv \
& ensemble_thunderbirds_are_go_forecast_005 \
=> ensemble_sync_happy
ensemble_forecast_005_tJ => ensemble_forecast_subjob_005_tJ \
=> ensemble_forecast_subjob_005_sdfk & ensemble_forecast_subjob_005_sduv \
& ensemble_thunderbirds_are_go_forecast_005 \
=> ensemble_sync_happy
ensemble_forecast_005_tK => ensemble_forecast_subjob_005_tK \
=> ensemble_forecast_subjob_005_sdfk & ensemble_forecast_subjob_005_sduv \
& ensemble_thunderbirds_are_go_forecast_005 \
=> ensemble_sync_happy
ensemble_forecast_005_tL => ensemble_forecast_subjob_005_tL \
=> ensemble_forecast_subjob_005_sdfk & ensemble_forecast_subjob_005_sduv \
& ensemble_thunderbirds_are_go_forecast_005 \
=> ensemble_sync_happy
ensemble_forecast_005_tM => ensemble_forecast_subjob_005_tM \
=> ensemble_forecast_subjob_005_sdfk & ensemble_forecast_subjob_005_sduv \
& ensemble_thunderbirds_are_go_forecast_005 \
=> ensemble_sync_happy
ensemble_forecast_005_tN => ensemble_forecast_subjob_005_tN \
=> ensemble_forecast_subjob_005_sdfk & ensemble_forecast_subjob_005_sduv \
& ensemble_thunderbirds_are_go_forecast_005 \
=> ensemble_sync_happy
ensemble_forecast_005_tO => ensemble_forecast_subjob_005_tO \
=> ensemble_forecast_subjob_005_sdfk & ensemble_forecast_subjob_005_sduv \
& ensemble_thunderbirds_are_go_forecast_005 \
=> ensemble_sync_happy
ensemble_forecast_005_tP => ensemble_forecast_subjob_005_tP \
=> ensemble_forecast_subjob_005_sdfk & ensemble_forecast_subjob_005_sduv \
& ensemble_thunderbirds_are_go_forecast_005 \
=> ensemble_sync_happy
ensemble_forecast_long_005 => ensemble_forecast_subjob_005_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_005_tK => ensemble_forecast_all_tK
ensemble_forecast_005_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_006
ensemble_forecast_long_006 => ensemble_verificationmodel_database
ensemble_forecast_long_006 => ensemble_res_delete
ensemble_forecast_long_006 => ensemble_forecast_end
ensemble_forecast_long_006:start \
=> ensemble_forecast_006_tC \
=> ensemble_forecast_006_tI \
=> ensemble_forecast_006_tJ \
=> ensemble_forecast_006_tK \
=> ensemble_forecast_006_tL \
=> ensemble_forecast_006_tM \
=> ensemble_forecast_006_tN \
=> ensemble_forecast_006_tO \
=> ensemble_forecast_006_tP \
=> housekeep
ensemble_forecast_006_tC => ensemble_forecast_subjob_006_tC \
=> ensemble_forecast_subjob_006_sdfk & ensemble_forecast_subjob_006_sduv \
& ensemble_thunderbirds_are_go_forecast_006 \
=> ensemble_sync_happy
ensemble_forecast_006_tI => ensemble_forecast_subjob_006_tI \
=> ensemble_forecast_subjob_006_sdfk & ensemble_forecast_subjob_006_sduv \
& ensemble_thunderbirds_are_go_forecast_006 \
=> ensemble_sync_happy
ensemble_forecast_006_tJ => ensemble_forecast_subjob_006_tJ \
=> ensemble_forecast_subjob_006_sdfk & ensemble_forecast_subjob_006_sduv \
& ensemble_thunderbirds_are_go_forecast_006 \
=> ensemble_sync_happy
ensemble_forecast_006_tK => ensemble_forecast_subjob_006_tK \
=> ensemble_forecast_subjob_006_sdfk & ensemble_forecast_subjob_006_sduv \
& ensemble_thunderbirds_are_go_forecast_006 \
=> ensemble_sync_happy
ensemble_forecast_006_tL => ensemble_forecast_subjob_006_tL \
=> ensemble_forecast_subjob_006_sdfk & ensemble_forecast_subjob_006_sduv \
& ensemble_thunderbirds_are_go_forecast_006 \
=> ensemble_sync_happy
ensemble_forecast_006_tM => ensemble_forecast_subjob_006_tM \
=> ensemble_forecast_subjob_006_sdfk & ensemble_forecast_subjob_006_sduv \
& ensemble_thunderbirds_are_go_forecast_006 \
=> ensemble_sync_happy
ensemble_forecast_006_tN => ensemble_forecast_subjob_006_tN \
=> ensemble_forecast_subjob_006_sdfk & ensemble_forecast_subjob_006_sduv \
& ensemble_thunderbirds_are_go_forecast_006 \
=> ensemble_sync_happy
ensemble_forecast_006_tO => ensemble_forecast_subjob_006_tO \
=> ensemble_forecast_subjob_006_sdfk & ensemble_forecast_subjob_006_sduv \
& ensemble_thunderbirds_are_go_forecast_006 \
=> ensemble_sync_happy
ensemble_forecast_006_tP => ensemble_forecast_subjob_006_tP \
=> ensemble_forecast_subjob_006_sdfk & ensemble_forecast_subjob_006_sduv \
& ensemble_thunderbirds_are_go_forecast_006 \
=> ensemble_sync_happy
ensemble_forecast_long_006 => ensemble_forecast_subjob_006_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_006_tK => ensemble_forecast_all_tK
ensemble_forecast_006_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_007
ensemble_forecast_long_007 => ensemble_verificationmodel_database
ensemble_forecast_long_007 => ensemble_res_delete
ensemble_forecast_long_007 => ensemble_forecast_end
ensemble_forecast_long_007:start \
=> ensemble_forecast_007_tC \
=> ensemble_forecast_007_tI \
=> ensemble_forecast_007_tJ \
=> ensemble_forecast_007_tK \
=> ensemble_forecast_007_tL \
=> ensemble_forecast_007_tM \
=> ensemble_forecast_007_tN \
=> ensemble_forecast_007_tO \
=> ensemble_forecast_007_tP \
=> housekeep
ensemble_forecast_007_tC => ensemble_forecast_subjob_007_tC \
=> ensemble_forecast_subjob_007_sdfk & ensemble_forecast_subjob_007_sduv \
& ensemble_thunderbirds_are_go_forecast_007 \
=> ensemble_sync_happy
ensemble_forecast_007_tI => ensemble_forecast_subjob_007_tI \
=> ensemble_forecast_subjob_007_sdfk & ensemble_forecast_subjob_007_sduv \
& ensemble_thunderbirds_are_go_forecast_007 \
=> ensemble_sync_happy
ensemble_forecast_007_tJ => ensemble_forecast_subjob_007_tJ \
=> ensemble_forecast_subjob_007_sdfk & ensemble_forecast_subjob_007_sduv \
& ensemble_thunderbirds_are_go_forecast_007 \
=> ensemble_sync_happy
ensemble_forecast_007_tK => ensemble_forecast_subjob_007_tK \
=> ensemble_forecast_subjob_007_sdfk & ensemble_forecast_subjob_007_sduv \
& ensemble_thunderbirds_are_go_forecast_007 \
=> ensemble_sync_happy
ensemble_forecast_007_tL => ensemble_forecast_subjob_007_tL \
=> ensemble_forecast_subjob_007_sdfk & ensemble_forecast_subjob_007_sduv \
& ensemble_thunderbirds_are_go_forecast_007 \
=> ensemble_sync_happy
ensemble_forecast_007_tM => ensemble_forecast_subjob_007_tM \
=> ensemble_forecast_subjob_007_sdfk & ensemble_forecast_subjob_007_sduv \
& ensemble_thunderbirds_are_go_forecast_007 \
=> ensemble_sync_happy
ensemble_forecast_007_tN => ensemble_forecast_subjob_007_tN \
=> ensemble_forecast_subjob_007_sdfk & ensemble_forecast_subjob_007_sduv \
& ensemble_thunderbirds_are_go_forecast_007 \
=> ensemble_sync_happy
ensemble_forecast_007_tO => ensemble_forecast_subjob_007_tO \
=> ensemble_forecast_subjob_007_sdfk & ensemble_forecast_subjob_007_sduv \
& ensemble_thunderbirds_are_go_forecast_007 \
=> ensemble_sync_happy
ensemble_forecast_007_tP => ensemble_forecast_subjob_007_tP \
=> ensemble_forecast_subjob_007_sdfk & ensemble_forecast_subjob_007_sduv \
& ensemble_thunderbirds_are_go_forecast_007 \
=> ensemble_sync_happy
ensemble_forecast_long_007 => ensemble_forecast_subjob_007_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_007_tK => ensemble_forecast_all_tK
ensemble_forecast_007_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_008
ensemble_forecast_long_008 => ensemble_verificationmodel_database
ensemble_forecast_long_008 => ensemble_res_delete
ensemble_forecast_long_008 => ensemble_forecast_end
ensemble_forecast_long_008:start \
=> ensemble_forecast_008_tC \
=> ensemble_forecast_008_tI \
=> ensemble_forecast_008_tJ \
=> ensemble_forecast_008_tK \
=> ensemble_forecast_008_tL \
=> ensemble_forecast_008_tM \
=> ensemble_forecast_008_tN \
=> ensemble_forecast_008_tO \
=> ensemble_forecast_008_tP \
=> housekeep
ensemble_forecast_008_tC => ensemble_forecast_subjob_008_tC \
=> ensemble_forecast_subjob_008_sdfk & ensemble_forecast_subjob_008_sduv \
& ensemble_thunderbirds_are_go_forecast_008 \
=> ensemble_sync_happy
ensemble_forecast_008_tI => ensemble_forecast_subjob_008_tI \
=> ensemble_forecast_subjob_008_sdfk & ensemble_forecast_subjob_008_sduv \
& ensemble_thunderbirds_are_go_forecast_008 \
=> ensemble_sync_happy
ensemble_forecast_008_tJ => ensemble_forecast_subjob_008_tJ \
=> ensemble_forecast_subjob_008_sdfk & ensemble_forecast_subjob_008_sduv \
& ensemble_thunderbirds_are_go_forecast_008 \
=> ensemble_sync_happy
ensemble_forecast_008_tK => ensemble_forecast_subjob_008_tK \
=> ensemble_forecast_subjob_008_sdfk & ensemble_forecast_subjob_008_sduv \
& ensemble_thunderbirds_are_go_forecast_008 \
=> ensemble_sync_happy
ensemble_forecast_008_tL => ensemble_forecast_subjob_008_tL \
=> ensemble_forecast_subjob_008_sdfk & ensemble_forecast_subjob_008_sduv \
& ensemble_thunderbirds_are_go_forecast_008 \
=> ensemble_sync_happy
ensemble_forecast_008_tM => ensemble_forecast_subjob_008_tM \
=> ensemble_forecast_subjob_008_sdfk & ensemble_forecast_subjob_008_sduv \
& ensemble_thunderbirds_are_go_forecast_008 \
=> ensemble_sync_happy
ensemble_forecast_008_tN => ensemble_forecast_subjob_008_tN \
=> ensemble_forecast_subjob_008_sdfk & ensemble_forecast_subjob_008_sduv \
& ensemble_thunderbirds_are_go_forecast_008 \
=> ensemble_sync_happy
ensemble_forecast_008_tO => ensemble_forecast_subjob_008_tO \
=> ensemble_forecast_subjob_008_sdfk & ensemble_forecast_subjob_008_sduv \
& ensemble_thunderbirds_are_go_forecast_008 \
=> ensemble_sync_happy
ensemble_forecast_008_tP => ensemble_forecast_subjob_008_tP \
=> ensemble_forecast_subjob_008_sdfk & ensemble_forecast_subjob_008_sduv \
& ensemble_thunderbirds_are_go_forecast_008 \
=> ensemble_sync_happy
ensemble_forecast_long_008 => ensemble_forecast_subjob_008_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_008_tK => ensemble_forecast_all_tK
ensemble_forecast_008_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_009
ensemble_forecast_long_009 => ensemble_verificationmodel_database
ensemble_forecast_long_009 => ensemble_res_delete
ensemble_forecast_long_009 => ensemble_forecast_end
ensemble_forecast_long_009:start \
=> ensemble_forecast_009_tC \
=> ensemble_forecast_009_tI \
=> ensemble_forecast_009_tJ \
=> ensemble_forecast_009_tK \
=> ensemble_forecast_009_tL \
=> ensemble_forecast_009_tM \
=> ensemble_forecast_009_tN \
=> ensemble_forecast_009_tO \
=> ensemble_forecast_009_tP \
=> housekeep
ensemble_forecast_009_tC => ensemble_forecast_subjob_009_tC \
=> ensemble_forecast_subjob_009_sdfk & ensemble_forecast_subjob_009_sduv \
& ensemble_thunderbirds_are_go_forecast_009 \
=> ensemble_sync_happy
ensemble_forecast_009_tI => ensemble_forecast_subjob_009_tI \
=> ensemble_forecast_subjob_009_sdfk & ensemble_forecast_subjob_009_sduv \
& ensemble_thunderbirds_are_go_forecast_009 \
=> ensemble_sync_happy
ensemble_forecast_009_tJ => ensemble_forecast_subjob_009_tJ \
=> ensemble_forecast_subjob_009_sdfk & ensemble_forecast_subjob_009_sduv \
& ensemble_thunderbirds_are_go_forecast_009 \
=> ensemble_sync_happy
ensemble_forecast_009_tK => ensemble_forecast_subjob_009_tK \
=> ensemble_forecast_subjob_009_sdfk & ensemble_forecast_subjob_009_sduv \
& ensemble_thunderbirds_are_go_forecast_009 \
=> ensemble_sync_happy
ensemble_forecast_009_tL => ensemble_forecast_subjob_009_tL \
=> ensemble_forecast_subjob_009_sdfk & ensemble_forecast_subjob_009_sduv \
& ensemble_thunderbirds_are_go_forecast_009 \
=> ensemble_sync_happy
ensemble_forecast_009_tM => ensemble_forecast_subjob_009_tM \
=> ensemble_forecast_subjob_009_sdfk & ensemble_forecast_subjob_009_sduv \
& ensemble_thunderbirds_are_go_forecast_009 \
=> ensemble_sync_happy
ensemble_forecast_009_tN => ensemble_forecast_subjob_009_tN \
=> ensemble_forecast_subjob_009_sdfk & ensemble_forecast_subjob_009_sduv \
& ensemble_thunderbirds_are_go_forecast_009 \
=> ensemble_sync_happy
ensemble_forecast_009_tO => ensemble_forecast_subjob_009_tO \
=> ensemble_forecast_subjob_009_sdfk & ensemble_forecast_subjob_009_sduv \
& ensemble_thunderbirds_are_go_forecast_009 \
=> ensemble_sync_happy
ensemble_forecast_009_tP => ensemble_forecast_subjob_009_tP \
=> ensemble_forecast_subjob_009_sdfk & ensemble_forecast_subjob_009_sduv \
& ensemble_thunderbirds_are_go_forecast_009 \
=> ensemble_sync_happy
ensemble_forecast_long_009 => ensemble_forecast_subjob_009_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_009_tK => ensemble_forecast_all_tK
ensemble_forecast_009_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_010
ensemble_forecast_long_010 => ensemble_verificationmodel_database
ensemble_forecast_long_010 => ensemble_res_delete
ensemble_forecast_long_010 => ensemble_forecast_end
ensemble_forecast_long_010:start \
=> ensemble_forecast_010_tC \
=> ensemble_forecast_010_tI \
=> ensemble_forecast_010_tJ \
=> ensemble_forecast_010_tK \
=> ensemble_forecast_010_tL \
=> ensemble_forecast_010_tM \
=> ensemble_forecast_010_tN \
=> ensemble_forecast_010_tO \
=> ensemble_forecast_010_tP \
=> housekeep
ensemble_forecast_010_tC => ensemble_forecast_subjob_010_tC \
=> ensemble_forecast_subjob_010_sdfk & ensemble_forecast_subjob_010_sduv \
& ensemble_thunderbirds_are_go_forecast_010 \
=> ensemble_sync_happy
ensemble_forecast_010_tI => ensemble_forecast_subjob_010_tI \
=> ensemble_forecast_subjob_010_sdfk & ensemble_forecast_subjob_010_sduv \
& ensemble_thunderbirds_are_go_forecast_010 \
=> ensemble_sync_happy
ensemble_forecast_010_tJ => ensemble_forecast_subjob_010_tJ \
=> ensemble_forecast_subjob_010_sdfk & ensemble_forecast_subjob_010_sduv \
& ensemble_thunderbirds_are_go_forecast_010 \
=> ensemble_sync_happy
ensemble_forecast_010_tK => ensemble_forecast_subjob_010_tK \
=> ensemble_forecast_subjob_010_sdfk & ensemble_forecast_subjob_010_sduv \
& ensemble_thunderbirds_are_go_forecast_010 \
=> ensemble_sync_happy
ensemble_forecast_010_tL => ensemble_forecast_subjob_010_tL \
=> ensemble_forecast_subjob_010_sdfk & ensemble_forecast_subjob_010_sduv \
& ensemble_thunderbirds_are_go_forecast_010 \
=> ensemble_sync_happy
ensemble_forecast_010_tM => ensemble_forecast_subjob_010_tM \
=> ensemble_forecast_subjob_010_sdfk & ensemble_forecast_subjob_010_sduv \
& ensemble_thunderbirds_are_go_forecast_010 \
=> ensemble_sync_happy
ensemble_forecast_010_tN => ensemble_forecast_subjob_010_tN \
=> ensemble_forecast_subjob_010_sdfk & ensemble_forecast_subjob_010_sduv \
& ensemble_thunderbirds_are_go_forecast_010 \
=> ensemble_sync_happy
ensemble_forecast_010_tO => ensemble_forecast_subjob_010_tO \
=> ensemble_forecast_subjob_010_sdfk & ensemble_forecast_subjob_010_sduv \
& ensemble_thunderbirds_are_go_forecast_010 \
=> ensemble_sync_happy
ensemble_forecast_010_tP => ensemble_forecast_subjob_010_tP \
=> ensemble_forecast_subjob_010_sdfk & ensemble_forecast_subjob_010_sduv \
& ensemble_thunderbirds_are_go_forecast_010 \
=> ensemble_sync_happy
ensemble_forecast_long_010 => ensemble_forecast_subjob_010_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_010_tK => ensemble_forecast_all_tK
ensemble_forecast_010_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_011
ensemble_forecast_long_011 => ensemble_verificationmodel_database
ensemble_forecast_long_011 => ensemble_res_delete
ensemble_forecast_long_011 => ensemble_forecast_end
ensemble_forecast_long_011:start \
=> ensemble_forecast_011_tC \
=> ensemble_forecast_011_tI \
=> ensemble_forecast_011_tJ \
=> ensemble_forecast_011_tK \
=> ensemble_forecast_011_tL \
=> ensemble_forecast_011_tM \
=> ensemble_forecast_011_tN \
=> ensemble_forecast_011_tO \
=> ensemble_forecast_011_tP \
=> housekeep
ensemble_forecast_011_tC => ensemble_forecast_subjob_011_tC \
=> ensemble_forecast_subjob_011_sdfk & ensemble_forecast_subjob_011_sduv \
& ensemble_thunderbirds_are_go_forecast_011 \
=> ensemble_sync_happy
ensemble_forecast_011_tI => ensemble_forecast_subjob_011_tI \
=> ensemble_forecast_subjob_011_sdfk & ensemble_forecast_subjob_011_sduv \
& ensemble_thunderbirds_are_go_forecast_011 \
=> ensemble_sync_happy
ensemble_forecast_011_tJ => ensemble_forecast_subjob_011_tJ \
=> ensemble_forecast_subjob_011_sdfk & ensemble_forecast_subjob_011_sduv \
& ensemble_thunderbirds_are_go_forecast_011 \
=> ensemble_sync_happy
ensemble_forecast_011_tK => ensemble_forecast_subjob_011_tK \
=> ensemble_forecast_subjob_011_sdfk & ensemble_forecast_subjob_011_sduv \
& ensemble_thunderbirds_are_go_forecast_011 \
=> ensemble_sync_happy
ensemble_forecast_011_tL => ensemble_forecast_subjob_011_tL \
=> ensemble_forecast_subjob_011_sdfk & ensemble_forecast_subjob_011_sduv \
& ensemble_thunderbirds_are_go_forecast_011 \
=> ensemble_sync_happy
ensemble_forecast_011_tM => ensemble_forecast_subjob_011_tM \
=> ensemble_forecast_subjob_011_sdfk & ensemble_forecast_subjob_011_sduv \
& ensemble_thunderbirds_are_go_forecast_011 \
=> ensemble_sync_happy
ensemble_forecast_011_tN => ensemble_forecast_subjob_011_tN \
=> ensemble_forecast_subjob_011_sdfk & ensemble_forecast_subjob_011_sduv \
& ensemble_thunderbirds_are_go_forecast_011 \
=> ensemble_sync_happy
ensemble_forecast_011_tO => ensemble_forecast_subjob_011_tO \
=> ensemble_forecast_subjob_011_sdfk & ensemble_forecast_subjob_011_sduv \
& ensemble_thunderbirds_are_go_forecast_011 \
=> ensemble_sync_happy
ensemble_forecast_011_tP => ensemble_forecast_subjob_011_tP \
=> ensemble_forecast_subjob_011_sdfk & ensemble_forecast_subjob_011_sduv \
& ensemble_thunderbirds_are_go_forecast_011 \
=> ensemble_sync_happy
ensemble_forecast_long_011 => ensemble_forecast_subjob_011_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_011_tK => ensemble_forecast_all_tK
ensemble_forecast_011_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_012
ensemble_forecast_shrt_012 => ensemble_verificationmodel_database
ensemble_forecast_shrt_012 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_013
ensemble_forecast_shrt_013 => ensemble_verificationmodel_database
ensemble_forecast_shrt_013 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_014
ensemble_forecast_shrt_014 => ensemble_verificationmodel_database
ensemble_forecast_shrt_014 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_015
ensemble_forecast_shrt_015 => ensemble_verificationmodel_database
ensemble_forecast_shrt_015 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_016
ensemble_forecast_shrt_016 => ensemble_verificationmodel_database
ensemble_forecast_shrt_016 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_017
ensemble_forecast_shrt_017 => ensemble_verificationmodel_database
ensemble_forecast_shrt_017 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_018
ensemble_forecast_shrt_018 => ensemble_verificationmodel_database
ensemble_forecast_shrt_018 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_019
ensemble_forecast_shrt_019 => ensemble_verificationmodel_database
ensemble_forecast_shrt_019 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_020
ensemble_forecast_shrt_020 => ensemble_verificationmodel_database
ensemble_forecast_shrt_020 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_021
ensemble_forecast_shrt_021 => ensemble_verificationmodel_database
ensemble_forecast_shrt_021 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_022
ensemble_forecast_shrt_022 => ensemble_verificationmodel_database
ensemble_forecast_shrt_022 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_forecast_end => ensemble_res_delete
ensemble_forecast_end => ensemble_user_hook
"""
[[[ T06, T18 ]]]
graph = """
ensemble_ens_wiggle => ensemble_forecast_shrt_001
ensemble_forecast_shrt_001 => ensemble_verificationmodel_database
ensemble_forecast_shrt_001 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_002
ensemble_forecast_shrt_002 => ensemble_verificationmodel_database
ensemble_forecast_shrt_002 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_003
ensemble_forecast_shrt_003 => ensemble_verificationmodel_database
ensemble_forecast_shrt_003 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_004
ensemble_forecast_shrt_004 => ensemble_verificationmodel_database
ensemble_forecast_shrt_004 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_005
ensemble_forecast_shrt_005 => ensemble_verificationmodel_database
ensemble_forecast_shrt_005 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_006
ensemble_forecast_shrt_006 => ensemble_verificationmodel_database
ensemble_forecast_shrt_006 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_007
ensemble_forecast_shrt_007 => ensemble_verificationmodel_database
ensemble_forecast_shrt_007 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_008
ensemble_forecast_shrt_008 => ensemble_verificationmodel_database
ensemble_forecast_shrt_008 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_009
ensemble_forecast_shrt_009 => ensemble_verificationmodel_database
ensemble_forecast_shrt_009 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_010
ensemble_forecast_shrt_010 => ensemble_verificationmodel_database
ensemble_forecast_shrt_010 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_011
ensemble_forecast_shrt_011 => ensemble_verificationmodel_database
ensemble_forecast_shrt_011 => ensembles_res_delete \
& ensemble_sync_main \
& ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_012
ensemble_forecast_long_012 => ensemble_verificationmodel_database
ensemble_forecast_long_012 => ensemble_res_delete
ensemble_forecast_long_012 => ensemble_forecast_end
ensemble_forecast_long_012:start \
=> ensemble_forecast_012_tC \
=> ensemble_forecast_012_tI \
=> ensemble_forecast_012_tJ \
=> ensemble_forecast_012_tK \
=> ensemble_forecast_012_tL \
=> ensemble_forecast_012_tM \
=> ensemble_forecast_012_tN \
=> ensemble_forecast_012_tO \
=> ensemble_forecast_012_tP \
=> housekeep
ensemble_forecast_012_tC => ensemble_forecast_subjob_012_tC \
=> ensemble_forecast_subjob_012_sdfk & ensemble_forecast_subjob_012_sduv \
& ensemble_thunderbirds_are_go_forecast_012 \
=> ensemble_sync_happy
ensemble_forecast_012_tI => ensemble_forecast_subjob_012_tI \
=> ensemble_forecast_subjob_012_sdfk & ensemble_forecast_subjob_012_sduv \
& ensemble_thunderbirds_are_go_forecast_012 \
=> ensemble_sync_happy
ensemble_forecast_012_tJ => ensemble_forecast_subjob_012_tJ \
=> ensemble_forecast_subjob_012_sdfk & ensemble_forecast_subjob_012_sduv \
& ensemble_thunderbirds_are_go_forecast_012 \
=> ensemble_sync_happy
ensemble_forecast_012_tK => ensemble_forecast_subjob_012_tK \
=> ensemble_forecast_subjob_012_sdfk & ensemble_forecast_subjob_012_sduv \
& ensemble_thunderbirds_are_go_forecast_012 \
=> ensemble_sync_happy
ensemble_forecast_012_tL => ensemble_forecast_subjob_012_tL \
=> ensemble_forecast_subjob_012_sdfk & ensemble_forecast_subjob_012_sduv \
& ensemble_thunderbirds_are_go_forecast_012 \
=> ensemble_sync_happy
ensemble_forecast_012_tM => ensemble_forecast_subjob_012_tM \
=> ensemble_forecast_subjob_012_sdfk & ensemble_forecast_subjob_012_sduv \
& ensemble_thunderbirds_are_go_forecast_012 \
=> ensemble_sync_happy
ensemble_forecast_012_tN => ensemble_forecast_subjob_012_tN \
=> ensemble_forecast_subjob_012_sdfk & ensemble_forecast_subjob_012_sduv \
& ensemble_thunderbirds_are_go_forecast_012 \
=> ensemble_sync_happy
ensemble_forecast_012_tO => ensemble_forecast_subjob_012_tO \
=> ensemble_forecast_subjob_012_sdfk & ensemble_forecast_subjob_012_sduv \
& ensemble_thunderbirds_are_go_forecast_012 \
=> ensemble_sync_happy
ensemble_forecast_012_tP => ensemble_forecast_subjob_012_tP \
=> ensemble_forecast_subjob_012_sdfk & ensemble_forecast_subjob_012_sduv \
& ensemble_thunderbirds_are_go_forecast_012 \
=> ensemble_sync_happy
ensemble_forecast_long_012 => ensemble_forecast_subjob_012_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_012_tK => ensemble_forecast_all_tK
ensemble_forecast_012_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_013
ensemble_forecast_long_013 => ensemble_verificationmodel_database
ensemble_forecast_long_013 => ensemble_res_delete
ensemble_forecast_long_013 => ensemble_forecast_end
ensemble_forecast_long_013:start \
=> ensemble_forecast_013_tC \
=> ensemble_forecast_013_tI \
=> ensemble_forecast_013_tJ \
=> ensemble_forecast_013_tK \
=> ensemble_forecast_013_tL \
=> ensemble_forecast_013_tM \
=> ensemble_forecast_013_tN \
=> ensemble_forecast_013_tO \
=> ensemble_forecast_013_tP \
=> housekeep
ensemble_forecast_013_tC => ensemble_forecast_subjob_013_tC \
=> ensemble_forecast_subjob_013_sdfk & ensemble_forecast_subjob_013_sduv \
& ensemble_thunderbirds_are_go_forecast_013 \
=> ensemble_sync_happy
ensemble_forecast_013_tI => ensemble_forecast_subjob_013_tI \
=> ensemble_forecast_subjob_013_sdfk & ensemble_forecast_subjob_013_sduv \
& ensemble_thunderbirds_are_go_forecast_013 \
=> ensemble_sync_happy
ensemble_forecast_013_tJ => ensemble_forecast_subjob_013_tJ \
=> ensemble_forecast_subjob_013_sdfk & ensemble_forecast_subjob_013_sduv \
& ensemble_thunderbirds_are_go_forecast_013 \
=> ensemble_sync_happy
ensemble_forecast_013_tK => ensemble_forecast_subjob_013_tK \
=> ensemble_forecast_subjob_013_sdfk & ensemble_forecast_subjob_013_sduv \
& ensemble_thunderbirds_are_go_forecast_013 \
=> ensemble_sync_happy
ensemble_forecast_013_tL => ensemble_forecast_subjob_013_tL \
=> ensemble_forecast_subjob_013_sdfk & ensemble_forecast_subjob_013_sduv \
& ensemble_thunderbirds_are_go_forecast_013 \
=> ensemble_sync_happy
ensemble_forecast_013_tM => ensemble_forecast_subjob_013_tM \
=> ensemble_forecast_subjob_013_sdfk & ensemble_forecast_subjob_013_sduv \
& ensemble_thunderbirds_are_go_forecast_013 \
=> ensemble_sync_happy
ensemble_forecast_013_tN => ensemble_forecast_subjob_013_tN \
=> ensemble_forecast_subjob_013_sdfk & ensemble_forecast_subjob_013_sduv \
& ensemble_thunderbirds_are_go_forecast_013 \
=> ensemble_sync_happy
ensemble_forecast_013_tO => ensemble_forecast_subjob_013_tO \
=> ensemble_forecast_subjob_013_sdfk & ensemble_forecast_subjob_013_sduv \
& ensemble_thunderbirds_are_go_forecast_013 \
=> ensemble_sync_happy
ensemble_forecast_013_tP => ensemble_forecast_subjob_013_tP \
=> ensemble_forecast_subjob_013_sdfk & ensemble_forecast_subjob_013_sduv \
& ensemble_thunderbirds_are_go_forecast_013 \
=> ensemble_sync_happy
ensemble_forecast_long_013 => ensemble_forecast_subjob_013_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_013_tK => ensemble_forecast_all_tK
ensemble_forecast_013_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_014
ensemble_forecast_long_014 => ensemble_verificationmodel_database
ensemble_forecast_long_014 => ensemble_res_delete
ensemble_forecast_long_014 => ensemble_forecast_end
ensemble_forecast_long_014:start \
=> ensemble_forecast_014_tC \
=> ensemble_forecast_014_tI \
=> ensemble_forecast_014_tJ \
=> ensemble_forecast_014_tK \
=> ensemble_forecast_014_tL \
=> ensemble_forecast_014_tM \
=> ensemble_forecast_014_tN \
=> ensemble_forecast_014_tO \
=> ensemble_forecast_014_tP \
=> housekeep
ensemble_forecast_014_tC => ensemble_forecast_subjob_014_tC \
=> ensemble_forecast_subjob_014_sdfk & ensemble_forecast_subjob_014_sduv \
& ensemble_thunderbirds_are_go_forecast_014 \
=> ensemble_sync_happy
ensemble_forecast_014_tI => ensemble_forecast_subjob_014_tI \
=> ensemble_forecast_subjob_014_sdfk & ensemble_forecast_subjob_014_sduv \
& ensemble_thunderbirds_are_go_forecast_014 \
=> ensemble_sync_happy
ensemble_forecast_014_tJ => ensemble_forecast_subjob_014_tJ \
=> ensemble_forecast_subjob_014_sdfk & ensemble_forecast_subjob_014_sduv \
& ensemble_thunderbirds_are_go_forecast_014 \
=> ensemble_sync_happy
ensemble_forecast_014_tK => ensemble_forecast_subjob_014_tK \
=> ensemble_forecast_subjob_014_sdfk & ensemble_forecast_subjob_014_sduv \
& ensemble_thunderbirds_are_go_forecast_014 \
=> ensemble_sync_happy
ensemble_forecast_014_tL => ensemble_forecast_subjob_014_tL \
=> ensemble_forecast_subjob_014_sdfk & ensemble_forecast_subjob_014_sduv \
& ensemble_thunderbirds_are_go_forecast_014 \
=> ensemble_sync_happy
ensemble_forecast_014_tM => ensemble_forecast_subjob_014_tM \
=> ensemble_forecast_subjob_014_sdfk & ensemble_forecast_subjob_014_sduv \
& ensemble_thunderbirds_are_go_forecast_014 \
=> ensemble_sync_happy
ensemble_forecast_014_tN => ensemble_forecast_subjob_014_tN \
=> ensemble_forecast_subjob_014_sdfk & ensemble_forecast_subjob_014_sduv \
& ensemble_thunderbirds_are_go_forecast_014 \
=> ensemble_sync_happy
ensemble_forecast_014_tO => ensemble_forecast_subjob_014_tO \
=> ensemble_forecast_subjob_014_sdfk & ensemble_forecast_subjob_014_sduv \
& ensemble_thunderbirds_are_go_forecast_014 \
=> ensemble_sync_happy
ensemble_forecast_014_tP => ensemble_forecast_subjob_014_tP \
=> ensemble_forecast_subjob_014_sdfk & ensemble_forecast_subjob_014_sduv \
& ensemble_thunderbirds_are_go_forecast_014 \
=> ensemble_sync_happy
ensemble_forecast_long_014 => ensemble_forecast_subjob_014_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_014_tK => ensemble_forecast_all_tK
ensemble_forecast_014_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_015
ensemble_forecast_long_015 => ensemble_verificationmodel_database
ensemble_forecast_long_015 => ensemble_res_delete
ensemble_forecast_long_015 => ensemble_forecast_end
ensemble_forecast_long_015:start \
=> ensemble_forecast_015_tC \
=> ensemble_forecast_015_tI \
=> ensemble_forecast_015_tJ \
=> ensemble_forecast_015_tK \
=> ensemble_forecast_015_tL \
=> ensemble_forecast_015_tM \
=> ensemble_forecast_015_tN \
=> ensemble_forecast_015_tO \
=> ensemble_forecast_015_tP \
=> housekeep
ensemble_forecast_015_tC => ensemble_forecast_subjob_015_tC \
=> ensemble_forecast_subjob_015_sdfk & ensemble_forecast_subjob_015_sduv \
& ensemble_thunderbirds_are_go_forecast_015 \
=> ensemble_sync_happy
ensemble_forecast_015_tI => ensemble_forecast_subjob_015_tI \
=> ensemble_forecast_subjob_015_sdfk & ensemble_forecast_subjob_015_sduv \
& ensemble_thunderbirds_are_go_forecast_015 \
=> ensemble_sync_happy
ensemble_forecast_015_tJ => ensemble_forecast_subjob_015_tJ \
=> ensemble_forecast_subjob_015_sdfk & ensemble_forecast_subjob_015_sduv \
& ensemble_thunderbirds_are_go_forecast_015 \
=> ensemble_sync_happy
ensemble_forecast_015_tK => ensemble_forecast_subjob_015_tK \
=> ensemble_forecast_subjob_015_sdfk & ensemble_forecast_subjob_015_sduv \
& ensemble_thunderbirds_are_go_forecast_015 \
=> ensemble_sync_happy
ensemble_forecast_015_tL => ensemble_forecast_subjob_015_tL \
=> ensemble_forecast_subjob_015_sdfk & ensemble_forecast_subjob_015_sduv \
& ensemble_thunderbirds_are_go_forecast_015 \
=> ensemble_sync_happy
ensemble_forecast_015_tM => ensemble_forecast_subjob_015_tM \
=> ensemble_forecast_subjob_015_sdfk & ensemble_forecast_subjob_015_sduv \
& ensemble_thunderbirds_are_go_forecast_015 \
=> ensemble_sync_happy
ensemble_forecast_015_tN => ensemble_forecast_subjob_015_tN \
=> ensemble_forecast_subjob_015_sdfk & ensemble_forecast_subjob_015_sduv \
& ensemble_thunderbirds_are_go_forecast_015 \
=> ensemble_sync_happy
ensemble_forecast_015_tO => ensemble_forecast_subjob_015_tO \
=> ensemble_forecast_subjob_015_sdfk & ensemble_forecast_subjob_015_sduv \
& ensemble_thunderbirds_are_go_forecast_015 \
=> ensemble_sync_happy
ensemble_forecast_015_tP => ensemble_forecast_subjob_015_tP \
=> ensemble_forecast_subjob_015_sdfk & ensemble_forecast_subjob_015_sduv \
& ensemble_thunderbirds_are_go_forecast_015 \
=> ensemble_sync_happy
ensemble_forecast_long_015 => ensemble_forecast_subjob_015_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_015_tK => ensemble_forecast_all_tK
ensemble_forecast_015_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_016
ensemble_forecast_long_016 => ensemble_verificationmodel_database
ensemble_forecast_long_016 => ensemble_res_delete
ensemble_forecast_long_016 => ensemble_forecast_end
ensemble_forecast_long_016:start \
=> ensemble_forecast_016_tC \
=> ensemble_forecast_016_tI \
=> ensemble_forecast_016_tJ \
=> ensemble_forecast_016_tK \
=> ensemble_forecast_016_tL \
=> ensemble_forecast_016_tM \
=> ensemble_forecast_016_tN \
=> ensemble_forecast_016_tO \
=> ensemble_forecast_016_tP \
=> housekeep
ensemble_forecast_016_tC => ensemble_forecast_subjob_016_tC \
=> ensemble_forecast_subjob_016_sdfk & ensemble_forecast_subjob_016_sduv \
& ensemble_thunderbirds_are_go_forecast_016 \
=> ensemble_sync_happy
ensemble_forecast_016_tI => ensemble_forecast_subjob_016_tI \
=> ensemble_forecast_subjob_016_sdfk & ensemble_forecast_subjob_016_sduv \
& ensemble_thunderbirds_are_go_forecast_016 \
=> ensemble_sync_happy
ensemble_forecast_016_tJ => ensemble_forecast_subjob_016_tJ \
=> ensemble_forecast_subjob_016_sdfk & ensemble_forecast_subjob_016_sduv \
& ensemble_thunderbirds_are_go_forecast_016 \
=> ensemble_sync_happy
ensemble_forecast_016_tK => ensemble_forecast_subjob_016_tK \
=> ensemble_forecast_subjob_016_sdfk & ensemble_forecast_subjob_016_sduv \
& ensemble_thunderbirds_are_go_forecast_016 \
=> ensemble_sync_happy
ensemble_forecast_016_tL => ensemble_forecast_subjob_016_tL \
=> ensemble_forecast_subjob_016_sdfk & ensemble_forecast_subjob_016_sduv \
& ensemble_thunderbirds_are_go_forecast_016 \
=> ensemble_sync_happy
ensemble_forecast_016_tM => ensemble_forecast_subjob_016_tM \
=> ensemble_forecast_subjob_016_sdfk & ensemble_forecast_subjob_016_sduv \
& ensemble_thunderbirds_are_go_forecast_016 \
=> ensemble_sync_happy
ensemble_forecast_016_tN => ensemble_forecast_subjob_016_tN \
=> ensemble_forecast_subjob_016_sdfk & ensemble_forecast_subjob_016_sduv \
& ensemble_thunderbirds_are_go_forecast_016 \
=> ensemble_sync_happy
ensemble_forecast_016_tO => ensemble_forecast_subjob_016_tO \
=> ensemble_forecast_subjob_016_sdfk & ensemble_forecast_subjob_016_sduv \
& ensemble_thunderbirds_are_go_forecast_016 \
=> ensemble_sync_happy
ensemble_forecast_016_tP => ensemble_forecast_subjob_016_tP \
=> ensemble_forecast_subjob_016_sdfk & ensemble_forecast_subjob_016_sduv \
& ensemble_thunderbirds_are_go_forecast_016 \
=> ensemble_sync_happy
ensemble_forecast_long_016 => ensemble_forecast_subjob_016_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_016_tK => ensemble_forecast_all_tK
ensemble_forecast_016_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_017
ensemble_forecast_long_017 => ensemble_verificationmodel_database
ensemble_forecast_long_017 => ensemble_res_delete
ensemble_forecast_long_017 => ensemble_forecast_end
ensemble_forecast_long_017:start \
=> ensemble_forecast_017_tC \
=> ensemble_forecast_017_tI \
=> ensemble_forecast_017_tJ \
=> ensemble_forecast_017_tK \
=> ensemble_forecast_017_tL \
=> ensemble_forecast_017_tM \
=> ensemble_forecast_017_tN \
=> ensemble_forecast_017_tO \
=> ensemble_forecast_017_tP \
=> housekeep
ensemble_forecast_017_tC => ensemble_forecast_subjob_017_tC \
=> ensemble_forecast_subjob_017_sdfk & ensemble_forecast_subjob_017_sduv \
& ensemble_thunderbirds_are_go_forecast_017 \
=> ensemble_sync_happy
ensemble_forecast_017_tI => ensemble_forecast_subjob_017_tI \
=> ensemble_forecast_subjob_017_sdfk & ensemble_forecast_subjob_017_sduv \
& ensemble_thunderbirds_are_go_forecast_017 \
=> ensemble_sync_happy
ensemble_forecast_017_tJ => ensemble_forecast_subjob_017_tJ \
=> ensemble_forecast_subjob_017_sdfk & ensemble_forecast_subjob_017_sduv \
& ensemble_thunderbirds_are_go_forecast_017 \
=> ensemble_sync_happy
ensemble_forecast_017_tK => ensemble_forecast_subjob_017_tK \
=> ensemble_forecast_subjob_017_sdfk & ensemble_forecast_subjob_017_sduv \
& ensemble_thunderbirds_are_go_forecast_017 \
=> ensemble_sync_happy
ensemble_forecast_017_tL => ensemble_forecast_subjob_017_tL \
=> ensemble_forecast_subjob_017_sdfk & ensemble_forecast_subjob_017_sduv \
& ensemble_thunderbirds_are_go_forecast_017 \
=> ensemble_sync_happy
ensemble_forecast_017_tM => ensemble_forecast_subjob_017_tM \
=> ensemble_forecast_subjob_017_sdfk & ensemble_forecast_subjob_017_sduv \
& ensemble_thunderbirds_are_go_forecast_017 \
=> ensemble_sync_happy
ensemble_forecast_017_tN => ensemble_forecast_subjob_017_tN \
=> ensemble_forecast_subjob_017_sdfk & ensemble_forecast_subjob_017_sduv \
& ensemble_thunderbirds_are_go_forecast_017 \
=> ensemble_sync_happy
ensemble_forecast_017_tO => ensemble_forecast_subjob_017_tO \
=> ensemble_forecast_subjob_017_sdfk & ensemble_forecast_subjob_017_sduv \
& ensemble_thunderbirds_are_go_forecast_017 \
=> ensemble_sync_happy
ensemble_forecast_017_tP => ensemble_forecast_subjob_017_tP \
=> ensemble_forecast_subjob_017_sdfk & ensemble_forecast_subjob_017_sduv \
& ensemble_thunderbirds_are_go_forecast_017 \
=> ensemble_sync_happy
ensemble_forecast_long_017 => ensemble_forecast_subjob_017_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_017_tK => ensemble_forecast_all_tK
ensemble_forecast_017_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_018
ensemble_forecast_long_018 => ensemble_verificationmodel_database
ensemble_forecast_long_018 => ensemble_res_delete
ensemble_forecast_long_018 => ensemble_forecast_end
ensemble_forecast_long_018:start \
=> ensemble_forecast_018_tC \
=> ensemble_forecast_018_tI \
=> ensemble_forecast_018_tJ \
=> ensemble_forecast_018_tK \
=> ensemble_forecast_018_tL \
=> ensemble_forecast_018_tM \
=> ensemble_forecast_018_tN \
=> ensemble_forecast_018_tO \
=> ensemble_forecast_018_tP \
=> housekeep
ensemble_forecast_018_tC => ensemble_forecast_subjob_018_tC \
=> ensemble_forecast_subjob_018_sdfk & ensemble_forecast_subjob_018_sduv \
& ensemble_thunderbirds_are_go_forecast_018 \
=> ensemble_sync_happy
ensemble_forecast_018_tI => ensemble_forecast_subjob_018_tI \
=> ensemble_forecast_subjob_018_sdfk & ensemble_forecast_subjob_018_sduv \
& ensemble_thunderbirds_are_go_forecast_018 \
=> ensemble_sync_happy
ensemble_forecast_018_tJ => ensemble_forecast_subjob_018_tJ \
=> ensemble_forecast_subjob_018_sdfk & ensemble_forecast_subjob_018_sduv \
& ensemble_thunderbirds_are_go_forecast_018 \
=> ensemble_sync_happy
ensemble_forecast_018_tK => ensemble_forecast_subjob_018_tK \
=> ensemble_forecast_subjob_018_sdfk & ensemble_forecast_subjob_018_sduv \
& ensemble_thunderbirds_are_go_forecast_018 \
=> ensemble_sync_happy
ensemble_forecast_018_tL => ensemble_forecast_subjob_018_tL \
=> ensemble_forecast_subjob_018_sdfk & ensemble_forecast_subjob_018_sduv \
& ensemble_thunderbirds_are_go_forecast_018 \
=> ensemble_sync_happy
ensemble_forecast_018_tM => ensemble_forecast_subjob_018_tM \
=> ensemble_forecast_subjob_018_sdfk & ensemble_forecast_subjob_018_sduv \
& ensemble_thunderbirds_are_go_forecast_018 \
=> ensemble_sync_happy
ensemble_forecast_018_tN => ensemble_forecast_subjob_018_tN \
=> ensemble_forecast_subjob_018_sdfk & ensemble_forecast_subjob_018_sduv \
& ensemble_thunderbirds_are_go_forecast_018 \
=> ensemble_sync_happy
ensemble_forecast_018_tO => ensemble_forecast_subjob_018_tO \
=> ensemble_forecast_subjob_018_sdfk & ensemble_forecast_subjob_018_sduv \
& ensemble_thunderbirds_are_go_forecast_018 \
=> ensemble_sync_happy
ensemble_forecast_018_tP => ensemble_forecast_subjob_018_tP \
=> ensemble_forecast_subjob_018_sdfk & ensemble_forecast_subjob_018_sduv \
& ensemble_thunderbirds_are_go_forecast_018 \
=> ensemble_sync_happy
ensemble_forecast_long_018 => ensemble_forecast_subjob_018_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_018_tK => ensemble_forecast_all_tK
ensemble_forecast_018_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_019
ensemble_forecast_long_019 => ensemble_verificationmodel_database
ensemble_forecast_long_019 => ensemble_res_delete
ensemble_forecast_long_019 => ensemble_forecast_end
ensemble_forecast_long_019:start \
=> ensemble_forecast_019_tC \
=> ensemble_forecast_019_tI \
=> ensemble_forecast_019_tJ \
=> ensemble_forecast_019_tK \
=> ensemble_forecast_019_tL \
=> ensemble_forecast_019_tM \
=> ensemble_forecast_019_tN \
=> ensemble_forecast_019_tO \
=> ensemble_forecast_019_tP \
=> housekeep
ensemble_forecast_019_tC => ensemble_forecast_subjob_019_tC \
=> ensemble_forecast_subjob_019_sdfk & ensemble_forecast_subjob_019_sduv \
& ensemble_thunderbirds_are_go_forecast_019 \
=> ensemble_sync_happy
ensemble_forecast_019_tI => ensemble_forecast_subjob_019_tI \
=> ensemble_forecast_subjob_019_sdfk & ensemble_forecast_subjob_019_sduv \
& ensemble_thunderbirds_are_go_forecast_019 \
=> ensemble_sync_happy
ensemble_forecast_019_tJ => ensemble_forecast_subjob_019_tJ \
=> ensemble_forecast_subjob_019_sdfk & ensemble_forecast_subjob_019_sduv \
& ensemble_thunderbirds_are_go_forecast_019 \
=> ensemble_sync_happy
ensemble_forecast_019_tK => ensemble_forecast_subjob_019_tK \
=> ensemble_forecast_subjob_019_sdfk & ensemble_forecast_subjob_019_sduv \
& ensemble_thunderbirds_are_go_forecast_019 \
=> ensemble_sync_happy
ensemble_forecast_019_tL => ensemble_forecast_subjob_019_tL \
=> ensemble_forecast_subjob_019_sdfk & ensemble_forecast_subjob_019_sduv \
& ensemble_thunderbirds_are_go_forecast_019 \
=> ensemble_sync_happy
ensemble_forecast_019_tM => ensemble_forecast_subjob_019_tM \
=> ensemble_forecast_subjob_019_sdfk & ensemble_forecast_subjob_019_sduv \
& ensemble_thunderbirds_are_go_forecast_019 \
=> ensemble_sync_happy
ensemble_forecast_019_tN => ensemble_forecast_subjob_019_tN \
=> ensemble_forecast_subjob_019_sdfk & ensemble_forecast_subjob_019_sduv \
& ensemble_thunderbirds_are_go_forecast_019 \
=> ensemble_sync_happy
ensemble_forecast_019_tO => ensemble_forecast_subjob_019_tO \
=> ensemble_forecast_subjob_019_sdfk & ensemble_forecast_subjob_019_sduv \
& ensemble_thunderbirds_are_go_forecast_019 \
=> ensemble_sync_happy
ensemble_forecast_019_tP => ensemble_forecast_subjob_019_tP \
=> ensemble_forecast_subjob_019_sdfk & ensemble_forecast_subjob_019_sduv \
& ensemble_thunderbirds_are_go_forecast_019 \
=> ensemble_sync_happy
ensemble_forecast_long_019 => ensemble_forecast_subjob_019_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_019_tK => ensemble_forecast_all_tK
ensemble_forecast_019_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_020
ensemble_forecast_long_020 => ensemble_verificationmodel_database
ensemble_forecast_long_020 => ensemble_res_delete
ensemble_forecast_long_020 => ensemble_forecast_end
ensemble_forecast_long_020:start \
=> ensemble_forecast_020_tC \
=> ensemble_forecast_020_tI \
=> ensemble_forecast_020_tJ \
=> ensemble_forecast_020_tK \
=> ensemble_forecast_020_tL \
=> ensemble_forecast_020_tM \
=> ensemble_forecast_020_tN \
=> ensemble_forecast_020_tO \
=> ensemble_forecast_020_tP \
=> housekeep
ensemble_forecast_020_tC => ensemble_forecast_subjob_020_tC \
=> ensemble_forecast_subjob_020_sdfk & ensemble_forecast_subjob_020_sduv \
& ensemble_thunderbirds_are_go_forecast_020 \
=> ensemble_sync_happy
ensemble_forecast_020_tI => ensemble_forecast_subjob_020_tI \
=> ensemble_forecast_subjob_020_sdfk & ensemble_forecast_subjob_020_sduv \
& ensemble_thunderbirds_are_go_forecast_020 \
=> ensemble_sync_happy
ensemble_forecast_020_tJ => ensemble_forecast_subjob_020_tJ \
=> ensemble_forecast_subjob_020_sdfk & ensemble_forecast_subjob_020_sduv \
& ensemble_thunderbirds_are_go_forecast_020 \
=> ensemble_sync_happy
ensemble_forecast_020_tK => ensemble_forecast_subjob_020_tK \
=> ensemble_forecast_subjob_020_sdfk & ensemble_forecast_subjob_020_sduv \
& ensemble_thunderbirds_are_go_forecast_020 \
=> ensemble_sync_happy
ensemble_forecast_020_tL => ensemble_forecast_subjob_020_tL \
=> ensemble_forecast_subjob_020_sdfk & ensemble_forecast_subjob_020_sduv \
& ensemble_thunderbirds_are_go_forecast_020 \
=> ensemble_sync_happy
ensemble_forecast_020_tM => ensemble_forecast_subjob_020_tM \
=> ensemble_forecast_subjob_020_sdfk & ensemble_forecast_subjob_020_sduv \
& ensemble_thunderbirds_are_go_forecast_020 \
=> ensemble_sync_happy
ensemble_forecast_020_tN => ensemble_forecast_subjob_020_tN \
=> ensemble_forecast_subjob_020_sdfk & ensemble_forecast_subjob_020_sduv \
& ensemble_thunderbirds_are_go_forecast_020 \
=> ensemble_sync_happy
ensemble_forecast_020_tO => ensemble_forecast_subjob_020_tO \
=> ensemble_forecast_subjob_020_sdfk & ensemble_forecast_subjob_020_sduv \
& ensemble_thunderbirds_are_go_forecast_020 \
=> ensemble_sync_happy
ensemble_forecast_020_tP => ensemble_forecast_subjob_020_tP \
=> ensemble_forecast_subjob_020_sdfk & ensemble_forecast_subjob_020_sduv \
& ensemble_thunderbirds_are_go_forecast_020 \
=> ensemble_sync_happy
ensemble_forecast_long_020 => ensemble_forecast_subjob_020_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_020_tK => ensemble_forecast_all_tK
ensemble_forecast_020_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_021
ensemble_forecast_long_021 => ensemble_verificationmodel_database
ensemble_forecast_long_021 => ensemble_res_delete
ensemble_forecast_long_021 => ensemble_forecast_end
ensemble_forecast_long_021:start \
=> ensemble_forecast_021_tC \
=> ensemble_forecast_021_tI \
=> ensemble_forecast_021_tJ \
=> ensemble_forecast_021_tK \
=> ensemble_forecast_021_tL \
=> ensemble_forecast_021_tM \
=> ensemble_forecast_021_tN \
=> ensemble_forecast_021_tO \
=> ensemble_forecast_021_tP \
=> housekeep
ensemble_forecast_021_tC => ensemble_forecast_subjob_021_tC \
=> ensemble_forecast_subjob_021_sdfk & ensemble_forecast_subjob_021_sduv \
& ensemble_thunderbirds_are_go_forecast_021 \
=> ensemble_sync_happy
ensemble_forecast_021_tI => ensemble_forecast_subjob_021_tI \
=> ensemble_forecast_subjob_021_sdfk & ensemble_forecast_subjob_021_sduv \
& ensemble_thunderbirds_are_go_forecast_021 \
=> ensemble_sync_happy
ensemble_forecast_021_tJ => ensemble_forecast_subjob_021_tJ \
=> ensemble_forecast_subjob_021_sdfk & ensemble_forecast_subjob_021_sduv \
& ensemble_thunderbirds_are_go_forecast_021 \
=> ensemble_sync_happy
ensemble_forecast_021_tK => ensemble_forecast_subjob_021_tK \
=> ensemble_forecast_subjob_021_sdfk & ensemble_forecast_subjob_021_sduv \
& ensemble_thunderbirds_are_go_forecast_021 \
=> ensemble_sync_happy
ensemble_forecast_021_tL => ensemble_forecast_subjob_021_tL \
=> ensemble_forecast_subjob_021_sdfk & ensemble_forecast_subjob_021_sduv \
& ensemble_thunderbirds_are_go_forecast_021 \
=> ensemble_sync_happy
ensemble_forecast_021_tM => ensemble_forecast_subjob_021_tM \
=> ensemble_forecast_subjob_021_sdfk & ensemble_forecast_subjob_021_sduv \
& ensemble_thunderbirds_are_go_forecast_021 \
=> ensemble_sync_happy
ensemble_forecast_021_tN => ensemble_forecast_subjob_021_tN \
=> ensemble_forecast_subjob_021_sdfk & ensemble_forecast_subjob_021_sduv \
& ensemble_thunderbirds_are_go_forecast_021 \
=> ensemble_sync_happy
ensemble_forecast_021_tO => ensemble_forecast_subjob_021_tO \
=> ensemble_forecast_subjob_021_sdfk & ensemble_forecast_subjob_021_sduv \
& ensemble_thunderbirds_are_go_forecast_021 \
=> ensemble_sync_happy
ensemble_forecast_021_tP => ensemble_forecast_subjob_021_tP \
=> ensemble_forecast_subjob_021_sdfk & ensemble_forecast_subjob_021_sduv \
& ensemble_thunderbirds_are_go_forecast_021 \
=> ensemble_sync_happy
ensemble_forecast_long_021 => ensemble_forecast_subjob_021_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_021_tK => ensemble_forecast_all_tK
ensemble_forecast_021_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_long_022
ensemble_forecast_long_022 => ensemble_verificationmodel_database
ensemble_forecast_long_022 => ensemble_res_delete
ensemble_forecast_long_022 => ensemble_forecast_end
ensemble_forecast_long_022:start \
=> ensemble_forecast_022_tC \
=> ensemble_forecast_022_tI \
=> ensemble_forecast_022_tJ \
=> ensemble_forecast_022_tK \
=> ensemble_forecast_022_tL \
=> ensemble_forecast_022_tM \
=> ensemble_forecast_022_tN \
=> ensemble_forecast_022_tO \
=> ensemble_forecast_022_tP \
=> housekeep
ensemble_forecast_022_tC => ensemble_forecast_subjob_022_tC \
=> ensemble_forecast_subjob_022_sdfk & ensemble_forecast_subjob_022_sduv \
& ensemble_thunderbirds_are_go_forecast_022 \
=> ensemble_sync_happy
ensemble_forecast_022_tI => ensemble_forecast_subjob_022_tI \
=> ensemble_forecast_subjob_022_sdfk & ensemble_forecast_subjob_022_sduv \
& ensemble_thunderbirds_are_go_forecast_022 \
=> ensemble_sync_happy
ensemble_forecast_022_tJ => ensemble_forecast_subjob_022_tJ \
=> ensemble_forecast_subjob_022_sdfk & ensemble_forecast_subjob_022_sduv \
& ensemble_thunderbirds_are_go_forecast_022 \
=> ensemble_sync_happy
ensemble_forecast_022_tK => ensemble_forecast_subjob_022_tK \
=> ensemble_forecast_subjob_022_sdfk & ensemble_forecast_subjob_022_sduv \
& ensemble_thunderbirds_are_go_forecast_022 \
=> ensemble_sync_happy
ensemble_forecast_022_tL => ensemble_forecast_subjob_022_tL \
=> ensemble_forecast_subjob_022_sdfk & ensemble_forecast_subjob_022_sduv \
& ensemble_thunderbirds_are_go_forecast_022 \
=> ensemble_sync_happy
ensemble_forecast_022_tM => ensemble_forecast_subjob_022_tM \
=> ensemble_forecast_subjob_022_sdfk & ensemble_forecast_subjob_022_sduv \
& ensemble_thunderbirds_are_go_forecast_022 \
=> ensemble_sync_happy
ensemble_forecast_022_tN => ensemble_forecast_subjob_022_tN \
=> ensemble_forecast_subjob_022_sdfk & ensemble_forecast_subjob_022_sduv \
& ensemble_thunderbirds_are_go_forecast_022 \
=> ensemble_sync_happy
ensemble_forecast_022_tO => ensemble_forecast_subjob_022_tO \
=> ensemble_forecast_subjob_022_sdfk & ensemble_forecast_subjob_022_sduv \
& ensemble_thunderbirds_are_go_forecast_022 \
=> ensemble_sync_happy
ensemble_forecast_022_tP => ensemble_forecast_subjob_022_tP \
=> ensemble_forecast_subjob_022_sdfk & ensemble_forecast_subjob_022_sduv \
& ensemble_thunderbirds_are_go_forecast_022 \
=> ensemble_sync_happy
ensemble_forecast_long_022 => ensemble_forecast_subjob_022_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_022_tK => ensemble_forecast_all_tK
ensemble_forecast_022_tC => ensemble_sync_forecast_tC
ensemble_forecast_end => ensemble_res_delete
ensemble_forecast_end => ensemble_user_hook
"""
[[[ T00, T06, T12, T18 ]]]
graph = """
long_forecast_tA => ensemble_start
ensemble_start[-PT6H] => ensemble_start
ensemble_forecast_redo_long_look_at[-PT6H] => ensemble_start \
=> ensemble_ens_tidy_observations & ensemble_forecast_redo_long_look_at
LONG_OBS_PROCESS_BACKGROUND:succeed-all => ensemble_ens_tidy_observations
ensemble_ens_tidy_observations => ENSEMBLE_OBS
ENSEMBLE_OBS:succeed-all => ensemble_ens_filter
ensemble_verificationmodel_database[-PT6H]:start => ENSEMBLE_OBS
ensemble_ens_filter & ensemble_forecast_redo_long_look_at => ENSEMBLE_ENS_ADDSURFACES:succeed-all => ensemble_ens_wiggle
ensemble_forecast_redo_long_look_at => ensemble_forecast_long_000
ensemble_forecast_long_000 => ensemble_verificationmodel_database
ensemble_forecast_long_000 => ensemble_res_delete
ensemble_forecast_long_000 => ensemble_forecast_end
ensemble_forecast_long_000:start \
=> ensemble_forecast_000_tC \
=> ensemble_forecast_000_tI \
=> ensemble_forecast_000_tJ \
=> ensemble_forecast_000_tK \
=> ensemble_forecast_000_tL \
=> ensemble_forecast_000_tM \
=> ensemble_forecast_000_tN \
=> ensemble_forecast_000_tO \
=> ensemble_forecast_000_tP \
=> housekeep
ensemble_forecast_000_tC => ensemble_forecast_subjob_000_tC \
=> ensemble_forecast_subjob_000_sdfk & ensemble_forecast_subjob_000_sduv \
& ensemble_thunderbirds_are_go_updown_or_000 & ensemble_thunderbirds_are_go_forecast_000 \
=> ensemble_sync_happy
ensemble_forecast_000_tI => ensemble_forecast_subjob_000_tI \
=> ensemble_forecast_subjob_000_sdfk & ensemble_forecast_subjob_000_sduv \
& ensemble_thunderbirds_are_go_updown_or_000 & ensemble_thunderbirds_are_go_forecast_000 \
=> ensemble_sync_happy
ensemble_forecast_000_tJ => ensemble_forecast_subjob_000_tJ \
=> ensemble_forecast_subjob_000_sdfk & ensemble_forecast_subjob_000_sduv \
& ensemble_thunderbirds_are_go_updown_or_000 & ensemble_thunderbirds_are_go_forecast_000 \
=> ensemble_sync_happy
ensemble_forecast_000_tK => ensemble_forecast_subjob_000_tK \
=> ensemble_forecast_subjob_000_sdfk & ensemble_forecast_subjob_000_sduv \
& ensemble_thunderbirds_are_go_updown_or_000 & ensemble_thunderbirds_are_go_forecast_000 \
=> ensemble_sync_happy
ensemble_forecast_000_tL => ensemble_forecast_subjob_000_tL \
=> ensemble_forecast_subjob_000_sdfk & ensemble_forecast_subjob_000_sduv \
& ensemble_thunderbirds_are_go_updown_or_000 & ensemble_thunderbirds_are_go_forecast_000 \
=> ensemble_sync_happy
ensemble_forecast_000_tM => ensemble_forecast_subjob_000_tM \
=> ensemble_forecast_subjob_000_sdfk & ensemble_forecast_subjob_000_sduv \
& ensemble_thunderbirds_are_go_updown_or_000 & ensemble_thunderbirds_are_go_forecast_000 \
=> ensemble_sync_happy
ensemble_forecast_000_tN => ensemble_forecast_subjob_000_tN \
=> ensemble_forecast_subjob_000_sdfk & ensemble_forecast_subjob_000_sduv \
& ensemble_thunderbirds_are_go_updown_or_000 & ensemble_thunderbirds_are_go_forecast_000 \
=> ensemble_sync_happy
ensemble_forecast_000_tO => ensemble_forecast_subjob_000_tO \
=> ensemble_forecast_subjob_000_sdfk & ensemble_forecast_subjob_000_sduv \
& ensemble_thunderbirds_are_go_updown_or_000 & ensemble_thunderbirds_are_go_forecast_000 \
=> ensemble_sync_happy
ensemble_forecast_000_tP => ensemble_forecast_subjob_000_tP \
=> ensemble_forecast_subjob_000_sdfk & ensemble_forecast_subjob_000_sduv \
& ensemble_thunderbirds_are_go_updown_or_000 & ensemble_thunderbirds_are_go_forecast_000 \
=> ensemble_sync_happy
ensemble_forecast_long_000 => ensemble_forecast_subjob_000_sdfk \
=> ensemble_local & ensemble_downscale & ensemble_subjob_hook
ensemble_forecast_000_tK => ensemble_forecast_all_tK
ensemble_forecast_000_tC => ensemble_sync_forecast_tC
ensemble_ens_wiggle => ensemble_forecast_shrt_023
ensemble_forecast_shrt_023 => ensemble_verificationmodel_database
ensemble_forecast_shrt_023 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_024
ensemble_forecast_shrt_024 => ensemble_verificationmodel_database
ensemble_forecast_shrt_024 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_025
ensemble_forecast_shrt_025 => ensemble_verificationmodel_database
ensemble_forecast_shrt_025 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_026
ensemble_forecast_shrt_026 => ensemble_verificationmodel_database
ensemble_forecast_shrt_026 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_027
ensemble_forecast_shrt_027 => ensemble_verificationmodel_database
ensemble_forecast_shrt_027 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_028
ensemble_forecast_shrt_028 => ensemble_verificationmodel_database
ensemble_forecast_shrt_028 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_029
ensemble_forecast_shrt_029 => ensemble_verificationmodel_database
ensemble_forecast_shrt_029 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_030
ensemble_forecast_shrt_030 => ensemble_verificationmodel_database
ensemble_forecast_shrt_030 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_031
ensemble_forecast_shrt_031 => ensemble_verificationmodel_database
ensemble_forecast_shrt_031 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_032
ensemble_forecast_shrt_032 => ensemble_verificationmodel_database
ensemble_forecast_shrt_032 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_033
ensemble_forecast_shrt_033 => ensemble_verificationmodel_database
ensemble_forecast_shrt_033 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_034
ensemble_forecast_shrt_034 => ensemble_verificationmodel_database
ensemble_forecast_shrt_034 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_035
ensemble_forecast_shrt_035 => ensemble_verificationmodel_database
ensemble_forecast_shrt_035 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_036
ensemble_forecast_shrt_036 => ensemble_verificationmodel_database
ensemble_forecast_shrt_036 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_037
ensemble_forecast_shrt_037 => ensemble_verificationmodel_database
ensemble_forecast_shrt_037 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_038
ensemble_forecast_shrt_038 => ensemble_verificationmodel_database
ensemble_forecast_shrt_038 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_039
ensemble_forecast_shrt_039 => ensemble_verificationmodel_database
ensemble_forecast_shrt_039 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_040
ensemble_forecast_shrt_040 => ensemble_verificationmodel_database
ensemble_forecast_shrt_040 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_041
ensemble_forecast_shrt_041 => ensemble_verificationmodel_database
ensemble_forecast_shrt_041 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_042
ensemble_forecast_shrt_042 => ensemble_verificationmodel_database
ensemble_forecast_shrt_042 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_043
ensemble_forecast_shrt_043 => ensemble_verificationmodel_database
ensemble_forecast_shrt_043 => ensembles_res_delete \
& ensemble_sync_main
ensemble_ens_wiggle => ensemble_forecast_shrt_044
ensemble_forecast_shrt_044 => ensemble_verificationmodel_database
ensemble_forecast_shrt_044 => ensembles_res_delete \
& ensemble_sync_main
ensemble_verificationmodel_database:start => ensemble_archive => housekeep
ensemble_verificationmodel_database => housekeep
ensemble_forecast_end => ensemble_sync_forecast => housekeep
ensemble_forecast_end => ensemble_sync_main => housekeep
ensemble_verificationmodel_database => ensemble_sync_verification => housekeep
ensemble_sync_forecast_tC => housekeep
ensemble_sync_happy => housekeep
long_assimilation_look_at_little => !recover1 & !recover2 & !recover3
long_assimilation_look_at_little:fail => recover1
recover1 => recover2
recover2 => recover3
recover3 | brief_assimilation_look_at_larger => brief_forecast
"""
[runtime]
[[recover1, recover2, recover3]]
[[ENSEMBLE]]
[[ENCOLD_START]]
inherit = ENSEMBLE
[[ENSEMBLE_SHARED]]
inherit = ENSEMBLE_HPC, CORETYPE_SHARED
[[ENSEMBLE_PARALLEL]]
inherit = ENSEMBLE_HPC, CORETYPE_PARALLEL
[[ENSEMBLE_ENS]]
[[ENSEMBLE_OBS]]
inherit = ENSEMBLE, HPC, INSTALL_DIAG
[[ENSEMBLE_ENS_ADDSURFACES]]
inherit = ENSEMBLE, HPC, ENSEMBLE_SHARED
[[ENSEMBLE_ENS_WIGGLES]]
inherit = ENSEMBLE, HPC, ENSEMBLE_SHARED
[[ENSEMBLE_FORECAST_REDO]]
[[ENSEMBLE_FORECAST]]
[[ENSEMBLE_FORECAST_CONTROL]]
inherit = ENSEMBLE, HPC, ENSEMBLE_PARALLEL, ENSEMBLE_FORECAST, ENSEMBLE_RES
[[ENSEMBLE_FORECAST_LONG]]
inherit = ENSEMBLE, HPC, ENSEMBLE_PARALLEL, ENSEMBLE_FORECAST, ENSEMBLE_RES
[[ENSEMBLE_FORECAST_SHRT]]
inherit = ENSEMBLE, HPC, ENSEMBLE_PARALLEL, ENSEMBLE_FORECAST, ENSEMBLES_RES
[[ENSEMBLE_VERIFICATIONMODEL]]
inherit = ENSEMBLE, HPC, ENSEMBLE_SHARED
[[ENSEMBLE_HPC]]
[[ENSEMBLE_RES]]
[[ENSEMBLES_RES]]
[[ensemble_install_startdata_cold]]
inherit = ENCOLD_START, HPC, CORETYPE_SHARED
[[ensemble_start]]
inherit = ENSEMBLE, LOCAL
[[ensemble_ens_tidy_observations]]
inherit = ENSEMBLE, HPC, ENSEMBLE_ENS, ENSEMBLE_RES
[[ensemble_ens_filter]]
inherit = ENSEMBLE, HPC, ENSEMBLE_ENS, ENSEMBLE_RES
[[ensemble_observations_process_000]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_001]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_002]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_003]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_004]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_005]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_006]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_007]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_008]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_009]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_010]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_011]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_012]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_013]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_014]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_015]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_016]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_017]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_018]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_019]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_020]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_021]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_022]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_023]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_024]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_025]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_026]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_027]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_028]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_029]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_030]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_031]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_032]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_033]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_034]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_035]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_036]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_037]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_038]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_039]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_040]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_041]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_042]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_043]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_observations_process_044]]
inherit = ENSEMBLE_OBS, ENSEMBLE_RES
[[ensemble_ens_add_temps_001]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_002]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_003]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_004]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_005]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_006]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_007]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_008]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_009]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_010]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_011]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_012]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_013]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_014]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_015]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_016]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_017]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_018]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_019]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_020]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_021]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_022]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_023]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_024]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_025]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_026]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_027]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_028]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_029]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_030]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_031]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_032]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_033]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_034]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_035]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_036]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_037]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_038]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_039]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_040]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_041]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_042]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_043]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_add_temps_044]]
inherit = ENSEMBLE_ENS_ADDSURFACES
[[ensemble_ens_wiggle]]
inherit = ENSEMBLE_ENS_WIGGLES
[[ensemble_forecast_redo_long_look_at]]
inherit = ENSEMBLE, HPC, ENSEMBLE_SHARED, ENSEMBLE_FORECAST_REDO
[[ensemble_forecast_long_000]]
inherit = ENSEMBLE_FORECAST_CONTROL, ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_001]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_002]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_003]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_004]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_005]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_006]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_007]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_008]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_009]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_010]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_011]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_012]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_013]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_014]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_015]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_016]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_017]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_018]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_019]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_020]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_021]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_long_022]]
inherit = ENSEMBLE_FORECAST_LONG
[[ensemble_forecast_shrt_001]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_002]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_003]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_004]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_005]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_006]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_007]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_008]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_009]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_010]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_011]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_012]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_013]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_014]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_015]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_016]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_017]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_018]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_019]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_020]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_021]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_022]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_023]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_024]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_025]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_026]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_027]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_028]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_029]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_030]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_031]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_032]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_033]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_034]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_035]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_036]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_037]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_038]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_039]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_040]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_041]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_042]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_043]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_forecast_shrt_044]]
inherit = ENSEMBLE_FORECAST_SHRT
[[ensemble_verificationmodel_database]]
inherit = ENSEMBLE_VERIFICATIONMODEL
[[ensemble_archive]]
inherit = ENSEMBLE, HPC, ENSEMBLE_HPC, ARCHIVE
[runtime]
[[ENSEMBLE_FORECAST_TRIGGER]]
inherit = ENSEMBLE, HPC, CORETYPE_SHARED
[[ENSEMBLE_SUBJOB]]
inherit = ENSEMBLE, HPC, ENSEMBLE_HPC, CORETYPE_SHARED
[[ENSEMBLE_THUNDERBIRDS_ARE_GO]]
inherit = ENSEMBLE, HPC, ENSEMBLE_HPC
[[ENSEMBLE_MIRROR]]
inherit = ENSEMBLE, HPC, ENSEMBLE_HPC, CORETYPE_SHARED
[[ensemble_start_00, ensemble_start_06, ensemble_start_12, ensemble_start_18]]
inherit = ENSEMBLE, OS_START
[[ensemble_forecast_end]]
inherit = ENSEMBLE, LOCAL
[[ensemble_user_hook]]
inherit = ENSEMBLE, HPC, ENSEMBLE_HPC, CORETYPE_SHARED
[[ensemble_res_create, ensembles_res_create]]
inherit = OS_RES_CREATE, ENSEMBLE_HPC
[[ensemble_res_delete, ensembles_res_delete]]
inherit = OS_RES_DELETE, ENSEMBLE_HPC
[[ensemble_sync_main, ensemble_sync_forecast, ensemble_sync_happy]]
inherit = ENSEMBLE_MIRROR
[[ensemble_sync_forecast_tC]]
inherit = ENSEMBLE_MIRROR
[[ensemble_sync_verification]]
inherit = ENSEMBLE_MIRROR
[[ensemble_forecast_000_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_000_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_000_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_000_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_000_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_000_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_000_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_000_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_000_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_001_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_001_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_001_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_001_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_001_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_001_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_001_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_001_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_001_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_002_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_002_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_002_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_002_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_002_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_002_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_002_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_002_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_002_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_003_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_003_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_003_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_003_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_003_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_003_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_003_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_003_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_003_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_004_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_004_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_004_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_004_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_004_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_004_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_004_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_004_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_004_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_005_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_005_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_005_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_005_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_005_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_005_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_005_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_005_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_005_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_006_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_006_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_006_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_006_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_006_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_006_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_006_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_006_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_006_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_007_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_007_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_007_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_007_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_007_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_007_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_007_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_007_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_007_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_008_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_008_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_008_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_008_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_008_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_008_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_008_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_008_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_008_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_009_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_009_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_009_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_009_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_009_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_009_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_009_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_009_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_009_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_010_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_010_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_010_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_010_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_010_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_010_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_010_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_010_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_010_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_011_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_011_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_011_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_011_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_011_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_011_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_011_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_011_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_011_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_012_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_012_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_012_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_012_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_012_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_012_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_012_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_012_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_012_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_013_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_013_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_013_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_013_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_013_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_013_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_013_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_013_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_013_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_014_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_014_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_014_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_014_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_014_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_014_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_014_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_014_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_014_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_015_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_015_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_015_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_015_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_015_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_015_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_015_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_015_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_015_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_016_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_016_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_016_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_016_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_016_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_016_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_016_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_016_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_016_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_017_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_017_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_017_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_017_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_017_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_017_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_017_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_017_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_017_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_018_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_018_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_018_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_018_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_018_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_018_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_018_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_018_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_018_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_019_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_019_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_019_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_019_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_019_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_019_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_019_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_019_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_019_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_020_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_020_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_020_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_020_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_020_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_020_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_020_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_020_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_020_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_021_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_021_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_021_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_021_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_021_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_021_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_021_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_021_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_021_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_022_tC]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_022_tI]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_022_tJ]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_022_tK]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_022_tL]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_022_tM]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_022_tN]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_022_tO]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_022_tP]]
inherit = ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_HPC
[[ensemble_forecast_all_tK]]
inherit = ENSEMBLE, LOCAL
[[ensemble_forecast_subjob_000_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_000_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_000_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_000_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_000_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_000_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_000_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_000_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_000_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_000_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_000_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_updown_or_000]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_thunderbirds_are_go_forecast_000]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_001_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_001_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_001_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_001_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_001_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_001_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_001_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_001_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_001_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_001_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_001_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_001]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_002_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_002_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_002_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_002_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_002_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_002_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_002_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_002_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_002_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_002_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_002_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_002]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_003_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_003_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_003_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_003_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_003_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_003_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_003_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_003_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_003_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_003_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_003_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_003]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_004_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_004_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_004_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_004_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_004_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_004_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_004_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_004_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_004_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_004_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_004_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_004]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_005_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_005_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_005_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_005_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_005_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_005_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_005_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_005_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_005_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_005_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_005_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_005]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_006_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_006_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_006_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_006_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_006_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_006_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_006_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_006_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_006_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_006_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_006_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_006]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_007_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_007_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_007_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_007_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_007_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_007_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_007_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_007_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_007_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_007_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_007_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_007]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_008_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_008_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_008_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_008_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_008_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_008_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_008_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_008_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_008_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_008_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_008_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_008]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_009_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_009_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_009_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_009_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_009_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_009_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_009_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_009_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_009_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_009_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_009_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_009]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_010_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_010_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_010_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_010_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_010_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_010_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_010_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_010_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_010_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_010_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_010_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_010]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_011_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_011_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_011_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_011_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_011_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_011_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_011_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_011_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_011_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_011_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_011_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_011]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_012_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_012_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_012_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_012_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_012_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_012_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_012_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_012_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_012_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_012_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_012_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_012]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_013_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_013_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_013_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_013_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_013_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_013_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_013_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_013_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_013_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_013_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_013_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_013]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_014_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_014_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_014_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_014_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_014_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_014_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_014_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_014_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_014_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_014_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_014_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_014]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_015_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_015_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_015_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_015_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_015_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_015_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_015_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_015_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_015_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_015_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_015_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_015]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_016_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_016_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_016_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_016_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_016_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_016_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_016_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_016_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_016_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_016_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_016_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_016]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_017_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_017_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_017_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_017_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_017_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_017_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_017_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_017_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_017_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_017_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_017_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_017]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_018_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_018_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_018_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_018_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_018_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_018_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_018_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_018_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_018_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_018_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_018_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_018]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_019_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_019_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_019_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_019_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_019_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_019_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_019_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_019_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_019_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_019_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_019_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_019]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_020_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_020_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_020_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_020_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_020_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_020_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_020_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_020_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_020_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_020_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_020_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_020]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_021_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_021_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_021_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_021_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_021_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_021_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_021_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_021_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_021_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_021_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_021_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_021]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_forecast_subjob_022_tC]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_022_tI]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_022_tJ]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_022_tK]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_022_tL]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_022_tM]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_022_tN]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_022_tO]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_022_tP]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_022_sdfk]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_forecast_subjob_022_sduv]]
inherit = ENSEMBLE_SUBJOB
[[ensemble_thunderbirds_are_go_forecast_022]]
inherit = ENSEMBLE_THUNDERBIRDS_ARE_GO
[[ensemble_local]]
inherit = ENSEMBLE, HPC, ENSEMBLE_HPC, CORETYPE_SHARED
[[ensemble_downscale]]
inherit = ENSEMBLE, HPC, ENSEMBLE_HPC, CORETYPE_SHARED
[[ensemble_subjob_hook]]
inherit = ENSEMBLE, HPC, ENSEMBLE_HPC, CORETYPE_SHARED
[scheduling]
[[dependencies]]
[[[ T00, T06, T12, T18 ]]]
graph = """
long_forecast_end => long_zoom_frozen_happyland => long_zoom_send_to_highway_happyland_yay
long_zoom_send_to_highway_happyland_yay => long_zoom_send_notification_to_highway_happyland_yay
long_zoom_send_notification_to_highway_happyland_yay => housekeep
long_forecast_end => long_zoom_frozen_happyland => long_zoom_send_to_highway_happyland_yay2
long_zoom_send_to_highway_happyland_yay2 => long_zoom_send_notification_to_highway_happyland_yay2
long_zoom_send_notification_to_highway_happyland_yay2 => housekeep
"""
[runtime]
[[LONG_ZOOM_SUBJOB]]
inherit = LONG, HPC, LONG_HPC
[[LONG_ZOOM_SEND_TO_HIGHWAY]]
inherit = LONG_ZOOM_SUBJOB
[[HAPPYLAND_ENV]]
[[LONG_ZOOM_SEND_HAPPYLAND]]
inherit = LONG_ZOOM_SEND_TO_HIGHWAY
[[LONG_ZOOM_SEND_HAPPYLAND_yay]]
inherit = LONG_ZOOM_SEND_HAPPYLAND
[[LONG_ZOOM_SEND_HAPPYLAND_yay2]]
inherit = LONG_ZOOM_SEND_HAPPYLAND
[[long_zoom_frozen_happyland]]
inherit = LONG_ZOOM_SUBJOB, HAPPYLAND_ENV
[[long_zoom_send_to_highway_happyland_yay]]
inherit = LONG_ZOOM_SEND_HAPPYLAND_yay, HAPPYLAND_ENV
[[long_zoom_send_notification_to_highway_happyland_yay]]
inherit = LONG_ZOOM_SEND_HAPPYLAND_yay, HAPPYLAND_ENV
[[long_zoom_send_to_highway_happyland_yay2]]
inherit = LONG_ZOOM_SEND_HAPPYLAND_yay2, HAPPYLAND_ENV
[[long_zoom_send_notification_to_highway_happyland_yay2]]
inherit = LONG_ZOOM_SEND_HAPPYLAND_yay2, HAPPYLAND_ENV
[visualization]
default node attributes = style=filled, color=black, shape=box, fillcolor=khaki
collapsed families = \
LONG_FORECAST_TRIGGER, BRIEF_FORECAST_TRIGGER, LONG_SUBJOB, BRIEF_SUBJOB, LONG_DISPERSION, \
LONG_DISPERSION_PROC, LONG_DISPERSION_ARCHIVING, LONG_DISPERSION_HOUSEKEEPING, \
COLD_START, BRIEF_OBSERVATIONS_PROCESS_BACKGROUND, LONG_OBS_PROCESS_BACKGROUND, \
BRIEF_OBS_PROCESS_LOOK_AT, LONG_OBS_PROCESS_LOOK_AT, LONG_OBS_DB_STUFF, BRIEF_OBS_DB_STUFF, \
BRIEF_SURFACE_LANDSIM, \
ENSEMBLE_FORECAST_TRIGGER, ENSEMBLE_SUBJOB, \
ENSEMBLE_FORECAST_CONTROL, ENSEMBLE_FORECAST_LONG, ENSEMBLE_FORECAST_SHRT, \
ENSEMBLE_OBS, ENSEMBLE_ENS_ADDSURFACES, ENSEMBLE_ENS_WIGGLES, ENSEMBLE_VERIFICATIONMODEL, ENCOLD_START
[[node groups]]
archive_nodes = long_archive_short, long_archive_long, brief_archive
[[node attributes]]
long_start = fillcolor=violet
brief_start = fillcolor=violet
LONG_OBS = fillcolor=palegreen
BRIEF_OBS = fillcolor=palegreen
LONG_FORECAST_TRIGGER = fillcolor=powderblue
BRIEF_FORECAST_TRIGGER = fillcolor=powderblue
LONG_DISPERSION = fillcolor=powderblue
LONG_DISPERSION_PROC = fillcolor=powderblue
LONG_DISPERSION_ARCHIVING = fillcolor=powderblue
LONG_DISPERSION_HOUSEKEEPING = fillcolor=powderblue
LONG_SUBJOB = fillcolor=powderblue
BRIEF_SUBJOB = fillcolor=powderblue
BRIEF_SURFACE = fillcolor=burlywood
COLD_START = style=rounded
LONGBRIEF_FORECAST_REDO = fillcolor=gold
archive_nodes = fillcolor=tomato
ENCOLD_START = style=rounded
ensemble_start = fillcolor=violet
ENSEMBLE_OBS = fillcolor=orange
ENSEMBLE_ENS_ADDSURFACES = fillcolor=cyan
ENSEMBLE_ENS_WIGGLES = fillcolor=springgreen
ENSEMBLE_FORECAST = fillcolor=dodgerblue, fontsize=20
ENSEMBLE_VERIFICATIONMODEL = fillcolor=palegreen
ENSEMBLE_FORECAST_TRIGGER = fillcolor=powderblue
ENSEMBLE_SUBJOB = fillcolor=powderblue
ensemble_archive = fillcolor=tomato
OS_START = fillcolor=peru
OS_RES_CREATE = fillcolor=peru
OS_RES_DELETE = fillcolor=peru
housekeep = fillcolor=tomato
install_cold = style=rounded
install_cold_mirror = style=rounded
Sign up for free to join this conversation on GitHub. Already have an account? Sign in to comment
