wget https://github.com/joewalnes/websocketd/releases/download/v0.2.12/websocketd-0.2.12-linux_arm.zip
unzip websocketd-0.2.12-linux_arm.zip
#make temp.sh executable
chmod +x temp.sh
./websocketd --port=8080 ./temp.sh
Last active
March 24, 2021 02:01
-
-
Save lincerely/a35824fef7d18669cea90b33f09061f1 to your computer and use it in GitHub Desktop.

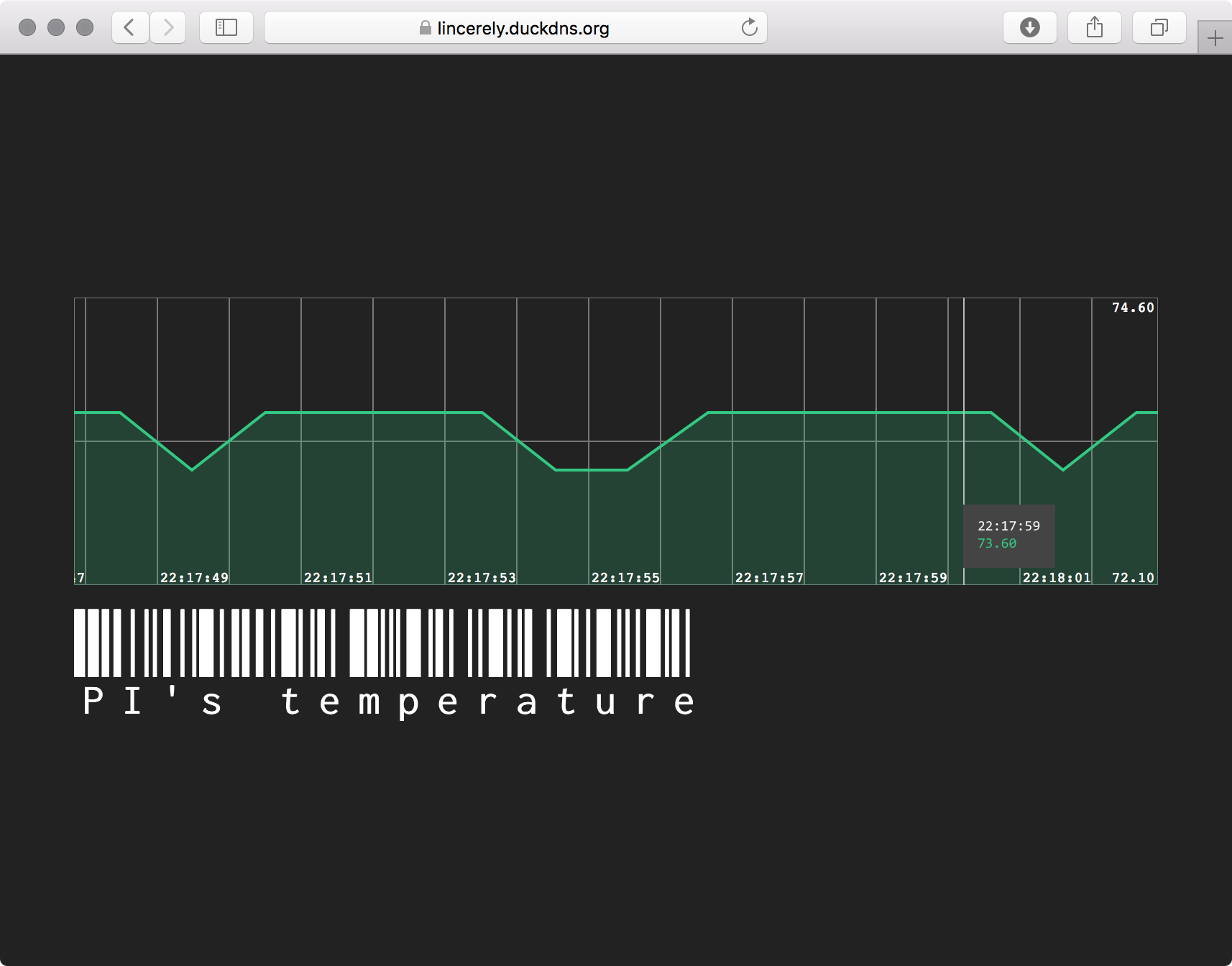

Logging raspberry pi temperature with Websocketd and Smoothie Charts
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| #!/bin/bash | |
| #Print the temp of pi cpu every second | |
| while true; do | |
| vcgencmd measure_temp | cut -c6-9 | |
| sleep 1 | |
| done | |
| exit |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| <!DOCTYPE html> | |
| <html> | |
| <head> | |
| <title>Pi Temp.</title> | |
| <link href="https://fonts.googleapis.com/css?family=Libre+Barcode+128+Text" rel="stylesheet"> | |
| <style> | |
| div.smoothie-chart-tooltip { | |
| background: #444; | |
| padding: 1em; | |
| margin-top: 20px; | |
| font-family: consolas; | |
| color: white; | |
| font-size: 10px; | |
| pointer-events: none; | |
| } | |
| body { | |
| background: #222222; | |
| color: white; | |
| font-family: 'Libre Barcode 128 Text', cursive; | |
| font-size:40px; | |
| } | |
| html, body { | |
| height: 100%; | |
| } | |
| html { | |
| display: table; | |
| margin: auto; | |
| } | |
| body { | |
| display: table-cell; | |
| vertical-align: middle; | |
| } | |
| h1 { | |
| margin: 0 auto; | |
| } | |
| </style> | |
| </head> | |
| <body> | |
| <canvas id="smoothie-chart" width="754" height="200"></canvas> | |
| <h1>PI's temperature</h1> | |
| <script src="https://cdnjs.cloudflare.com/ajax/libs/smoothie/1.32.0/smoothie.min.js"></script> | |
| <script type="text/javascript"> | |
| function myYRangeFunction(range) { | |
| // TODO implement your calculation using range.min and range.max | |
| var min = range.min-1; | |
| var max = range.max+1; | |
| return {min: min, max: max}; | |
| } | |
| var smoothie = new SmoothieChart({ | |
| interpolation:'linear', | |
| grid:{fillStyle:'#222222'}, | |
| tooltip:true, | |
| yRangeFunction:myYRangeFunction, | |
| timestampFormatter:SmoothieChart.timeFormatter | |
| }); | |
| var series = new TimeSeries(); | |
| smoothie.addTimeSeries(series,{lineWidth:2,strokeStyle:'#26C980',fillStyle: 'RGBA(38, 201, 128, 0.2)'}); | |
| smoothie.streamTo(document.getElementById("smoothie-chart"),1000); | |
| var ws = new WebSocket('ws://localhost:8080/'); | |
| ws.onopen = function(){ | |
| console.log('Connected to PI'); | |
| }; | |
| ws.onmessage = function(event){ | |
| series.append(new Date().getTime(), parseFloat(event.data)); | |
| }; | |
| ws.onclose=function(){ | |
| console.log('Disconnected'); | |
| }; | |
| </script> | |
| </body> | |
| </html> |
