A "production-ish" Kubernetes cluster on Raspberry Pi

Hardware

(Gopher image by Ashley McNamara)

Table of contents:

Let's Build

This guide shows how to build a "production-ish" Kubernetes (k8s) cluster on Raspberry Pi hardware. There are many existing guides and tools available telling you how to deploy a "production-grade" k8s cluster, but production-grade feels like a stretch when talking about a small stack of $30 single board computers. So this guide shoots for a production-ish k8s cluster, meaning you can interact with it as you would a production k8s cluster even if the hardware would have problems handling production workloads.

More specifically we want to support the following features:

  • Dynamic Persistent Volumes to add persistent data to pods
  • Externally accessible URLs
  • Load balancing of requests across multiple containers
  • Automatic backup and restore workflow
  • Easy installation of services via Helm
  • No out-of-band configuration of router or DNS records after initial setup
  • Auto-renewing TLS certificates from Let's Encrypt
  • VPN access to cluster for debugging

Most Kubernetes on Raspberry Pi guides show only a minimal installation. It works but requires manually adjusting router settings and DNS records each time you add a new service. You also have to use hostPath volumes for persistent data, forcing pods to be locked to a specific worker node. One of the main benefits of Kubernetes is that it abstracts away the underlying infrastructure so you don't need to know whether you're running on GKE or AWS or bare metal, but these limitations mean we're not realizing that benefit. This guide removes those limitations so the interacting with Kubernetes on Raspberry Pi feels like interacting with a production cluster.

Why though?

You might already be asking the following question: isn't this overkill for a Raspberry Pi setup? My answer: yes, absolutely. This setup has a ton of moving pieces, and combined with the fast-moving k8s ecosystem and limited hardware capabilities it can be difficult to debug when something goes wrong. Simply installing a Debian package directly onto the Raspberry Pi is a simpler and probably more stable setup than installing that app on k8s on underpowered hardware. The primary goal of this setup is to learn more about Kubernetes and bare metal infrastructure (deployment/networking/storage) with some first-hand experimentation. Plus this setup is pretty delightful to use once you get it working.

Hardware

(see image above)

Much of the hardware selection was taken from Scott Hanselman's excellent How to Build a Kubernetes Cluster with ARM Raspberry Pi guide. Check out his guide for some extra rationale for why he chose each part. TLDR: buy tiny hardware that looks cute next to a stack of tiny Raspberry Pis.

Parts:

Price Count Part
$210 6x Raspberry Pi 3 B+
- - We'll use 1 master node and 5 worker nodes but you can adjust the number of worker nodes
$72 6x 32 GB MicroSD cards
$18 12x 1 foot flat ethernet cables (buy two packs, 12 cables total)
$32 1x Anker PowerPort 6 Port USB Charging Hub
$40 1x stacking Raspberry Pi case
$40 1x USB-powered 8 port switch
$10 1x SD card reader (if you don't already have one)
$14 1x 32GB USB
$139 1x (optional) Unifi Security Gateway (router)
- - Optional, but parts of the guide assume a router with BGP support
$89 1x (optional) Unifi Wireless AC Lite
$21 1x (optional) Any 8 port switch
--- --- ---
$685 - total

Yikes, that is a large price tag. Here's a few ways to cut down the cost:

  • Buy fewer Raspberry Pis
    • You'll want at least 3 to avoid the cluster running out of memory
  • Use ethernet cables, switches, etc you already have laying around
    • Most of the hardware above was picked because it's the same physical size as the Raspberry Pi, but this is only an aesthetic choice
  • Skip the case
    • just tape those Pis to a cardboard box, I won't judge
  • Use your current router rather than the Unifi networking equipment and 8-port switch
    • Your existing router will work fine for this setup with a couple small limitations
    • I'll note later in the guide when the Unifi Router is required

Even with these cost cutting steps, I realize the price will be a non-starter for many people. I'd still recommend skimming the guide, hopefully still some interesting learnings even if you don't deploy it yourself.

Networking

Draw it out

Here's a networking diagram of what we'll be building:

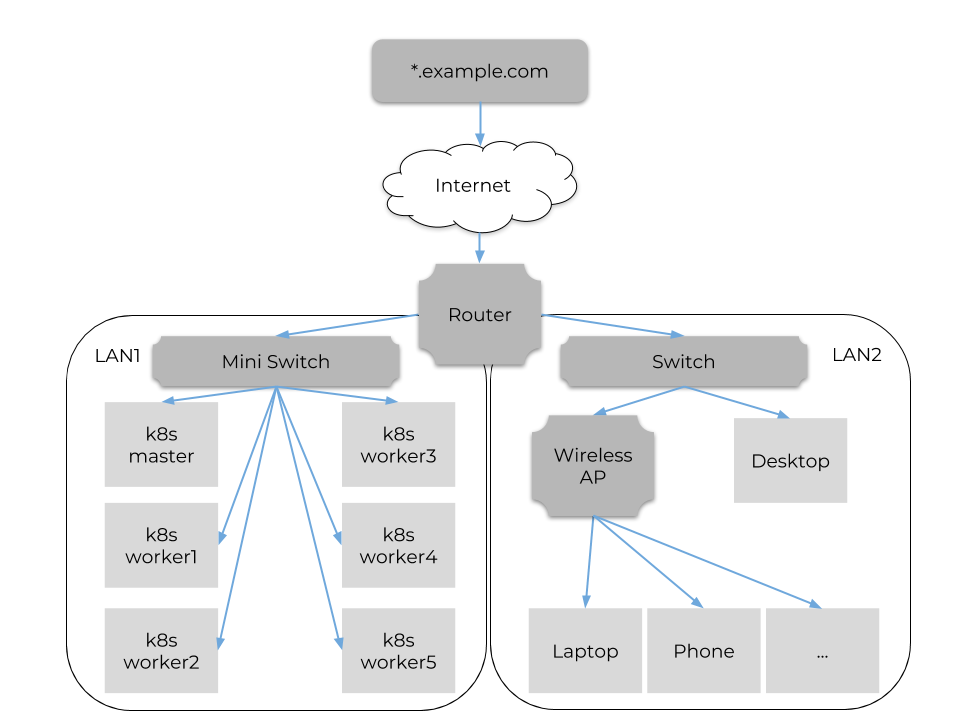

Network Diagram

We have split the machines into two subnetworks, LAN1 and LAN2. The k8s cluster will live in LAN1 and all other machines (desktop, laptop, phone, etc) will live on LAN2. The Router acts a bridge, allowing machines in LAN1 to talk to machines in LAN2 and vice versa.

Let's zoom into LAN1 to examine networking within the k8s cluster. Don't worry if you don't recognize all the terms immediately, we'll introduce them in the upcoming sections.

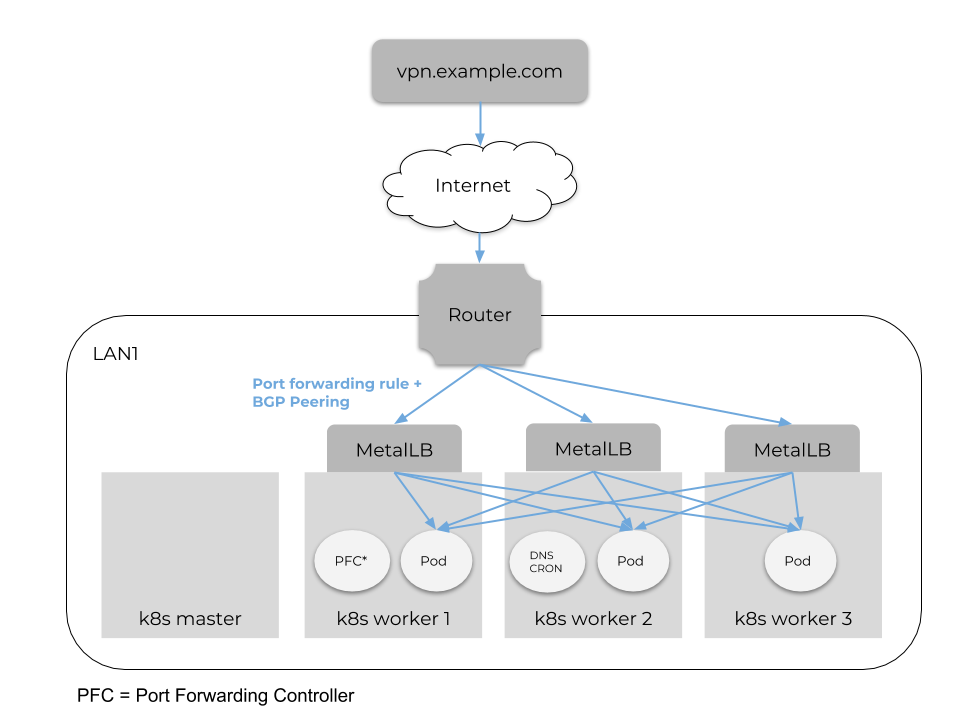

Network Forwarding Diagram

Note: Switch present but not pictured, only 3 workers pictured

Example: deploy a VPN Service

For this example, let's say we wanted to deploy a VPN server into the k8s cluster. We'll cover the specific installation steps down in the Initial Setup section, this section will introduce the concepts. When you deploy an app to k8s, it runs as one or more pods within the cluster. A pod is a group of one or more containers that should be grouped together on the same worker node. Each pod has a replica count which tells k8s how many copies to create of each pod. If we specify three replicas in this example, k8s would create a VPN pod on each of the three workers.

After the deploy completes, we have three VPN server processes running but we need some way to route traffic to them. First we'll create a k8s service to define how we will access the pods. There are several types of services support by k8s, we'll cover a few in this guide:

  • ClusterIP
    • (default) Service is given a cluster-internal IP address and is accessible only to other apps within the cluster
  • NodePort
    • Service listens on a static port on the host machine, usually a high port like 30000
  • LoadBalancer
    • Service is exposed via some infrastructure load balancer service. Often this is a cloud-provider specific service like AWS ELBs
  • External IPs
    • Used in conjunction with any of the previous service types
    • Specifying an externalIP for a service will cause all worker nodes to start listening on that service's port. If a worker receives traffic on that port and the destination IP of that packet matches the externalIP of a service, the worker will route that packet to the service's pod via the kube-proxy process.
    • Allows you to bind on low ports like 80 and 443 but requires a k8s user with elevated privileges

General rule of thumb when choosing Service type:

  • Choose ClusterIP if the service will only be accessed from within the cluster
  • Choose NodePort if the service should be externally accessible but you don't have Load Balancer infrastructure in place and you don't need a privileged port like 80 or 443
  • Choose ClusterIP with ExternalIP if the service should be externally accessible but you don't have Load Balancer infrastructure in place and want a privileged port
  • Choose LoadBalancer if you want traffic balanced across all worker nodes containing pods for that service

Load Balancing with MetalLB

On a minimal k8s install we'd have to use either NodePort or ClusterIP+ExternalIP to expose a service externally. This has the drawback that a single worker node would receive all traffic for a given service. If that worker goes down your service is inaccessible until that worker comes back up. To overcome this limitation we'll deploy MetalLB to handle creation of LoadBalancer services. MetalLB is a k8s load balancer implementation for bare metal setups like our Raspberry Pis. MetalLB has two operating modes: Layer 2 mode and BGP mode

BGP Mode (recommended)

Note: this section requires a Unifi Router or other router which supports BGP routing

BGP stands for Border Gateway Protocol. BGP allows two machines to exchange routing information, something like "IP 1.2.3.4 is one hop away from IP 5.6.7.8". This protocol is used on a global scale by Internet Service Providers (ISPs) to figure out how to route traffic between ISPs. But we're going to use the same protocol on a tiny scale to load balance traffic between our router and k8s worker nodes.

We'll start by deploying MetalLB into our k8s cluster, configuring it with BGP options so that it can report routes to our Unifi router. MetalLB will watch for new services of type LoadBalancer, assign an IP to that service, and start publishing routes for that IP. For example, let's say we had three workers (IPs 192.168.1.101, 192.168.1.102, and 192.168.1.103) and one VPN pod on the first worker. We then create a Load Balancer service, causing MetalLB to assign that service an IP address of 192.168.1.200. MetalLB will then tell the router that shortest route to 192.168.1.200 is via 192.168.1.101 (the first worker's IP). If the router receives a request for 192.168.1.200, it will route that traffic to the first worker node and that worker will send the traffic to its VPN pod. If we then scale up to three VPN pods (one on each worker), MetalLB will tell the router that that shortest route to 192.168.1.200 is via either 192.168.1.101, 192.168.1.102, or 192.168.1.103. Since all routes have the same cost, the router will load balance requests across all three workers. We have load balancing in our home network!

However, there in one gotcha to this setup: machines within the same subnet will not be able to resolve the Load Balancer IP addresses. This is because machines within the same subnet can route packets directly to each other without going through the router, the router is only needed to route packets between different subnets. Since the BGP route table is only present on the router, if the k8s cluster in on LAN1 and your laptop in on LAN1 you won't be able to route traffic to that Load Balancer IP. To overcome this, we divided our network into two subnets: LAN1 and LAN2. The k8s cluster lives in LAN1 and everything else lives in LAN2. This ensures that any requests from machines in LAN2 must go through the router which ensures the BGP routes are used. The k8s machines can also route traffic to the Load Balancer IPs as each node has a MetalLB process on it which adds iptables rules for each service to the host machine. You can also side-step this limitation by always sending requests to your modem's public IP address and adding a port forwarding rule to your router. We'll cover this setup shortly.

Layer 2 Mode (use if your router doesn't have BGP support)

Layer 2 refers to the Data Link layer of the Open Systems Interconnection (OSI) model of describing computer networks. This layer is concerned with how machines within a single subnet communicate with each other. The advantage of deploying MetalLB in Layer 2 mode rather than BGP mode is that Layer 2 mode doesn't require any special networking hardware.

Let's replay our previous example with three worker nodes and one VPN pod on the first worker. MetalLB again assigns the service the IP 192.168.1.200. In Layer 2 mode, MetalLB will use the Address Resolution Protocol (ARP) to advertise to other machines in that subnet that the first worker node also has the IP address 192.168.1.200 in addition to its original IP of 192.168.1.101. Any machine within that subnet can then route traffic to 192.168.1.200. If we scale up to three VPN pods (one on each worker), MetalLB still only advertises the first worker's IP. But when that worker receives traffic with a destination IP of 192.168.1.200, it will load balance traffic across all pods in the cluster (even those on other workers) via the kube-proxy process. So it isn't true load balancing as a single worker node has to initially receive all the traffic for a given service, but traffic is balanced across all pods from there. MetalLB will also automatically failover if that worker node goes down, giving a different worker that service's IP. Unlike BGP mode, this setup requires all machines live on the same subnet.

Note: the ansible steps listed below currently only support BGP mode for MetalLB, but you can change that role to match the layer 2 configuration shown here. Send me a PR to make it configurable if you do!

Accessing services from outside the network

After deploying MetalLB, we now have an IP address for our service which load balances traffic. However this address is only resolvable from within our home network. For some services we'd like to access them from the office or when traveling. For example, pointing my VPN client to vpn.cats-are-cool.com:1194 should route the traffic to my home modem's public IP address, which passes the traffic to my router, which has a port forwarding rule to direct traffic on port 1194 to the MetalLB address 192.168.1.200, which finally routes traffic into one of the VPN pods. Let's dive into the steps to make this happen automatically.

Managing DNS records

For this setup, we'd like a single wildcard DNS record which resolves to our modem's public IP. This guide uses CloudFlare as the DNS provider, but other providers should follow similar steps. We'd start by looking up our modem's public IP (hint: google "what's my ip"). Then we'll go our DNS provider and create an A record for *.cats-are-cool.com pointing to our public IP and a Time-to-Live (TTL) of 2 minutes (shortest value you can). This means that requests for any subdomain of cats-are-cool.com (like vpn.cats-are-cool.com) will be routed to your modem/router. However, normally residential networks have ephemeral public IP addresses, meaning it can change at any time. And we'd like to avoid manual creation of DNS records anyway.

To handle the creating and updating of this wildcard record, the setup steps below include a dns-updater CronJob which creates the wildcard record if it doesn't exist and updates the record's target IP address if your public IP has changed. This job runs every 5 minutes as a pod within the k8s cluster.

Note: the ansible steps listed below currently only support Cloudflare as a DNS provider, but can be tweaked to support other providers

Managing port forwarding rules

Next we'll need to add port forwarding rules to our router. Forwarding rules are a mapping of port to IP address. When the router receives a request on a given port, it will check its list of port forwarding rules to see if it has a rule for that port. If it does it will forward the traffic to the IP address listed in that rule. For the VPN example, we need to add a port forwarding for port 1194 and IP 192.168.1.200 (the MetalLB service IP). Normally you do this via your router's UI page, accessible at http://192.168.1.1 usually.

However, if you've got a Unifi router we can manage these port forwarding rules automatically. I created a custom k8s controller called the port-forwarding-controller. You deploy this controller into your cluster with credentials to talk to your Unifi router and it watches for new services similar to MetalLB. When the controller sees a new or updated service, it checks whether the Unifi controller has a forwarding rule matching that service's IP and port. If no rule exists, the controller will create it automatically. With this last bit in place, requests to vpn.cats-are-cool.com should be forwarded successfully into the VPN pods.

Again, the port-forwarding-controller currently only supports the Unifi API. PRs accepted!

Handling HTTPS traffic

In our VPN example, our service used the port 1194 and any traffic to that port went to the VPN pods. This worked well, but what if you wanted several different services to receive HTTPS traffic? You could have each one listen on a different port, but it'd be nice if they could all use the standard 443 port. To give a specific example, we'd like requests to https://homepage.cats-are-cool.com to go to a homepage app while requests to https://passwords.cats-are-cool.com to go to a password manager.

To accomplish this, k8s provides an Ingress resource to create a mapping between requests and services. For example, you can create an Ingress resource that says any request containing the hostname homepage.cats-are-cool.com should be routed to the homepage Service. However, creating an Ingress resource doesn't do anything on its own, you need an ingress controller. We'll deploy the ingress-nginx-controller to manage these objects for us. This controller watches for new and updated Ingress resources to build up a mapping of request options to target services. When the controller itself receives a request, it checks this mapping to see where to forward the traffic. This means the ingress controller is deployed between MetalLB and a target service like the homepage app. We'll need to create a Load Balancer service in front of the ingress controller so that a Load Balancer IP and port forwarding rules are created.

Let's walk through an example HTTPS request end-to-end by visiting https://homepage.cats-are-cool.com from outside the network. As with the VPN example, this request reaches our modem's public IP which passes the traffic to the router. The router has a port forwarding rule to forward traffic on port 443 to the MetalLB address 192.168.1.201. That address was assigned to the ingress-controller so MetalLB forwards the request to the ingress-controller pod. The ingress-controller sees that the target hostname of the request matches an Ingress resource whose target service is the homepage service. This match causes the controller to forward the traffic to one of the homepage pods.

Generating TLS certificates

Handling HTTPS traffic comes with another complication: generating TLS certificates. Certificates are used by HTTPS clients like web browsers to verify the identity of the requested website. Certificates are issued by Certificate Authorities (CAs) which are trusted by your browser. By default, most k8s HTTPS services will deploy with self-signed TLS certificates which are not trusted. Visiting a site with a self-signed certificate in your browser will show a scary "Connection is not secure" warning as your browser can't verify that site's identity.

To automatically generate trusted certificates, we'll use a component called cert-manager to get certificates from the free Let's Encrypt CA. You start by deploying cert-manager with credentials for your DNS provider (we'll use CloudFlare again) as well as your Let's Encrypt email. Once deployed, cert-manager looks for Ingress resources with a tls key as shown here. For each tls key, cert-manager will make a certificate request to a Let's Encrypt server to generate a certificate for each DNS record listed in tls.hosts. The Let's Encrypt server will then ask cert-manager to prove it owns the requested DNS records by pushing a bit of DNS metadata to the DNS provider. Once Let's Encrypt verifies that the requested DNS metadata was added, it will return the requested certificates. cert-manager will then take that certificate and store it in a k8s Secret. This secret can later be mounted into a web server's container as a file. Let's Encrypt certificates are only valid for 90 days, but cert-manager will automatically renew any certificates that are nearing their expiration.

Note: Let's Encrypt has strict rate limits for how many certificates it will generate. During your initial testing you can use the staging Let's Encrypt server (https://acme-staging-v02.api.letsencrypt.org/directory) rather than the production one to test your setup with fake certs until you get it working.

Storage

With the previous steps in place, we're able to deploy stateless apps to our k8s cluster. But some apps need to store persistent data that is still present after a reboot. k8s defines a Volume resource to allow persistent data to be mounted into the container.

On a single node bare metal k8s cluster, you could use a hostPath volume which mounts a directory from the underlying worker machine into the container. We have a multi-node cluster so this won't work.

In a multi-node cluster we could instead use a Local Volume. This is similar to a hostPath volume in that it mounts a disk or directory from the underlying host machine into the container, but this is supported in a multi-node cluster. This works, but still has a couple limitations:

  • Volumes must be manually created prior to deploying the app
  • All pods that use the volume are locked to a single worker node
  • If the worker goes down the app will be inaccessible until the worker comes back

To overcome this limitation, we're going to use Dynamic Volumes. With Dynamic Volumes, a deployment can create a Persistent Volume Claim (PVC) to request a volume of a given size. Your cluster's volume provider watches for these claims and creates volumes on demand. Once the volume is ready, the pod that requested it will be created and the volume will be mounted into the container.

For this bare metal setup, we'll use GlusterFS and Heketi as our volume provider. GlusterFS is a multi-node network filesystem and Heketi is an API layer to manage GlusterFS volumes. Later on we'll use the gluster-kubernetes project to configure these components to handle provisioning of Volumes in our cluster. In the steps shown below we'll plug a USB drive into one of our worker nodes. This worker will run the GlusterFS server and all persistent data will be stored on the USB drive. However, these volumes can be mounted over the network by containers running on other workers. If you want, you can buy a couple more USB drives and deploy GlusterFS onto multiple nodes to add replicate data and increase availability.

Once we have GlusterFS+Heketi deployed, we can start using dynamic persistent volumes. Our VPN deployment might create a Persistent Volume Claim of size 5GB. Our volume provider will notice this new claim and create a 5GB volume in Gluster filesystem. Once the Volume is ready, k8s will continue creating the VPN container and mount the Volume into the container. If the VPN container is deleted, the volume will be re-attached to the new container and the existing data will still be present.

Installing software with Helm

While k8s is an incredibly flexible tool, it requires a lot of boilerplate configuration to get apps running. As an extreme example, the deployment manifest for the tool Knative is 17 thousand lines long. To avoid most of these boilerplate YAML files, the setup below includes a tool called Helm to make installing software into k8s a bit easier.

Helm lets you install software from a set of charts. For example, to install a VPN server with helm you run:

helm install stable/openvpn

In a few seconds you have a running VPN server running in your cluster. To tweak some configuration options, you can create a YAML file containing the options defined in that chart's README:

helm install --values openvpn-options.yml stable/openvpn

Initial Setup

Now that we understand the concepts, let's start deploying it.

Hardware Setup

Hardware

Steps to setup hardware:

  • Plug Unifi Gateway's WAN1 port into your modem
  • Plug Unifi Gateway's LAN1 port into the larger switch
    • Note: the picture shows some components plugged into LAN2, we'll cover this in a later section
  • The Unifi AP should come with a Power-over-Ethernet (PoE) adapter
    • Plug the LAN port of the adapter into the larger switch
    • Plug the PoE port of the adapter into the Unifi AP
  • Assemble the Raspberry Pi's into the stacking case
    • The case linked above includes a 7th level that we won't use
  • Plug USB cables into the charging dock but don't plug then into the Raspberry Pi's yet
    • We'll power up the Pi's after we flash the SD cards
  • Plug the USB power cable of the mini switch into a USB port on one of the Pi's
  • Plug each Pi into the mini switch using the mini ethernet cables
  • Plug the mini switch into the larger switch using another mini ethernet cable
  • Plug everything into AC power

Note: you'll need a wired ethernet connection on your workstation for now. Later steps will install the Unifi Controller into the k8s cluster which will allow you to setup the Wifi network.

Ansible Introduction

Note: The following steps assume you already have git and python installed.

We'll use Ansible to deploy the cluster. Ansible works by running commands over SSH from your workstation to each node in the Raspberry Pi cluster. Ansible has many features, but we'll introduce three basics here: inventory, roles, and playbooks.

An inventory file lists the IP addresses of each machine you want to provision and groups each machine by responsibility. This file looks similar to the following:

[all]
k8s-node1 ansible_host=192.168.1.100
k8s-node2 ansible_host=192.168.1.101
k8s-node3 ansible_host=192.168.1.102

[kube-master]
k8s-node1

[kube-node]
k8s-node2
k8s-node3

This inventory file describes a three node k8s cluster. All the machines are listed at the top under the all, the first machine will serve as the master node, and the other two machines will be worker nodes.

A role is a set of configuration options, files, and commands to run on a target machine. For example, the upgrade-master role will update k8s to the specified version while the openvpn role will deploy a VPN container into the cluster. A role will usually contain a tasks/main.yml file which lists which commands to run, a templates directory containing files to transfer to the target machine, and a defaults/main.yml file which lists supported configuration options.

Finally, playbooks will tie the inventory and roles together. Here's a playbook example:

- hosts: all
  roles:
    - glusterfs-client

- hosts: gfs-cluster
  roles:
    - glusterfs-server

This playbook tells Ansible to run the glusterfs-client role on all machines, then run the glusterfs-server role only on machines in the gfs-cluster inventory group.

Create project

Create a new repository:

mkdir k8s-pi
cd k8s-pi
git init

Create .gitignore:

cat << EOF > .gitignore
/secrets/
/tmp/
*.retry
EOF

Clone k8s-pi repo as a submodule:

mkdir submodules
git submodule add https://github.com/ljfranklin/k8s-pi.git ./submodules/k8s-pi

Flash HypriotOS onto SD cards

Why HypriotOS? This Debian-based distribution is optimized for running Docker workloads such as a k8s cluster and comes with many container utilities pre-installed. It also includes a tool called cloud-init which allows us to specify options like SSH keys and static IPs in a config file on the SD card rather than running setup commands over SSH after boot.

Create an SSH key to access the Raspberry Pi's:

ssh-keygen -t rsa -b 4096 -C k8s -N '' -f ~/.ssh/id_rsa_k8s
ssh-add ~/.ssh/id_rsa_k8s

Plug a microSD card into your workstation (this example assumes the card has the device ID /dev/sda), then run the following command:

./submodules/k8s-pi/pi/provision.sh -d /dev/sda -n k8s-node1 -p "$(cat ~/.ssh/id_rsa_k8s.pub)" -i 192.168.1.100

Note: the SD card must be unmounted prior to running the script

Unplug the microSD card and plug in the next one. Run the script again but increment the node number and IP:

./submodules/k8s-pi/pi/provision.sh -d /dev/sda -n k8s-node2 -p "$(cat ~/.ssh/id_rsa_k8s.pub)" -i 192.168.1.101

Repeat the process until all cards have been flashed.

Boot Raspberry Pi's

Plug all the cards into the Raspberry Pi's and attach the USB power cable to start them up. The Raspberry Pi's will install necessary packages on boot and will automatically reboot once to finish a kernel update.

Shortly after this reboot you should be able to SSH onto each node:

ssh [email protected]

We'll also plug in a USB drive on the last node to store our Persistent Volumes. Ensure the drive is plugged in but unmounted and run the following command to remove any existing filesystems:

ssh [email protected]
sudo wipefs -a /dev/sda # assumes USB drive has device ID /dev/sda

Note: you can add USB drives to multiple nodes for extra redundancy if you want. Remember to add these hosts under the [gfs-cluster] section in hosts.ini as shown below.

Installing k8s

Create an ansible.cfg file in project root:

cat << EOF > ansible.cfg
[defaults]
host_key_checking     = False
remote_user           = k8s
roles_path            = submodules/k8s-pi/roles/

[ssh_connection]
pipelining        = True
ssh_args          = -o ControlMaster=auto -o ControlPersist=30m -o ConnectionAttempts=100 -o UserKnownHostsFile=/dev/null
EOF

Install Ansible + deps:

sudo pip install -r submodules/k8s-pi/requirements.txt

Create an inventory file containing host information:

mkdir inventory

cat << EOF > inventory/hosts.ini
[all]
k8s-node1 ansible_host=192.168.1.100
k8s-node2 ansible_host=192.168.1.101
k8s-node3 ansible_host=192.168.1.102
k8s-node4 ansible_host=192.168.1.103
k8s-node5 ansible_host=192.168.1.104
k8s-node6 ansible_host=192.168.1.105

[kube-master]
k8s-node1

[kube-node]
k8s-node2
k8s-node3
k8s-node4
k8s-node5
k8s-node6

[gfs-cluster]
k8s-node6 volume_device=/dev/sda
EOF

Note: this config file assumes 6 Raspberry Pis with sequential static IP addresses starting at 192.168.1.100. It also assumes that the last node has a USB drive which we'll use for persistent storage of volumes. Adjust the number of nodes and IP addresses to suit your setup.

Create three playbook files: bootstrap.yml (setup k8s from scratch), upgrade.yml (upgrade k8s), deploy.yml (deploy k8s services only):

cat << EOF > bootstrap.yml
- name: Include k8s-pi bootstrap tasks
  import_playbook: submodules/k8s-pi/bootstrap.yml
EOF

cat << EOF > upgrade.yml
- name: Include k8s-pi upgrade tasks
  import_playbook: submodules/k8s-pi/upgrade.yml
EOF

cat << EOF > deploy.yml
- name: Include k8s-pi deploy tasks
  import_playbook: submodules/k8s-pi/deploy.yml
EOF

Create a secrets.yml file and fill in your credentials for the deployed services:

mkdir -p secrets
cp submodules/k8s-pi/secrets/secrets.sample secrets/secrets.yml

Run the bootstrap.yml playbook to start the installation:

ansible-playbook -i inventory/hosts.ini --extra-vars @secrets/secrets.yml bootstrap.yml

Important! Running bootstrap.yml playbook a second time will wipe all data from the cluster.

You should now have a running k8s cluster! To interact with the cluster, install the kubectl CLI and copy the kubectl config file into your home directory:

cp ./secrets/admin.conf ~/.kube/config

To check that it's working run kubectl -n kube-system get pods.

This repo also includes two other playbooks: upgrade.yml and deploy.yml. To upgrade k8s without wiping data, run the upgrade.yml playbook. To upgrade just the apps running on k8s, run the deploy.yml playbook.

Optional: Setup Unifi Controller

Skip if you don't have a Unifi Router

After following the above steps, a Unifi Controller should be running as a pod in your k8s cluster. The following steps are required to ensure the Router and AP are adopted by the Controller. After adopting both devices you will be able to configure settings like the Wifi network by visiting https://unifi.$INGRESS_DOMAIN.

  • Ensure all devices are plugged into LAN1 port of Unifi Gateway
    • We'll switch some devices over to LAN2 in a later step to enable BGP routing
  • Temporarily modify /etc/hosts on your workstation to route Controller traffic directly to the first worker node:
    • sudo vim /etc/hosts to add $FIRST_WORKER_NODE_IP unifi.$INGRESS_DOMAIN
    • Note: We'll revert this change once the Unifi controller is setup with BGP routing
  • Visit https://unifi.$INGRESS_DOMAIN
    • Configure Wifi network name/password and controller/device username/passwords
  • Adopt the Unifi Gateway (detailed steps here):
    • ssh [email protected] (password ubnt)
    • If gateway was previously paired:
      • sudo syswrapper.sh restore-default
      • SSH session may get stuck, may need to kill it and re-SSH after reboot
    • set-inform http://$FIRST_WORKER_IP:8080/inform
    • Go to Controller UI and click Adopt on Devices tab
    • Wait for device to go from Adopting to Provisioning to Connected on Controller UI
  • Adopt the Unifi AP
    • If the AP was not previously paired with another controller:
      • The AP should appear in the Devices tab, click Adopt next to it in the UI
    • If the AP was previously paired:
      • Hold down the small Reset button on the AP with a paper clip to reset to factory default settings
      • After reseting the AP should appear in the Devices tab, click Adopt
  • Add temporary port forwarding rule to bootstrap port-forwarding-controller:
    • Settings > Routing & Firewall > Port Forwarding > Create New Port Forwarding Rule
    • Name: tmp-k8s-ingress
    • Port: 443
    • Forward IP: $ingress_nginx_static_ip (from secrets.yml)
    • Forward Port: 443
    • Save
  • Restart the port-forwarding-controller to ensure it adds port forwarding rules to controller
    • kubectl delete pod port-forwarding-0
    • Verify rules were added under Settings > Routing & Firewall > Port Forwarding
    • Delete tmp-k8s-ingress rule
  • Remove $WORKER_IP line from /etc/hosts
  • Done!

Optional: Move non-k8s machines over to LAN2 to enable BGP routing

A limitation of this BGP routing setup is that machines on the 192.168.1.0/24 subnet cannot route to the BGP Load Balancer IP addresses. This is due to machines on the same subnet wanting to route traffic directly to the target machine rather than sending traffic through the router first. To force traffic to go through the router we can move all non-k8s machines over to a new LAN2 network.

  • Start with all machines plugged into LAN1 port on Unifi Gateway
  • Visit https://unifi.$INGRESS_DOMAIN
    • Enable LAN2 network:
      • Settings > Networks > Create New Network
      • Name: LAN2
      • Interface: LAN2
      • Gateway/Subnet: 192.168.2.1/24
      • DHCP Range: 192.168.2.6 - 192.168.2.254
      • All other values default
      • Save
  • Unplug the mini switch from the larger switch
  • Unplug the larger switch from the router's LAN1 port and plug in into LAN2
  • Plug the mini switch into the LAN2 port
  • Connect all other machines (desktop, Wifi AP, etc.) into LAN2 switch
  • Verify that you can now route directly to BGP LB addresses:
    • nc -v -z $ingress_nginx_static_ip 443
    • Should say Connection to 192.168.1.51 443 port [tcp/https] succeeded! or similar

Optional: Access K8S Dashboard

A dashboard for your k8s cluster should now be available at https://k8s.$INGRESS_DOMAIN. This dashboard displays metrics like CPU and memory usage, as well as listing all deployed k8s resources. To get a login token, run ./submodules/k8s-pi/scripts/get-dashboard-token.sh. Visit the dashboard URL, select Token on the login prompt, and paste in the token returned by the script.

Optional: Connect to cluster with VPN

A VPN server is now available at vpn.$INGRESS_DOMAIN. To access it, generate a secret VPN config file by running this script:

./submodules/k8s-pi/scripts/generate-vpn-cert.sh vpn.$INGRESS_DOMAIN

This will create a secrets/k8s.ovpn file containing the necessary connection information. Pass this file to your VPN client to connect to k8s internal services and cluster IPs even when outside your home network.

Optional: Backup/Restore

It wouldn't be a real production-ish cluster if we didn't have automated backups. The Ansible playbooks deploy the Ark k8s backup/restore utility. With the default configuration, Ark will take a backup of all k8s resources and persistent volumes once a day. This means you can delete your entire cluster, restore from a backup, and all pods, services, and persistent data will be restored just as it was when the last backup was taken. The Ark deployment includes a component called Restic to take backups of GlusterFS volumes. These backups will be stored in a Google Cloud Storage (GCS) bucket although you can configure it with other backup services like S3. Ark will also automatically remove backups that are more than two weeks old.

Take backup on-demand

Backups are taken automatically once a day. To take one on-demand:

ark create backup backup-01032019 --ttl 360h0m0s

This command takes a backup of the entire cluster. Ark will automatically delete this backup after ~2 weeks (360 hours). You can check on the progress of the backup by running this command:

ark describe backup backup-01032019 --volume-details

List all backups stored on GCS:

ark get backups

Restoring entire cluster from backup

First, get the name of the latest backup:

$ ark get backups
NAME                           STATUS      CREATED                         EXPIRES   SELECTOR
daily-backups-20190103070021   Completed   2019-01-02 23:00:21 -0800 PST   13d       <none>
daily-backups-20190102070021   Completed   2019-01-01 23:00:21 -0800 PST   12d       <none>
...

To start from a completely clean state, repeat the steps above to wide all the SD cards. Also remember to run sudo wipefs -a /dev/sda to clear out the USB drive used by GlusterFS.

Comment out the - import_playbook: deploy.yml line of the upgrade.yml playbook to skip re-creating any k8s resources. Uncomment the line backup_restore_only_mode: true in secrets/secrets.yml so that Ark does add or delete any existing backups.

Now run the bootstrap.yml playbook to recreate the cluster from scratch. Finally restore all k8s resources from backup:

ark create restore restore-01032019 --from-backup backup daily-backups-20190103070021

You can check on the restore progress with:

ark describe restore restore-01032019 --volume-details

Undo your changes to upgrade.yml and secrets.yml and re-run the ark role to allow it to resume taking daily backups.

Restoring select deployments from backup

If you'd like to restore only a subset of resources, e.g. only the VPN resources, specify a label selector on the restore:

ark create restore restore-01032019 --from-backup backup daily-backups-20190103070021 --label app=openvpn

Possible gotcha: Restic Repo shows NotReady

At one point after shutting down and restoring, my Ark deployment was unable to take new backups. This was due to ark restic repo get returning NotReady. Turns out the Restic repository was still marked as "locked", possibly due to not shutting down the cluster gracefully. Running the following commands unlocked the repo:

kubectl -n heptio-ark exec -it ark-restic-POD_ID /bin/sh
restic unlock -r gs:<VOLUME_BACKUP_BUCKET>:default
# enter 'static-passw0rd' as the repo password

At time of writing, volume backups are encrypted with the hardcoded key 'static-passw0rd'. This may change in future releases.

Optional: Adding your own Ansible tasks

The components deployed so far are just a starting point. You'll want to deploy additional software into the cluster to suit your needs. To do this you can create new Ansible roles and include these roles in the deploy.yml playbook. You can start by copying an existing role ( e.g. ./submodules/k8s-pi/roles/openvpn) into your own ./roles directory and change the files to install a different piece of software.

Optional: Building ARM images

You've worked hard to get to this point, but I've got some bad news. Many Helm charts do not support the ARM CPU architecture out-of-the-box. The vast majority of computers you interact with day-to-day use the x86_64 architecture, also called amd64, while the Raspberry Pi's use the arm architecture, also called armv7l.

Side note, the Raspberry Pi Model 3 B+ also supports arm64 (a.k.a. aarch64), the 64 bit version of arm. However, since this model has less than 4GB of RAM you don't get the main benefit of using 64-bit software. As a result the Raspberry Pi focused OS distributions don't have a 64-bit version at this time.

Docker images which are used to create k8s containers must be built to support each individual architecture. Many Helm charts include images which are built only for x86_64 architecture. If you try to run these images in your Raspberry Pi cluster, the containers will fail to start with Exec error. You have a couple options to get an image built for arm:

  • Check whether the image maintainers created the arm image under a different name or tag, e.g. k8s.gcr.io/defaultbackend-arm:1.4
  • Google around to see whether someone else has uploaded an arm image to Dockerhub for that piece of software
    • Disclaimer: use at your own risk when using software from someone other than the official project maintainers
  • Build the image yourself on a Raspberry Pi, here are the usual steps:
    • clone the target project from GitHub onto the Raspberry Pi
    • cd to the directory containing the Dockerfile
    • Run docker build -t YOUR_USERNAME/IMAGE-arm:latest .
    • Run docker login and paste in your Dockerhub credentials
    • Run docker push YOUR_USERNAME/IMAGE-arm:latest
    • Specify the new image name and tag in the helm values file, the name of the key will vary by chart
  • Open an issue asking the project maintainers to start publishing arm images

If you want to publish a single Docker image which runs on multiple architectures, you can push an image manifest. The DockerHub official images all support multiple architectures. This excellent blog post shows how to build your own multi-arch images. The dns-updater image also shows this approach.

Open Issues

I've manually built several ARM images which are included in the Ansible playbooks, but ideally the project maintainers would publish official ARM images. Here's a list of issues tracking official ARM images:

Future work

Here's a few ideas that would be nice to implement going forward:

  • Switch to Kubespray for base Ansible playbooks
    • Like this project, Kubespray is a collection of Ansible roles to setup a k8s cluster, but doesn't support ARM out-of-the-box
    • I tried for ~1 day to get Kubespray working but I got stuck on GlusterFS volumes hanging on mount
  • Support multi-master deployment of master node and etcd
    • The above setup only has a single master k8s node
    • If this node goes down you'll be unable to modify any cluster resources, luckily the workers can continue to serve application traffic

Finished!

Please open an issue if you run into trouble. There are a lot of moving pieces here and it probably won't work on the first try. As frustrating as it can be to get this stuff working, it is equally delightful to use once you get it setup. PRs to docs and playbooks gladly accepted.

Bon Voyage!

k8s gophers

(Gopher image by Ashley McNamara)

Sign up for free to join this conversation on GitHub. Already have an account? Sign in to comment
