nginx logstash cipher logging

01-relp-rsyslog.conf

$ModLoad omrelp
$RepeatedMsgReduction off
$template ls_json,"{\"@version\":1,\"es_environment\":\"dmz\",\"@timestamp\":\"%timestamp:1:19:date-rfc3339%.%timestamp:1:3:date-subseconds%+00:00\",%HOSTNAME:::jsonf:source_host%,\"message\":\"%timestamp% %app-name%:%msg:::json%\",%syslogfacility-text:::jsonf:facility%,%syslogseverity-text:::jsonf:severity%,%app-name:::jsonf:program%,%procid:::jsonf:processid%}"
*.* :omrelp:X.X.X.X:21514;ls_json

02-nginx-rsyslog.conf

$ModLoad imfile
$WorkDirectory /var/lib/rsyslog-state/
$InputFileName /var/lib/nrouter/logs/access.log
$InputFileTag nginx-access:
$InputFileStateFile state-nginx-access
$InputFileSeverity info
$InputFileFacility local7
$InputFileMaxSubmitAtOnce 100
$InputRunFileMonitor

$InputFileName /var/lib/nrouter/logs/tcp_access.log
$InputFileTag nginx-tcpaccess:
$InputFileStateFile state-nginx-tcpaccess
$InputFileSeverity info
$InputFileFacility local7
$InputRunFileMonitor

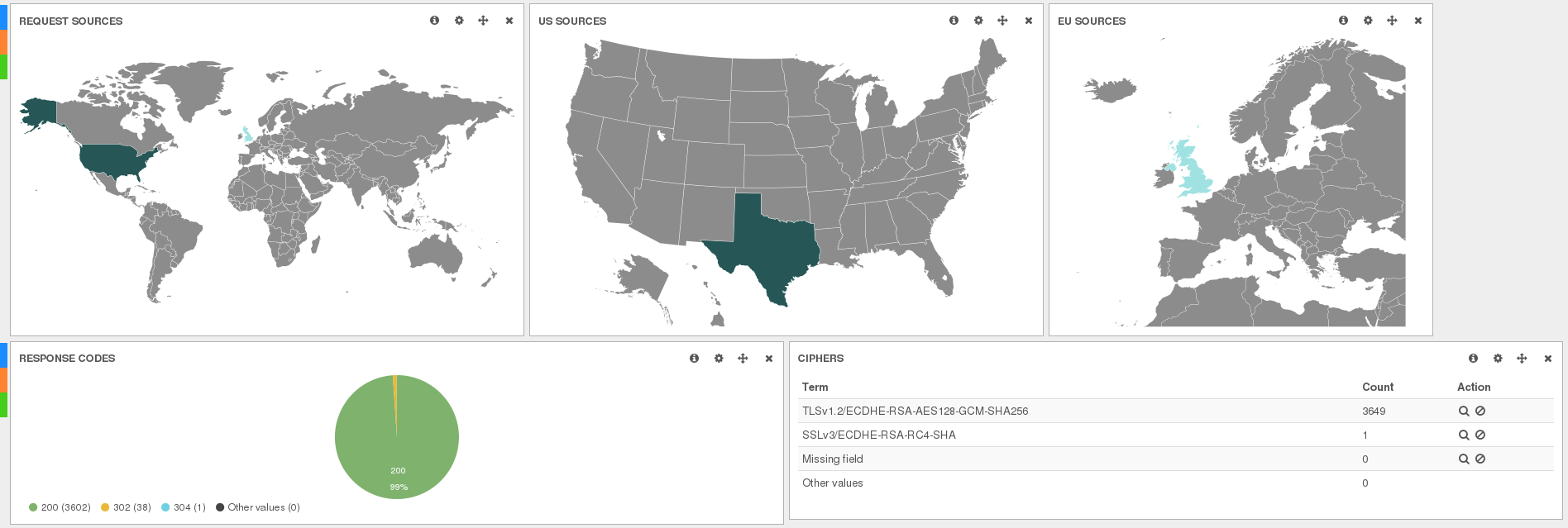

kibana.md

logevent-fragment.json

{
    "@version": 1,
    "es_environment": "dmz",
    "@timestamp": "2014-10-15T03:21:27.000Z",
    "source_host": "XXXXXXXX",
    "message": "GET /logstash-2014.10.15/_aliases?ignore_missing=true [200]",
    "facility": "local7",
    "severity": "info",
    "program": "nginx-access",
    "processid": "-",
    "ls_input": "relp",
    "es_component": "rsyslog",
    "host": "XXXXXXXXXXXX:58910",
    "clientip": "X.X.X.X",
    "ident": "-",
    "auth": "XXXXXXXXX",
    "verb": "GET",
    "request": "/logstash-2014.10.15/_aliases",
    "httpversion": "1.1",
    "response": "200",
    "bytes": 67,
    "referrer": "https://XXXXXXXXXXXXXXXXXXXX/",
    "agent": "Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:33.0) Gecko/20100101 Firefox/33.0",
    "x_forwarded_for": "\"-\"",
    "ssl_cipher": "TLSv1.2/ECDHE-RSA-AES128-GCM-SHA256",
    "geoip": {
      "ip": "X.X.X.X",
      "country_code2": "US",
      "country_code3": "USA",
      "country_name": "United States",
      "continent_code": "NA",
      "region_name": "TX",
      "city_name": "Round Rock",
      "postal_code": "78682",
      "latitude": 30.656800000000004,
      "longitude": -97.6026,
      "dma_code": 635,
      "area_code": 512,
      "timezone": "America/Chicago",
      "real_region_name": "Texas",
      "location": [
        -97.6026,
        30.656800000000004
      ]
    }

logstash-filters.conf

	  grok {
		match => [
			"message", "%{COMBINEDAPACHELOG} %{QS:x_forwarded_for} \[%{GREEDYDATA:ssl_cipher}\]",
			"message", "%{COMBINEDAPACHELOG} \[%{GREEDYDATA:ssl_cipher}\]",
			"message", "%{COMBINEDAPACHELOG} %{QS:x_forwarded_for}",
			"message", "%{COMBINEDAPACHELOG}"
		]
	  }
	  date {
	    match => [ "timestamp" , "dd/MMM/yyyy:HH:mm:ss Z" ]
	  }
	  geoip { source => "clientip" }
	  kv { target => "query_params" field_split => "&?" source => "request" }
	  kv { target => "referrer_params" field_split => "&?" source => "referrer" }
	  mutate {
		update => ["message", "%{verb} %{request} [%{response}]"]
		remove_field => ["timestamp"]
                convert => [ "bytes", "integer" ]
          }
}

nginx-logging.conf

ssl_ciphers ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-AES256-SHA384:ECDHE-RSA-AES256-SHA384:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA256:ECDHE-ECDSA-RC4-SHA:ECDHE-RSA-RC4-SHA:ECDH-ECDSA-RC4-SHA:ECDH-RSA-RC4-SHA:ECDHE-RSA-AES256-SHA:RC4-SHA;

    log_format  main  '$remote_addr - $http_remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for" [$ssl_protocol/$ssl_cipher]';
