FSM-55について情報まとめ

Raw

00whatis_fsm55.md

FSM-55とは

Raw

fsm-55_from_pcb.md

FSM-55をPCBから作るには

とりあえず10枚PCB注文したら12枚来た。けど10枚として換算。送料をはしょるためにその他のパーツも多めに買っている。固定費を除くと1個あたりの単価は、、、

¥520 = 1071.0/10 + 1487.0/20 + 31.5 + 5.3*25 + 69.3*2 + 2.8*5 + 4.4 + 2.3*4 + 30.0*(3+3+5)/40.0

gniibeさん、すげぇ。。。ピンヘッダと電池ボックスが入っているとはいえ、seeedで100個買った時の予定単価とあまりかわらない。。。

http://www.seeedstudio.com/depot/FSM55-LED-Matrix-Display-p-2121.html

材料

PCB

http://www.elecrow.com/2-layer-5-5cm-max-510pcs-color-free-p-418.html

$9.90 = ¥1071: 2 Layer 5 * 5cm Max - 5/10pcs (Color Free)
$4.59 = ¥497: 送料 (Registered Airmail - Weight: 110g 7-25 Days)

これ以上刷るなら、別業者頼んだ方がいい。

Shop pcb manufactur online - Buy pcb manufactur for unbeatable low prices on AliExpress.com

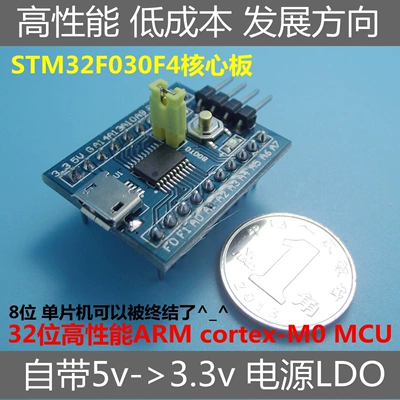

MCU: STM32F030F4 * 1

http://www.aliexpress.com/item/FREE-SHIPPING-10PCS-LOT-STM32F030F4P6-STM32F030F4-STM32F030-IC-MCU-ARM-16K-FLASH-TSSOP20/32215979726.html

¥1487 (20個)

Cell battery holder: BAT-HLD-001-THM * 1

http://www.mouser.jp/ProductDetail/Linx-Technologies/BAT-HLD-001-THM/?qs=sGAEpiMZZMtT9MhkajLHrtLdadThLjMV00SR3w%2f8BL4%3d

¥788 = ¥31.5 * 25

LED: LG R971-KN-1 * 25

http://www.mouser.jp/ProductDetail/Osram-Opto-Semiconductor/LG-R971-KN-1/?qs=%2fha2pyFaduhGIbxpHp5T4KdFZX%2fz3gP6qixqD3%2flaOb8MwcpKKfsGw%3d%3d

¥2650 = ¥5.3 * 500

Tactile switch: SKQGAFE010 * 2

http://www.mouser.jp/ProductDetail/ALPS/SKQGAFE010/?qs=%2fha2pyFadugelz7Lz2BJTQJWaWETzWHvv1Y2jLsd4zo%3d

¥3465 = ¥69.3 * 50

千石の方が安い。 http://www.sengoku.co.jp/mod/sgk_cart/detail.php?code=EEHD-04U3

Resistors * 5

47Ω http://www.mouser.jp/ProductDetail/Vishay-Dale/CRCW080547R0JNEA/?qs=sGAEpiMZZMvdGkrng054txEw7b1YnvGuFYxJnz1RVXQ%3d

¥280 = ¥2.8 * 100

Capacitors * (1 + 4)

4.7uF http://www.mouser.jp/ProductDetail/Vishay-Vitramon/VJ0805V475ZXQTW1BC/?qs=sGAEpiMZZMuMW9TJLBQkXmt5SQVoUrSJNAU8zZEgNqU%3d

¥440 = ¥4.4 * 100

100nF (0.1uF) http://www.mouser.jp/ProductDetail/Vishay-Vitramon/VJ0603Y104JXQCW1BC/?qs=sGAEpiMZZMuMW9TJLBQkXvlFzI1aRBtdrU1srwol6I4%3d

¥230 = ¥2.3 * 100

ピンヘッダ

K1用に3ピン、K2用に3ピン、K3用に5ピン、これが12枚だから132ピン。でも多めに買っておいた方がいい。端数あるので。

ピンヘッダ 1x40 (40P) http://akizukidenshi.com/catalog/g/gC-00167/

¥150 = ¥30 * 5

Raw

industrial_tool.md

PCBから基板を作る工具

ステンシル

http://www.elecrow.com/laser-cut-pcb-stencil-service-without-frame-p-869.html

$40.00 = ¥4326: Laser Cut PCB Stencil service without frame
$11.42 = ¥1236: 送料

高い。印刷する手もあるみたい。

小型カッティングマシンCraft ROBO http://craftrobo.jp/index.html

はんだペースト

Soldering Repair Solder Paste Cream Welding Paste Flux Grease Gel New BAAU http://www.ebay.com/itm/Soldering-Repair-Solder-Paste-Cream-Welding-Paste-Flux-Grease-Gel-New-BAAU-/191121993987?pt=AU_Business_Industrial_Industrial_Supply_MRO&hash=item2c7fc23103

¥342

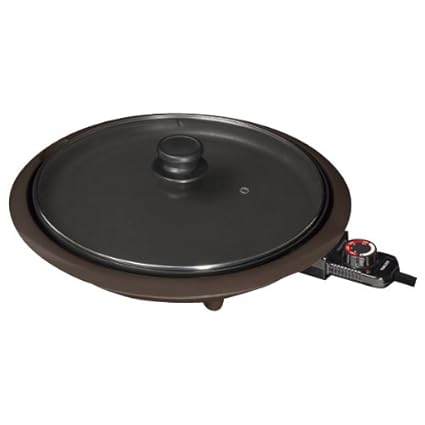

ホットプレート

2000円ぐらい。

Raw

network.md

赤外線

マイコンの実験：赤外線通信実験１ http://www.geocities.jp/zattouka/GarageHouse/micon/InfraredCOM/InfraredCOM.htm

1wire

http://en.wikipedia.org/wiki/1-Wire

Raw

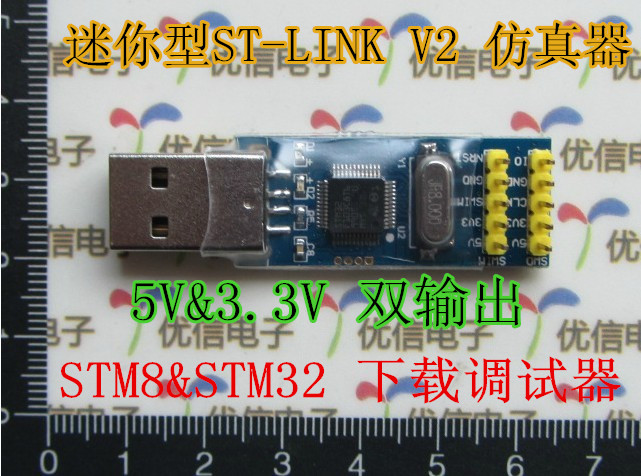

stlink.md

openocd

$ openocd --version |& head -1
Open On-Chip Debugger 0.9.0-dev-00184-g885f438 (2014-10-30-21:18)
$ cat stm32f030f4p6-minimum.cfg
source [find interface/stlink-v2.cfg]
transport select hla_swd
set WORKAREASIZE 0x1000
source [find target/stm32f0x.cfg]
reset_config srst_only srst_nogate connect_assert_srst
$ sudo openocd -f stm32f030f4p6-minimum.cfg
Open On-Chip Debugger 0.9.0-dev-00184-g885f438 (2014-10-30-21:18)
Licensed under GNU GPL v2
For bug reports, read
        http://openocd.sourceforge.net/doc/doxygen/bugs.html
Info : The selected transport took over low-level target control. The
results might differ compared to plain JTAG/SWD
adapter speed: 1000 kHz
adapter_nsrst_delay: 100
srst_only separate srst_nogate srst_open_drain connect_assert_srst
Info : clock speed 1000 kHz
Info : STLINK v2 JTAG v16 API v2 SWIM v4 VID 0x0483 PID 0x3748
Info : using stlink api v2
Info : Target voltage: 3.200525
Info : stm32f0x.cpu: hardware has 4 breakpoints, 2 watchpoints

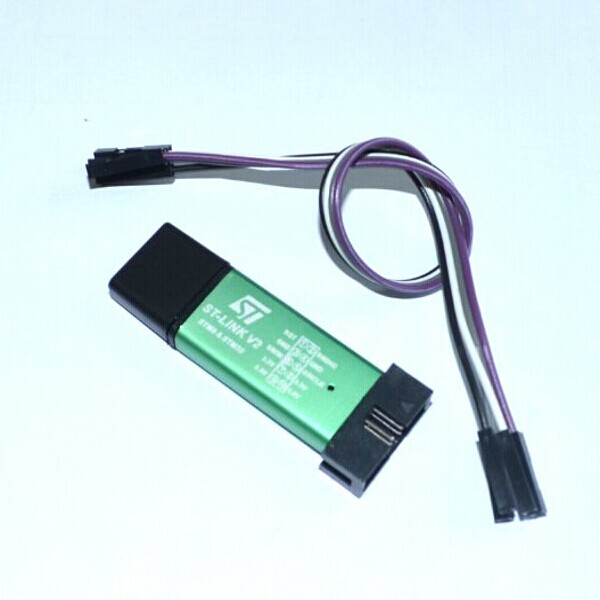

ST-LINK/V2との配線

http://www.gniibe.org/memo/development/fsm-55/fsm-55-testplan.html

FSM-55側

Top view of FSM-55:
+-------------------+
|O K1              O|
| []  * * * * *     |
| []  * * * * *     |
| []  * * * * *     |
|     * * * * *     |
|     * * * * *     |
|     U1+--+        |
|       +--+        |
|   K2[][][]  K3    |
| ()  [][][][][] () |
|RESET          USER|
|O    1 2 3 4 5    O|
+-------------------+
      | | | | |
      v v v v v
    RED       BLUE

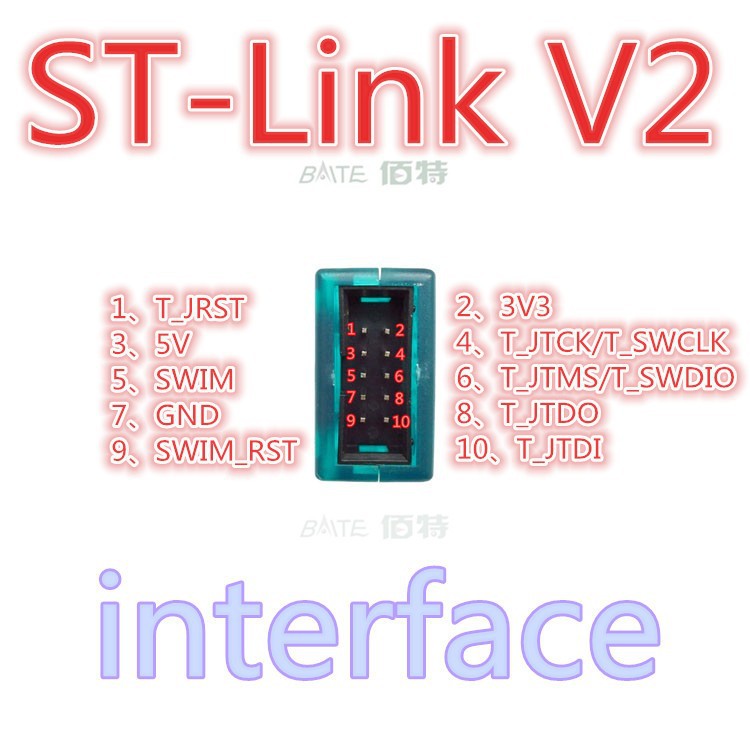

ST-LINK/V2側

CN3 of ST-Link/V2 (top view):
           /--> Pin 19 of CN3 of ST-Link/V2
           |
           \--[VAPP] 1 2 [VAPP] RED -----> Pin 1 of K3 of FSM-55
                     3 4
                     5 6
/---- BLACK [SWD-IO] 7 8
|/--- BLACK [SWDCLK] 9 10
||                  11 12
||                  13 14
||/-- BLACK [nRST]  15 16
|||                 17 18
|||        /--[VDD] 19 20 [GND] BLUE -----> Pin 5 of K3 of FSM-55
|||        |
|||        v
|||        Pin 1 of CN3 of ST-Link/V2
||v
||Pin 4 of K3 of FSM-55
|v
|Pin 3 of K3 of FSM-55
v
Pin 2 of K3 of FSM-55
