ping a host once a second and visualize the results
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| #!/usr/bin/python | |
| """ | |
| Multiping version ${version} by Marius Gedminas <[email protected]> | |
| Licence: GPL v2 or later | |
| Syntax: multiping hostname | |

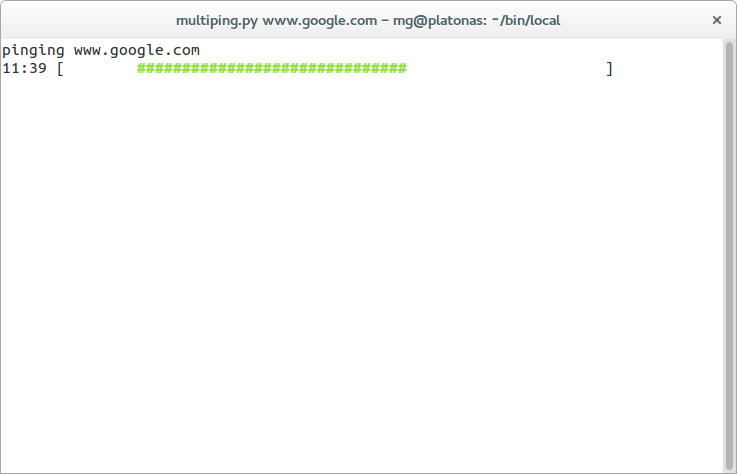

| Pings a host every second and displays the results in an ncurses window. | |
| Legend: | |
| # ping OK | |
| % ping OK, response is slow (over 1000 ms) | |
| - ping not OK | |
| ! ping process killed (after 20 seconds) | |
| ? cannot execute ping | |
| Keys: | |
| q quit | |
| k, up scroll up | |
| j, down scroll down | |
| ^U, page up scroll page up | |
| ^D, page down scroll page down | |
| g, home scroll to top | |
| G, end scroll to bottom | |
| ^L redraw | |
| """ | |
| import sys | |
| import curses | |
| from threading import Thread | |
| from time import time, strftime, localtime, sleep | |
| import os | |
| __version__ = '0.9.4' | |
| __author__ = 'Marius Gedminas <[email protected]>' | |
| __url__ = 'https://gist.github.com/mgedmin/b65af068e0d239fe9c66' | |
| __licence__ = 'GPL v2 or later' | |
| QUEUE_LEN = 20 # max number of outstanding ping subprocesses | |
| # so we won't fill up the OS pid table or something | |
| # (guess what event made me add this limitation? ;) | |
| class Ping(Thread): | |
| def __init__(self, pinger, idx, hostname): | |
| Thread.__init__(self) | |
| self.setDaemon(1) | |
| self.pinger = pinger | |
| self.idx = idx | |
| self.hostname = hostname | |
| self.pid = None | |
| self.success = 0 | |
| def run(self): | |
| start = time() | |
| self.pid = os.fork() | |
| if not self.pid: | |
| null = os.open('/dev/null', os.O_WRONLY) | |
| os.dup2(null, 1) | |
| os.dup2(null, 2) | |
| os.execlp('ping', 'ping', '-c', '1', '-n', '-q', self.hostname) | |
| sys.exit(99) # exec failed! | |
| return # exit failed?!?!? | |
| status = os.waitpid(self.pid, 0)[1] | |
| self.pid = None | |
| delay = time() - start | |
| if os.WIFSIGNALED(status): | |
| result = '!' | |
| else: | |
| status = os.WEXITSTATUS(status) | |
| if status == 0: | |
| self.success = 1 | |
| if delay > 1: | |
| result = '%' | |
| else: | |
| result = '#' | |
| elif status == 99: | |
| result = '?' | |
| else: | |
| result = '-' | |
| self.pinger.set(self.idx, result) | |
| def timeout(self, hard=False): | |
| if self.pid: | |
| # Note that self.pid may be set to None after the check above | |
| try: | |
| os.kill(self.pid, hard and 9 or 15) | |
| except (OSError, TypeError): | |
| pass | |
| class Pinger(Thread): | |
| def __init__(self, hostname, interval): | |
| Thread.__init__(self) | |
| self.setDaemon(1) | |
| self.hostname = hostname | |
| self.interval = interval | |
| self.status = [] | |
| self.version = 0 | |
| self.running = 1 | |
| self.started = -1 | |
| self.sent = 0 | |
| self.received = 0 | |
| def run(self): | |
| self.started = last_time = time() | |
| idx = 0 | |
| queue = [] | |
| last_one = None | |
| while self.running: | |
| self.set(idx, '.') | |
| p = Ping(self, idx, self.hostname) | |
| queue.append(p) | |
| p.start() | |
| if len(queue) >= QUEUE_LEN: | |
| if last_one: | |
| last_one.timeout(1) | |
| self.sent += 1 | |
| if last_one.success: | |
| self.received += 1 | |
| last_one = queue.pop(0) | |
| last_one.timeout() | |
| # XXX sometimes this logic sleeps too much and skips one cell, why? | |
| to_sleep = (last_time + self.interval) - time() | |
| if to_sleep > 0: | |
| sleep(to_sleep) | |
| last_time = time() | |
| idx = max(idx + 1, int((last_time - self.started) / self.interval)) | |
| def set(self, idx, result): | |
| while idx >= len(self.status): | |
| self.status.append(ord(' ')) | |
| self.status[idx] = result | |
| self.version += 1 | |
| def quit(self): | |
| self.running = 0 | |
| class UI: | |
| def __init__(self, win, y, x, width, height, pinger): | |
| self.win = win | |
| self.y = y | |
| self.x = x | |
| self.width = width | |
| self.height = height | |
| self.pinger = pinger | |
| self.version = -1 | |
| self.autoscrolling = True | |
| self.row = 0 | |
| curses.use_default_colors() | |
| curses.init_pair(1, curses.COLOR_RED, -1) | |
| curses.init_pair(2, curses.COLOR_GREEN, -1) | |
| self.RED = curses.color_pair(1) | curses.A_BOLD | |
| self.GREEN = curses.color_pair(2) | curses.A_BOLD | |
| self.DGREEN = curses.color_pair(2) | |
| curses.curs_set(0) | |
| def draw(self): | |
| win = self.win | |
| y = self.y | |
| x = self.x | |
| width = self.width | |
| height = self.height | |
| status = self.pinger.status | |
| interval = self.pinger.interval | |
| this_is_an_update = self.version != self.pinger.version | |
| self.version = self.pinger.version | |
| if self.pinger.sent > 0: | |
| loss = 100 - 100 * self.pinger.received / self.pinger.sent | |
| if loss > 0: | |
| win.addstr(y-1, x, "pinging %s: packet loss %d%%" | |
| % (hostname, int(loss))) | |
| else: | |
| win.addstr(y-1, x, "pinging %s" % hostname) | |
| win.clrtoeol() | |
| else: | |
| win.addstr(y-1, x, "pinging %s" % hostname) | |
| win.clrtoeol() | |
| if self.autoscroll() and this_is_an_update: | |
| self._scroll_to_bottom() | |
| pos = self.row * width | |
| if self.pinger.started != -1: | |
| pos -= int(self.pinger.started) % 60 | |
| t = self.pinger.started + pos * interval | |
| while pos < len(status) and height > 0: | |
| win.addstr(y, x, strftime("%H:%M [", localtime(t))) | |
| for i in range(width): | |
| attr = curses.A_NORMAL | |
| if 0 <= pos < len(status): | |
| ch = status[pos] | |
| if ch in ('-', '?', '!'): | |
| attr = self.RED | |
| elif ch == '#': | |
| attr = self.GREEN | |
| elif ch == '%': | |
| attr = self.DGREEN | |
| else: | |
| ch = ord(" ") | |
| win.addch(ch, attr) | |
| pos += 1 | |
| win.addstr("]") | |
| y += 1 | |
| t += width * interval | |
| height -= 1 | |
| if height > 0: | |
| win.move(y, x) | |
| win.clrtobot() | |
| def last_row_visible(self): | |
| max_pos = len(self.pinger.status) | |
| if self.pinger.started != -1: | |
| max_pos += int(self.pinger.started) % 60 | |
| pos_just_past_the_screen = (self.row + self.height) * self.width | |
| return pos_just_past_the_screen - self.width <= max_pos < pos_just_past_the_screen | |
| def autoscroll(self): | |
| if not self.autoscrolling: | |
| return False | |
| # autoscroll only if the bottom row was visible and is no longer | |
| pos_just_past_the_screen = (self.row + self.height) * self.width | |
| max_pos = len(self.pinger.status) | |
| if self.pinger.started != -1: | |
| max_pos += int(self.pinger.started) % 60 | |
| return pos_just_past_the_screen <= max_pos - 1 | |
| def update(self): | |
| if self.version != self.pinger.version: | |
| try: | |
| self.draw() | |
| except curses.error: | |
| # let's hope it's just a momentary glitch due to a temporarily | |
| # reduced window size or something | |
| pass | |
| return 1 | |
| else: | |
| return 0 | |
| def scroll(self, delta): | |
| self.row += delta | |
| self.row = max(self.row, 1 - self.height) | |
| max_pos = len(self.pinger.status) | |
| if self.pinger.started != -1: | |
| max_pos += int(self.pinger.started) % 60 | |
| self.row = min(self.row, int((max_pos - 1) / self.width)) | |
| self.autoscrolling = self.last_row_visible() | |
| self.draw() | |
| def scroll_to_top(self): | |
| self.row = 0 | |
| self.autoscrolling = self.last_row_visible() | |
| self.draw() | |
| def _scroll_to_bottom(self): | |
| max_pos = len(self.pinger.status) | |
| if self.pinger.started != -1: | |
| max_pos += int(self.pinger.started) % 60 | |
| self.row = max(0, int((max_pos - 1) / self.width) - self.height + 1) | |
| def scroll_to_bottom(self): | |
| self._scroll_to_bottom() | |
| self.autoscrolling = True | |
| self.draw() | |
| def resize(self, new_height): | |
| self.height = new_height | |
| if self.autoscrolling: | |
| self._scroll_to_bottom() | |
| self.scroll(0) | |
| def main(stdscr, hostname, interval=1): | |
| stdscr.addstr(0, 0, "pinging %s" % hostname) | |
| pinger = Pinger(hostname, interval) | |
| pinger.start() | |
| ui = UI(stdscr, 1, 0, 60, curses.LINES - 1, pinger) | |
| ui.draw() | |
| stdscr.refresh() | |
| curses.halfdelay(interval * 5) | |
| while 1: | |
| c = stdscr.getch() | |
| if ui.update(): | |
| stdscr.refresh() | |
| if c == ord('q'): | |
| pinger.quit() | |
| return | |
| elif c == curses.KEY_RESIZE: | |
| ui.resize(stdscr.getmaxyx()[0] - 1) | |
| stdscr.refresh() | |
| elif c == 12: # ^L | |
| stdscr.clear() | |
| ui.draw() | |
| stdscr.refresh() | |
| elif c in (ord('k'), curses.KEY_UP): | |
| ui.scroll(-1) | |
| stdscr.refresh() | |
| elif c in (ord('j'), curses.KEY_DOWN): | |
| ui.scroll(1) | |
| stdscr.refresh() | |
| elif c in (ord('U') - ord('@'), curses.KEY_PPAGE): | |
| ui.scroll(1 - ui.height) | |
| stdscr.refresh() | |
| elif c in (ord('D') - ord('@'), curses.KEY_NPAGE): | |
| ui.scroll(ui.height - 1) | |
| stdscr.refresh() | |
| elif c in (ord('g'), curses.KEY_HOME): | |
| ui.scroll_to_top() | |
| stdscr.refresh() | |
| elif c in (ord('G'), curses.KEY_END): | |
| ui.scroll_to_bottom() | |
| stdscr.refresh() | |
| elif c == ord('f'): # fake ping response for debugging | |
| pinger.status.append('F') | |
| ui.draw() | |
| stdscr.refresh() | |
| elif c == ord('F'): # fake ping response for debugging | |
| pinger.status.extend(['F'] * 60 * 10) | |
| ui.draw() | |
| stdscr.refresh() | |
| if __name__ == "__main__": | |
| if len(sys.argv) != 2 or sys.argv[1] in ('-h', '--help'): | |
| print(__doc__.replace('${version}', __version__)) | |
| sys.exit(0) | |
| hostname = sys.argv[1] | |
| curses.wrapper(main, hostname) |
Author
mgedmin
commented
Apr 2, 2015
Moved to https://github.com/mgedmin/scripts/blob/master/multiping.py, and I'm now thinking of extracting it into its own repo.
And now moved to https://github.com/mgedmin/multiping and also available from PyPI: pipx install multiping.py
