Example HTTPS load balancer in front of GKE cluster using NEGs

https-gke-neg-example.sh

#!/usr/bin/env bash

export PROJECT_ID=$(gcloud config get-value project)
export PROJECT_USER=$(gcloud config get-value core/account) # set current user
export PROJECT_NUMBER=$(gcloud projects describe $PROJECT_ID --format="value(projectNumber)")
export IDNS=${PROJECT_ID}.svc.id.goog # workflow identity domain

export GCP_REGION="us-west1"

export GKE_CLUSTER_NAME="west-v116"
export GKE_CLUSTER_VERSION="1.16.15-gke.12500"
export GKE_CLUSTER_CHANNEL="None"
export TEST_NAMESPACE="test1"
export TEST_NS_2="test2"
export NETWORK_NAME="default"
export DOMAIN="msparr.com"

# enable APIs
gcloud services enable compute.googleapis.com \
    container.googleapis.com

# create cluster
gcloud container --project $PROJECT_ID clusters create $GKE_CLUSTER_NAME \
    --region $GCP_REGION \
    --num-nodes 1 \
    --enable-ip-alias \
    --cluster-version $GKE_CLUSTER_VERSION \
    --release-channel $GKE_CLUSTER_CHANNEL

# create namespace
kubectl create ns $TEST_NAMESPACE

# create echo deployment
kubectl create deployment echo --image=k8s.gcr.io/echoserver:1.4 -n $TEST_NAMESPACE

# scale to 3 replicas
kubectl scale deployment echo --replicas 3 -n $TEST_NAMESPACE

# expose deployment with ClusterIP (for external access)
cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Service
metadata:
  name: ilb-service
  namespace: $TEST_NAMESPACE
  annotations:
    cloud.google.com/neg: '{"exposed_ports": {"80":{}}}'
    #networking.gke.io/load-balancer-type: "Internal"
  labels:
    app: echo
spec:
  type: ClusterIP
  selector:
    app: echo
  ports:
  - port: 80
    targetPort: 8080
    protocol: TCP
EOF

# create health check
gcloud compute health-checks create http health-check-${TEST_NAMESPACE} \
    --use-serving-port \
    --request-path="/healthz"

# create backend service
gcloud compute backend-services create backend-service-default \
    --global
gcloud compute backend-services create backend-service-${TEST_NAMESPACE} \
    --global \
    --health-checks health-check-${TEST_NAMESPACE}

# create URL map
gcloud compute url-maps create ${TEST_NAMESPACE}-url-map \
    --global \
    --default-service backend-service-default
sleep 10

# add path rules to URL map
gcloud compute url-maps add-path-matcher ${TEST_NAMESPACE}-url-map \
    --global \
    --path-matcher-name=${TEST_NAMESPACE}-matcher \
    --default-service=backend-service-default \
    --backend-service-path-rules="/echo/*=backend-service-${TEST_NAMESPACE}"

# reserve static IP
gcloud compute addresses create ${TEST_NAMESPACE}-static \
    --ip-version=IPV4 \
    --global

# assign static IP to DNS
export STATIC_IP=$(gcloud compute addresses describe ${TEST_NAMESPACE}-static --global --format="value(address)")

# confirm assigned IP to DNS to continue
while true; do
    read -p "Did you create DNS record for ${DOMAIN} with ${STATIC_IP}? " -n 1 -r yn
    echo
    case $yn in
        [Yy]* ) break;;
        [Nn]* ) exit;;
        * ) echo "Please answer yes or no.";;
    esac
done

# create managed SSL cert
gcloud beta compute ssl-certificates create ${TEST_NAMESPACE}-cert \
    --domains "${TEST_NAMESPACE}.${DOMAIN}"

# create target HTTPS proxy
gcloud compute target-https-proxies create ${TEST_NAMESPACE}-https-proxy \
    --ssl-certificates=${TEST_NAMESPACE}-cert \
    --url-map=${TEST_NAMESPACE}-url-map

# create forwarding rule
gcloud compute forwarding-rules create ${TEST_NAMESPACE}-fw-rule \
    --target-https-proxy=${TEST_NAMESPACE}-https-proxy \
    --global \
    --ports=443 \
    --address=${TEST_NAMESPACE}-static

# verify cert (may take 10-20 minutes)
gcloud beta compute ssl-certificates describe ${TEST_NAMESPACE}-cert

# get provisioned NEG (note neg name and zones)
export NEG_NAME=$(kubectl get svc ilb-service -n $TEST_NAMESPACE -o jsonpath="{.metadata.annotations.cloud\.google\.com/neg-status}" | jq '.network_endpoint_groups | {name: .["80"]}' | jq .name -r)

# add NEG to backend service for each zone
kubectl get svc ilb-service -n $TEST_NAMESPACE -o jsonpath="{.metadata.annotations.cloud\.google\.com/neg-status}" \
    | jq '.zones | {name: .[]}' | jq .name \
    | xargs -I {} gcloud compute backend-services add-backend backend-service-${TEST_NAMESPACE} \
        --global \
        --network-endpoint-group $NEG_NAME \
        --network-endpoint-group-zone={} \
        --balancing-mode=RATE \
        --max-rate-per-endpoint=100

# create firewall rules for health checks
gcloud compute firewall-rules create fw-allow-health-checks \
    --network=$NETWORK_NAME \
    --action=ALLOW \
    --direction=INGRESS \
    --source-ranges=35.191.0.0/16,130.211.0.0/22 \
    --rules=tcp

# verify backend is healthy
gcloud compute backend-services get-health \
    --global backend-service-${TEST_NAMESPACE}

# ----------- NOW TEST IF ILB CAN WORK IN CLUSTER ---------------

# create namespace
kubectl create ns $TEST_NS_2

# create echo deployment
kubectl create deployment echo --image=k8s.gcr.io/echoserver:1.4 -n $TEST_NS_2

# scale to 3 replicas
kubectl scale deployment echo --replicas 3 -n $TEST_NS_2

# expose deployment with ILB for internal access
cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Service
metadata:
  name: ilb-service
  namespace: $TEST_NS_2
  annotations:
    #cloud.google.com/neg: '{"exposed_ports": {"80":{}}}'
    networking.gke.io/load-balancer-type: "Internal"
  labels:
    app: echo
spec:
  type: LoadBalancer
  selector:
    app: echo
  ports:
  - port: 80
    targetPort: 8080
    protocol: TCP
EOF

https-gke-neg-teardown.sh

#!/usr/bin/env bash

export PROJECT_ID=$(gcloud config get-value project)
export PROJECT_USER=$(gcloud config get-value core/account) # set current user
export PROJECT_NUMBER=$(gcloud projects describe $PROJECT_ID --format="value(projectNumber)")
export IDNS=${PROJECT_ID}.svc.id.goog # workflow identity domain

export GCP_REGION="us-west1"

export GKE_CLUSTER_NAME="west-v116"
export GKE_CLUSTER_VERSION="1.16.15-gke.12500"
export GKE_CLUSTER_CHANNEL="None"
export TEST_NAMESPACE="test1"
export TEST_NS_2="test2"
export NETWORK_NAME="default"
export DOMAIN="msparr.com"

# confirm they are deleting from right project
while true; do
    read -p "Do you wish to delete LB and Cluster from ${PROJECT_ID}? " -n 1 -r yn
    echo
    case $yn in
        [Yy]* ) break;;
        [Nn]* ) exit;;
        * ) echo "Please answer yes or no.";;
    esac
done

# delete firewall rules for health checks
gcloud --quiet compute firewall-rules delete fw-allow-health-checks

# delete forwarding rule
gcloud --quiet compute forwarding-rules delete ${TEST_NAMESPACE}-fw-rule \
    --global

# delete target HTTPS proxy
gcloud --quiet compute target-https-proxies delete ${TEST_NAMESPACE}-https-proxy

# delete managed SSL cert
gcloud --quiet beta compute ssl-certificates delete ${TEST_NAMESPACE}-cert

# delete static IP
gcloud --quiet compute addresses delete ${TEST_NAMESPACE}-static \
    --global

# delete URL map
gcloud --quiet compute url-maps delete ${TEST_NAMESPACE}-url-map \
    --global

# delete backend service
gcloud --quiet compute backend-services delete backend-service-default \
    --global
gcloud --quiet compute backend-services delete backend-service-${TEST_NAMESPACE} \
    --global

# delete health check
gcloud --quiet compute health-checks delete health-check-${TEST_NAMESPACE}

# delete namespaces
kubectl delete ns $TEST_NS_2
kubectl delete ns $TEST_NAMESPACE

# delete cluster
gcloud --quiet container --project $PROJECT_ID clusters delete $GKE_CLUSTER_NAME \
    --region $GCP_REGION \

echo "Done"

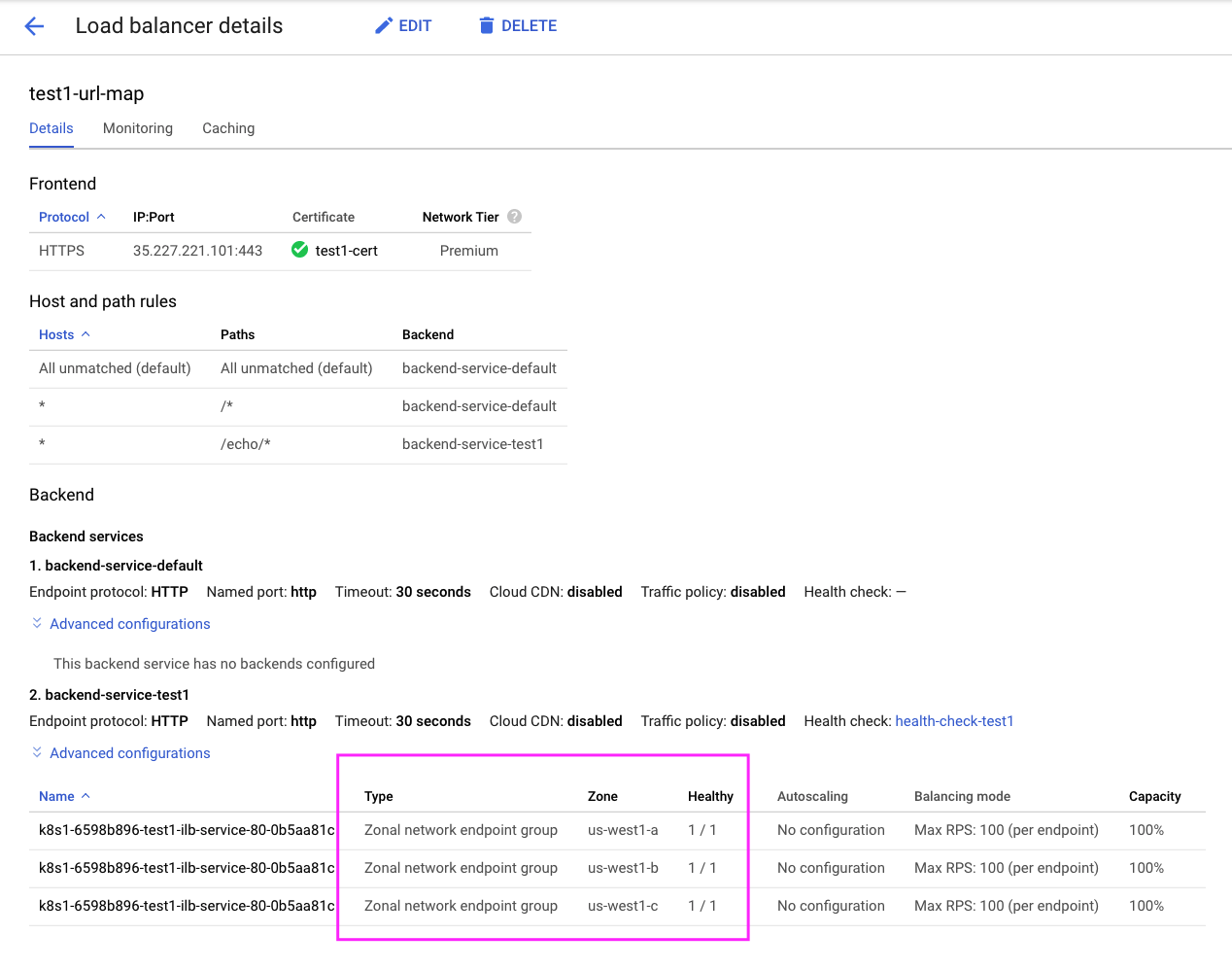

HTTPS load balancer works exposing 1 ClusterIP service using NEG as backend

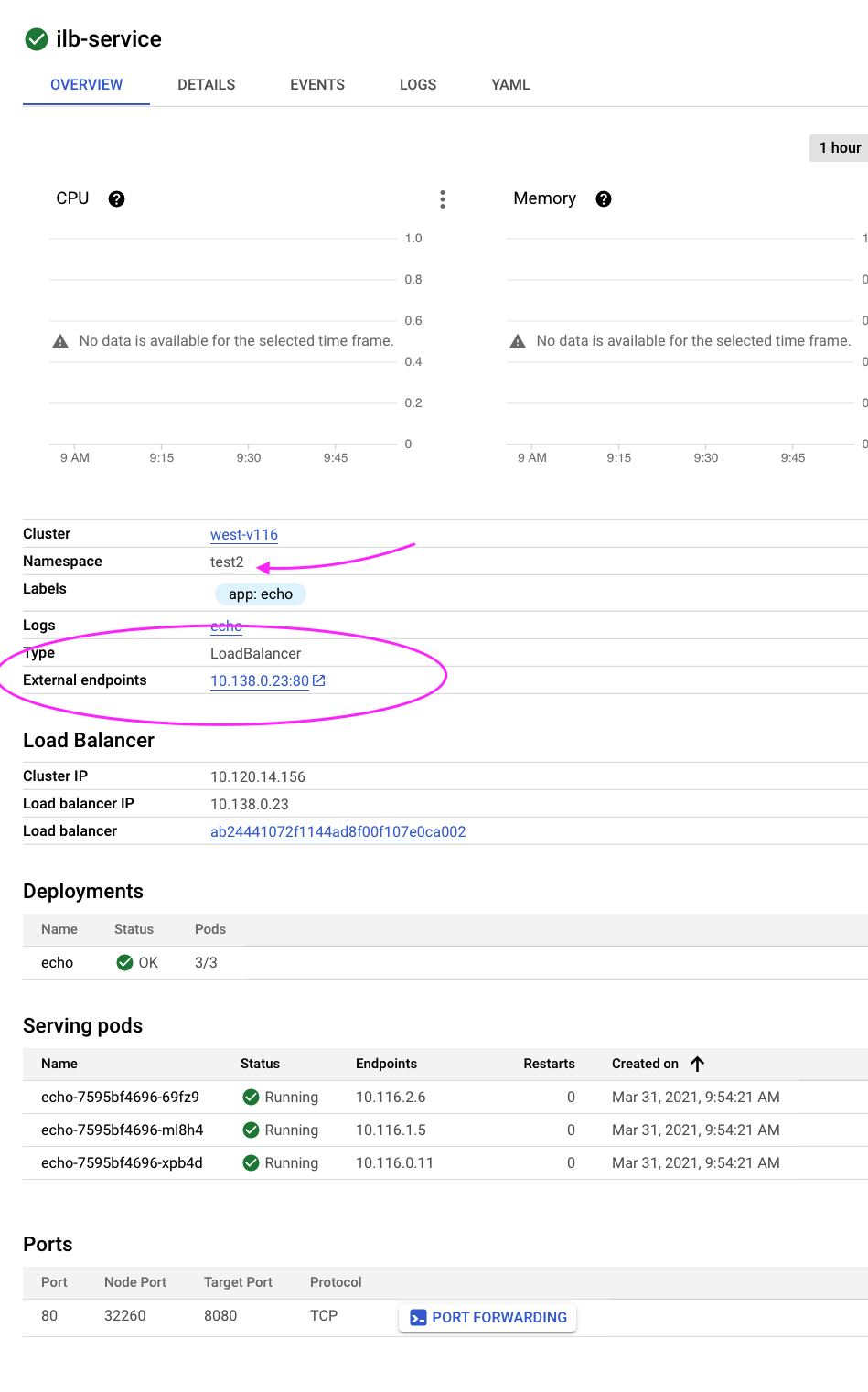

Internal Load Balancer works for non-exposed services
