(ArcGIS API for JavaScript) Sample of rendering polylines from a csv

Sample.js

require([
    "esri/Map",
    "esri/views/MapView",
    "esri/layers/CSVLayer",
    "esri/config",
    "esri/geometry/Polyline",
    "esri/Graphic",
    "esri/layers/GraphicsLayer",
    "esri/layers/FeatureLayer",
    "esri/layers/support/Field",
    "dojo/domReady!"
  ],
  function (Map, MapView, CSVLayer, esriConfig,Polyline,Graphic,GraphicsLayer, FeatureLayer, Field) {

    var url = "url to hosted csv";
    esriConfig.request.corsEnabledServers.push(url);

    //Create a csvLayer
    var csvLayer = new CSVLayer({
      url: url,
      renderer: {
        type: "simple",
        symbol: {
          type: "simple-marker",
          size: 6,
          color: "black",
          outline: {
            width: 0.5,
            color: "white"
          }
        }
      }
     });

     //Create a simpleLineSymbol for the polyline
     var sls = {
      type: "simple-line",
      color: "lightblue",
      width: "2",
      style: "short-dot"
    };

    var sls2 = {
      type: "simple-line",
      color: "red",
      width: "2",
      style: "short-dot"
    };

    //Create a new map and set the basemap to Dark gray
    var map = new Map({
      basemap: "dark-gray",
      layers: [csvLayer]
    });

    //set a new view and set the properties of the view
    var view = new MapView({
      container: "viewDiv",
      map: map,
      center: [-86.049, 38.485],
      zoom: 3
    });

    //Query the csvLayer for geometry
    csvLayer.queryFeatures({where: "first_name = 'Sly'", returnGeometry: true, outFields: ["*"]}).then(function(results) {
      //pass the features to the makeFeatureLayer function

      //Instantiate a new Polyline and array
      var polyline = new Polyline();
      var newGraphicArr = [];



      //For each geometry element, push a new array of x,y pairs
      results.features.forEach(function(element) {
          newGraphicArr.push(new Array(element.geometry.x,element.geometry.y));
      });

      //Use addPath method to add the new array of x,y paris
      polyline.addPath(newGraphicArr);

      //Create a new graphic
      var polylineGraphic = new Graphic({
        geometry: polyline,
        symbol: sls,
      });

      //Add the graphic to the graphic layer
      var layer = new GraphicsLayer({
        graphics: [polylineGraphic]
      });

      //Add the graphic layer to the map
      //map.add(layer);
      makeFeatureLayer(results);
    });


    //Make a feature layer from a feature collection gained from the query.
    function makeFeatureLayer(featureObject) {

      //Renderer for the feature layer
      var flRenderer = {
        type: "simple",  // autocasts as new SimpleRenderer()
        symbol: {
          type: "simple-marker",  // autocasts as new SimpleMarkerSymbol()
          size: 6,
          color: "blue",
          outline: {  // autocasts as new SimpleLineSymbol()
            width: 0.5,
            color: "white"
          }
        }
      };

      //Create a new feature layer making sure you include [fields, source, objectIdField, geometryType, SpatialReference, and renderer]
      var featureLayer = new FeatureLayer({
        fields: [
          {
            name: "first_name",
            alias: "first_name",
            type: "string"
          },
          {
            name: "last_name",
            alias: "last_name",
            type: "string"
          },
          {
            name: "latitude",
            alias: "latitude",
            type: "double"
          },
          {
            name: "longitude",
            alias: "longitude",
            type: "double"
          }
        ],
        objectIdField: "OBJECTID",
        geometryType: featureObject.geometryType,
        spatialReference:{ wkid: 102100 },
        source: featureObject.features,
        renderer: flRenderer
      });

      //Add feature layer to the map.
      map.add(featureLayer);
    }
  });

Sample of rendering polylines from point data

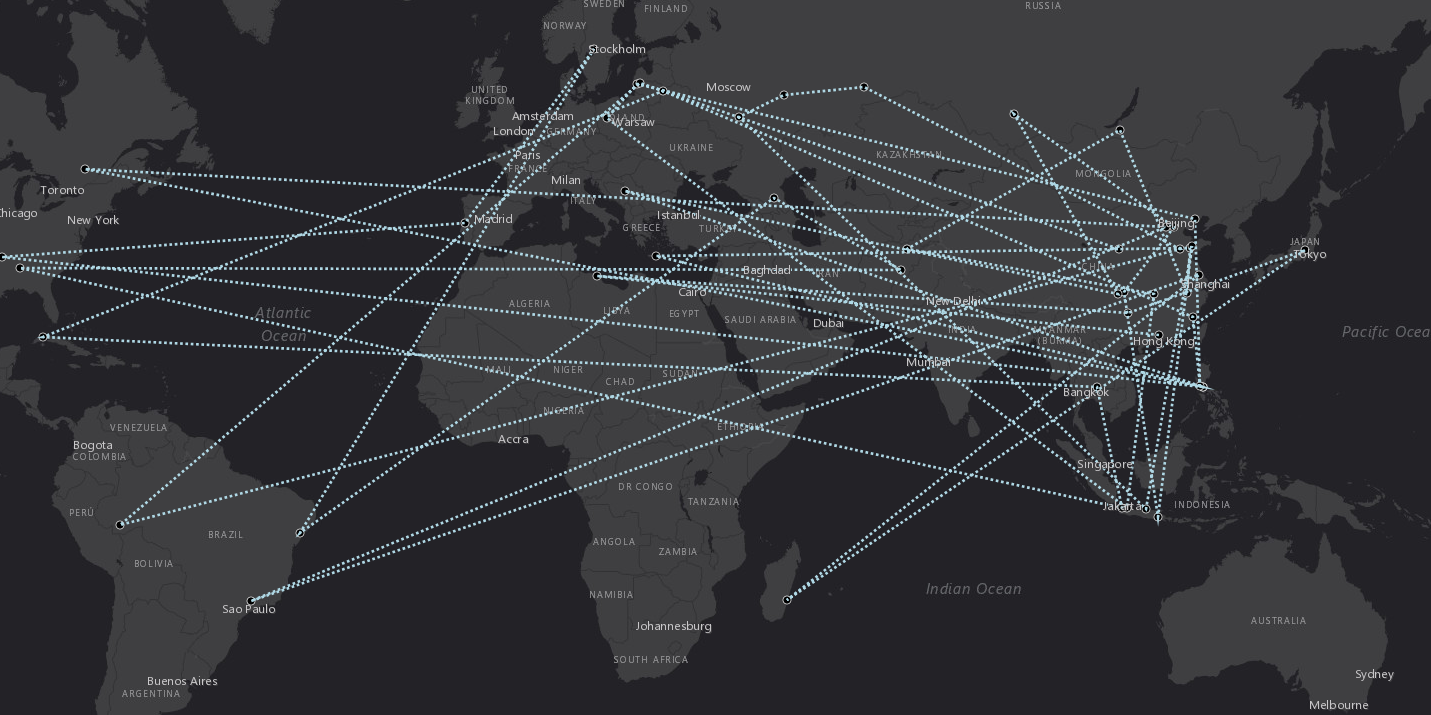

Here is a picture of what it looks like

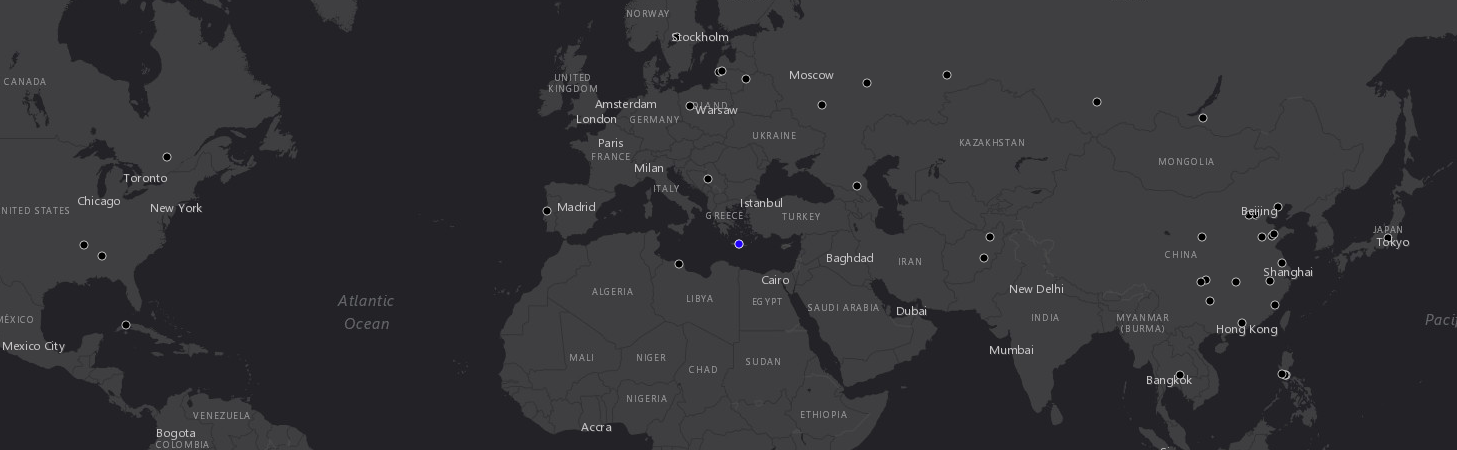

Here is a new picture of making a feature layer from a feature collection object.

Polylines are not there because I have commented it out.
