Install CoreFreq via remote url plugin: unraid-corefreq
-
Go to settings > CoreFreq and run the pre test. *proceed to the next steps if it's successful
-
Create a file
/boot/config/modprobe.d/corefreqk.confwith the following content:options corefreqk Register_ClockSource=1 Register_CPU_Freq=1 Register_Governor=1 Register_CPU_Idle=1 PkgCStateLimit=6 -
Go to boot devices and add following boot argument:
amd_pstate.shared_mem=0 amd_pstate=disable nmi_watchdog=0 modprobe.blacklist=k10temp,acpi_cpufreq,rapl,intel_rapl_msr,intel_rapl_common,sp5100_tco,wmi,eeepc_wmi,asus_wmi idle=halt tsc=unstable nowatchdog -
Reboot and go to BIOS and set the following settings: (ASRock B450 Pro4 as reference)
Global C-state Control: Enabled Power Supply Idle Control: Low Current Idle CPPC: Enabled CPPC Preferred Cores: Enabled -

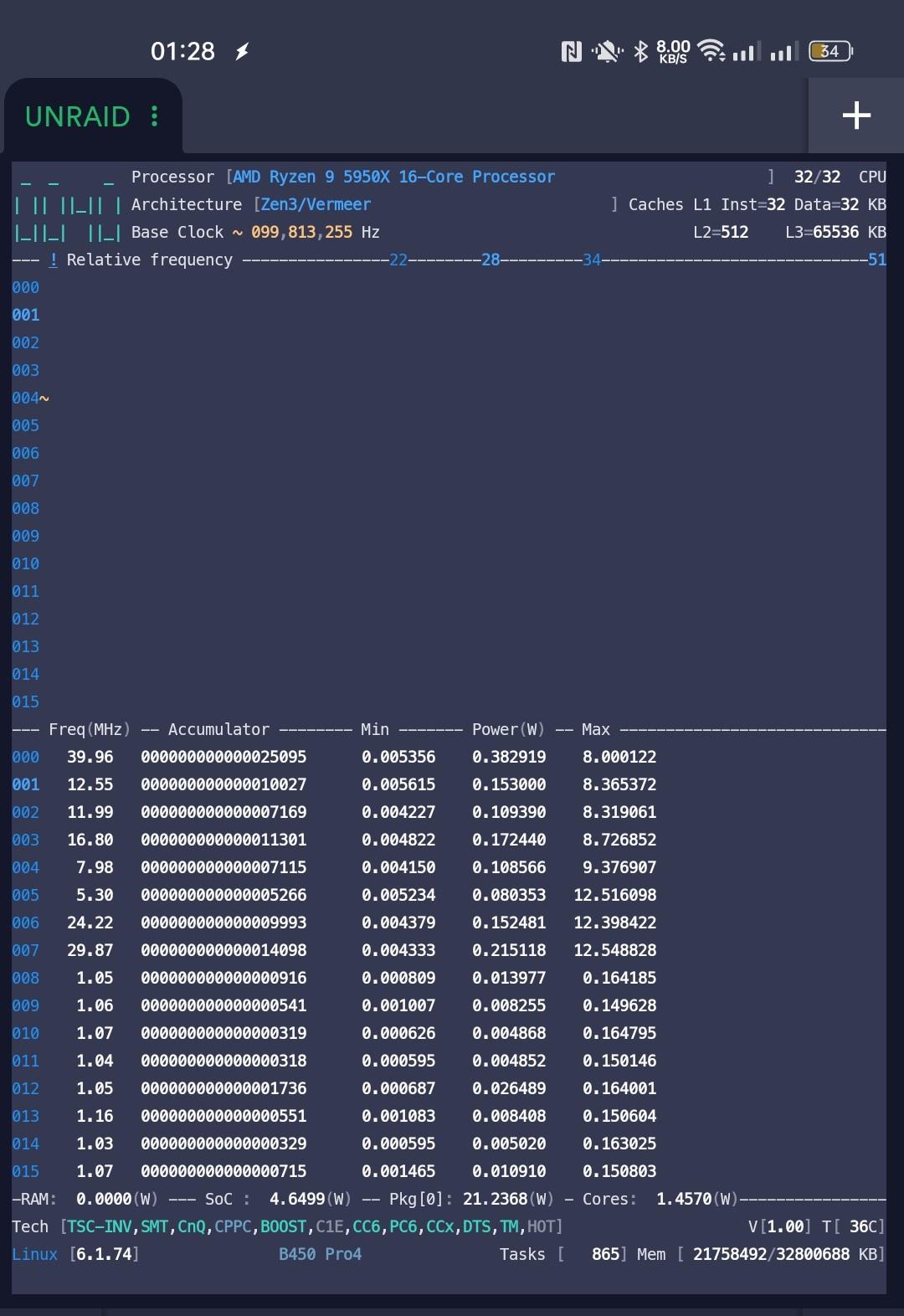

run corefreq-cli and go to settings and then make sure CPU-IDLE, CPU-FREQ, GOVERNOR and CLOCKSOURCE are enabled.
-
Go to kernel data (k) and set Idle Limit to C6
-
Optional: Set the CPU governor to powersave with this command:
# Powersave all cores echo "powersave" | sudo tee /sys/devices/system/cpu/cpu*/cpufreq/scaling_governor # Powersave specific cores echo "powersave" | sudo tee /sys/devices/system/cpu/cpu{0..7}/cpufreq/scaling_governor; echo "powersave" | sudo tee /sys/devices/system/cpu/cpu{16..23}/cpufreq/scaling_governor # Performance specific cores echo "performance" | sudo tee /sys/devices/system/cpu/cpu{8..15}/cpufreq/scaling_governor; echo "performance" | sudo tee /sys/devices/system/cpu/cpu{24..31}/cpufreq/scaling_governor
-
CTRL+Z to exit and keep it running
AMD Ryzen 9 5950x with C6 enabled consumes around 20-30W at idle running HASS OS VM and bunch of containers.
