Up/Down Switch
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
[ | |
{ | |
"id": "03d1fe605e7ed494", | |
"type": "subflow", | |
"name": "UD Switch", | |
"info": "Up/Down Switcher", | |
"category": "", | |
"in": [ | |
{ | |
"x": 244, | |
"y": 272, | |
"wires": [ | |
{ | |
"id": "2b906dcad292535c" | |
} | |
] | |
} | |
], | |
"out": [ | |
{ | |
"x": 516, | |
"y": 240, | |
"wires": [ | |
{ | |
"id": "2b906dcad292535c", | |
"port": 0 | |
} | |
] | |
}, | |
{ | |
"x": 516, | |
"y": 304, | |
"wires": [ | |
{ | |
"id": "2b906dcad292535c", | |
"port": 1 | |
} | |
] | |
} | |
], | |
"env": [ | |
{ | |
"name": "initial", | |
"type": "str", | |
"value": "up", | |
"ui": { | |
"icon": "font-awesome/fa-arrows-v", | |
"label": { | |
"en-US": "Initial" | |
}, | |
"type": "select", | |
"opts": { | |
"opts": [ | |
{ | |
"l": { | |
"en-US": "Up" | |
}, | |
"v": "up" | |
}, | |
{ | |
"l": { | |
"en-US": "Down" | |
}, | |
"v": "down" | |
} | |
] | |
} | |
} | |
} | |
], | |
"meta": { | |
"author": "Oleg Koltsov", | |
"desc": "Up/Down Switcher", | |
"keywords": "switcher" | |
}, | |
"color": "#DDAA99", | |
"outputLabels": [ | |
"▲ Up", | |
"▼ Down" | |
], | |
"icon": "node-red/switch.svg", | |
"status": { | |
"x": 516, | |
"y": 368, | |
"wires": [ | |
{ | |
"id": "d7dc04e4535169a8", | |
"port": 0 | |
} | |
] | |
} | |
}, | |
{ | |
"id": "2b906dcad292535c", | |
"type": "function", | |
"z": "03d1fe605e7ed494", | |
"name": "", | |
"func": "let state = context.get('state')\n\nif (state === undefined) {\n state = env.get('initial') == 'up'\n}\n\nnode.status({fill:\"green\", shape:\"dot\", text:state ? \"▲\" : \"▼\"})\n\ncontext.set('state', !state)\n\nif (state) {\n return [msg, null]\n} else {\n return [null, msg]\n}", | |
"outputs": 2, | |
"noerr": 0, | |
"initialize": "", | |
"finalize": "", | |
"libs": [], | |
"x": 380, | |
"y": 272, | |
"wires": [ | |
[], | |
[] | |
], | |
"outputLabels": [ | |
"▲ Up", | |
"▼ Down" | |
] | |
}, | |
{ | |
"id": "d7dc04e4535169a8", | |
"type": "status", | |
"z": "03d1fe605e7ed494", | |
"name": "", | |
"scope": [ | |
"2b906dcad292535c" | |
], | |
"x": 380, | |
"y": 368, | |
"wires": [ | |
[] | |
] | |
}, | |
{ | |
"id": "8b596f84b0bf7b80", | |
"type": "subflow:03d1fe605e7ed494", | |
"z": "2ba8e4446e979585", | |
"name": "", | |
"x": 396, | |
"y": 720, | |
"wires": [ | |
[], | |
[] | |
] | |
} | |
] |
Author
padaVVan

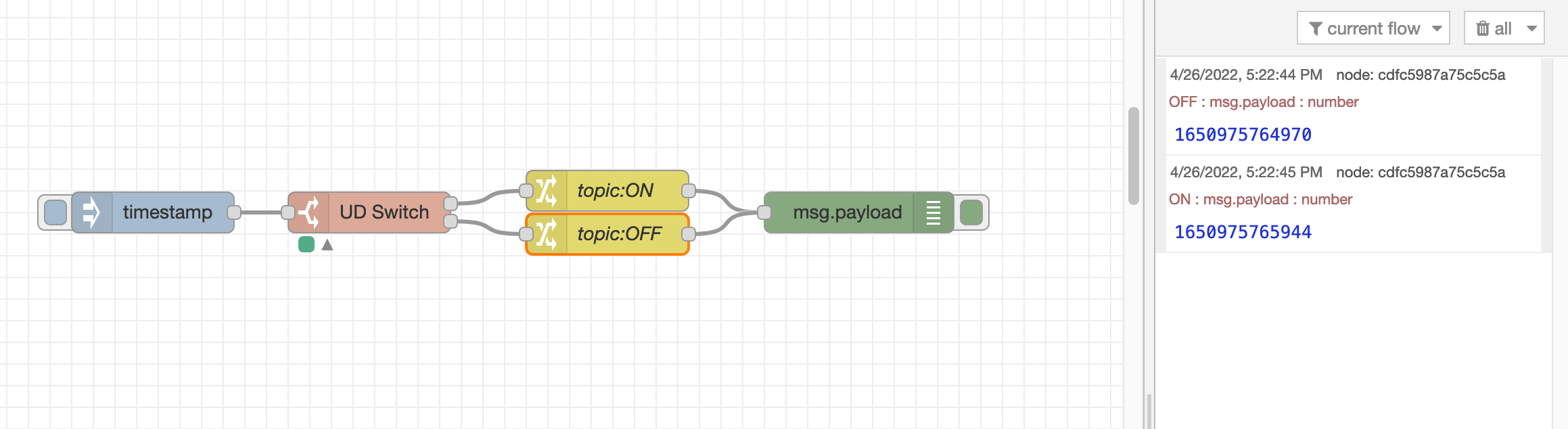

commented
