Constraintlayout

@Preview(showSystemUi = true)
@Composable
fun ConstraintLayoutContentPreview() {
    ComposeTheme {
        ConstraintLayoutContent()
    }
}

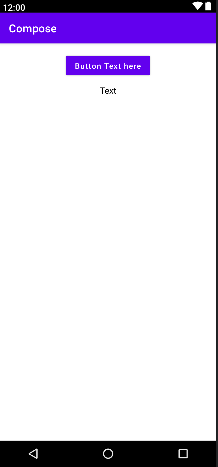

//(1)----------------------------------Basic------------------------------------
@Composable
fun ConstraintLayoutContent() {
    ConstraintLayout(modifier = Modifier.fillMaxWidth().fillMaxHeight()) {
        //create reference for button & text
        val (button, text) = createRefs()

        Button(onClick = { /*TODO*/ },
            //constrainAs takes 2 params (1) ConstrainedLayoutReference view (2) constrainBlock
            modifier = Modifier.constrainAs(button) {
                top.linkTo(parent.top, 16.dp) //for single link
                linkTo(parent.start,parent.end,8.dp,8.dp) //for horizontal link
            }) {
            Text(text = "Button Text here")
        }

        Text(text = "Text", color = MaterialTheme.colors.onSurface
            , modifier = Modifier.constrainAs(text){
                linkTo(button.bottom,parent.bottom,10.dp,8.dp, bias = 0f) //for vertical link
                linkTo(button.start,button.end) //for single link
            })
    }
}
//(2)-----------------------------------chain---------------------------------------
@Composable
fun ConstraintLayoutContent() {
    ConstraintLayout(modifier = Modifier
        .fillMaxWidth()
        .fillMaxHeight()) {

        val (button1, button2) = createRefs()
        createHorizontalChain(button1, button2, chainStyle = ChainStyle.Spread)
        Button(onClick = { /*TODO*/ },
            modifier = Modifier.constrainAs(button1) {
                top.linkTo(parent.top, 16.dp) //for single link
                centerHorizontallyTo(parent)
            }) {
            Text(text = "Button1")
        }

        Button(onClick = { /*TODO*/ },
            modifier = Modifier.constrainAs(button2) {
                top.linkTo(button1.top) //for single link
                centerHorizontallyTo(parent)
            }) {
            Text(text = "Button2")
        }
    }
}

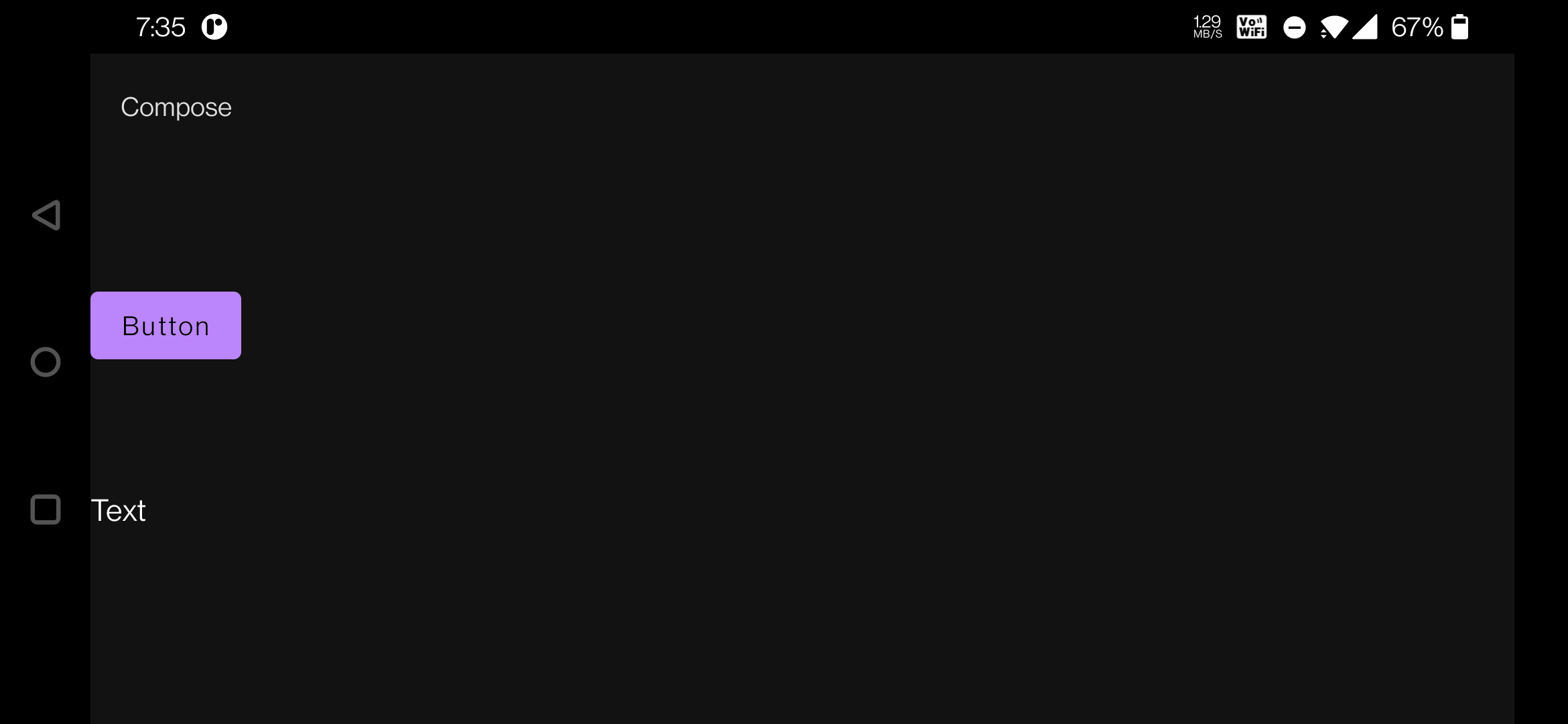

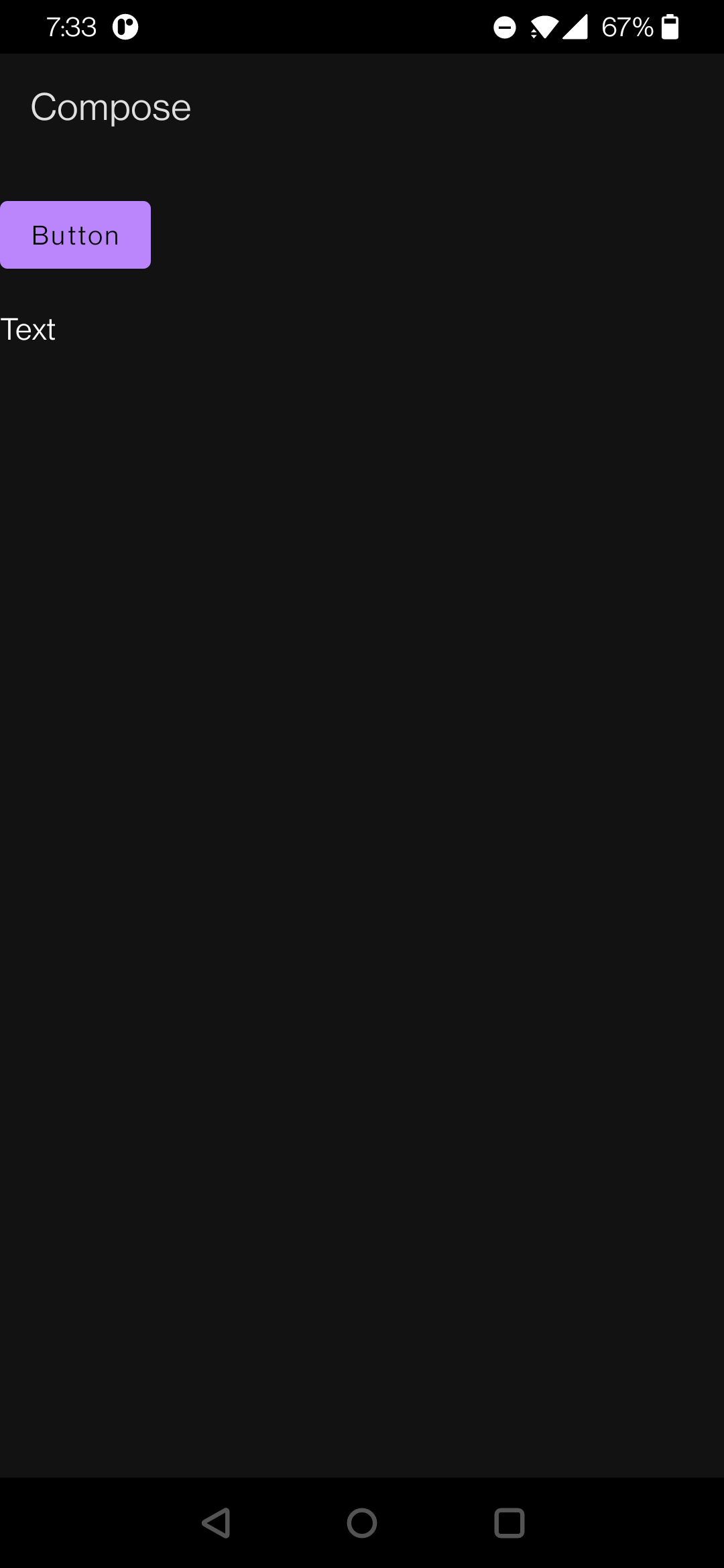

//(3)-----------------------------------runtime---------------------------------------
    @Preview(name = "light", showSystemUi = true)
    @Preview(name = "Dark", showSystemUi = true, uiMode = Configuration.UI_MODE_NIGHT_YES)
    @Preview(name = "landscape", showSystemUi = true, device = Devices.AUTOMOTIVE_1024p, widthDp = 720, heightDp = 360)
    @Composable
    fun PreviewUI() {
        ComposeTheme {
            DecoupledConstraintLayout()
        }
    }

@Composable
fun DecoupledConstraintLayout() {
    BoxWithConstraints {
        val constraints = if (maxWidth < maxHeight) {
            decoupledConstraints(margin = 16.dp) // Portrait constraints
        } else {
            decoupledConstraints(margin = 64.dp) // Landscape constraints
        }

        ConstraintLayout(constraints) {
            Button(
                onClick = { /* Do something */ },
                modifier = Modifier.layoutId("button")
            ) {
                Text("Button")
            }

            Text("Text", Modifier.layoutId("text"), color = MaterialTheme.colors.onSurface)
        }
    }
}

private fun decoupledConstraints(margin: Dp): ConstraintSet {
    return ConstraintSet {
        val button = createRefFor("button")
        val text = createRefFor("text")

        constrain(button) {
            top.linkTo(parent.top, margin= margin)
        }
        constrain(text) {
            top.linkTo(button.bottom, margin)
        }
    }
}

(1)

(2) chain

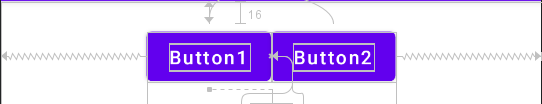

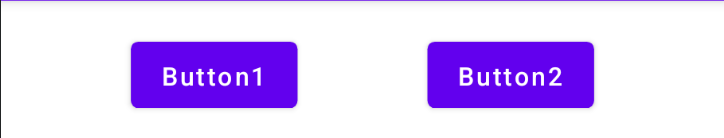

(2.1) Spread

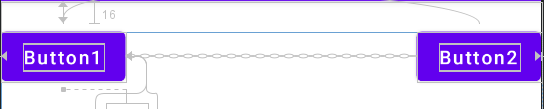

(2.2) SpreadInside

(2.3) Packed

(3)
