w4on2 under Linux

w4on2-under-Linux.md

w4on2 under Linux

git clone [email protected]:JerwuQu/w4on2.git
cd w4on2
cargo build --release

Note

There has been some minor changes in Zig ⚡, such as b.path being used to get a LazyPath in build.zig

diff --git a/example/build.zig b/example/build.zig
index df31537..5418820 100644
--- a/example/build.zig
+++ b/example/build.zig
@@ -3,16 +3,16 @@ const std = @import("std");
 pub fn build(b: *std.Build) !void {
     const exe = b.addExecutable(.{
         .name = "cart",
-        .root_source_file = .{ .path = "src/main.zig" },
+        .root_source_file = b.path("src/main.zig"),
         .target = b.resolveTargetQuery(.{
             .cpu_arch = .wasm32,
             .os_tag = .freestanding,
         }),
         .optimize = .ReleaseSmall, // b.standardOptimizeOption(.{}),
     });
-    exe.addIncludePath(.{ .path = "../runtime/" });
+    exe.addIncludePath(b.path("../runtime/"));
     exe.addCSourceFile(.{
-        .file = .{ .path = "../runtime/w4on2.c" },
+        .file = b.path("../runtime/w4on2.c"),
         .flags = &.{"-D__W4ON2_WASM4_TRACEF"},
     });

Links

• https://github.com/JerwuQu/w4on2 - Tools to assist in composing music for WASM-4
• https://github.com/falkTX/Carla - Carla is a fully-featured audio plugin host, with support for many audio drivers and plugin formats.
• https://gitlab.freedesktop.org/pipewire/helvum - A GTK patchbay for pipewire.
• https://chiptune.app/ - Has a collection of MIDI files and a Web MIDI player.

Tools

Carla

(INSTALL.md)

Dependencies

Note

I had to compile Carla myself in order to get VST3 support.

sudo apt install python3-pyqt5.qtsvg python3-rdflib pyqt5-dev-tools \
  libmagic-dev liblo-dev libasound2-dev libpulse-dev libx11-dev libxcursor-dev libxext-dev \
  qtbase5-dev libfluidsynth-dev

Installation

make features
make
make install

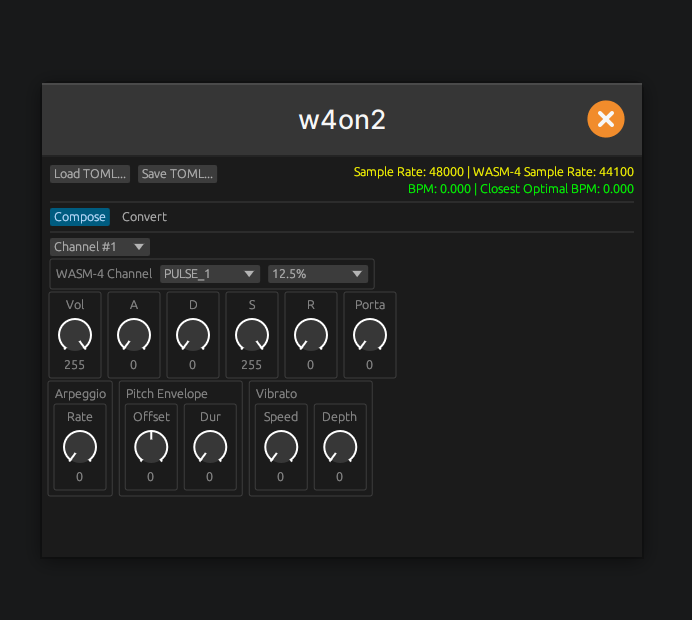

The w4on2 VST3 plugin

Important

There is a convention to have VST3 plugins in ~/.vst3/

I placed the plugin (target/release/libw4on2_plugin.so) from w4on2 in:

.vst3/w4on2.vst3/
└── Contents
    └── x86_64-linux
        └── w4on2.so

By doing something like this;

mkdir -p ~/.vst3/w4on2.vst3/Contents/x86_64-linux/
cp ~/Code/GitHub/JerwuQu/w4on2/target/release/libw4on2_plugin.so \
    ~/.vst3/w4on2.vst3/Contents/x86_64-linux/w4on2.so

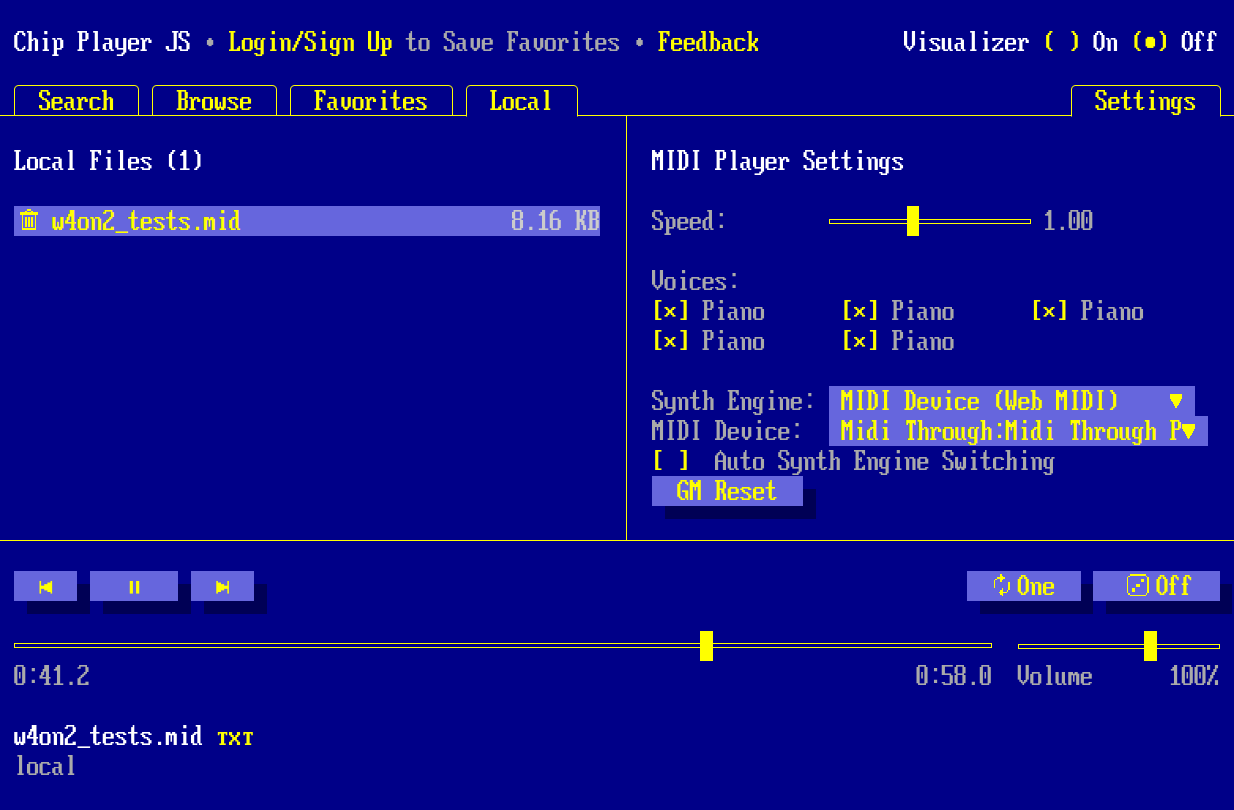

Chiptune.app

https://chiptune.app/local allows you to load and play .mid files using Web MIDI (to the Midi Through device)

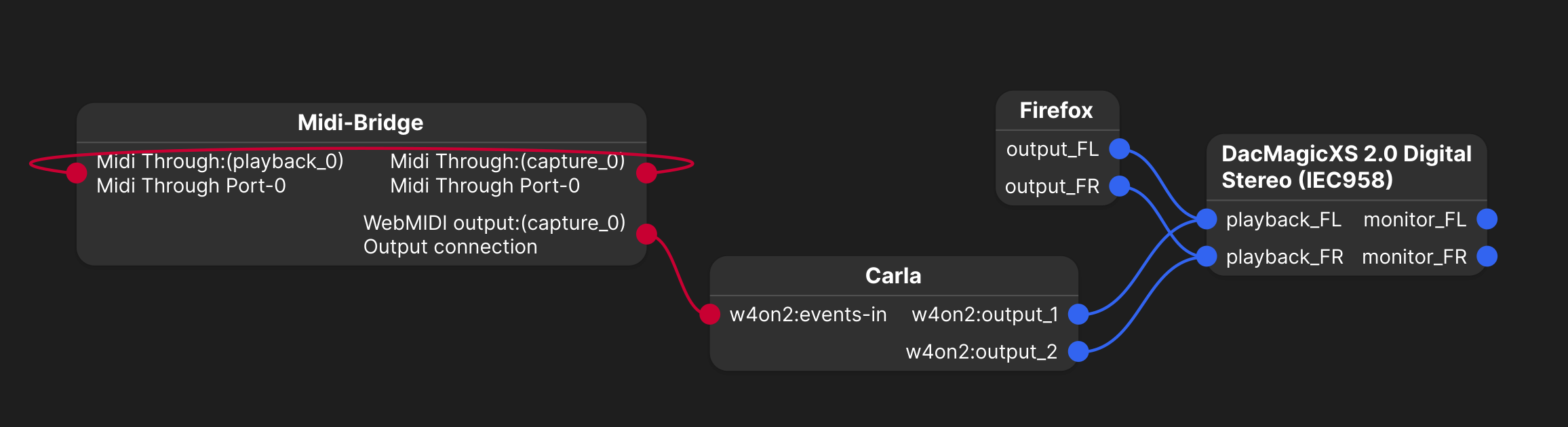

Helvum

Installed via the Pop!_Shop

Used to patch between the Midi-Bridge, Carla and my external sound card.

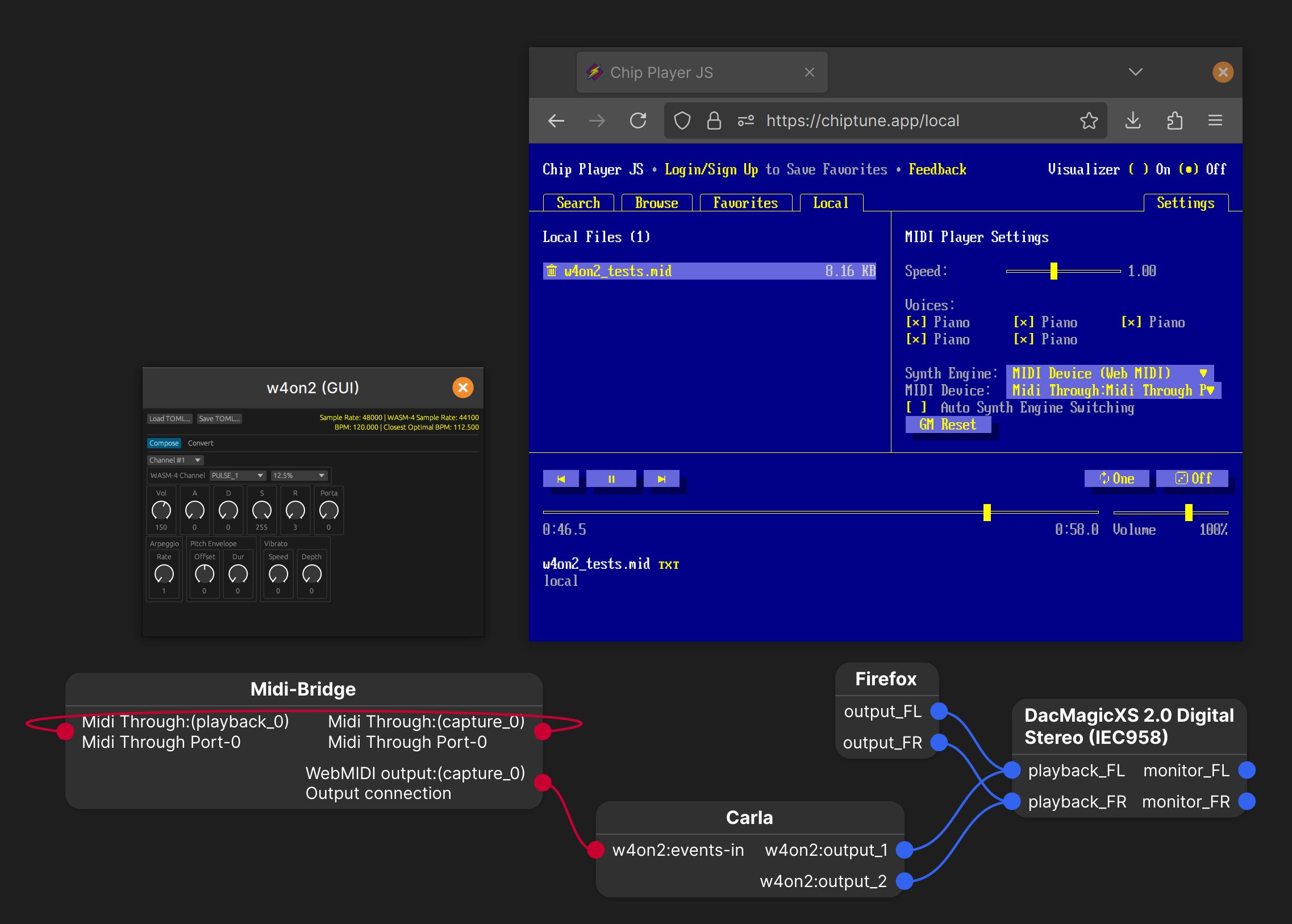

Final result

Here I've loaded a .mid into https://chiptune.app/local running in Firefox, it bridges to my local Pipewire Midi-Bridge, I've then patched it into Carla (which is my VST3 host) and then out to my external sound card.
