Rudimentary emulator for Firefly Zero written in Go

ff-emu.go

package main

import (
	"context"
	"flag"
	"fmt"
	"image"
	"image/color"
	"image/draw"
	"io"
	"math/rand"
	"os"

	"github.com/hajimehoshi/ebiten/v2"
	"github.com/hajimehoshi/ebiten/v2/ebitenutil"
	"github.com/peterhellberg/gfx"
	"github.com/tetratelabs/wazero"
	"github.com/tetratelabs/wazero/api"
)

const (
	width  = 240
	height = 160
)

var palette = [17]color.RGBA{
	{0x00, 0x00, 0x00, 0x00},
	{0x1A, 0x1C, 0x2C, 0xFF},
	{0x5D, 0x27, 0x5D, 0xFF},
	{0xB1, 0x3E, 0x53, 0xFF},
	{0xEF, 0x7D, 0x57, 0xFF},
	{0xFF, 0xCD, 0x75, 0xFF},
	{0xA7, 0xF0, 0x70, 0xFF},
	{0x38, 0xB7, 0x64, 0xFF},
	{0x25, 0x71, 0x79, 0xFF},
	{0x29, 0x36, 0x6F, 0xFF},
	{0x3B, 0x5D, 0xC9, 0xFF},
	{0x41, 0xA6, 0xF6, 0xFF},
	{0x73, 0xEF, 0xF7, 0xFF},
	{0xF4, 0xF4, 0xF4, 0xFF},
	{0x94, 0xB0, 0xC2, 0xFF},
	{0x56, 0x6C, 0x86, 0xFF},
	{0x33, 0x3C, 0x57, 0xFF},
}

func main() {
	if err := run(context.Background(), os.Args); err != nil {
		fmt.Fprintf(os.Stderr, "Error: %v\n", err)
		os.Exit(1)
	}
}

func run(ctx context.Context, args []string) error {
	cfg, err := parse(args)
	if err != nil {
		return err
	}

	ebiten.SetWindowSize(width*cfg.scale, height*cfg.scale)
	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
	ebiten.SetWindowTitle(cfg.title)

	emu, err := newGame(ctx, cfg)
	if err != nil {
		return err
	}
	defer emu.runtime.Close(ctx)

	return ebiten.RunGame(emu)
}

func newGame(ctx context.Context, cfg config) (*Game, error) {
	g := &Game{
		config: cfg,
		frame:  newFrame(),
	}

	r := wazero.NewRuntimeWithConfig(ctx, wazero.NewRuntimeConfig())

	if _, err := r.
		NewHostModuleBuilder("fs").
		NewFunctionBuilder().WithFunc(g.fsLoadfile).Export("load_file").
		NewFunctionBuilder().WithFunc(g.fsGetFileSize).Export("get_file_size").
		Instantiate(ctx); err != nil {
		return nil, err
	}

	if _, err := r.
		NewHostModuleBuilder("input").
		NewFunctionBuilder().WithFunc(g.inputReadPad).Export("read_pad").
		NewFunctionBuilder().WithFunc(g.inputReadButtons).Export("read_buttons").
		Instantiate(ctx); err != nil {
		return nil, err
	}

	if _, err := r.
		NewHostModuleBuilder("misc").
		NewFunctionBuilder().WithFunc(g.miscGetRandom).Export("get_random").
		NewFunctionBuilder().WithFunc(g.miscSetSeed).Export("set_seed").
		Instantiate(ctx); err != nil {
		return nil, err
	}

	if _, err := r.
		NewHostModuleBuilder("graphics").
		NewFunctionBuilder().WithFunc(g.graphicsClearScreen).Export("clear_screen").
		NewFunctionBuilder().WithFunc(g.graphicsSetColor).Export("set_color").
		NewFunctionBuilder().WithFunc(g.graphicsDrawLine).Export("draw_line").
		NewFunctionBuilder().WithFunc(g.graphicsDrawPoint).Export("draw_point").
		NewFunctionBuilder().WithFunc(g.graphicsDrawCircle).Export("draw_circle").
		NewFunctionBuilder().WithFunc(g.graphicsDrawText).Export("draw_text").
		NewFunctionBuilder().WithFunc(g.graphicsDrawImage).Export("draw_image").
		NewFunctionBuilder().WithFunc(g.graphicsDrawSubImage).Export("draw_sub_image").
		Instantiate(ctx); err != nil {
		return nil, err
	}

	if _, err := r.
		NewHostModuleBuilder("net").
		NewFunctionBuilder().WithFunc(g.netGetPeers).Export("get_peers").
		NewFunctionBuilder().WithFunc(g.netGetMe).Export("get_me").
		Instantiate(ctx); err != nil {
		return nil, err
	}

	if _, err := r.
		NewHostModuleBuilder("stats").
		NewFunctionBuilder().WithFunc(g.statsAddProgress).Export("add_progress").
		Instantiate(ctx); err != nil {
		return nil, err
	}

	if _, err := r.
		NewHostModuleBuilder("audio").
		NewFunctionBuilder().WithFunc(g.audioClear).Export("clear").
		NewFunctionBuilder().WithFunc(g.audioAddFile).Export("add_file").
		NewFunctionBuilder().WithFunc(g.audioAddGain).Export("add_gain").
		Instantiate(ctx); err != nil {
		return nil, err
	}

	if _, err := r.
		NewHostModuleBuilder("menu").
		NewFunctionBuilder().WithFunc(g.menuAddMenuItem).Export("add_menu_item").
		Instantiate(ctx); err != nil {
		return nil, err
	}

	g.runtime = r

	mod, err := g.runtime.InstantiateWithConfig(ctx, cfg.source, wazero.
		NewModuleConfig().
		WithStdin(os.Stdin),
	)
	if err != nil {
		return nil, err
	}

	g.module = mod

	g.memory = g.module.Memory()

	if boot := g.module.ExportedFunction("boot"); boot != nil {
		if _, err := boot.Call(ctx); err != nil {
			return g, err
		}
	}

	return g, nil
}

type Game struct {
	config  config
	frame   *image.RGBA
	runtime wazero.Runtime
	module  api.Module
	memory  api.Memory
	buttons buttons
	dpad    dpad
	texts   []text
}

type dpad struct {
	up    bool
	down  bool
	left  bool
	right bool
}

func newDPad() dpad {
	return dpad{
		up:    ebiten.IsKeyPressed(ebiten.KeyW),
		down:  ebiten.IsKeyPressed(ebiten.KeyS),
		left:  ebiten.IsKeyPressed(ebiten.KeyA),
		right: ebiten.IsKeyPressed(ebiten.KeyD),
	}
}

func (d dpad) state() int32 {
	var v int32

	if d.up {
		v += 800 & 0xFFFF
	}

	if d.down {
		v -= 800 & 0xFFFF
	}

	if d.left {
		v -= (800 << 16) & -0xFFFF
	}

	if d.right {
		v += (800 << 16) & -0xFFFF
	}

	return v
}

type buttons struct {
	a bool
	b bool
	x bool
	y bool
	m bool
}

func newButtons() buttons {
	return buttons{
		a: ebiten.IsKeyPressed(ebiten.KeyH),
		b: ebiten.IsKeyPressed(ebiten.KeyJ),
		x: ebiten.IsKeyPressed(ebiten.KeyK),
		y: ebiten.IsKeyPressed(ebiten.KeyL),
		m: ebiten.IsKeyPressed(ebiten.KeyEnter),
	}
}

func (b buttons) state() uint32 {
	var v uint32

	if b.a {
		v += 0b1
	}

	if b.b {
		v += 0b10
	}

	if b.x {
		v += 0b100
	}

	if b.y {
		v += 0b1000
	}

	if b.m {
		v += 0b10000
	}

	return v
}

type text struct {
	str string
	x   int
	y   int
}

func (g *Game) Update() error {
	ctx := context.Background()

	g.texts = []text{}
	g.buttons = newButtons()
	g.dpad = newDPad()

	if update := g.module.ExportedFunction("update"); update != nil {
		if _, err := update.Call(ctx); err != nil {
			return err
		}
	}

	return nil
}

func (g *Game) Draw(screen *ebiten.Image) {
	ctx := context.Background()

	if render := g.module.ExportedFunction("render"); render != nil {
		render.Call(ctx)
	}

	screen.WritePixels(g.frame.Pix)

	for _, t := range g.texts {
		ebitenutil.DebugPrintAt(screen, t.str, t.x, t.y)
	}
}

func (g *Game) Layout(_, _ int) (int, int) {
	return width, height
}

func newFrame() *image.RGBA {
	return image.NewRGBA(image.Rect(0, 0, width, height))
}

type config struct {
	scale  int
	title  string
	file   string
	source []byte
}

func parse(args []string) (config, error) {
	var cfg config

	if len(args) == 0 {
		return cfg, fmt.Errorf("no arguments")
	}

	flags := flag.NewFlagSet(args[0], flag.ExitOnError)

	flags.IntVar(&cfg.scale, "scale", 3, "Scale to render in [1-5]")

	if err := flags.Parse(args[1:]); err != nil {
		return cfg, err
	}

	if cfg.scale < 1 || cfg.scale > 5 {
		return cfg, fmt.Errorf("scale must be a positive number between 1-5")
	}

	if rest := flags.Args(); len(rest) > 0 {
		cfg.file = rest[0]
	}

	if cfg.file == "" {
		return cfg, fmt.Errorf("no .wasm file specified")
	}

	source, err := os.ReadFile(cfg.file)
	if err != nil {
		return cfg, err
	}

	cfg.source = source

	cfg.title = fmt.Sprintf("Firefly Zero Emulator in Go: %s", cfg.file)

	return cfg, nil
}

func pal(c int32) color.RGBA {
	return palette[c]
}

func fill(m draw.Image, c color.Color) {
	draw.Draw(m, m.Bounds(), &image.Uniform{c}, image.Point{}, draw.Src)
}

// -- GRAPHICS -- //

// DONE: func clearScreen(c int32)
func (g *Game) graphicsClearScreen(c int32) {
	fmt.Fprintln(io.Discard, "graphics.clear_screen", c)

	fill(g.frame, pal(c))
}

// MOCK: func setColor(c, r, g, b int32)
func (g *Game) graphicsSetColor(c, R, G, B int32) {
	if c > 0 && c < 17 {
		palette[c] = color.RGBA{
			uint8(R), uint8(G), uint8(B), 0xFF,
		}
	}
}

// DONE: func drawPoint(x, y, c int32)
func (g *Game) graphicsDrawPoint(x, y, c int32) {
	fmt.Fprintln(os.Stderr, "graphics.draw_point", x, y, c)

	gfx.Set(g.frame, int(x), int(y), pal(c))
}

func (g *Game) graphicsDrawLine(x1, y1, x2, y2, c, sw int32) {
	fmt.Fprintln(io.Discard, "graphics.draw_line", x1, y1, x2, y1, c, sw)

	if sw == 0 {
		sw = 1
	}

	polyline := gfx.NewPolyline(
		gfx.Polygon{
			gfx.IV(int(x1), int(y1)),
			gfx.IV(int(x2), int(y2)),
		}, 0)

	gfx.DrawPolyline(g.frame, polyline, float64(sw/2), pal(c))
}

// TODO: func drawRect(x, y, w, h, fc, sc, sw int32)

// TODO: func drawRoundedRect(x, y, w, h, cw, ch, fc, sc, sw int32)

// MOCK: func drawCircle(x, y, d, fc, sc, sw int32)
func (g *Game) graphicsDrawCircle(x, y, d, fc, sc, sw int32) {
	fmt.Fprintln(io.Discard, "graphics.draw_circle", x, y, d, fc, sc, sw)

	r := d / 2
	ix := int(x + r)
	iy := int(y + r)
	ir := int(r)

	if fc != 0 {
		gfx.DrawIntFilledCircle(g.frame, ix, iy, ir, pal(fc))
	}

	if sc != 0 {
		gfx.DrawIntCircle(g.frame, ix, iy, ir, pal(sc))
	}
}

// TODO: func drawEllipse(x, y, w, h, fc, sc, sw int32)

// TODO: func drawTriangle(x1, y1, x2, y2, x3, y3, fc, sc, sw int32)

// TODO: func drawArc(x, y, d int32, ast, asw float32, fc, sc, sw int32)

// TODO: func drawSector(x, y, d int32, ast, asw float32, fc, sc, sw int32)

// MOCK: func drawText(textPtr unsafe.Pointer, textLen uint32, fontPtr unsafe.Pointer, fontLen uint32, x, y, color int32)
func (g *Game) graphicsDrawText(textPtr, textLen, fontPtr, fontLen uint32, x, y, c int32) {
	fmt.Fprintln(io.Discard, "graphics.draw_text", textPtr, textLen, fontPtr, fontLen, x, y, c)

	if data, ok := g.memory.Read(textPtr, textLen); ok {
		g.texts = append(g.texts, text{str: string(data), x: int(x), y: int(y)})
	}
}

// MOCK: func drawImage(ptr unsafe.Pointer, len uint32, x, y int32)
func (g *Game) graphicsDrawImage(ptr, ptrLen uint32, x, y int32) {
	fmt.Fprintln(io.Discard, "graphics.draw_image", ptr, ptrLen, x, y)

	gfx.DrawIntRectangle(g.frame, int(x), int(y), 10, 10, pal(1))
}

// MOCK: func drawSubImage(ptr unsafe.Pointer, len uint32, x, y, subX, subY int32, subWidth, subHeight uint32)
func (g *Game) graphicsDrawSubImage(ptr, ptrLen uint32, x, y, subX, subY int32, subWidth, subHeight uint32) {
	fmt.Fprintln(os.Stderr, "graphics.draw_sub_image", ptr, ptrLen, x, y, subX, subY, subWidth, subHeight)
}

// TODO: func setCanvas(ptr unsafe.Pointer, len uint32)

// TODO: func unsetCanvas()

// -- INPUT -- //

// MOCK: func readPad(player uint32) int32
func (g *Game) inputReadPad(player uint32) int32 {
	fmt.Fprintln(io.Discard, "input.read_pad", player)
	return g.dpad.state()
}

// MOCK: func readButtons(player uint32) uint32
func (g *Game) inputReadButtons(player uint32) uint32 {
	fmt.Fprintln(io.Discard, "input.read_buttons", player)
	return g.buttons.state()
}

// -- FS -- //

// MOCK: func getFileSize(pathPtr unsafe.Pointer, pathLen uint32) uint32
func (g *Game) fsGetFileSize(pathPtr, pathLen uint32) uint32 {
	fmt.Fprintln(io.Discard, "fs.get_file_size", pathPtr, pathLen)
	return 0
}

// MOCK: func loadFile(pathPtr unsafe.Pointer, pathLen uint32, bufPtr unsafe.Pointer, bufLen uint32) uint32
func (g *Game) fsLoadfile(pathPtr, pathLen, bufPtr, bufLen uint32) uint32 {
	fmt.Fprintln(io.Discard, "fs.load_file", pathPtr, pathLen, bufPtr, bufLen)
	return 0
}

// TODO: func dumpFile(pathPtr unsafe.Pointer, pathLen uint32, bufPtr unsafe.Pointer, bufLen uint32) uint32

// TODO: func removeFile(pathPtr unsafe.Pointer, pathLen uint32) uint32

// -- NET -- //

// MOCK: func getMe() uint32
func (g *Game) netGetMe() uint32 {
	fmt.Fprintln(os.Stderr, "net.get_me")
	return 1
}

// MOCK: func getPeers() uint32
func (g *Game) netGetPeers() uint32 {
	fmt.Fprintln(io.Discard, "net.get_peers")
	return 2
}

// TODO: func saveStash(peerID uint32, bufPtr unsafe.Pointer, bufLen uint32)

// TODO: func loadStash(peerID uint32, bufPtr unsafe.Pointer, bufLen uint32) uint32

// -- STATS -- //

// MOCK: func addProgress(peerID, badgeID uint32, val int32) uint32
func (g *Game) statsAddProgress(peerID, badgeID uint32, val int32) uint32 {
	fmt.Fprintln(io.Discard, "stats.add_progress", peerID, badgeID, val)
	return 0
}

// TODO: func addScore(peerID, boardID uint32, val int32) int32

// -- MISC -- //

// TODO: func logDebug(ptr unsafe.Pointer, len uint32)

// TODO: func logError(ptr unsafe.Pointer, len uint32)

// DONE: func setSeed(seed uint32)
func (g *Game) miscSetSeed(seed uint32) {
	fmt.Fprintln(os.Stderr, "misc.set_seed", seed)
	rand.Seed(int64(seed))
}

// DONE: func getRandom() uint32
func (g *Game) miscGetRandom() uint32 {
	fmt.Fprintln(io.Discard, "misc.get_random")
	return rand.Uint32()
}

// TODO: func restart()

// TODO: func quit()

// -- AUDIO -- //

// TODO: func addSine(parentID uint32, freq float32, phase float32) uint32
// TODO: func addSquare(parentID uint32, freq float32, phase float32) uint32
// TODO: func addSawtooth(parentID uint32, freq float32, phase float32) uint32
// TODO: func addTriangle(parentID uint32, freq float32, phase float32) uint32
// TODO: func addNoise(parentID uint32, seed int32) uint32
// TODO: func addEmpty(parentID uint32) uint32
// TODO: func addZero(parentID uint32) uint32

// MOCK: func addFile(parentID uint32, ptr unsafe.Pointer, len uint32) uint32
func (g *Game) audioAddFile(parentID, ptr, ptrLen uint32) uint32 {
	fmt.Fprintln(os.Stderr, "audio.add_file", parentID, ptr, ptrLen)
	return 7
}

// TODO: func addMix(parentID uint32) uint32
// TODO: func addAllForOne(parentID uint32) uint32

// MOCK: func addGain(parentID uint32, lvl float32) uint32
func (g *Game) audioAddGain(parentID uint32, lvl float32) uint32 {
	fmt.Fprintln(os.Stderr, "audio.add_gain", parentID, lvl)
	return 0
}

// TODO: func addLoop(parentID uint32) uint32
// TODO: func addConcat(parentID uint32) uint32
// TODO: func addPan(parentID uint32, lvl float32) uint32
// TODO: func addMute(parentID uint32) uint32
// TODO: func addPause(parentID uint32) uint32
// TODO: func addTrackPosition(parentID uint32) uint32
// TODO: func addLowPass(parentID uint32, freq float32, q float32) uint32
// TODO: func addHighPass(parentID uint32, freq float32, q float32) uint32
// TODO: func addTakeLeft(parentID uint32) uint32
// TODO: func addTakeRight(parentID uint32) uint32
// TODO: func addSwap(parentID uint32) uint32
// TODO: func addClip(parentID uint32, low float32, high float32) uint32
// TODO: func modLinear(nodeID uint32, param uint32, start float32, end float32, startAt uint32, endAt uint32)
// TODO: func modHold(nodeID uint32, param uint32, v1 float32, v2 float32, time uint32)
// TODO: func modSine(nodeID uint32, param uint32, freq float32, low float32, high float32)
// TODO: func reset(nodeID uint32)
// TODO: func resetAll(nodeID uint32)

// MOCK: func clear(nodeID uint32)
func (g *Game) audioClear(nodeID uint32) {
	fmt.Fprintln(os.Stderr, "audio.clear", nodeID)
}

// -- MENU -- //

func (g *Game) menuAddMenuItem(a, b, c int32) {
	fmt.Fprintln(os.Stderr, "menu.add_menu_item", a, b, c)
}

// -- SUDO -- //

// TODO: func listDirsBufSize(pathPtr unsafe.Pointer, pathLen uint32) uint32
// TODO: func listDirs(pathPtr unsafe.Pointer, pathLen uint32, bufPtr unsafe.Pointer, bufLen uint32) uint32
// TODO: func runApp(authorPtr unsafe.Pointer, authorLen uint32, appPtr unsafe.Pointer, appLen uint32)
// TODO: func loadFile(pathPtr unsafe.Pointer, pathLen uint32, bufPtr unsafe.Pointer, bufLen uint32) uint32
// TODO: func getFileSize(pathPtr unsafe.Pointer, pathLen uint32) uint32

go.mod

module experiments/ff-emu

go 1.23.5

require (
	github.com/hajimehoshi/ebiten/v2 v2.8.6
	github.com/peterhellberg/gfx v0.0.0-20240717094052-4fa835cea5a4
	github.com/tetratelabs/wazero v1.8.2
)

require (
	github.com/ebitengine/gomobile v0.0.0-20241016134836-cc2e38a7c0ee // indirect
	github.com/ebitengine/hideconsole v1.0.0 // indirect
	github.com/ebitengine/purego v0.8.2 // indirect
	github.com/jezek/xgb v1.1.1 // indirect
	golang.org/x/image v0.24.0 // indirect
	golang.org/x/sync v0.11.0 // indirect
	golang.org/x/sys v0.30.0 // indirect
)

go.sum

github.com/ebitengine/gomobile v0.0.0-20241016134836-cc2e38a7c0ee h1:YoNt0DHeZ92kjR78SfyUn1yEf7KnBypOFlFZO14cJ6w=
github.com/ebitengine/gomobile v0.0.0-20241016134836-cc2e38a7c0ee/go.mod h1:ZDIonJlTRW7gahIn5dEXZtN4cM8Qwtlduob8cOCflmg=
github.com/ebitengine/hideconsole v1.0.0 h1:5J4U0kXF+pv/DhiXt5/lTz0eO5ogJ1iXb8Yj1yReDqE=
github.com/ebitengine/hideconsole v1.0.0/go.mod h1:hTTBTvVYWKBuxPr7peweneWdkUwEuHuB3C1R/ielR1A=
github.com/ebitengine/purego v0.8.2 h1:jPPGWs2sZ1UgOSgD2bClL0MJIqu58nOmIcBuXr62z1I=
github.com/ebitengine/purego v0.8.2/go.mod h1:iIjxzd6CiRiOG0UyXP+V1+jWqUXVjPKLAI0mRfJZTmQ=
github.com/hajimehoshi/ebiten/v2 v2.8.6 h1:Dkd/sYI0TYyZRCE7GVxV59XC+WCi2BbGAbIBjXeVC1U=
github.com/hajimehoshi/ebiten/v2 v2.8.6/go.mod h1:cCQ3np7rdmaJa1ZnvslraVlpxNb3wCjEnAP1LHNyXNA=
github.com/jezek/xgb v1.1.1 h1:bE/r8ZZtSv7l9gk6nU0mYx51aXrvnyb44892TwSaqS4=
github.com/jezek/xgb v1.1.1/go.mod h1:nrhwO0FX/enq75I7Y7G8iN1ubpSGZEiA3v9e9GyRFlk=
github.com/peterhellberg/gfx v0.0.0-20240717094052-4fa835cea5a4 h1:Iv17i2mukPLwXTftiwj1bzOamqw1UVXm4vHGxKxi+1U=
github.com/peterhellberg/gfx v0.0.0-20240717094052-4fa835cea5a4/go.mod h1:ipo3f7y1+RHNR32fj+4TETou6OF4VXvJBhb9rwncKuw=
github.com/tetratelabs/wazero v1.8.2 h1:yIgLR/b2bN31bjxwXHD8a3d+BogigR952csSDdLYEv4=
github.com/tetratelabs/wazero v1.8.2/go.mod h1:yAI0XTsMBhREkM/YDAK/zNou3GoiAce1P6+rp/wQhjs=
golang.org/x/image v0.24.0 h1:AN7zRgVsbvmTfNyqIbbOraYL8mSwcKncEj8ofjgzcMQ=
golang.org/x/image v0.24.0/go.mod h1:4b/ITuLfqYq1hqZcjofwctIhi7sZh2WaCjvsBNjjya8=
golang.org/x/sync v0.11.0 h1:GGz8+XQP4FvTTrjZPzNKTMFtSXH80RAzG+5ghFPgK9w=
golang.org/x/sync v0.11.0/go.mod h1:Czt+wKu1gCyEFDUtn0jG5QVvpJ6rzVqr5aXyt9drQfk=
golang.org/x/sys v0.30.0 h1:QjkSwP/36a20jFYWkSue1YwXzLmsV5Gfq7Eiy72C1uc=
golang.org/x/sys v0.30.0/go.mod h1:/VUhepiaJMQUp4+oa/7Zr1D23ma6VTLIYjOOTFZPUcA=

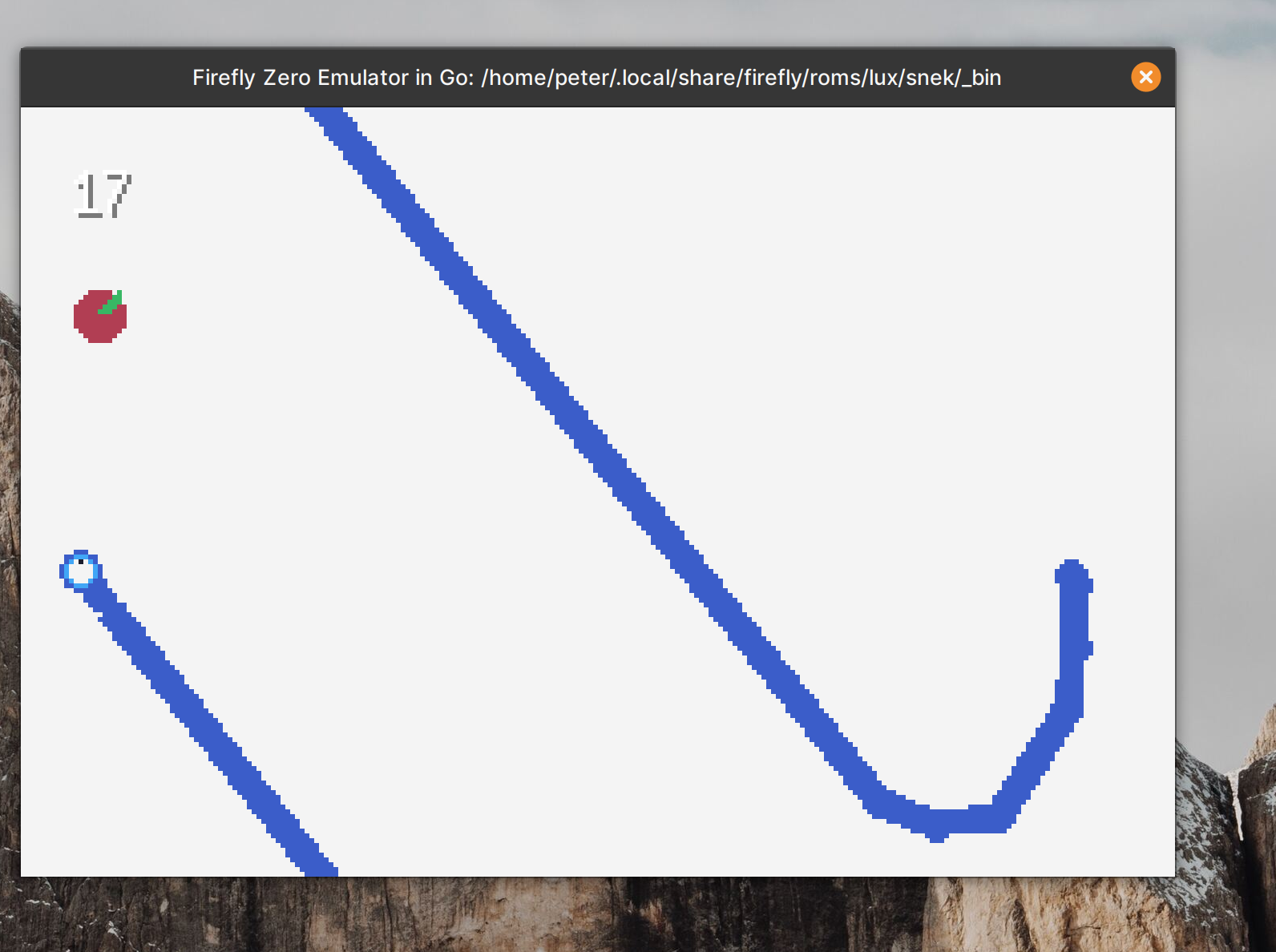

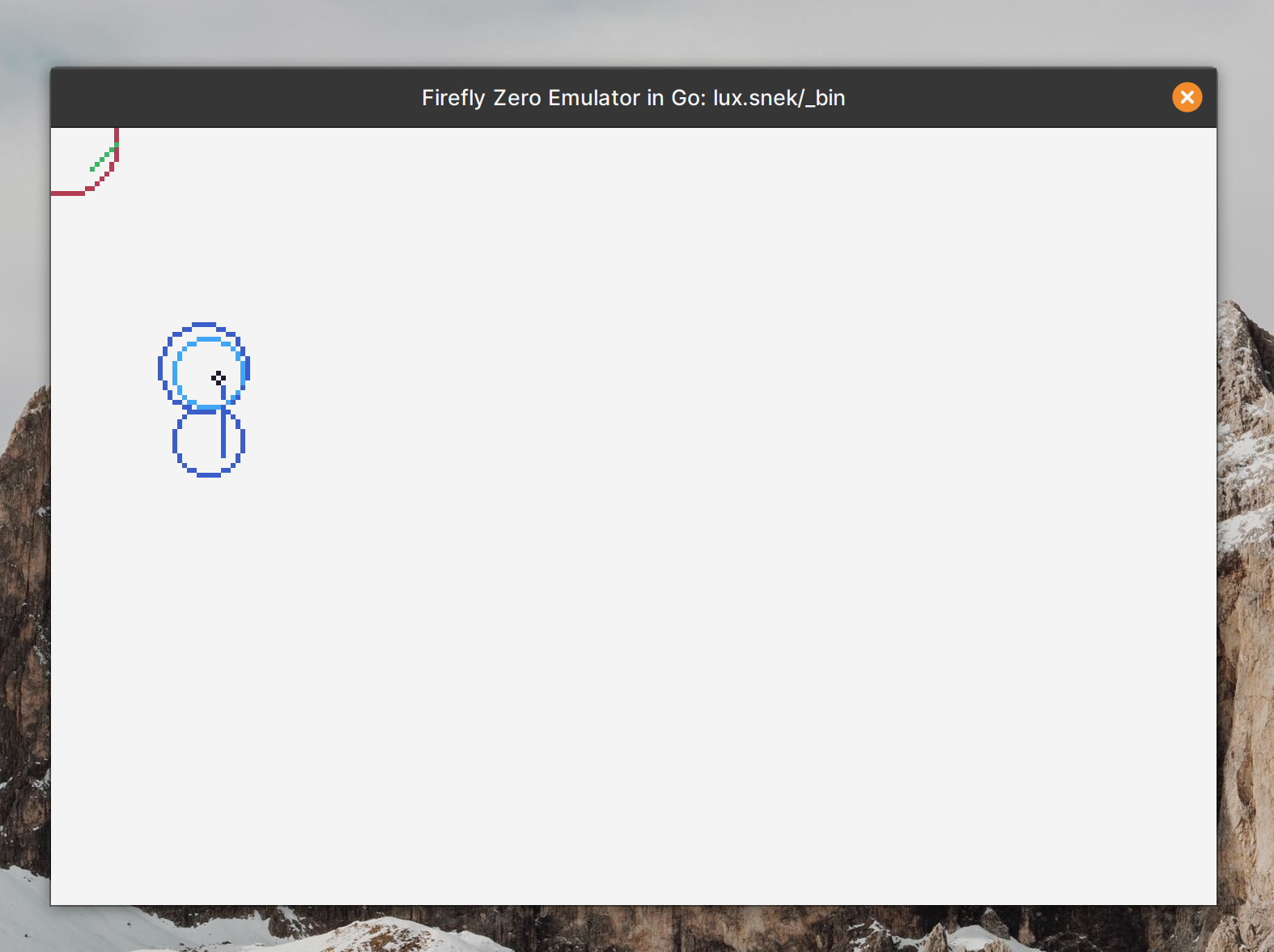

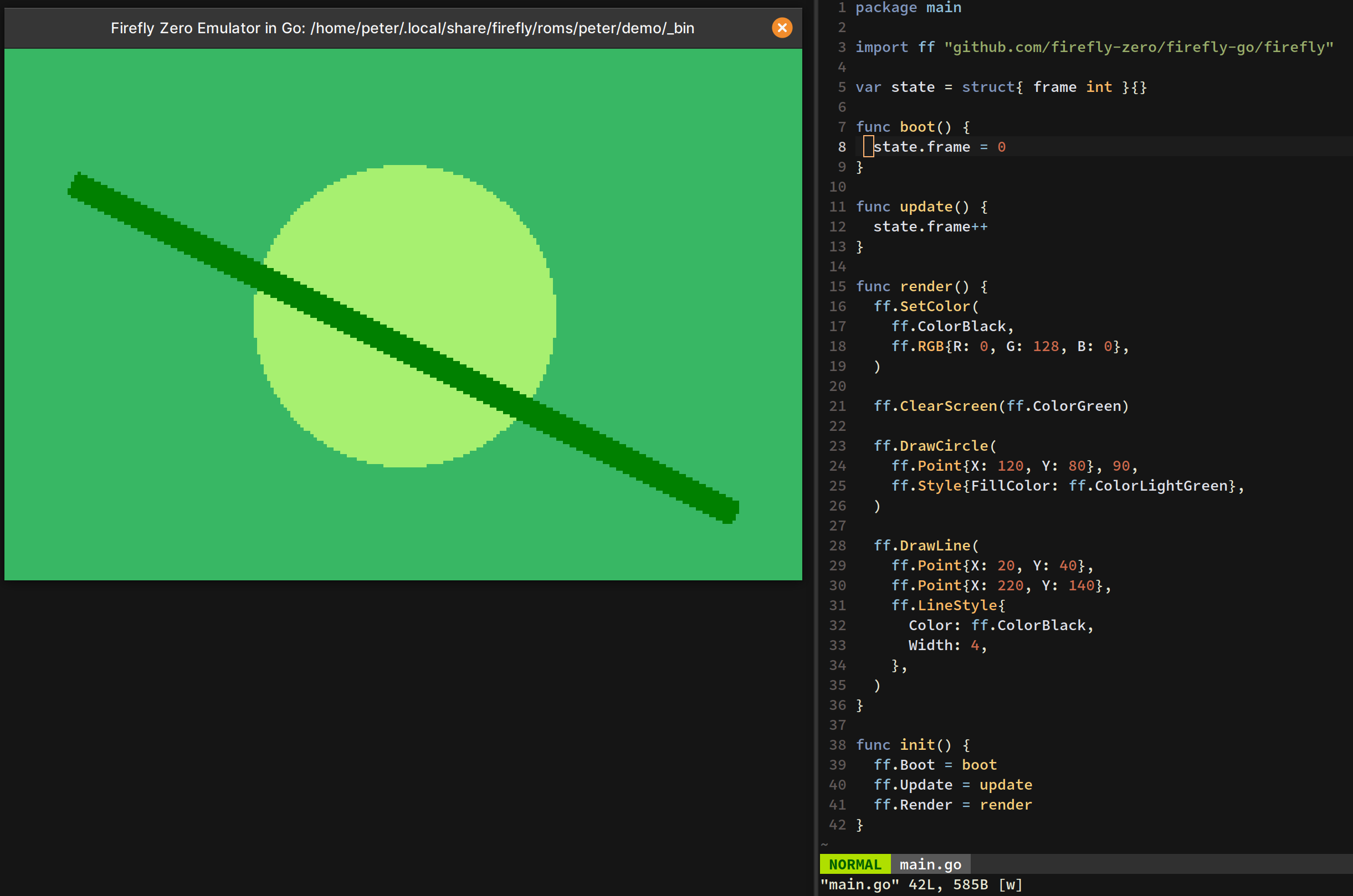

Progress of the emulation
