Cloudflare Argo Tunnel Setup

Introduction

This gist aims to walk you through the process of setting up reverse-proxy via Cloudflare Argo Tunnel and Traefik on your VPS.

References

Prerequisites

Before you start, make sure you:

-Add a website to Cloudflare. -Change your domain nameservers to Cloudflare.

Argo Tunnel Setup via the Command Line

First, download cloudflared on your machine. Visit the downloads page to find the right package for your OS.

Install cloudflared

# debian install
$ wget -q https://github.com/cloudflare/cloudflared/releases/latest/download/cloudflared-linux-amd64.deb && dpkg -i cloudflared-linux-amd64.deb

# rpm install
$ wget -q https://github.com/cloudflare/cloudflared/releases/latest/download/cloudflared-linux-x86_64.rpm

Authenticate cloudflared

$ cloudflared tunnel login

Running this command will:

  • Open a browser window and prompt you to log in to your Cloudflare account. After logging in to your account, select your hostname.
  • Generate an account certificate, the cert.pem file, in the default cloudflared directory at /etc/cloudflared.

Create a tunnel and give it a name

$ sudo -i
$ cloudflared tunnel create <NAME>

Running this command will:

  • Create a tunnel by establishing a persistent relationship between the name you provide and a UUID for your tunnel. At this point, no connection is active within the tunnel yet.
  • Generate a tunnel credentials file in the default cloudflared directory.
  • Create a subdomain of .cfargotunnel.com. From the output of the command, take note of the tunnel’s UUID and the path to your tunnel’s credentials file.

Confirm that the tunnel has been successfully created by running:

$ cloudflared tunnel list

Create a configuration file

Create a configuration file in your /root/.cloudflared directory using any text editor. This file will configure the tunnel to route traffic from a given origin to the hostname of your choice.

# /etc/cloudflared/config.yml
tunnel: <UUID>
credentials-file: /root/.cloudflared/<UUID>.json
ingress:
  - service: https://<PUBLIC_IP_OF_YOUR_VPS>
    originRequest:
      originServer: <DOMAIN_OF_YOUR_VPS e.g example.com>
      noTLSVerify: true

Run cloudflared as a service

Install the cloudflared service.

$ cloudflared service install

Enable and start the service.

$ systemctl enable cloudflared --now

(Optional) View the status of the service.

$ systemctl status cloudflared

Check the tunnel

Your tunnel configuration is complete! If you want to get information on the tunnel you just created, you can run:

$ cloudflared tunnel info <TUNNEL UUID>

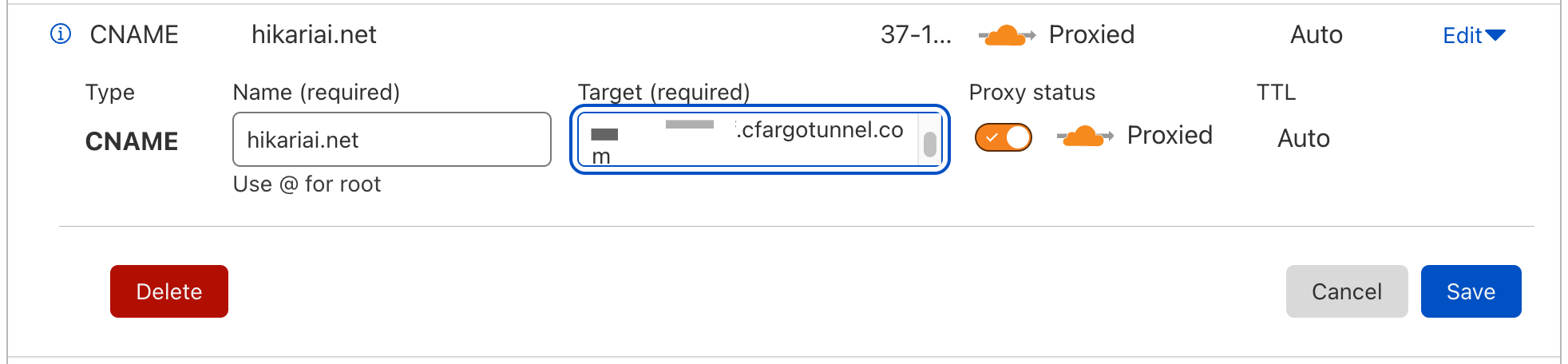

Add CNAME record to CloudFlare Dashboard

<TUNNEL UUID>.cfargotunnel.com

Make sure the Proxy status is set to Proxied

Traefik Setup

Install Docker and Docker-Compose

# Install Docker
$ sudo wget -qO- https://get.docker.com/ | sh
$ sudo usermod -aG docker $USER
$ newgrp docker
$ sudo systemctl enable docker --now

# Install Docker-Compose
$ sudo curl -L "https://github.com/docker/compose/releases/download/1.29.2/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
$ sudo chmod +x /usr/local/bin/docker-compose
$ sudo ln -s /usr/local/bin/docker-compose /usr/bin/docker-compose

Obtain CloudFlare DNS API Token

To get started creating an API Token, log in to the Cloudflare dashboard and go to User Profile -> API Tokens or click here. From the API Token home screen select Use template and the Edit zone DNS template.

In Zone Resources, select the zone (domain) you would like to include -> Continue to summary -> Save the token for later use.

Prepare Docker-Compose File

# /etc/traefik/docker-compose.yml

version: "3.4"

services:
  traefik:
    image: traefik
    container_name: traefik
    restart: unless-stopped
    environment:
      CF_DNS_API_TOKEN: <YOUR_API_TOKEN_GOES_HERE>
    ports:
      - "80:80"
      - "443:443"
      - "8080:8080"
    volumes:
      - /etc/localtime:/etc/localtime
      - /etc/traefik:/etc/traefik

Configure Traefik

Create default config directory

$ sudo -i
$ mkdir -p /etc/traefik
$ mkdir -p /etc/traefik/certs
$ touch /var/log/traefik.log

Edit /etc/traefik/traefik.yml

# /etc/traefik/traefik.yml
---
log:
  filePath: "/var/log/traefik.log"
  level: DEBUG

api:
  dashboard: true
  debug: true

entryPoints:
  http:
    address: ":80"
  https:
    address: ":443"

serversTransport:
  insecureSkipVerify: true

providers:
  file:
    directory: /etc/traefik
    watch: true

tls:
  options:
    default:
      minVersion: VersionTLS12
      preferServerCipherSuites: true
  stores:
    default:
      defaultCertificate:
        certFile: /etc/traefik/certs/<YOUR_DOMAIN>.pem
        keyFile: /etc/traefik/certs/<YOUR_DOMAIN>.key

pilot:
  dashboard: false

http:
  routers:
    main:
      rule: "Host(`<YOUR_DOMAIN>`) && PathPrefix(`/`)"
      service: main
      middlewares:
        - default-headers
        - https-redirect
      tls:
        domains:
          - main: "<YOUR_DOMAIN>"
      entryPoints:
        - https

     <OTHER_CUSTOM_ROUTES_GOES_HERE>

  services:
    main:
      loadBalancer:
        servers:
          - url: "http://<YOUR_VPS_PUBLIC_IP>:<INTERNAL_SERVICE_PORT>" # e.g xx.xx.xx.xx:8080

    <OTHER_CUSTOM_SERVICE_GOES_HERE>

  middlewares:
    https-redirect:
      redirectScheme:
        scheme: https

    default-headers:
      headers:
        accessControlAllowMethods: ["GET", "POST", "OPTIONS"]
        accessControlMaxAge: 100
        accessControlAllowHeaders: "*"
        addVaryHeader: "true"
        frameDeny: true
        sslRedirect: true
        browserXssFilter: true
        contentTypeNosniff: true
        forceSTSHeader: true
        stsIncludeSubdomains: true
        stsPreload: true
        stsSeconds: 15552000
        customRequestHeaders:
          X-Forwarded-Proto: https

    secured:
      chain:
        middlewares:
          - default-whitelist
          - default-headers

Spin up the traefik container instance

$ docker-compose up -d --force-recreate

Add additional reverse proxy routes

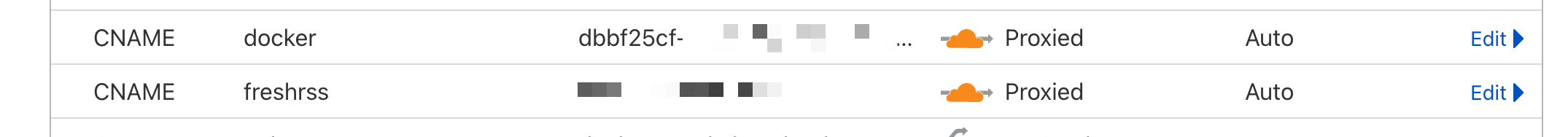

Log in to the Cloudflare dashboard and navigate to DNS -> Add record:

  • Select CNAME as the type
  • Put you domain that points to the tunnel
  • Toggle the Proxy Status to the Proxied state

e.g.

In the /etc/traefik/traefik.yml file, follow the default config pattern and add additional routes and services.

Kubernetes Setup
