DTDL Maps
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| { | |
| "@context": "dtmi:dtdl:context;2", | |
| "@id": "dtmi:rido:maps;1", | |
| "@type": "Interface", | |
| "displayName": "maps", | |
| "contents": [ | |
| { | |
| "@type": "Property", | |
| "writable": true, | |
| "name": "networkConfig", | |
| "schema": { | |
| "@type": "Map", | |
| "mapKey": { | |
| "name": "name", | |
| "schema": "string" | |
| }, | |
| "mapValue": { | |
| "name": "networkAdapter", | |
| "schema": { | |
| "@type": "Object", | |
| "fields": [ | |
| { | |
| "name": "AdapterName", | |
| "schema": "string" | |
| }, | |
| { | |
| "name": "IPAddress", | |
| "schema": "string" | |
| }, | |
| { | |
| "name": "MACAddress", | |
| "schema": "string" | |
| }, | |
| { | |
| "name": "DefaultGateway", | |
| "schema": "string" | |
| } | |
| ] | |
| } | |
| } | |
| } | |
| } | |
| ] | |
| } |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| class NetworkAdapter | |
| { | |
| public string AdapterName { get; set; } | |
| public string IPAddress { get; set; } | |
| public string MACAddress { get; set; } | |
| public string DefaultGateway { get; set; } | |
| } | |
| Dictionary<string, NetworkAdapter> networkAdapters = new Dictionary<string, NetworkAdapter> | |
| { | |
| { | |
| "Wifi", | |
| new NetworkAdapter | |
| { | |
| AdapterName = "Wifi", | |
| IPAddress = "1.1.1.1", | |
| MACAddress = "A43B32G32FF" | |
| } | |
| }, | |
| { | |
| "Eth0", | |
| new NetworkAdapter | |
| { | |
| AdapterName = "eth0", | |
| IPAddress = "2.3.4.5", | |
| MACAddress = "B23B32G32AA" | |
| } | |
| } | |
| }; | |
| TwinCollection twin = new TwinCollection(); | |
| twin["networkConfig"] = new | |
| { | |
| ac = 100, | |
| av = 1, | |
| value = networkAdapters | |
| }; | |
| await dc.UpdateReportedPropertiesAsync(twin); |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| { | |
| "deviceId": "mapDemo", | |
| "etag": "AAAAAAAAAAc=", | |
| "deviceEtag": "MTAwOTY1OTc4NA==", | |
| "status": "enabled", | |
| "statusUpdateTime": "0001-01-01T00:00:00Z", | |
| "connectionState": "Connected", | |
| "lastActivityTime": "0001-01-01T00:00:00Z", | |
| "cloudToDeviceMessageCount": 0, | |
| "authenticationType": "sas", | |
| "x509Thumbprint": { | |
| "primaryThumbprint": null, | |
| "secondaryThumbprint": null | |
| }, | |
| "modelId": "dtmi:rido:maps;1", | |
| "version": 10, | |
| "properties": { | |
| "desired": { | |
| "networkConfig": { | |
| "eth0": { | |
| "AdapterName": "Ethernet 0", | |
| "IPAddress": "3.4.3.5", | |
| "MACAddress": "ADADSFASDFA", | |
| "DefaultGateway": "1.1.1.1" | |
| }, | |
| "wifi": { | |
| "AdapterName": "Wi-Fi", | |
| "IPAddress": "5.5.5.5", | |
| "MACAddress": "FFRAFAFRFRd", | |
| "DefaultGateway": "2.2.2.2" | |
| } | |
| }, | |
| "$metadata": { | |
| "$lastUpdated": "2021-07-11T19:26:33.3589545Z", | |
| "$lastUpdatedVersion": 7, | |
| "networkConfig": { | |
| "$lastUpdated": "2021-07-11T19:26:33.3589545Z", | |
| "$lastUpdatedVersion": 7, | |
| "eth0": { | |
| "$lastUpdated": "2021-07-11T19:26:33.3589545Z", | |
| "$lastUpdatedVersion": 7, | |
| "AdapterName": { | |
| "$lastUpdated": "2021-07-11T19:26:33.3589545Z", | |
| "$lastUpdatedVersion": 7 | |
| }, | |
| "IPAddress": { | |
| "$lastUpdated": "2021-07-11T19:26:33.3589545Z", | |
| "$lastUpdatedVersion": 7 | |
| }, | |
| "MACAddress": { | |
| "$lastUpdated": "2021-07-11T19:26:33.3589545Z", | |
| "$lastUpdatedVersion": 7 | |
| }, | |
| "DefaultGateway": { | |
| "$lastUpdated": "2021-07-11T19:26:33.3589545Z", | |
| "$lastUpdatedVersion": 7 | |
| } | |
| }, | |
| "wifi": { | |
| "$lastUpdated": "2021-07-11T19:26:33.3589545Z", | |
| "$lastUpdatedVersion": 7, | |
| "AdapterName": { | |
| "$lastUpdated": "2021-07-11T19:26:33.3589545Z", | |
| "$lastUpdatedVersion": 7 | |
| }, | |
| "IPAddress": { | |
| "$lastUpdated": "2021-07-11T19:26:33.3589545Z", | |
| "$lastUpdatedVersion": 7 | |
| }, | |
| "MACAddress": { | |
| "$lastUpdated": "2021-07-11T19:26:33.3589545Z", | |
| "$lastUpdatedVersion": 7 | |
| }, | |
| "DefaultGateway": { | |
| "$lastUpdated": "2021-07-11T19:26:33.3589545Z", | |
| "$lastUpdatedVersion": 7 | |
| } | |
| } | |
| } | |
| }, | |
| "$version": 7 | |
| }, | |
| "reported": { | |
| "networkConfig": { | |
| "ac": 200, | |
| "av": 7, | |
| "value": { | |
| "eth0": { | |
| "AdapterName": "Ethernet 0", | |
| "IPAddress": "3.4.3.5", | |
| "MACAddress": "ADADSFASDFA", | |
| "DefaultGateway": "1.1.1.1" | |
| }, | |
| "wifi": { | |
| "AdapterName": "Wi-Fi", | |
| "IPAddress": "5.5.5.5", | |
| "MACAddress": "FFRAFAFRFRd", | |
| "DefaultGateway": "2.2.2.2" | |
| } | |
| } | |
| }, | |
| "$metadata": { | |
| "$lastUpdated": "2021-07-11T19:27:18.2555653Z", | |
| "networkConfig": { | |
| "$lastUpdated": "2021-07-11T19:27:18.2555653Z", | |
| "ac": { | |
| "$lastUpdated": "2021-07-11T19:27:18.2555653Z" | |
| }, | |
| "av": { | |
| "$lastUpdated": "2021-07-11T19:27:18.2555653Z" | |
| }, | |
| "value": { | |
| "$lastUpdated": "2021-07-11T19:27:18.2555653Z", | |
| "eth0": { | |
| "$lastUpdated": "2021-07-11T19:27:18.2555653Z", | |
| "AdapterName": { | |
| "$lastUpdated": "2021-07-11T19:27:18.2555653Z" | |
| }, | |
| "IPAddress": { | |
| "$lastUpdated": "2021-07-11T19:27:18.2555653Z" | |
| }, | |
| "MACAddress": { | |
| "$lastUpdated": "2021-07-11T19:27:18.2555653Z" | |
| }, | |
| "DefaultGateway": { | |
| "$lastUpdated": "2021-07-11T19:27:18.2555653Z" | |
| } | |
| }, | |
| "wifi": { | |
| "$lastUpdated": "2021-07-11T19:27:18.2555653Z", | |
| "AdapterName": { | |
| "$lastUpdated": "2021-07-11T19:27:18.2555653Z" | |
| }, | |
| "IPAddress": { | |
| "$lastUpdated": "2021-07-11T19:27:18.2555653Z" | |
| }, | |
| "MACAddress": { | |
| "$lastUpdated": "2021-07-11T19:27:18.2555653Z" | |
| }, | |
| "DefaultGateway": { | |
| "$lastUpdated": "2021-07-11T19:27:18.2555653Z" | |
| } | |
| } | |
| } | |
| } | |
| }, | |
| "$version": 3 | |
| } | |
| }, | |
| "capabilities": { | |
| "iotEdge": false | |
| } | |
| } |
Author
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
DTDL Maps demo

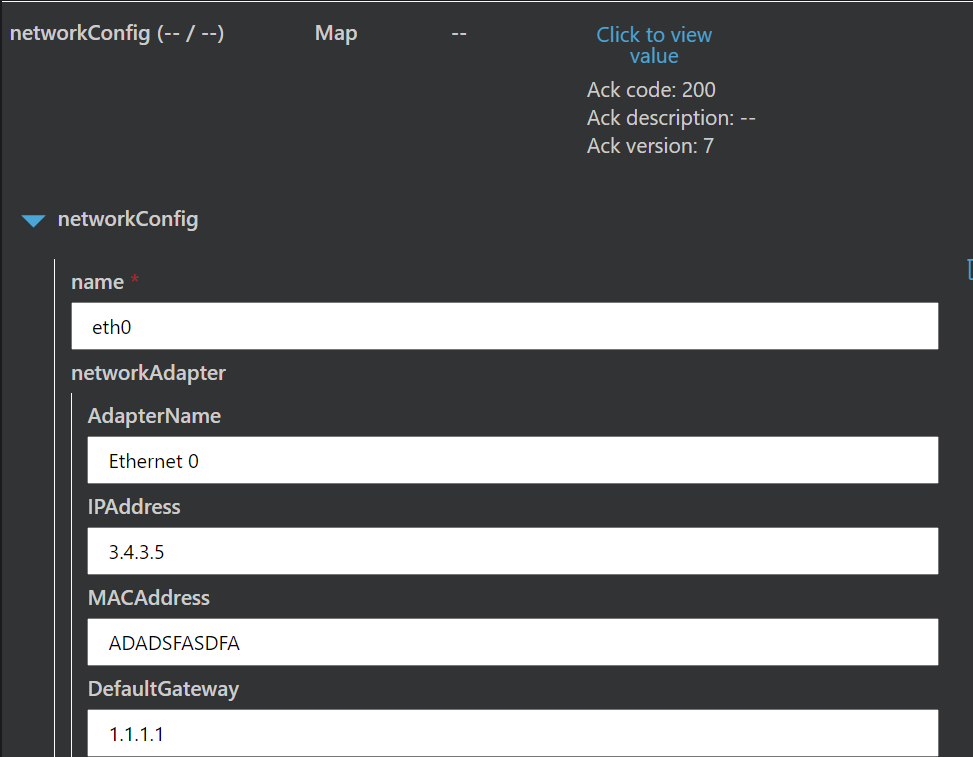

Sample DTDL interface using a map, to validate IoTExplorer and Central
