M2 - Lecture Notes - Express Server Side Rendering Basics (JSX)
Raw
README.md

Express | Server Side Rendering Basics

Learning Goals

After this lesson you will be able to:

  • Server side render HTML pages with Express.

  • Understand what a templating engine , templates and server side rendering are and why we use them.

  • Understand and use express-react-views for creating dynamic templates.

  • Understand and use JSX syntax in express-react-views.

  • Create JSX components and inject data to the components via props.

  • Use JSX to create lists or conditionaly render content with ? ternary operator.


Create the file structure

mkdir 01-express-server-side-rendering

cd 01-express-server-side-rendering

mkdir public

mkdir public/css public/js

touch app.js home.html public/css/style.css

code .

Add the css styles for the examples

public/css/style.css
body {
  margin: 0;
  padding: 0;
}

/* home.html example styles */
nav {
  display: flex;
  flex-direction: row-reverse;
  justify-content: space-between;
  background: cornflowerblue;
  color: white;
  padding: 5px 20px;
  box-shadow: 0px 1px 2px gray;
}

nav div {
  display: flex;
  align-items: center;
}

nav p {
  color: white;
  font-size: 20px;
  display: inline;
  margin-left: 10px;
}

nav img {
  width: 50px;
  height: 50px;
  border-radius: 50px;
  border: none;
  outline: none;
  background-color: aliceblue;
}

nav ul {
  display: inline-flex;
  align-items: center;
}

nav ul li {
  list-style: none;
  display: inline;
  margin-left: 20px;
  font-size: 20px;
}

nav ul li a {
  color: white;
  text-decoration: none;
}

/* StudentCard styles */

section.student-card {
  width: 200px;
  padding: 0px 40px 20px 40px;
  border: 1px solid black;
  border-radius: 5px;
  margin: 0 auto;
  margin-bottom: 20px;
}

section.student-card img {
  width: 100px;
  height: auto;
  border: 1px solid darkgrey;
}

.img-container {
  background-color: darkgrey;
  width: 100px;
  height: 138px;
  margin-bottom: 50px;
}

section.student-card button {
  padding: 10px 30px;
  background: rgb(23, 167, 249);
  color: white;
  border-radius: 3px;
  border: 1px solid navy;
}

/* UserProfile styles */
.user-profile {
  border: 1px solid black;
  padding: 15px 40px;
  border-radius: 5px;
  background-color: mintcream;
}

.user-profile img {
  margin-left: 10px;
  border-radius: 70px;
  width: 100px;
  border: 2px solid black;
}

.user-profile button {
  padding: 5px 10px;
  border-radius: 2px;
  width: 120px;
  border: 1px solid black;
  background-color: white;
}

Initialize the project and install dependencies

npm init -y


# -y flag tells the generator to use the defaults instead of asking questions


npm i --save express

npm i --save-dev nodemon

Create the command alias for running the app with nodemon

  "scripts": {
    "start": "node app.js",
    "start:dev": "nodemon app.js",
    "test": "echo \"Error: no test specified\" && exit 1"
  },

Create the server

app.js
const express = require('express');
const app = express();



app.listen(3000, () => {
  console.log('Server is listening on port 3000')
});

Sending a html page response using res.sendFile

We can use res.sendFile to send a file back to the client.

app.js
// Add middleware for serving static files

// MIDDLEWARE
app.use(express.static('public'));

// ...
//   ...
//     ...


// Sending a html file
app.get('/home', (req, res, next) => {

  // `__dirname` holds a path to the directory of the current file/module

  res.sendFile( __dirname + '/home.html');
});
__dirname

__dirname - is the directory name of the current module/file in which the value __dirname is used.

This is the same as the path.dirname(__filename) .


Update home.html

home.html
<!DOCTYPE html>
<html lang="en">

  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta http-equiv="X-UA-Compatible" content="ie=edge" />
    <title>Express SSR</title>
    <link rel="stylesheet" href="/css/style.css" />
  </head>

  <body>
    <nav>
      <div>
        <img src="https://i.imgur.com/RP5vFgT.png" alt="" />
        <p>User's name</p>
      </div>
      <ul>
        <li><a href="">Home</a></li>
        <li><a href="">About</a></li>
        <li><a href="">Contact</a></li>
      </ul>
    </nav>

    <main>
      <h1 style="color: skyblue"><code>home.html</code> page</h1>
      <h4>
        This page was sent from the server using:
        <br />
        <code>res.sendFile( __dirname + '/home.html')</code>
      </h4>
    </main>
  </body>

</html>

The advantages of static pages (views) ?

Serving a static (pre made) html page from a server has certain advantages.

  • No additional dependencies. Static pages don't depend on other systems such as databases or other application servers. They are just static HTML documents and are served as such.
  • Improved performance for end users compared to dynamic websites (single page applications, turbolinks)

Disadvantages of static pages (views)

  • Dynamic functionality must be implemented on the client side (using JS to add interactivity)
  • Doesn't provide a way of customizing the page on the server before sending it to the client:
    • Example: home.html page has the same structure, but different user information depending on the user who is logged in.

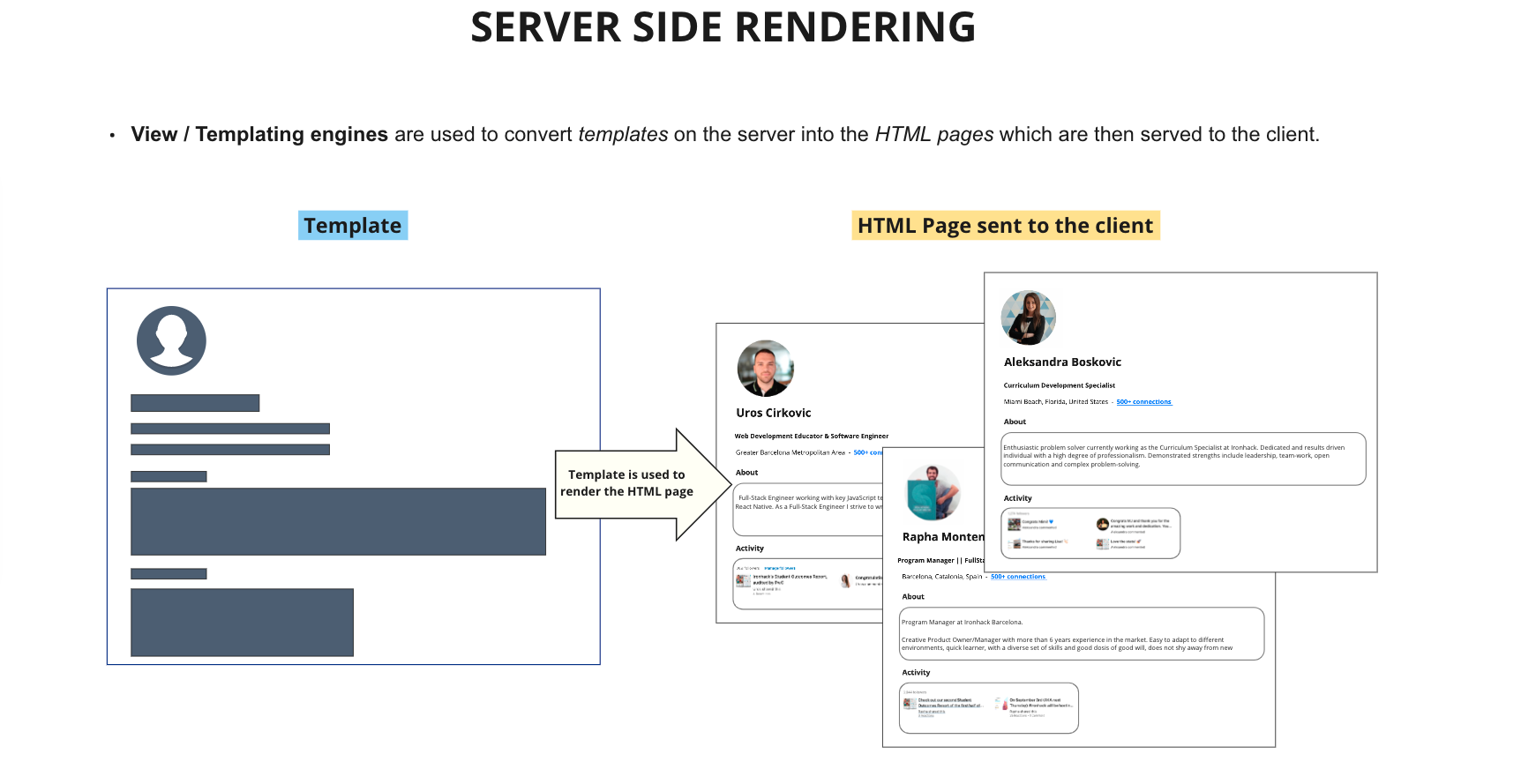

Server Side rendering vs Static Page

Server side rendering enables us to customise the page on the server and add some custom data to it, before sending it to the client.

OPEN IMAGE

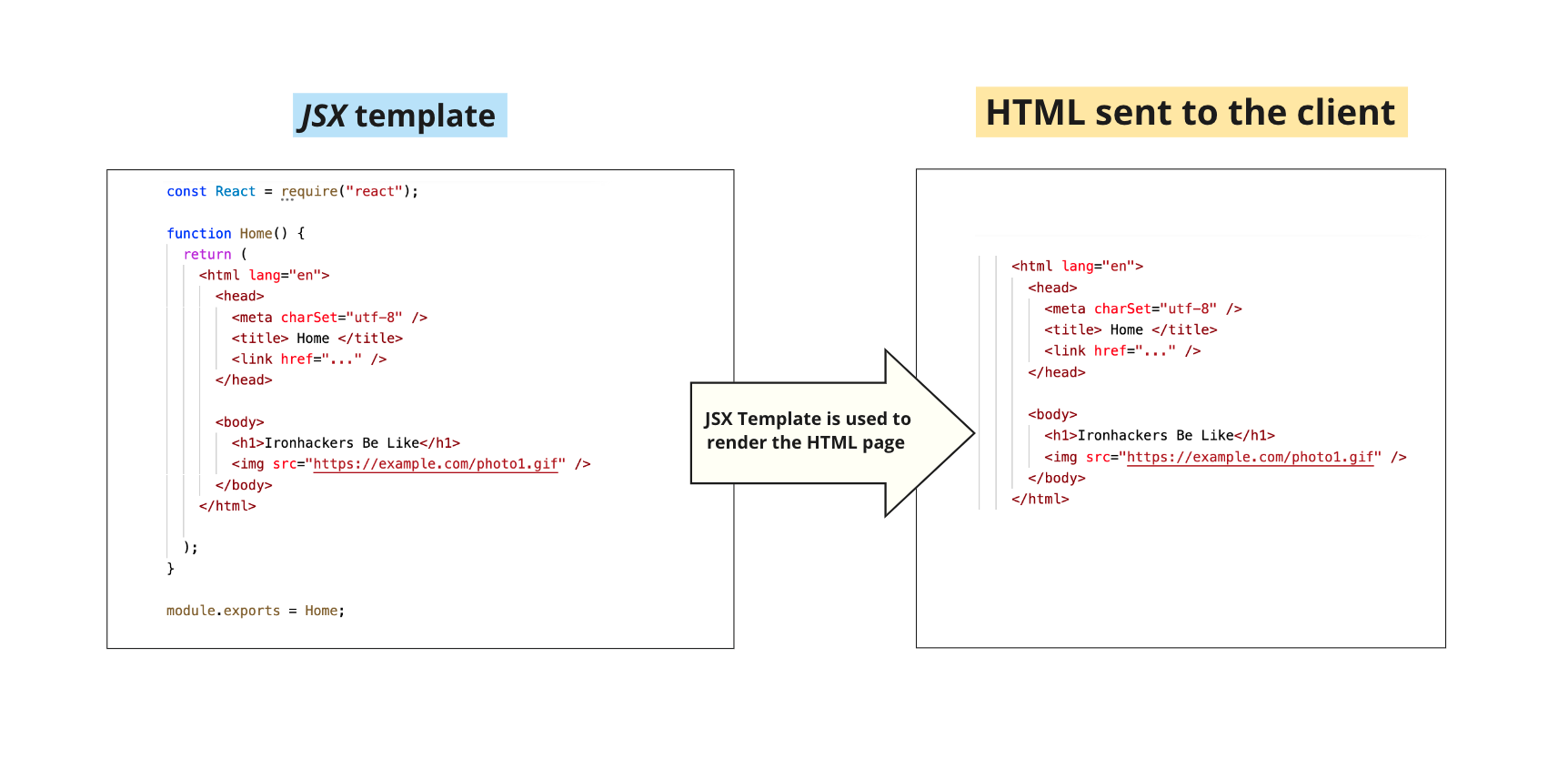

Express React Views

What is Express React Views ?

OPEN IMAGE


Express React Views is a templating engine, JavaScript library, based on the JSX.

JSX is the syntax extension of JavaScript which enables mixing HTML and JSX in one file. JSX is very common nowdays and it got it's fame thanks to React.

So, by using JSX for server side rendering in Module 2, you will also learn the syntax that you will need later for React.

Template engine helps us to create an HTML template. It is basically a stencil or a skeleton of our HTML page.

With template engine we create a HTML template and inject some data to it on the server, before sending it to the client as a custom HTML page.

Some of the most well-known JavaScript templating engines are Mustache, Underscore, EJS, and Handlebars.

We use templating engine to be able to do the server side rendering. We create and prepare the HTML page completely on the back-end.

We add data to the HTML template and when that is ready we serve it to the client.

The template files used to create the HTML pages sent to the client (front-end) are called Views.


Install Express React Views & start serving Views


Create a folder for views and file views/Home.jsx

mkdir views
touch views/Home.jsx

Notice that we use a new extension:

.jsx instead of .html


Install Express React Views

npm install express-react-views react react-dom

Set path that points to the views folder

app.js
// Import express-react-views
const erv = require("express-react-views");


// SET THE VIEW ENGINE
// Set the folder containing the View/Template `jsx` files
app.set('views', __dirname + '/views');
// Set `express-react-views` as the view engine used for rendering HTML
app.set('view engine', 'jsx');
app.engine('jsx', erv.createEngine() );

Create the folder for view/template files

mkdir views

touch views/Home.jsx

Add content to the Home.jsx view file

views/Home.jsx
const React = require('react');

function Home() {

  return (
    <html lang="en">
      <head>
        <meta charSet="utf-8" />
        <title> Home </title>
        <link rel="stylesheet" href="stylesheets/style.css" />
      </head>
      <body>
        <h1 className="title"> Ironhackers Be Like </h1>
        <img src="https://media.giphy.com/media/l0MYEqEzwMWFCg8rm/giphy.gif" />
      </body>
    </html>
  );

}

// We export the file so that other code can access it as a module and use it.

module.exports = Home;

Update app.js to res.render() the Home view

app.js
// render the view using `erv`
app.get('/home', (req, res, next) => {

  // res.sendFile(__dirname + "/home.html");       	<---- REMOVE

  res.render('Home');    	// <---- ADD
});

***

Visit localhost:3000/home


Rules of jsx:

  • Self closing tags must have a slash at the end: <img/>, <link/>, <br/>, etc.
  • Some attribute names are slightly different than HTML: className, charSet
  • Code returned from the function must have 1 main parent element. Other elements can be nested inside.

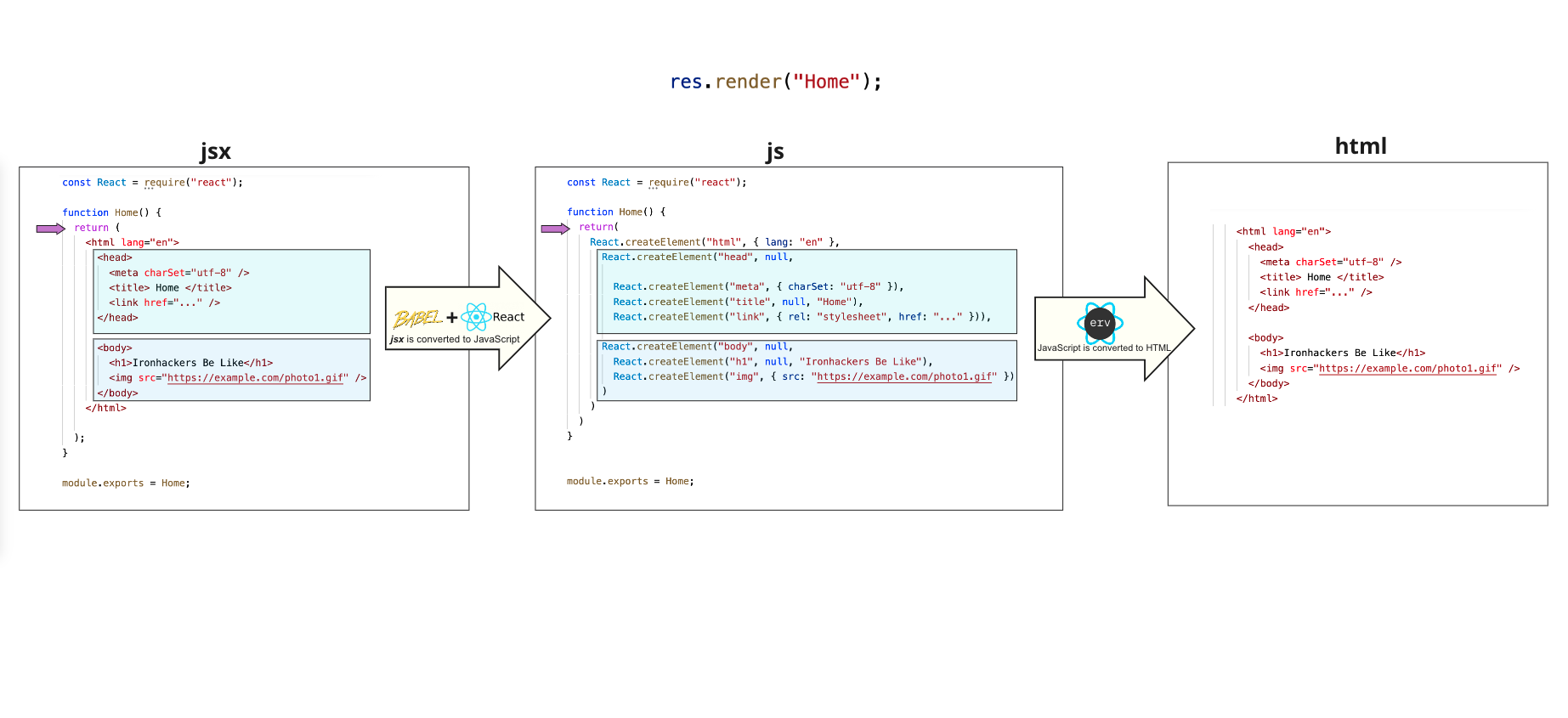

How is JSX converted to HTML ?

OPEN IMAGE



Time To Practice -

Create and serve your first View

Create a new View that will serve the About page:

  • Create a new route for GET request with the endpoint /about:

  • It should render a new view file, from views/About.jsx.

  • In the newly created template file About.jsx:

    • Create an h1 with your name.
    • Create an h2 with your favourite book/movie/serie quote.
    • Add an image from giphy that you like.
/*
Create a new View file named `About.jsx` used to render the About page:

- Create a new route for `GET` request  with the endpoint `/about`:

- It should `res.render()` a newly created view file, from `views/About.jsx`.
- In the newly created template file `About.jsx`:
  - Create an `h1` with your name.
  - Create an `h2` with your favourite book/movie/serie quote.
  - Add an image from [giphy](https://giphy.com/) that you like.

*/

JSX comes with full power of JavaScript

JSX enables us to embed Javascript code inside of the HTML, in order to create our HTML page more dynamicaly.

touch views/About.jsx
views/About.jsx
const React = require('react');


const obj = {
  name: 'John',
  city: 'Barcelona',
  bootcamp: 'WebDev'
}

const users = ['Bob', 'Sarah', 'Anna', 'Uros'];


function getContent (lang) {
  if (lang === 'en') {
    return 'Intensive courses & bootcamps in Web Development, UX/UI Design, Data Analytics & Cybersecurity'
  }
  else if (lang === 'es') {
    return 'Cursos intensivos y bootcamps de desarrollo web, diseño UX/UI, análisis de datos y ciberseguridad'
  }
}


function About() {
  return(
    <div>
      <h1>Uros</h1>
      <h2>"Don't wish it was easier, wish you were better. "<sub>Jim Rohn</sub> </h2>
      <img src="https://i.giphy.com/media/3o7qDLkrKr034Z3hQI/giphy.webp" alt=""/>

      <br/>
      2 + 2 = { 2 + 2 }

      <p> Name: { obj.name } </p>
      <p> City: {obj.city} </p>
      <p> Bootcamp: {obj.bootcamp} </p>

      <p> First user - { users[0] } </p>
      <p> Last user - { users[3] } </p>

      <h3> { getContent('es') } </h3>

    </div>
  )
}



module.exports = About;

Creating smaller components to simplify code

In the next example we will see how we can split our code into smaller reusable components.

touch  views/StudentsPanel.jsx
app.js
app.get('/students', (req, res, next) => {
  res.render('StudentsPanel');
})
views/StudentsPanel.jsx
const React = require("react");


function StudentsPanel() {
  return (
    <html lang="en">
      <head>
        <meta charSet="UTF-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <title>Student Card</title>
        <link rel="stylesheet" href="css/style.css" />
      </head>
      <body>
        <h1>Students Panel</h1>

        <section className="student-card">
          <h2>Student Card</h2>
          <h3>Details</h3>

         	<div className="img-container">
            <img src="" alt="" />
          </div>
          <p className="name">First Name:</p>
          <p className="name">Last Name:</p>

        	<button>See Profile</button>
        </section>

      </body>
    </html>
  );
}

module.exports = StudentsPanel;

JSX functions are reusable components

Every jsx function returning HTML is reusable. It is created as a reusable component, thanks to React.

It enables us to easily separate concerns and separate code into smaller reusable parts.

Initialy we could write the entire view structure inside of the same file, in the following way.

Create a smaller component

But if we want to repeat certain parts of code, we can do it in a better easier way, by creating additional components.

We can move the code from StudentsPanel.jsx into another component

mkdir views/components

touch views/components/StudentCard.jsx
views/compnents/StudentCard.jsx
const React = require("react");

function StudentCard() {

  return (
        <section className="student-card">
          <h2>Student Card</h2>
          <h3>Details</h3>

          <div className="img-container">
            <img src="" alt="" />
          </div>
          <p className="name">First Name:</p>
          <p className="name">Last Name:</p>

          <button>See Profile</button>
        </section>
  );
}

module.exports = StudentCard;

Use a smaller component in the View

views/StudentsPanel.jsx
const React = require("react");
const StudentCard = require('./components/StudentCard');      // <-- IMPORT THE COMPONENT

// Reusing a smaller component within the StudentsPanel

function StudentsPanel() {
  return (
    {/*  ...  */}
      <body>
        <h1>Students Panel</h1>
        <StudentCard/>            {/*  <==  ADD */}
        <StudentCard/>            {/*  <==  ADD */}
        <StudentCard/>            {/*  <==  ADD */}

      </body>
    {/*  ...  */}
  );
}

Injecting data to a component - props

Components are very powerful as they enable us to inject custom data to them.

Data injected in the component is called - props.

In the above example we could customize the data that each StudentCard component is showing.

views/StudentsPanel.jsx
/*
...
*/

function StudentsPanel() {
  return (
    {/*  ...  */}
      <body>
        <h1>Students Panel</h1>

        <StudentCard fName="Uros" lName="Cirkovic" />       {/*  <==  UPDATE */}
        <StudentCard/>
        <StudentCard/>

      </body>
    {/*  ...  */}
  );
}

views/components/StudentCard.jsx
function StudentCard ( props ) {															// <==  UPDATE
  // props ===>   {  fName: 'Uros',   lName: 'Cirkovic' }

  return (
        <section className="student-card">
          <h2>Student Card</h2>
          <h3>Details</h3>

          <div className="img-container">
            <img src="" alt="" />
          </div>
          <p className="name">First Name: { props.fName } </p>
          <p className="name">Last Name:  { props.lName } </p>

          <button>See Profile</button>
        </section>
  );
}

module.exports = StudentCard;

Each Component is created as a separate part, therefore enabling us to pass different data to each component.

views/StudentsPanel.jsx
/*
...
*/

function StudentsPanel() {
  return (
    {/*  ...  */}
      <body>
        <h1>Students Panel</h1>

        <StudentCard fName="Uros" lName="Cirkovic" />       {/*  <==  UPDATE */}
        <StudentCard fName="John" lName="Doe" />
        <StudentCard/>

      </body>
    {/*  ...  */}
  );
}

// In this way we reuse components to re-create parts with same structure,
// but with different content.

/*
...
*/

function StudentsPanel() {
  return (
    {/*  ...  */}
      <body>
        <h1>Students Panel</h1>

        <StudentCard
          fName="Uros"
          lName="Cirkovic"
          photo="https://i.imgur.com/h0uGpjB.jpg"         {/*  <==  UPDATE */}
        />
        <StudentCard fName="John" lName="Doe" />
        <StudentCard/>

      </body>
    {/*  ...  */}
  );
}

// In this way we reuse components to re-create parts with same structure,
// but with different content.

	// ...
        <section className="student-card">
          <h2>Student Card</h2>
          <h3>Details</h3>

          <div className="img-container">
            <img src={ props.photo } alt="" />			  {/* <==  UPDATE   */}
          </div>

          <p className="name">First Name: { props.fName }</p>
          <p className="name">Last Name: { props.lName } </p>

	// ...
}

Exercise - pass the props (30 min)


Passing props during the res.render

When rendering a template we can pass it data that we want to inject into the template.

To do this we pass the data as the second parameter to the method: res.render('ViewName', data).

res.render('ViewName', data);
touch views/Welcome.jsx
app.js
// create a template and pass it the data
// that can be used inside of the template page
app.get('/welcome', (req, res, next) => {
  let data = {
    name: "Ironhacker",
    bootcamp: "IronHack Barcelona - WebDev"
  };

  res.render('Welcome', data);
});

components/Welcome.jsx
const React = require('react');

// Passing the props data via the `res.render`

function Welcome (props) {

  return(
    <html lang="en">
      <head>
        <meta charSet="utf-8" />
        <title>Welcome</title>
      </head>
      <body>
        <h1>Hello {props.name} !</h1>
        <p>Welcome to the {props.bootcamp} .</p>

        <img src="http://giphygifs.s3.amazonaws.com/media/FQyQEYd0KlYQ/giphy.gif" />
      </body>
    </html>
  )
}


module.exports = Welcome;

Conditionals

touch components/Conditionals.jsx
app.get("/conditional", (req, res, next) => {
  app.render("Conditionals");
});
components/Conditionals.jsx
const React = require("react");

const isLoggedIn = true;
const photo = "https://i.imgur.com/kdOOnTL.jpg";
// const photo = undefined;


// Example on conditional rendering in JSX

function Conditionals () {
  return (
    <html lang="en">
      <head>
        <meta charSet="utf-8" />
        <title>Conditionals</title>
      </head>
      <body>
        {
          isLoggedIn
            ? <h3> Logged In!</h3>
            : <h3> Not Logged in :(</h3>
        }

        { photo ? <img src={ photo } alt=""/> : null }
      </body>
    </html>
  );
}

module.exports = Conditionals;

Lists and mapping

touch components/List.jsx

We can use arrays to create lists inside of our Templates and components.

app.get("/list", (req, res, next) => {
  app.render("List");
});
components/List.jsx
const React = require("react");

// Example of rendering lists with array.map() in JSX

function List () {
  return (
    <html lang="en">
      <head>
        <meta charSet="utf-8" />
        <title>List</title>
      </head>
      <body>
        {
          [
            <p> Barcelona </p>,
            <p> Madrid </p>,
            <p> Paris </p>,
            <p> Berlin </p>,
            <p> Miami </p>,
          ]
        }
      </body>
    </html>
  );
}

module.exports = List;

We can also create lists dynamically by using array.map method.

When mapping we must always include the key attribute on the returned element.

We can use indexes for this.

const React = require("react");

// Example on conditional rendering in JSX

const cities = [ 'Barcelona', 'Madrid', 'Paris', 'Berlin', 'Miami'];

function List () {
  return (
    <html lang="en">
      <head>
        <meta charSet="utf-8" />
        <title>List</title>
      </head>
      <body>
        {
          cities.map( (city, i) => {
            return <p key={i} > {city} </p>
          })
        }
      </body>
    </html>
  );
}

module.exports = List;

Creating a Layout component

Third way of passing something to a component is between the openeing and closing tag of the component.

We can use this pattern to create a Layout component.

Layout component can be used to add basic styling, scripts and layout that we want to have on every page we render to the client.

touch views/Layout.jsx
views/Layout.jsx
const React = require('react');

function Layout (props) {
  return(
  <html lang="en">
    <head>
      <meta charSet="UTF-8" />
      <meta name="viewport" content="width=device-width, initial-scale=1.0"/>
      <title>Document</title>
      <link rel="stylesheet" href="/css/style.css"/>
    </head>
    <body>
      <nav>
        <div>
          <img src="https://i.imgur.com/RP5vFgT.png" alt="" />
          <p>User's name</p>
        </div>
        <ul>
          <li><a href="">Home</a></li>
          <li><a href="">About</a></li>
          <li><a href="">Contact</a></li>
        </ul>
      </nav>

      { props.children }

    </body>
  </html>
  )
}


module.exports = Layout;

Add the Layout to other view components

views/Conditionals.jsx
const React = require("react");

const Layout = require('./Layout');					           {/*  <=== IMPORT THE LAYOUT  */}


const isLoggedIn = false;
const photo = "https://i.imgur.com/kdOOnTL.jpg";
// const photo = undefined;


// Example on conditional rendering in JSX

function Conditionals() {
  return (
    <Layout>                 {/*  <=== ADD  */}

      <html lang="en">
        {/*  ...  */}
      </html>

    </Layout>                 {/*  <=== ADD  */}
  );
}

module.exports = Conditionals;

Configuring nodemon to watch all the files (including .jsx files)

🔗 Nodemon docs - Specifying extension watch list

We can do it in 2 different ways:

  1. Add the extensions of files to monitor for change nodemon -e js, jsx.
package.json
  "scripts": {
    "start": "node app.js",
    "start:dev": "nodemon -e js,jsx app.js"
  },

OR

  1. Set the wildcard flag to monitor all files for change nodemon -e '*' .
package.json
  "scripts": {
    "start": "node app.js",
    "start:dev": "nodemon -e '*' app.js"
  },
Sign up for free to join this conversation on GitHub. Already have an account? Sign in to comment
