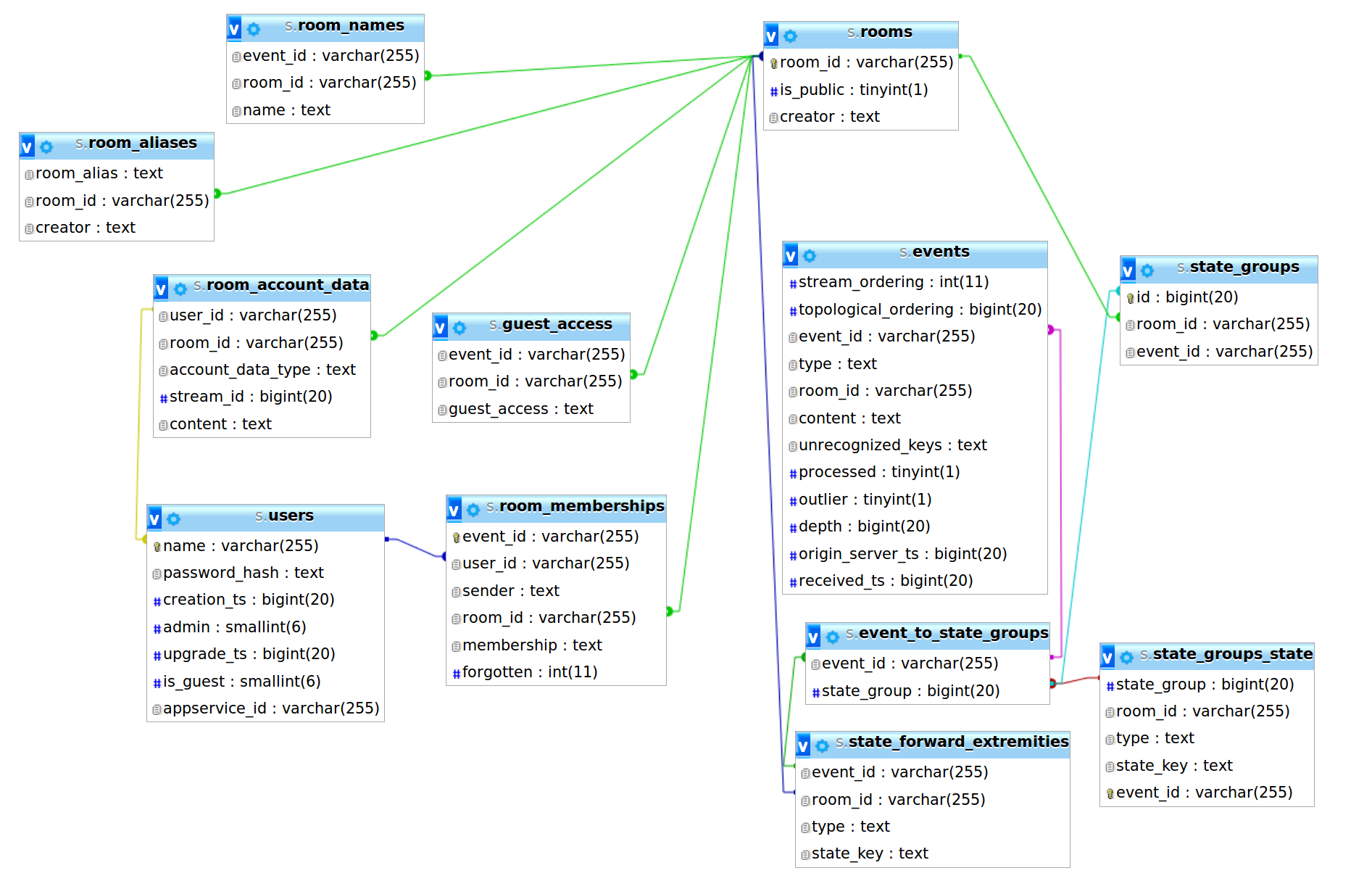

Database structure of https://github.com/matrix-org/synapse

export.sql

-- this is a converted verstion to MySQL of the synapse database on 19 Jan 2017

CREATE TABLE `access_tokens` (
 	id 	BIGINT,
 	user_id VARCHAR(255),
 	device_id VARCHAR(255),
 	token 	TEXT,
 	last_used 	BIGINT,
  KEY (`user_id`),
  PRIMARY KEY (`id`)
 	);

CREATE TABLE `presence_allow_inbound` (
 	observed_user_id VARCHAR(255),
 	observer_user_id VARCHAR(255)
 	);

CREATE TABLE `account_data` (
 	user_id VARCHAR(255),
 	account_data_type 	TEXT,
 	stream_id 	BIGINT,
 	content 	TEXT,
  KEY (`user_id`),
  KEY (`stream_id`)
 	);

CREATE TABLE `presence_list` (
 	user_id VARCHAR(255),
 	observed_user_id VARCHAR(255),
 	accepted 	BOOLEAN
 	);

CREATE TABLE `account_data_max_stream_id` (
 	`Lock` 	CHAR(1),
 	stream_id 	BIGINT
 	);

CREATE TABLE `presence_stream` (
 	stream_id 	BIGINT,
 	user_id VARCHAR(255),
 	state 	TEXT,
 	last_active_ts 	BIGINT,
 	last_federation_update_ts 	BIGINT,
 	last_user_sync_ts 	BIGINT,
 	status_msg 	TEXT,
 	currently_active 	BOOLEAN,
  KEY (`user_id`),
  KEY (`stream_id`)
 	);

CREATE TABLE `application_services` (
 	id 	BIGINT,
 	url 	TEXT,
 	token 	TEXT,
 	hs_token 	TEXT,
 	sender 	TEXT,
  KEY (`id`)
 	);

CREATE TABLE `profiles` (
 	user_id VARCHAR(255),
 	displayname 	TEXT,
 	avatar_url 	TEXT,
  KEY (`user_id`)
 	);

CREATE TABLE `application_services_regex` (
 	id 	BIGINT,
 	as_id 	BIGINT,
 	namespace 	INT,
 	regex 	TEXT,
  KEY (`id`)
 	);

CREATE TABLE `push_rules` (
 	id 	BIGINT,
 	user_name 	TEXT,
 	rule_id VARCHAR(255),
 	priority_class 	SMALLINT,
 	priority 	INT,
 	conditions 	TEXT,
 	actions 	TEXT
 	);

CREATE TABLE `application_services_state` (
 	as_id VARCHAR(255),
 	state 	VARCHAR(5),
 	last_txn 	INTEGER
 	);

CREATE TABLE `push_rules_enable` (
 	id 	BIGINT,
 	user_name 	TEXT,
 	rule_id VARCHAR(255),
 	enabled 	SMALLINT
 	);

CREATE TABLE `application_services_txns` (
 	as_id VARCHAR(255),
 	txn_id 	INT,
 	event_ids 	TEXT
 	);

CREATE TABLE `push_rules_stream` (
 	stream_id 	BIGINT,
 	event_stream_ordering 	BIGINT,
 	user_id VARCHAR(255),
 	rule_id VARCHAR(255),
 	op 	TEXT,
 	priority_class 	SMALLINT,
 	priority 	INT,
 	conditions 	TEXT,
 	actions 	TEXT
 	);

CREATE TABLE `applied_schema_deltas` (
 	version 	INT,
 	file 	TEXT
 	);

CREATE TABLE `pusher_throttle` (
 	pusher 	BIGINT,
 	room_id VARCHAR(255),
 	last_sent_ts 	BIGINT,
 	throttle_ms 	BIGINT
 	);

CREATE TABLE `background_updates` (
 	update_name 	TEXT,
 	progress_json 	TEXT
 	);

CREATE TABLE `pushers` (
 	id 	BIGINT,
 	user_name 	TEXT,
 	access_token 	BIGINT,
 	profile_tag 	VARCHAR(32),
 	kind 	VARCHAR(8),
 	app_id 	VARCHAR(64),
 	app_display_name 	VARCHAR(64),
 	device_display_name 	VARCHAR(128),
 	pushkey 	TEXT,
 	ts 	BIGINT,
 	lang 	VARCHAR(8),
 	data 	TEXT,
 	last_stream_ordering 	INT,
 	last_success 	BIGINT,
 	failing_since 	BIGINT
);



CREATE TABLE `current_state_events` (
 	event_id VARCHAR(255),
 	room_id VARCHAR(255),
 	type 	TEXT,
 	state_key 	TEXT,
  KEY (`room_id`),
  KEY (`event_id`)
 	);

CREATE TABLE `receipts_graph` (
 	room_id VARCHAR(255),
 	receipt_type 	TEXT,
 	user_id VARCHAR(255),
 	event_ids 	TEXT,
 	data 	TEXT
 	);

CREATE TABLE `current_state_resets` (
 	event_stream_ordering 	BIGINT
 	);

CREATE TABLE `receipts_linearized` (
 	stream_id 	BIGINT,
 	room_id VARCHAR(255),
 	receipt_type 	TEXT,
 	user_id VARCHAR(255),
 	event_id VARCHAR(255),
 	data 	TEXT
 	);

CREATE TABLE `deleted_pushers` (
 	stream_id 	BIGINT,
 	app_id VARCHAR(255),
 	pushkey 	TEXT,
 	user_id VARCHAR(255)
 	);


CREATE TABLE `received_transactions` (
 	transaction_id VARCHAR(255),
 	origin 	TEXT,
 	ts 	BIGINT,
 	response_code 	INT,
 	response_json 	LONGTEXT,
 	has_been_referenced 	smallint
 	);


CREATE TABLE `destinations` (
 	destination 	TEXT,
 	retry_last_ts 	BIGINT,
 	retry_interval 	INTEGER
 	);

CREATE TABLE `redactions` (
 	event_id VARCHAR(255),
 	redacts 	TEXT,
  KEY (`event_id`)
 	);

CREATE TABLE `e2e_device_keys_json` (
 	user_id VARCHAR(255),
 	device_id VARCHAR(255),
 	ts_added_ms 	BIGINT,
 	key_json 	TEXT
 	);

CREATE TABLE `refresh_tokens` (
 	id	INT,
 	token 	TEXT,
 	user_id VARCHAR(255)
 	);

CREATE TABLE `e2e_one_time_keys_json` (
 	user_id VARCHAR(255),
 	device_id VARCHAR(255),
 	algorithm 	TEXT,
 	key_id VARCHAR(255),
 	ts_added_ms 	BIGINT,
 	key_json 	TEXT
 	);

CREATE TABLE `rejections` (
 	event_id VARCHAR(255),
 	reason 	TEXT,
 	last_check 	TEXT
 	);

CREATE TABLE `event_auth` (
 	event_id VARCHAR(255),
 	auth_id VARCHAR(255),
 	room_id VARCHAR(255),
  KEY (`room_id`),
  KEY (`auth_id`),
  KEY (`event_id`)
 	);

CREATE TABLE `remote_media_cache` (
 	media_origin 	TEXT,
 	media_id VARCHAR(255),
 	media_type 	TEXT,
 	created_ts 	BIGINT,
 	upload_name 	TEXT,
 	media_length 	INT,
 	filesystem_id VARCHAR(255)
 	);

CREATE TABLE `event_backward_extremities` (
 	event_id VARCHAR(255),
 	room_id VARCHAR(255)
 	);

CREATE TABLE `remote_media_cache_thumbnails` (
 	media_origin 	TEXT,
 	media_id VARCHAR(255),
 	thumbnail_width 	INT,
 	thumbnail_height 	INT,
 	thumbnail_method 	TEXT,
 	thumbnail_type 	TEXT,
 	thumbnail_length 	INT,
 	filesystem_id VARCHAR(255)
 	);

CREATE TABLE `event_content_hashes` (
 	event_id VARCHAR(255),
 	algorithm 	TEXT,
 	hash 	text
 	);




CREATE TABLE `room_account_data` (
 	user_id VARCHAR(255),
 	room_id VARCHAR(255),
 	account_data_type 	TEXT,
 	stream_id 	BIGINT,
 	content 	TEXT,
  KEY (`room_id`),
  KEY (`user_id`),
  KEY (`stream_id`)
 	);

CREATE TABLE `event_destinations` (
 	event_id VARCHAR(255),
 	destination 	TEXT,
 	delivered_ts 	BIGINT
 	);

CREATE TABLE `room_alias_servers` (
 	room_alias 	TEXT,
 	server 	TEXT
 	);

CREATE TABLE `event_edge_hashes` (
 	event_id VARCHAR(255),
 	prev_event_id VARCHAR(255),
 	algorithm 	TEXT,
 	hash varchar(255)
 	);

CREATE TABLE `room_aliases` (
 	room_alias 	TEXT,
 	room_id VARCHAR(255),
 	creator 	TEXT
 	);
ALTER TABLE `room_aliases` ADD INDEX(`room_id`);

CREATE TABLE `event_edges` (
 	event_id VARCHAR(255),
 	prev_event_id VARCHAR(255),
 	room_id VARCHAR(255),
 	is_state 	BOOL
 	);

CREATE TABLE `room_depth` (
 	room_id VARCHAR(255),
 	min_depth 	INTEGER
 	);

CREATE TABLE `event_forward_extremities` (
 	event_id VARCHAR(255),
 	room_id VARCHAR(255),
  KEY (`room_id`),
  KEY (`event_id`)
 	);

CREATE TABLE `room_hosts` (
 	room_id VARCHAR(255),
 	host 	TEXT
 	);

CREATE TABLE `event_json` (
 	event_id VARCHAR(255),
 	room_id VARCHAR(255),
 	internal_metadata 	TEXT,
 	json 	TEXT
 	);

CREATE TABLE `room_memberships` (
 	event_id VARCHAR(255),
 	user_id VARCHAR(255),
 	sender 	TEXT,
 	room_id VARCHAR(255),
 	membership 	TEXT,
 	forgotten 	INTEGER
 	);
ALTER TABLE `room_memberships` ADD PRIMARY KEY(`event_id`);
ALTER TABLE `room_memberships` ADD INDEX(`user_id`);
ALTER TABLE `room_memberships` ADD INDEX(`room_id`);



CREATE TABLE `event_push_actions` (
 	room_id VARCHAR(255),
 	event_id VARCHAR(255),
 	user_id VARCHAR(255),
 	profile_tag 	VARCHAR(32),
 	actions 	TEXT,
 	topological_ordering 	BIGINT,
 	stream_ordering 	BIGINT,
 	notif 	SMALLINT,
 	highlight 	SMALLINT,
  KEY (`room_id`),
  KEY (`user_id`),
  KEY (`event_id`)
 	);

ALTER TABLE `event_push_actions` ADD INDEX(`room_id`);


CREATE TABLE `room_names` (
 	event_id VARCHAR(255),
 	room_id VARCHAR(255),
 	name 	TEXT,
  KEY (`room_id`),
  KEY (`event_id`)
 	);

CREATE TABLE `event_reference_hashes` (
 	event_id VARCHAR(255),
 	algorithm 	TEXT,
 	hash varchar(255),
  KEY (`event_id`)
 	);

CREATE TABLE `room_tags` (
 	user_id VARCHAR(255),
 	room_id VARCHAR(255),
 	tag 	TEXT,
 	content 	TEXT,
  KEY (`room_id`),
  KEY (`user_id`)
 	);

CREATE TABLE `event_reports` (
 	id 	BIGINT,
 	received_ts 	BIGINT,
 	room_id VARCHAR(255),
 	event_id VARCHAR(255),
 	user_id VARCHAR(255),
 	reason 	TEXT,
 	content 	TEXT,
  KEY (`room_id`),
  KEY (`user_id`),
  KEY (`event_id`)
 	);

CREATE TABLE `room_tags_revisions` (
 	user_id VARCHAR(255),
 	room_id VARCHAR(255),
 	stream_id 	BIGINT,
  KEY (`room_id`),
  KEY (`user_id`),
  KEY (`stream_id`)
 	);



CREATE TABLE `event_search` (
 	event_id VARCHAR(255),
 	room_id VARCHAR(255),
 	sender 	TEXT,
 	`key` 	TEXT,
 	`value` 	TEXT,
  KEY (`room_id`),
  KEY (`event_id`)
 	);



CREATE TABLE `rooms` (
 	room_id VARCHAR(255),
 	is_public 	BOOL,
 	creator 	TEXT,
  KEY (`room_id`)
 	);
ALTER TABLE `rooms` ADD PRIMARY KEY(`room_id`);


CREATE TABLE `event_search_content` (
 	docid	INT,
 	c0event_id VARCHAR(255),
 	c1room_id VARCHAR(255),
 	c2sender 	TEXT,
 	c3key 	TEXT,
 	c4value 	TEXT
 	);

CREATE TABLE `schema_version` (
 	`Lock` 	CHAR(1),
 	version 	INT,
 	upgraded 	BOOL
 	);

CREATE TABLE `event_search_docsize` (
 	docid	INT,
 	size 	BLOB
 	);

CREATE TABLE `sent_transactions` (
 	id 	BIGINT,
 	transaction_id VARCHAR(255),
 	destination 	TEXT,
 	response_code 	INT,
 	response_json 	TEXT,
 	ts 	BIGINT
 	);




CREATE TABLE `event_search_segdir` (
 	level	INT,
 	idx 	INTEGER,
 	start_block 	INT,
 	leaves_end_block 	INT,
 	end_block 	INT,
 	root 	BLOB
 	);

CREATE TABLE `server_keys_json` (
 	server_name 	TEXT,
 	key_id VARCHAR(255),
 	from_server 	TEXT,
 	ts_added_ms 	BIGINT,
 	ts_valid_until_ms 	BIGINT,
 	key_json 	TEXT
 	);

CREATE TABLE `event_search_segments` (
 	blockid	INT,
 	block 	BLOB
 	);

CREATE TABLE `server_signature_keys` (
 	server_name 	TEXT,
 	key_id VARCHAR(255),
 	from_server 	TEXT,
 	ts_added_ms 	BIGINT,
 	verify_key 	TEXT
 	);

CREATE TABLE `event_search_stat` (
 	id	INT,
 	`value` 	BLOB
 	);

CREATE TABLE `server_tls_certificates` (
 	server_name 	TEXT,
 	fingerprint 	TEXT,
 	from_server 	TEXT,
 	ts_added_ms 	BIGINT,
 	tls_certificate 	TEXT
 	);

CREATE TABLE `event_signatures` (
 	event_id VARCHAR(255),
 	signature_name 	TEXT,
 	key_id VARCHAR(255),
 	signature 	TEXT
 	);

CREATE TABLE `state_events` (
 	event_id VARCHAR(255),
 	room_id VARCHAR(255),
 	type 	TEXT,
 	state_key 	TEXT,
 	prev_state 	TEXT
 	);

CREATE TABLE `event_to_state_groups` (
 	event_id VARCHAR(255),
 	state_group 	BIGINT,
  KEY (`state_group`),
  KEY (`event_id`)
 	);

CREATE TABLE `state_forward_extremities` (
 	event_id VARCHAR(255),
 	room_id VARCHAR(255),
 	type 	TEXT,
 	state_key 	TEXT
 	);




CREATE TABLE `events` (
 	stream_ordering	INT,
 	topological_ordering 	BIGINT,
 	event_id VARCHAR(255),
 	type 	TEXT,
 	room_id VARCHAR(255),
 	content 	TEXT,
 	unrecognized_keys 	TEXT,
 	processed 	BOOL,
 	outlier 	BOOL,
 	depth 	BIGINT,
 	origin_server_ts 	BIGINT,
 	received_ts 	BIGINT
);

CREATE TABLE `state_groups` (
 	id 	BIGINT,
 	room_id VARCHAR(255),
 	event_id VARCHAR(255),
  KEY (`room_id`),
  KEY (`event_id`)
 	);

CREATE TABLE `ex_outlier_stream` (
 	event_stream_ordering 	BIGINT,
 	event_id VARCHAR(255),
 	state_group 	BIGINT
  KEY (`state_group`),
  KEY (`event_id`)
 	);

CREATE TABLE `state_groups_state` (
 	state_group 	BIGINT,
 	room_id VARCHAR(255),
 	type 	TEXT,
 	state_key 	TEXT,
 	event_id VARCHAR(255)
  KEY (`room_id`),
  KEY (`state_group`),
  KEY (`event_id`)
 	);
-- type for example: m.roompower_levels

CREATE TABLE `feedback` (
 	event_id VARCHAR(255),
 	feedback_type 	TEXT,
 	target_event_id VARCHAR(255),
 	sender 	TEXT,
 	room_id VARCHAR(255)
 	);

CREATE TABLE `stats_reporting` (
 	reported_stream_token 	INT,
 	reported_time 	BIGINT
 	);

CREATE TABLE `guest_access` (
 	event_id VARCHAR(255),
 	room_id VARCHAR(255),
 	guest_access 	TEXT
 	);
ALTER TABLE `guest_access` ADD INDEX(`event_id`);
ALTER TABLE `guest_access` ADD INDEX(`room_id`);

CREATE TABLE `threepid_guest_access_tokens` (
 	medium 	TEXT,
 	address 	TEXT,
 	guest_access_token 	TEXT,
 	first_inviter 	TEXT
 	);

CREATE TABLE `history_visibility` (
 	event_id VARCHAR(255),
 	room_id VARCHAR(255),
 	history_visibility 	TEXT
 	);
ALTER TABLE `history_visibility` ADD INDEX(`event_id`);
ALTER TABLE `history_visibility` ADD INDEX(`room_id`);


CREATE TABLE `topics` (
 	event_id VARCHAR(255),
 	room_id VARCHAR(255),
 	topic 	TEXT
 	);

ALTER TABLE `topics` ADD INDEX(`event_id`);
ALTER TABLE `topics` ADD INDEX(`room_id`);


CREATE TABLE `local_invites` (
 	stream_id 	BIGINT,
 	inviter 	TEXT,
 	invitee 	TEXT,
 	event_id VARCHAR(255),
 	room_id VARCHAR(255),
 	locally_rejected 	TEXT,
 	replaced_by 	TEXT,
  KEY (`room_id`),
  KEY (`event_id`),
  KEY (`event_id`)
 	);

CREATE TABLE `transaction_id_to_pdu` (
 	transaction_id 	INT,
 	destination 	TEXT,
 	pdu_id VARCHAR(255),
 	pdu_origin 	TEXT
 	);

CREATE TABLE `local_media_repository` (
 	media_id VARCHAR(255),
 	media_type 	TEXT,
 	media_length 	INT,
 	created_ts 	BIGINT,
 	upload_name 	TEXT,
 	user_id VARCHAR(255)
 	);

CREATE TABLE `user_filters` (
 	user_id VARCHAR(255),
 	filter_id 	BIGINT,
 	filter_json 	TEXT
 	);

CREATE TABLE `local_media_repository_thumbnails` (
 	media_id VARCHAR(255),
 	thumbnail_width 	INT,
 	thumbnail_height 	INT,
 	thumbnail_type 	TEXT,
 	thumbnail_method 	TEXT,
 	thumbnail_length 	INTEGER
 	);

CREATE TABLE `user_ips` (
 	user_id VARCHAR(255),
 	access_token 	TEXT,
 	device_id VARCHAR(255),
 	ip 	TEXT,
 	user_agent 	TEXT,
 	last_seen 	BIGINT,
  KEY (`user_id`)
 	);

CREATE TABLE `local_media_repository_url_cache` (
 	url 	TEXT,
 	response_code 	INT,
 	etag 	TEXT,
 	expires 	INT,
 	og 	TEXT,
 	media_id VARCHAR(255),
 	download_ts 	BIGINT
 	);

CREATE TABLE `user_threepids` (
 	user_id VARCHAR(255),
 	medium 	TEXT,
 	address 	TEXT,
 	validated_at 	BIGINT,
 	added_at 	BIGINT
 	);

CREATE TABLE `open_id_tokens` (
 	token 	TEXT,
 	ts_valid_until_ms 	bigint,
 	user_id VARCHAR(255)
 	);



CREATE TABLE IF NOT EXISTS `users` (
  `name` varchar(255) NOT NULL DEFAULT '',
  `password_hash` text,
  `creation_ts` bigint(20) DEFAULT NULL,
  `admin` smallint(6) DEFAULT NULL,
  `upgrade_ts` bigint(20) DEFAULT NULL,
  `is_guest` smallint(6) DEFAULT NULL,
  `appservice_id` varchar(255) DEFAULT NULL
) ENGINE=InnoDB DEFAULT CHARSET=latin1;
ALTER TABLE `users`
  ADD PRIMARY KEY (`name`);
ALTER TABLE `users` ADD INDEX(`name`);


CREATE TABLE `presence` (
 	user_id VARCHAR(255),
 	state 	VARCHAR(20),
 	status_msg 	TEXT,
 	mtime 	BIGINT)

homeserver-structure.md

homeserver database structure visualisation: https://matrix.org/_matrix/media/v1/download/matrix.org/IgkAcPuUReTWTiARRzHSHzKm

for i in $(sqlite3 homeserver.db -header ".tables"); do
  echo "#### table $i";
  sqlite3 homeserver.db "PRAGMA table_info($i);";
done

table access_tokens

0|id|BIGINT|0||1
1|user_id|TEXT|1||0
2|device_id|TEXT|0||0
3|token|TEXT|1||0
4|last_used|BIGINT|0||0

table presence_allow_inbound

0|observed_user_id|TEXT|1||0
1|observer_user_id|TEXT|1||0

table account_data

0|user_id|TEXT|1||0
1|account_data_type|TEXT|1||0
2|stream_id|BIGINT|1||0
3|content|TEXT|1||0

table presence_list

0|user_id|TEXT|1||0
1|observed_user_id|TEXT|1||0
2|accepted|BOOLEAN|1||0

table account_data_max_stream_id

0|Lock|CHAR(1)|1|'X'|0
1|stream_id|BIGINT|1||0

table presence_stream

0|stream_id|BIGINT|0||0
1|user_id|TEXT|0||0
2|state|TEXT|0||0
3|last_active_ts|BIGINT|0||0
4|last_federation_update_ts|BIGINT|0||0
5|last_user_sync_ts|BIGINT|0||0
6|status_msg|TEXT|0||0
7|currently_active|BOOLEAN|0||0

table application_services

0|id|BIGINT|0||1
1|url|TEXT|0||0
2|token|TEXT|0||0
3|hs_token|TEXT|0||0
4|sender|TEXT|0||0

table profiles

0|user_id|TEXT|1||0
1|displayname|TEXT|0||0
2|avatar_url|TEXT|0||0

table application_services_regex

0|id|BIGINT|0||1
1|as_id|BIGINT|1||0
2|namespace|INTEGER|0||0
3|regex|TEXT|0||0

table push_rules

0|id|BIGINT|0||1
1|user_name|TEXT|1||0
2|rule_id|TEXT|1||0
3|priority_class|SMALLINT|1||0
4|priority|INTEGER|1|0|0
5|conditions|TEXT|1||0
6|actions|TEXT|1||0

table application_services_state

0|as_id|TEXT|0||1
1|state|VARCHAR(5)|0||0
2|last_txn|INTEGER|0||0

table push_rules_enable

0|id|BIGINT|0||1
1|user_name|TEXT|1||0
2|rule_id|TEXT|1||0
3|enabled|SMALLINT|0||0

table application_services_txns

0|as_id|TEXT|1||0
1|txn_id|INTEGER|1||0
2|event_ids|TEXT|1||0

table push_rules_stream

0|stream_id|BIGINT|1||0
1|event_stream_ordering|BIGINT|1||0
2|user_id|TEXT|1||0
3|rule_id|TEXT|1||0
4|op|TEXT|1||0
5|priority_class|SMALLINT|0||0
6|priority|INTEGER|0||0
7|conditions|TEXT|0||0
8|actions|TEXT|0||0

table applied_schema_deltas

0|version|INTEGER|1||0
1|file|TEXT|1||0

table pusher_throttle

0|pusher|BIGINT|1||1
1|room_id|TEXT|1||2
2|last_sent_ts|BIGINT|0||0
3|throttle_ms|BIGINT|0||0

table background_updates

0|update_name|TEXT|1||0
1|progress_json|TEXT|1||0

table pushers

0|id|BIGINT|0||1
1|user_name|TEXT|1||0
2|access_token|BIGINT|0|NULL|0
3|profile_tag|VARCHAR(32)|1||0
4|kind|VARCHAR(8)|1||0
5|app_id|VARCHAR(64)|1||0
6|app_display_name|VARCHAR(64)|1||0
7|device_display_name|VARCHAR(128)|1||0
8|pushkey|TEXT|1||0
9|ts|BIGINT|1||0
10|lang|VARCHAR(8)|0||0
11|data|TEXT|0||0
12|last_stream_ordering|INTEGER|0||0
13|last_success|BIGINT|0||0
14|failing_since|BIGINT|0||0

table current_state_events

0|event_id|TEXT|1||0
1|room_id|TEXT|1||0
2|type|TEXT|1||0
3|state_key|TEXT|1||0

table receipts_graph

0|room_id|TEXT|1||0
1|receipt_type|TEXT|1||0
2|user_id|TEXT|1||0
3|event_ids|TEXT|1||0
4|data|TEXT|1||0

table current_state_resets

0|event_stream_ordering|BIGINT|1||1

table receipts_linearized

0|stream_id|BIGINT|1||0
1|room_id|TEXT|1||0
2|receipt_type|TEXT|1||0
3|user_id|TEXT|1||0
4|event_id|TEXT|1||0
5|data|TEXT|1||0

table deleted_pushers

0|stream_id|BIGINT|1||0
1|app_id|TEXT|1||0
2|pushkey|TEXT|1||0
3|user_id|TEXT|1||0

table received_transactions

0|transaction_id|TEXT|0||0
1|origin|TEXT|0||0
2|ts|BIGINT|0||0
3|response_code|INTEGER|0||0
4|response_json|bytea|0||0
5|has_been_referenced|smallint|0|0|0

table destinations

0|destination|TEXT|0||1
1|retry_last_ts|BIGINT|0||0
2|retry_interval|INTEGER|0||0

table redactions

0|event_id|TEXT|1||0
1|redacts|TEXT|1||0

table e2e_device_keys_json

0|user_id|TEXT|1||0
1|device_id|TEXT|1||0
2|ts_added_ms|BIGINT|1||0
3|key_json|TEXT|1||0

table refresh_tokens

0|id|INTEGER|0||1
1|token|TEXT|1||0
2|user_id|TEXT|1||0

table e2e_one_time_keys_json

0|user_id|TEXT|1||0
1|device_id|TEXT|1||0
2|algorithm|TEXT|1||0
3|key_id|TEXT|1||0
4|ts_added_ms|BIGINT|1||0
5|key_json|TEXT|1||0

table rejections

0|event_id|TEXT|1||0
1|reason|TEXT|1||0
2|last_check|TEXT|1||0

table event_auth

0|event_id|TEXT|1||0
1|auth_id|TEXT|1||0
2|room_id|TEXT|1||0

table remote_media_cache

0|media_origin|TEXT|0||0
1|media_id|TEXT|0||0
2|media_type|TEXT|0||0
3|created_ts|BIGINT|0||0
4|upload_name|TEXT|0||0
5|media_length|INTEGER|0||0
6|filesystem_id|TEXT|0||0

table event_backward_extremities

0|event_id|TEXT|1||0
1|room_id|TEXT|1||0

table remote_media_cache_thumbnails

0|media_origin|TEXT|0||0
1|media_id|TEXT|0||0
2|thumbnail_width|INTEGER|0||0
3|thumbnail_height|INTEGER|0||0
4|thumbnail_method|TEXT|0||0
5|thumbnail_type|TEXT|0||0
6|thumbnail_length|INTEGER|0||0
7|filesystem_id|TEXT|0||0

table event_content_hashes

0|event_id|TEXT|0||0
1|algorithm|TEXT|0||0
2|hash|bytea|0||0

table room_account_data

0|user_id|TEXT|1||0
1|room_id|TEXT|1||0
2|account_data_type|TEXT|1||0
3|stream_id|BIGINT|1||0
4|content|TEXT|1||0

table event_destinations

0|event_id|TEXT|1||0
1|destination|TEXT|1||0
2|delivered_ts|BIGINT|0|0|0

table room_alias_servers

0|room_alias|TEXT|1||0
1|server|TEXT|1||0

table event_edge_hashes

0|event_id|TEXT|0||0
1|prev_event_id|TEXT|0||0
2|algorithm|TEXT|0||0
3|hash|bytea|0||0

table room_aliases

0|room_alias|TEXT|1||0
1|room_id|TEXT|1||0
2|creator|TEXT|0||0

table event_edges

0|event_id|TEXT|1||0
1|prev_event_id|TEXT|1||0
2|room_id|TEXT|1||0
3|is_state|BOOL|1||0

table room_depth

0|room_id|TEXT|1||0
1|min_depth|INTEGER|1||0

table event_forward_extremities

0|event_id|TEXT|1||0
1|room_id|TEXT|1||0

table room_hosts

0|room_id|TEXT|1||0
1|host|TEXT|1||0

table event_json

0|event_id|TEXT|1||0
1|room_id|TEXT|1||0
2|internal_metadata|TEXT|1||0
3|json|TEXT|1||0

table room_memberships

0|event_id|TEXT|1||0
1|user_id|TEXT|1||0
2|sender|TEXT|1||0
3|room_id|TEXT|1||0
4|membership|TEXT|1||0
5|forgotten|INTEGER|0|0|0

table event_push_actions

0|room_id|TEXT|1||0
1|event_id|TEXT|1||0
2|user_id|TEXT|1||0
3|profile_tag|VARCHAR(32)|0||0
4|actions|TEXT|1||0
5|topological_ordering|BIGINT|0||0
6|stream_ordering|BIGINT|0||0
7|notif|SMALLINT|0||0
8|highlight|SMALLINT|0||0

table room_names

0|event_id|TEXT|1||0
1|room_id|TEXT|1||0
2|name|TEXT|1||0

table event_reference_hashes

0|event_id|TEXT|0||0
1|algorithm|TEXT|0||0
2|hash|bytea|0||0

table room_tags

0|user_id|TEXT|1||0
1|room_id|TEXT|1||0
2|tag|TEXT|1||0
3|content|TEXT|1||0

table event_reports

0|id|BIGINT|1||1
1|received_ts|BIGINT|1||0
2|room_id|TEXT|1||0
3|event_id|TEXT|1||0
4|user_id|TEXT|1||0
5|reason|TEXT|0||0
6|content|TEXT|0||0

table room_tags_revisions

0|user_id|TEXT|1||0
1|room_id|TEXT|1||0
2|stream_id|BIGINT|1||0

table event_search

0|event_id||0||0
1|room_id||0||0
2|sender||0||0
3|key||0||0
4|value||0||0

table rooms

0|room_id|TEXT|1||1
1|is_public|BOOL|0||0
2|creator|TEXT|0||0

table event_search_content

0|docid|INTEGER|0||1
1|c0event_id||0||0
2|c1room_id||0||0
3|c2sender||0||0
4|c3key||0||0
5|c4value||0||0

table schema_version

0|Lock|CHAR(1)|1|'X'|0
1|version|INTEGER|1||0
2|upgraded|BOOL|1||0

table event_search_docsize

0|docid|INTEGER|0||1
1|size|BLOB|0||0

table sent_transactions

0|id|BIGINT|0||1
1|transaction_id|TEXT|0||0
2|destination|TEXT|0||0
3|response_code|INTEGER|0|0|0
4|response_json|TEXT|0||0
5|ts|BIGINT|0||0

table event_search_segdir

0|level|INTEGER|0||1
1|idx|INTEGER|0||2
2|start_block|INTEGER|0||0
3|leaves_end_block|INTEGER|0||0
4|end_block|INTEGER|0||0
5|root|BLOB|0||0

table server_keys_json

0|server_name|TEXT|1||0
1|key_id|TEXT|1||0
2|from_server|TEXT|1||0
3|ts_added_ms|BIGINT|1||0
4|ts_valid_until_ms|BIGINT|1||0
5|key_json|bytea|1||0

table event_search_segments

0|blockid|INTEGER|0||1
1|block|BLOB|0||0

table server_signature_keys

0|server_name|TEXT|0||0
1|key_id|TEXT|0||0
2|from_server|TEXT|0||0
3|ts_added_ms|BIGINT|0||0
4|verify_key|bytea|0||0

table event_search_stat

0|id|INTEGER|0||1
1|value|BLOB|0||0

table server_tls_certificates

0|server_name|TEXT|0||0
1|fingerprint|TEXT|0||0
2|from_server|TEXT|0||0
3|ts_added_ms|BIGINT|0||0
4|tls_certificate|bytea|0||0

table event_signatures

0|event_id|TEXT|0||0
1|signature_name|TEXT|0||0
2|key_id|TEXT|0||0
3|signature|bytea|0||0

table state_events

0|event_id|TEXT|1||0
1|room_id|TEXT|1||0
2|type|TEXT|1||0
3|state_key|TEXT|1||0
4|prev_state|TEXT|0||0

table event_to_state_groups

0|event_id|TEXT|1||0
1|state_group|BIGINT|1||0

table state_forward_extremities

0|event_id|TEXT|1||0
1|room_id|TEXT|1||0
2|type|TEXT|1||0
3|state_key|TEXT|1||0

table events

0|stream_ordering|INTEGER|0||1
1|topological_ordering|BIGINT|1||0
2|event_id|TEXT|1||0
3|type|TEXT|1||0
4|room_id|TEXT|1||0
5|content|TEXT|1||0
6|unrecognized_keys|TEXT|0||0
7|processed|BOOL|1||0
8|outlier|BOOL|1||0
9|depth|BIGINT|1|0|0
10|origin_server_ts|BIGINT|0||0
11|received_ts|BIGINT|0||0

table state_groups

0|id|BIGINT|0||1
1|room_id|TEXT|1||0
2|event_id|TEXT|1||0

table ex_outlier_stream

0|event_stream_ordering|BIGINT|1||1
1|event_id|TEXT|1||0
2|state_group|BIGINT|1||0

table state_groups_state

0|state_group|BIGINT|1||0
1|room_id|TEXT|1||0
2|type|TEXT|1||0
3|state_key|TEXT|1||0
4|event_id|TEXT|1||0

table feedback

0|event_id|TEXT|1||0
1|feedback_type|TEXT|0||0
2|target_event_id|TEXT|0||0
3|sender|TEXT|0||0
4|room_id|TEXT|0||0

table stats_reporting

0|reported_stream_token|INTEGER|0||0
1|reported_time|BIGINT|0||0

table guest_access

0|event_id|TEXT|1||0
1|room_id|TEXT|1||0
2|guest_access|TEXT|1||0

table threepid_guest_access_tokens

0|medium|TEXT|0||0
1|address|TEXT|0||0
2|guest_access_token|TEXT|0||0
3|first_inviter|TEXT|0||0

table history_visibility

0|event_id|TEXT|1||0
1|room_id|TEXT|1||0
2|history_visibility|TEXT|1||0

table topics

0|event_id|TEXT|1||0
1|room_id|TEXT|1||0
2|topic|TEXT|1||0

table local_invites

0|stream_id|BIGINT|1||0
1|inviter|TEXT|1||0
2|invitee|TEXT|1||0
3|event_id|TEXT|1||0
4|room_id|TEXT|1||0
5|locally_rejected|TEXT|0||0
6|replaced_by|TEXT|0||0

table transaction_id_to_pdu

0|transaction_id|INTEGER|0||0
1|destination|TEXT|0||0
2|pdu_id|TEXT|0||0
3|pdu_origin|TEXT|0||0

table local_media_repository

0|media_id|TEXT|0||0
1|media_type|TEXT|0||0
2|media_length|INTEGER|0||0
3|created_ts|BIGINT|0||0
4|upload_name|TEXT|0||0
5|user_id|TEXT|0||0

table user_filters

0|user_id|TEXT|0||0
1|filter_id|BIGINT|0||0
2|filter_json|bytea|0||0

table local_media_repository_thumbnails

0|media_id|TEXT|0||0
1|thumbnail_width|INTEGER|0||0
2|thumbnail_height|INTEGER|0||0
3|thumbnail_type|TEXT|0||0
4|thumbnail_method|TEXT|0||0
5|thumbnail_length|INTEGER|0||0

table user_ips

0|user_id|TEXT|1||0
1|access_token|TEXT|1||0
2|device_id|TEXT|0||0
3|ip|TEXT|1||0
4|user_agent|TEXT|1||0
5|last_seen|BIGINT|1||0

table local_media_repository_url_cache

0|url|TEXT|0||0
1|response_code|INTEGER|0||0
2|etag|TEXT|0||0
3|expires|INTEGER|0||0
4|og|TEXT|0||0
5|media_id|TEXT|0||0
6|download_ts|BIGINT|0||0

table user_threepids

0|user_id|TEXT|1||0
1|medium|TEXT|1||0
2|address|TEXT|1||0
3|validated_at|BIGINT|1||0
4|added_at|BIGINT|1||0

table open_id_tokens

0|token|TEXT|1||1
1|ts_valid_until_ms|bigint|1||0
2|user_id|TEXT|1||0

table users

0|name|TEXT|0||0
1|password_hash|TEXT|0||0
2|creation_ts|BIGINT|0||0
3|admin|SMALLINT|1|0|0
4|upgrade_ts|BIGINT|0||0
5|is_guest|SMALLINT|1|0|0
6|appservice_id|TEXT|0||0

table presence

0|user_id|TEXT|1||0
1|state|VARCHAR(20)|0||0
2|status_msg|TEXT|0||0
3|mtime|BIGINT|0||0

PostgreSQL-database dump.md

there is always the latest full postgres dump at https://github.com/matrix-org/synapse/tree/master/synapse/storage/data_stores/main/schema/full_schemas

Added as issue here: matrix-org/synapse#934

using this scipt:

DB=synapse
pg_dump --schema-only -U synapse $DB

I updated the postgresql dump to synapse 1.7.2

rempved postgres dump, as there is always the latest full postgres dump at https://github.com/matrix-org/synapse/tree/master/synapse/storage/data_stores/main/schema/full_schemas
