F5 BIG-IP - Block Specific IPs in an Environment Using Cloudflare in Proxied Mode

f5-big-ip-block-ips.md

1. iRules 생성

when HTTP_REQUEST {
    # Set a default empty client_ip variable
    set client_ip ""

    # Check if X-Forwarded-For header exists and use the first IP in the list (if it exists)
    if { [HTTP::header exists "X-Forwarded-For"] } {
        set xff_header [HTTP::header "X-Forwarded-For"]
        set client_ip [getfield $xff_header "," 1]  ;# X-Forwarded-For may contain multiple IPs, so take the first one
    }

    # If CF-Connecting-IP header exists, use it to override client_ip
    if { [HTTP::header exists "CF-Connecting-IP"] } {
        set client_ip [HTTP::header "CF-Connecting-IP"]
    }

    # If neither X-Forwarded-For nor CF-Connecting-IP headers are available, use the client IP address
    if { $client_ip == "" } {
        set client_ip [IP::client_addr]
    }

    # Log the client IP for debugging purposes (optional)
    log local0. "Client IP: $client_ip"

    # Check if the client IP is in the blocked IP data group
    if { [class match $client_ip equals cf-connecting-ip-deny] } {
        # Log the blocking event (optional)
        log local0. "Blocking request from $client_ip: [HTTP::uri]"

        # Drop the request without sending a response
        reject
    }
}

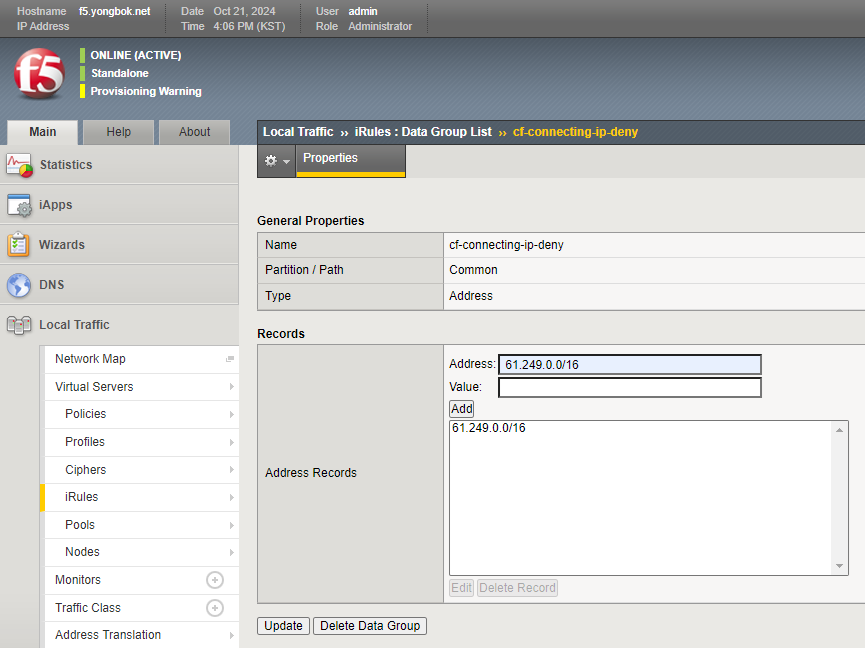

2. Data Group 생성

3. 예상 동작

얄짤없이 drop.

⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
⠀⠀⠀⠀⠀⠀⣀⣤⡶⠶⠟⠛⠛⠛⠋⠙⠛⠛⠿⢶⣦⣄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
⠀⠀⠀⠀⣴⡾⠋⠁⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠈⠙⢿⣦⡀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
⠀⠀⢠⣾⠏⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢀⣀⣀⣀⣀⣽⣿⣆⠀⠀⠀⠀⠀⠀⠀⠀⠀
⠀⢠⣿⠃⠀⠀⢰⡶⠾⠿⠿⠛⠛⠻⣿⠋⠀⠀⢸⡟⠉⠉⣭⣍⢹⡿⣷⡀⠀⠀⠀⠀⠀⠀⠀
⠀⣾⠃⠀⠀⠀⣿⡀⠀⠀⠰⠿⠆⣠⡿⠀⠀⠀⠈⢷⣤⣀⣼⡿⠟⠀⠹⣷⠀⠀⠀⠀⠀⠀⠀
⢸⡟⠀⠀⠀⠀⠘⠿⣶⣤⣤⣶⠾⠟⠁⠀⠀⠀⠀⠀⠈⠉⣁⣀⣀⠀⠀⢻⡇⠀⠀⠀⠀⠀⠀
⢸⡇⠀⠀⠀⠀⢀⣀⣠⣤⣤⣤⡶⠶⠶⠶⠶⠖⠛⠛⠛⠛⣿⠋⠉⠀⠀⢸⣿⠀⠀⠀⠀⠀⠀
⣺⡇⠀⠀⠀⠈⠉⠉⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣸⡇⠀⠀⠀⣼⡇⠀⠀⠀⣤⡄⠀
⠸⣷⡀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣶⠀⢠⡿⠁⠀⣠⣾⠏⠀⠀⠀⢀⣿⣇⠀
⠀⠹⣿⣄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣰⣿⣦⠟⠁⣠⣾⠟⠁⠀⠀⠀⠀⣿⠉⣽⠂
⠀⠀⠈⠻⢷⣦⣄⡀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣼⠋⣹⣿⣴⡿⠋⠀⠀⢀⣠⣤⣶⣿⡽⠞⠁⠀
⠀⠀⠀⠀⠀⣸⡿⠻⠿⢶⣶⣶⣶⣶⣶⠶⣛⣷⡾⠛⠉⣿⣁⣠⠴⢞⣫⡵⠟⠋⠁⠀⠀⠀⠀
⠀⠀⠀⠀⣰⡟⠀⠀⢀⣤⡴⠟⣋⣥⡶⠚⠋⠁⠀⠀⠀⣿⣋⣤⠶⠛⠉⠀⠀⠀⠀⠀⠀⠀⠀
⠀⠀⠀⢰⡿⠀⠀⠐⣋⣤⣶⠟⠋⠁⠀⠀⠀⠀⠀⠀⠀⣿⠋⠁⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
⠀⠀⢠⣿⠃⠀⠀⠘⠛⠉⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣿⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
⠀⠀⣼⡟⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣿⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
⠀⢠⣿⠁⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢸⣿⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
⠀⣼⡟⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠘⣿⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
⠀⠈⠁⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
