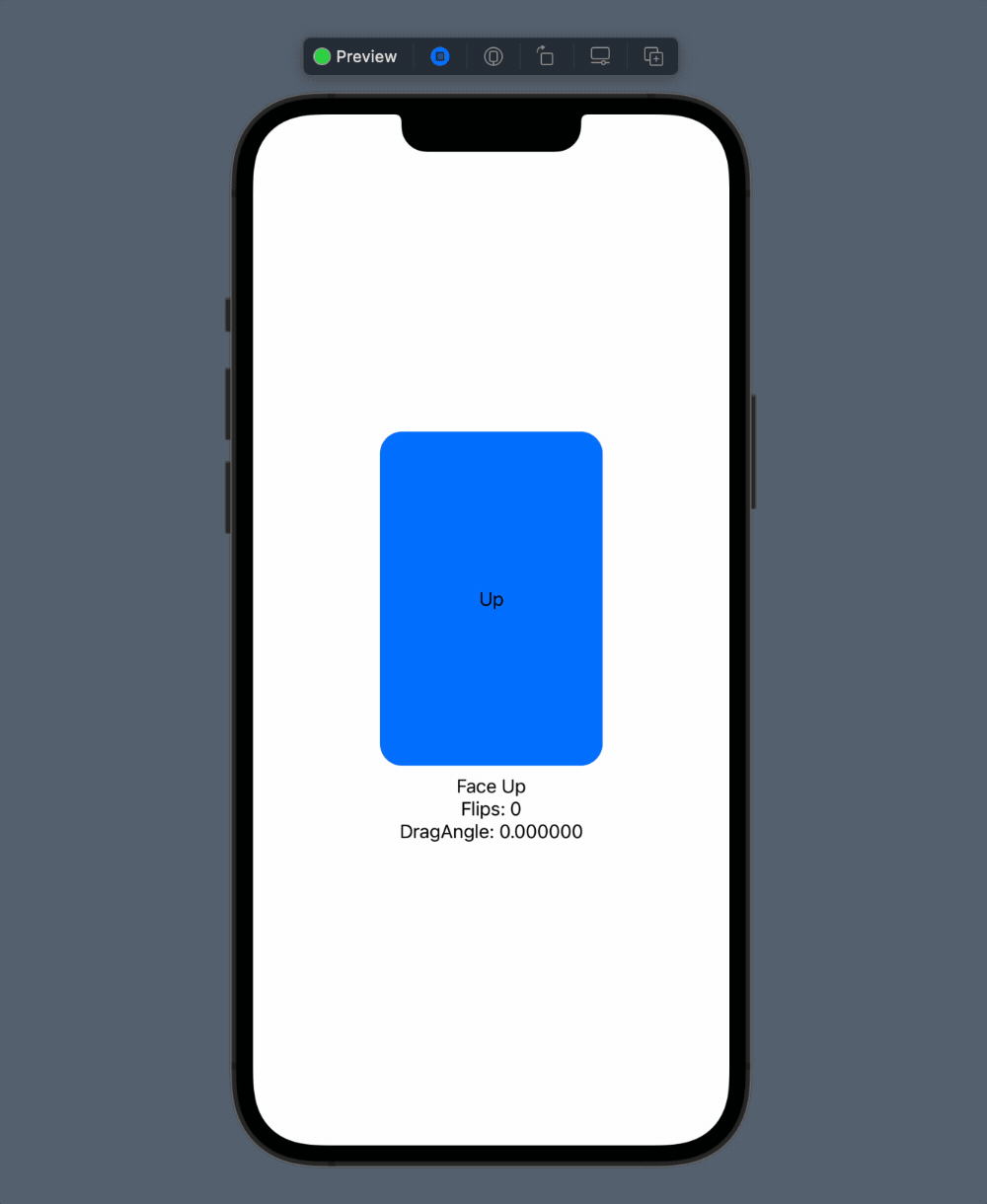

A two sided view that can be flipped with a drag gesture.

TwoSidedView.swift

//
//  TwoSidedView.swift
//  FrameUpExample
//
//  Created by Ryan Lintott on 2022-07-11.
//

import SwiftUI

struct TwoSidedView<UpContent: View, DownContent: View>: View {

    let upContent: () -> UpContent
    let downContent: () -> DownContent

    @State private var dragOffset: CGFloat = .zero
    @State private var predictedDragOffset: CGFloat = .zero
    @GestureState private var isDragging: Bool = false
    @State private var flips: Int = 0

    var isFaceUp: Bool { (flips % 2) == 0 }
    let flipDistance: CGFloat = 200
    var angle: Angle { .radians(CGFloat(flips) * .pi) }
    var dragAngle: Angle {
        angle + .degrees(CGFloat(180) * min(max(-1, dragOffset / flipDistance), 1))
    }

    var showFaceUp: Bool {
        switch dragAngle.degrees.truncatingRemainder(dividingBy: 360) {
        case 90...270: return false
        default: return true
        }
    }

    var body: some View {
        VStack {
            ZStack {
                downContent()
                    .zIndex(-cos(dragAngle.radians))
                    .rotation3DEffect(dragAngle + .degrees(180), axis: (0,1,0))

                upContent()
                    .zIndex(cos(dragAngle.radians))
                    .rotation3DEffect(dragAngle, axis: (0,1,0))
            }
            .frame(width: 200, height: 300)
            .gesture(drag)
            .onChange(of: isDragging) { isDragging in
                if !isDragging { onDragEnded() }
            }

            Text("Face \(isFaceUp ? "Up" : "Down")")
            Text("Flips: \(flips)")
            Text("DragAngle: \(dragAngle.degrees)")
        }
    }

    var drag: some Gesture {
        DragGesture()
            .updating($isDragging) { value, gestureState, transaction in
                gestureState = true
            }
            .onChanged { value in
                predictedDragOffset = value.predictedEndTranslation.width
                dragOffset = value.translation.width
            }
    }

    func onDragEnded() {
        withAnimation(.spring()) {
            flips += min(max(-1, Int((predictedDragOffset / flipDistance).rounded())), 1)
            dragOffset = .zero
        }
    }
}

struct TwoSidedView_Previews: PreviewProvider {
    static var previews: some View {
        TwoSidedView {
            RoundedRectangle(cornerRadius: 20)
                .fill(.blue)
                .overlay(Text("Up"))
        } downContent: {
            RoundedRectangle(cornerRadius: 20)
                .fill(.red)
                .overlay(Text("Down"))
        }
    }
}
