Warps an image to make it look like you didn't eat too much sweets

too_much_pumpkin.py

import cv2, numpy as np

# Read image
img = cv2.imread('/home/stephen/Desktop/vids/me.png')
h,w,_ = img.shape
sf = 1
img = cv2.resize(img, (int(w/sf), int(h/sf)))
img_pristine = img.copy()

# Get clicks from user
global click_list
click_list = []
def callback(event, x, y, flags, param):
    if event == 1:
        click_list.append((x,y))
        print(x,y)
cv2.namedWindow('img')
cv2.setMouseCallback('img', callback)

# Takes an image and three points
# Returns an image where everythign is blacked out except that triangle
def get_mask(p0, p1, p2):
    h,w,_ = img.shape
    mask = np.zeros((h,w), np.uint8)
    pts = np.array([p0,p1,p2], np.int32)
    mask = cv2.drawContours(mask, [pts], 0, 255, -1)
    return mask

# Take the image and two sets of points.
# Transform the image
def transform(img, p0, p1, old_center, new_center):
    rows,cols,ch = img.shape
    pts1 = np.float32([p0,p1,old_center])
    pts2 = np.float32([p0,p1,new_center])
    M = cv2.getAffineTransform(pts1,pts2)
    dst = cv2.warpAffine(img,M,(cols,rows))
    return dst

# Takes an image, and a mask
# Returns the image, minus the parts of the image that are masked out
def mask_image(img, mask):
    res = cv2.bitwise_and(img,img, mask= mask)
    return res

k=0
while k!=27:
    img_pristine = img.copy()
    # Get the input from the user
    while True:
        # Display the input to the user
        img_copy = img.copy()
        try:
            cv2.circle(img_copy, click_list[0], 12, 234)
            cv2.line(img_copy, click_list[0], click_list[1], 255, 3)
            cv2.circle(img_copy, click_list[1], 12, 234)
            cv2.line(img_copy, click_list[1], click_list[2], 255, 3)
            cv2.circle(img_copy, click_list[2], 12, 234)
            cv2.line(img_copy, click_list[2], click_list[0], 255, 3)
            cv2.circle(img_copy, click_list[3], 12, 234)
            cv2.line(img_copy, click_list[3], click_list[2], 255, 3)
            cv2.line(img_copy, click_list[3], click_list[1], 255, 3)
            cv2.line(img_copy, click_list[3], click_list[0], 255, 3)
        except: pass

        # Check if all the input has been collected
        if len(click_list)==5: break

        # Show the image
        cv2.imshow('img', img_copy)
        k = cv2.waitKey(1)
        if k == 27:break

    # All of the user input has been collected, time to warp the image.

    # A triangular region of the image is warped from this old center
    old_center = click_list[3]
    # To a new center
    new_center = click_list[4]
    # Define the three triangles
    triangles = []
    triangles.append((click_list[0], click_list[1]))
    triangles.append((click_list[1], click_list[2]))
    triangles.append((click_list[2], click_list[0]))

    for a,b in triangles:
        # Warp triangle
        warped_triangle = transform(img_pristine, a, b, old_center, new_center)
        # Generate mask of warped triangle
        mask = get_mask(a, b, new_center)
        # Mask source image (now the background)
        background = mask_image(img, 255-mask)

        #cv2.imshow('img', background)
        #k = cv2.waitKey(0)

        # Mask warped triangle image (new the foreground)
        foreground = mask_image(warped_triangle, mask)

        #cv2.imshow('img', foreground)
        #k = cv2.waitKey(0)

        # Paste warped triangle onto masked source
        img = background + foreground

        #cv2.imshow('img', img)
        #k = cv2.waitKey(0)
    cv2.imshow('img', img)
    k = cv2.waitKey(0)
    click_list = []
cv2.destroyAllWindows()

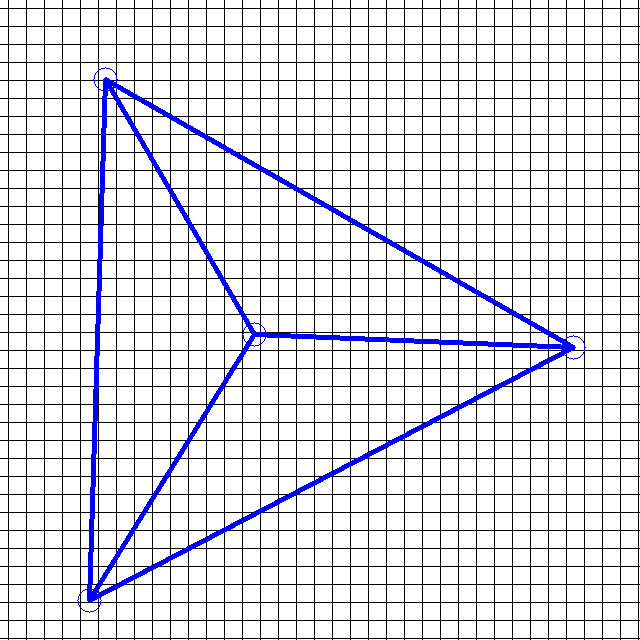

This file is used to warp images. First, two sets of three triangles are manually defined by the user. Then the first set of three triangles (the fat set) is morphed into the second set of triangles (the thin set).
