Intel SSD 8mb bug Fix

How To Fix Intel SSD 8MB bug Using Linux Terminal

Persian Article is Available On Academia.edu

Also You Can Read This Article In My Blog sirvan.me

Requirements:

• Linux Terminal or Mini Linux in Hiren’s Boot CD / USB Tools
• Physical access to your SSD

Get started:

1- Open Terminal and Enter the following command to get a list of all available harddrives in your computer:

 fdisk –l

Locate your Intel SSD in the list and take a note of the device name, for example /dev/sda



2- For get Drives Information Type the command:

 sudo hdparm -I /dev/sda

where sda is your SSD device. If you see the following in the output: Serial Number: BAD_CTX that confirms that you are hit by this bug.

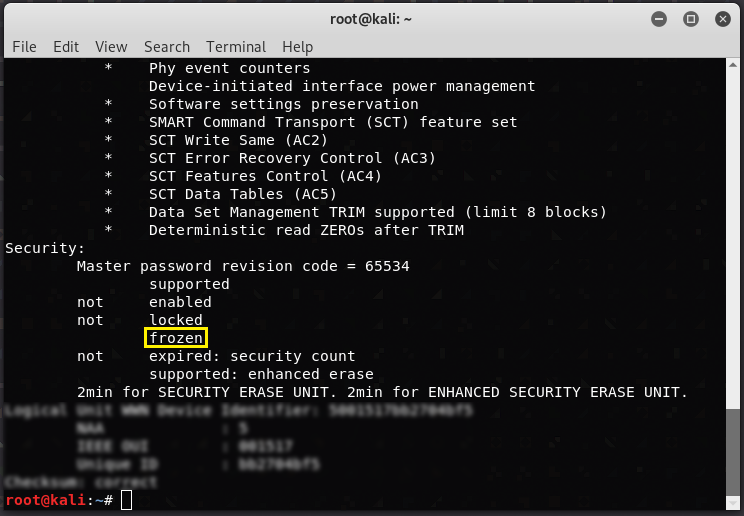

If at the Security section it reads frozen you CANNOT continue, you have to use a workaround to eliminate the freeze before you can continue:

So Unplug and then replug the SATA data cable of your Intel SSD while the system is still powered on. So, leave your computer powered on, open up your case, locate the SATA data cable of your Intel SSD, unplug it and then replug it. This should unfreeze your SSD.

3- Check Again Drives Information using This command:

 sudo hdparm -I /dev/sda

4- For Set a Password Type the command:

  sudo hdparm --user-master u --security-set-pass Password /dev/sda

Again /dev/sda is your SSD drive, and Password is a password you want to set for the SSD.We will need that SOMEPASS later on, so remember it/write it down.

5. Check the drive again:

 sudo hdparm -I /dev/sda

Now it should say enabled and not frozen at the security section:Security: Master password revision code = 65534 supported enabled not locked not frozen not expired: security count supported: enhanced erase

6- For secure erase Type The command:

 sudo hdparm --user-master u --security-erase Password /dev/sda

This issues the secure erase command. Again /dev/sda is your SSD, Password is the password set before. The completion of this operation can take a few minutes. After this your SSD should be functional, if not, try again with this command:

 sudo hdparm –user-master u –security-erase-enhanced Password /dev/sda

This latter command takes much more time (30-40 minutes).

7- After this check the drive again:

 sudo hdparm -I /dev/sda

The BAD_CTX thing should be gone and your drive should be functional

You can now reinstall your O/S. After all this don’t forget to update the firmware of the SSD using Intel SSD Toolbox to prevent the bug from happening again in the future.

OK, Done. Good Luck :)

Website : Visit

Twitter : @S1rv4n

Bitcoin address for donations: : 1NjTdkh6zB3iGG9REAakXxB71cjzRhkNAq

Yeah, buying new SSD helped

Already did...I am not interested in saving old SSD...I just want to recover data.

…

________________________________ From: Sergei Shilko <[email protected]> Sent: Monday, December 21, 2020 1:05 AM To: sshilko <[email protected]> Cc: PaulS <[email protected]>; Comment <[email protected]> Subject: Re: sshilko/intel-ssd-8mb-bug.md @sshilko commented on this gist.

________________________________ Yeah, buying new SSD helped — You are receiving this because you commented. Reply to this email directly, view it on GitHub<https://gist.github.com/3c88b5c0564e1db7f88daf33c23b9f17#gistcomment-3568474>, or unsubscribe<https://github.com/notifications/unsubscribe-auth/ABRYDVIG4AU7DGMR53KZNA3SV4FT7ANCNFSM4VDNPMGA>.

I've just suffered this on my Intel SSD (160 GB) and your instructions didn't seem to work. I finally wiped the drive (fortunately I had nothing really important there) with the new Intel utility but it is still unusable.

In an Intel document, though, it mentions that what you have to do to disable the FREEZE LOCK is to disconnect and quickly reconnect the power cable of the SSD, not the SATA cable. When I tested that with the Intel app under windows it didn't work, but doing it in Linux with your instructions worked: the ssd was at last "not frozen" and I was able to set the password and erase the disk.

After that, it still showed 8 MB as its capacity with the fdisk command, but after rebooting in Windows it finally shows the drive as available with 160 GB (well, 149,05) available. Thanks for your help!

BTW: in the text, the normal hypens ("-" symbols) are shown as em-dashes, I think (example, "–security-erase-enhanced", if you try to use that it gives an error, there's obviously a mistake there ;) ).

If in the Security section it reads frozen you CANNOT continue, you have to use a workaround to eliminate the freeze before you can continue:
I unplugged and replugged but it still says Freeze, and I have 3 identical SSD and the same issue none of that work the unfreeze. Please help any other way I can do it.

Hi
my drive unfreeze by removing the power cable and not the data cable, I had 3 hard drivers 120gb SSD intel 9intel ssd 320 series 8mb fix)
done
thank you very much

man, I really appreciate you for posting this to us. just fixed my intel using this method works great just make sure you get the commands right or just copy and paste them it'll be easier.

Big Thanks To You

Problem Fixed with This tutorial but Data Gone without anyway to Recovery it
thanks

This is a great apport and works perfectly tky sshilko. Im just like to add to this post if u can not revive try unolugin the energy SATA conector not the data connector in the step 2 and it works perfectly, and when finish all the steps needed to unplug SATA energy again/connect again and verify the disk with the totally space and info it gonna be correct.
After update the firmware for solve the problem in the future.

I got this issue after energy fail at my home
