【H Release】Near-RT RIC Deployment Guide.md

HW/SW Reference specifications

RAM：20G RAM
CPU：8 core (Can not only 1 CPU!!!)
Disk：60GB
Ubuntu 20.04 LTS (Focal Fossa)

1. Install the Docker, Kubernetes and Helm 3

1.1 Open terminate (Ctrl+Alt+T)

1.2 Become root user：

Note： All the commands need to be executed as root.

sudo -i

1.3 Install the Dependent Tools

apt-get update
apt-get install -y git vim curl net-tools openssh-server python3-pip nfs-common

1.4 Download the source code of RIC Platform

cd ~
git clone https://gerrit.o-ran-sc.org/r/ric-plt/ric-dep -b h-release

URL: https://gerrit.o-ran-sc.org/r/gitweb?p=ric-plt%2Fric-dep.git;a=shortlog;h=refs%2Fheads%2Fg-release

1.5 Execute the Installation Script of the Docker, Kubernetes and Helm 3

If you want to change the version, you should use this command:

cd ric-dep/bin
vim install_k8s_and_helm.sh

cd ric-dep/bin
./install_k8s_and_helm.sh

1.6 Check the Status of Kubernetes deployment

kubectl get pods -A

1.7 Check the version of Docker, Kubernetes and Helm

	version	command
Helm	3.5.4	helm version
Kubernetes	1.16.0	kubectl version
Kubecniv	0.7.5	kubectl version
Docker	20.10.21	docker version

2. Install the Near-RT RIC Platform

2.1 Add the ric-common templates

Note: In the D and E version, 2.1 is in the ./deploy-ric-platform ../RECIPE_EXAMPLE/PLATFORM/example_recipe_oran_dawn_release.yaml script file to install.

./install_common_templates_to_helm.sh

NOTE: How many 'servecm not yet running. sleeping for 2 seconds' it is depends on your download speed. Because it will wait to download download chartmuseum.

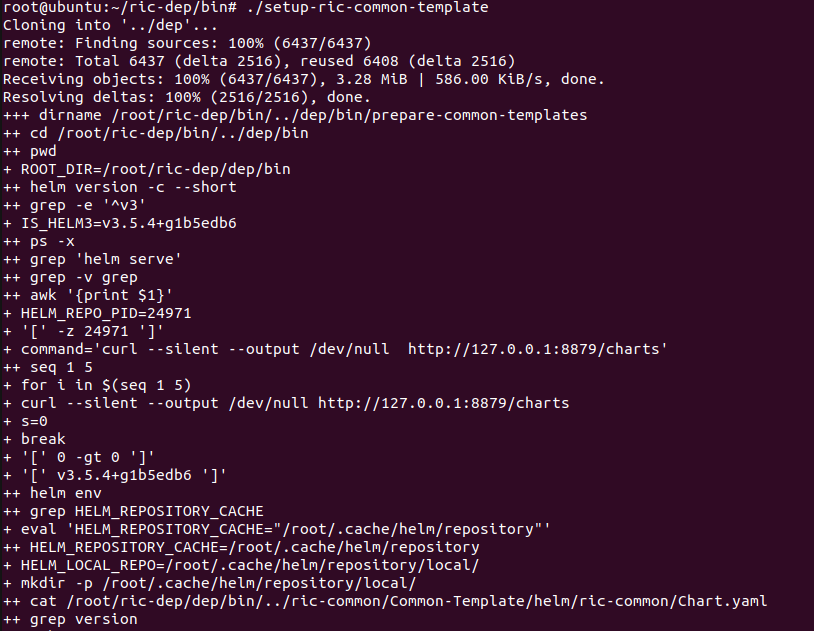

./setup-ric-common-template

2.2 Edit Deployment Configuration

2.3 Install nfs for InfluxDB

kubectl create ns ricinfra
helm repo add stable https://charts.helm.sh/stable
helm install nfs-release-1 stable/nfs-server-provisioner --namespace ricinfra
kubectl patch storageclass nfs -p '{"metadata": {"annotations":{"storageclass.kubernetes.io/is-default-class":"true"}}}'
sudo apt install nfs-common

2.4 Execute the Installation Script of Near-RT RIC

Find your IP of VM：

ip a

Modify the IP of RIC and AUX：

vim ~/ric-dep/RECIPE_EXAMPLE/example_recipe_oran_h_release.yaml

Deploy the RIC Platform：

cd ~/ric-dep/bin
./install -f ../RECIPE_EXAMPLE/example_recipe_oran_h_release.yaml -c "jaegeradapter influxdb"

2.5 Check the Status of Near-RT RIC deployment

Results similar to the output shown below indicate a complete and successful deployment, all are either “Completed” or “Running”, and that none are “Error”, “Pending”, “Evicted”,or “ImagePullBackOff”.
The status of pods “PodInitializing” & “Init” & “ContainerCreating” mean that the pods are creating now, you need to wait for deploying.

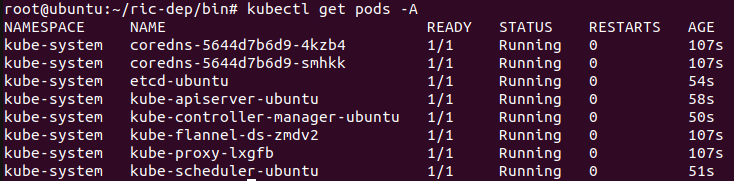

kubectl get pods -A

If inflexdb2 is pending, you can refer Issues 1.
If tiller is Error,you can skip it.

3. Install the DMS Tool

3.1 Install the Chartmuseum for DMS Tool

Customized Setting：

cd ~
echo "env:
  open:
    STORAGE: local
    CONTEXT_PATH: /charts
    DISABLE_API: false
persistence:
  enabled: true
  accessMode: ReadWriteOnce
  size: 8Gi
  storageClass: nfs
service:
  type: NodePort" > chart.yaml

Install Chatmuseum：

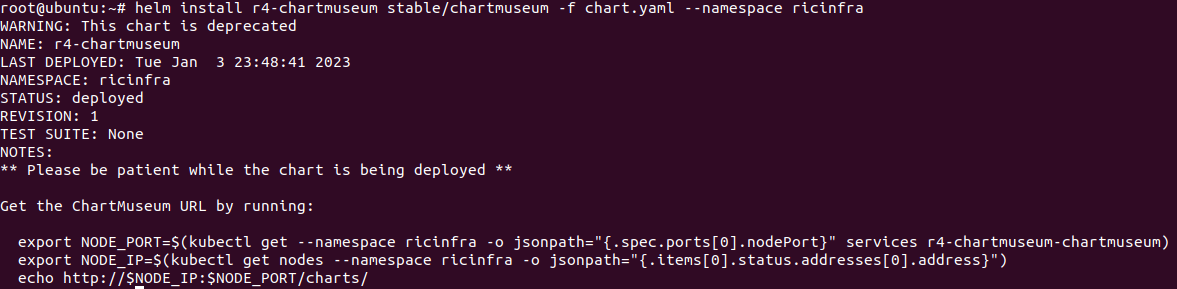

helm install r4-chartmuseum stable/chartmuseum -f chart.yaml --namespace ricinfra

Verify the IP and Port：

export NODE_PORT=$(sudo kubectl get --namespace ricinfra -o jsonpath="{.spec.ports[0].nodePort}" services r4-chartmuseum-chartmuseum)
export NODE_IP=$(sudo kubectl get nodes --namespace ricinfra -o jsonpath="{.items[0].status.addresses[0].address}")
echo http://$NODE_IP:$NODE_PORT/

3.2 Install the DMS tool

Prepare source code：

docker run --rm -u 0 -it -d -p 8080:8080 -e DEBUG=1 -e STORAGE=local -e STORAGE_LOCAL_ROOTDIR=/chart -v $(pwd)/charts:/charts chartmuseum/chartmuseum:latest
export CHART_REPO_URL=http://0.0.0.0:8090
git clone https://gerrit.o-ran-sc.org/r/ric-plt/appmgr -b h-release

Install DMS tool：

cd appmgr/xapp_orchestrater/dev/xapp_onboarder
apt-get install python3-pip
pip3 uninstall xapp_onboarder
pip3 install ./
chmod 755 /usr/local/bin/dms_cli
ls -la /usr/local/lib/python3.8
chmod -R 755 /usr/local/lib/python3.8

Appendix

Issues of InfluxDB & NFS

Issue 1：Pod is Crashbackoff

Warning FailedMount 110s kubelet MountVolume.SetUp failed for volume "pvc-759e2292-6938-4b8e-b6e3-67bbf9b7b904" : mount failed: exit status 32

Solution：Re-install the dependent tools

apt-get install -y nfs-common

Issue 2：Unauthorized

If the xApp need to access the InfluxDB, it maybe need to login-in by using user/password

Error: raise InfluxDBClientError(err_msg, response.status_code) influxdb.exceptions.InfluxDBClientError: 401: {"code":"unauthorized","message":"Unauthorized"}

Solution：Modify the user/password in the xApp code Step 1：Enter the secret of InfluxDB

kubectl get secret -n ricplt
kubectl edit secret -n ricplt <InfluxDB secret>

Step 2：Decode the user/password

echo 'amYzOTJoZjc4MmhmOTMyaAo=' | base64 --decode

Step 3：Modify the InfluxDB user/password in the xApp using the decoded user/password

Clear the k8s

https://ithelp.ithome.com.tw/articles/10262330

Delete the pod

kubectl delete pod --all -n <namespace>

Uninstall Near-RT RIC Platform

cd ~/ric-dep/bin
./uninstall

Script to Deploy RIC Platform quickly

sudo -i
touch Deploy_RIC-Platform_H-Release.sh
chmod +x Deploy_RIC-Platform_H-Release.sh
vim Deploy_RIC-Platform_H-Release.sh

# Install the Dependent Tools
#-------------------------------------------------------------------------------
echo "------------------ Install the Dependent Tools ----------------------"
apt-get update
apt-get install -y git vim curl net-tools openssh-server python3-pip nfs-common

# Download the source code of RIC Platform
#-------------------------------------------------------------------------------
echo "------------ Download the source code of RIC Platform ---------------"
cd ~
git clone https://gerrit.o-ran-sc.org/r/ric-plt/ric-dep -b h-release

# Execute the Installation Script of the Docker, Kubernetes and Helm 3
#-------------------------------------------------------------------------------
echo "--------------Install Docker, Kubernetes and Helm 3------------------"
cd ric-dep/bin
./install_k8s_and_helm.sh

# Add the ric-common templates
#-------------------------------------------------------------------------------
echo "--------------------Install the Dependent Tools----------------------"
./install_common_templates_to_helm.sh
./setup-ric-common-template
cd ../..

# Install nfs for InfluxDB
#-------------------------------------------------------------------------------
echo "------------------Install the Dependent Tools------------------------"
kubectl create ns ricinfra
helm repo add stable https://charts.helm.sh/stable
helm install nfs-release-1 stable/nfs-server-provisioner --namespace ricinfra
kubectl patch storageclass nfs -p '{"metadata": {"annotations":{"storageclass.kubernetes.io/is-default-class":"true"}}}'
sudo apt install nfs-common

# Deploy the RIC Platform
echo "------------------Install the Dependent Tools------------------------"
cd ~/ric-dep/bin
./install -f ../RECIPE_EXAMPLE/example_recipe_oran_h_release.yaml -c "jaegeradapter influxdb"
kubectl get pods -A
cd ../..

echo "----------wait:30s---------"
for i in 10 20 30
do
    echo "----------$i s---------"
    sleep 10
done

# check the bug of influxdb
echo "-------------------------check the influxdb--------------------------"
z=$(kubectl get pods -n ricplt | grep "influxdb" | awk '{print $3}')
if [ $z = "Running" ]
then
    echo "------->already Running"
else
    echo "------->still Pending"
    cd ~
    echo "apiVersion: v1
kind: PersistentVolume
metadata:
  name: r4-influxdb
  labels:
    name: r4-influxdb
spec:
  storageClassName: nfs
  capacity:
    storage: 50Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    type: DirectoryOrCreate
    path: /mnt/ricplt-influxdb-data" > influxdb-pv.yaml

    kubectl apply -f influxdb-pv.yaml
fi

echo "----------wait:30s---------"
for i in 10 20 30
do
    echo "----------$i s---------"
    sleep 10
done

# Install the DMS Tool
echo "-------------------------Install the DMS Tool--------------------------"
cd ~
echo "env:
  open:
    STORAGE: local
    CONTEXT_PATH: /charts
    DISABLE_API: false
persistence:
  enabled: true
  accessMode: ReadWriteOnce
  size: 8Gi
  storageClass: nfs
service:
  type: NodePort" > chart.yaml

helm install r4-chartmuseum stable/chartmuseum -f chart.yaml --namespace ricinfra
export NODE_PORT=$(kubectl get --namespace ricinfra -o jsonpath="{.spec.ports[0].nodePort}" services r4-chartmuseum-chartmuseum)
export NODE_IP=$(kubectl get nodes --namespace ricinfra -o jsonpath="{.items[0].status.addresses[0].address}")
echo http://$NODE_IP:$NODE_PORT/

docker run --rm -u 0 -it -d -p 8090:8080 -e DEBUG=1 -e STORAGE=local -e STORAGE_LOCAL_ROOTDIR=/chart -v $(pwd)/charts:/charts chartmuseum/chartmuseum:latest
export CHART_REPO_URL=http://0.0.0.0:8090
git clone https://gerrit.o-ran-sc.org/r/ric-plt/appmgr -b h-release
cd appmgr/xapp_orchestrater/dev/xapp_onboarder
apt-get install python3-pip
pip3 uninstall xapp_onboarder
pip3 install ./
chmod 755 /usr/local/bin/dms_cli
ls -la /usr/local/lib/ptyhon3.8
chmod -R 755 /usr/local/lib/python3.8

./Deploy_RIC-Platform_H-Release.sh

GIT LAB

Issues

1. r4-influxdb-influxdb2-0 is Pending

:::info - reason

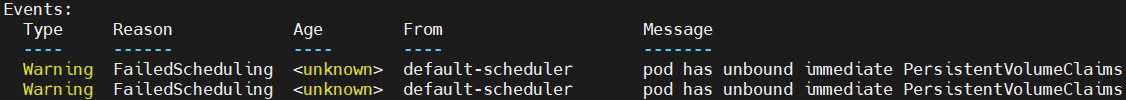

kubectl describe pods -n ricplt r4-influxdb-influxdb2-0

kubectl get pvc -A

We can found that influxdb was pending, so its pod was pending

kubectl describe pods -n ricplt r4-influxdb-influxdb2-0

We can found that we didn't give it a volume.

kubectl get pv -A

We can found that we really didn't give it a volume. ::: :::success - solution

cd ~
echo "apiVersion: v1
kind: PersistentVolume
metadata:
  name: r4-influxdb
  labels:
    name: r4-influxdb-influxdb2
spec:
  storageClassName: "nfs"
  capacity:
    storage: 50Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    type: DirectoryOrCreate
    path: /mnt/ricplt-influxdb-data" > influxdb-pv.yaml

kubectl apply -f influxdb-pv.yaml

:::

2. Change the DMS Install(2023/2/2)

It have some problem about authorized
original

git clone https://gerrit.o-ran-sc.org/r/ric-plt/appmgr -b h-release
cd ~/appmgr/xapp_orchestrater/dev/xapp_onboarder
pip3 install ./

Change

docker run --rm -u 0 -it -d -p 8090:8080 -e DEBUG=1 -e STORAGE=local -e STORAGE_LOCAL_ROOTDIR=/chart -v $(pwd)/charts:/charts chartmuseum/chartmuseum:latest
export CHART_REPO_URL=http://0.0.0.0:8090
git clone https://gerrit.o-ran-sc.org/r/ric-plt/appmgr -b h-release
cd appmgr/xapp_orchestrater/dev/xapp_onboarder
apt-get install python3-pip
pip3 uninstall xapp_onboarder
pip3 install ./
chmod 755 /usr/local/bin/dms_cli
ls -la /usr/local/lib/ptyhon3.8
chmod -R 755 /usr/local/lib/python3.8

3. Can't install docker

:::info

When I ran this command ./install_k8s_and_helm.sh, it appeared this error
Can't find this docker version 20.10.12-0ubuntu2~20.04.1
Command apt-get install -y --allow-downgrades --allow-change-held-packages --allow-unauthenticated --ignore-hold docker.io=20.10.12-0ubuntu2~20.04.1
error

Reading package lists... Done
Building dependency tree
Reading state information... Done
E: Version '20.10.12-0ubuntu2~20.04.1' for 'docker.io' was not found

:::

:::success

solution
Install master version

git clone https://gerrit.o-ran-sc.org/r/ric-plt/ric-dep -b master

Because the version of docker becomes 20.10.12-0ubuntu1~20.04.1 :::

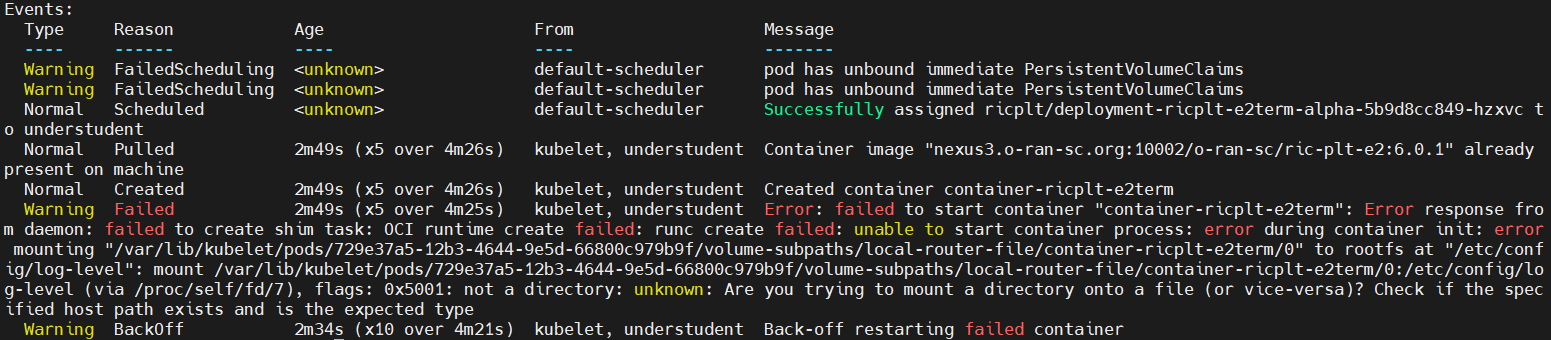

4. E2term fail

info

If you install this branch(or above) and Improve E2term's log-level, it will occur an error

solution
Don't revise this file vim ~/ric-dep/helm/e2term/templates/deployment.yaml, because this branch already improve the log-level.
