Easily add Charts into Dashing with Chartjs (Line, Bar, Radar, Polar Area, Pie, Doughnut)

README.md

smashing-chartjs

An easy interface to use all of chartjs.org's charts.

Inspired by my own pain and suffering of trying to add a simple chart to smashing

Make awesome charts like these:

## Installation ##### 1. Import Chartjs library In `dashboards/layout.erb`, add this script tag:

<script type="text/javascript" src="//cdnjs.cloudflare.com/ajax/libs/Chart.js/2.7.2/Chart.min.js"></script>

before this script tag:

<script type="text/javascript" src="/assets/application.js"></script>

2. Install smashing-chartjs

Run in terminal in project directory

smashing install b4a67180da816eb0695f

Example

Let's create a simple line chart!

Usage

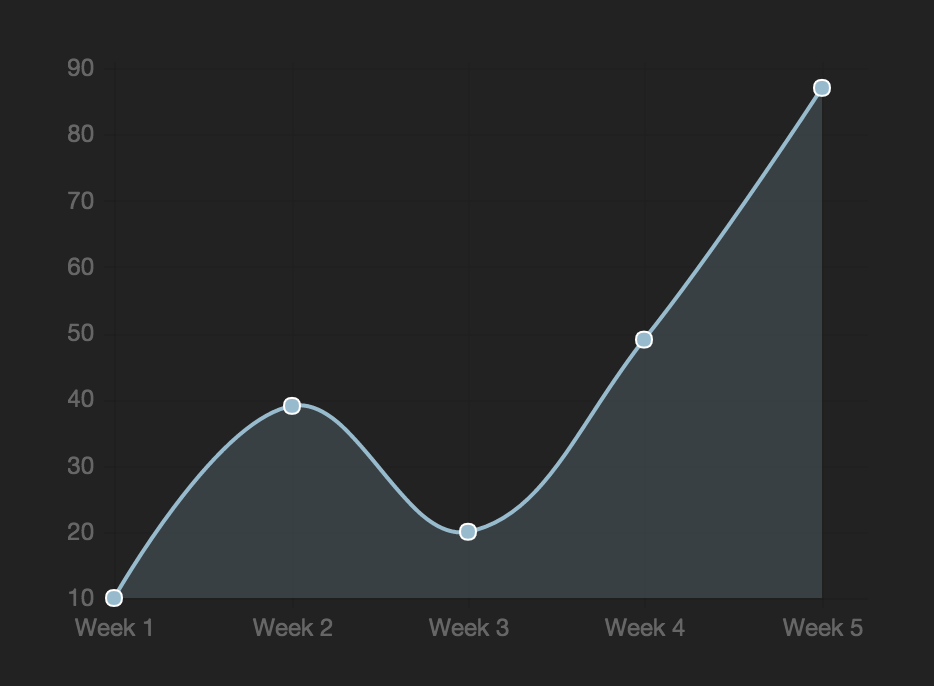

Line Chart

<div
  data-id="line-chart"
  data-view="Chartjs"
  data-type="line"
  data-labels="Week 1,Week 2,Week 3,Week 4,Week 5"
  data-colornames="blue,blue,blue,blue,blue"
  data-datasets="10,39,20,49,87"
  data-height="400"
  data-width="400"
></div>

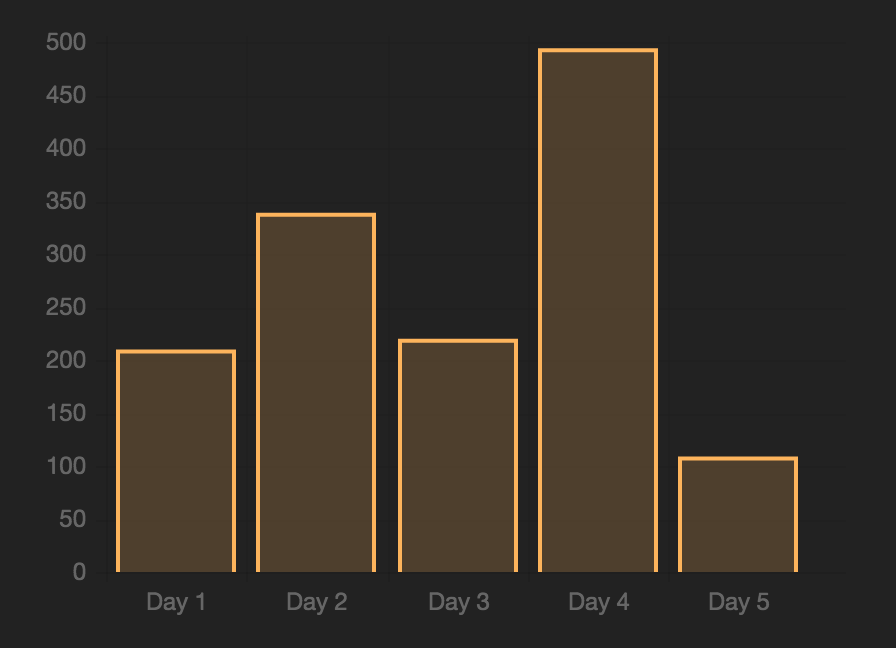

Bar Charts

<div
  data-id="bar-chart"
  data-view="Chartjs"
  data-type="bar"
  data-labels="Day 1,Day 2,Day 3,Day 4,Day 5"
  data-colornames="yellow,yellow,yellow,yellow,yellow"
  data-datasets="210,339,220,494,109"
  data-height="400"
  data-width="400"
></div>

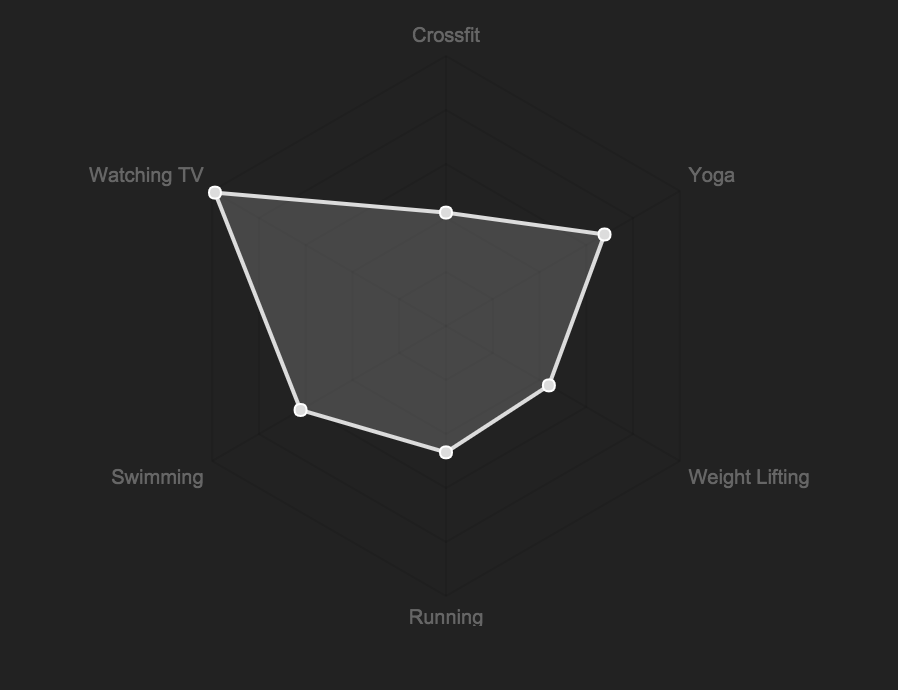

Radar Charts

<div
  data-id="radar-chart"
  data-view="Chartjs"
  data-type="radar"
  data-labels="Crossfit,Yoga,Weight Lifting,Running,Swimming,Watching TV"
  data-colornames="yellow,yellow,yellow,yellow,yellow,yellow"
  data-datasets="210,339,220,234,311,494"
  data-height="400"
  data-width="400"
></div>

Polar Area Charts

<div
  data-id="chart-polarArea"
  data-view="Chartjs"
  data-type="polarArea"
  data-labels="Week 1,Week 2,Week 3,Week 4,Week 5"
  data-colornames="blue,yellow,green,cyan,gray"
  data-datasets="10,39,20,49,87"
  data-height="400"
  data-width="400"
></div>

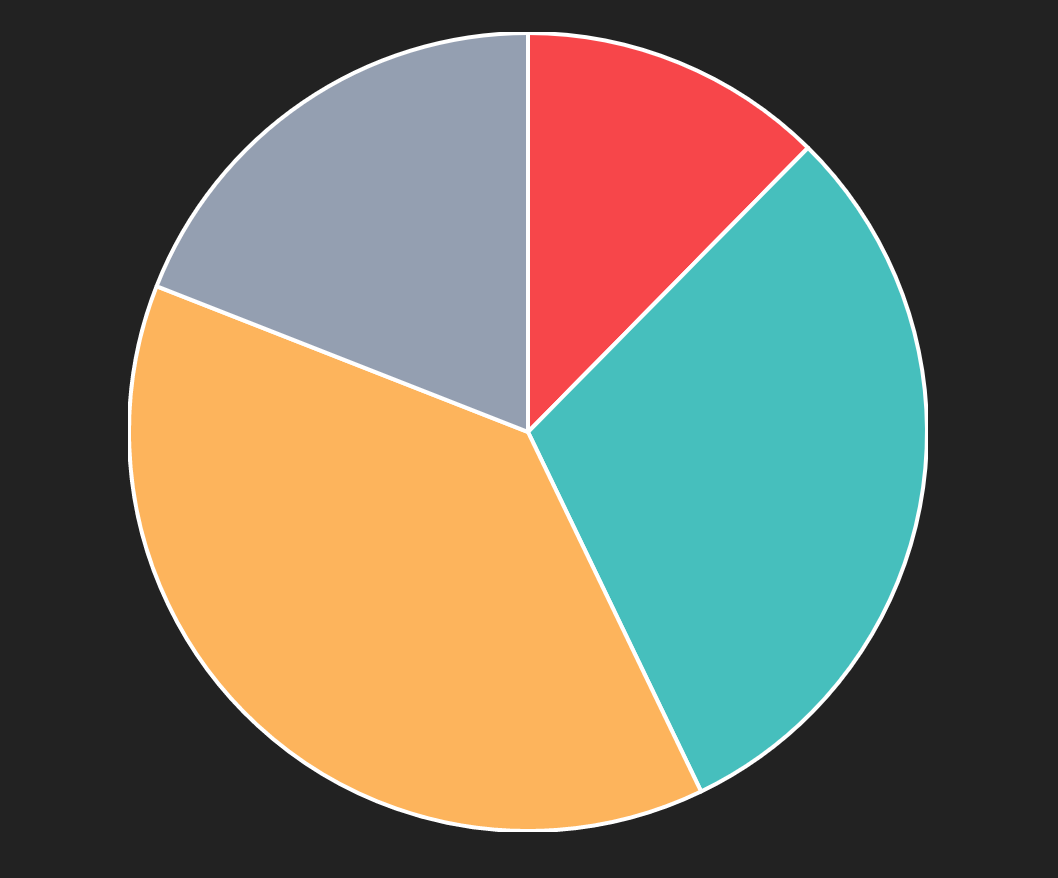

Pie Charts

@pieChart(elementId, dataSets)

<div
  data-id="chart-pie"
  data-view="Chartjs"
  data-type="pie"
  data-labels="Pumpkin,Apple,Pizza,Rhubarb"
  data-colornames="red,green,yellow,gray"
  data-datasets="13,32,40,20"
  data-height="400"
  data-width="400"
></div>

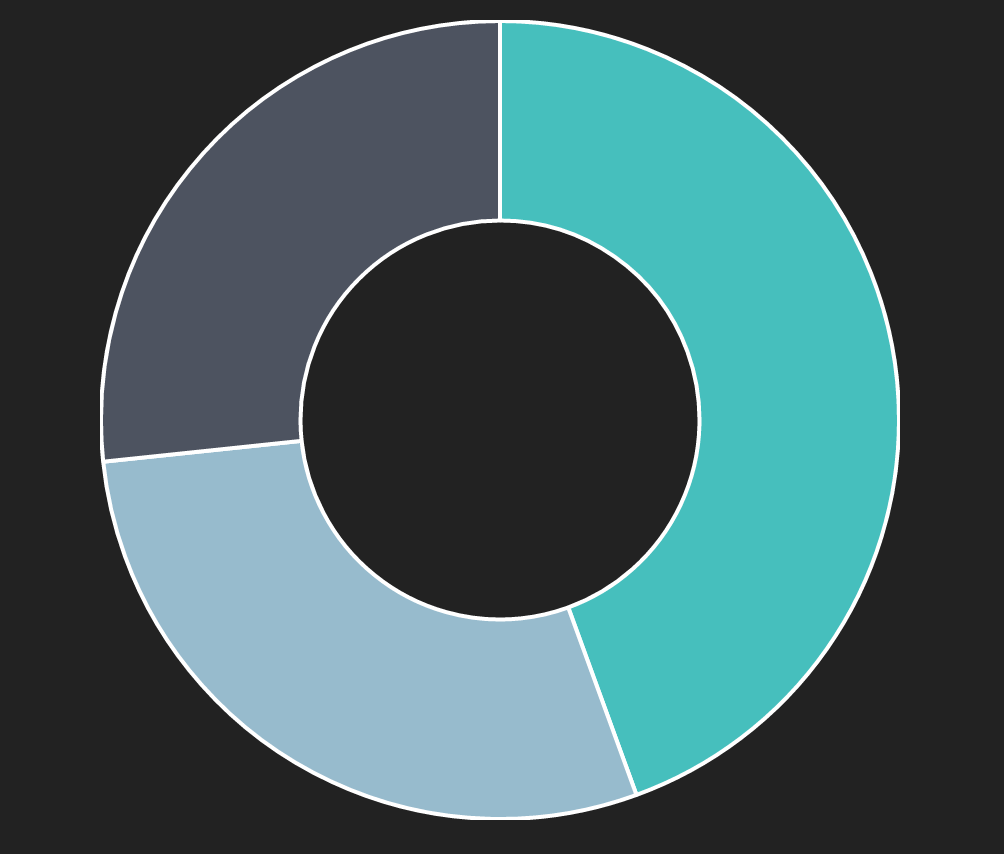

Doughnut Charts

@doughnutChart(elementId, dataSets)

<div
  data-id="doughnut-pie"
  data-view="Chartjs"
  data-type="doughnut"
  data-labels="Apple Fritter,Chocolate,Maple"
  data-colornames="green,blue,darkgray"
  data-datasets="20,13,12"
  data-height="400"
  data-width="400"
></div>

Colors

Currently available colors

blue | cyan | darkgray | gray | green | lightgray | magenta | red | yellow

chartjs.coffee

class Dashing.Chartjs extends Dashing.Widget

  constructor: ->
    super
    @id = @get("id")
    @type = @get("type")
    @labels = @get("labels") && @get("labels").split(",")
    @datasets = @get("datasets") && @get("datasets").split(",")
    @colorNames = @get("colornames") && @get("colornames").split(",")

  ready: ->
    switch @type
      when 'pie', 'doughnut', 'polarArea'
        @circularChart @id, type: @type, labels: @labels, colors: @colorNames, datasets: @datasets
      when 'line', 'bar', 'radar'
        @linearChart @id, type: @type, labels: @labels, colors: @colorNames, datasets: @datasets
      else
        return

  circularChart: (id, { type, labels, colors, datasets, options={} }) ->
    data = @merge labels: labels, datasets: [@merge data: datasets, @colors(colors)]
    new Chart(document.getElementById(id), { type: type, data: data }, options)

  linearChart: (id, { type, labels, colors, datasets, options={} }) ->
    data = @merge labels: labels, datasets: [@merge(@colors(colors), data: datasets)]
    new Chart(document.getElementById(id), { type: type, data: data }, options)

  merge: (xs...) =>
    if xs?.length > 0
      @tap {}, (m) -> m[k] = v for k, v of x for x in xs

  tap: (o, fn) -> fn(o); o

  colorCode: ->
    blue: "151, 187, 205"
    cyan:  "0, 255, 255"
    darkgray: "77, 83, 96"
    gray: "148, 159, 177"
    green: "70, 191, 189"
    lightgray: "220, 220, 220"
    magenta: "255, 0, 255"
    red: "247, 70, 74"
    yellow: "253, 180, 92"

  colors: (colorNames) ->
    backgroundColor: colorNames.map (colorName) => @backgroundColor(colorName)
    borderColor: colorNames.map (colorName) => @borderColor(colorName)
    borderWidth: colorNames.map (colorName) -> 1
    pointBackgroundColor: colorNames.map (colorName) => @pointBackgroundColor(colorName)
    pointBorderColor: colorNames.map (colorName) => @pointBorderColor(colorName)
    pointHoverBackgroundColor: colorNames.map (colorName) => @pointHoverBackgroundColor(colorName)
    pointHoverBorderColor: colorNames.map (colorName) => @pointHoverBorderColor(colorName)

  color: (colorName) ->
    backgroundColor: @backgroundColor(colorName)
    borderColor: @borderColor(colorName)
    borderWidth: 1
    pointBackgroundColor: @pointBackgroundColor(colorName)
    pointBorderColor: @pointBorderColor(colorName)
    pointHoverBackgroundColor: @pointHoverBackgroundColor()
    pointHoverBorderColor: @pointBackgroundColor(colorName)

  backgroundColor: (colorName) -> "rgba(#{ @colorCode()[colorName] }, 0.2)"
  borderColor: (colorName) -> "rgba(#{ @colorCode()[colorName] }, 1)"
  pointBackgroundColor: (colorName) -> "rgba(#{ @colorCode()[colorName] }, 1)"
  pointBorderColor: (colorName) -> "rgba(#{ @colorCode()[colorName] }, 1)"
  pointHoverBackgroundColor: -> "fff"
  pointHoverBorderColor: (colorName) -> "rgba(#{ @colorCode()[colorName] }, 0.8)"

  circleColor: (colorName) ->
    backgroundColor: "rgba(#{ @colorCode()[colorName] }, 0.2)"
    borderColor: "rgba(#{ @colorCode()[colorName] }, 1)"
    borderWidth: 1
    hoverBackgroundColor: "#fff"
    hoverBorderColor: "rgba(#{ @colorCode()['blue'] },0.8)"

chartjs.html

<canvas data-bind-id="id" data-bind-data-height="height | default 200" data-bind-data-width="width | default 200"></canvas>

jobs_example.rb

SCHEDULER.every "2s" do |job|
  send_event("chart", {
  	type: "bar",
  	header: "Calories Burned",
  	labels: ["Day 1", "Day 2", "Day 3", "Day 4", "Day 5"],
  	colorNames: ["yellow", "yellow", "yellow", "yellow", "yellow"],
  	datasets: [210, 339, 220, 494, 109]
  })
end

YES!! Been looking for this, Dashing makes it so complicated for simple line charts.

I have been trying to update the example chart using curl and I couldn't. Could anyone help me? The only one I can update it right now it is changing its coffee file. Thanks in advance.

Does dashing not support chartjs > v2? Having troubles passing options using v2.1.6, they don't have any effect.

Hi everyone. Sorry I am a novice, but I need a way to change the color of label. Someone to help me with this?

@eyalzek did you manage to have the options working? I'm facing the same issue. Somehow it looks like the options are not passed to the chart.js

@tywhang: Can you attach your complete line chart files?

• widget.coffee
• widget.html
• widget.scss
• sample.erb
• job file

Thanks

Is it possible to link chartjs data to display with an Excel file ? So Excel table could be displayed as a chart dynamically

example full one ? is anyone own?

@tywhang

Getting the following error:

      return new Chart(document.getElementById(id).getContext("2d")).Bar(data);
-----------------------------------------------------------------------------
Uncaught TypeError: Cannot read property 'getContext' of null
    at BarChart.Dashing.Chartjs.Chartjs.barChart (application.js:15145)
    at BarChart.Dashing.BarChart.BarChart.ready (application.js:15943)
    at BarChart.<anonymous> (application.js:14532)
    at application.js:2084
    at Array.forEach (<anonymous>)
    at Event.Batman.Event.Event.eachHandler (application.js:2028)
    at Event.Batman.Event.Event.fireWithContext (application.js:2083)
    at BarChart.fire (application.js:2224)
    at Renderer.<anonymous> (application.js:14448)
    at Renderer.handlerWrapper (application.js:2191)

document.getElementById(id) evaluates to null, and rightly so, the DOM doesn't contain the canvas element from example.html. Not sure why though, I followed instructions to the letter. Any ideas?

Hello everyone!

I made this little helper library and I had no idea how many people are trying to use this.
Most of these issues are probably happening because the code hasn't been updated for a while.
I am currently working on updating the library so it's compatible with Smashing.
Afterwards I will work on making this library more useful, configurable, and easier to implement.

In the meantime, any PRs are greatly welcome and appreciated!
https://github.com/tywhang/smashing-chartjs

@yuribak

In widgets/example/example.html, you should have added something like:
<canvas id="myChart" width="400" height="300"></canvas>

In your .erb file make sure you call the widget with something like:
<div data-view="Example"></div>

@eyalzek @RolphH Code has now been updated to use Chart.js 2.7.2 with the ability pass in options.

@Brianm0440 Full example can be found here: https://github.com/tywhang/smashing-chartjs-example

And as some of you ask in comments above how to use it with jobs - you pass args just like in every other job:
send_event('dashboard_name', {labels: ['Some', 'Labels', 'Of', 'Your', 'Chosing'], datasets: [12, 23, 34, 21, 32, 12], colors: ['green, yellow, magenta'] })

@tywhang: Thanks for your work :)

Thanks @PadawanBreslau, I just updated the gist with a jobs example.

Hi! I'm a totally novice with both Smashing and Chart.js and I'm running into an issue where my charts will not resize properly when I'm resizing the dahsboard. I'm wondering if anyone has ever had a similar experience? (I'll write a much more thorough post tonight but I'm just wondering if anyone has been able to solve any sort of similar issue where charts just aren't resizing correctly.

@caitfriedlander Are you having issues with this library in particular? You can customize the height and width of your charts by passing in the proper attributes. If you're wondering about dynamic resizing, I'm not so sure if Smashing is intended to be used for constantly changing heights and widths.

Here's a repository of a full example you can look at: https://github.com/tywhang/smashing-chartjs-example
Live example: https://github.com/tywhang/smashing-chartjs-example

First of all: thanks for the widget, it's great!

Is there any way to change the labels size and color or let the axes start by zero?
I tried this in the job file, but it didn't work:
send_event("myChart", { type: "bar", header: "Bar chart demo", labels: ["first bar'", "second bar'"], colorNames: ["green", "blue"], datasets: [display_firstValue, display_secondValue], options: { legend: { labels: { fontColor: "white", fontSize: 30 } }, scales: { yAxes: [{ ticks: { fontColor: "white", fontSize: 30, stepSize: 300, beginAtZero: true } }], xAxes: [{ ticks: { fontColor: "white", fontSize: 26, stepSize: 300, beginAtZero: true } }] } } })

Hi! Thanks a lot for the amazing work ! It's really great and easy to use.

Although I'm facing an issue with passing options to the charts, and nothing that I've tried seems to have any effect on the chart. I tried passing the options in the job file as in the comment above, putting the options in multiple places in the chartjs.coffee file, but none seems to work. Do you have an example of working chart with custom options? It would be amazing.

Thanks in advance!

Hello @cevapIT and @brieuclambert.

I unfortunately haven't had as much time as I would like to put in this project.
I'm happily accepting any PRs! This project definitely could use the love.

Thanks for using it though!

Thanks @tywhang for this, it's great.
Any chance you can help me pass options to the charts please? I'm looking to disable the legend on a doughnut chart with something like this:

options: { legend: { display: false }

I'm sure there is a simple way to do this as I see you have accounted for the options in the coffee script. I just can't seem to pass the options so they work. Thanks in advance.

@grubbychicken Getting those options passed correctly is definitely on my TO-DO list. I haven't worked on this project in a while. It could take some time for me to get to it.

You are welcome to make a Pull Request! :D

@grubbychicken Getting those options passed correctly is definitely on my TO-DO list. I haven't worked on this project in a while. It could take some time for me to get to it.

You are welcome to make a Pull Request! :D

Hi @tywhang
Thanks for the solution.
Could you please explain what options now available to pass and how to do this. I tried everything from above. It didn't work

Hi,
I am having trouble setting up a pie chart with an additional layer. Havent been able to correclty pass a second dataset. Does anyone have a quick example/tip of how to do it? Thx!

@tywhang I am seeing this error when I run smashing install b4a67180da816eb0695f

.rbenv/versions/3.0.1/lib/ruby/gems/3.0.0/gems/smashing-1.3.4/lib/dashing/downloader.rb:14:in `initialize': No such file or directory @ rb_sysopen - https://api.github.com/gists/b4a67180da816eb0695f (Errno::ENOENT)
