[STIX2 LaTeX font in Manim] How to use the stix2-fontpackage in Manim's LaTeX. #manim #latex #xetex #stix2 #font

20220922_stix2.py

# https://discord.com/channels/581738731934056449/1021149218523586560/1022599268051202078

from manim import *

myTexTemp2 = TexTemplate(
                    tex_compiler="xelatex",
                    output_format='.pdf',
                    )
myTexTemp2.add_to_preamble(r"\usepackage{siunitx}")
myTexTemp4 = TexTemplate(
                    tex_compiler="xelatex",
                    output_format='.pdf',
                    )
myTexTemp4.add_to_preamble(r"\usepackage{siunitx}\usepackage{stix2}")

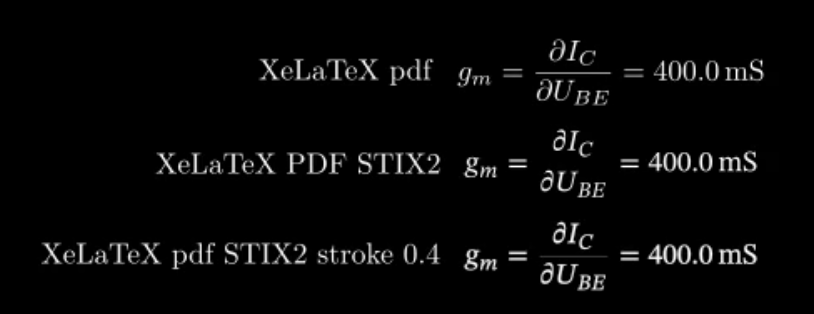

class Latexy(Scene):
    def construct(self):
            MathTex.set_default(font_size=28)
            Tex.set_default(font_size=28)
            str = r"g_m = \frac{{\partial I_{{C}}}}{{\partial U_{{BE}}}}=\qty{{ {:.1f} }}{{mS}}".format(400)
            t2 = MathTex(str, tex_template=myTexTemp2).shift(2*UP)
            h2 = Tex("XeLaTeX pdf").next_to(t2, LEFT)
            t3 = MathTex(str, tex_template=myTexTemp4).next_to(t2, DOWN)
            h3 = Tex("XeLaTeX PDF STIX2").next_to(t3, LEFT)
            t4 = MathTex(str, tex_template=myTexTemp4, stroke_width=0.3).next_to(t3, DOWN)
            h4 = Tex("XeLaTeX pdf STIX2 stroke 0.3").next_to(t4, LEFT)
            self.play(Write(h2),Write(h3),Write(h4))
            self.play(Write(t2),Write(t3),Write(t4))
            self.wait(2)

readme.md

https://discord.com/channels/581738731934056449/1021149218523586560/1022599268051202078
