Read stm32 firmware binary with openOCD

read-stm32-firmware.md

read-stm32-firmware

OpenOCD scripts for read STM32 firmware binary

Requirements

Linux

OpenOCD (Open On-Chip Debugger) is open-source software that interfaces with a hardware debugger's JTAG port. OpenOCD provides debugging and in-system programming for embedded target devices. OpenOCD provides the ability to flash NAND and NOR FLASH memory devices that are attached to the processor on the target system. Flash programming is supported for external CFI compatible flashes (Intel and AMD/Spansion command set) and several internal flashes (LPC2000, AT91SAM7, STR7x, STR9x, LM3 and STM32x).

OpenOCD was originally developed by Dominic Rath at the University of Applied Sciences Augsburg. The OpenOCD source code is now available through the GNU General Public License (GPL).

Under ubuntu 20.04 just install with this:

sudo apt-get install openocd

Under Arch/Manjaro:

sudo pacman -S openocd

Win32

Here is the locaiton prebuild binary can be downloaded from: https://gnutoolchains.com/arm-eabi/openocd/

OPENOCD Command

Read command example

For STM32f103c8 with 64Kbytes Flash. Target is target/stm32f1x.cfg. Size to read is 0x10000. Read firmware as firmwareF1.bin.

openocd -f interface/stlink-v2.cfg -f target/stm32f1x.cfg -c init -c "reset halt" -c "flash read_bank 0 firmwareF1.bin 0 0x10000" -c "reset" -c shutdown

For STM32f407vg with 1Mbytes Flash. Target is target/stm32f4x.cfg. Size to read is 0x100000. Read firmware as firmwareF4.bin.

openocd -f interface/stlink-v2.cfg -f target/stm32f4x.cfg -c init -c "reset halt" -c "flash read_bank 0 firmwareF4.bin 0 0x100000" -c "reset" -c shutdown

Write command example

For STM32f103c8 with 64Kbytes Flash. Target is target/stm32f1x.cfg. Write firmware firmwareF1.bin to flash.

openocd -f interface/stlink-v2.cfg -f target/stm32f1x.cfg -c init -c "reset halt" -c "flash write_image erase firmwareF1.bin 0x08000000" -c "reset" -c shutdown

For STM32f407vg with 1Mbytes Flash. Target is target/stm32f4x.cfg. Write firmware firmwareF4.bin to flash.

openocd -f interface/stlink-v2.cfg -f target/stm32f4x.cfg -c init -c "reset halt" -c "flash write_image erase firmwareF4.bin 0x08000000" -c "reset" -c shutdown

It worked to me. Thanks for post these commands.

Below what I did with details.

Apps

Installing openocd on 18.04.1-Ubuntu SMP x86_64 x86_64 x86_64 GNU/Linux

$ sudo apt-get install openocd
[sudo] password for myusername:
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following additional packages will be installed:
  libhidapi-hidraw0 libjaylink0 libjim0.77
The following NEW packages will be installed:
  libhidapi-hidraw0 libjaylink0 libjim0.77 openocd
0 upgraded, 4 newly installed, 0 to remove and 2 not upgraded.
Need to get 2.259 kB of archives.
After this operation, 6.329 kB of additional disk space will be used.
Do you want to continue? [Y/n] Y
Get:1 http://us.archive.ubuntu.com/ubuntu bionic/universe amd64 libjaylink0 amd64 0.1.0-1 [17,0 kB]
Get:2 http://us.archive.ubuntu.com/ubuntu bionic/universe amd64 libhidapi-hidraw0 amd64 0.8.0~rc1+git20140818.d17db57+dfsg-2 [10,4 kB]
Get:3 http://us.archive.ubuntu.com/ubuntu bionic/universe amd64 libjim0.77 amd64 0.77+dfsg0-2 [115 kB]
Get:4 http://us.archive.ubuntu.com/ubuntu bionic/universe amd64 openocd amd64 0.10.0-4 [2.117 kB]
Fetched 2.259 kB in 2s (1.411 kB/s)
Selecting previously unselected package libjaylink0.
(Reading database ... 354849 files and directories currently installed.)
Preparing to unpack .../libjaylink0_0.1.0-1_amd64.deb ...
Unpacking libjaylink0 (0.1.0-1) ...
Selecting previously unselected package libhidapi-hidraw0:amd64.
Preparing to unpack .../libhidapi-hidraw0_0.8.0~rc1+git20140818.d17db57+dfsg-2_amd64.deb ...
Unpacking libhidapi-hidraw0:amd64 (0.8.0~rc1+git20140818.d17db57+dfsg-2) ...
Selecting previously unselected package libjim0.77:amd64.
Preparing to unpack .../libjim0.77_0.77+dfsg0-2_amd64.deb ...
Unpacking libjim0.77:amd64 (0.77+dfsg0-2) ...
Selecting previously unselected package openocd.
Preparing to unpack .../openocd_0.10.0-4_amd64.deb ...
Unpacking openocd (0.10.0-4) ...
Setting up libjaylink0 (0.1.0-1) ...
Setting up libhidapi-hidraw0:amd64 (0.8.0~rc1+git20140818.d17db57+dfsg-2) ...
Setting up libjim0.77:amd64 (0.77+dfsg0-2) ...
Setting up openocd (0.10.0-4) ...
Processing triggers for install-info (6.5.0.dfsg.1-2) ...
Processing triggers for libc-bin (2.27-3ubuntu1.6) ...
/sbin/ldconfig.real: /lib32/libstlink.so.1 is not a symbolic link

Processing triggers for man-db (2.8.3-2ubuntu0.1) ...

Running the provided command

$ openocd -f interface/stlink-v2.cfg -f target/stm32f1x.cfg -c init -c "reset halt" -c "flash read_bank 0 firmwareF1.bin 0 0x10000" -c "reset" -c shutdown
Open On-Chip Debugger 0.10.0
Licensed under GNU GPL v2
For bug reports, read
	http://openocd.org/doc/doxygen/bugs.html
Info : auto-selecting first available session transport "hla_swd". To override use 'transport select <transport>'.
Info : The selected transport took over low-level target control. The results might differ compared to plain JTAG/SWD
adapter speed: 1000 kHz
adapter_nsrst_delay: 100
none separate
Info : Unable to match requested speed 1000 kHz, using 950 kHz
Info : Unable to match requested speed 1000 kHz, using 950 kHz
Info : clock speed 950 kHz
Info : STLINK v2 JTAG v29 API v2 SWIM v7 VID 0x0483 PID 0x3748
Info : using stlink api v2
Info : Target voltage: 3.236027
Info : stm32f1x.cpu: hardware has 6 breakpoints, 4 watchpoints
target halted due to debug-request, current mode: Thread
xPSR: 0x01000000 pc: 0x1ffff020 msp: 0x200001fc
Info : device id = 0x20036410
Info : flash size = 64kbytes
wrote 65536 bytes to file firmwareF1.bin from flash bank 0 at offset 0x00000000 in 1.011339s (63.282 KiB/s)
shutdown command invoked

$ echo $?
0

Result

After the command is executed with success, the firmware is found in the file firmwareF1.bin

$ l
  907 64 -rw-rw-r-- 1 1000 1000 1000 ? 65536 2024-09-10 03:22:50.554872975 -0300 firmwareF1.bin
$ md5sum firmwareF1.bin
d2597bb77f754b0cf25ebbba75c89bfc  firmwareF1.bin

The extracted firmware file is zipped and base64 to be posted below

UEsDBBQAAAAIANkaKllhsS0MEgkAAAAAAQAOABwAZmlybXdhcmVGMS5iaW5VVAkAA7rl32Yn5t9m
dXgLAAEE6AMAAAToAwAA7dd9bBPnHQfw5+78cnYMvoSUhhKWcxyo0wpIeBNDXbn4Er8GwtukiqLJ
oV3l0E27bOqEKKtMWLVUAy2lk8bQNtFt2qStawlb2KjIkrTrmmorjcsfVLyoh6aKLFWlCxhinBDv
95ydERWp/06Tvp/o8fPc7/fcPfY9z72k18XUlwQmv1/B5A+oXKBykcplKuxzPqbYtXL8X1R/QuVX
wv9PYZaYZ9amvPdk3zjz9bQebv3dpOC+1CZkmbU6/8YNz8I3x/1skSX4a4amH9ItQaqJPlbB2B4q
yqaGof2j+0cKH+1wNww1jTaNtA450r6UEaWTEWQNbDlboWwKDe0fmaYeoaGmkdhQBWXrBuoGlQFl
kFna3cpIcWqqyKzCDLO+dlf6U3HqRlE6x6yn7jLmiWWinhiLzl6//88Rc8adCVeSj/VbD5M/Y0zu
ZUztpbnrFUtFGXBE/hn7fljOCgGHyqyV08yuG6cj5rvluEzbAYrzetn0JvOtclyh7QcozuvK6VXm
YDmu0raH4rx2TtebfynHNdq+W2B2faew2PxjOZ6h7UmK8/qzgtd8neJuHn+AWZ9Q/CTV1woKnQ/6
LhFmXaaYQH0vUmzlv60WMcLPIlPt8/nwy3lp2Gf5naVa8Z2bZH5p7OW8ONw+4aQoG+aR5rHqNFMf
NTsswecrsJv9FPdNSK5fhNXsYdZh+SkqTZ3TnQVppn3C4eBHOzcZ8ruy5T1m3spXD3vNUjzmd86L
K8NarRzKXqhO9dujFf3rru6i0VaZbFL2UT9ZLvjmjRj4whGdWb4X7ZGnETNz47mz845FGSXDxzx/
YVdqcNw61HG72C1kxMAhwxEYMYwonSH1lXSFVtFP581kqhEVIr3pzOlS5sLnMqN2Rug0oi1UvP1C
JzN5a4TWZUcus8ar93Qe6uzp7Onq6SodQU/WpDtuZ75To2kToiLrm5M11Pfx+CjtZQ14I/bMBGiW
LBY5M8k6xOyGrZNdgrl+a3d6+KbUdvg0y2mLz9zS6uRswDI6V2/9bnqFZTyzsuOFVJXJchnKZepc
WWmFq+DMvaq3UB+XGVmwQZAKrtv99nZ9/9x2s35vnNqtk52CuXRrd8oabBpg9T901/r9QanguLE4
Ka89ouzMNzS9oi9ql9cdVVrzy5uCkVLsiLvBzwqOXFD3/TfXNOiNX2mWS9euLGjMR0WhUk2lhkot
FZUK40UNfxxjac0S2NW4nJIjWvpKXNYuxWPUZulL1L5ox1lazWXUUg81N8tiqY5cHeulUT6Ie9KB
XKb5/URlqjJitwOVqVO3MpulMfpcvTDrMv9OfVqoz9+oj9t82946GRihLZrNITZkROmqibB6mgE1
USk8ImbfbA+mXaZIrT+3B/cJ5pn2p/YJVp0oNPxYq9V85XWgDG4coCuqz75DDTWrxanLRWeEHddq
KXb81K2T3xLG2MobYzxzvij3Cw20V4Ma2ThIo6mvJpS0auWZNjHCFPolJ+P8rPGVciL5BP3Kg0p4
gu6S+k+ST1D8eFx+hq87WqOJbbSfxGR9G8V/FNPSzPKxUu6InbPKOR75AY/kzNS9yGE7ktrGx+Wx
xv4XEjsOiPr3kru/7TCfp3aPfoDaRvT5+Ef2TPK9nrP30rTScVigO6GuqTSMRE9eVYSQOOYIebMO
Uwg8a8edpjPQZbfmznCX/euejnv2CfreROVeI/r1eOuXeYxWXIDOfQML7tnyzbTT8gmBfkejc0xu
DGad5p4tzlS9+SR91pm7eD5nVO2w68w6cbnz02Ph2rO7tnxVd6YqzHY7ztYv699mR0RzS7lO0v78
e7TaI1iCxxPb8uweZ/qq1pbabO9ldnq8OsXaKPZiapMdS21/z/t4OfZOar0d01peqthEsXfSA9M3
bzk7mwYb+1cldnSJ+srk7k6H+Si1e/RHqM3PbChxjDIrkicos5zaPXqQ2jwTSHxIGTV5iTJfonaP
vozaPLM08WFa1JckL6UcZg21e/TF1OaZ6kQV7bMo+RDtU0ntHl2hthGtimv2mfTHR582ohXx0W6D
nnfaPs3KGO54bG9pBp2JY2mv5r13D4v30hwzRaTrsJgvFm/PMhYOZxzhMKs6QA/Nr/BXEVWh4qNV
LvSxvm/wazWXadpHc8mGumiL5VgT6xNoxVP+eM1ZwV71k9m95ZzCR+sTTPsqOS6E9Owe+3pX2O65
65qvZLulWSK1dtJ63mFf/1q69EkjpmLlK/+gMhcbV2LlvTIG/zZtfESLGSx0ZyxMx+DH1crH4UeO
UZ/HyteKHLqT9dGTsjh1rMifmBvK96B15XsQ1Vpz+R60htqrvvAeVJy6VOywWKqRevGj0WpWWX0g
+WRaKq9lF63lUNZtBpL17cHUw2ZdUqU6aNbwPjlDWWzXmTViUPq0T6s/uySp6w9SjwWmYmfY2mB/
NcWqKCZRTNcVu7UguZBqvq5d1O/tm9IiX/u1PZ7k0vQ/NDdl6M2I2fOr3ptjesEx+fxW07zyOa6h
WqZ3ho7cEaM49ZvZjhzb9oc87aYezUtMok+RdUWWxYpTV6Ypp92fe5By53nOuD9XSbnhaXlQCLmy
vvh76UM5tt2byKYUU6SIXIq0uCjiNl1xX7OHb3dLCd+aSn6XUcrPCv4MCXhMVi+YO2tPnA7fbpNO
hO9cTtb+9PSh8M3LRrQ49fPiClOo3y5V0YgbZ4T6rMTHXkut7aKfWqtmRukufKXI6umbbvdQZPmM
3W5xU7uu1O52UnuJ3fPd4sXr88enbzM0e31+MaLz/56jd67G/OsRJ/3qnRHVcrMXIzWnVFpj5wuD
46pGK8RFxU1FplIRsNzCa5HXxoc988vRiBF1RN64yTIqvc/+rEDzFzOiIZojIV6j/v6vs9dXMJHx
Z+tBn/2/gko5FqL371/zZU3bKRdjrULp/whBlBy8uNyyR3S4ZPbLhGPu/425eBEAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAD+Z/4D
UEsBAh4DFAAAAAgA2RoqWWGxLQwSCQAAAAABAA4AGAAAAAAAAAAAALSBAAAAAGZpcm13YXJlRjEu
YmluVVQFAAO65d9mdXgLAAEE6AMAAAToAwAAUEsFBgAAAAABAAEAVAAAAFoJAAAAAA==

Hardware

Interface and board connections

ST-LINK V2 |  STM32F103C8T6(Board Header Pins)
[2] SWDIO  |  DIO
[4] GND    |  GND
[6] SWCLK  |  DCLK
[8] 3.3V   |  3.3

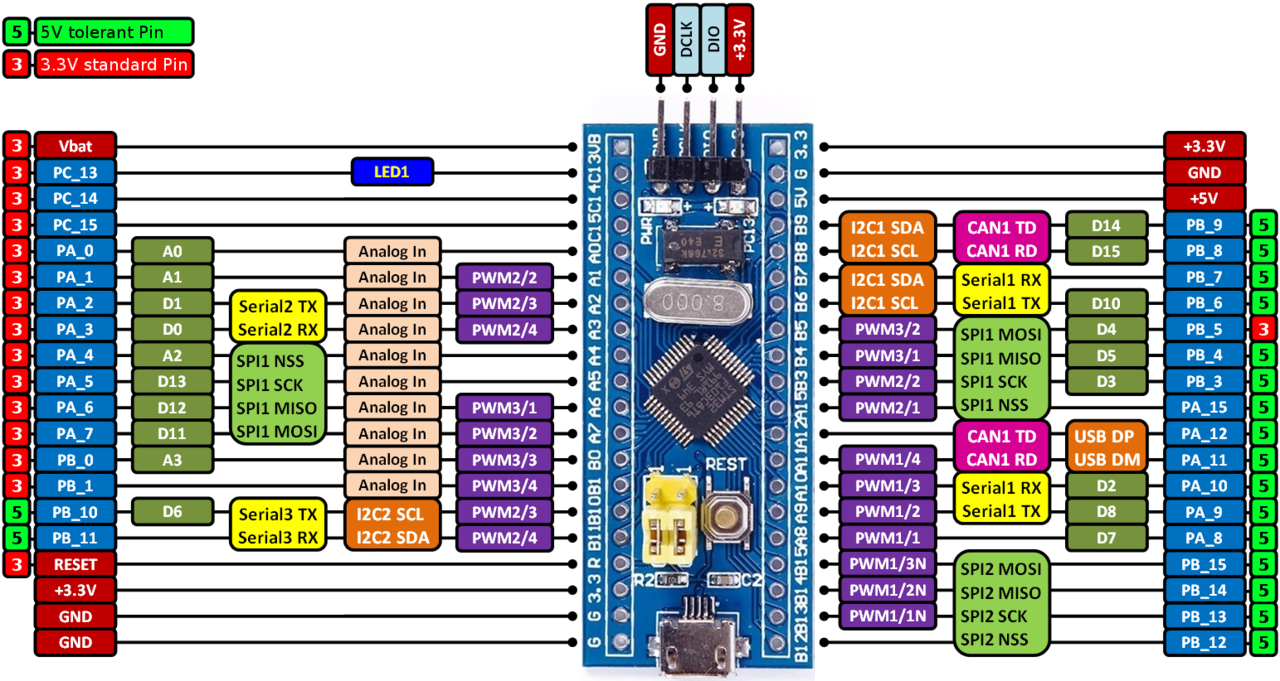

Interface: ST-LINK V2

Board with STM32F103C8T6

Here is the full output with debug level 3
