Klipper on the BIQU BX V3

Klipper on the BIQU BX V3

NOTE: If you have a V2 board/screen(HDMI),click here

First, a few requirements:

  1. You need Klipper setup on your Raspberry PI ( borad that support DSI) with your favorite control interface (Octoprint, Fluidd, Mainsail, etc..).
  2. Install the Drivers for V3 screen https://github.com/bigtreetech/BIQU-BX/tree/master/Firmware/RPi-Linux-RPi-7inch-DSI
  3. You need your favorite Touchscreen UI installed (unless you just want to run headless).
  4. You MUST have removed the Z endstop physical switch. Not disconnected, but completely removed.

NOTE: CAN will not work on this board due to a hardware mis-configuration
NOTE: I2C is not quite working yet!

Ok, so let's get started.


Klipper firmware configuration

When configuring the klipper firmware to run on the BTT SKR SE BX board, there are a couple things to know about.

  1. Use the main klipper branch.
  2. In order for the toucscreen to work, you will need to set GPIO pins PB5 and PE5 to an initial state during the config
  3. Use the config/printer-biqu-bx-2021.cfg file for your intial printer.cfg
  4. Once you are setup, you will need to calibrate your sensorless homing: https://www.klipper3d.org/TMC_Drivers.html?h=sensorless+ho#sensorless-homing

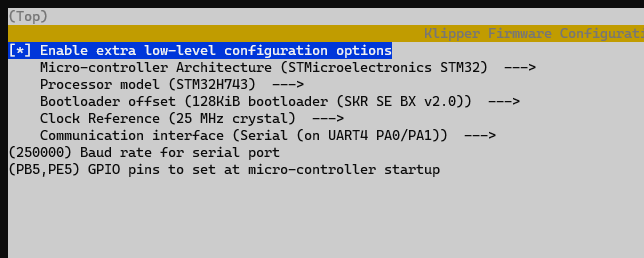

Klipper Firmware Configuration

A note on connection methods:

There are 4 different connections you can make from the Raspberry Pi to the mainboard, 2 Serial and 2 USB.

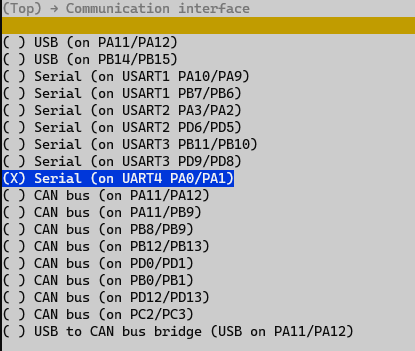

Communication Interface

  • Serial (on UART4 PA0/PA1) <--- For v3 board/screen you need to use this

To use serial connections, you have to enable the serial port on the raspberry pi and compile the correct serial port for the BX mainboard. Once you have the serial port enabled on the raspberry pi, it will show up as /dev/ttyAMAx, with x being the port number.

Once you have it setup, your printer.cfg should then contain the following under the MCU section: serial: /dev/ttyAMAx, substituting the x for your port number.


HDMI configuration

As v3 uses DSI you don't need any HDMI settings

Drivers for V3 screen

Config.txt

Example on /boot/config.txt

Make sure this are in the config.txt file, some wil be added by the drivers installation skript.
[all]
dtparam=i2c_vc=on
dtparam=i2c_arm=on
enable_uart=1
dtoverlay=disable-bt
dtoverlay=vc4-kms-dsi-btt-bxv3-7inch
disable_splash=1

Slicer configuration

For your slicer, you need to call the PRINT_START macro instead of any preliminary gcode. The NOZZLE and BED temps get passed in as arguments. Some examples for the more popular slicers:

  • Cura: PRINT_START BED={material_bed_temperature_layer_0} NOZZLE={material_print_temperature_layer_0}
  • PrusaSlicer: PRINT_START NOZZLE=[first_layer_temperature] BED=[bed_temperature]
  • Ideamaker: PRINT_START NOZZLE={temperature_heatbed} BED={temperature_extruder1}
  • Simplify3D: PRINT_START NOZZLE=[extruder0_temperature] BED=[bed0_temperature]
  • Kiri:Moto: PRINT_START NOZZLE={temp} BED={bed_temp}

Klipper Functionality

Here are some notes on how I have Klipper setup and working quite well for my machine.

Touchscreen Sleep

The Touchscreen will go dark when the printer idle timeout occurs. This happens when there is not a print job in action and currently set for 5 minutes. Pressing the Menu Knob on the display will wake up the Touchscreen.

LEDS

The Neopixels are setup and will cycle through colors on bootup. I have the idle timeout set to shut off the LEDS when the printer is inactive. The LEDs automatically come on when a print is started or when the LCD is wakened.

Homing Routine

I have programmed a reliable homing routine that works well for me, however you can adjust or setup your own to taste. My routine will do the following:

  1. Raise the Z axis
  2. Home the X axis
  3. Home the Y axis
  4. Move the probe to the center of the bed (different than the nozzle at center)
  5. Home the Z with the probe.
  • When starting a print, additionally:
  1. After the bed reaches temp, the printer waits for 90 seconds with the probe close to the bed to warm up the probe.
  2. Steps 1-5 are repeated with a warm probe
  3. Move to the origin to start the print.
@Cracoukas
Copy link

Cracoukas commented May 31, 2024

in the web gui what happens when you try to restart klipper ? How dose your config.txt file look like ?
It tryies to connect
Printer is not ready
The klippy host software is attempting to connect. Please
retry in a few moments.
and then fails.

The /boot/config.txt file:

# For more options and information see
# http://rpf.io/configtxt
# Some settings may impact device functionality. See link above for details

# uncomment if you get no picture on HDMI for a default "safe" mode
#hdmi_safe=1

# uncomment the following to adjust overscan. Use positive numbers if console
# goes off screen, and negative if there is too much border
#overscan_left=16
#overscan_right=16
#overscan_top=16
#overscan_bottom=16

# uncomment to force a console size. By default it will be display's size minus
# overscan.
#framebuffer_width=1280
#framebuffer_height=720

# uncomment if hdmi display is not detected and composite is being output
#hdmi_force_hotplug=1

# uncomment to force a specific HDMI mode (this will force VGA)
#hdmi_group=1
#hdmi_mode=1

# uncomment to force a HDMI mode rather than DVI. This can make audio work in
# DMT (computer monitor) modes
#hdmi_drive=2

# uncomment to increase signal to HDMI, if you have interference, blanking, or
# no display
#config_hdmi_boost=4

# uncomment for composite PAL
#sdtv_mode=2

#uncomment to overclock the arm. 700 MHz is the default.
#arm_freq=800

# Uncomment some or all of these to enable the optional hardware interfaces
#dtparam=i2c_arm=on
#dtparam=i2s=on
#dtparam=spi=on

# Uncomment this to enable infrared communication.
#dtoverlay=gpio-ir,gpio_pin=17
#dtoverlay=gpio-ir-tx,gpio_pin=18

# Additional overlays and parameters are documented /boot/overlays/README

# Enable audio (loads snd_bcm2835)
dtparam=audio=on

# Automatically load overlays for detected cameras
camera_auto_detect=1

# Automatically load overlays for detected DSI displays
#display_auto_detect=1

# Enable DRM VC4 V3D driver
dtoverlay=vc4-kms-v3d
max_framebuffers=2

# Disable compensation for displays with overscan
disable_overscan=1

[cm4]
# Enable host mode on the 2711 built-in XHCI USB controller.
# This line should be removed if the legacy DWC2 controller is required
# (e.g. for USB device mode) or if USB support is not required.
otg_mode=1

[all]

[pi4]
# Run as fast as firmware / board allows
arm_boost=1

[all]
dtparam=i2c_vc=on
dtparam=i2c_arm=on
dtoverlay=vc4-kms-dsi-btt-bxv3-7inch
enable_uart=1
dtoverlay=disable-bt
disable_splash=1

and the /home/Jacques/klipper/.congig.txt

CONFIG_LOW_LEVEL_OPTIONS=y
# CONFIG_MACH_AVR is not set
# CONFIG_MACH_ATSAM is not set
# CONFIG_MACH_ATSAMD is not set
# CONFIG_MACH_LPC176X is not set
CONFIG_MACH_STM32=y
# CONFIG_MACH_HC32F460 is not set
# CONFIG_MACH_RP2040 is not set
# CONFIG_MACH_PRU is not set
# CONFIG_MACH_AR100 is not set
# CONFIG_MACH_LINUX is not set
# CONFIG_MACH_SIMU is not set
CONFIG_BOARD_DIRECTORY="stm32"
CONFIG_MCU="stm32h743xx"
CONFIG_CLOCK_FREQ=400000000
CONFIG_SERIAL=y
CONFIG_FLASH_SIZE=0x200000
CONFIG_FLASH_BOOT_ADDRESS=0x8000000
CONFIG_RAM_START=0x20000000
CONFIG_RAM_SIZE=0x20000
CONFIG_STACK_SIZE=512
CONFIG_FLASH_APPLICATION_ADDRESS=0x8020000
CONFIG_STM32_SELECT=y
# CONFIG_MACH_STM32F103 is not set
# CONFIG_MACH_STM32F207 is not set
# CONFIG_MACH_STM32F401 is not set
# CONFIG_MACH_STM32F405 is not set
# CONFIG_MACH_STM32F407 is not set
# CONFIG_MACH_STM32F429 is not set
# CONFIG_MACH_STM32F446 is not set
# CONFIG_MACH_STM32F765 is not set
# CONFIG_MACH_STM32F031 is not set
# CONFIG_MACH_STM32F042 is not set
# CONFIG_MACH_STM32F070 is not set
# CONFIG_MACH_STM32F072 is not set
# CONFIG_MACH_STM32G070 is not set
# CONFIG_MACH_STM32G071 is not set
# CONFIG_MACH_STM32G0B0 is not set
# CONFIG_MACH_STM32G0B1 is not set
# CONFIG_MACH_STM32G431 is not set
# CONFIG_MACH_STM32G474 is not set
# CONFIG_MACH_STM32H723 is not set
CONFIG_MACH_STM32H743=y
# CONFIG_MACH_STM32H750 is not set
# CONFIG_MACH_STM32L412 is not set
# CONFIG_MACH_N32G452 is not set
# CONFIG_MACH_N32G455 is not set
CONFIG_MACH_STM32H7=y
CONFIG_HAVE_STM32_USBOTG=y
CONFIG_HAVE_STM32_FDCANBUS=y
CONFIG_HAVE_STM32_USBCANBUS=y
CONFIG_STM32_DFU_ROM_ADDRESS=0
CONFIG_STM32_FLASH_START_20000=y
# CONFIG_STM32_FLASH_START_0000 is not set
# CONFIG_STM32_CLOCK_REF_8M is not set
# CONFIG_STM32_CLOCK_REF_12M is not set
# CONFIG_STM32_CLOCK_REF_16M is not set
# CONFIG_STM32_CLOCK_REF_20M is not set
# CONFIG_STM32_CLOCK_REF_24M is not set
CONFIG_STM32_CLOCK_REF_25M=y
# CONFIG_STM32_CLOCK_REF_INTERNAL is not set
CONFIG_CLOCK_REF_FREQ=25000000
CONFIG_STM32F0_TRIM=16
# CONFIG_STM32_USB_PA11_PA12 is not set
# CONFIG_STM32_USB_PB14_PB15 is not set
# CONFIG_STM32_SERIAL_USART1 is not set
# CONFIG_STM32_SERIAL_USART1_ALT_PB7_PB6 is not set
# CONFIG_STM32_SERIAL_USART2 is not set
# CONFIG_STM32_SERIAL_USART2_ALT_PD6_PD5 is not set
# CONFIG_STM32_SERIAL_USART3 is not set
# CONFIG_STM32_SERIAL_USART3_ALT_PD9_PD8 is not set
CONFIG_STM32_SERIAL_UART4=y
# CONFIG_STM32_CANBUS_PA11_PA12 is not set
# CONFIG_STM32_CANBUS_PA11_PB9 is not set
# CONFIG_STM32_MMENU_CANBUS_PB8_PB9 is not set
# CONFIG_STM32_MMENU_CANBUS_PB12_PB13 is not set
# CONFIG_STM32_MMENU_CANBUS_PD0_PD1 is not set
# CONFIG_STM32_MMENU_CANBUS_PB0_PB1 is not set
# CONFIG_STM32_MMENU_CANBUS_PD12_PD13 is not set
# CONFIG_STM32_MMENU_CANBUS_PC2_PC3 is not set
# CONFIG_STM32_USBCANBUS_PA11_PA12 is not set
CONFIG_SERIAL_BAUD=250000
CONFIG_USB_VENDOR_ID=0x1d50
CONFIG_USB_DEVICE_ID=0x614e
CONFIG_USB_SERIAL_NUMBER="12345"
CONFIG_WANT_GPIO_BITBANGING=y
CONFIG_WANT_DISPLAYS=y
CONFIG_WANT_SENSORS=y
CONFIG_WANT_LIS2DW=y
CONFIG_WANT_LDC1612=y
CONFIG_WANT_SOFTWARE_I2C=y
CONFIG_WANT_SOFTWARE_SPI=y
CONFIG_NEED_SENSOR_BULK=y
CONFIG_CANBUS_FREQUENCY=1000000
CONFIG_INITIAL_PINS="PB5, PE5"
CONFIG_HAVE_GPIO=y
CONFIG_HAVE_GPIO_ADC=y
CONFIG_HAVE_GPIO_SPI=y
CONFIG_HAVE_GPIO_I2C=y
CONFIG_HAVE_GPIO_HARD_PWM=y
CONFIG_HAVE_STRICT_TIMING=y
CONFIG_HAVE_CHIPID=y
CONFIG_HAVE_STEPPER_BOTH_EDGE=y
CONFIG_HAVE_BOOTLOADER_REQUEST=y
CONFIG_INLINE_STEPPER_HACK=y

@varazir
Copy link
Author

varazir commented May 31, 2024

What happens when you run this command ?
DISPLAY=:0 xrandr

Mine looks like this
Screen 0: minimum 320 x 200, current 1024 x 600, maximum 2048 x 2048
HDMI-1 disconnected primary (normal left inverted right x axis y axis)
DSI-1 connected 1024x600+0+0 (normal left inverted right x axis y axis) 0mm x 0mm
1024x600 38.40*+

You are sure the printer has klipper? Try to flash it again.

@varazir
Copy link
Author

varazir commented May 31, 2024

# For more options and information see
# http://rpf.io/configtxt
# Some settings may impact device functionality. See link above for details
# impact device functionality. See link above for details

# uncomment if you get no picture on HDMI for a default "safe" mode
#hdmi_safe=1

# uncomment the following to adjust overscan. Use positive numbers if console
# goes off screen, and negative if there is too much border
#overscan_left=16
#overscan_right=16
#overscan_top=16
#overscan_bottom=16

# uncomment to force a console size. By default it will be display's size minus
# overscan.
#framebuffer_width=1280
#framebuffer_height=720

# uncomment if hdmi display is not detected and composite is being output
#hdmi_force_hotplug=1

# uncomment to force a specific HDMI mode (this will force VGA)
#hdmi_group=1
#hdmi_mode=1

# uncomment to force a HDMI mode rather than DVI. This can make audio work in
# DMT (computer monitor) modes
#hdmi_drive=2

# uncomment to increase signal to HDMI, if you have interference, blanking, or
# no display
#config_hdmi_boost=4

# uncomment for composite PAL
#sdtv_mode=2

#uncomment to overclock the arm. 700 MHz is the default.
#arm_freq=800

# Uncomment some or all of these to enable the optional hardware interfaces
#dtparam=i2c_arm=on
#dtparam=i2s=on
dtparam=spi=on

# Uncomment this to enable infrared communication.
#dtoverlay=gpio-ir,gpio_pin=17
#dtoverlay=gpio-ir-tx,gpio_pin=18

# Additional overlays and parameters are documented /boot/overlays/README

# Enable audio (loads snd_bcm2835)
dtparam=audio=on

# Automatically load overlays for detected cameras
camera_auto_detect=1

# Automatically load overlays for detected DSI displays
#display_auto_detect=1

# Enable DRM VC4 V3D driver
dtoverlay=vc4-kms-v3d
max_framebuffers=2

# Disable compensation for displays with overscan
disable_overscan=1

[cm4]
# Enable host mode on the 2711 built-in XHCI USB controller.
# This line should be removed if the legacy DWC2 controller is required
# (e.g. for USB device mode) or if USB support is not required.
otg_mode=1

[all]

[pi4]
# Run as fast as firmware / board allows
arm_boost=1

[all]
dtparam=i2c_vc=on
dtparam=i2c_arm=on
enable_uart=1
dtoverlay=disable-bt
dtoverlay=vc4-kms-dsi-btt-bxv3-7inch
disable_splash=1

@Cracoukas
Copy link

What happens when you run this command ? DISPLAY=:0 xrandr

Mine looks like this Screen 0: minimum 320 x 200, current 1024 x 600, maximum 2048 x 2048 HDMI-1 disconnected primary (normal left inverted right x axis y axis) DSI-1 connected 1024x600+0+0 (normal left inverted right x axis y axis) 0mm x 0mm 1024x600 38.40*+

DISPLAY=:0 xrandr
Can't open display :0

I checked the flat cable continuity with a multimeter, board-to-board, and it's ok. Since I have 2 sets of TFT70 and PI I tried the second set with the sane result !

You are sure the printer has klipper? Try to flash it again.
I tried to flash it many times, at start-up it displays firmware update 0%-100% and then rename the firmware.bin into firmware.cur so I suppose it was flaseh correctly.

@varazir
Copy link
Author

varazir commented Jun 1, 2024

Hmm, and it's a RPi and not a BTT Pi ? That would explain the screen. But the communication with the MCU should be the same.

@varazir
Copy link
Author

varazir commented Jun 1, 2024

the cable is like this on the board

@Cracoukas
Copy link

Yes, it's a RPi4 B / 2018, the red wire on the 5V.
Using Octoprint to control the printer flashed with Marlin it used to work, so I guess the connection through the TFT70 is functional

@Cracoukas
Copy link

I am wondering if it could be possible to bypass the TFT70 board and connect the PI to the printer using the USB ports ?
I am also considering switching to a Manta board, may be easyer to get working with Klipper ?

@Cracoukas
Copy link

Cracoukas commented Jun 15, 2024

I am now able to connect to the MCU using using pin 6-8-10 of the PI and the TFT pins of the SKR-SE-BX-V3.0 (crossing Rx and Tx).
The TFT display is useless (just to confirm that the MCU is flashed correctly).

and configuring serial USART1 PA10/PA9

@varazir
Copy link
Author

varazir commented Jun 15, 2024

I am now able to connect to the MCU using using pin 6-8-10 of the PI and the TFT pins of the SKR-SE-BX-V3.0 (crossing Rx and Tx). The TFT display is useless (just to confirm that the MCU is flashed correctly).

Strange that you need to do that.
Well it's not the best screen. I have issue that it's all white until it's "warm"

@Lymperis79
Copy link

I had problem connecting to the printer even after following the step described. My settings are the original as varazir adviced. After some research i found that my problem was fixed after removing the section "console=serial0,11520" from '/boot/cmdline.txt' with a text editor.
Now i am able to see the printer using

@aynotka
Copy link

aynotka commented Jan 22, 2025

Здравствуйте, столкнулся с проблемой при установке Klipper.
На сайте когда водишь IP Raspberry pi 4, первым делом появляется вот такое сообщение:

mcu 'mcu': Unable to connect
Once the underlying issue is corrected, use the
"FIRMWARE_RESTART" command to reset the firmware, reload the
config, and restart the host software.
Error configuring printer
Много чего перепробовал.

@aynotka
Copy link

aynotka commented Jan 22, 2025

У меня возникли проблемы с подключением к принтеру даже после выполнения описанных шагов. Мои настройки являются исходными, как и советовал Варазир. После некоторых исследований я обнаружил, что моя проблема была решена после удаления раздела «console=serial0,11520» из «/boot/cmdline.txt» с помощью текстового редактора. Принтер использует

Вы смогли решить проблему?

@valpackett
Copy link

valpackett commented May 4, 2025

Hello everyone,

I have recently acquired this printer and "reverse engineered" the modified drivers.

The device tries to present an interface similar to the official RPi 800x480 7" touchscreen, but it's larger and weirder. The display panel can actually be declared as a "panel-dpi" and there's no need to add it to the simple panel driver (and that works even in mainline Linux).

Tthe touchscreen works as a "edt,edt-ft5506"sort of. First of all, only the raspberrypi/linux version of the driver has the necessary polling mode support for now. Then, the hardware nonsense here: the coordinates wrap around weirdly beyond the 800x480 rectangle, so the modified edt-ft5x06 driver they compiled includes a quirk to handle that.

The DT overlay is just this:

dtso source, compile like so: `dtc -O dtb -@ -L biqu-bx.dtso >biqu-bx.dtbo`, USE WITH `dtovelay=upstream` (even with the rpi kernel), I'll try to make a non-upstream overlay too
/dts-v1/;
/plugin/;

/ {
	compatible = "brcm,bcm2835";

	fragment@0 {
		target = <&i2c_csi_dsi>;

		__overlay__ {
			#address-cells = <1>;
			#size-cells = <0>;
			status = "okay";

			ts@38 {
				compatible = "btt,btt-ft5506";
				reg = <0x38>;
				vcc-supply = <&reg_display>;
				reset-gpio = <&reg_display 1 1>;
				touchscreen-size-x = <1024>;
				touchscreen-size-y = <600>;
				touchscreen-inverted-x;
				touchscreen-inverted-y;
			};

			reg_display: reg_display@45 {
				compatible = "raspberrypi,7inch-touchscreen-panel-regulator";
				reg = <0x45>;
				gpio-controller;
				#gpio-cells = <2>;
			};
		};
	};

	fragment@1 {
		target = <&dsi1>;

		__overlay__ {
			#address-cells = <1>;
			#size-cells = <0>;
			status = "okay";

			port {
				dsi_out: endpoint {
					data-lanes = <1 2>;
					remote-endpoint = <&bridge_in>;
				};
			};

			bridge@0 {
				// Actually a chipone,icn6211 inside… controlled by an STM32G0 though.
				compatible = "toshiba,tc358762";
				reg = <0>;
				vddc-supply = <&reg_bridge>;

				ports {
					#address-cells = <1>;
					#size-cells = <0>;

					port@0 {
						reg = <0>;
						bridge_in: endpoint {
							data-lanes = <1 2>;
							remote-endpoint = <&dsi_out>;
						};
					};

					port@1 {
						reg = <1>;
						bridge_out: endpoint {
							remote-endpoint = <&panel_in>;
						};
					};
				};
			};
		};
	};

	fragment@2 {
		target-path = "/";

		__overlay__ {
			panel_disp: panel_disp {
				compatible = "panel-dpi";
				backlight = <&reg_display>;
				power-supply = <&reg_display>;

				width-mm = <154>;
				height-mm = <86>;
				bus-format = <0x1009>;

				panel-timing {
					clock-frequency = <25979000>;
					hactive = <1024>;
					hfront-porch = <2>;
					hback-porch = <46>;
					hsync-len = <2>;
					hsync-active = <0>;
					vactive = <600>;
					vfront-porch = <7>;
					vback-porch = <2>;
					vsync-len = <21>;
					vsync-active = <0>;
					de-active = <1>;
					pixelclk-active = <1>;
				};

				port {
					panel_in: endpoint {
						remote-endpoint = <&bridge_out>;
					};
				};
			};

			reg_bridge: reg_bridge {
				compatible = "regulator-fixed";
				regulator-name = "bridge_reg";
				gpio = <&reg_display 0 0>;
				vin-supply = <&reg_display>;
				enable-active-high;
			};
		};
	};
};

and the basic diff for the driver module is basically:

download the file, rename, apply the following with `patch` and compile like any out-of-tree kernel module, install, run depmod, reboot
--- og-ft5x06.c 2025-05-04 01:58:23.684680853 -0300
+++ btt-borked-ft5x06.c 2025-05-04 01:40:18.597591216 -0300
@@ -14,6 +14,12 @@
  *    http://www.glyn.com/Products/Displays
  */

+/*
+ * THIS is a quirky version for the Biqu BX gen3 display "btt,btt-ft5506"
+ * that has very strange wrap-around coordinates between 800x480 and 1024x600
+ * Recreated by Val Packett, https://val.packett.cool
+ */
+
 #include <linux/debugfs.h>
 #include <linux/delay.h>
 #include <linux/gpio/consumer.h>
@@ -369,6 +375,11 @@

                x = get_unaligned_be16(buf) & 0x0fff;
                y = get_unaligned_be16(buf + 2) & 0x0fff;
+
+               /* WTF: The Biqu BX Touchscreen has misaligned coordinates outside of the 800x480 range */
+               x += (x > 1024) ? -3872 : 224;
+               y += (y > 600) ? -3976 : 120;
+
                /* The FT5x26 send the y coordinate first */
                if (tsdata->version == EV_FT)
                        swap(x, y);
@@ -1594,37 +1605,19 @@
 };

 static const struct i2c_device_id edt_ft5x06_ts_id[] = {
-       { .name = "edt-ft5x06", .driver_data = (long)&edt_ft5x06_data },
-       { .name = "edt-ft5506", .driver_data = (long)&edt_ft5506_data },
-       { .name = "ev-ft5726", .driver_data = (long)&edt_ft5506_data },
-       { .name = "ft5452", .driver_data = (long)&edt_ft5452_data },
-       /* Note no edt- prefix for compatibility with the ft6236.c driver */
-       { .name = "ft6236", .driver_data = (long)&edt_ft6236_data },
-       { .name = "ft8201", .driver_data = (long)&edt_ft8201_data },
-       { .name = "ft8719", .driver_data = (long)&edt_ft8719_data },
        { /* sentinel */ }
 };
 MODULE_DEVICE_TABLE(i2c, edt_ft5x06_ts_id);

 static const struct of_device_id edt_ft5x06_of_match[] = {
-       { .compatible = "edt,edt-ft5206", .data = &edt_ft5x06_data },
-       { .compatible = "edt,edt-ft5306", .data = &edt_ft5x06_data },
-       { .compatible = "edt,edt-ft5406", .data = &edt_ft5x06_data },
-       { .compatible = "edt,edt-ft5506", .data = &edt_ft5506_data },
-       { .compatible = "evervision,ev-ft5726", .data = &edt_ft5506_data },
-       { .compatible = "focaltech,ft5426", .data = &edt_ft5506_data },
-       { .compatible = "focaltech,ft5452", .data = &edt_ft5452_data },
-       /* Note focaltech vendor prefix for compatibility with ft6236.c */
-       { .compatible = "focaltech,ft6236", .data = &edt_ft6236_data },
-       { .compatible = "focaltech,ft8201", .data = &edt_ft8201_data },
-       { .compatible = "focaltech,ft8719", .data = &edt_ft8719_data },
+       { .compatible = "btt,btt-ft5506", .data = &edt_ft5x06_data },
        { /* sentinel */ }
 };
 MODULE_DEVICE_TABLE(of, edt_ft5x06_of_match);

 static struct i2c_driver edt_ft5x06_ts_driver = {
        .driver = {
-               .name = "edt_ft5x06",
+               .name = "btt_ft5x06",
                .dev_groups = edt_ft5x06_groups,
                .of_match_table = edt_ft5x06_of_match,
                .pm = pm_sleep_ptr(&edt_ft5x06_ts_pm_ops),

I'll… look into sending a PR to the raspberrypi kernel I guess? But this is such a strange quirk, I'm not sure how to even generalize it (something like btt,touchscreen-relative-wraparound-x = <800 1024>; btt,touchscreen-relative-wraparound-y = <480 600>; ???)

I guess I can also make an easy packaged installation script like the original, but source-based, without blobs bound to a particular kernel build.

@varazir
Copy link
Author

varazir commented May 4, 2025

Hello everyone,

I have recently acquired this printer and "reverse engineered" the modified drivers.

The device tries to present an interface similar to the official RPi 800x480 7" touchscreen, but it's larger and weirder. The display panel can actually be declared as a "panel-dpi" and there's no need to add it to the simple panel driver (and that works even in mainline Linux).

Tthe touchscreen works as a "edt,edt-ft5506"sort of. First of all, only the raspberrypi/linux version of the driver has the necessary polling mode support for now. Then, the hardware nonsense here: the coordinates wrap around weirdly beyond the 800x480 rectangle, so the modified edt-ft5x06 driver they compiled includes a quirk to handle that.

The DT overlay is just this:

dtso source, compile like so: dtc -O dtb -@ -L biqu-bx.dtso >biqu-bx.dtbo, USE WITH dtovelay=upstream (even with the rpi kernel), I'll try to make a non-upstream overlay too
and the basic diff for the driver module is basically:

download the file, rename, apply the following with patch and compile like any out-of-tree kernel module, install, run depmod, reboot
I'll… look into sending a PR to the raspberrypi kernel I guess? But this is such a strange quirk, I'm not sure how to even generalize it (something like btt,touchscreen-relative-wraparound-x = <800 1024>; btt,touchscreen-relative-wraparound-y = <480 600>; ???)

I guess I can also make an easy packaged installation script like the original, but source-based, without blobs bound to a particular kernel build.

Cool, I have been thinking of doing got some help to start and I could get more if I needed but never got around to it as It's working on my printer.

@varazir
Copy link
Author

varazir commented May 4, 2025

@valpackett can this be scripted? Just to make it easier for most using this printer ?

@davydcr
Copy link

davydcr commented Jul 26, 2025

Hi everyone!

I have a BIQU BX with a V3 board and a Raspberry Pi 3B+, currently running Marlin with OctoPrint since 2023. I'm planning to switch to Klipper and, after thoroughly reviewing the documentation, I feel confident about the process.

However, I’d like to ensure I have a rollback option in case something goes wrong. Does anyone know if the binary available in the following repository is compatible with the V3 board?

🔗 https://github.com/bigtreetech/BIQU-BX/tree/master/Firmware/Copy%20to%20microSD%20to%20update

Any help is greatly appreciated!

@varazir
Copy link
Author

varazir commented Jul 26, 2025

Rollbacks would to have the the old firmware and use a new sdcard for your klipper.

@davydcr
Copy link

davydcr commented Jul 26, 2025

Rollbacks would to have the the old firmware and use a new sdcard for your klipper.

That's exactly the problem: I'm not sure if the firmware available in the BIGTREETECH repository is the V3 version that's compatible with my printer.

@davydcr
Copy link

davydcr commented Jul 26, 2025

It worked! I followed the instructions and now Klipper is installed on my printer.

Thanks a lot for your help!

@varazir
Copy link
Author

varazir commented Jul 26, 2025

Rollbacks would to have the the old firmware and use a new sdcard for your klipper.

That's exactly the problem: I'm not sure if the firmware available in the BIGTREETECH repository is the V3 version that's compatible with my printer.

You can use the community version.

@davydcr
Copy link

davydcr commented Jul 27, 2025

Hi everyone!

I managed to install Klipper and set everything up, but I'm still not satisfied with the print quality. I'm getting an accelerometer to enable input shaping and see if that improves the results.

I also miss having a working filament change macro. I haven’t been able to create one that works as well as what I had with Marlin. On top of that, I'm getting overheating errors on the Z-axis drivers:

TMC 'stepper_z' reports error: DRV_STATUS: c0170103 otpw=1 (OvertempWarning!) ot=1 (OvertempError!) t120=1 cs_actual=23 stealth=1 stst=1

Can anyone help me properly set up sensorless homing for the Z axis? Also, is it necessary to physically jumper the DIAG pin to PB13 on the board for this to work? If so, could someone explain exactly where those pins are located on the Biqu BX and how to wire them?

If anyone could share their printer.cfg, it would be really helpful so I can compare and see what I can improve in my setup.

I really appreciate any help!

@varazir
Copy link
Author

varazir commented Jul 28, 2025

@davydcr
Copy link

davydcr commented Jul 28, 2025

@varazir
Copy link
Author

varazir commented Jul 28, 2025

can you access this ? https://github.com/varazir/KlipperBXBackup/tree/2727dc40ea7f8b8fa28e30c6faf9d3aba017192c/config

No, error 404.
I added you as colab on the repo

@davydcr
Copy link

davydcr commented Jul 28, 2025

can you access this ? https://github.com/varazir/KlipperBXBackup/tree/2727dc40ea7f8b8fa28e30c6faf9d3aba017192c/config

No, error 404.
I added you as colab on the repo

I was able to access it now, thank you!

Did you have to jumper the DIAG pin to the stepper driver for the Z axis? I checked your configuration and it’s identical to mine, but I keep getting frequent overheating warnings on the Z stepper driver.

@varazir
Copy link
Author

varazir commented Jul 28, 2025

can you access this ? https://github.com/varazir/KlipperBXBackup/tree/2727dc40ea7f8b8fa28e30c6faf9d3aba017192c/config

No, error 404.
I added you as colab on the repo

I was able to access it now, thank you!

Did you have to jumper the DIAG pin to the stepper driver for the Z axis? I checked your configuration and it’s identical to mine, but I keep getting frequent overheating warnings on the Z stepper driver.

Never change that. Maybe check on the Facebook https://www.facebook.com/groups/1012996125813700 forum or https://discord.gg/zBnEGScT you can find pinouts here https://github.com/bigtreetech/BIQU-BX

@davydcr
Copy link

davydcr commented Jul 30, 2025

Now that I've noticed, the 5020 fan on the board isn't turning on.

Any tips?

@varazir
Copy link
Author

varazir commented Jul 30, 2025

Now that I've noticed, the 5020 fan on the board isn't turning on.

Any tips?

it should be on when you start printing.
I guess you can map the port in the config.

@davydcr
Copy link

davydcr commented Jul 30, 2025

Now that I've noticed, the 5020 fan on the board isn't turning on.
Any tips?

it should be on when you start printing. I guess you can map the port in the config.

After a thorough check of the wiring diagram, comparing my settings to yours, and even swapping out the fan port and testing with another 24V fan, I finally pinpointed the problem: the 5020 fan had died. I'm still unsure if it was an existing issue that Marlin simply didn't report, or if something went wrong during the Klipper migration. A new fan is already on its way. I appreciate your patience throughout this process.

Sign up for free to join this conversation on GitHub. Already have an account? Sign in to comment
