Workshop

COG + STAC

Requirements

  • python 3.7

  • rio-viz, rio-cogeo

    pip install rio-viz rio-cogeo

  • GDAL (optional)

You can also use Docker

docker run \
  --name dockerimage\
  -p 8000:8000 \
  --volume $(pwd)/:/local \
  --rm -it lambgeo/lambda:gdal2.4-py3.7 bash

Download some data

e.g https://www.naturalearthdata.com/downloads/50m-raster-data/50m-cross-blend-hypso/

wget https://naciscdn.org/naturalearth/50m/raster/HYP_50M_SR.zip

GDAL Command line

$ gdalinfo HYP_50M_SR.tif
Driver: GTiff/GeoTIFF
Files: HYP_50M_SR.tif
Size is 10800, 5400
Coordinate System is:
GEOGCS["WGS 84",
    DATUM["WGS_1984",
        SPHEROID["WGS 84",6378137,298.257223563,
            AUTHORITY["EPSG","7030"]],
        AUTHORITY["EPSG","6326"]],
    PRIMEM["Greenwich",0],
    UNIT["degree",0.0174532925199433],
    AUTHORITY["EPSG","4326"]]
Origin = (-179.999999999999972,90.000000000000000)
Pixel Size = (0.033333333333330,-0.033333333333330)
Metadata:
  AREA_OR_POINT=Area
  TIFFTAG_DATETIME=2014:10:18 09:30:26
  TIFFTAG_RESOLUTIONUNIT=2 (pixels/inch)
  TIFFTAG_SOFTWARE=Adobe Photoshop CC 2014 (Macintosh)
  TIFFTAG_XRESOLUTION=342.85699
  TIFFTAG_YRESOLUTION=342.85699
Image Structure Metadata:
  INTERLEAVE=PIXEL
Corner Coordinates:
Upper Left  (-180.0000000,  90.0000000) (180d 0' 0.00"W, 90d 0' 0.00"N)
Lower Left  (-180.0000000, -90.0000000) (180d 0' 0.00"W, 90d 0' 0.00"S)
Upper Right ( 180.0000000,  90.0000000) (180d 0' 0.00"E, 90d 0' 0.00"N)
Lower Right ( 180.0000000, -90.0000000) (180d 0' 0.00"E, 90d 0' 0.00"S)
Center      (  -0.0000000,   0.0000000) (  0d 0' 0.00"W,  0d 0' 0.00"N)
Band 1 Block=10800x1 Type=Byte, ColorInterp=Red
Band 2 Block=10800x1 Type=Byte, ColorInterp=Green
Band 3 Block=10800x1 Type=Byte, ColorInterp=Blue

Within Python

with rasterio.open("HYP_50M_SR.tif") as src_dst:
    print(src_dst.overviews(1))
    print(src_dst.block_shapes)

[]
[(1, 10800), (1, 10800), (1, 10800)]

with rio-cogeo cli

$ rio cogeo validate HYP_50M_SR.tif
The following warnings were found:
- The file is greater than 512xH or 512xW, it is recommended to include internal overviews

The following errors were found:
- The file is greater than 512xH or 512xW, but is not tiled
- The offset of the main IFD should be 8 for ClassicTIFF or 16 for BigTIFF. It is 174982088 instead
- The offset of the first block of the image should be after its IFD
/Users/vincentsarago/Downloads/HYP_50M_SR/HYP_50M_SR.tif is NOT a valid cloud optimized GeoTIFF

Create a valid COG

$ rio cogeo create HYP_50M_SR.tif HYP_50M_SR_COG.tif -p jpeg
Reading input: /Users/vincentsarago/Downloads/HYP_50M_SR/HYP_50M_SR.tif
  [####################################]  100%
Adding overviews...
Updating dataset tags...
Writing output to: /Users/vincentsarago/Downloads/HYP_50M_SR/HYP_50M_SR_COG.tif

Magic ?

ls -lah
total 366496
drwx------@  8 vincentsarago  staff   256B Jun 11 23:54 .
drwx------+ 77 vincentsarago  staff   2.4K Jun 11 23:44 ..
-rw-r--r--@  1 vincentsarago  staff   167M Oct 18  2014 HYP_50M_SR.tif
-rw-r--r--   1 vincentsarago  staff   4.8M Jun 11 23:54 HYP_50M_SR_COG.tif


gdalinfo HYP_50M_SR_COG.tif
Driver: GTiff/GeoTIFF
Files: HYP_50M_SR_COG.tif
Size is 10800, 5400
Coordinate System is:
GEOGCS["WGS 84",
    DATUM["WGS_1984",
        SPHEROID["WGS 84",6378137,298.257223563,
            AUTHORITY["EPSG","7030"]],
        AUTHORITY["EPSG","6326"]],
    PRIMEM["Greenwich",0],
    UNIT["degree",0.0174532925199433],
    AUTHORITY["EPSG","4326"]]
Origin = (-179.999999999999972,90.000000000000000)
Pixel Size = (0.033333333333330,-0.033333333333330)
Metadata:
  AREA_OR_POINT=Area
  OVR_RESAMPLING_ALG=NEAREST
  TIFFTAG_DATETIME=2014:10:18 09:30:26
  TIFFTAG_RESOLUTIONUNIT=2 (pixels/inch)
  TIFFTAG_SOFTWARE=Adobe Photoshop CC 2014 (Macintosh)
  TIFFTAG_XRESOLUTION=342.85699
  TIFFTAG_YRESOLUTION=342.85699
Image Structure Metadata:
  COMPRESSION=YCbCr JPEG
  INTERLEAVE=PIXEL
  SOURCE_COLOR_SPACE=YCbCr
Corner Coordinates:
Upper Left  (-180.0000000,  90.0000000) (180d 0' 0.00"W, 90d 0' 0.00"N)
Lower Left  (-180.0000000, -90.0000000) (180d 0' 0.00"W, 90d 0' 0.00"S)
Upper Right ( 180.0000000,  90.0000000) (180d 0' 0.00"E, 90d 0' 0.00"N)
Lower Right ( 180.0000000, -90.0000000) (180d 0' 0.00"E, 90d 0' 0.00"S)
Center      (  -0.0000000,   0.0000000) (  0d 0' 0.00"W,  0d 0' 0.00"N)
Band 1 Block=512x512 Type=Byte, ColorInterp=Red
  Overviews: 5400x2700, 2700x1350, 1350x675, 675x338
Band 2 Block=512x512 Type=Byte, ColorInterp=Green
  Overviews: 5400x2700, 2700x1350, 1350x675, 675x338
Band 3 Block=512x512 Type=Byte, ColorInterp=Blue
  Overviews: 5400x2700, 2700x1350, 1350x675, 675x338

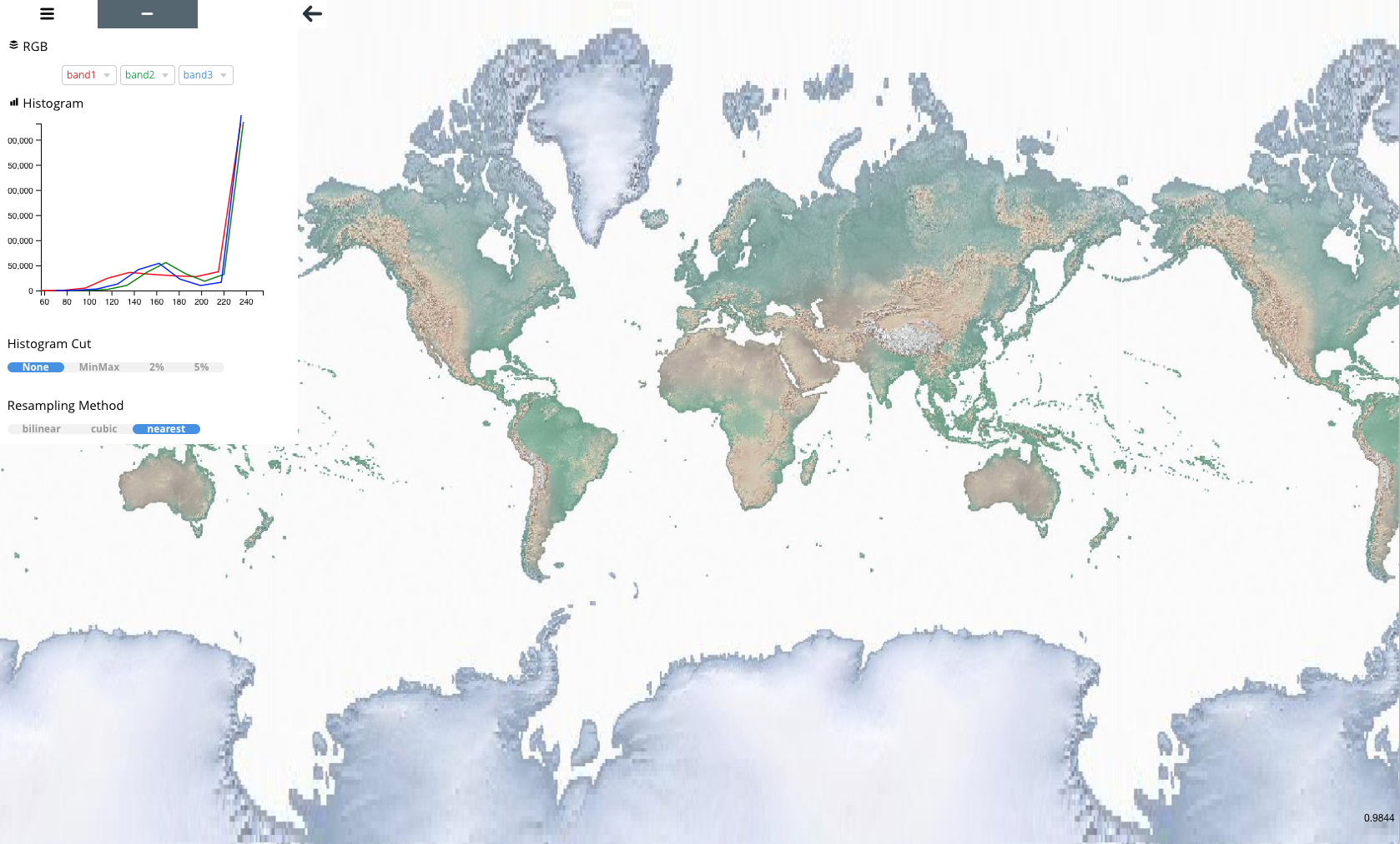

Visualize

$ rio viz HYP_50M_SR_COG.tif

TiTiler - [Tee Tiler] : https://github.com/developmentseed/titiler

❤️ COG + STAC

https://bit.ly/titiler (https://dfu60xgk3j.execute-api.us-east-1.amazonaws.com/docs#/)

  1. Search for some data

  2. Visualize one STAC item https://dfu60xgk3j.execute-api.us-east-1.amazonaws.com**/stac/viewer**

  3. Use TiTiler to get some data (numpy array)
