Google Summer of Code 2018 Work Product Submission

Student : Yash Ladha (@yashLadha)

Organisation : FOSSASIA

Project : Badgeyay as a complete service

Overview of Work Done

Integration of Firebase

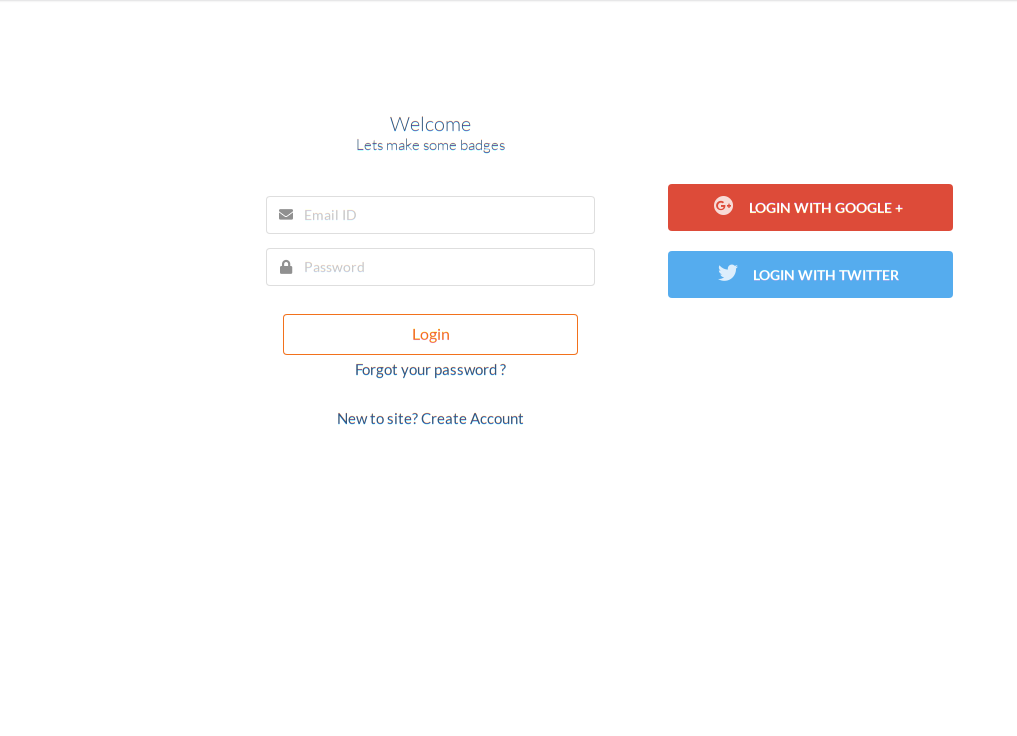

Authentication : Emberfire is used as the official wrapper from firebase. We have used the emberfire for authentication and creates the user from frontend on firebase. The Response from the wrapper is sent to the backend API and then it gets persisted in the Postgresql database in backend.
Storage : We are using the firebase storage as a secondary to store the generate badges that can be accessible across different devices around the globe. The public bucket is used to serve the static generated badge.
Realtime database : This makes it accessible to provide realtime updates across devices. Due to lower latency and fast updates we have used it to log the activities by the cloud functions. These logs then later accessed by the flask server to perpare the payload sent to frontend.
Cloud functions : These are the functions that runs code according to evemts triggered on firebase or HTTPS requests. These are used to automatically send mails on listening to events like User Creation, node insertion at specific node in the realtime database.

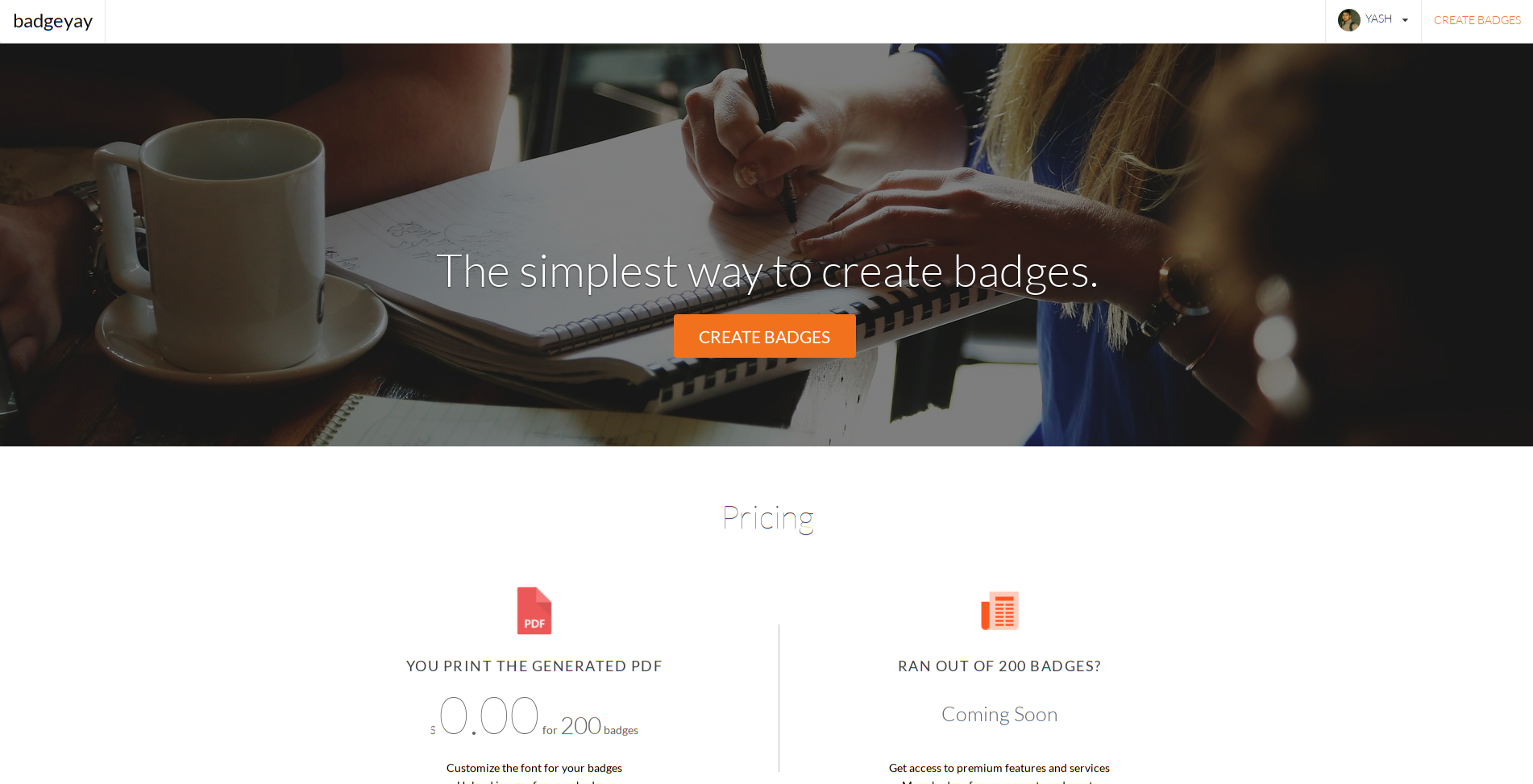

Revamping frontend in Ember

Whole frontend is shifted from Flask template to EmberJS. Ember is a MVC frontend framework. Evry UI element is divided into individual components. This leads to improvement in maintainability of the components and customizability as well.

Chaining of actions and models have been created. Badges are generated through chaining of several actions in the createbadge controller which inturn depends on the models and responses received from other API calls. Template Helpers and conditional rendering of components have also been implemented.

Improvement in the REST API Endpoint

Whole Backend is refactored. Controllers contains the logic for the endpoints. Utility functions have been created for providing functions that are used across different controllers.

The whole API is designed to follow JSON API specification using marshmallow to serialize and desiralize models. Firebase Admin SDK is also created to support admin functionalities of firebase from the backend flask server.

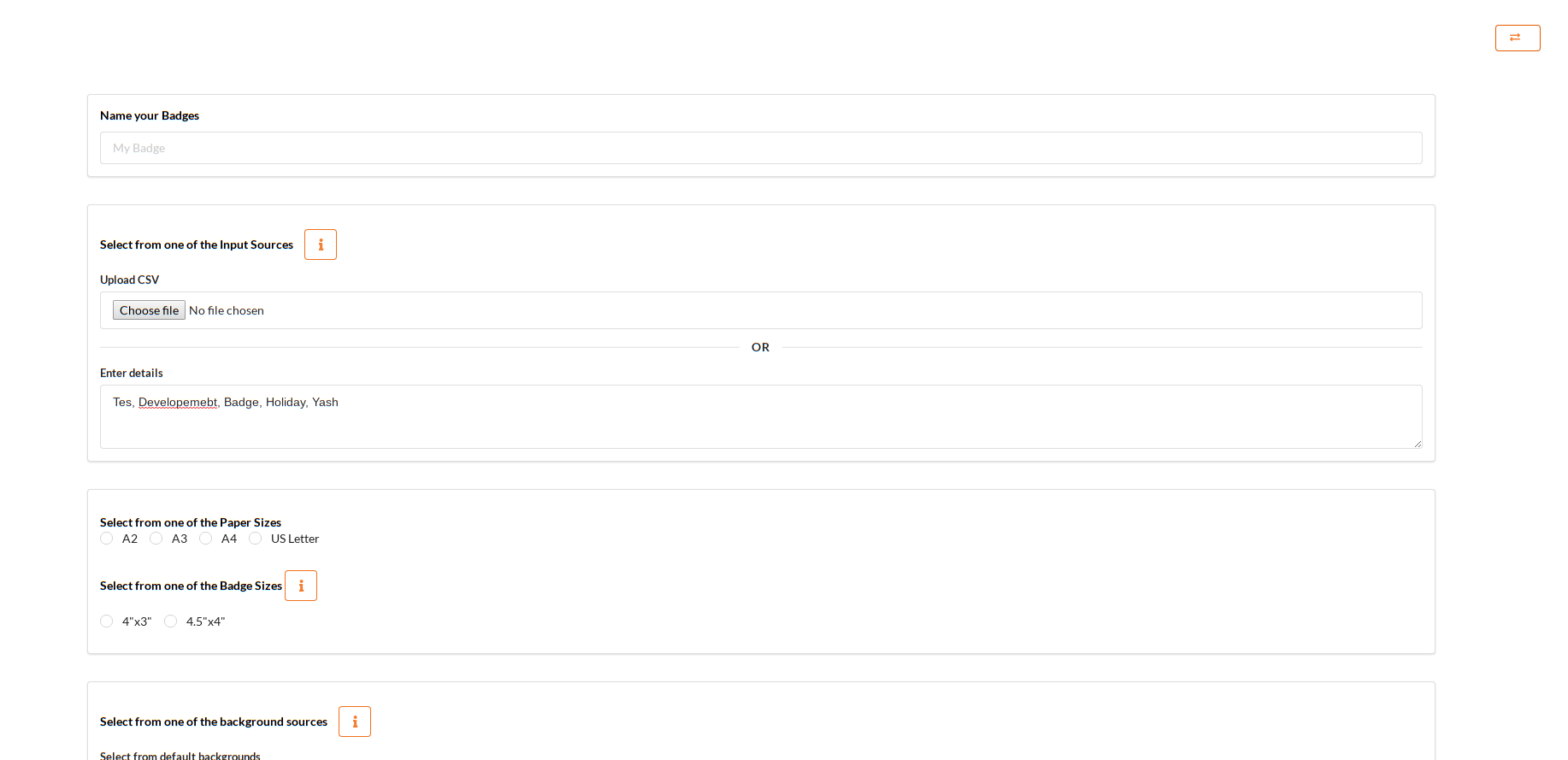

Badge Size

Badges are generated through conversion of SVG to PDF. SVG is created in a tree like structure so that it can be iterated and ' parsed through XML parsers. System now has support for several badge sizes complying with the paper sizes.

Admin Section

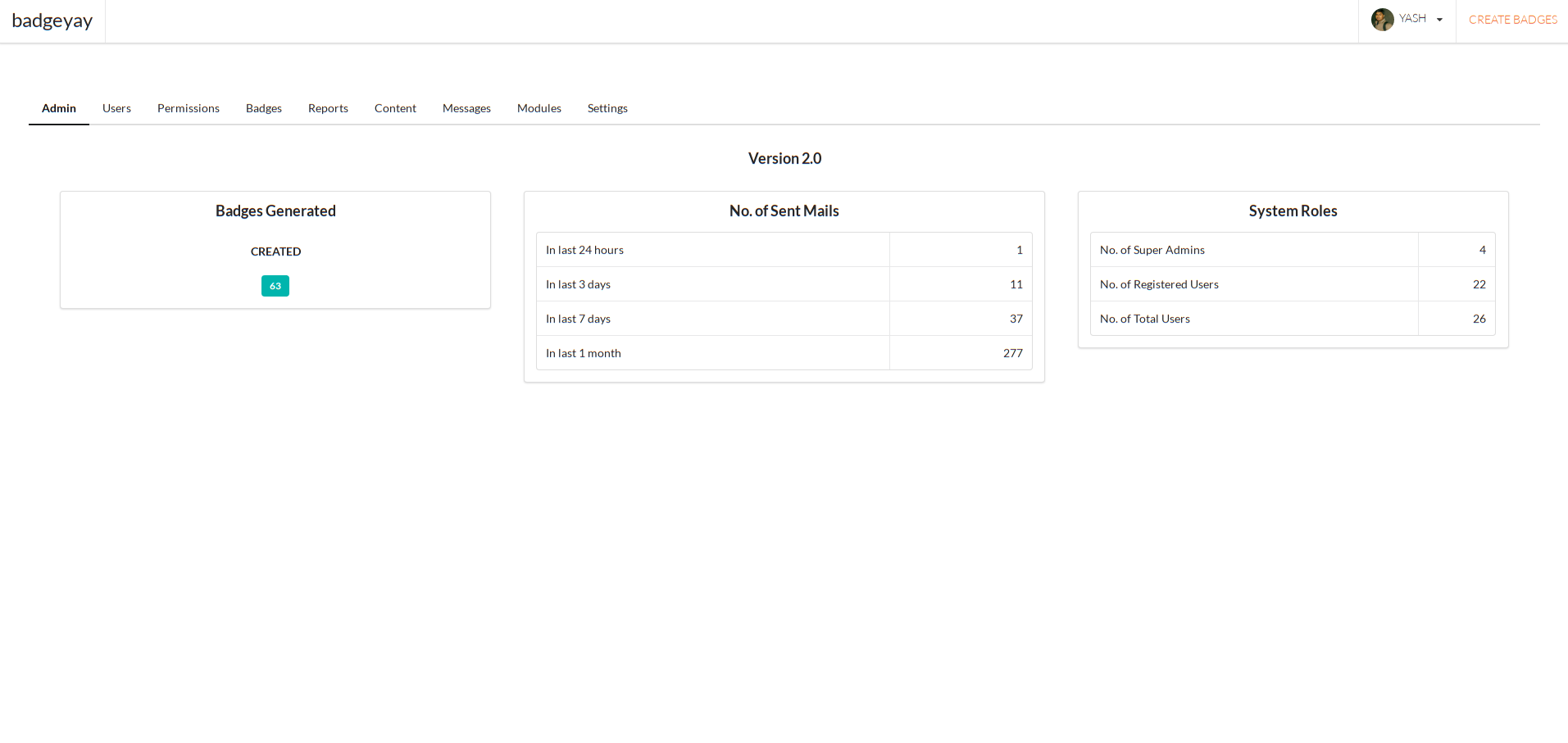

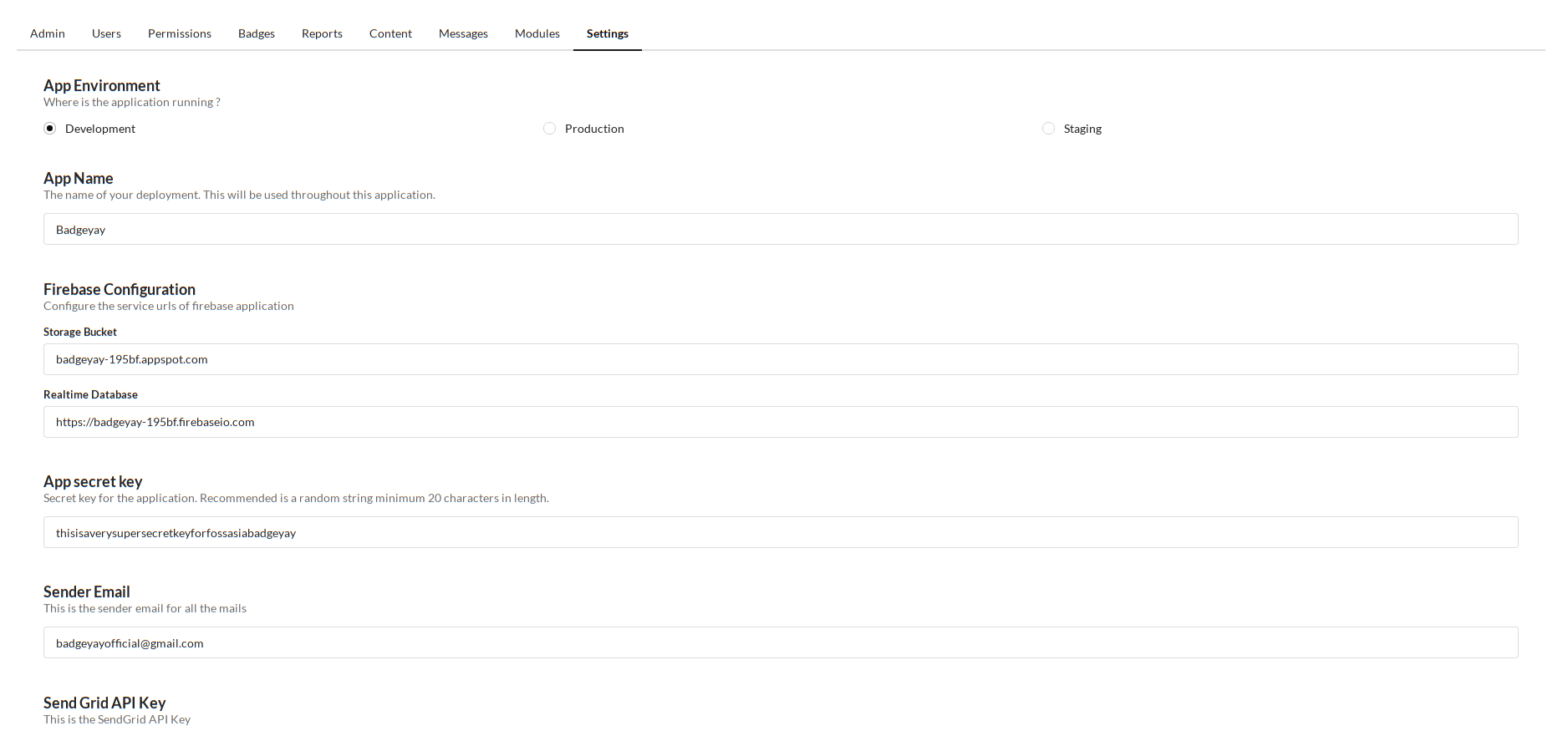

Worked on creating the Admin functionality on the frontend. Admin Panel consists of tabs like Users, Permission, Messages, Badges, Modules, Settings.

These give a higher level interface to manage all the functionalities that are running on frontend and backend directly through the interface.

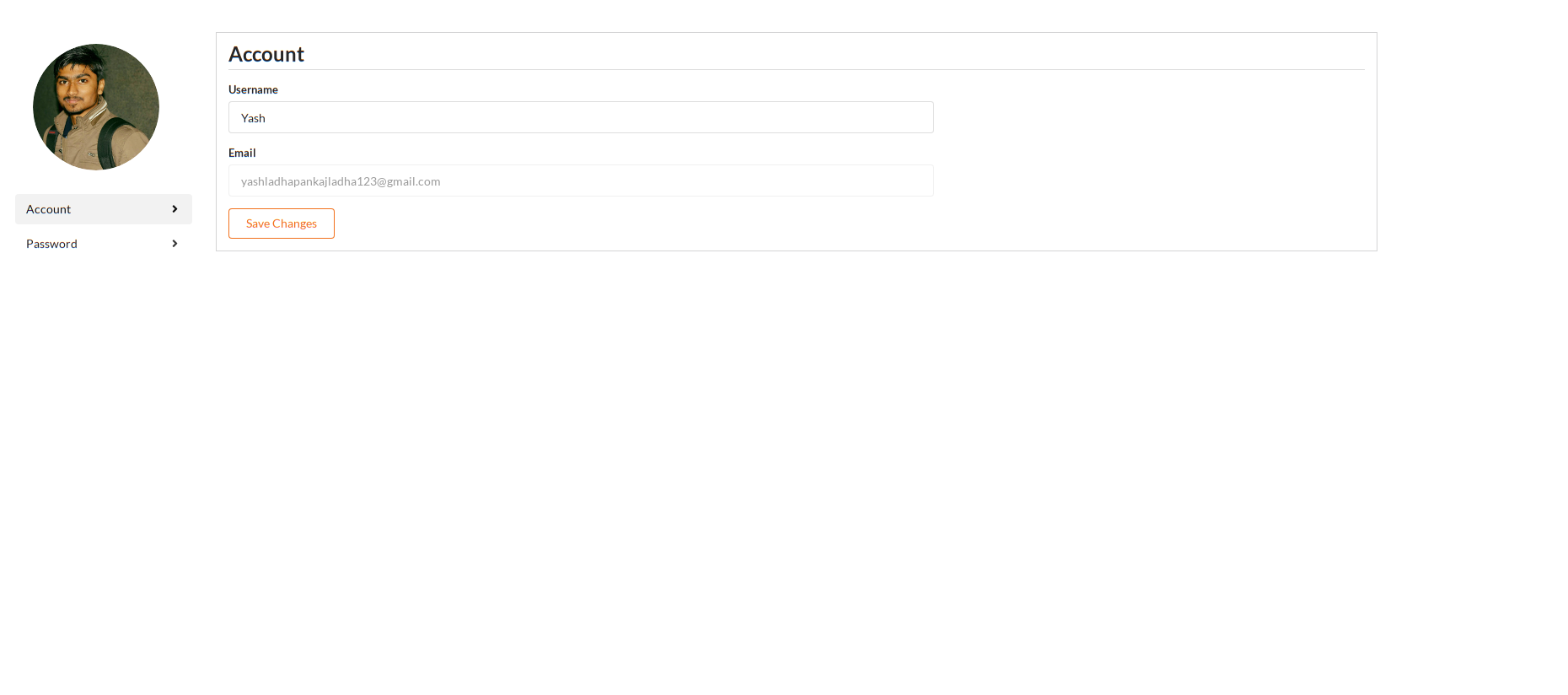

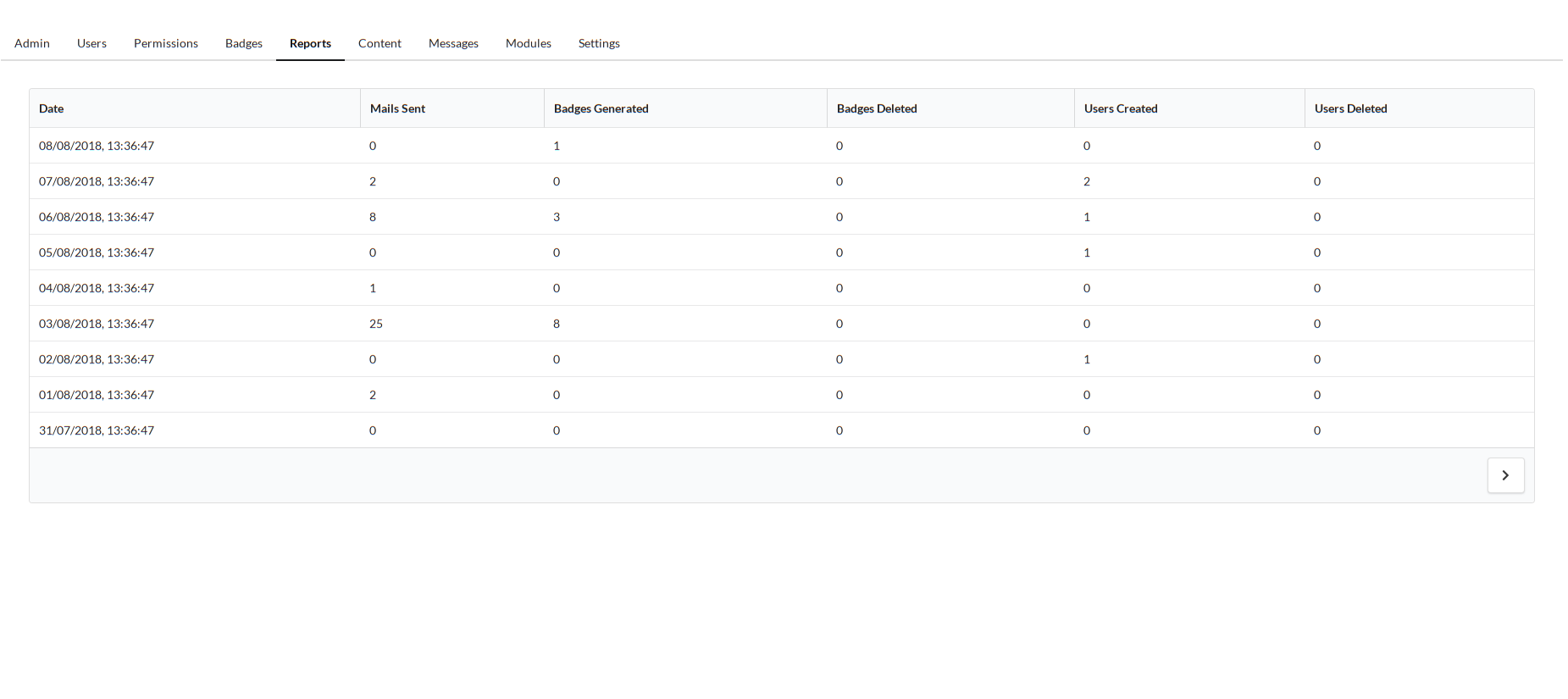

User can look into the statistics and can mutate the behaviour of UI Componnets directly from the Interface. User management portal is also there along with the interface to manage the deployed cloud functions directly from the admin interface.
