Run thousands of basic² ai agents without and with Unity ECS `1.0.11`

.FightCube.md

Run thousands of basic² ai agents without and with Unity ECS 1.0.11.

No Unity ECS

• FightCube.cs

Unity ECS

• FightCubeAuthoring.cs
• GameStateStartedAuthoring.cs

note: quadtree was beyond the scope of this exercise; there is still room to get more perf here.

FightCube.cs

// src* https://gist.github.com/andrew-raphael-lukasik/9582abd02b237b30d7abbdeb5c5d5b51
using UnityEngine;
using UnityEngine.Jobs;
using Unity.Entities;
using Unity.Transforms;
using Unity.Collections;
using Unity.Collections.LowLevel.Unsafe;
using Unity.Mathematics;
using Unity.Jobs;

using Random = Unity.Mathematics.Random;

namespace FightCubes
{

    public class FightCube : MonoBehaviour
    {

        [SerializeField] uint _randomSeed = 1234;
        [SerializeField] Mesh _mesh;
        [SerializeField] Material _material;
        [SerializeField] float3 _spawnVolume = new float3(100 , 100 , 100);
        [SerializeField] float _moveSpeed = 10;
        [SerializeField] float _stoppingDistance = 1;
        [SerializeField][Min(2)] int _numEntitiesToCreate = 2000;

        int _numEntities;
        NativeArray<float4x4> _transforms;
        NativeArray<EHumanState> _states;
        NativeArray<int> _targets;
        NativeQueue<int> _attacks;
        public JobHandle Dependency;

        void OnEnable ()
        {
            _transforms = new NativeArray<float4x4>(_numEntitiesToCreate , Allocator.Persistent);
            _states = new NativeArray<EHumanState>(_numEntitiesToCreate , Allocator.Persistent);
            _targets = new NativeArray<int>(_numEntitiesToCreate , Allocator.Persistent);
            _attacks = new NativeQueue<int>(Allocator.Persistent);

            var rnd = new Random(_randomSeed!=0 ? _randomSeed : (uint)System.DateTime.Now.GetHashCode());
            float3 origin = transform.position;
            for( int entity = 0 ; entity<_numEntitiesToCreate ; entity++ )
            {
                float3 randomPoint = rnd.NextFloat3(-_spawnVolume/2 , _spawnVolume/2);
                _transforms[entity] = float4x4.Translate(origin + randomPoint);
                _states[entity] = EHumanState.Idle;
                _targets[entity] = -1;
            }
            _numEntities = _numEntitiesToCreate;
        }

        void OnDisable ()
        {
            Dependency.Complete();
            if( _transforms.IsCreated ) _transforms.Dispose();
            if( _states.IsCreated ) _states.Dispose();
            if( _targets.IsCreated ) _targets.Dispose();
            if( _attacks.IsCreated ) _attacks.Dispose();
            _numEntities = 0;
        }

        void Update ()
        {
            Graphics.RenderMeshInstanced(
                rparams: new RenderParams(_material) ,
                mesh: _mesh ,
                submeshIndex: 0 ,
                instanceData: _transforms.Reinterpret<Matrix4x4>() ,
                instanceCount: _numEntities
            );
        }

        void FixedUpdate ()
        {
            Dependency.Complete();

            int batchCount = _numEntities / (SystemInfo.processorCount * 2);
            var fixedUpdateJob = new FixedUpdateJob
            {
                NumEntities = _numEntities ,
                MoveSpeed = _moveSpeed ,
                StoppingDistance = _stoppingDistance ,
                DeltaTime = Time.deltaTime ,
                Transforms = _transforms ,
                States = _states ,
                Targets = _targets ,
                Attacks = _attacks.AsParallelWriter() ,
            };
            Dependency = fixedUpdateJob.Schedule(_numEntities , batchCount , Dependency);

            var resolveAttacks = new ResolveAttacksJob
            {
                SourceOfRandomness = (uint)System.DateTime.Now.GetHashCode() ,
                Transforms = _transforms ,
                States = _states ,
                Attacks = _attacks ,
            };
            Dependency = resolveAttacks.Schedule(Dependency);
        }

    #if UNITY_EDITOR

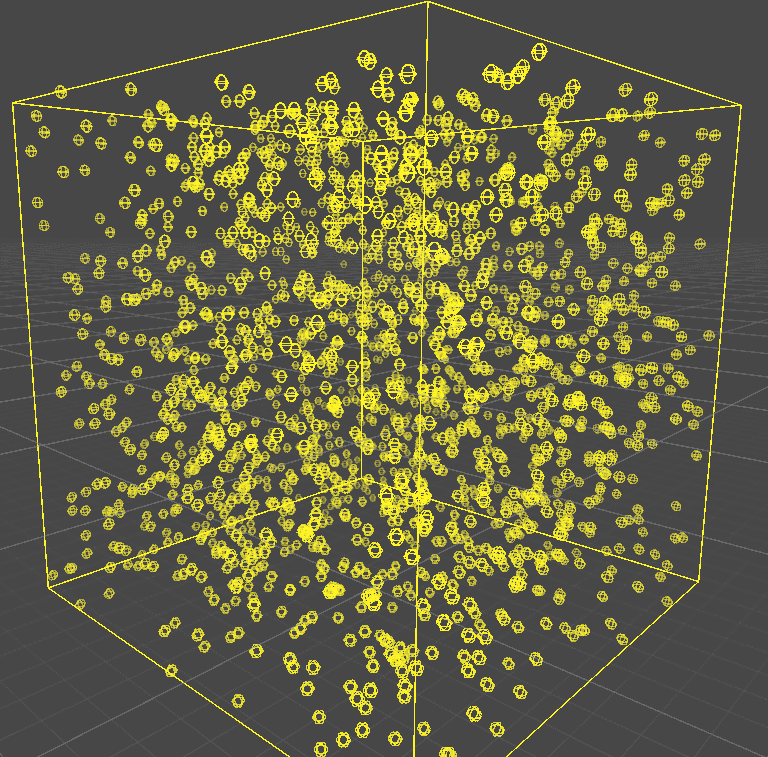

        void OnDrawGizmos ()
        {
            if( _transforms.IsCreated )
            {
                Gizmos.color = Color.yellow;
                for( int entity = 0 ; entity<_numEntities ; entity++ )
                    Gizmos.DrawWireSphere(_transforms[entity].Translation() , _stoppingDistance);
            }
            else
            {
                float3 origin = transform.position;
                var rnd = new Random(_randomSeed!=0 ? _randomSeed : (uint)System.DateTime.Now.GetHashCode());
                Gizmos.color = Color.yellow;
                Gizmos.DrawWireCube(origin , _spawnVolume);
                for( int i = 0 ; i<_numEntitiesToCreate ; i++ )
                {
                    float3 randomPoint = rnd.NextFloat3(-_spawnVolume/2 , _spawnVolume/2);
                    Gizmos.DrawWireSphere(origin + randomPoint , _stoppingDistance);
                }
            }
        }
    #endif

    }

    public enum EHumanState : byte
    {
        Idle,
        Chasing,
        Attacking,
        Dead
    }

    [Unity.Burst.BurstCompile]
    public struct FixedUpdateJob : IJobParallelFor
    {
        public int NumEntities;
        public float MoveSpeed;
        public float StoppingDistance;
        public float DeltaTime;
        [NativeDisableContainerSafetyRestriction] public NativeArray<float4x4> Transforms;// NativeDisableContainerSafetyRestriction is here ONLY to render these transforms at the same time
        [NativeDisableParallelForRestriction] public NativeArray<EHumanState> States;
        public NativeArray<int> Targets;
        [WriteOnly] public NativeQueue<int>.ParallelWriter Attacks;
        void IJobParallelFor.Execute ( int entity )
        {
            EHumanState state = States[entity];
            if( state==EHumanState.Dead )
            {
                // dead x_x
            }
            else if( state==EHumanState.Idle )
            {
                float closestDist = float.MaxValue;
                int closest = -1;
                float3 position = Transforms[entity].Translation();
                for( int other = 0 ; other<NumEntities ; other++ )
                    if( other!=entity )// don't compare to self
                        if( States[other]!=EHumanState.Dead )// ignore dead ones
                        {
                            float3 otherPos = Transforms[other].Translation();
                            float dist = math.length(position - otherPos);
                            if( dist<closestDist )
                            {
                                closestDist = dist;
                                closest = other;
                            }
                        }

                if( closest!=-1 )
                {
                    Targets[entity] = closest;
                    States[entity] = EHumanState.Chasing;
                }
            }
            else if( state==EHumanState.Chasing )
            {
                int target = Targets[entity];
                if( target==-1 || target>=NumEntities || target==entity || States[target]==EHumanState.Dead )
                {
                    // invalid target
                    States[entity] = EHumanState.Idle;
                    return;
                }

                float4x4 transform = Transforms[entity];
                float3 position = transform.Translation();
                float3 toTarget = Transforms[target].Translation() - position;
                if( math.length(toTarget)>StoppingDistance )
                {
                    // moving toward target
                    float3 dirToTarget = math.normalizesafe(toTarget);
                    float3 deltaPos = dirToTarget * (MoveSpeed * DeltaTime);
                    transform.c3 += new float4(deltaPos , 0);// c3 holds position as float4(x,y,z,1) where `1` at the end must be left unchanged
                    Transforms[entity] = transform;
                }
                else
                {
                    // stopping distance reached
                    States[entity] = EHumanState.Attacking;
                }
            }
            else if( state==EHumanState.Attacking )
            {
                int target = Targets[entity];
                if( target==-1 || target>=NumEntities || target==entity || States[target]==EHumanState.Dead )
                {
                    // invalid target
                    States[entity] = EHumanState.Idle;
                }
                else
                {
                    // takes a swing at target!
                    Attacks.Enqueue(target);
                }
            }
            else throw new System.NotImplementedException($"entity:{entity} has state:{state} which is not implemented over here");
        }
    }

    [Unity.Burst.BurstCompile]
    public struct ResolveAttacksJob : IJob
    {
        public uint SourceOfRandomness;
        [WriteOnly][NativeDisableContainerSafetyRestriction] public NativeArray<float4x4> Transforms;// NativeDisableContainerSafetyRestriction is here ONLY to render these transforms at the same time
        [WriteOnly] public NativeArray<EHumanState> States;
        public NativeQueue<int> Attacks;
        void IJob.Execute ()
        {
            var rnd = new Random(SourceOfRandomness);
            while( Attacks.Count!=0 )
            {
                int attacked = Attacks.Dequeue();
                if( rnd.NextBool() )
                {
                    // attack succeeded
                    States[attacked] = EHumanState.Dead;

                    // flatten the cube
                    float4x4 transform = Transforms[attacked];
                    transform.c0 = new float4(2f , 0 , 0 , 0);// c0 holds X axis direction (rotation) & scale as float4(x,y,z,0)
                    transform.c1 = new float4(0 , 0.1f , 0 , 0);// c1 holds Y axis direction (rotation) & scale as float4(x,y,z,0)
                    transform.c2 = new float4(0 , 0 , 2f , 0);// c2 holds Z axis direction (rotation) & scale as float4(x,y,z,0)
                    Transforms[attacked] = transform;
                }
                else
                {
                    // attack failed
                }
            }
        }
    }

}

FightCubeAuthoring.cs

// src* https://gist.github.com/andrew-raphael-lukasik/9582abd02b237b30d7abbdeb5c5d5b51
using UnityEngine;
using Unity.Entities;
using Unity.Transforms;
using Unity.Collections;
using Unity.Mathematics;
using Unity.Burst;

using Random = Unity.Mathematics.Random;

namespace FightCubesECS
{

    // notes:
    // - place this component on a mesh and bake it in a SubScene to create a visible entity
    // - bake multiple of such entities as a sole one won't have a target to chase
    // - remember to use a material with Instancing enabled
    // - simulation won't start until GameStateStarted entity exists (see GameStateStartedAuthoring file for details)

    [DisallowMultipleComponent]
    public class FightCubeAuthoring : MonoBehaviour
    {
        //[SerializeField][Min(1)] int _health = 1;
        //[SerializeField][Min(1)] int _maxHealth = 1;
        [SerializeField][Min(0)] float _moveSpeed = 10;
        [SerializeField][Min(0)] float _stopDistance = 1;

        public class Baker : Baker<FightCubeAuthoring>
        {
            public override void Bake ( FightCubeAuthoring authoring )
            {
                Entity entity = GetEntity( authoring , TransformUsageFlags.Dynamic );
                AddComponent<IsHuman>( entity );
                AddComponent( entity , new HumanState{ Value=HumanState.EValue.Idle } );
                //AddComponent( entity , new Health{ Value=authoring._health } );
                //AddComponent( entity , new MaxHealth{ Value=authoring._maxHealth } );
                AddComponent( entity , new HumanMoveTarget{ Value=Entity.Null } );
                AddComponent( entity , new HumanMoveSpeed{ Value=authoring._moveSpeed } );
                AddComponent( entity , new HumanMoveStopDistance{ Value=authoring._stopDistance } );
            }
        }
    }

    [BurstCompile]
    [UpdateInGroup( typeof(SimulationSystemGroup) )]
    public partial struct HumanIdleSystem : ISystem
    {

        [BurstCompile]
        public void OnCreate ( ref SystemState state )
        {
            state.RequireForUpdate<GameStateStarted>();
            var singletonArchetype = state.EntityManager.CreateArchetype( new NativeList<ComponentType>(1,Allocator.Temp){ ComponentType.ReadWrite<SystemData>() }.AsArray() );
            Entity singleton = state.EntityManager.CreateEntity( singletonArchetype );
            SystemAPI.SetSingleton( new SystemData{
                Query = state.GetEntityQuery( ComponentType.ReadOnly<IsHuman>() )
            } );
        }

        [BurstCompile]
        public void OnDestroy ( ref SystemState state )
        {
            if( SystemAPI.TryGetSingletonEntity<SystemData>(out Entity singleton) )
                state.EntityManager.DestroyEntity( singleton );
        }

        [BurstCompile]
        public void OnUpdate ( ref SystemState state )
        {
            var systemData = SystemAPI.GetSingleton<SystemData>();
            int numEntities = systemData.Query.CalculateEntityCount();

            var humanPositions = new NativeArray<float3>( numEntities , Allocator.TempJob );
            var humanEntities = new NativeArray<Entity>( numEntities , Allocator.TempJob );
            state.Dependency = new FillDataJob
            {
                HumanPositions = humanPositions ,
                HumanEntities = humanEntities ,
            }.Schedule( state.Dependency );

            state.Dependency = new HumanChooseTargetJob
            {
                AllHumans = humanEntities ,
                AllHumansPosition = humanPositions ,
            }.Schedule( state.Dependency );

            // release
            humanPositions.Dispose( state.Dependency );
            humanEntities.Dispose( state.Dependency );

            var commandBufferSingleton = SystemAPI.GetSingleton<EndSimulationEntityCommandBufferSystem.Singleton>();
            var commandBuffer = commandBufferSingleton.CreateCommandBuffer( state.WorldUnmanaged );
            var commandBufferParallelWriter = commandBuffer.AsParallelWriter();
            state.Dependency = new AttackTargetJob
            {
                GameTime = SystemAPI.Time.ElapsedTime ,
                CommandBuffer = commandBufferParallelWriter ,
            }.Schedule( state.Dependency );
        }

        struct SystemData : IComponentData
        {
            public EntityQuery Query;
        }
    }

    [BurstCompile]
    [UpdateInGroup( typeof(SimulationSystemGroup) )]
    [UpdateAfter( typeof(HumanIdleSystem) )]
    public partial struct HumanChaseSystem : ISystem
    {
        [BurstCompile]
        public void OnCreate ( ref SystemState state )
        {
            state.RequireForUpdate<GameStateStarted>();
        }

        [BurstCompile]
        public void OnDestroy ( ref SystemState state ) { }

        [BurstCompile]
        public void OnUpdate ( ref SystemState state )
        {
            float deltaTime = SystemAPI.Time.DeltaTime;
            var transformsRW = SystemAPI.GetComponentLookup<LocalTransform>( isReadOnly:false );
            new ChaseTargetJob
            {
                DeltaTime = deltaTime ,
                TransformsRW = transformsRW,
            }.Schedule();
        }
    }


    public struct GameStateStarted : IComponentData {}// singleton to signal the game start

    public struct IsHuman : IComponentData {}// tag
    public struct HumanState : IComponentData
    {
        public EValue Value;
        public enum EValue : byte { Idle=0, Chasing, Attacking }
    }
    //public struct Health : IComponentData { public int Value; }
    //public struct MaxHealth : IComponentData { public int Value; }
    public struct HumanMoveTarget : IComponentData { public Entity Value; }
    public struct HumanMoveSpeed : IComponentData { public float Value; }
    public struct HumanMoveStopDistance : IComponentData { public float Value; }


    [BurstCompile]
    [WithAll( typeof(IsHuman) )]
    public partial struct FillDataJob : IJobEntity
    {
        [WriteOnly] public NativeArray<float3> HumanPositions;
        [WriteOnly] public NativeArray<Entity> HumanEntities;
        void Execute
        (
            [EntityIndexInQuery] int entityIndexInQuery ,
            in Entity entity ,
            in LocalTransform transform
        )
        {
            HumanEntities[entityIndexInQuery] = entity;
            HumanPositions[entityIndexInQuery] = transform.Position;
        }
    }

    [BurstCompile]
    [WithAll( typeof(IsHuman) )]
    public partial struct HumanChooseTargetJob : IJobEntity
    {
        [ReadOnly] public NativeArray<Entity> AllHumans;
        [ReadOnly] public NativeArray<float3> AllHumansPosition;
        void Execute
        (
            ref HumanState humanState ,
            ref HumanMoveTarget target ,
            in Entity entity ,
            in LocalTransform transform
        )
        {
            if( humanState.Value!=HumanState.EValue.Idle ) return;

            Entity nearestGuy = Entity.Null;
            float nearestGuyDistance = float.MaxValue;
            float3 pos = transform.Position;
            for( int i=0 ; i<AllHumans.Length ; i++ )
            {
                float dist = math.length( AllHumansPosition[i] - pos );
                if(
                        dist<nearestGuyDistance// is closer than the other guy
                    &&  AllHumans[i]!=entity// and is not me :V
                )
                {
                    nearestGuyDistance = dist;
                    nearestGuy = AllHumans[i];
                }
            }
            if( nearestGuy!=Entity.Null )
            {
                target.Value = nearestGuy;
                humanState.Value = HumanState.EValue.Chasing;
            }
        }
    }

    [BurstCompile]
    [WithAll( typeof(IsHuman) )]
    public partial struct ChaseTargetJob : IJobEntity
    {
        public float DeltaTime;
        public ComponentLookup<LocalTransform> TransformsRW;
        void Execute
        (
            ref HumanState humanState ,
            in Entity entity ,
            in HumanMoveTarget target ,
            in HumanMoveStopDistance stopDistance ,
            in HumanMoveSpeed moveSpeed
        )
        {
            if( humanState.Value!=HumanState.EValue.Chasing ) return;

            LocalTransform transform = TransformsRW[ entity ];
            if( TransformsRW.TryGetComponent( target.Value , out LocalTransform targetTransform ) )
            {
                float3 toTarget = targetTransform.Position - transform.Position;
                float distanceToTarget = math.length( toTarget );
                float maxMoveDistance = distanceToTarget - stopDistance.Value;
                if( maxMoveDistance>0.0001 )// maxMoveDistance>0 made some entities stuck due to float precision
                {
                    // target not reached yet
                    float step = math.min( DeltaTime * moveSpeed.Value , maxMoveDistance );
                    transform.Position += math.normalize(toTarget) * step;
                    TransformsRW[ entity ] = transform;
                }
                else
                {
                    // target reached
                    humanState.Value = HumanState.EValue.Attacking;
                }
            }
            else
            {
                // target no longer exists
                humanState.Value = HumanState.EValue.Idle;
            }
        }
    }

    [BurstCompile]
    [WithAll( typeof(IsHuman) )]
    public partial struct AttackTargetJob : IJobEntity
    {
        public double GameTime;// source of randomness
        public EntityCommandBuffer.ParallelWriter CommandBuffer;
        void Execute
        (
            ref HumanState humanState ,
            ref HumanMoveTarget target ,
            [EntityIndexInQuery] int entityIndexInQuery ,
            in Entity entity
        )
        {
            if( humanState.Value!=HumanState.EValue.Attacking ) return;

            Random rnd;
            unchecked
            {
                uint seed = 17;
                seed = seed * 23 + (uint)math.abs( entity.Index.GetHashCode() );
                seed = seed * 23 + (uint)math.abs( GameTime.GetHashCode() );
                rnd = new Random( seed );
            };

            if( rnd.NextBool() )
            {
                // attack succeeded
                CommandBuffer.DestroyEntity( sortKey:entityIndexInQuery , target.Value );// schedule destroy

                // go idle
                humanState.Value = HumanState.EValue.Idle;
            }
            else
            {
                // attack failed
            }
        }
    }

}

GameStateStartedAuthoring.cs

// src* https://gist.github.com/andrew-raphael-lukasik/9582abd02b237b30d7abbdeb5c5d5b51
using UnityEngine;
using Unity.Entities;

namespace FightCubesECS
{

    // notes:
    // - place this component on a gameObject and bake it in a SubScene to create a entity that will trigger start of the simulation

    [DisallowMultipleComponent]
    public class GameStateStartedAuthoring : MonoBehaviour
    {
        public class Baker : Baker<GameStateStartedAuthoring>
        {
            public override void Bake ( GameStateStartedAuthoring authoring )
            {
                Entity entity = GetEntity( authoring , TransformUsageFlags.ManualOverride );
                AddComponent<GameStateStarted>( entity );
            }
        }
    }

}
