Diagrama Entidade Relacionamento (DER)

in English entity–relationship model (ER model)

Differences between physical, logical and conceptual models:
https://classroom.synonym.com/what-is-the-difference-between-a-conceptual-model-a-physical-model-12592752.html

http://tdan.com/conceptual-logical-physical-clearing-the-confusion/5021

An entity with an attribute
193px-erd-entity-with-attribute svg

A relationship with an attribute
erd-relationship-with-attribute

Primary key
erd-id-as-primary-key

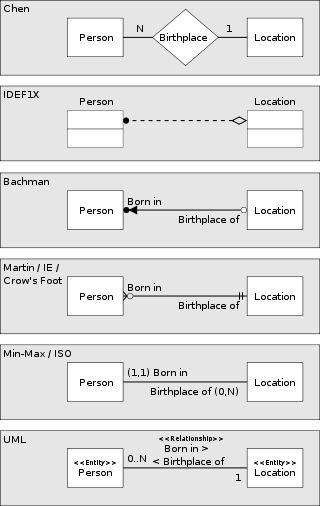

Various methods of representing the same one to many relationship.
320px-erd_representation svg

Some ER's

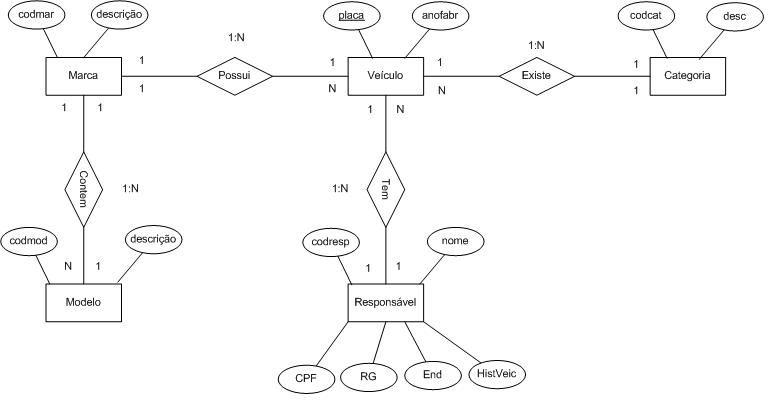

1)Cadastro Nacional de Veiculos
1 1

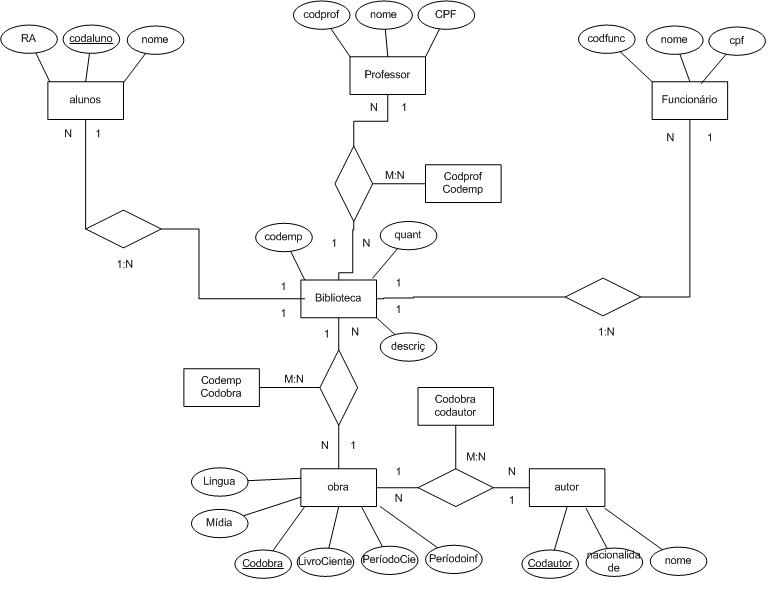

  1. Biblioteca
    2

  2. Biblioteca
    biblioteca

  3. ER model's for an e-shop

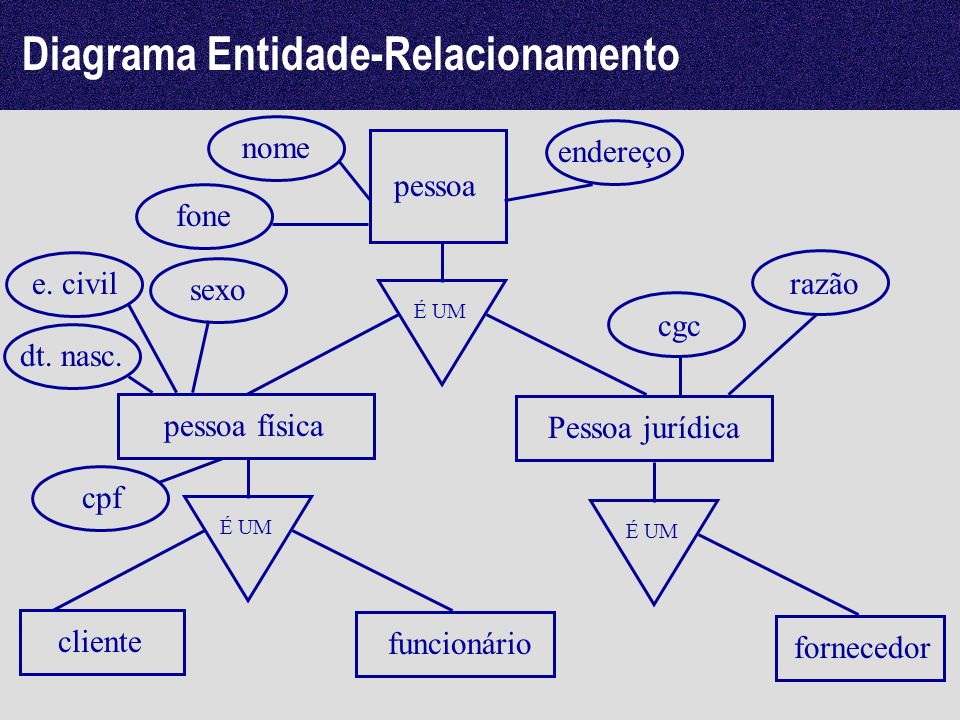

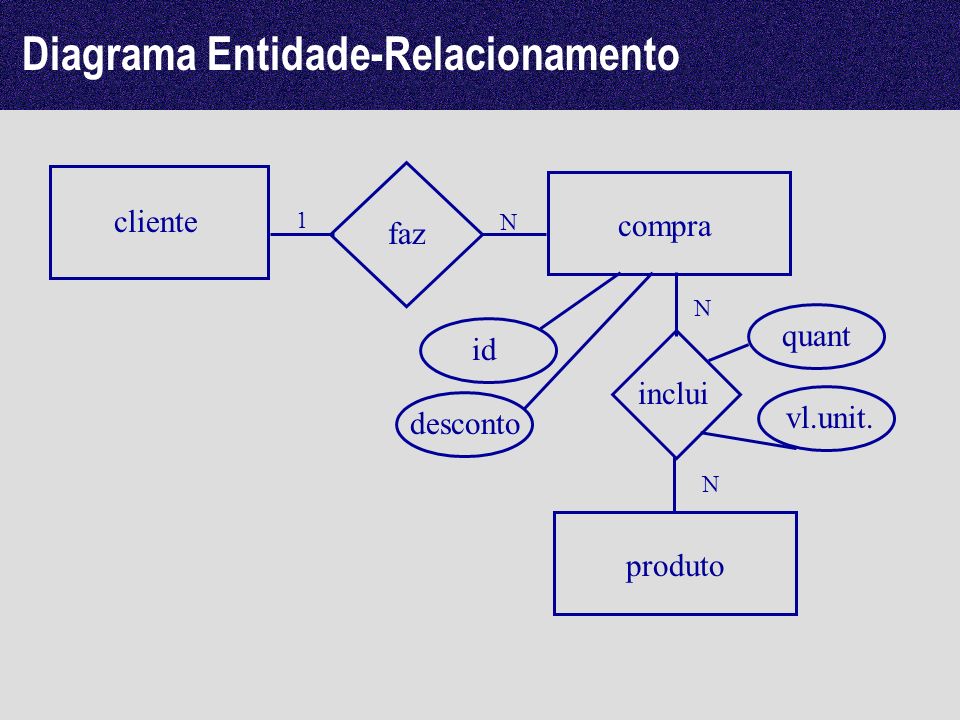

diagrama entidade-relacionamento

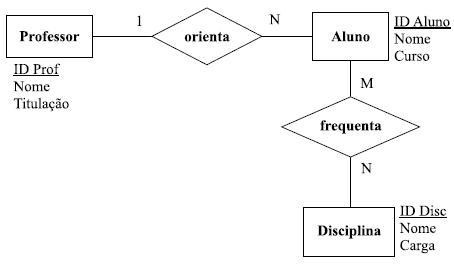

diagrama entidade-relacionamento 1

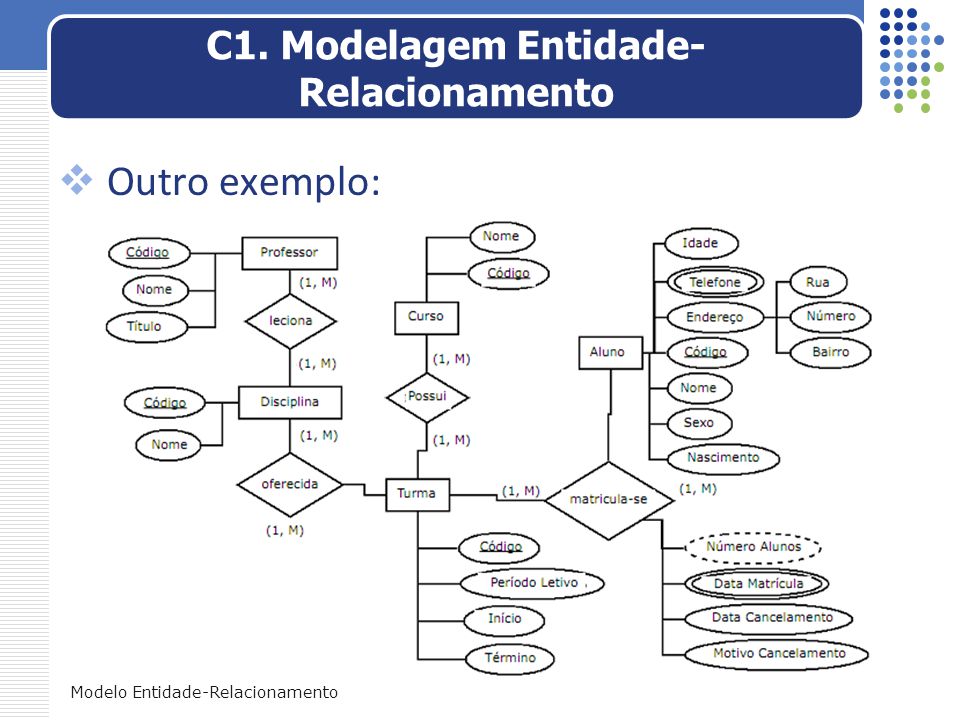

c1 modelagem entidade-relacionamento

Links:

https://en.wikipedia.org/wiki/Entity%E2%80%93relationship_model

http://sistemassaoluis.blogspot.com.br/2009/08/der-diagrama-entidade-relacionamento.html

http://slideplayer.com.br/slide/389605/
