Acceleration of Two Objects Connected by a Cord

A ball of mass m1 and a block of mass m2 are attached by a lightweight cord that passes over a frictionless pulley of negligible mass, as shown in the figure below. The block lies on a frictionless incline of angle θ. Find the magnitude of the acceleration of the two objects and the tension in the cord.

Let's solve this problem using Symbolism, a computer algebra library for C#.

Free-body diagram for the ball:

There are two forces acting on the ball. Here are the symbols we'll need for the ball:

var F1_m1 = new Symbol("F1_m1");        // force 1 on mass 1
var F2_m1 = new Symbol("F2_m1");        // force 2 on mass 1

var th1_m1 = new Symbol("th1_m1");      // direction of force 1 on mass 1
var th2_m1 = new Symbol("th2_m1");      // direction of force 2 on mass 1

var F1x_m1 = new Symbol("F1x_m1");      // x-component of force 1 on mass 1
var F2x_m1 = new Symbol("F2x_m1");      // x-component of force 2 on mass 1

var F1y_m1 = new Symbol("F1y_m1");      // y-component of force 1 on mass 1
var F2y_m1 = new Symbol("F2y_m1");      // y-component of force 2 on mass 1

var Fx_m1 = new Symbol("Fx_m1");        // x-component of total force on mass 1
var Fy_m1 = new Symbol("Fy_m1");        // y-component of total force on mass 1

var ax_m1 = new Symbol("ax_m1");        // x-component of acceleration of mass 1
var ay_m1 = new Symbol("ay_m1");        // y-component of acceleration of mass 1

var m1 = new Symbol("m1");

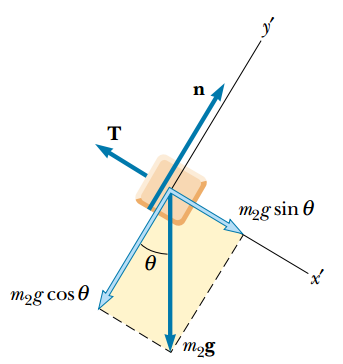

Free-body diagram for the block:

There are three forces acting on the block. The symbols we'll be using for the block:

var F1_m2 = new Symbol("F1_m2");        // force 1 on mass 2
var F2_m2 = new Symbol("F2_m2");        // force 2 on mass 2
var F3_m2 = new Symbol("F3_m2");        // force 3 on mass 2

var th1_m2 = new Symbol("th1_m2");      // direction of force 1 on mass 2
var th2_m2 = new Symbol("th2_m2");      // direction of force 2 on mass 2
var th3_m2 = new Symbol("th3_m2");      // direction of force 3 on mass 2

var F1x_m2 = new Symbol("F1x_m2");      // x-component of force 1 on mass 2
var F2x_m2 = new Symbol("F2x_m2");      // x-component of force 2 on mass 2
var F3x_m2 = new Symbol("F3x_m2");      // x-component of force 3 on mass 2

var F1y_m2 = new Symbol("F1y_m2");      // y-component of force 1 on mass 2
var F2y_m2 = new Symbol("F2y_m2");      // y-component of force 2 on mass 2
var F3y_m2 = new Symbol("F3y_m2");      // y-component of force 3 on mass 2

var Fx_m2 = new Symbol("Fx_m2");        // x-component of total force on mass 2
var Fy_m2 = new Symbol("Fy_m2");        // y-component of total force on mass 2

var ax_m2 = new Symbol("ax_m2");        // x-component of acceleration of mass 2
var ay_m2 = new Symbol("ay_m2");        // y-component of acceleration of mass 2

var m2 = new Symbol("m2");

A few other miscellaneous symbols we'll use:

var incline = new Symbol("incline");

var T = new Symbol("T");                // tension in cable

var g = new Symbol("g");                // gravity

var n = new Symbol("n");                // normal force on block

var a = new Symbol("a");

var Pi = new Symbol("Pi");

Here are the equations for the ball:

F1x_m1 == F1_m1 * cos(th1_m1),
F2x_m1 == F2_m1 * cos(th2_m1),

F1y_m1 == F1_m1 * sin(th1_m1),
F2y_m1 == F2_m1 * sin(th2_m1),

Fx_m1 == F1x_m1 + F2x_m1,
Fy_m1 == F1y_m1 + F2y_m1,

Fx_m1 == m1 * ax_m1,
Fy_m1 == m1 * ay_m1,

Equations for the block:

F1x_m2 == F1_m2 * cos(th1_m2),
F2x_m2 == F2_m2 * cos(th2_m2),
F3x_m2 == F3_m2 * cos(th3_m2),

F1y_m2 == F1_m2 * sin(th1_m2),
F2y_m2 == F2_m2 * sin(th2_m2),
F3y_m2 == F3_m2 * sin(th3_m2),

Fx_m2 == F1x_m2 + F2x_m2 + F3x_m2,
Fy_m2 == F1y_m2 + F2y_m2 + F3y_m2,

Fx_m2 == m2 * ax_m2,
Fy_m2 == m2 * ay_m2,

We need to relate the acceleration of the ball to the acceleration of the block:

ax_m2 == ay_m1,     // the block moves right as the ball moves up

Finally, we'll say a is the same as ax_m2

a == ax_m2

All of the above go in an And expression. This is our system of equations:

var eqs = new And(

    ax_m2 == ay_m1,                     // the block moves right as the ball moves up

    ////////////////////////////////////////////////////////////////////////////////

    F1x_m1 == F1_m1 * cos(th1_m1),
    F2x_m1 == F2_m1 * cos(th2_m1),

    F1y_m1 == F1_m1 * sin(th1_m1),
    F2y_m1 == F2_m1 * sin(th2_m1),

    Fx_m1 == F1x_m1 + F2x_m1,
    Fy_m1 == F1y_m1 + F2y_m1,

    Fx_m1 == m1 * ax_m1,
    Fy_m1 == m1 * ay_m1,

    ////////////////////////////////////////////////////////////////////////////////

    F1x_m2 == F1_m2 * cos(th1_m2),
    F2x_m2 == F2_m2 * cos(th2_m2),
    F3x_m2 == F3_m2 * cos(th3_m2),

    F1y_m2 == F1_m2 * sin(th1_m2),
    F2y_m2 == F2_m2 * sin(th2_m2),
    F3y_m2 == F3_m2 * sin(th3_m2),

    Fx_m2 == F1x_m2 + F2x_m2 + F3x_m2,
    Fy_m2 == F1y_m2 + F2y_m2 + F3y_m2,

    Fx_m2 == m2 * ax_m2,
    Fy_m2 == m2 * ay_m2,

    ////////////////////////////////////////////////////////////////////////////////

    a == ax_m2

);

Now let's define the "values" that are known:

var vals = new List<Equation>()
{
    ax_m1 == 0,                         // ball  moves vertically
    ay_m2 == 0,                         // block moves horizontally

    F1_m1 == T,
    F2_m1 == m1 * g,

    th1_m1 == 90 * Pi / 180,            // force 1 is straight up
    th2_m1 == 270 * Pi / 180,           // force 2 is straight down

    F1_m2 == n,
    F2_m2 == T,
    F3_m2 == m2 * g,

    th1_m2 == 90 * Pi / 180,            // force 1 is straight up
    th2_m2 == 180 * Pi / 180,           // force 2 is straight down
    th3_m2 == 270 * Pi / 180 + incline  // force 3 direction
};

OK, to find the symbolic value of a, we substitute vals into our equations, eliminate all the unknowns, and display the result:

eqs
    .SubstituteEqLs(vals)

    .EliminateVariables(
        F1x_m1, F2x_m1,
        F1y_m1, F2y_m1,

        Fx_m1, Fy_m1,

        F1x_m2, F2x_m2, F3x_m2,
        F1y_m2, F2y_m2, F3y_m2,

        Fx_m2, Fy_m2,

        ax_m2, n, T, ay_m1
    )

    .DispLong()

Here's what's printed to the console:

Let's find the acceleration of each object when m1 = 10.0 kg, m2 = 5.00 kg, and θ = 45.0°. We'll substitute these values into the symbolic result found earlier:

eqs
    .SubstituteEqLs(vals)

    .EliminateVariables(
        F1x_m1, F2x_m1,
        F1y_m1, F2y_m1,

        Fx_m1, Fy_m1,

        F1x_m2, F2x_m2, F3x_m2,
        F1y_m2, F2y_m2, F3y_m2,

        Fx_m2, Fy_m2,

        ax_m2, n, T, ay_m1
    )

    .SubstituteEq(m1 == 10.0)
    .SubstituteEq(m2 == 5.0)
    .SubstituteEq(incline == 45 * Math.PI / 180)
    .SubstituteEq(g == 9.8)

    .DispLong()

The result displayed on the console:

So in this case, where the ball weighs more than the block, the ball moves downward and the block moves left.

Finding the tension in the cord is similar:

eqs
    .SubstituteEqLs(vals)

    .EliminateVariables(
        F1x_m1, F2x_m1,
        F1y_m1, F2y_m1,

        Fx_m1, Fy_m1,

        F1x_m2, F2x_m2, F3x_m2,
        F1y_m2, F2y_m2, F3y_m2,

        Fx_m2, Fy_m2,

        ax_m2, n, a, ay_m1
    )

    .IsolateVariable(T)
    .RationalizeExpression()

The output:

This problem is used as a unit test.
