Generate a randomly connected graph with N nodes and E edges.

example-output.md

Example output

Minimum number of edges

python random_connected_graph.py -p -g names.gml names.txt

Console

[('Anil', 'Rohith'),
 ('Anil', 'Wesley'),
 ('Bandita', 'Saratchandra'),
 ('Brendan', 'Vibha'),
 ('Chengyuan', 'Karthik'),
 ('Karthik', 'Patrick'),
 ('Karthik', 'Yi'),
 ('Keshavan', 'Wesley'),
 ('Patrick', 'Siamak'),
 ('Patrick', 'Vibha'),
 ('Rohith', 'Saratchandra'),
 ('Samuel', 'Saratchandra'),
 ('Samuel', 'Shibamouli'),
 ('Siamak', 'Siddanth'),
 ('Siamak', 'Wesley')]

GML file

graph [
    node [
        id 0
        label "Anil"
    ]
    node [
        id 1
        label "Bandita"
    ]
    node [
        id 2
        label "Brendan"
    ]
    node [
        id 3
        label "Chengyuan"
    ]
    node [
        id 4
        label "Karthik"
    ]
    node [
        id 5
        label "Keshavan"
    ]
    node [
        id 6
        label "Patrick"
    ]
    node [
        id 7
        label "Rohith"
    ]
    node [
        id 8
        label "Samuel"
    ]
    node [
        id 9
        label "Saratchandra"
    ]
    node [
        id 10
        label "Shibamouli"
    ]
    node [
        id 11
        label "Siamak"
    ]
    node [
        id 12
        label "Siddanth"
    ]
    node [
        id 13
        label "Vibha"
    ]
    node [
        id 14
        label "Wesley"
    ]
    node [
        id 15
        label "Yi"
    ]
    edge [
        source 0
        target 7
    ]
    edge [
        source 0
        target 14
    ]
    edge [
        source 1
        target 9
    ]
    edge [
        source 2
        target 13
    ]
    edge [
        source 3
        target 4
    ]
    edge [
        source 4
        target 6
    ]
    edge [
        source 4
        target 15
    ]
    edge [
        source 5
        target 14
    ]
    edge [
        source 6
        target 11
    ]
    edge [
        source 6
        target 13
    ]
    edge [
        source 7
        target 9
    ]
    edge [
        source 8
        target 9
    ]
    edge [
        source 8
        target 10
    ]
    edge [
        source 11
        target 12
    ]
    edge [
        source 11
        target 14
    ]
]

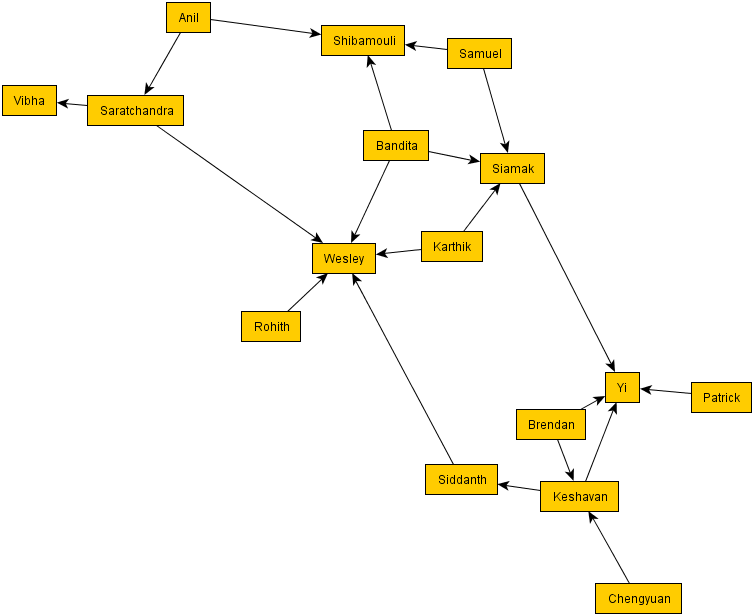

Image from GML

20 edges

python random_connected_graph.py -p -e 20 -g names.gml names.txt

Image from GML

Generate nodes

python random_connected_graph.py -p 16

[(0, 6),
 (0, 10),
 (1, 4),
 (1, 9),
 (2, 4),
 (2, 11),
 (3, 6),
 (3, 8),
 (4, 8),
 (5, 8),
 (5, 15),
 (7, 11),
 (10, 12),
 (13, 15),
 (14, 15)]

names.txt

Anil
Bandita
Brendan
Chengyuan
Karthik
Keshavan
Patrick
Rohith
Samuel
Saratchandra
Shibamouli
Siamak
Siddanth
Vibha
Wesley
Yi

random_connected_graph.py

# Copyright (C) 2013 Brian Wesley Baugh
# CSCE 6933: Social Network Analysis
# Created: January 22, 2013
# Updated: January 30, 2013
"""Generate a randomly connected graph with N nodes and E edges."""
import random
import argparse
from pprint import pprint


class Graph(object):
    def __init__(self, nodes, edges=None, loops=False, multigraph=False,
                 digraph=False):
        self.nodes = nodes
        if edges:
            self.edges = edges
            self.edge_set = self._compute_edge_set()
        else:
            self.edges = []
            self.edge_set = set()
        self.loops = loops
        self.multigraph = multigraph
        self.digraph = digraph

    def _compute_edge_set(self):
        raise NotImplementedError()

    def add_edge(self, edge):
        """Add the edge if the graph type allows it."""
        if self.multigraph or edge not in self.edge_set:
            self.edges.append(edge)
            self.edge_set.add(edge)
            if not self.digraph:
                self.edge_set.add(edge[::-1])  # add other direction to set.
            return True
        return False

    def make_random_edge(self):
        """Generate a random edge between any two nodes in the graph."""
        if self.loops:
            # With replacement.
            random_edge = (random.choice(self.nodes), random.choice(self.nodes))
        else:
            # Without replacement.
            random_edge = tuple(random.sample(self.nodes, 2))
        return random_edge

    def add_random_edges(self, total_edges):
        """Add random edges until the number of desired edges is reached."""
        while len(self.edges) < total_edges:
            self.add_edge(self.make_random_edge())

    def sort_edges(self):
        """If undirected, sort order that the nodes are listed in the edge."""
        if not self.digraph:
            self.edges = [((t, s) if t < s else (s, t)) for s, t in self.edges]
        self.edges.sort()

    def generate_gml(self):
        # Inspiration:
        # http://networkx.lanl.gov/_modules/networkx/readwrite/gml.html#generate_gml
        indent = ' ' * 4

        yield 'graph ['
        if self.digraph:
            yield indent + 'directed 1'

        # Write nodes
        for index, node in enumerate(self.nodes):
            yield indent + 'node ['
            yield indent * 2 + 'id {}'.format(index)
            yield indent * 2 + 'label "{}"'.format(str(node))
            yield indent + ']'

        # Write edges
        for source, target in self.edges:
            yield indent + 'edge ['
            yield indent * 2 + 'source {}'.format(self.nodes.index(source))
            yield indent * 2 + 'target {}'.format(self.nodes.index(target))
            yield indent + ']'

        yield ']'

    def write_gml(self, fname):
        with open(fname, mode='w') as f:
            for line in self.generate_gml():
                line += '\n'
                f.write(line.encode('latin-1'))


def check_num_edges(nodes, num_edges, loops, multigraph, digraph):
    """Checks that the number of requested edges is acceptable."""
    num_nodes = len(nodes)
    # Check min edges
    min_edges = num_nodes - 1
    if num_edges < min_edges:
        raise ValueError('num_edges less than minimum (%i)' % min_edges)
    # Check max edges
    max_edges = num_nodes * (num_nodes - 1)
    if not digraph:
        max_edges /= 2
    if loops:
        max_edges += num_nodes
    if not multigraph and num_edges > max_edges:
            raise ValueError('num_edges greater than maximum (%i)' % max_edges)


def naive(nodes, num_edges, loops=False, multigraph=False, digraph=False):
    # Idea:
    # Each node starts off in its own component.
    # Keep track of the components, combining them when an edge merges two.
    # While there are less edges than requested:
    #     Randomly select two nodes, and create an edge between them.
    # If there is more than one component remaining, repeat the process.

    check_num_edges(nodes, num_edges, loops, multigraph, digraph)

    def update_components(components, edge):
        # Update the component list.
        comp_index = [None] * 2
        for index, comp in enumerate(components):
            for i in (0, 1):
                if edge[i] in comp:
                    comp_index[i] = index
            # Break early once we have found both sets.
            if all(x is not None for x in comp_index):
                break
        # Combine components if the nodes aren't already in the same one.
        if comp_index[0] != comp_index[1]:
            components[comp_index[0]] |= components[comp_index[1]]
            del components[comp_index[1]]

    finished = False
    while not finished:
        graph = Graph(nodes, loops=loops, multigraph=multigraph, digraph=digraph)
        # Start with each node in its own component.
        components = [set([x]) for x in nodes]
        while len(graph.edges) < num_edges:
            # Generate a random edge.
            edge = graph.make_random_edge()
            if graph.add_edge(edge):
                # Update the component list.
                update_components(components, edge)
        if len(components) == 1:
            finished = True

    return graph


def partition(nodes, num_edges, loops=False, multigraph=False, digraph=False):
    # Algorithm inspiration:
    # http://stackoverflow.com/questions/2041517/random-simple-connected-graph-generation-with-given-sparseness

    # Idea:
    # Create a random connected graph by adding edges between nodes from
    # different partitions.
    # Add random edges until the number of desired edges is reached.

    check_num_edges(nodes, num_edges, loops, multigraph, digraph)

    graph = Graph(nodes, loops=loops, multigraph=multigraph, digraph=digraph)

    # Create two partitions, S and T. Initially store all nodes in S.
    S, T = set(nodes), set()

    # Randomly select a first node, and place it in T.
    node_s = random.sample(S, 1).pop()
    S.remove(node_s)
    T.add(node_s)

    # Create a random connected graph.
    while S:
        # Select random node from S, and another in T.
        node_s, node_t = random.sample(S, 1).pop(), random.sample(T, 1).pop()
        # Create an edge between the nodes, and move the node from S to T.
        edge = (node_s, node_t)
        assert graph.add_edge(edge) == True
        S.remove(node_s)
        T.add(node_s)

    # Add random edges until the number of desired edges is reached.
    graph.add_random_edges(num_edges)

    return graph


def random_walk(nodes, num_edges, loops=False, multigraph=False, digraph=False):
    # Algorithm inspiration:
    # https://en.wikipedia.org/wiki/Uniform_spanning_tree#The_uniform_spanning_tree

    # Idea:
    # Create a uniform spanning tree (UST) using a random walk.
    # Add random edges until the number of desired edges is reached.

    check_num_edges(nodes, num_edges, loops, multigraph, digraph)

    # Create two partitions, S and T. Initially store all nodes in S.
    S, T = set(nodes), set()

    # Pick a random node, and mark it as visited and the current node.
    current_node = random.sample(S, 1).pop()
    S.remove(current_node)
    T.add(current_node)

    graph = Graph(nodes, loops=loops, multigraph=multigraph, digraph=digraph)

    # Create a random connected graph.
    while S:
        # Randomly pick the next node from the neighbors of the current node.
        # As we are generating a connected graph, we assume a complete graph.
        neighbor_node = random.sample(nodes, 1).pop()
        # If the new node hasn't been visited, add the edge from current to new.
        if neighbor_node not in T:
            edge = (current_node, neighbor_node)
            graph.add_edge(edge)
            S.remove(neighbor_node)
            T.add(neighbor_node)
        # Set the new node as the current node.
        current_node = neighbor_node

    # Add random edges until the number of desired edges is reached.
    graph.add_random_edges(num_edges)

    return graph


def wilsons_algo(nodes, num_edges, loops=False, multigraph=False, digraph=False):
    # Algorithm inspiration:
    # https://en.wikipedia.org/wiki/Uniform_spanning_tree#The_uniform_spanning_tree

    # Idea:
    # Create a uniform spanning tree (UST) using Wilson's algorithm:
    #     Start with two random vertices.
    #     Perform a (loop-erased) random walk between the two nodes.
    #     While there are still nodes not in the tree:
    #         Pick a random node not in the tree.
    #         Perform a random walk from this node until hitting the tree.
    # Add random edges until the number of desired edges is reached.

    check_num_edges(nodes, num_edges, loops, multigraph, digraph)

    graph = Graph(nodes, loops=loops, multigraph=multigraph, digraph=digraph)

    raise NotImplementedError()


if __name__ == '__main__':
    parser = argparse.ArgumentParser(description=__doc__)
    parser.add_argument('nodes',
                        help='filename containing node labels (one per line) '
                             'OR integer number of nodes to generate')
    parser.add_argument('-e', '--edges', type=int,
                        help='number of edges (default is minimum possible)')
    parser.add_argument('-l', '--loops', action='store_true',
                        help='allow self-loop edges')
    parser.add_argument('-m', '--multigraph', action='store_true',
                        help='allow parallel edges between nodes')
    parser.add_argument('-d', '--digraph', action='store_true',
                        help='make edges unidirectional')
    parser.add_argument('-w', '--wilson', action='store_const',
                        const='wilsons_algo', dest='approach',
                        help="use wilson's generation algorithm (best)")
    parser.add_argument('-r', '--random-walk', action='store_const',
                        const='random_walk', dest='approach',
                        help='use a random-walk generation algorithm (default)')
    parser.add_argument('-n', '--naive', action='store_const',
                        const='naive', dest='approach',
                        help='use a naive generation algorithm (slower)')
    parser.add_argument('-t', '--partition', action='store_const',
                        const='partition', dest='approach',
                        help='use a partition-based generation algorithm (biased)')
    parser.add_argument('--no-output', action='store_true',
                        help='do not display any output')
    parser.add_argument('-p', '--pretty', action='store_true',
                        help='print large graphs with each edge on a new line')
    parser.add_argument('-g', '--gml',
                        help='filename to save the graph to in GML format')
    args = parser.parse_args()

    # Nodes
    try:
        nodes = []
        with open(args.nodes) as f:
            for line in f:
                nodes.append(line.strip())
    except IOError:
        try:
            nodes = [x for x in xrange(int(args.nodes))]
        except ValueError:
            raise TypeError('nodes argument must be a filename or an integer')

    # Edges
    if args.edges is None:
        num_edges = len(nodes) - 1
    else:
        num_edges = args.edges

    # Approach
    if args.approach:
        print 'Setting approach:', args.approach
        approach = locals()[args.approach]
    else:
        approach = random_walk

    # Run
    graph = approach(nodes, num_edges, args.loops, args.multigraph,
                     args.digraph)

    # Display
    if not args.no_output:
        graph.sort_edges()
        if args.pretty:
            pprint(graph.edges)
        else:
            print(graph.edges)

    # Save to GML
    if args.gml:
        graph.write_gml(args.gml)
